Multimedia Systems and equipment for vehicles - Surround view system - Part 2: Recording methods of the surround view system

IEC 63033-2:2022 is available as IEC 63033-2:2022 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.
IEC 63033-2:2022 specifies recording methods of the surround view system that is specified in IEC 63033-1 in order to view the video file recorded with "free eye point" technology. IEC 63033-2:2022 cancels and replaces the first edition published in 2018. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
a) updates to the text and the title to reflect the change of the scope of the IEC 63033 series.

Systèmes et équipements multimédias pour véhicules - Système de vision panoramique - Partie 2: Méthodes d'enregistrement du système de vision panoramique

IEC 63033-2:2022 est disponible sous forme de IEC 63033-2:2022 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.
L'IEC 63033-2:2022 spécifie les méthodes d'enregistrement du système de vision panoramique défini dans l'IEC 63033-1 afin de permettre le visionnage du fichier vidéo enregistré à l'aide de la technologie "yeux libres". L'IEC 63033-2:2022 annule et remplace la première édition parue en 2018. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) mises à jour du texte et du titre afin de refléter la modification du domaine d'application de la série IEC 63033.

General Information

Status
Published
Publication Date
19-Apr-2022
Current Stage
PPUB - Publication issued
Completion Date
20-Apr-2022
Ref Project

Buy Standard

Standard
IEC 63033-2:2022 - Multimedia Systems and equipment for vehicles - Surround view system - Part 2: Recording methods of the surround view system
English and French language
20 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

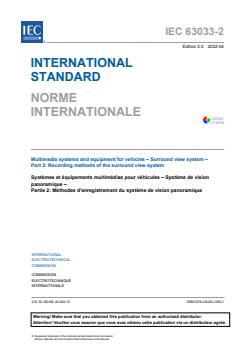

IEC 63033-2
Edition 2.0 2022-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Multimedia systems and equipment for vehicles – Surround view system –
Part 2: Recording methods of the surround view system
Systèmes et équipements multimédias pour véhicules – Système de vision
panoramique –
Partie 2: Méthodes d'enregistrement du système de vision panoramique
IEC 63033-2:2022-04(en-fr)
---------------------- Page: 1 ----------------------

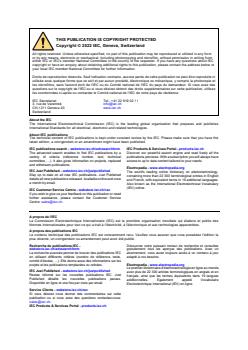

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2022 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni

utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et

les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch

The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the

variety of criteria (reference number, text, technical publications previews. With a subscription you will always have

committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.

and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Découvrez notre puissant moteur de recherche et consultez

webstore.iec.ch/advsearchform gratuitement tous les aperçus des publications. Avec un

La recherche avancée permet de trouver des publications IEC abonnement, vous aurez toujours accès à un contenu à jour

en utilisant différents critères (numéro de référence, texte, adapté à vos besoins.

comité d’études, …). Elle donne aussi des informations sur les

projets et les publications remplacées ou retirées. Electropedia - www.electropedia.org

Le premier dictionnaire d'électrotechnologie en ligne au monde,
IEC Just Published - webstore.iec.ch/justpublished
avec plus de 22 300 articles terminologiques en anglais et en
Restez informé sur les nouvelles publications IEC. Just
français, ainsi que les termes équivalents dans 19 langues
Published détaille les nouvelles publications parues.
additionnelles. Egalement appelé Vocabulaire
Disponible en ligne et une fois par mois par email.
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC Products & Services Portal - products.iec.ch
---------------------- Page: 2 ----------------------
IEC 63033-2
Edition 2.0 2022-04
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Multimedia systems and equipment for vehicles – Surround view system –
Part 2: Recording methods of the surround view system
Systèmes et équipements multimédias pour véhicules – Système de vision
panoramique –
Partie 2: Méthodes d'enregistrement du système de vision panoramique
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 33.160.99; 43.040.15 ISBN 978-2-8322-1095-1

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

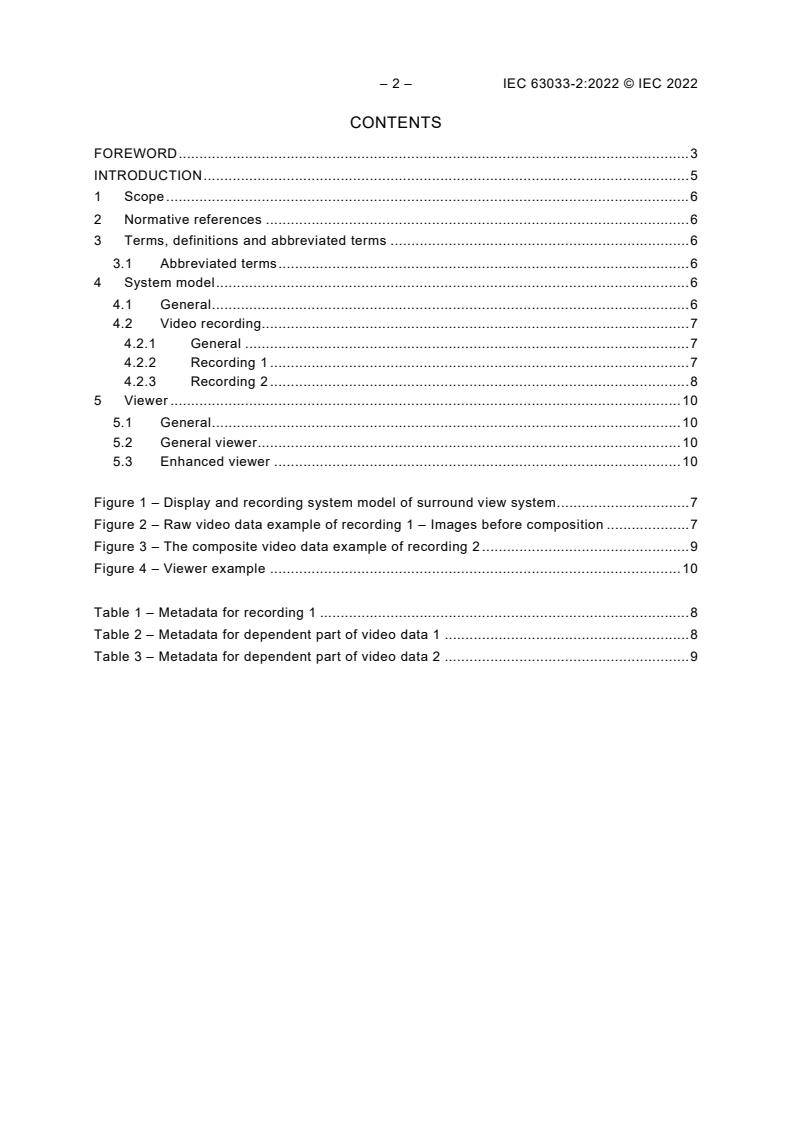

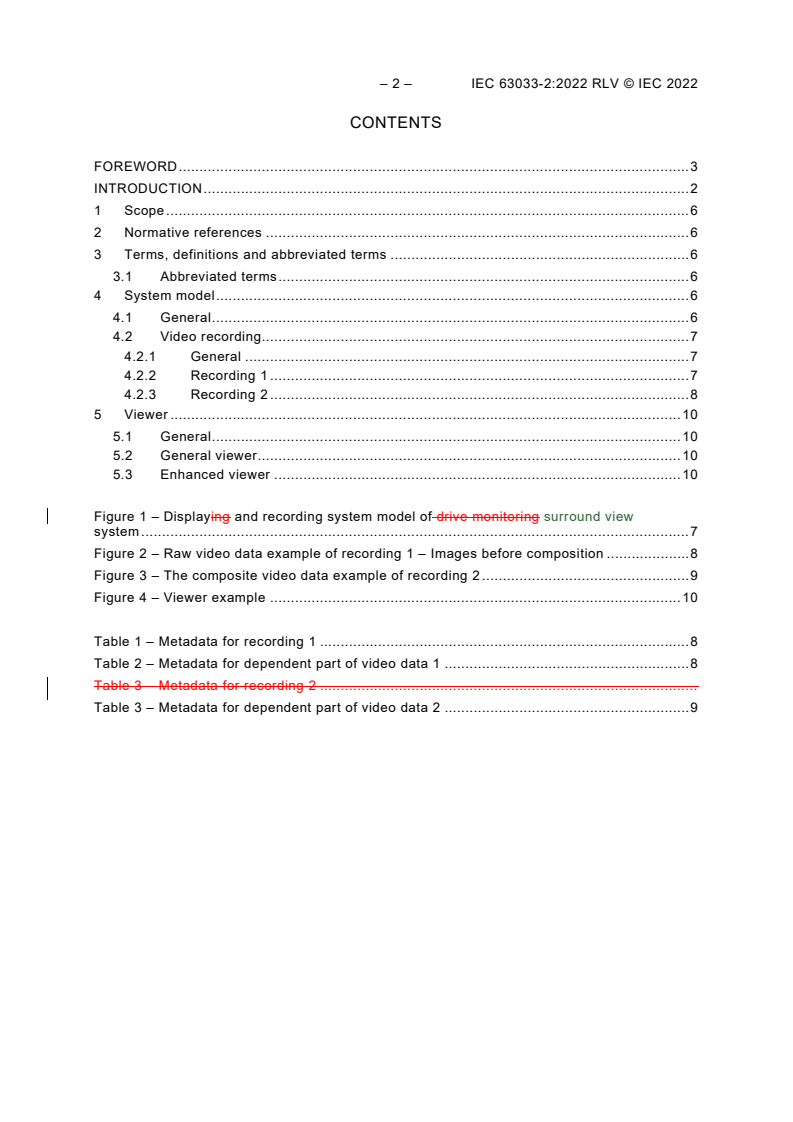

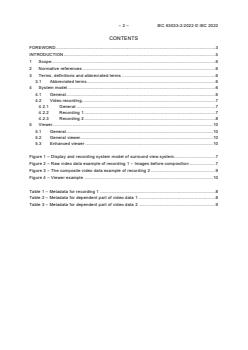

– 2 – IEC 63033-2:2022 © IEC 2022
CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms, definitions and abbreviated terms ........................................................................ 6

3.1 Abbreviated terms ................................................................................................... 6

4 System model .................................................................................................................. 6

4.1 General ................................................................................................................... 6

4.2 Video recording....................................................................................................... 7

4.2.1 General ........................................................................................................... 7

4.2.2 Recording 1 ..................................................................................................... 7

4.2.3 Recording 2 ..................................................................................................... 8

5 Viewer ........................................................................................................................... 10

5.1 General ................................................................................................................. 10

5.2 General viewer ...................................................................................................... 10

5.3 Enhanced viewer .................................................................................................. 10

Figure 1 – Display and recording system model of surround view system ................................ 7

Figure 2 – Raw video data example of recording 1 – Images before composition .................... 7

Figure 3 – The composite video data example of recording 2 .................................................. 9

Figure 4 – Viewer example ................................................................................................... 10

Table 1 – Metadata for recording 1 ......................................................................................... 8

Table 2 – Metadata for dependent part of video data 1 ........................................................... 8

Table 3 – Metadata for dependent part of video data 2 ........................................................... 9

---------------------- Page: 4 ----------------------
IEC 63033-2:2022 © IEC 2022 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
MULTIMEDIA SYSTEMS AND EQUIPMENT FOR VEHICLES –
SURROUND VIEW SYSTEM –
Part 2: Recording methods of the surround view system
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international

co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and

in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,

Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their

preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with

may participate in this preparatory work. International, governmental and non-governmental organizations liaising

with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for

Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence between

any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent

rights. IEC shall not be held responsible for identifying any or all such patent rights.

IEC 63033-2 has been prepared by technical area 17: Multimedia systems and equipment for

vehicles, of IEC technical committee 100: Audio, video and multimedia systems and equipment.

It is an International Standard.

This second edition cancels and replaces the first edition published in 2018. This edition

constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:

a) updates to the text and the title to reflect the change of the scope of the IEC 63033 series.

---------------------- Page: 5 ----------------------
– 4 – IEC 63033-2:2022 © IEC 2022
The text of this International Standard is based on the following documents:
Draft Report on voting
100/3733/FDIS 100/3752/RVD

Full information on the voting for its approval can be found in the report on voting indicated in

the above table.
The language used for the development of this International Standard is English.

A list of all parts in the IEC 63033 series, published under the general title Multimedia systems

and equipment for vehicles – Surround view system, can be found on the IEC website.

This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in

accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available

at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are

described in greater detail at www.iec.ch/standardsdev/publications.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under webstore.iec.ch in the data related to the

specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct understanding

of its contents. Users should therefore print this document using a colour printer.

---------------------- Page: 6 ----------------------
IEC 63033-2:2022 © IEC 2022 – 5 –
INTRODUCTION

This document specifies recording methods of the surround view system specified in

IEC 63033-1, which also specifies the model for generating the surrounding visual image of the

surround view system. The system allows drivers to monitor the vehicle's perimeter in real time

by using "free eye point" technology, which allows drivers to dynamically change the viewing

perspective, offering the most appropriate views according to the driving situation.

---------------------- Page: 7 ----------------------
– 6 – IEC 63033-2:2022 © IEC 2022
MULTIMEDIA SYSTEMS AND EQUIPMENT FOR VEHICLES –
SURROUND VIEW SYSTEM –
Part 2: Recording methods of the surround view system
1 Scope

This part of IEC 63033 specifies recording methods of the surround view system that is specified

in IEC 63033-1 in order to view the video file recorded with "free eye point" technology.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies.

For undated references, the latest edition of the referenced document (including any

amendments) applies.

IEC 63033-1, Multimedia systems and equipment for vehicles – Surround view system – Part 1:

General
3 Terms, definitions and abbreviated terms
No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1 Abbreviated terms
SIM stream information and metadata
GNSS global navigation satellite system
4 System model
4.1 General

This document specifies the recording methods of footage obtained from a vehicle-mounted

camera that is part of the surround view system, and also specifies a model for the replay of

the recorded video. The replay of the recorded video can serve a number of purposes, such as

the verification of the reasons of an accident, as legal proof, for reviewing driving behaviour,

and use at educational sites.

There are two types of recorded videos: recording of each camera image (referred to as

"recording 1"), and recording of the composite image (referred to as "recording 2"). For use

when the recorded videos are played back, the related metadata (refer to 4.2.2.3 and 4.2.3.3)

is simultaneously saved in recording 1 and recording 2. These recorded files are transferred by

a portable recording medium or via a network, where they can be later played back by the user.

The user can also recreate the composite image by using the stored metadata by using the free

eye point function in the viewer (refer to Clause 5).
---------------------- Page: 8 ----------------------
IEC 63033-2:2022 © IEC 2022 – 7 –
Figure 1 – Display and recording system model of surround view system
4.2 Video recording
4.2.1 General

There are two types of recording files provided by the driver monitor system and as shown

Figure 1: recording 1 and recording 2.
4.2.2 Recording 1
4.2.2.1 General

Recording 1 consists of both the raw video data (before the composite image is created) as

obtained by each camera, and the related metadata (refer to 4.2.2.3). Using both the video data

and the metadata enables the user to create a new composite image. The user can change the

viewpoint freely while viewing the composite image. In addition, they can also see a vehicle's

surroundings instantly in a single composite image.
4.2.2.2 Video data

The raw video data obtained from the vehicle-mounted cameras is recorded. The raw video

data example is described in Figure 2.

Since the recording is pre-composition, there is no distortion, and the image cut-off is as directly

input from each vehicle-mounted camera. This method allows for the full image to be transferred,

thus keeping most of the original image information.
Figure 2 – Raw video data example of recording 1 – Images before composition
4.2.2.3 Metadata for recording 1

The metadata listed in Table 1 and Table 2 shall be saved together with the video data. Some

metadata will be included in the SIM source packet.
---------------------- Page: 9 ----------------------
– 8 – IEC 63033-2:2022 © IEC 2022
Table 1 – Metadata for recording 1
Metadata Explanation Mandatory
It is necessary to identify the exact time when a certain event
occurred. The time information is generally extracted from
Timestamp GNSS. If GNSS is not included in the system, the time ✔
information can be extracted from another system equivalent
to GNSS.
It is necessary to identify details about the location and the
GNSS ✔
exact time when a certain event occurred.
It is necessary to specify which vehicle the recorded file came
ID data ✔
from.
It is necessary to identify details about orientation when a
Orientation ✔
certain event occurred.
Table 2 – Metadata for dependent part of video data 1
Metadata Explanation Mandatory
The optical axis shift adjusts the central coordinates and the
captured image's width and height.
Optical axis shift data ✔
For details, see IEC 63033-1.
Distortion data of the lens used for each camera.
Lens distortion data ✔
For details, see IEC 63033-1.
Camera position information consisting of mounted camera
position (X, Y, Z) at the optics' centre (mm) and camera angle
Camera position and direction
(tilt angle ψ, rot angle φ, pan angle θ) at optical axis
data
direction (°).
For details, see IEC 63033-1.
The same viewpoint position data as registered to make the
Viewpoint position and Preferable to
existing composite image. It contains the virtual viewpoint
direction data be saved
position (X, Y, Z), angle, and virtual 3D projection surface.
The same 3D vehicle model data and size as registered to
make the existing composite image. It contains 3D model
3D vehicle model data and Preferable to
data, transparency, and the vehicle dimensions of the drawing
size be saved
representing the model of the vehicle (left, front, right, bottom,
tail, top) expressed in mm.
4.2.3 Recording 2
4.2.3.1 General

Recording 2 records both the composite image video data and the related metadata (refer to

4.2.3.3) at the same time. The composite image video data example is described in Figure 3.

Users cannot change the viewpoint while viewing the composite image. However, the user can

instantly view the vehicle's surroundings through a specific pre-set composite image regardless

of the viewer used (see Clause 5 for details).
---------------------- Page: 10 ----------------------
IEC 63033-2:2022 © IEC 2022 – 9 –
Figure 3 – The composite video data example of recording 2
4.2.3.2 Video data
The composite video data obtained from vehicle-mounted cameras is recorded.

Compared to the case of recording the raw video data captured by all the cameras, it can reduce

the data size and memory required since only the composite result is recorded. On the other

hand, the image information from each camera that has not been used in the composite image

will
...
