IEC 62442-3:2022
(Main)Energy performance of lamp controlgear - Part 3: Controlgear for tungsten-halogen lamps and LED light sources - Method of measurement to determine the efficiency of controlgear
Energy performance of lamp controlgear - Part 3: Controlgear for tungsten-halogen lamps and LED light sources - Method of measurement to determine the efficiency of controlgear
IEC 62442-3:2022 defines measurement and calculation methods for specifying the efficiency and the standby power of controlgear for tungsten-halogen lamps and LED light sources. This third edition cancels and replaces the second edition published in 2018. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- this edition has been harmonized with IEC 62442-1 and IEC 62442-2;
- the reference to and use of the measurement methods for non-active power consumption in accordance with IEC 63103 have been added.
Performance énergétique des appareillages de lampes - Partie 3: Appareillages des lampes tungstène-halogène et des sources lumineuses à LED - Méthode de mesurage pour la détermination du rendement des appareillages
L'IEC 62442-3:2022 définit les méthodes de mesurage et de calcul afin de spécifier le rendement et la puissance de veille des appareillages des lampes tungstène-halogène et des sources lumineuses à LED. Cette troisième édition annule et remplace la deuxième édition parue en 2018. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
- cette édition a été harmonisée avec l'IEC 62442-1 et l'IEC 62442-2;
- des références à l'IEC 63103 ont été ajoutées afin d'appliquer les méthodes de mesurage de la consommation de puissance en mode non actif.
La version française de cette norme n'a pas été soumise au vote.
General Information
Relations
Buy Standard
Standards Content (Sample)
IEC 62442-3 ®
Edition 3.0 2022-02
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Energy performance of lamp controlgear –
Part 3: Controlgear for tungsten-halogen lamps and LED light sources – Method
of measurement to determine the efficiency of controlgear
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always have
committee, …). It also gives information on projects, replaced access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and once
and French, with equivalent terms in 19 additional languages.
a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or need
further assistance, please contact the Customer Service
Centre: sales@iec.ch.
IEC 62442-3 ®
Edition 3.0 2022-02
REDLINE VERSION
INTERNATIONAL
STANDARD
colour
inside
Energy performance of lamp controlgear –
Part 3: Controlgear for tungsten-halogen lamps and LED light sources – Method of
measurement to determine the efficiency of controlgear
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.140.99 ISBN 978-2-8322-5327-4
– 2 – IEC 62442-3:2022 RLV © IEC 2022
CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 General . 10
4.1 Applicability .
4.1 General notes on tests . 10
4.2 Controllable controlgear . 10
4.3 Measurement uncertainty . 10
4.4 Sampling of controlgear for testing . 10
4.5 Size of the test sample. 11
4.6 Power supply . 11
4.7 Supply voltage waveform . 11
4.8 Substitution load . 11
4.9 Thermocouple and temperature indicator . 12
4.10 Instrument accuracy . 12
4.11 Measuring circuits . 12
4.12 Multi-rated voltage controlgear . 13
4.13 Multi-power controlgear . 13
4.14 Sensor and network connections . 13
5 Method of measurement and calculation of the efficiency of controlgear
(transformer, convertor) for tungsten-halogen lamps and for LED light sources . 13
5.1 Measurement set-up: input and output power . 13
5.2 Efficiency calculation for electromagnetic (transformer) and electronic
(convertor) controlgear. 14
5.3 Measurement set-up: input power in no-load mode . 15
5.4 Standby power measurement of convertor-electronic controlgear . 16
5.5 Networked standby power measurement . 17
5.6 Reporting of power measurements . 17
Bibliography . 18
Figure 1 – Power losses measurement set-up for electromagnetic controlgear
(transformer) and input and output power measurement set-up for convertor (electronic
controlgear) . 14
Figure 2 – Input power in no-load mode measurement setup for electromagnetic
controlgear (transformer) and for convertor (electronic controlgear) .
Figure 3 – Measurement setup of the standby power of convertor-electronic
controlgear .
Table 1 – Typical nominal electricity supply details for some regions . 11
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ENERGY PERFORMANCE OF LAMP CONTROLGEAR –
Part 3: Controlgear for tungsten-halogen lamps and LED light sources –
Method of measurement to determine the efficiency of controlgear
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
This redline version of the official IEC Standard allows the user to identify the changes made to
the previous edition IEC 62442-3:2018. A vertical bar appears in the margin wherever a change
has been made. Additions are in green text, deletions are in strikethrough red text.
– 4 – IEC 62442-3:2022 RLV © IEC 2022
IEC 62442-3 has been prepared by subcommittee 34C: Auxiliaries for lamps, of IEC technical
committee 34: Lighting. It is an International Standard.
This third edition cancels and replaces the second edition published in 2018. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) this edition has been harmonized with IEC 62442-1 and IEC 62442-2;
b) the reference to and use of the measurement methods for non-active power consumption in
accordance with IEC 63103 have been added.
The text of this International Standard is based on the following documents:
Draft Report on voting
34C/1547/FDIS 34C/1550/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/standardsdev/publications.
A list of all parts in the IEC 62442 series, published under the general title Energy performance
of lamp controlgear, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates that it
contains colours which are considered to be useful for the correct understanding of its
contents. Users should therefore print this document using a colour printer.
ENERGY PERFORMANCE OF LAMP CONTROLGEAR –
Part 3: Controlgear for tungsten-halogen lamps and LED light sources –
Method of measurement to determine the efficiency of controlgear
1 Scope
This part of IEC 62442 defines a measurement method for the power losses of electromagnetic
transformers as well as the power losses and the standby power of electronic convertors for
tungsten-halogen lamps and for LED light source(s).
This part of IEC 62442 defines measurement and calculation methods for specifying the
efficiency and the standby power of controlgear for tungsten-halogen lamps and LED light
sources.
NOTE 1 This includes electromagnetic transformers and electronic convertors for tungsten-halogen lamps, as well
as electronic controlgear for LED light source(s).
NOTE 2 The term "LED light sources" includes LED modules and LED lamps.
This document is applicable for controlgear designed for use on DC supplies up to 1 000 V
and/or AC supplies up to 1 000 V at 50 Hz or 60 Hz.
A calculation method of the efficiency of the mentioned controlgear for tungsten-halogen lamps
and LED light source(s) is also defined.
This document applies to electrical cont
...
IEC 62442-3 ®
Edition 3.0 2022-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Energy performance of lamp controlgear –
Part 3: Controlgear for tungsten-halogen lamps and LED light sources – Method
of measurement to determine the efficiency of controlgear
Performance énergétique des appareillages de lampes –
Partie 3: Appareillages des lampes tungstène-halogène et des sources
lumineuses à LED – Méthode de mesurage pour la détermination du rendement
des appareillages
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

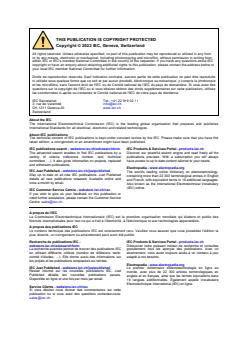

IEC Secretariat Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 300 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 19 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 300 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
19 langues additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.

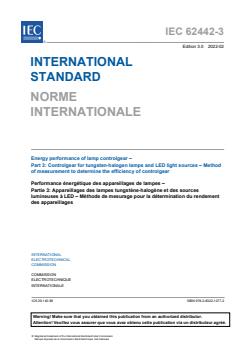

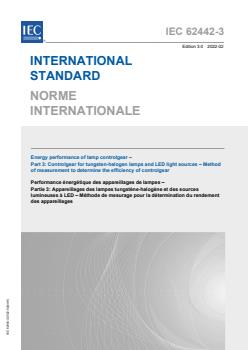

IEC 62442-3 ®
Edition 3.0 2022-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Energy performance of lamp controlgear –
Part 3: Controlgear for tungsten-halogen lamps and LED light sources – Method
of measurement to determine the efficiency of controlgear
Performance énergétique des appareillages de lampes –
Partie 3: Appareillages des lampes tungstène-halogène et des sources
lumineuses à LED – Méthode de mesurage pour la détermination du rendement
des appareillages
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.99 ISBN 978-2-8322-1077-2
– 2 – IEC 62442-3:2022 © IEC 2022

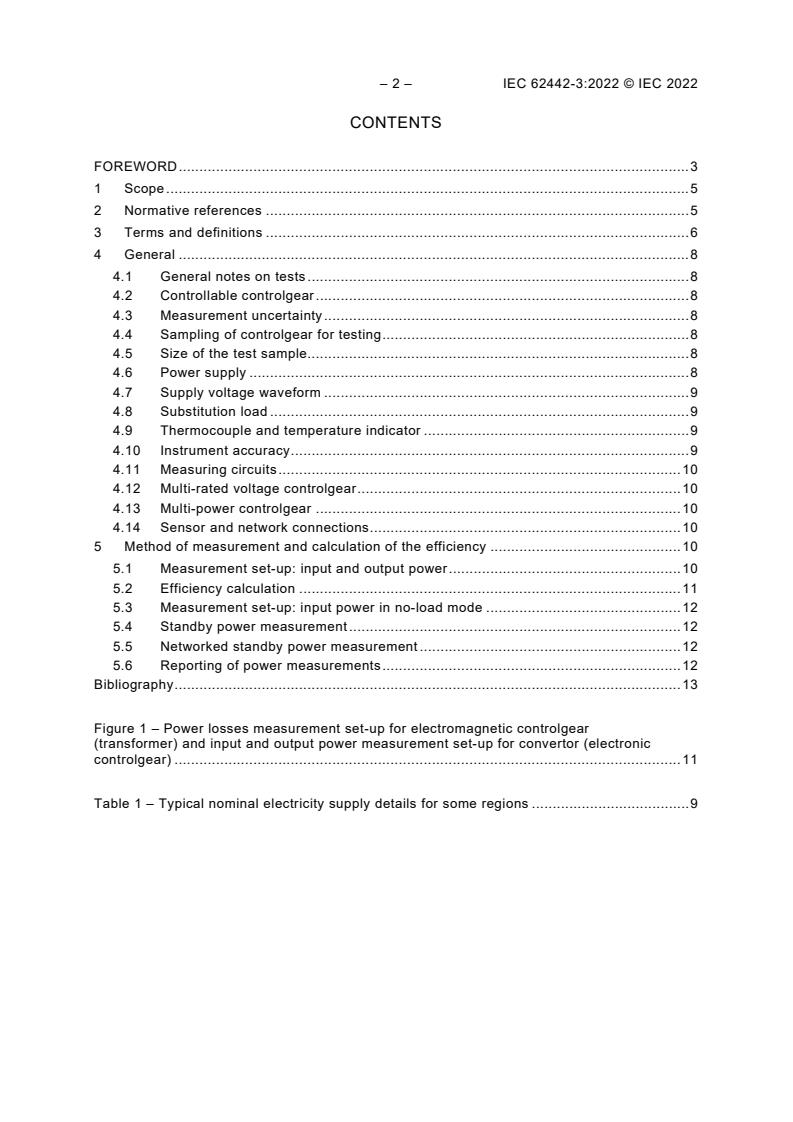

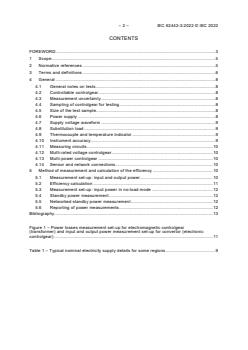

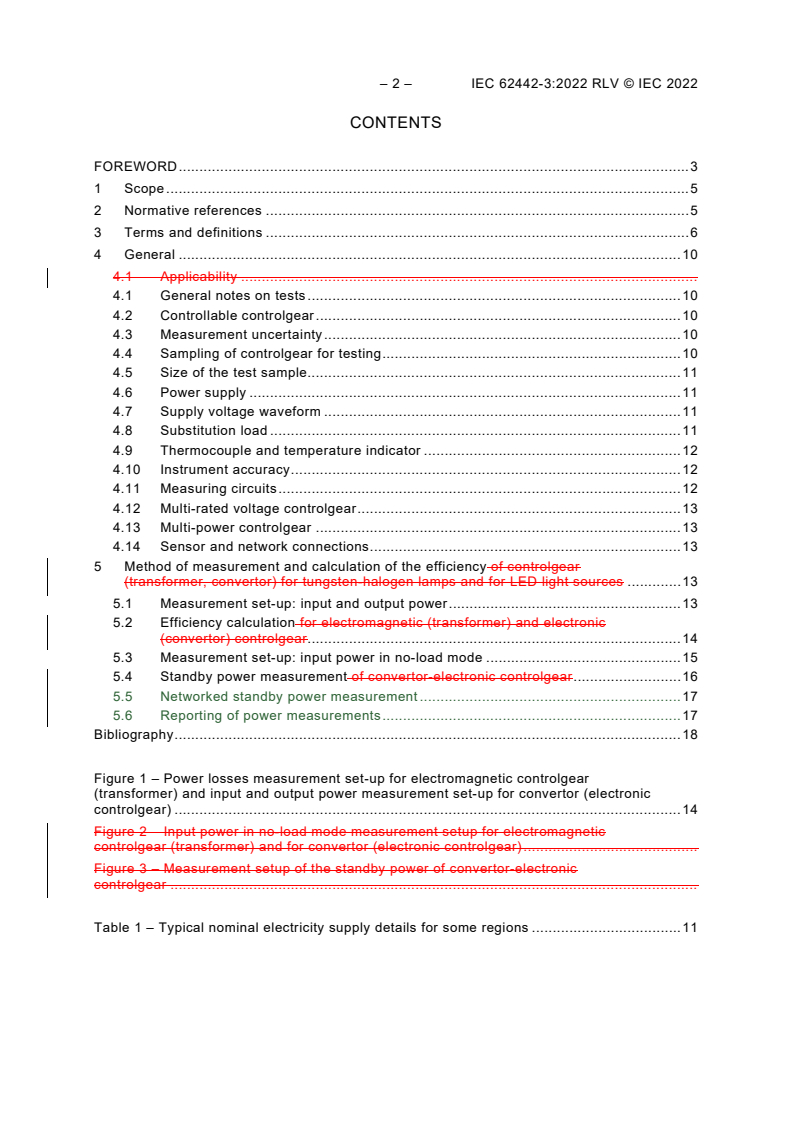

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 General . 8
4.1 General notes on tests . 8
4.2 Controllable controlgear . 8
4.3 Measurement uncertainty . 8
4.4 Sampling of controlgear for testing . 8
4.5 Size of the test sample. 8
4.6 Power supply . 8
4.7 Supply voltage waveform . 9
4.8 Substitution load . 9
4.9 Thermocouple and temperature indicator . 9
4.10 Instrument accuracy . 9
4.11 Measuring circuits . 10
4.12 Multi-rated voltage controlgear . 10
4.13 Multi-power controlgear . 10
4.14 Sensor and network connections . 10
5 Method of measurement and calculation of the efficiency . 10
5.1 Measurement set-up: input and output power . 10
5.2 Efficiency calculation . 11
5.3 Measurement set-up: input power in no-load mode . 12
5.4 Standby power measurement . 12
5.5 Networked standby power measurement . 12
5.6 Reporting of power measurements . 12
Bibliography . 13
Figure 1 – Power losses measurement set-up for electromagnetic controlgear
(transformer) and input and output power measurement set-up for convertor (electronic
controlgear) . 11
Table 1 – Typical nominal electricity supply details for some regions . 9
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ENERGY PERFORMANCE OF LAMP CONTROLGEAR –
Part 3: Controlgear for tungsten-halogen lamps and LED light sources –
Method of measurement to determine the efficiency of controlgear
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
IEC 62442-3 has been prepared by subcommittee 34C: Auxiliaries for lamps, of IEC technical
committee 34: Lighting. It is an International Standard.
This third edition cancels and replaces the second edition published in 2018. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) this edition has been harmonized with IEC 62442-1 and IEC 62442-2;
b) the reference to and use of the measurement methods for non-active power consumption in
accordance with IEC 63103 have been added.
– 4 – IEC 62442-3:2022 © IEC 2022
The text of this International Standard is based on the following documents:
Draft Report on voting
34C/1547/FDIS 34C/1550/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_exper
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
