Clevis and tongue couplings of string insulator units - Dimensions

IEC 60471:2020 applies to string insulator units of the cap and pin type and also of the long rod type as well as the fittings used with such insulators. The object of this document is to define the dimensions of a series of clevis and tongue couplings to permit the assembly of insulators or fittings supplied by different manufacturers.
This third edition cancels and replaces the second edition published in 1977. This edition includes the following significant technical changes with respect to the previous edition:
- there are no new clevis and tongue couplings;
- For the dimensions of the existing designated size of couplings that characterize the same location, the effective number of the size is unified.

Assemblages à chape et tenon des éléments de chaînes d'isolateurs - Dimensions

IEC 60471:2020 s’applique aux éléments de chaînes d’isolateurs de type à capot, à tige et également à long fût ainsi qu’aux accessoires métalliques qui leur sont associés. L’objet du présent document est de définir les dimensions d’une série d’assemblages à chape et tenon afin de permettre l’assemblage d’isolateurs ou d’accessoires métalliques fournis par différents fabricants.
Cette troisième édition annule et remplace la deuxième édition parue en 1977. La présente édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente:
- Selon les résultats du questionnaire (36/424/Q), il est confirmé qu’il n’existe pas de nouveaux assemblages à chape et tenon;
- Concernant les dimensions de tailles d’assemblage normalisées existantes qui caractérisent le même emplacement, le nombre de la taille en vigueur est unifié.

General Information

Status
Published
Publication Date
08-Jul-2020
Technical Committee
Current Stage
PPUB - Publication issued
Completion Date
09-Jul-2020
Ref Project

Buy Standard

Standard
IEC 60471:2020 - Clevis and tongue couplings of string insulator units - Dimensions
English and French language
20 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

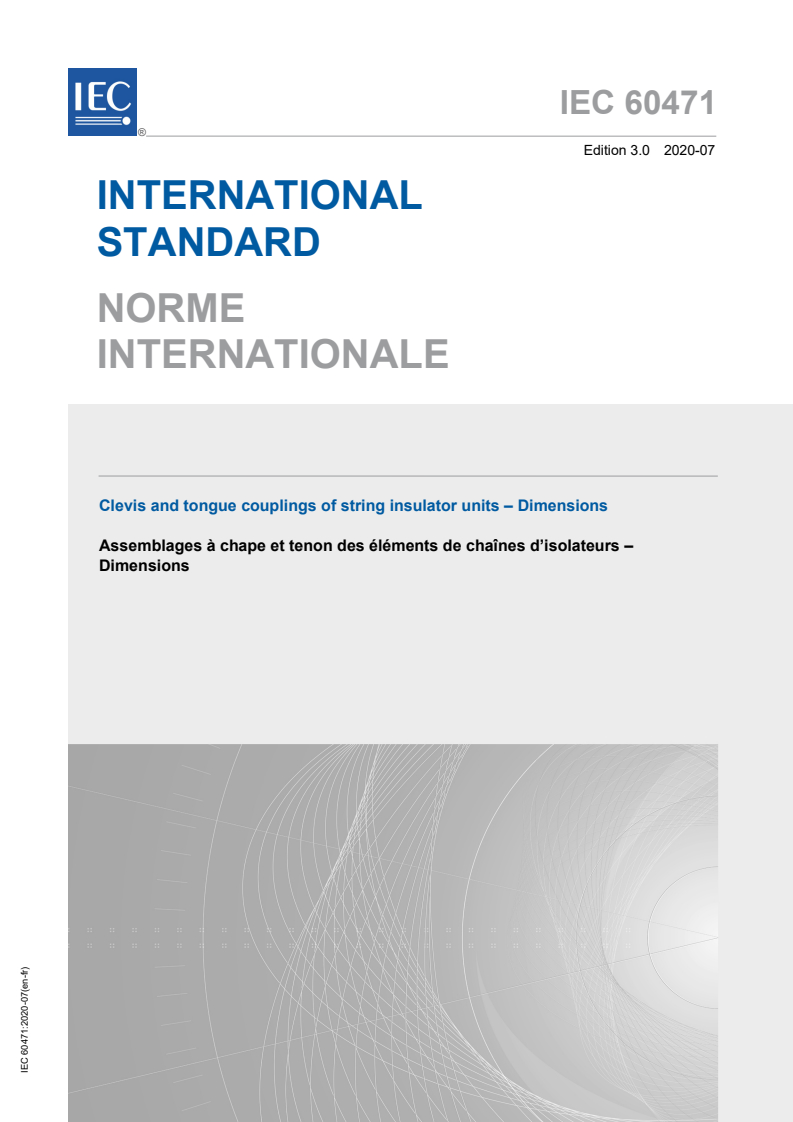

IEC 60471
Edition 3.0 2020-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Clevis and tongue couplings of string insulator units – Dimensions
Assemblages à chape et tenon des éléments de chaînes d’isolateurs –
Dimensions
IEC 60471:2020-07(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2020 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org

The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,

variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English

committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.

and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary

details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and

once a month by email. French extracted from the Terms and Definitions clause of

IEC publications issued since 2002. Some entries have been

IEC Customer Service Centre - webstore.iec.ch/csc collected from earlier publications of IEC TC 37, 77, 86 and

If you wish to give us your feedback on this publication or CISPR.
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - Electropedia - www.electropedia.org

webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en

en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans

comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire

projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary

Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais

Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et Définitions des

Disponible en ligne et une fois par mois par email. publications IEC parues depuis 2002. Plus certaines entrées

antérieures extraites des publications des CE 37, 77, 86 et
Service Clients - webstore.iec.ch/csc CISPR de l'IEC.
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
---------------------- Page: 2 ----------------------

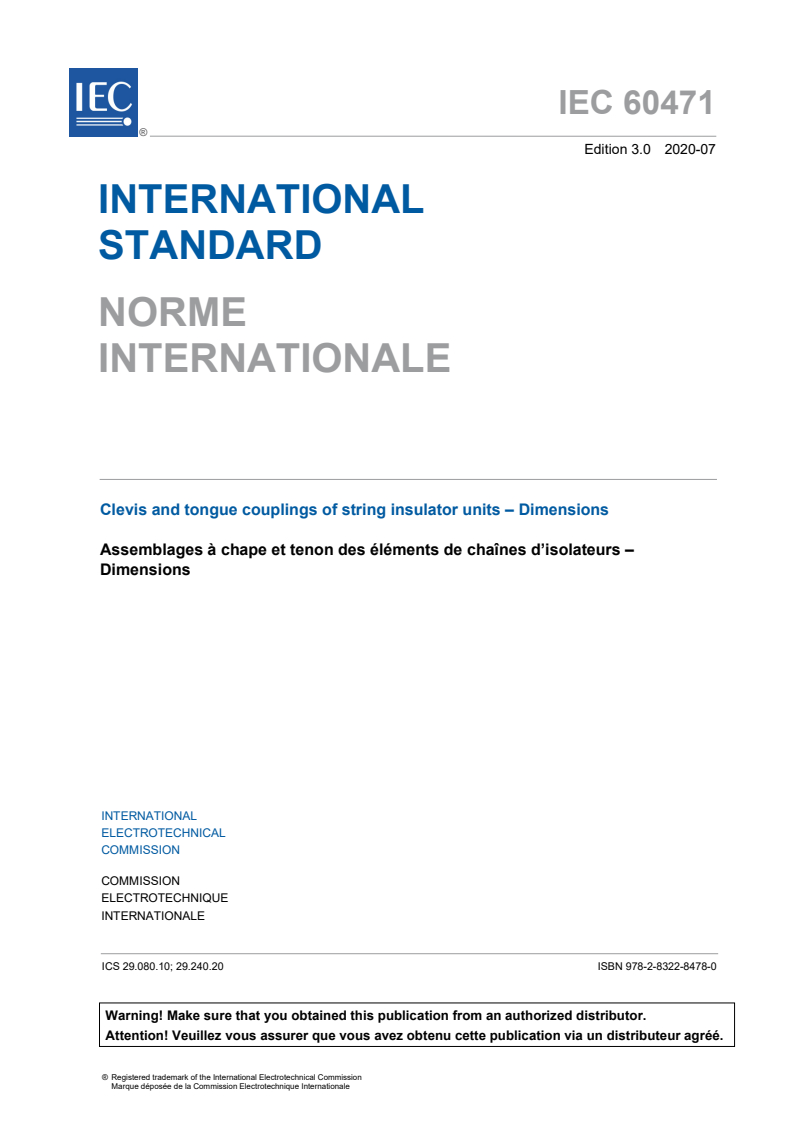

IEC 60471
Edition 3.0 2020-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Clevis and tongue couplings of string insulator units – Dimensions
Assemblages à chape et tenon des éléments de chaînes d’isolateurs –
Dimensions
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.080.10; 29.240.20 ISBN 978-2-8322-8478-0

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

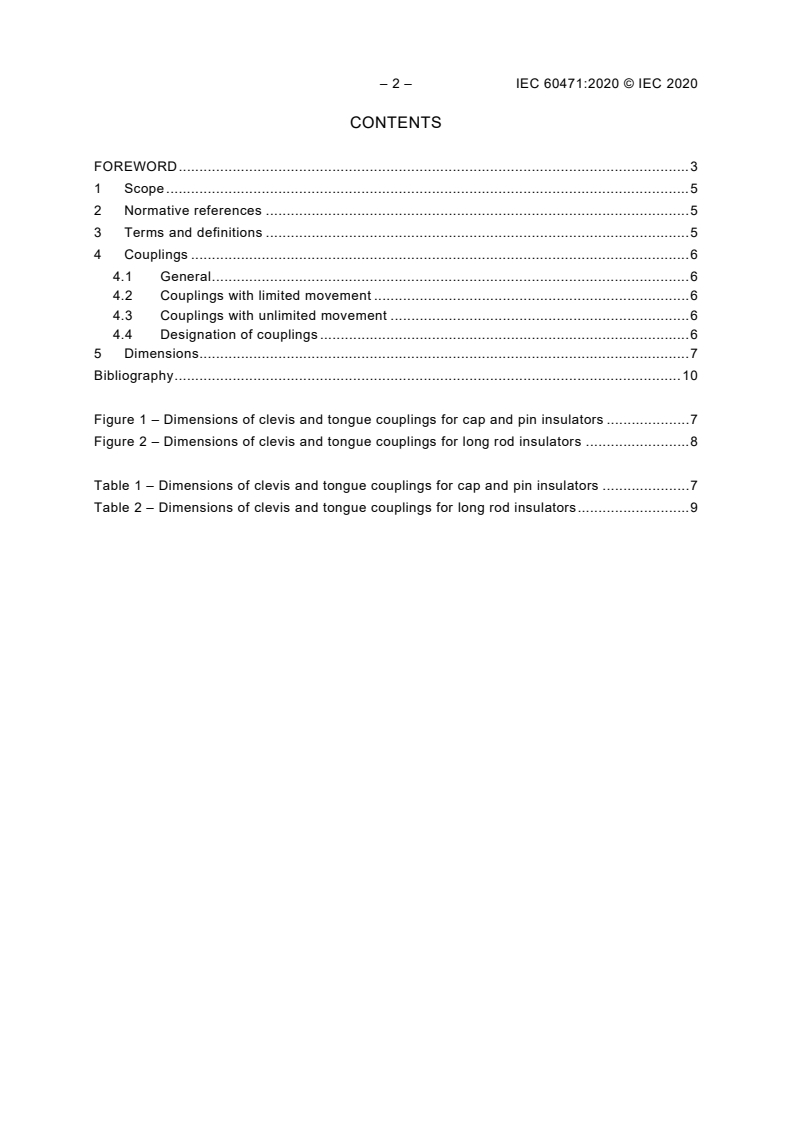

– 2 – IEC 60471:2020 © IEC 2020
CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope .............................................................................................................................. 5

2 Normative references ...................................................................................................... 5

3 Terms and definitions ...................................................................................................... 5

4 Couplings ........................................................................................................................ 6

4.1 General ................................................................................................................... 6

4.2 Couplings with limited movement ............................................................................ 6

4.3 Couplings with unlimited movement ........................................................................ 6

4.4 Designation of couplings ......................................................................................... 6

5 Dimensions...................................................................................................................... 7

Bibliography .......................................................................................................................... 10

Figure 1 – Dimensions of clevis and tongue couplings for cap and pin insulators .................... 7

Figure 2 – Dimensions of clevis and tongue couplings for long rod insulators ......................... 8

Table 1 – Dimensions of clevis and tongue couplings for cap and pin insulators ..................... 7

Table 2 – Dimensions of clevis and tongue couplings for long rod insulators ........................... 9

---------------------- Page: 4 ----------------------
IEC 60471:2020 © IEC 2020 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
CLEVIS AND TONGUE COUPLINGS OF
STRING INSULATOR UNITS – DIMENSIONS
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60471 has been prepared by IEC technical committee 36:

Insulators.

This third edition cancels and replaces the second edition published in 1977. This edition

constitutes a technical revision.

This edition includes the following significant technical changes with respect to the previous

edition:

a) According to the results of the questionnaire(36/424/Q), it is confirmed that there are no

new clevis and tongue couplings;

b) For the dimensions of the existing designated size of couplings that characterize the same

location, the effective number of the size is unified.
---------------------- Page: 5 ----------------------
– 4 – IEC 60471:2020 © IEC 2020
The text of this International Standard is based on the following documents:
FDIS Report on voting
36/484/FDIS 36/494/RVD

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
IEC 60471:2020 © IEC 2020 – 5 –
CLEVIS AND TONGUE COUPLINGS OF
STRING INSULATOR UNITS – DIMENSIONS
1 Scope

This international standard applies to string insulator units of the cap and pin type and also of

the long rod type as well as the fittings used with such insulators.

The object of this document is to define the dimensions of a series of clevis and tongue

couplings to permit the assembly of insulators or fittings supplied by different manufacturers.

NOTE 1 IEC 60305 gives the coordination between the standardized dimensions of Table 1 and the strength

classes of cap and pin insulator. IEC 60433 gives the coordination between the standardized dimensions of Table 2

and the strength classes of long rod insulators.

NOTE 2 If the dimensions given in Table 1 are not sufficient, higher strength classes are given in IEC 60305.

2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

IEC 60050-471:2007, International Electrotechnical Vocabulary (IEV) – Part 471: Insulators

IEC 60120:2020, Ball and socket couplings of string insulator units - Dimensions
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
clevis and tongue coupling

female part of a clevis and tongue coupling with a U-shaped opening into which the tongue

coupling can be fitted

Note 1 to entry: A clevis contains two holes through which the coupling pin may pass to couple the two

components.
3.2
clevis

female part of a clevis and tongue coupling with a U-shaped opening into which the tongue

coupling can be fitted

Note 1 to entry: A clevis contains two holes through which the coupling pin may pass to couple the two

components.
---------------------- Page: 7 ----------------------
– 6 – IEC 60471:2020 © IEC 2020
3.3
tongue

male part of a clevis and tongue coupling with a tongue-shaped extremity which fits into the

U-shaped opening of the clevis and which contains a hole through which the coupling pin may

be passed
3.4
coupling pin

rigid pin which passes through the holes in the clevis and tongue to couple them together

Note 1 to entry: On one end, the coupling pin has a stud head and on the other a security device (e.g. split pin) is

placed to hold the pin in its place.
4 Couplings
4.1 General
Two coupling systems are recommended:
– Couplings with limited movement;
– Couplings with unlimited movement.
4.2 Couplings with limited movement

Couplings according to Figure 1, and Table 1, for which a limited movement of the tongue in

the clevis needs to be assured.

This type of coupling is used for cap and pin insulators to ensure that no contact is possible

between the insulating parts of two consecutive insulators. A rectangular shape is

recommended for the tongue.

These couplings are designated by the nominal diameter, expressed in millimetres, of the

coupling pin followed by the letter C.
4.3 Couplings with unlimited movement

Couplings according to Figure 2, and Table 2, for which the movement of the tongue in the

clevis is not limited.
This type of coupling is used for long rod insulators.

These couplings are designated by the nominal diameter, expressed in millimetres, of the

coupling pin followed by the letter L.
4.4 Designation of couplings

Clevis and tongue coupling are designated by the nominal diameter, expressed in millimetres,

of the coupling pin which connects the clevis and tongue. A designated coupling is defined by

the dimensions of the clevis, of the tongue and of the coupling pin.

The Figure 1 and Figure 2 giving the diameter of the coupling pin is followed by the letter C in

the case of couplings for cap and pin insulators or by the letter L in case of long rod insulators.

Any confusion shall be avoided between the designation mentioned above referring to clevis

and tongue couplings and the ball and socket couplings which are designated by nominal pin

diameter which, in certain cases, may be followed by the letter A or B (see IEC 60120),

Therefore, the type of coupling shall always be precisely designated.
---------------------- Page: 8 ----------------------
IEC 60471:2020 © IEC 2020 – 7 –
5 Dimensions

All the dimensions indicated in Table 1 and Table 2 are given in millimetres, and refer to the

finished articles after surface treatment such as, for instance, galvanizing (see also Figure 1

and Figure 2).

NOTE The outside dimensions of the clevis have not been fixed, since they depend on the mechanical

characteristics of the material used. Therefore, the length of the coupling pin is not fixed and, unless otherwise

agreed, the coupling pin shall be delivered together with the clevis. A security device shall be placed to hold the

pin in its place.

In the case of cap and pin insulators (see IEC 60305), the spacing of the insulators has been chosen so that there

will be no difficulty in inserting the coupling pin in its place. However, for some types of cap and pin insulators with

very deep rims at the lower end of the insulator close to the tongue, it may be difficult to insert the coupling pin. In

such a case, it will be necessary to check that the coupling pin can be inserted.

Figure 1 – Dimensions of clevis and tongue couplings for cap and pin insulators
Table 1 – Dimensions of clevis and tongue couplings for cap and pin insulators
Dimensions in millimetres
Designation 16C 19C 22C
Dimension Min. Nom. Max. Min. Nom. Max. Min. Nom. Max.
Coupling pin diameter d 15,5 16,0 16,3 18,6 19,0 19,4 21,8 22,0 22,6
Hole of clevis and
d 16,7 17,5 18,3 19,8 20,6 21,4 23,0 23,8 24,5
tongue
Tongue thickness 12,7 12,7 14,3 19,0 19,0 20,6 22,2 22,2 23,8
Clevis opening B 17,5 18,5 20,0 22,2 23,8 25,4 25,4 27,0 28,6
Tongue m 12,7 13,5 14,3 12,0 12,7 14,3 12,7 14,3 15,9
Clevis F 32,9 — 36,5 36,2 — 39,8 40,9 — 46,0
Clevis H — — 16,5 — — 21,0 — — 23,0
Tongue l 48 — — 56 — — 63 — —
---------------------- Page: 9 ----------------------
– 8 – IEC 60471:2020 © IEC 2020
Figure 2 – Dimensions of clevis and tongue couplings for long rod insulators
---------------------- Page: 10 ----------------------
IEC 60471:2020 © IEC 2020 – 9 –
Table 2 – Dimensions of clevis and tongue couplings for long rod insulators
Dimensions
...
