Plugs, socket-outlets and couplers for industrial purposes - Part 5: Dimensional compatibility and interchangeability requirements for plugs, socket-outlets, ship connectors and ship inlets for low-voltage shore connection systems (LVSC)

IEC 60309-5:2017 applies to a single type of plug, socket-outlet, ship connector and ship inlet, hereinafter referred to as accessories, intended to connect ships to dedicated shore supply systems described in IEC/IEEE 80005-3.
This part of IEC 60309 applies to three-phase accessories with an earth contact and with four pilot contacts.
This publication is to be read in conjunction with IEC 60309-1:2012.

Prises de courant pour usages industriels - Partie 5: Exigences dimensionnelles de compatibilité et d'interchangeabilité pour les prises de courant et connecteurs de navire pour les systèmes basse tension de raccordement des navires à quai

L'IEC 60309-5:2017 s’applique à un seul type de fiche, socle de prise de courant, prise mobile de navire et socle de connecteur de navire, désignés dans la suite du texte sous le nom d’appareils, destinés à raccorder des navires aux systèmes d’alimentation de quai dédiés décrits dans l’IEC/IEEE 80005-3.
La présente partie de l’IEC 60309 s’applique aux appareils triphasés comportant un contact de terre et quatre contacts pilotes.
Cette publication doit être lue conjointement avec l’IEC 60309-1:2012.

General Information

Status
Published
Publication Date
23-Jan-2017
Current Stage
PPUB - Publication issued
Completion Date
24-Jan-2017
Ref Project

Buy Standard

Standard
IEC 60309-5:2017 - Plugs, socket-outlets and couplers for industrial purposes - Part 5: Dimensional compatibility and interchangeability requirements for plugs, socket-outlets, ship connectors and ship inlets for low-voltage shore connection systems (LVSC)
English and French language
32 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

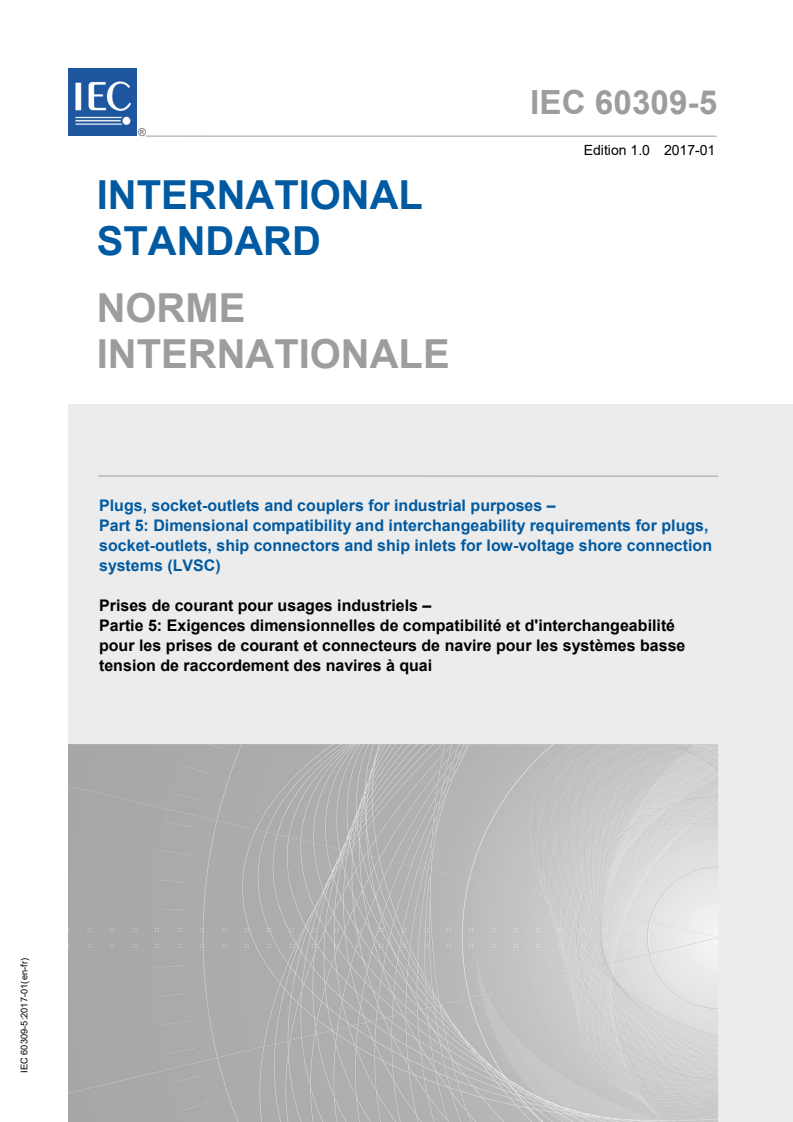

IEC 60309-5
Edition 1.0 2017-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Plugs, socket-outlets and couplers for industrial purposes –
Part 5: Dimensional compatibility and interchangeability requirements for plugs,
socket-outlets, ship connectors and ship inlets for low-voltage shore connection
systems (LVSC)
Prises de courant pour usages industriels –
Partie 5: Exigences dimensionnelles de compatibilité et d'interchangeabilité
pour les prises de courant et connecteurs de navire pour les systèmes basse
tension de raccordement des navires à quai
IEC 60309-5:2017-01(en-fr)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2017 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: csc@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 20 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary
65 000 entrées terminologiques électrotechniques, en anglais
La recherche avancée permet de trouver des publications IEC

en utilisant différents critères (numéro de référence, texte, et en français, extraites des articles Termes et Définitions des

comité d’études,…). Elle donne aussi des informations sur les publications IEC parues depuis 2002. Plus certaines entrées

projets et les publications remplacées ou retirées. antérieures extraites des publications des CE 37, 77, 86 et

CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just

Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette

Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:

csc@iec.ch.
---------------------- Page: 2 ----------------------

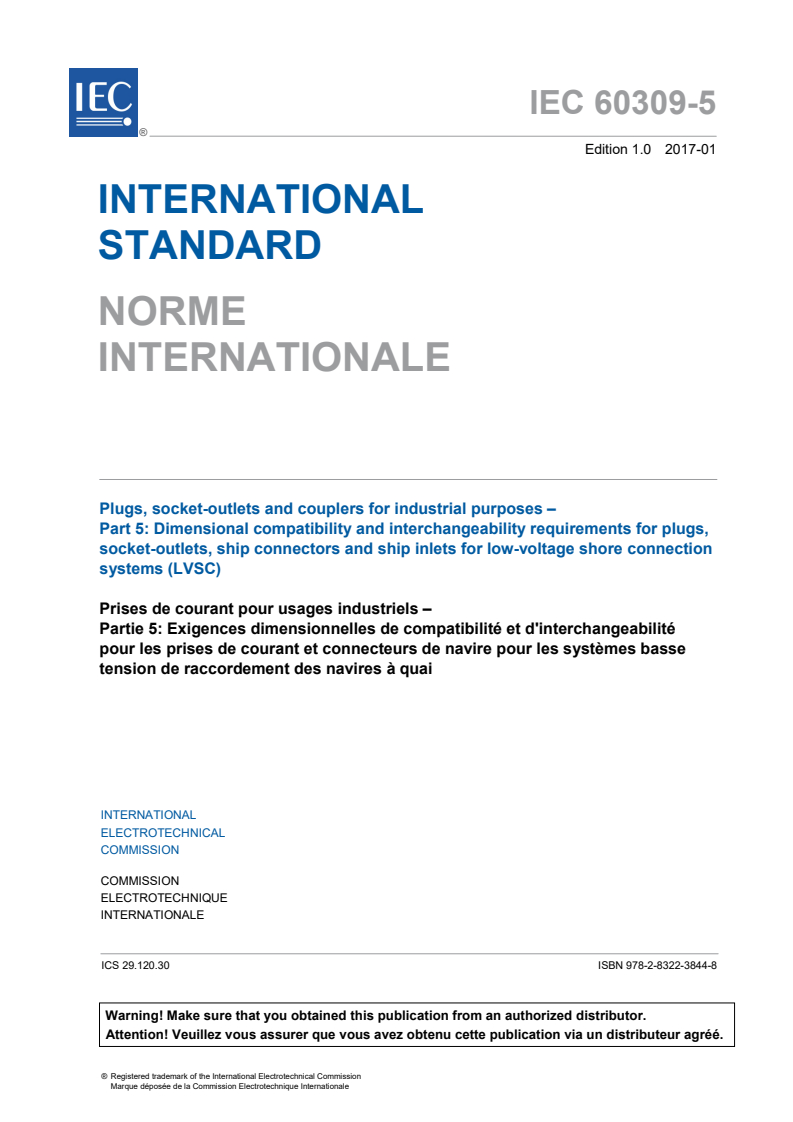

IEC 60309-5
Edition 1.0 2017-01
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Plugs, socket-outlets and couplers for industrial purposes –
Part 5: Dimensional compatibility and interchangeability requirements for plugs,
socket-outlets, ship connectors and ship inlets for low-voltage shore connection
systems (LVSC)
Prises de courant pour usages industriels –
Partie 5: Exigences dimensionnelles de compatibilité et d'interchangeabilité
pour les prises de courant et connecteurs de navire pour les systèmes basse
tension de raccordement des navires à quai
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.120.30 ISBN 978-2-8322-3844-8

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 60309-5:2017 © IEC 2017

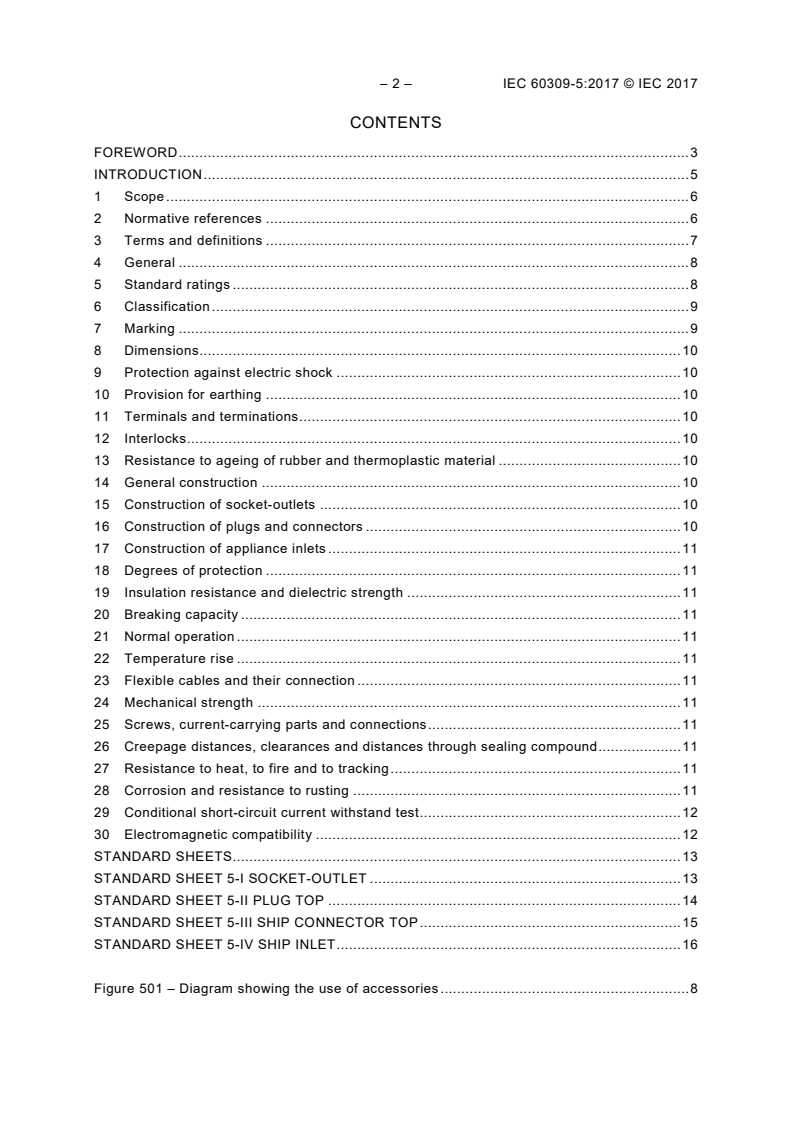

CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms and definitions ...................................................................................................... 7

4 General ........................................................................................................................... 8

5 Standard ratings .............................................................................................................. 8

6 Classification ................................................................................................................... 9

7 Marking ........................................................................................................................... 9

8 Dimensions.................................................................................................................... 10

9 Protection against electric shock ................................................................................... 10

10 Provision for earthing .................................................................................................... 10

11 Terminals and terminations ............................................................................................ 10

12 Interlocks ....................................................................................................................... 10

13 Resistance to ageing of rubber and thermoplastic material ............................................ 10

14 General construction ..................................................................................................... 10

15 Construction of socket-outlets ....................................................................................... 10

16 Construction of plugs and connectors ............................................................................ 10

17 Construction of appliance inlets ..................................................................................... 11

18 Degrees of protection .................................................................................................... 11

19 Insulation resistance and dielectric strength .................................................................. 11

20 Breaking capacity .......................................................................................................... 11

21 Normal operation ........................................................................................................... 11

22 Temperature rise ........................................................................................................... 11

23 Flexible cables and their connection .............................................................................. 11

24 Mechanical strength ...................................................................................................... 11

25 Screws, current-carrying parts and connections ............................................................. 11

26 Creepage distances, clearances and distances through sealing compound .................... 11

27 Resistance to heat, to fire and to tracking ...................................................................... 11

28 Corrosion and resistance to rusting ............................................................................... 11

29 Conditional short-circuit current withstand test ............................................................... 12

30 Electromagnetic compatibility ........................................................................................ 12

STANDARD SHEETS ............................................................................................................ 13

STANDARD SHEET 5-I SOCKET-OUTLET ........................................................................... 13

STANDARD SHEET 5-II PLUG TOP ..................................................................................... 14

STANDARD SHEET 5-III SHIP CONNECTOR TOP ............................................................... 15

STANDARD SHEET 5-IV SHIP INLET ................................................................................... 16

Figure 501 – Diagram showing the use of accessories ............................................................ 8

---------------------- Page: 4 ----------------------
IEC 60309-5:2017 © IEC 2017 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PLUGS, SOCKET-OUTLETS AND COUPLERS
FOR INDUSTRIAL PURPOSES –
Part 5: Dimensional compatibility and interchangeability
requirements for plugs, socket-outlets, ship connectors and
ship inlets for low-voltage shore connection systems (LVSC)
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60309-5 has been prepared by subcommittee 23H: Plugs, socket-

outlets and couplers for industrial and similar applications, and for electric vehicles, of IEC

technical committee 23: Electrical accessories.
The text of this standard is based on the following documents:
FDIS Report on voting
23H/368/FDIS 23H/371/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.
---------------------- Page: 5 ----------------------
– 4 – IEC 60309-5:2017 © IEC 2017

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all the parts in the IEC 60309 series, under the general title Plugs, socket-outlets and

couplers for industrial purposes can be found on the IEC website.

This part of IEC 60309 is to be read in conjunction with IEC 60309-1. The clauses of the

particular requirements of this document supplement or modify the corresponding clauses of

IEC 60309-1. Where the text indicates an "addition" to or a "replacement" of the relevant

requirement, test specification or explanation of IEC 60309-1, these changes are made to the

relevant text of IEC 60309-1, which then becomes part of the standard. Where no change is

necessary, the words "Clause X of IEC 60309-1:1999 + A1:2005 + A2:2012 applies" are used.

Subclauses, figures, tables or notes which are additional to those in IEC 60309-1 are

numbered starting from 501.
In this standard, the following print types are used:
• requirements proper: in roman type;
• test specifications: in italic type;
• notes: in smaller roman type.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
IEC 60309-5:2017 © IEC 2017 – 5 –
INTRODUCTION

International Standard IEC 60309-5 has been written to address the needs in terms of plugs,

socket-outlets and ship couplers (ship connectors and ship inlets), herein referred to as

“accessories”, of IEC/IEEE 80005-3 . The purpose of IEC/IEEE 80005-3 is to define

requirements that allow compliant ships to connect to compliant low-voltage shore power

supplies through standardized shore-to-ship connection accessories.

Ships that do not require connecting with standardized low-voltage shore power supplies as

above may use accessories that are not covered by the standard sheets of IEC 60309-5 but

they may find it impossible to connect to these shore supplies.

Other low-voltage plugs, socket-outlets, ship connectors and ship inlets used for the

connection of certain ship types to low-voltage shore power supplies may be found in the

IEC 60309 series.

International Standard IEC 60309 is divided into several parts: IEC 60309-1 is entitled

General requirements, and comprises clauses of a general nature. The subsequent parts

address requirements dealing with particular devices.
___________

Under preparation. Stage at the time of publication: IEC/IEEE CDV 80005-3:2016.

---------------------- Page: 7 ----------------------
– 6 – IEC 60309-5:2017 © IEC 2017
PLUGS, SOCKET-OUTLETS AND COUPLERS
FOR INDUSTRIAL PURPOSES –
Part 5: Dimensional compatibility and interchangeability
requirements for plugs, socket-outlets, ship connectors and
ship inlets for low-voltage shore connection systems (LVSC)
1 Scope

This part of 60309 applies to a single type of plug, socket-outlet, ship connector and ship

inlet, hereinafter referred to as accessories, intended to connect ships to dedicated shore

supply systems described in IEC/IEEE 80005-3.

This part of IEC 60309 applies to three-phase accessories with an earth contact and with four

pilot contacts.

NOTE 1 In the following countries the term “ground” is used instead of “earth": US.

These accessories have a maximum rated current of 350 A and a maximum rated operating

voltage not exceeding 690 V 50/60 Hz.

NOTE 2 The various operating currents, voltages and frequencies required for various types of ship are set by the

shore supply system described in IEC/IEEE 80005-3.

These accessories are intended to be installed and operated by instructed persons

(IEC 60050-195:1998, Amendment 1:2001, 195-04-02) or skilled persons
(IEC 60050-195:1998, Amendment 1:2001, 195-04-01) only.

This standard applies to accessories for primary use outdoors in a seawater environment

when the ambient temperature is normally within the range of −25 °C to +40 °C.

NOTE 3 In some countries, other ambient temperatures may prevail and may need to be taken into account.

These accessories are intended to be connected to cables of copper or copper alloy only.

Socket-outlets or ship inlets incorporated in or fixed to electrical equipment which is part of

the shore connection system are within the scope of this standard.

In locations where special conditions prevail, for example where explosions are liable to

occur, additional requirements may be necessary.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.

Clause 2 of IEC/IEEE 80005-3:— and Clause 3 of IEC 60309-1:1999 + A1:2005 + A2:2012

apply with the following additions:
ISO 9227:2012, Corrosion tests in artificial atmospheres – Salt spray tests
---------------------- Page: 8 ----------------------
IEC 60309-5:2017 © IEC 2017 – 7 –
ISO 15510:2014 Stainless steels – Chemical composition

IEC/IEEE 80005-3:—, Utility connections in port – Part 3: Low Voltage Shore Connections

(LVSC) Systems – General requirements
3 Terms and definitions

For the purposes of this document, the terms and definitions given in Clause 2 of

IEC 60309-1:1999 + A1:2005 + A2:2012 and the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.501
accessory
plug, socket-outlet, ship connector or ship inlet
Note 1 to entry: The application of accessories is shown in Figure 501.
3.502
ship coupler

means enabling the connection at will of a flexible cable to the ship consisting of a ship

connector and a ship inlet
[SOURCE: IEC 62613-1:2011, 3.4]
3.502.1
ship connector

part intended to be attached to one flexible cable connected to the supply and to be

connected to the ship inlet

[SOURCE: IEC 62613-1:2011, 3.5 modified – The words “and to be connected to the ship

inlet” have been added.]
3.502.2
ship inlet
part incorporated in, or fixed to, the ship
[SOURCE: IEC 62613-1:2011, 3.6]
3.503
shore connection system

system allowing the adequate supply of electricity from shore to ships during stays in port,

allowing the shut-down of ship generators

Note 1 to entry: These systems are described in IEC/ISO/IEEE 80005 series: Utility connections in port.

---------------------- Page: 9 ----------------------
– 8 – IEC 60309-5:2017 © IEC 2017
E F
B C
A: (shore) plug and socket-outlet
B: (shore) socket-outlet
C: (shore) plug
D: ship coupler
E: ship connector
IEC
F: ship inlet
Figure 501 – Diagram showing the use of accessories
4 General
Clause 4 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies except as follows:
4.1 General requirements
Replacement of the fourth paragraph:
Accessories shall have a degree of protection IP66/IP67 according to IEC 60529.
Replacement of the fifth paragraph:

One type of plug, socket-outlet, ship inlet and ship connector shall be used for all types of

ship.
Additional sixth paragraph:

Low-voltage shore connection system (LVSC-system) does not allow in-line connections

unless a specific piece of equipment made for that purpose is used. It shall not be possible to

connect the plug into the ship connector (see 8.501).
5 Standard ratings
Replacement:
5.1 The maximum AC operating voltage is 690 V 50/60 Hz
5.2 The maximum rated current is 350 A
New subclause:
---------------------- Page: 10 ----------------------
IEC 60309-5:2017 © IEC 2017 – 9 –

5.501 The plug, socket-outlet, ship inlet and ship connector shall be rated with a minimum

prospective short-circuit current withstand of 16 kA root mean square (RMS) for 1 s, and with

a maximum rated peak withstand current of 40 kA (see 29.1).
6 Classification
Replacement:
6.1 Accessories are classified:
6.1.1 according to purpose: plug, socket-outlet, ship connector, ship inlet;

6.1.2 to 6.1.8: these subclauses of IEC 60309-1:1999 + A1:2005 + A2:2012 do not apply.

7 Marking
Clause 7 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies except as follows:
7.1 Replacement:
Accessories shall be marked with:
• rated current in amperes;
• rated operating voltage in volts;
• symbol for nature of supply;

• either the name or trade mark of the manufacturer or of the responsible vendor;

• type reference, which may be a catalogue number;
• degree of protection;
Additionally, the insulation voltage may be marked.
Compliance is checked by inspection.
7.5 Replacement:
The contacts shall be indicated by the symbols:
• L1, L2, L3, or 1, 2, 3 for the phases,
• the symbol for protective earth IEC 60417-5019 (2006-08),
• P1, P2, P3 and P4 for the pilot contacts.

These symbols shall be placed close to the relevant terminals; they shall not be placed on

screws, removable washers or other removable parts.
The figures used with the letters may be written as an index.
Compliance is checked by inspection.

7.8 to 7.10: these subclauses of IEC 60309-1:1999 + A1:2005 + A2:2012 do not apply.

---------------------- Page: 11 ----------------------
– 10 – IEC 60309-5:2017 © IEC 2017
8 Dimensions
Clause 8 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies except as follows:
8.1 Replacement:

Accessories shall comply with the appropriate standard sheet 5-I, 5-II, 5-III or 5-IV at the end

of this document.
New subclause:

8.501 It shall not be possible to engage plugs into ship connectors, as in-line cable

connections (cable couplers) are not allowed by the application.
Compliance is checked by inspection and test.
9 Protection against electric shock
Clause 9 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies.
10 Provision for earthing
Clause 10 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies.
11 Terminals and terminations
Clause 11 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies except as follows:

11.3, 11.4, 11.6 and 11.7: these subclauses of IEC 60309-1:1999 + A1:2005 + A2:2012 do not

apply.
12 Interlocks
Clause 12 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies.
13 Resistance to ageing of rubber and thermoplastic material
Clause 13 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies.
14 General construction
Clause 14 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies.
15 Construction of socket-outlets
Clause 15 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies.
16 Construction of plugs and connectors
Clause 16 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies.
---------------------- Page: 12 ----------------------
IEC 60309-5:2017 © IEC 2017 – 11 –
17 Construction of appliance inlets
Clause 17 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies.
18 Degrees of protection
Clause 18 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies.
19 Insulation resistance and dielectric strength
Clause 19 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies.
20 Breaking capacity
Clause 20 of IEC 60309-1:1999 + A1:2005 + A2:2012 does not apply.
21 Normal operation
Clause 21 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies.
22 Temperature rise
Clause 22 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies.
23 Flexible cables and their connection
Clause 23 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies.
24 Mechanical strength
Clause 24 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies.
25 Screws, current-carrying parts and connections
Clause 25 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies.
26 Creepage distances, clearances and distances through sealing compound
Clause 26 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies.
27 Resistance to heat, to fire and to tracking
Clause 27 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies.
28 Corrosion and resistance to rusting
Replacement:
---------------------- Page: 13 ----------------------
– 12 – IEC 60309-5:2017 © IEC 2017

Accessories and their mounting means shall be constructed to resist the corrosion induced by

a seawater environment.

Ferrous parts, including enclosures, shall be adequately protected against rusting.

Compliance is checked with the following test:

Parts to be tested are subjected to a salt spray (fog) using the test method in Salt Spray (Fog)

Testing, ISO 9227:2012, and employing a 5 % (by weight) salt solution, for 200 h. At the end

of the test, the parts are removed from the chamber, and washed in clean running water not

warmer than 38 °C, to remove salt deposits from the surface. Parts are dried immediately.

Surface corrosion may be cleaned by light brushing, if required, to observe corrosion of the

underlying surface.

Parts are acceptable if, upon completion of the test, they do not show pitting, cracking, or

other deterioration more severe than that resulting from a similar test on passivated

X5CrNI18-9 (ISO name 4301-304-00-I) stainless steel according to ISO 15510:2014.
Exception: an enclosure constructed of X5CrNI18-9 (ISO name 4301-304-00-I) or

X3CrNiMo17-12-3 (ISO name 4436-316-00-I) stainless steel according to ISO 15510:2014 is

not required to be subjected to this test.
29 Conditional short-circuit current withstand test
Clause 29 of IEC 60309-1:1999 + A1:2005 + A2:2012 applies except as follows:
29.1 Replacement:
The socket-o
...
