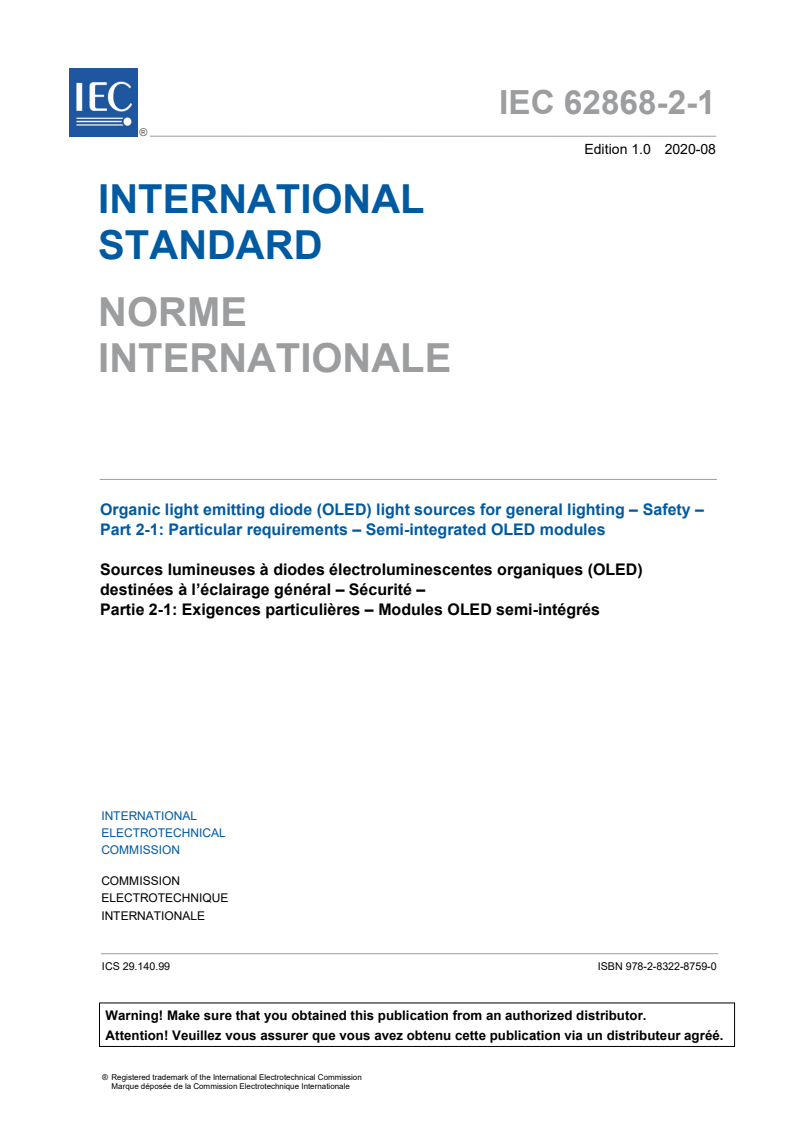

IEC 62868-2-1
Edition 1.0 2020-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE

Organic light emitting diode (OLED) light sources for general lighting – Safety –

Part 2-1: Particular requirements – Semi-integrated OLED modules
Sources lumineuses à diodes électroluminescentes organiques (OLED)
destinées à l’éclairage général – Sécurité –
Partie 2-1: Exigences particulières – Modules OLED semi-intégrés
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.99 ISBN 978-2-8322-8759-0

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------
– 2 – IEC 62868-2-1:2020 © IEC 2020

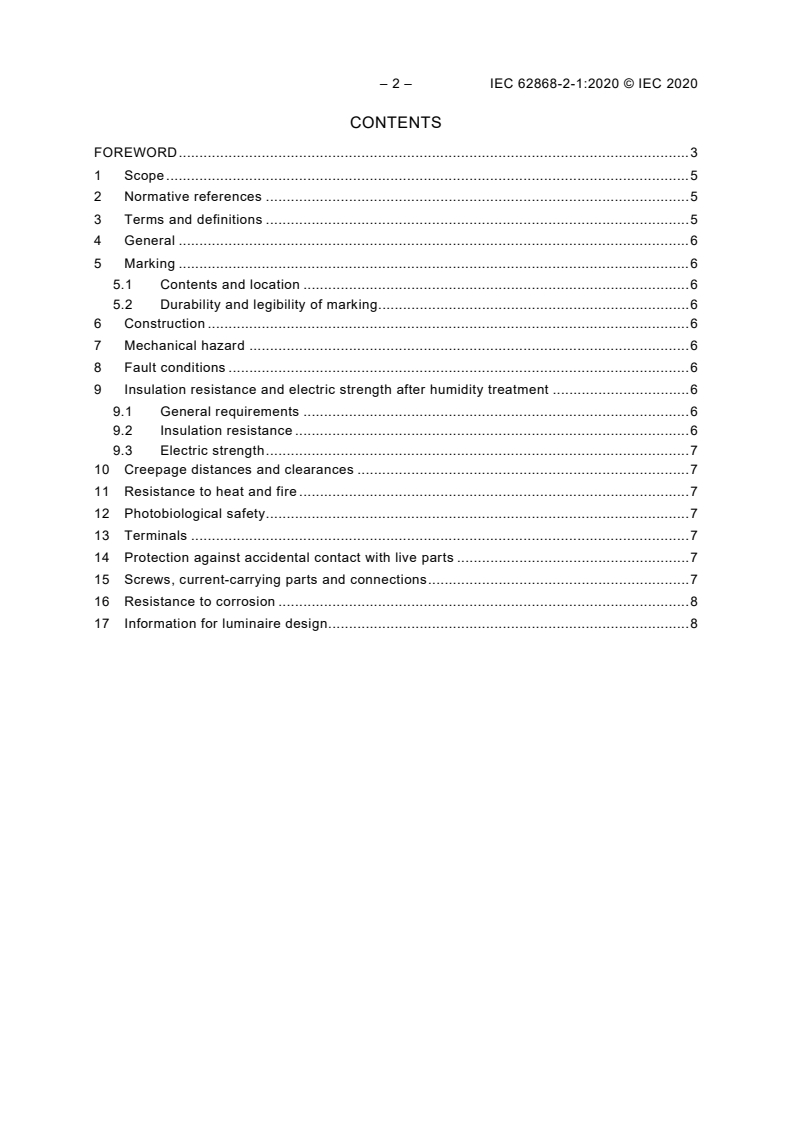

CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope .............................................................................................................................. 5

2 Normative references ...................................................................................................... 5

3 Terms and definitions ...................................................................................................... 5

4 General ........................................................................................................................... 6

5 Marking ........................................................................................................................... 6

5.1 Contents and location ............................................................................................. 6

5.2 Durability and legibility of marking ........................................................................... 6

6 Construction .................................................................................................................... 6

7 Mechanical hazard .......................................................................................................... 6

8 Fault conditions ............................................................................................................... 6

9 Insulation resistance and electric strength after humidity treatment ................................. 6

9.1 General requirements ............................................................................................. 6

9.2 Insulation resistance ............................................................................................... 6

9.3 Electric strength ...................................................................................................... 7

10 Creepage distances and clearances ................................................................................ 7

11 Resistance to heat and fire .............................................................................................. 7

12 Photobiological safety ...................................................................................................... 7

13 Terminals ........................................................................................................................ 7

14 Protection against accidental contact with live parts ........................................................ 7

15 Screws, current-carrying parts and connections ............................................................... 7

16 Resistance to corrosion ................................................................................................... 8

17 Information for luminaire design ....................................................................................... 8

---------------------- Page: 4 ----------------------
IEC 62868-2-1:2020 © IEC 2020 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ORGANIC LIGHT EMITTING DIODE (OLED) LIGHT
SOURCES FOR GENERAL LIGHTING – SAFETY –
Part 2-1: Particular requirements – Semi-integrated OLED modules
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62868-2-1 has been prepared by subcommittee 34A: Electric light

sources, of IEC technical committee 34: Lighting.
IEC 62868-2-1 has been prepared in parallel with IEC 62868-2-2.
The text of this International Standard is based on the following documents:
FDIS Report on voting
34A/2192/FDIS 34A/2199/RVD

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 5 ----------------------
– 4 – IEC 62868-2-1:2020 © IEC 2020

A list of all parts in the IEC 62868 series, published under the general title Organic light

emitting diode (OLED) light sources for general lighting – Safety, can be found on the IEC

website.
In this document, the following print type is used:
– compliance statements: in italic type.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
IEC 62868-2-1:2020 © IEC 2020 – 5 –
ORGANIC LIGHT EMITTING DIODE (OLED) LIGHT
SOURCES FOR GENERAL LIGHTING – SAFETY –
Part 2-1: Particular requirements – Semi-integrated OLED modules
1 Scope

This part of IEC 62868 specifies safety requirements for semi-integrated organic light emitting

diode modules operating with an external controlgear connected to the mains voltage, and

which, in addition, have a control means inside ("semi-integrated") for operation under

constant voltage, constant current or constant power and have a rated voltage up to 120 V

ripple free DC or 50 V AC RMS at 50 Hz or 60 Hz.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For dated references, only the edition

cited applies. For undated references, the latest edition of the referenced document (including

any amendments) applies.
IEC 60598-1:2014, Luminaires – Part 1: General requirements and tests
IEC 60598-1:2014/AMD1:2017

IEC 60838-2-2, Miscellaneous lampholders – Part 2-2: Particular requirements – Connectors

for LED modules
IEC 61347-1:2015, Lamp controlgear – Part 1: General and safety requirements
IEC 61347-1:2015/AMD1:2017

IEC 62504, General lighting − Light emitting diode (LED) products and related equipment

−Terms and definitions

IEC 62868-1:2020, Organic light emitting diode (OLED) light sources for general lighting –

Safety – Part 1: General requirements and tests

IEC TS 62972, General lighting − Organic light emitting diode (OLED) products and related

equipment − Terms and definitions
3 Terms and definitions

For the purposes of this document, the terms and definitions given in IEC 62504, IEC 62868-1

and IEC TS 62972 and the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
---------------------- Page: 7 ----------------------
– 6 – IEC 62868-2-1:2020 © IEC 2020
3.1
rated maximum temperature

highest permissible temperature which may occur on the outer surface of the OLED module

(at the indicated position, if marked) under normal operating conditions and at the rated

voltage/current/power or the maximum of the rated voltage/current/power range
4 General
The requirements of IEC 62868-1:2020, Clause 4 apply.
5 Marking
5.1 Contents and location

Marking of the module shall be done according to IEC 62868-1:2020, 5.1. Additionally, the

rated maximum temperature t shall be marked on the packaging or product datasheet or

leaflet but is optional on the product.
5.2 Durability and legibility of marking
The requirements of IEC 62868-1:2020, 5.2 apply.
6 Construction
The requirements of IEC 62868-1:2020, Clause 6 apply.
7 Mechanical hazard
The requirements of IEC 62868-1:2020, Clause 7 apply.
8 Fault conditions
The requirements of IEC 61347-1:2015, Clause 14 and IEC 61347-1:2015/AMD1:2017,

Clause 14, apply. Additionally, the requirements of IEC 62868-1:2020, Clause 8 apply.

9 Insulation resistance and electric strength after humidity treatment
9.1 General requirements

Insulation resistance and electric strength shall be adequate between live parts of the OLED

module and accessible parts of the OLED module.
9.2 Insulation resistance

Insulation shall be adequate between live parts and outer metal parts, including fixing screws

and metal foil in contact with outer insulating parts.

The OLED module shall be conditioned for 48 h in a cabinet containing air with a relative

humidity between 91 % and 95 %. The te
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
