Amendment 1 - LED-binning - Part 1: General requirements and white colour grid intended for automotive applications intended for automotive applications

Amendement 1 - Tri des LED - Partie 1: Exigences générales et matrice de couleur blanche destinées aux applications automobiles

General Information

Status
Published
Publication Date
16-Aug-2018
Current Stage
PPUB - Publication issued
Completion Date
17-Aug-2018
Ref Project

Buy Standard

Standard
IEC 62707-1:2013/AMD1:2018 - Amendment 1 - LED-binning - Part 1: General requirements and white colour grid intended for automotive applications intended for automotive applications
English and French language
13 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

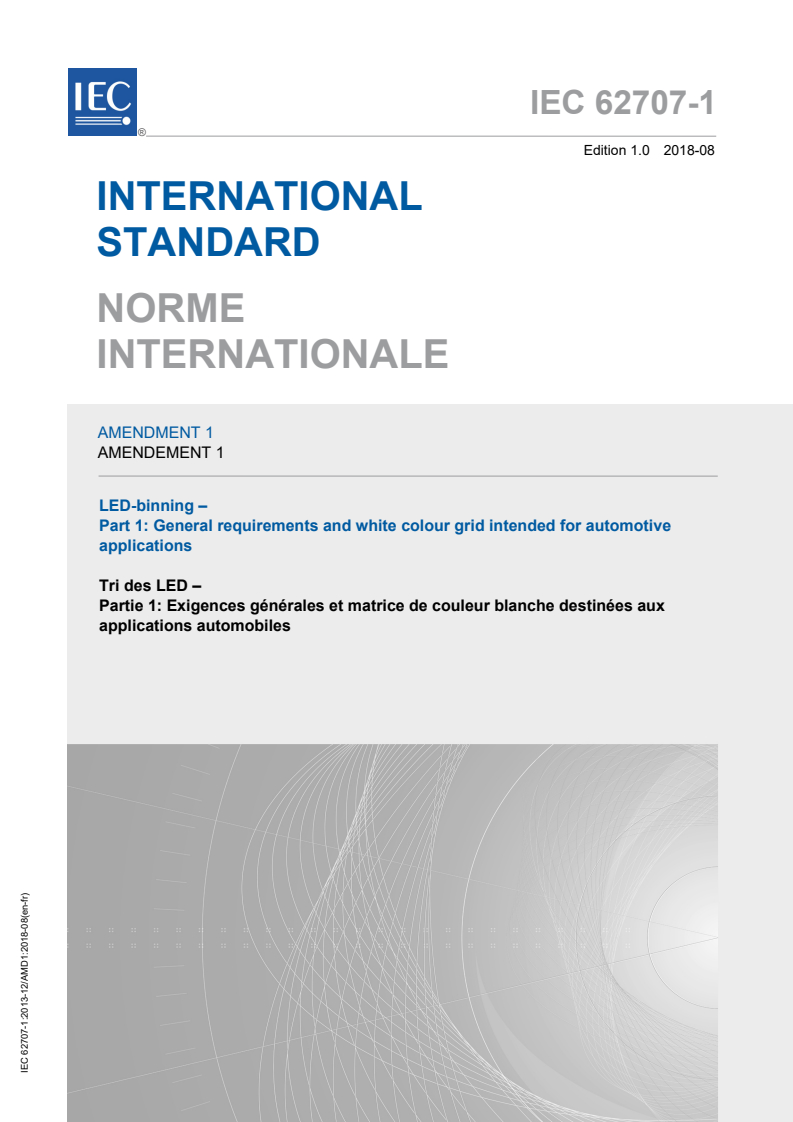

IEC 62707-1
Edition 1.0 2018-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AM ENDMENT 1
AM ENDEMENT 1
LED-binning –
Part 1: General requirements and white colour grid intended for automotive
applications
Tri des LED –
Partie 1: Exigences générales et matrice de couleur blanche destinées aux
applications automobiles
IEC 62707-1:2013-12/AMD1:2018-08(en-fr)
---------------------- Page: 1 ----------------------

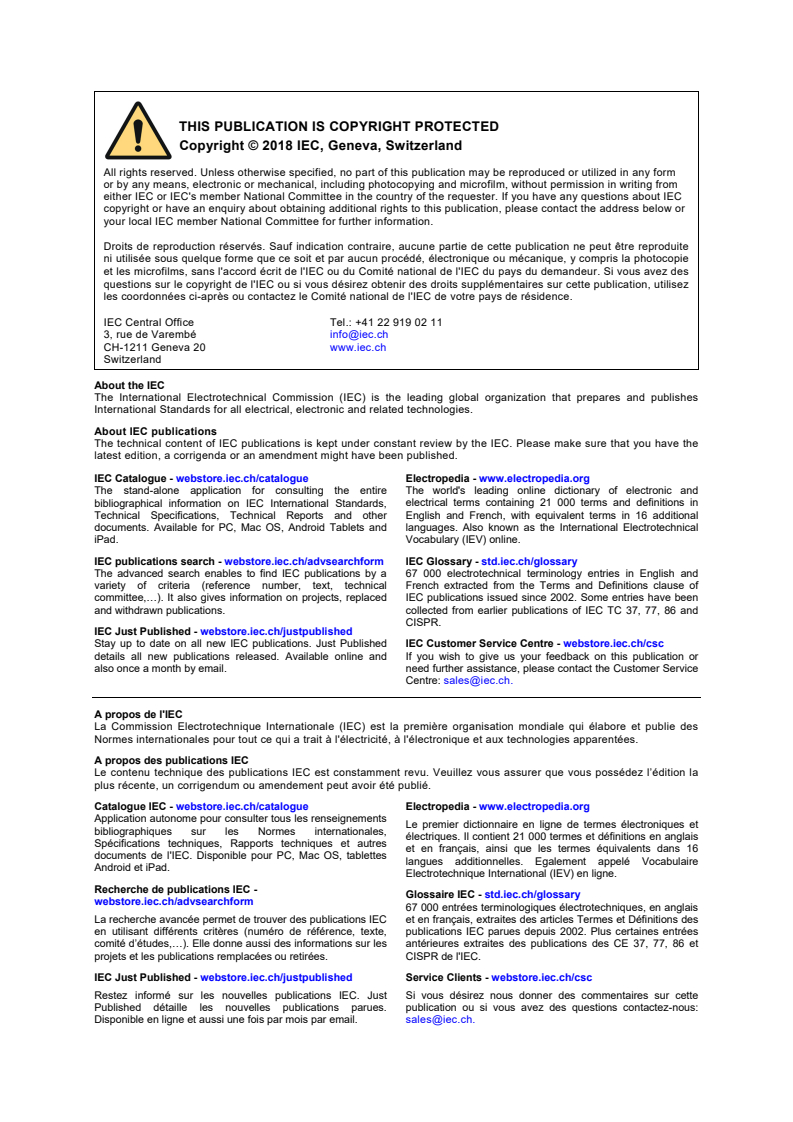

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2018 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: sales@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient 21 000 termes et définitions en anglais
Spécifications techniques, Rapports techniques et autres
et en français, ainsi que les termes équivalents dans 16
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC -
Glossaire IEC - std.iec.ch/glossary
webstore.iec.ch/advsearchform
67 000 entrées terminologiques électrotechniques, en anglais

La recherche avancée permet de trouver des publications IEC et en français, extraites des articles Termes et Définitions des

en utilisant différents critères (numéro de référence, texte, publications IEC parues depuis 2002. Plus certaines entrées

comité d’études,…). Elle donne aussi des informations sur les antérieures extraites des publications des CE 37, 77, 86 et

projets et les publications remplacées ou retirées. CISPR de l'IEC.

IEC Just Published - webstore.iec.ch/justpublished Service Clients - webstore.iec.ch/csc

Restez informé sur les nouvelles publications IEC. Just Si vous désirez nous donner des commentaires sur cette

Published détaille les nouvelles publications parues. publication ou si vous avez des questions contactez-nous:

Disponible en ligne et aussi une fois par mois par email. sales@iec.ch.
---------------------- Page: 2 ----------------------

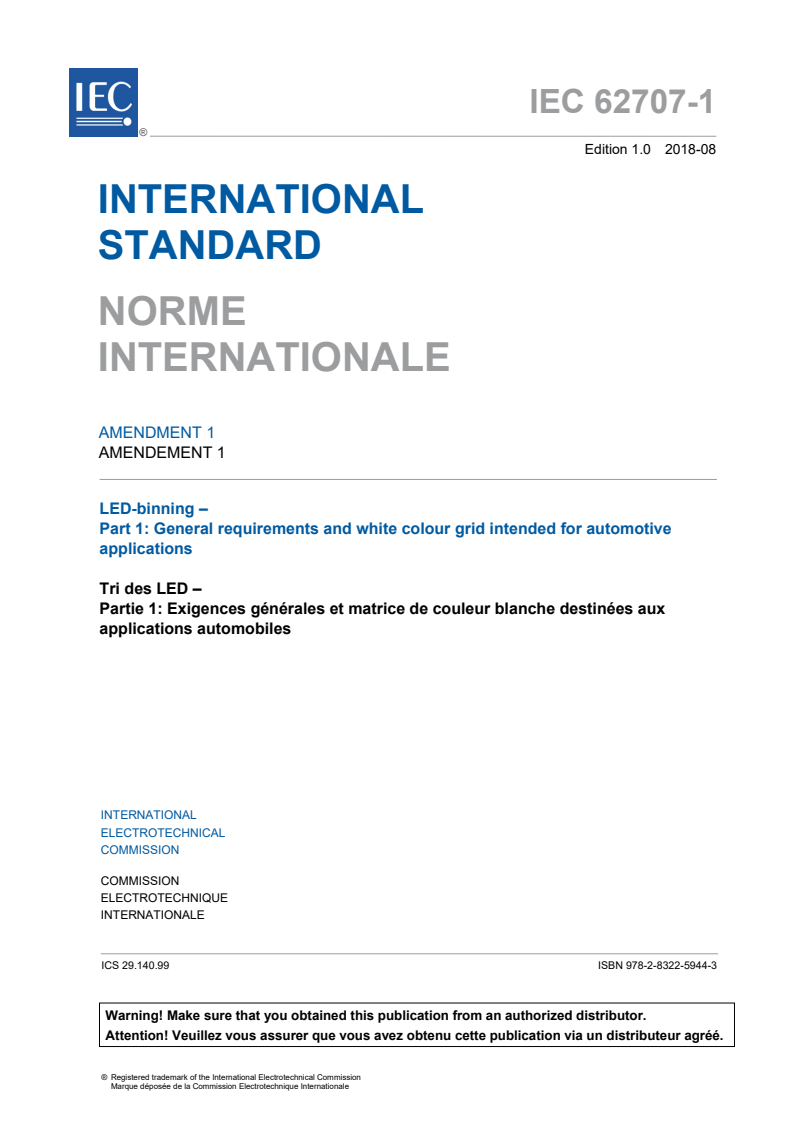

IEC 62707-1
Edition 1.0 2018-08
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
AM ENDMENT 1
AM ENDEMENT 1
LED-binning –
Part 1: General requirements and white colour grid intended for automotive
applications
Tri des LED –
Partie 1: Exigences générales et matrice de couleur blanche destinées aux
applications automobiles
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.140.99 ISBN 978-2-8322-5944-3

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

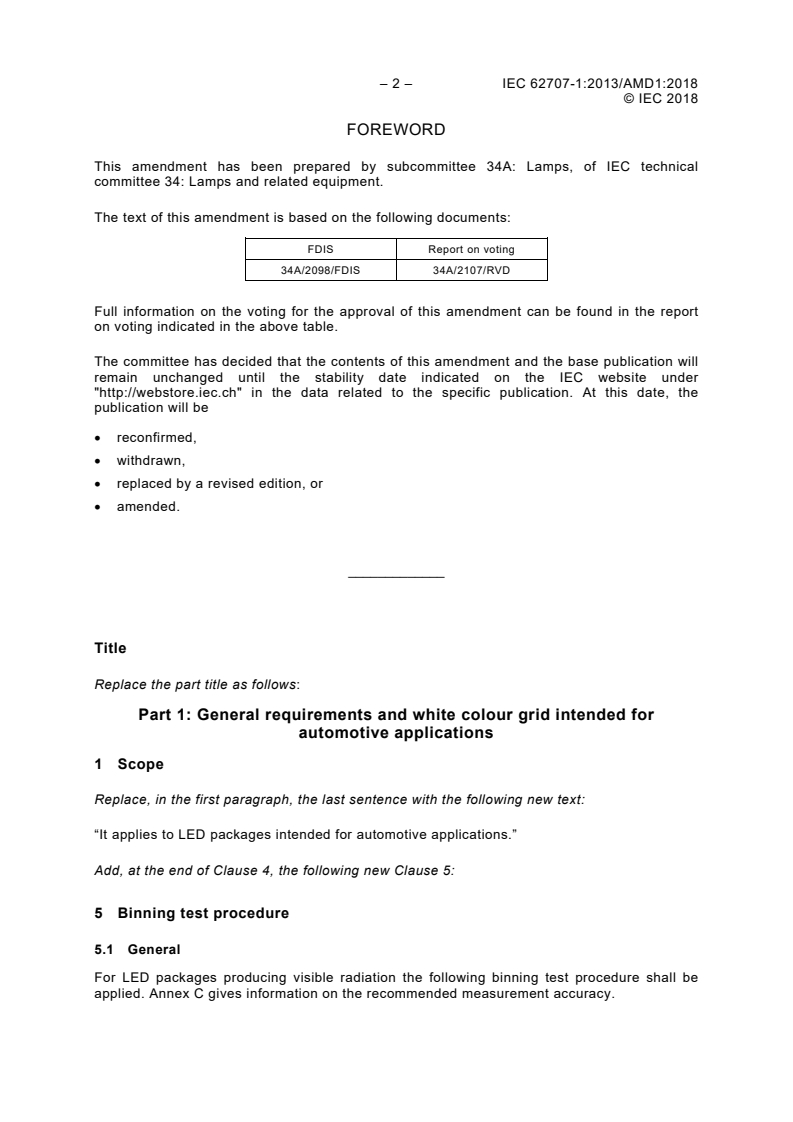

– 2 – IEC 62707-1:2013/AMD1:2018
© IEC 2018
FOREWORD
This amendment has been prepared by subcommittee 34A: Lamps, of IEC technical
committee 34: Lamps and related equipment.
The text of this amendment is based on the following documents:
FDIS Report on voting
34A/2098/FDIS 34A/2107/RVD

Full information on the voting for the approval of this amendment can be found in the report

on voting indicated in the above table.

The committee has decided that the contents of this amendment and the base publication will

remain unchanged until the stability date indicated on the IEC website under

"http://webstore.iec.ch" in the data related to the specific publication. At this date, the

publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
Title
Replace the part title as follows:
Part 1: General requirements and white colour grid intended for
automotive applications
1 Scope
Replace, in the first paragraph, the last sentence with the following new text:
“It applies to LED packages intended for automotive applications.”
Add, at the end of Clause 4, the following new Clause 5:
5 Binning test procedure
5.1 General

For LED packages producing visible radiation the following binning test procedure shall be

applied. Annex C gives information on the recommended measurement accuracy.
---------------------- Page: 4 ----------------------
IEC 62707-1:2013/AMD1:2018 – 3 –
© IEC 2018
5.2 Temperature pre-conditioning

Before starting the binning test procedure, the LED package temperatures shall be stabilized

as follows:
Each of T , T , T , T shall be 23 °C ± 5 °C
a s c j
where
T is the ambient temperature of the air surrounding the LED package;
T is the solder temperature of the LED package;
T is the temperature at the T point of the LED package;
c c
T is the junction temperature of the LED package.
5.3 Pulse definition and measurement intervals

During the binning test procedure, the following times and time-intervals (in millisecond, ms)

shall be applied, see Table 5 and Figure 5.

Where a certain range is given, the LED package manufacturer shall choose an appropriate

value.

This choice of the LED package manufacturer shall be made taking into account the following

parameters:
• measurement equipment capability,
• typical input power of the LED package,
• typical heat capacity of the LED package,
• typical thermal conductivity of the LED package,
• typical thermal time-constant of the LED package,

• typical increase of T during the measurement e.g. by monitoring changes in forward

voltage.
NOTE In this context, “typical” means: representative for the product family.
The integrating times for the measurements shall be chosen by the LED package

manufacturer to ensure stabilization of the measurement and to avoid an excessive increase

of the junction temperature (T ) of the LED package during the integration time.

It is recommended that the increase of junction temperature (T ) during the integration time

should not be greater than 5 K.
---------------------- Page: 5 ----------------------
– 4 – IEC 62707-1:2013/AMD1:2018
© IEC 2018
Table 5 – Times and time-intervals for the binning test procedure
Step Time (ms) Action
1 t = 0 LED package is switched ON at the binning current I . See Note 1.
f,bin
2 t = 1 to 5 End of stabilization time.

3 t = 1 to 10: Start of the electrical measurement (e.g. V ), using a 4-wire technique, with an

integration time of 1 ms (minimum) to 5 ms (maximum).

4 t = 1 to 10 Start of optical measurement (e.g. luminous flux, luminous intensity, colour,

λ ) , with an integration time of 1 ms (minimum) to 40 ms (maximum) (see Note
dom
2 and Note 3)

5 t = 50 Latest time at which optical measurement ends and LED package is switched off.

NOTE 1 The method of selecting the binning current I is described in 5.4.
f,bin
NOTE 2 A typical integration time for optical measurements is 20 ms.

NOTE 3 For LED packages with intensity values below 50 mcd, higher integration times can be used.

If luminous intensity binning is used, information should be provided for correlation of a luminous intensity

value to its corresponding luminous flux value. This correlation factor should be based on a representative

value for the product family.
Pulse length: LED is switched on at t = 0 at the binning current I bin
and switched off no later than at t = 51 ms
Optical measurement: Integration time 1 ms to 51 ms

(Note: some manufacturers can start the optical measurement only after the end of the

electrical measurement)
Stabilization time: 1 ms to 5 ms
Electrical
Integration time: 1 ms to 5 ms after stabilization
Measurement

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51

time in ms
IEC
Figure 5 – Times and time-intervals for binning tests
5.4 Binning currents
5.4.1 High-power (rated power ≥ 250 mW) InGaN-based LED packages

For LED packages with a rated input power equal or greater than 250 mW, based on InGaN

technology, the appropriate binning current shall be selected from the list of binning currents

given in Table 6, in order to be within the range of 65 % to 75 % of the maximum rated value

as given in the LED package datasheet, i.e. 0,65 x I ≤ I ≤ 0,75 x I where I is
f,max f,bin f,max f,bin
chosen from the values given in Table 6 (rule No.1)
where
I is the binning current;
f,bin
I is the maximum drive current specified on the data sheet.
f,max
---------------------- Page: 6 ----------------------
IEC 62707-1:2013/AMD1:2018 – 5 –
© IEC 2018

If more than one value of Table 6 meet this criteria, then the value closest to one of the two

border values shall be chosen (rule No.1a).
In case of doubt, the higher value shall be chosen (rule No.1b).

NOTE The input power of an LED package and its material-technology are given by the LED package

manufacturer on the data sheet.
If no value from Table 6 fulfils the above requirements (“unl
...
