Tests recommended on cables with a longitudinally applied metal foil for rated voltages above 30 kV (U<sub>m</sub> = 36 kV) up to and including 500 kV (U<sub>m</sub> = 550 kV)

IEC TR 61901:2016(E), which is a Technical Report, specifies test methods and requirements for power cable systems, cables with extruded insulation and their accessories for fixed installations, for rated voltages above 30 kV (Um = 36 kV) up to and including 500 kV (Um = 550 kV). The requirements apply to single-core cables and to their accessories for usual conditions of installation and operation, but not to special cables and their accessories, such as submarine cables, for which modifications to the tests may be necessary or special test conditions may need to be devised. This edition includes the following significant technical changes with respect to the previous edition:
a) Recommendations on the tests to be performed at the different stages of the cable and cable system qualification (development tests, type tests, sample tests, routine tests, after installation tests) have been provided;
b) The performance level of the tests related to the longitudinally applied metal foil which depends on the cable design has been detailed;
c) Three cable designs that represent the world production of cables with longitudinally applied metal foil have been detailed;
d) A test on the weld design has been included, following the appearance of a new cable design with smooth and longitudinally welded aluminium foil (referred to in this document as combined design);
e) An examination of the cable at the end of the type test has been included;
f) The cable system approach (cable with installed accessories) has been considered and a short circuit test with accessories has been introduced.

General Information

Status
Published
Publication Date
17-May-2016
Technical Committee
Drafting Committee
Current Stage
PPUB - Publication issued
Start Date
31-Jul-2016
Completion Date
18-May-2016
Ref Project

Relations

Buy Standard

Technical report
IEC TR 61901:2016 - Tests recommended on cables with a longitudinally applied metal foil for rated voltages above 30 kV (U<sub>m</sub> = 36 kV) up to and including 500 kV (U<sub>m</sub> = 550 kV)
English language
25 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

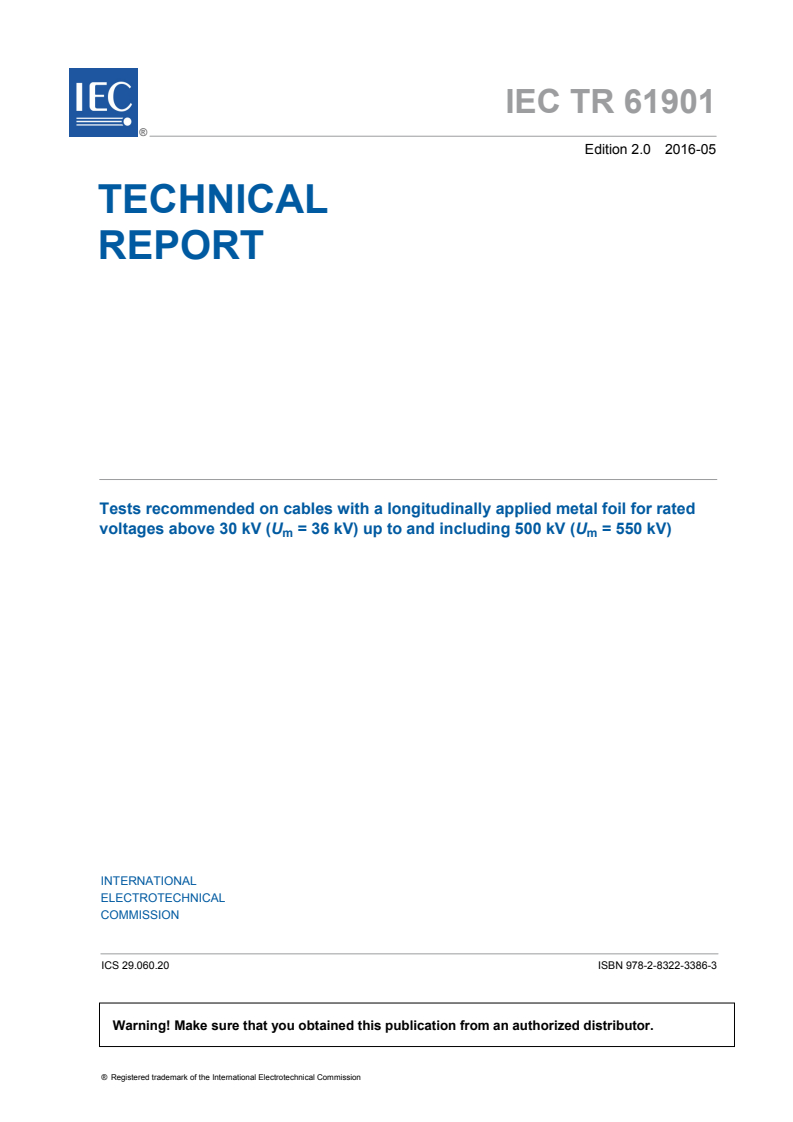

IEC TR 61901 ®
Edition 2.0 2016-05
TECHNICAL
REPORT
Tests recommended on cables with a longitudinally applied metal foil for rated
voltages above 30 kV (U = 36 kV) up to and including 500 kV (U = 550 kV)
m m
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 15 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
IEC TR 61901 ®
Edition 2.0 2016-05
TECHNICAL
REPORT
Tests recommended on cables with a longitudinally applied metal foil for rated

voltages above 30 kV (U = 36 kV) up to and including 500 kV (U = 550 kV)
m m
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 29.060.20 ISBN 978-2-8322-3386-3

– 2 – IEC TR 61901:2016 © IEC 2016

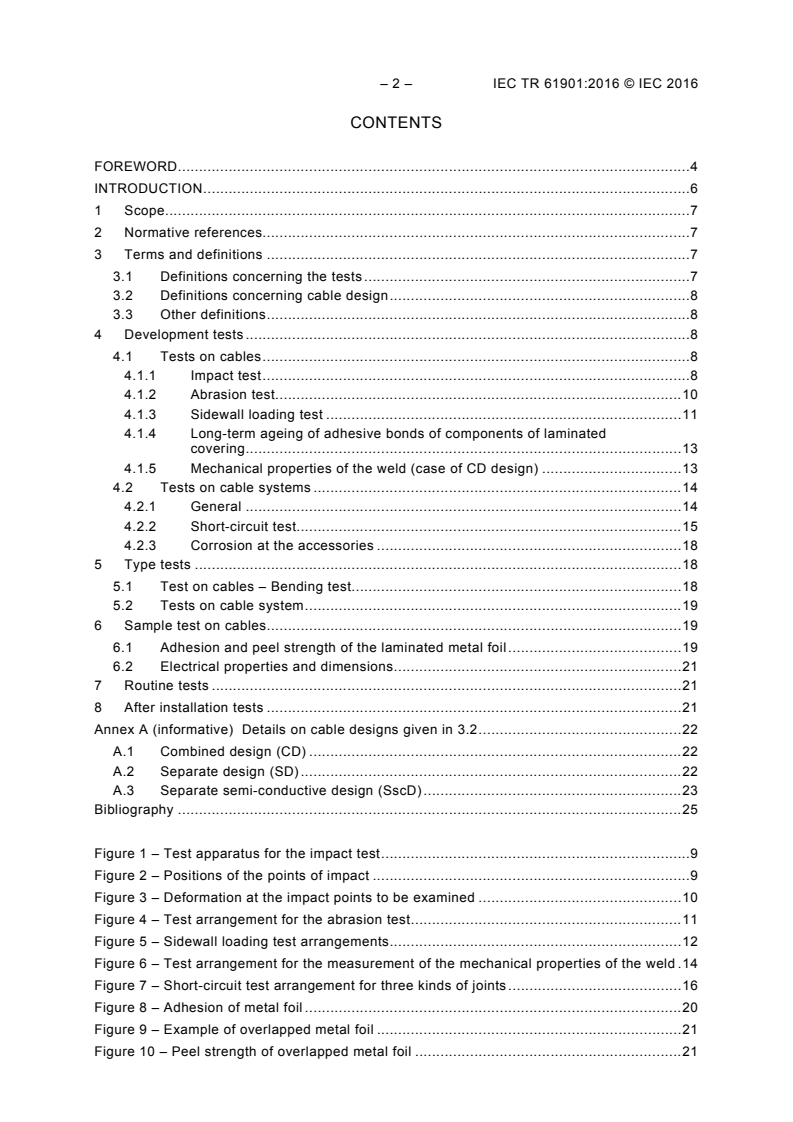

CONTENTS
FOREWORD . 4
INTRODUCTION . 6
1 Scope . 7
2 Normative references. 7
3 Terms and definitions . 7
3.1 Definitions concerning the tests . 7
3.2 Definitions concerning cable design . 8
3.3 Other definitions . 8
4 Development tests . 8
4.1 Tests on cables . 8
4.1.1 Impact test . 8
4.1.2 Abrasion test. 10
4.1.3 Sidewall loading test . 11
4.1.4 Long-term ageing of adhesive bonds of components of laminated
covering . 13
4.1.5 Mechanical properties of the weld (case of CD design) . 13
4.2 Tests on cable systems . 14
4.2.1 General . 14
4.2.2 Short-circuit test. 15
4.2.3 Corrosion at the accessories . 18
5 Type tests . 18
5.1 Test on cables – Bending test . 18
5.2 Tests on cable system . 19
6 Sample test on cables . 19
6.1 Adhesion and peel strength of the laminated metal foil . 19
6.2 Electrical properties and dimensions . 21
7 Routine tests . 21
8 After installation tests . 21
Annex A (informative) Details on cable designs given in 3.2 . 22
A.1 Combined design (CD) . 22
A.2 Separate design (SD) . 22
A.3 Separate semi-conductive design (SscD) . 23
Bibliography . 25

Figure 1 – Test apparatus for the impact test . 9
Figure 2 – Positions of the points of impact . 9
Figure 3 – Deformation at the impact points to be examined . 10
Figure 4 – Test arrangement for the abrasion test . 11
Figure 5 – Sidewall loading test arrangements . 12
Figure 6 – Test arrangement for the measurement of the mechanical properties of the weld . 14
Figure 7 – Short-circuit test arrangement for three kinds of joints . 16
Figure 8 – Adhesion of metal foil . 20
Figure 9 – Example of overlapped metal foil . 21
Figure 10 – Peel strength of overlapped metal foil . 21

Figure A.1 – Example of combined design 500 kV cable . 22
Figure A.2 – Example of separate design 400 kV cable . 23
Figure A.3 – Example of separate semi-conductive design 275 kV cable . 24

Table 1 – Impact test requirements . 9
Table 2 – Maximum acceptable sidewall loadings . 11
Table 3 – Minimum acceptable adhesion or peel strength forces . 19

– 4 – IEC TR 61901:2016 © IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
TESTS RECOMMENDED ON CABLES WITH A LONGITUDINALLY
APPLIED METAL FOIL FOR RATED VOLTAGES ABOVE 30 kV
(U = 36 kV) UP TO AND INCLUDING 500 kV (U = 550 kV)
m m
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
The main task of IEC technical committees is to prepare International Standards. However, a
technical committee may propose the publication of a Technical Report when it has collected
data of a different kind from that which is normally published as an International Standard, for
example "state of the art".
IEC TR 61901, which is a Technical Report, has been prepared by IEC technical committee
20: Electric cables.
This second edition cancels and replaces the first edition, published in 2005. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) Recommendations on the tests to be performed at the different stages of the cable and
cable system qualification (development tests, type tests, sample tests, routine tests, after
installation tests) have been provided.

b) The performance level of the tests related to the longitudinally applied metal foil which
depends on the cable design has been detailed.
c) Three cable designs that represent the world production of cables with longitudinally
applied metal foil have been detailed.
d) A test on the weld design has been included, following the appearance of a new cable
design with smooth and longitudinally welded aluminium foil (referred to in this document
as combined design).
e) An examination of the cable at the end of the type test has been included.
f) The cable system approach (cable with installed accessories) has been considered and a
short circuit test with accessories has been introduced.
The text of this Technical Report is based on the following documents:
Enquiry dr
...
