IEC 60332-1-2:2025

Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame

IEC 60332‑1‑2:2025 specifies the procedure for testing the resistance to vertical flame propagation for a single vertical electrical insulated conductor or cable, or optical fibre cable, under fire conditions using a 1 kW pre-mixed flame. The apparatus is described in IEC 60332‑1‑1.
NOTE 1 Testing to IEC 60332‑1‑2 can be performed simultaneously with that to IEC 60332‑1‑3, if required.
This group safety publication focusing on test method(s) is primarily intended to be used as a product safety standard for the products mentioned in the scope, but is also intended to be used by technical committees in the preparation of standards for products similar to those mentioned in the scope of this group safety publication, in accordance with the principles laid down in IEC Guide 104 and lSO/lEC Guide 51.
NOTE 2 The performing of this test method on a single insulated conductor or cable or optical fibre cable does not provide compliance with fire propagation requirements in relevant standards in the case that the single insulated conductor or cable or optical fibre cable is installed with or amongst other cables as a group. (See the IEC 60332‑3 series).
One of the responsibilities of a technical committee is, wherever applicable, to make use of basic safety publications and/or group safety publications in the preparation of its publications.

Essais des câbles électriques et à fibres optiques soumis au feu - Partie 1-2: Essai de propagation verticale de la flamme sur conducteur ou câble isolé - Procédure pour flamme à prémélange de 1 kW

La CEI 60332-1-2:2025 spécifie la procédure d'essai de la résistance à la propagation verticale de la flamme pour un conducteur ou câble isolé électrique vertical unique, ou un câble à fibres optiques, dans des conditions d'incendie en utilisant une flamme prémélangée de 1 kW. L'appareillage est décrit dans la CEI 60332-1-1.
NOTE 1 Les essais selon la CEI 60332-1-2 peuvent être effectués simultanément avec ceux selon la CEI 60332-1-3, si nécessaire.
La présente publication de sécurité de groupe axée sur la (les) méthode(s) d'essai est principalement destinée à être utilisée comme norme de sécurité pour les produits mentionnés dans le domaine d'application, mais elle est également destinée à être utilisée par les comités d'études dans la préparation de normes pour des produits similaires à ceux mentionnés dans le domaine d'application de la présente publication de sécurité de groupe, conformément aux principes énoncés dans le Guide 104 de la CEI et le Guide 51 de l'ISO/CEI.
NOTE 2 L'application de cette méthode d'essai à un conducteur ou câble isolé ou à un câble à fibres optiques n'assure pas la conformité aux exigences de propagation du feu des normes pertinentes dans le cas où le conducteur ou câble isolé ou le câble à fibres optiques est installé avec ou parmi d'autres câbles en tant que groupe. (Voir la série IEC 60332-3).
L'une des responsabilités d'un comité d'études est, le cas échéant, d'utiliser les publications sur la sécurité de base et/ou les publications sur la sécurité de groupe dans la préparation de ses publications.

General Information

• Status: Published
• Publication Date: 09-Jun-2025
• ICS: 13.220.40 - Ignitability and burning behaviour of materials and products
• ICS: 29.020 - Electrical engineering in general
• ICS: 29.060.20 - Cables
• Technical Committee: TC 20 - Electric cables
• Drafting Committee: WG 18 - TC 20/WG 18
• Current Stage: PPUB - Publication issued
• Start Date: 10-Jun-2025
• Completion Date: 13-Jun-2025

Relations

• Revises: IEC 60332-1-2:2004/AMD1:2015 - Amendment 1 - Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame
• Effective Date: 05-Sep-2023
• Revises: IEC 60332-1-2:2004 - Tests on electric and optical fibre cables under fire conditions - Part 1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame
• Effective Date: 05-Sep-2023

Overview

IEC 60332-1-2:2025 specifies a standardized laboratory procedure to assess vertical flame propagation for a single insulated electrical conductor, cable or optical fibre cable using a 1 kW pre‑mixed flame. The series apparatus is defined in IEC 60332-1-1. This Edition 2.0 (2025) updates positioning requirements and adds performance criteria (Annex A). The test is a product‑safety test method used by manufacturers, test laboratories and technical committees to evaluate single‑cable flame behaviour under fire conditions.

Key topics and technical requirements

• Scope: Single vertical insulated conductor, cable or optical fibre cable tested for vertical flame propagation using a 1 kW pre‑mixed flame.
• Apparatus: Use the test enclosure and burner arrangement detailed in IEC 60332-1-1.
• Sample size: Test piece length 600 ± 25 mm. Overall diameter measured per IEC 60811‑203 (three measurements averaged).
• Conditioning: (23 ± 5) °C, (50 ± 20) % RH, for at least 16 h. Painted/lacquered samples require a prior 60 °C for 4 h treatment.
• Mounting & positioning:
  • Distance between supports: 550 ± 5 mm.
  • Bottom of specimen ~50 mm from base of enclosure; centered laterally.
  • Recommended retaining wire diameters: 1.0 ± 0.3 mm for cables ≤50 mm, 1.5 ± 0.3 mm for >50 mm.
  • If sample moves, use 1 mm wire loops positioned ~50 ± 5 mm below and 50 ± 5 mm and 150 ± 5 mm above the blue cone impingement point.
• Flame application:
  • Burner tip (blue cone) impinges 475 ± 5 mm from upper support; burner angled 45 ± 2° to vertical.
  • Flame exposure times depend on overall diameter:
    • D ≤ 25 mm: 60 ± 2 s
    • 25 < D ≤ 50 mm: 120 ± 2 s
    • 50 < D ≤ 75 mm: 240 ± 2 s
    • D > 75 mm: 480 ± 2 s
• Safety: Explicit warnings on fire/explosion risk, inhalation of smoke or noxious products (notably halogenated materials), and harmful residues.
• Evaluation: After burning ceases, residues are examined and results evaluated against the performance requirements (Annex A).

Applications and users

IEC 60332-1-2 is used by:

• Cable and optical fibre manufacturers for product development and internal QA.
• Accredited fire‑test laboratories performing routine type testing and compliance checks.
• Certification bodies and safety assessors verifying product flame behaviour as a product‑safety test method.
• Standards committees preparing product standards that reference single‑cable flame performance.

Note: This single‑cable test does not substitute for group‑cable propagation tests (see the IEC 60332‑3 series) when cables are installed in bundles or trays.

Related standards

• IEC 60332-1-1 (apparatus)
• IEC 60332-1-3 (vertical flame test variants)
• IEC 60332-3 series (group cable tests)
• IEC 60811-203 (diameter measurement)
• IEC Guide 104 / ISO/IEC Guide 51 (safety and standardization principles)

Keywords: IEC 60332-1-2, vertical flame propagation, 1 kW pre‑mixed flame, cable fire testing, single insulated conductor, optical fibre cable, IEC 60332 series.

Standards Content (Sample)

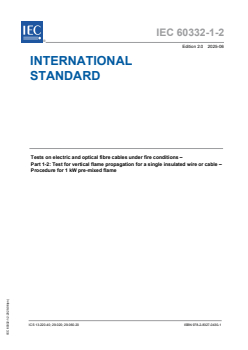

IEC 60332-1-2 ®
Edition 2.0 2025-06
INTERNATIONAL
STANDARD
Tests on electric and optical fibre cables under fire conditions –
Part 1-2: Test for vertical flame propagation for a single insulated wire or cable –
Procedure for 1 kW pre-mixed flame
ICS 13.220.40; 29.020; 29.060.20 ISBN 978-2-8327-0430-1

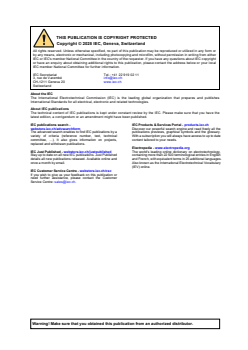

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or
by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either
IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC copyright
or have an enquiry about obtaining additional rights to this publication, please contact the address below or your local
IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - IEC Products & Services Portal - products.iec.ch
webstore.iec.ch/advsearchform Discover our powerful search engine and read freely all the
The advanced search enables to find IEC publications by a publications previews, graphical symbols and the glossary.
variety of criteria (reference number, text, technical With a subscription you will always have access to up to date
committee, …). It also gives information on projects, content tailored to your needs.
replaced and withdrawn publications.
Electropedia - www.electropedia.org
The world's leading online dictionary on electrotechnology,
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published containing more than 22 500 terminological entries in English
details all new publications released. Available online and and French, with equivalent terms in 25 additional languages.
once a month by email. Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer
Service Centre: [e-mail].
– 2 – IEC 60332-1-2:2025 © IEC 2025

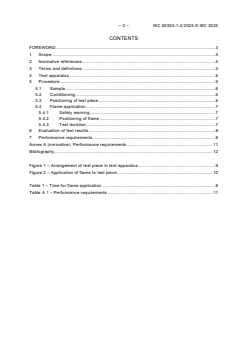

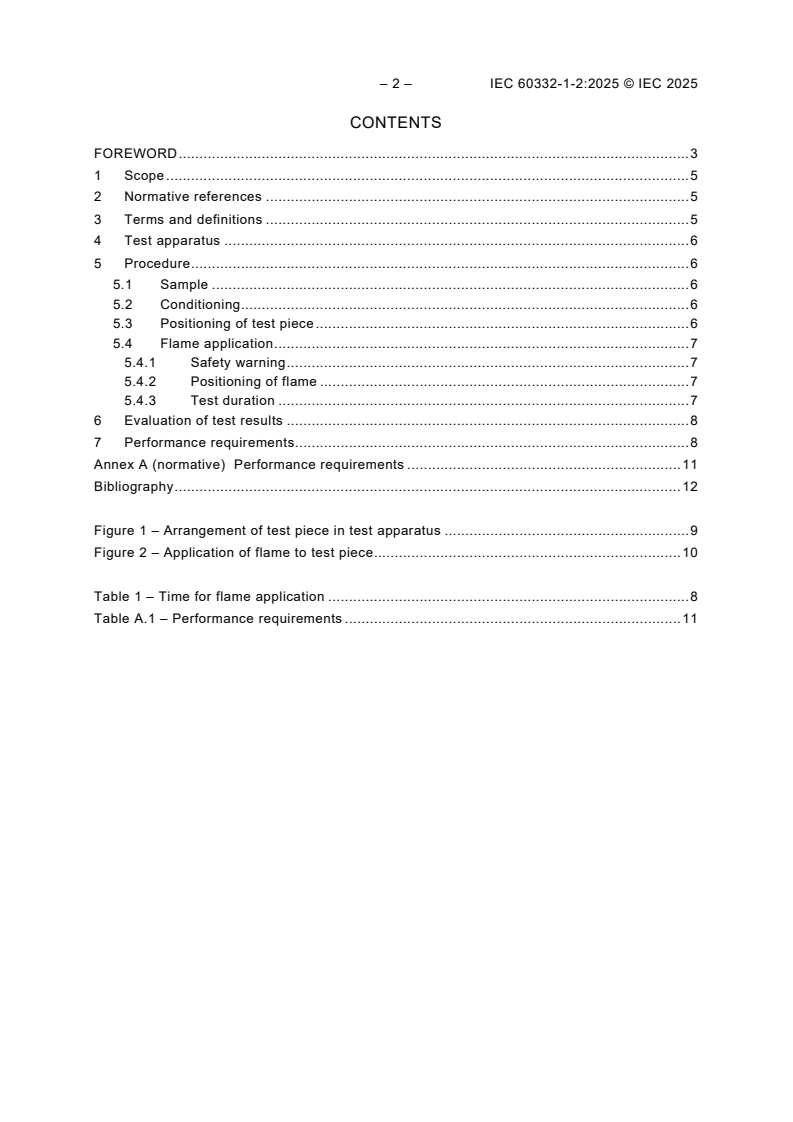

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Test apparatus . 6
5 Procedure . 6
5.1 Sample . 6
5.2 Conditioning . 6
5.3 Positioning of test piece . 6
5.4 Flame application . 7
5.4.1 Safety warning . 7
5.4.2 Positioning of flame . 7
5.4.3 Test duration . 7
6 Evaluation of test results . 8
7 Performance requirements. 8
Annex A (normative) Performance requirements . 11
Bibliography . 12

Figure 1 – Arrangement of test piece in test apparatus . 9
Figure 2 – Application of flame to test piece . 10

Table 1 – Time for flame application . 8
Table A.1 – Performance requirements . 11

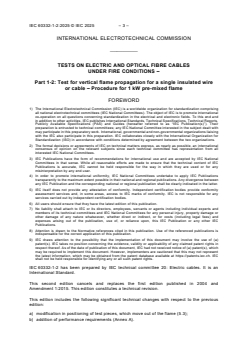

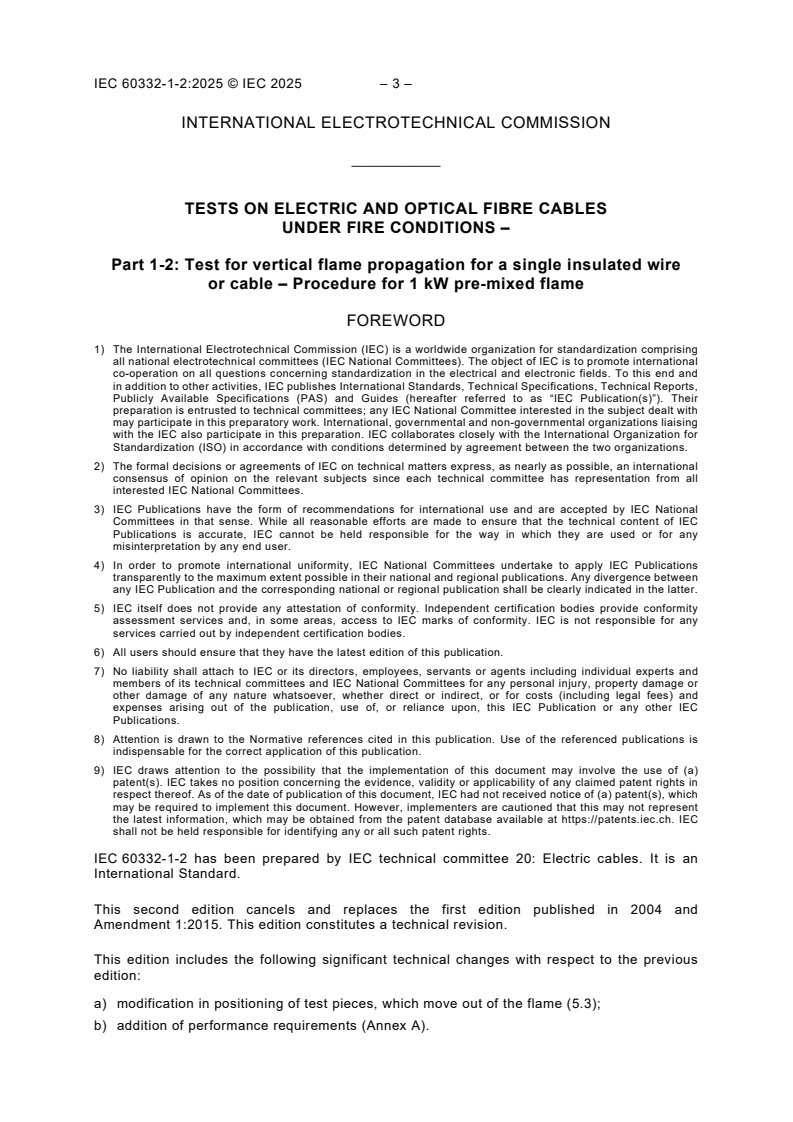

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
TESTS ON ELECTRIC AND OPTICAL FIBRE CABLES
UNDER FIRE CONDITIONS –
Part 1-2: Test for vertical flame propagation for a single insulated wire
or cable – Procedure for 1 kW pre-mixed flame

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC 60332-1-2 has been prepared by IEC technical committee 20: Electric cables. It is an
International Standard.
This second edition cancels and replaces the first edition published in 2004 and
Amendment 1:2015. This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) modification in positioning of test pieces, which move out of the flame (5.3);
b) addition of performance requirements (Annex A).

– 4 – IEC 60332-1-2:2025 © IEC 2025
The text of this International Standard is based on the following documents:
Draft Report on voting
20/2232/FDIS 20/2244/RVD
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this International Standard is English.
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
This document has the status of a group safety publication in accordance with IEC Guide 104.
A list of all parts in the IEC 60332 series, published under the general title Tests on electric and
optical fibre cables under fire conditions, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
TESTS ON ELECTRIC AND OPTICAL FIBRE CABLES
UNDER FIRE CONDITIONS –
Part 1-2: Test for vertical flame propagation for a single insulated wire
or cable – Procedure for 1 kW pre-mixed flame

1 Scope
This part of IEC 60332 specifies the procedure for testing the resistance to vertical flame
propagation for a single vertical electric insulated conductor or cable, or optical fibre cable,
under fire conditions using a 1 kW pre-mixed flame. The apparatus is described in
IEC 60332-1-1.
NOTE 1 Testing to IEC 60332-1-2 can be performed simultaneously with that to IEC 60332-1-3, if required.
This group safety publ
...
