IEC 61988-1:2003

Plasma display panels - Part 1: Terminology and letter symbols

Gives the preferred terms, their definitions and symbols for colour AC plasma display panels (AC PDP); with the object of using the same terminology when publications are prepared in different countries. Guidance on the technology is provided in the annexes.

Panneaux d'affichage à plasma - Partie 1 : Terminologie et symboles littéraux

Donne les termes à utiliser de préférence, leurs définitions et leurs symboles pour les panneaux d'affichage couleur à plasma à tension alternative (AC Plasma Display Panels ou AC PDP); le but recherché est d'encourager l'utilisation de ces mêmes termes lorsque des publications sont préparées dans différents pays. Des lignes directrices concernant la technologie sont données dans les annexes.

General Information

• Status: Published
• Publication Date: 11-May-2003
• ICS: 31.260 - Optoelectronics. Laser equipment
• Technical Committee: TC 110 - Electronic displays
• Drafting Committee: WG 4 - TC 110/WG 4
• Current Stage: DELPUB - Deleted Publication
• Completion Date: 26-Jul-2011

Relations

• Revised: IEC 61988-1:2011 - Plasma display panels - Part 1: Terminology and letter symbols
• Effective Date: 05-Sep-2023

Standards Content (Sample)

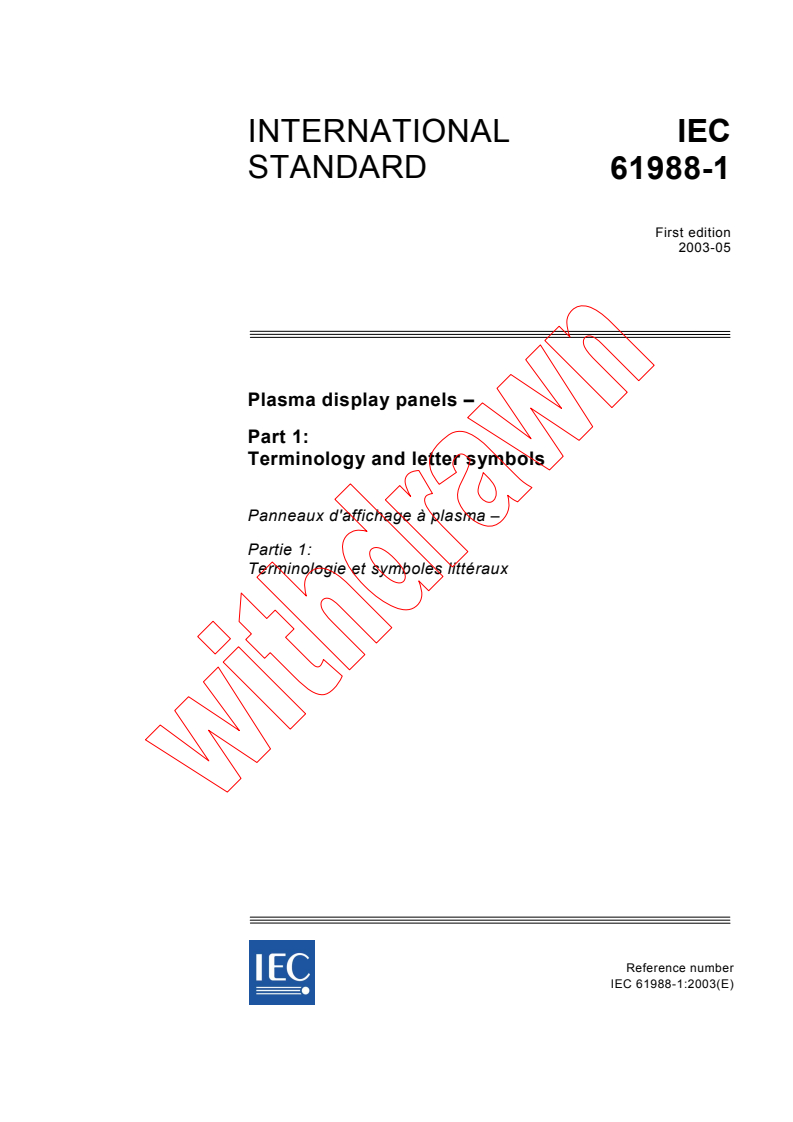

INTERNATIONAL IEC
STANDARD
61988-1
First edition
2003-05
Plasma display panels –
Part 1:
Terminology and letter symbols
Panneaux d'affichage à plasma –
Partie 1:
Terminologie et symboles littéraux

Reference number
Publication numbering
As from 1 January 1997 all IEC publications are issued with a designation in the

60000 series. For example, IEC 34-1 is now referred to as IEC 60034-1.

Consolidated editions
The IEC is now publishing consolidated versions of its publications. For example,

edition numbers 1.0, 1.1 and 1.2 refer, respectively, to the base publication, the

base publication incorporating amendment 1 and the base publication incorporating

amendments 1 and 2.
Further information on IEC publications
The technical content of IEC publications is kept under constant review by the IEC,
thus ensuring that the content reflects current technology. Information relating to
this publication, including its validity, is available in the IEC Catalogue of
publications (see below) in addition to new editions, amendments and corrigenda.
Information on the subjects under consideration and work in progress undertaken
by the technical committee which has prepared this publication, as well as the list
of publications issued, is also available from the following:
• IEC Web Site (www.iec.ch)
• Catalogue of IEC publications
The on-line catalogue on the IEC web site (http://www.iec.ch/searchpub/cur_fut.htm)
enables you to search by a variety of criteria including text searches, technical
committees and date of publication. On-line information is also available on
recently issued publications, withdrawn and replaced publications, as well as
corrigenda.
• IEC Just Published
This summary of recently issued publications (http://www.iec.ch/online_news/
justpub/jp_entry.htm) is also available by email. Please contact the Customer
Service Centre (see below) for further information.
• Customer Service Centre
If you have any questions regarding this publication or need further assistance,
please contact the Customer Service Centre:
Email: [e-mail]
Tel: [phone]
Fax: [phone]

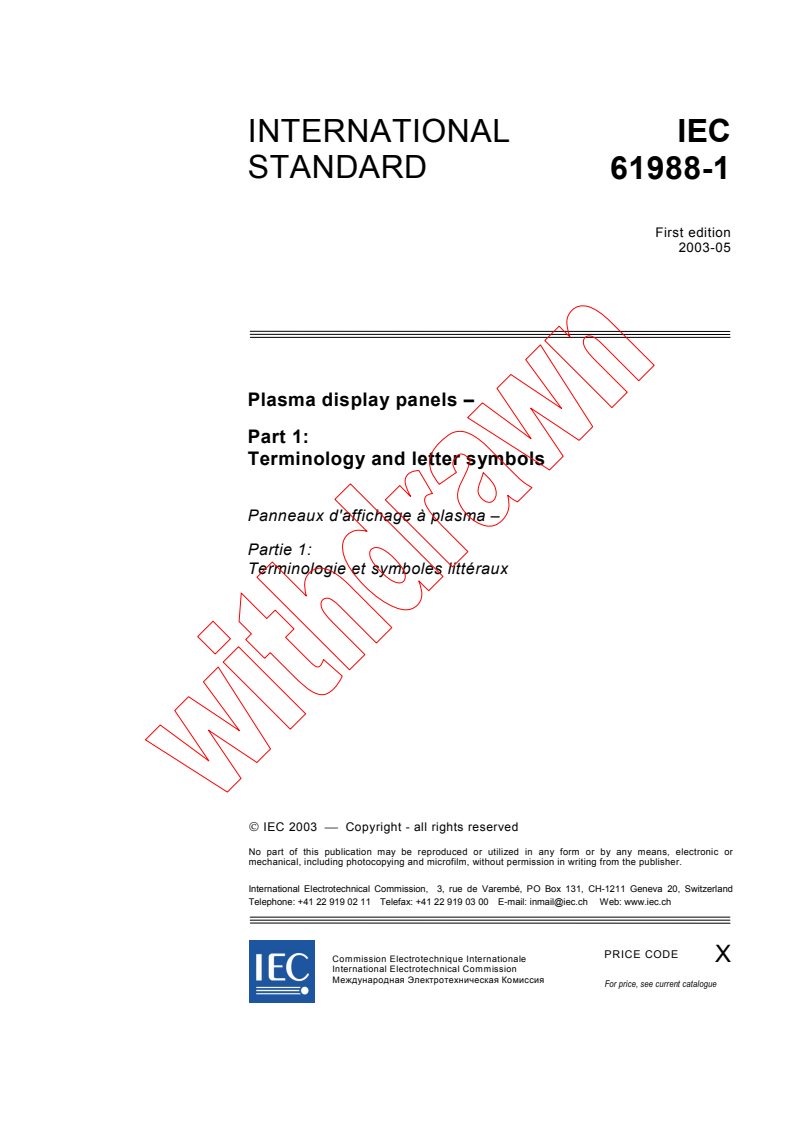

INTERNATIONAL IEC
STANDARD
61988-1
First edition
2003-05
Plasma display panels –
Part 1:
Terminology and letter symbols
Panneaux d'affichage à plasma –
Partie 1:
Terminologie et symboles littéraux

 IEC 2003  Copyright - all rights reserved
No part of this publication may be reproduced or utilized in any form or by any means, electronic or
mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: [phone] Telefax: [phone] E-mail: [e-mail]  Web: www.iec.ch
PRICE CODE
Commission Electrotechnique Internationale
X
International Electrotechnical Commission
Международная Электротехническая Комиссия
For price, see current catalogue

– 2 – 61988-1  IEC:2003(E)
CONTENTS
FOREWORD . 3

1 Scope . 5

2 Normative references. 5

3 Terms and definitions . 5

4 Symbols.28

4.1 Symbol list by term name.28
4.2 Symbol list by symbol .29
Annex A (informative) Description of the technology.30
Annex B (informative) Relationship between voltage terms and discharge
characteristics.41
Annex C (informative) Gaps .42
Annex D (informative) Manufacturing .43
Annex E (informative) Interconnect pad.46
Figure A.1 – Principal structures and discharge characteristics of a DC PDP cell and
an AC PDP cell .30
Figure A.2 – Discharge characteristics of a cell (single cell static characteristics) .32
Figure A.3 – Static characteristics of cells in a panel or a group of cells.33
Figure A.4 – Write waveform components .34
Figure A.5 – Operation of a two-electrode type AC PDP.35
Figure A.6 – Relation between margins and applied voltages .36
Figure A.7 – Structure of a three-electrode type, surface discharge colour AC PDP .37
Figure A.8 – Address-, Display-period separation method .38
Figure A.9 – A driving waveform for ADS method applied to a three-electrode .39
Figure A.10 – Address while display method .40
Figure C.1 – Gaps (sustain gap, plate gap and interpixel gap) in a three-electrode
type AC PDP.42
Figure D.1 – PDP manufacturing flow chart .44

Figure E.1 – Interconnect pad group .46
Figure E.2 – Dimensions of interconnect pads.46
Table B.1 – Relation between static, dynamic and operating discharge characteristics
in a cell, a panel or a group of cells.41

61988-1  IEC:2003(E) – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION

––––––––––––
PLASMA DISPLAY PANELS –
Part 1: Terminology and letter symbols

FOREWORD
1) The IEC (International Electrotechnical Commission) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of the IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, the IEC publishes International Standards. Their preparation is
entrusted to technical committees; any IEC National Committee interested in the subject dealt with may
participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. The IEC collaborates closely with the International
Organization for Standardization (ISO) in accordance with conditions determined by agreement between the
two organizations.
2) The formal decisions or agreements of the IEC on technical matters express, as nearly as possible, an
international consensus of opinion on the relevant subjects since each technical committee has representation
from all interested National Committees.
3) The documents produced have the form of recommendations for international use and are published in the form
of standards, technical specifications, technical reports or guides and they are accepted by the National
Committees in that sense.
4) In order to promote international unification, IEC National Committees undertake to apply IEC International
Standards transparently to the maximum extent possible in their national and regional standards. Any
divergence between the IEC Standard and the corresponding national or regional standard shall be clearly
indicated in the latter.
5) The IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with one of its standards.
6) Attention is drawn to the possibility that some of the elements of this International Standard may be the subject
of patent rights. The IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 61988-1 has been prepared by subcommittee 47C: Flat panel
display devices, of IEC technical committee 47: Semiconductor devices.
The text of this standard is based on the following documents:
FDIS Report on voting
47C/289/FDIS 47C/296/RVD
Full information on the voting for the approval on this standard can be found in the report on

voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
IEC 61988 will consist of the following parts, under the general title Plasma display panels:
Part 1: Terminology and letter symbols;
Part 2-1: Measuring methods – Optical;
Part 2-2: Measuring methods – Optoelectrical;
Part 3: Guidelines of mechanical interface;
Part 4: Environmental, endurance and mechanical test methods.

– 4 – 61988-1  IEC:2003(E)
The committee has decided that the contents of this publication will remain unchanged until
2008. At this date, the publication will be

• reconfirmed;
• withdrawn;
• replaced by a revised edition, or

• amended.
A bilingual version of this standard may be issued at a later date.

61988-1  IEC:2003(E) – 5 –
PLASMA DISPLAY PANELS –
Part 1: Terminology and letter symbols

1 Scope
This part of IEC 61988 gives the preferred terms, their definitions and symbols for colour
AC plasma display panels (AC PDP); with the object of using the same terminology when

publications are prepared in different countries. Guidance on the technology is provided

in the annexes.
2 Normative references
The following referenced documents are indispensable for the application of this document.
For dated references, only the edition cited applies. For undated references, the latest edition
of the referenced document (including any amendments) applies.
IEC 61988-2-1, Plasma display panels – Part 2-1: Measuring methods – Optical
IEC 61988-2-2, Plasma display panels – Part 2-2: Measuring methods – Optoelectrical
nd
CIE 15.2:1986, Colorimetry, 2 Edition
3 Terms and definitions
For the purposes of this document, the following definitions apply.
3.1
AC PDP
NOTE See AC plasma display panel.
3.2
AC plasma display panel
AC PDP
plasma display panel in which the gas discharge region is insulated from the electrodes that
are driven with AC voltage pulses
3.3
address bias
Vba
data bias
common voltage applied to all address electrodes during addressing
3.4
address cycle period
time interval between initiation of the closest spaced successive address pulses
3.5
address discharge
discharge that changes the state of a PDP subpixel
———————
To be published.
– 6 – 61988-1  IEC:2003(E)
3.6
address electrode
data electrode
electrode, orthogonal to the scan electrode, that is used in driving the subpixels with

the image data
3.7
address pulse
data pulse
incremental voltage pulse applied to a single address (data) electrode for addressing,
to select a subpixel according to an image to be displayed

NOTE See scan pulse.
3.8
address voltage
Va
data voltage
amplitude of the voltage pulses applied to the address (data) electrode during addressing
(excludes the address bias on the electrode)
3.9
address while display method
AWD method
grey scale drive technique that addresses only a portion of the pixels of the panel in any time
within a sustain period
NOTE See also ADS.
3.10
addressability
number of pixels in the horizontal and vertical directions, that can have their luminance
changed
NOTE Usually expressed in the number of horizontal pixels by the number of vertical pixels. This term is not
synonymous with resolution. See resolution.
3.11
addressing
setting or changing the state of a subpixel with an address pulse
3.12
ADS method
address, display-period separation method
grey scale drive technique that consists of addressing all the pixels in the panel in one time

period and sustaining all the pixels in the panel in a separate time period
3.13
ageing
manufacturing process consisting of operating the panel under conditions that stabilize its
performance
3.14
annealing
process of heating the glass above its annealing point and cooling at a controlled rate
to minimize dimensional changes during subsequent high temperature cycles

61988-1  IEC:2003(E) – 7 –
3.15
anode
positively charged surface of a device that collects electrons from the discharge

NOTE In an AC PDP, the cathode and anode exchange their roles on alternate half-cycles.

3.16
aspect ratio
ratio of screen width to screen height

3.17
auto power control
APC
circuit means to control the peak and/or average power of the display
3.18
auxiliary anode
anode in a DC PDP whose discharge contributes to supply priming particles to ignite a
discharge in a cell
3.19
back plate
rear plate
plate furthest from the viewer
3.20
back-filling
NOTE See filling.
3.21
bake
NOTE See bakeout, baking.
3.22
bakeout
high temperature processing of a vacuum system and/or PDP to assist in achieving low
pressures
3.23
baking
high temperature process used to evaporate water and decompose organic materials

NOTE Baking is used to clean the parts by dispersing unwanted material into the atmosphere.
3.24
barrier rib
rib that separates the cells of the panel, electrically, optically and physically
NOTE The barrier ribs may extend from the front plate to the back plate and control the spacing between
the plates.
3.25
binder burnout
process during which organic binders are remove by decomposition and/or oxidation
3.26
black
...

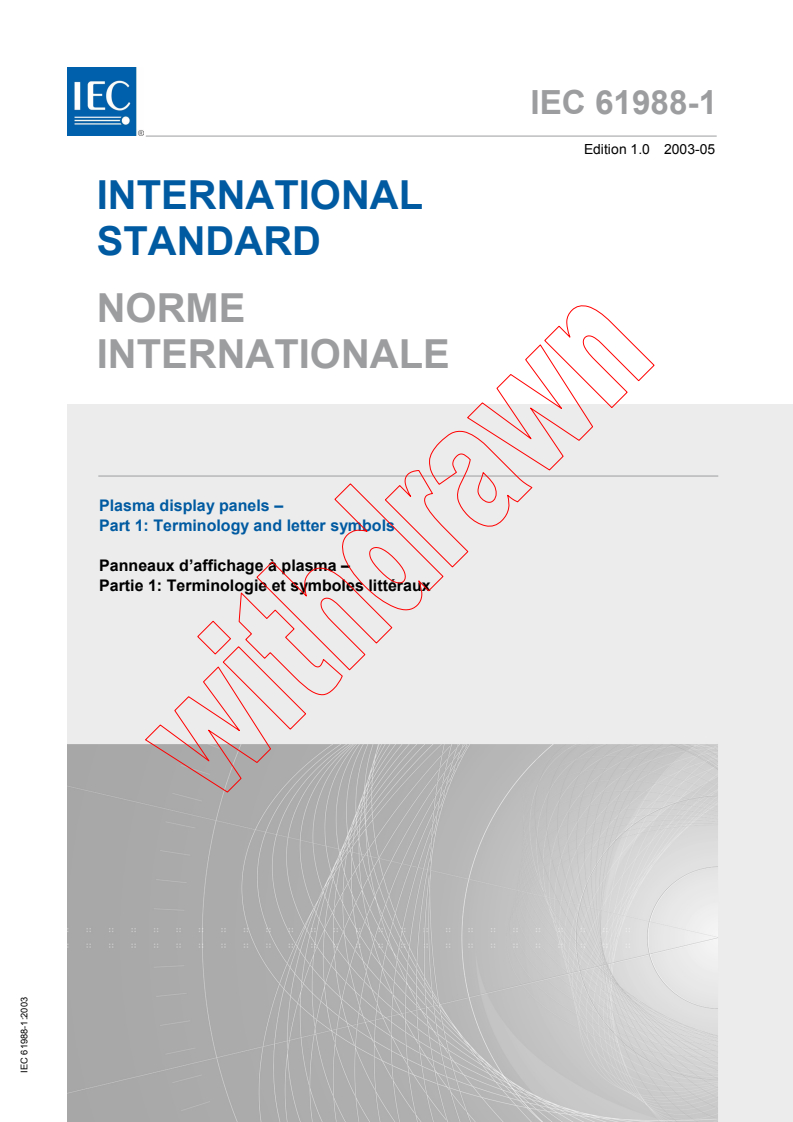

IEC 61988-1
Edition 1.0 2003-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Plasma display panels –
Part 1: Terminology and letter symbols

Panneaux d’affichage à plasma –
Partie 1: Terminologie et symboles littéraux

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by

any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or

IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.

Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette

publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: [e-mail]
Tél.: [phone]
Fax: [phone]

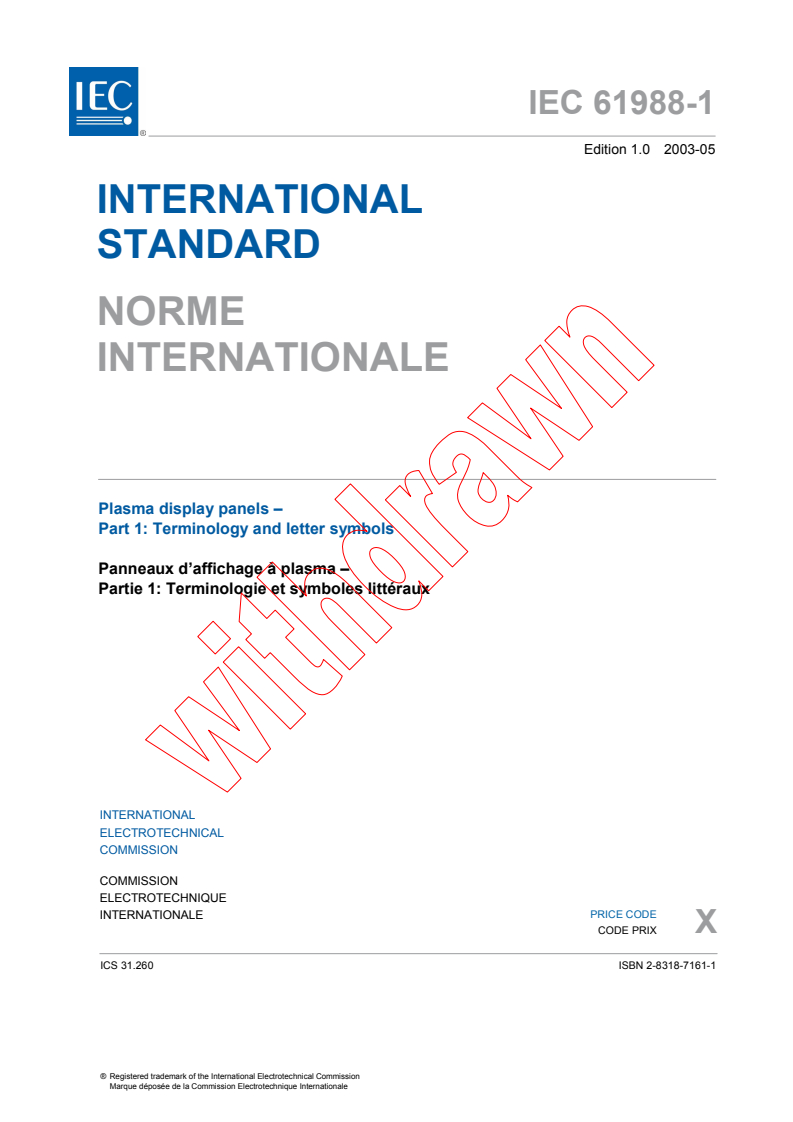

IEC 61988-1
Edition 1.0 2003-05
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Plasma display panels –
Part 1: Terminology and letter symbols

Panneaux d’affichage à plasma –
Partie 1: Terminologie et symboles littéraux

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
X
CODE PRIX
ICS 31.260 ISBN 2-8318-7161-1
– 2 – 61988-1  CEI:2003
SOMMAIRE
AVANT-PROPOS . 4

1 Domaine d'application. 8

2 Références normatives . 8

3 Termes et définitions . 8

4 Symboles.56

4.1 Liste de symboles organisée par libellés.56

4.2 Liste de symboles organisée par symboles .58
Annexe A (informative) Description de la technologie.62
Annexe B (informative) Relations entre les termes relatifs aux tensions et les
caractéristiques de décharge .86
Annexe C (informative) Espaces fonctionnels.88
Annexe D (informative) Fabrication .90
Annexe E (informative) Contacts d'interconnexion.96
Figure A.1 – Structures principales et caractéristiques de décharge d'une cellule de
DC PDP et d'une cellule d'AC PDP.62
Figure A.2 – Caractéristiques de décharge d'une cellule (caractéristiques statiques
d'une cellule unique) .66
Figure A.3 – Caractéristiques statiques des cellules dans un panneau ou d'un groupe
de cellules.68
Figure A.4 – Composantes de la forme d'onde d'écriture.70
Figure A.5 – Fonctionnement d'un AC PDP de type à deux électrodes .72
Figure A.6 – Relation entre les marges et les tensions appliquées .74
Figure A.7 – Structure d'un AC PDP couleur à décharge de surface, de type à trois
électrodes .76
Figure A.8 – Méthode ADS – Séparation des périodes d'adressage et d'affichage.80
Figure A.9 – Forme d'onde de commande de la méthode ADS appliquée à un PDP de
type à trois.82
Figure A.10 – Méthode AWD – Adressage pendant l'affichage .84

Figure C.1 – Espaces (d'entretien, inter-plaques et inter-pixels) dans un AC PDP de
type à trois électrodes.88
Figure D.1 – Diagramme de fabrication d'un PDP.92
Figure E.1 – Groupes de contacts d'interconnexion.96
Figure E.2 – Représentation des contacts d'interconnexion.96
Tableau B.1 – Relations entre les caractéristiques de décharge statiques, dynamiques
et opérationnelles dans une cellule, un panneau ou un groupe de cellules .86

61988-1  IEC:2003 – 3 –
CONTENTS
FOREWORD . 5

1 Scope . 9

2 Normative references. 9

3 Terms and definitions . 9

4 Symbols.57

4.1 Symbol list by term name.57

4.2 Symbol list by symbol .59
Annex A (informative) Description of the technology.63
Annex B (informative) Relationship between voltage terms and discharge
characteristics.87
Annex C (informative) Gaps .89
Annex D (informative) Manufacturing .91
Annex E (informative) Interconnect pad.97
Figure A.1 – Principal structures and discharge characteristics of a DC PDP cell and
an AC PDP cell .63
Figure A.2 – Discharge characteristics of a cell (single cell static characteristics) .67
Figure A.3 – Static characteristics of cells in a panel or a group of cells.69
Figure A.4 – Write waveform components .71
Figure A.5 – Operation of a two-electrode type AC PDP.73
Figure A.6 – Relation between margins and applied voltages .75
Figure A.7 – Structure of a three-electrode type, surface discharge colour AC PDP .77
Figure A.8 – Address-, Display-period separation method .81
Figure A.9 – A driving waveform for ADS method applied to a three-electrode .83
Figure A.10 – Address while display method .85
Figure C.1 – Gaps (sustain gap, plate gap and interpixel gap) in a three-electrode
type AC PDP.89
Figure D.1 – PDP manufacturing flow chart .93
Figure E.1 – Interconnect pad group .97

Figure E.2 – Dimensions of interconnect pads.97
Table B.1 – Relation between static, dynamic and operating discharge characteristics
in a cell, a panel or a group of cells.87

– 4 – 61988-1 © CEI:2003
COMMISSION ÉLECTROTECHNIQUE INTERNATIONALE

––––––––––––
PANNEAUX D'AFFICHAGE À PLASMA –

Partie 1: Terminologie et symboles littéraux

AVANT-PROPOS
1) La Commission Electrotechnique Internationale (CEI) est une organisation mondiale de normalisation
composée de l'ensemble des comités électrotechniques nationaux (Comités nationaux de la CEI). La CEI a
pour objet de favoriser la coopération internationale pour toutes les questions de normalisation dans les
domaines de l'électricité et de l'électronique. A cet effet, la CEI – entre autres activités – publie des Normes
internationales, des Spécifications techniques, des Rapports techniques et des Guides (ci-après dénommés
"Publication(s) de la CEI"). Leur élaboration est confiée à des comités d'études, aux travaux desquels tout
Comité national intéressé par le sujet traité peut participer. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec la CEI, participent également aux travaux. La CEI
collabore étroitement avec l'Organisation Internationale de Normalisation (ISO), selon des conditions fixées par
accord entre les deux organisations.
2) Les décisions ou accords officiels de la CEI concernant les questions techniques représentent, dans la mesure
du possible, un accord international sur les sujets étudiés, étant donné que les Comités nationaux de la CEI
intéressés sont représentés dans chaque comité d’études.
3) Les Publications de la CEI se présentent sous la forme de recommandations internationales et sont agréées
comme telles par les Comités nationaux de la CEI. Tous les efforts raisonnables sont entrepris afin que la CEI
s'assure de l'exactitude du contenu technique de ses pub
...
