Plugs and socket-outlets for household and similar purposes - Part 2-4: Particular requirements for plugs and socket-outlets for SELV

This Part 2-4 of IEC 60884 applies to plugs, fixed or portable socket-outlets, and to socket-outlets for appliances from 6 V up to and including 48 V d.c. or a.c. (50/60 Hz) SELV with rated current of 16 A, intended for household and similar purposes, either indoors or outdoors. The main changes from the previous edition concern the following clauses: Clause 7 - Classification: Clause 8 - Marking Clause 9 - Checking of dimensions Clause 13 - Construction of fixed socket-outlets Clause 14 - Construction of plugs and portable socket-outlets new figures for gauges for the verification of maximum and minimum withdrawal force. Annexes:-deletion of informative Annex AA and inclusion of the relevant information in normative Annex B. Please consult the preview for more details.

Prises de courant pour usages domestiques et analogues - Partie 2-4: Règles particulières pour prises de courant pour TBTS

La présente Partie 2-4 de la CEI 60884 s'applique aux fiches, aux socles fixes ou mobiles et aux socles pour appareils pour TBTS de 6 V à 48 V inclus pour courant continu ou alternatif (50/60 Hz) avec un courant assigné de 16 A, destinés aux usages domestiques et analogues, à l'intérieur ou à l'extérieur des bâtiments. Les changements par rapport à l'édition précédente concernent les articles suivants: Article 7 - Classification. Article 8 - Marques et indications Article 9 - Vérification des dimensions Article 13 - Construction des socles fixes Article 14 - Construction des fiches et socles mobiles Article 16 - Résistance au vieillissement, protection procurée par les enveloppes et résistance à l'humidité Article 21 - Fonctionnement normal Figures: -suppression de l'Annexe informative AA et inclusion des informations dans l'Annexe B normative. Veuillez consulter la pre-view pour plus de détails

Vtiči in vtičnice za gospodinjstva in podobne namene - 2-4. del: Posebne zahteve za vtiče in vtičnice za SELV (varnostna mala napetost)

Ta del 2-4 IEC 60884 velja za vtiče, fiksne ali prenosne vtičnice, in za vtičnice za aparate od 6 V do vključno 48 V izmeničnega ali enosmernega toka (50/60 Hz) SELV z ocenjenim tokom 16 A, ki so namenjeni za gospodinjstva ali podobne namene, naj si bo v zaprtih prostorih ali zunaj. OPOMBA 1: Razširitev tega standarda na višje frekvence je v obravnavi. Ta standard ne zajema zahteve za vgrezne vgradne doze; zajema samo tiste zahteve za površinske doze, ki so potrebne za preskuse vtičnice. Ta standard prav tako velja za vtiče in vtičnice, vgrajene v kompletih podaljškov električnega kabla ali integrirane ali vgrajene v naprave ali namenjene za pritrditev na njih. OPOMBA 2: Vtičnica, vgrajena v napravo ali opremo, je vtičnica, ki jo oblikuje ohišje naprave ali opreme. Vtičnica, vgrajena v aparat ali opremo, je ločena vtičnica, vgrajena ali pritrjena na aparat ali opremo. Poleg tega, morajo vtičnice za aparate ali opremo biti v skladu z IEC 60884-2-2. Ta standard ne velja za:
- vtiče, vtičnice in spojnike za industrijske namene;
- spojnike za aparate;
- fiksne vtičnice kombinirane z varovalkami, avtomatskimi stikali itd.
Vtiče in fiksne ali prenosne vtičnice, ki so v skladu s tem standardom in so primerne za uporabo pri zunanjih temperaturah, ki običajno ne presežejo 25 C, vendar včasih dosežejo 35 C. OPOMBA 3: Vtičnice, ki so v skladu s tem standardom, so primerne samo za vgraditev v opremo na takšen način in na takšno mesto, kjer okoliška temperatura ne presega 35 C. Na mestih, kjer prevladajo posebni pogoji, kot na ladjah, vozilih in podobno, ter na nevarnih mestih, na primer, kjer je možnost eksplozij, se lahko zahteva posebna izgradnja.

General Information

Status
Not Published
Current Stage
PPUB - Publication issued
Start Date
21-Nov-2007

Buy Standard

Standard
IEC 60884-2-4:2010
English language
24 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST IEC 60884-2-4:2010
01-julij-2010
9WLþLLQYWLþQLFH]DJRVSRGLQMVWYDLQSRGREQHQDPHQHGHO3RVHEQH]DKWHYH
]DYWLþHLQYWLþQLFH]D6(/9 YDUQRVWQDPDODQDSHWRVW

Plugs and socket-outlets for household and similar purposes - Part 2-4: Particular

requirements for plugs and socket-outlets for SELV
Prises de courant pour usages domestiques et analogues - Partie 2-4: Règles
particulières pour prises de courant pour TBTS
Ta slovenski standard je istoveten z: IEC 60884-2-4
ICS:
29.120.30 9WLþLYWLþQLFHVSRMNH Plugs, socket-outlets,
couplers
SIST IEC 60884-2-4:2010 en,fr

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST IEC 60884-2-4:2010
---------------------- Page: 2 ----------------------
SIST IEC 60884-2-4:2010
IEC 60884-2-4
Edition 3.0 2007-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Plugs and socket-outlets for household and similar purposes –
Part 2-4: Particular requirements for plugs and socket-outlets for SELV
Prises de courant pour usages domestiques et analogues –
Partie 2-4: Règles particulières pour prises de courant pour TBTS
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX
ICS 29.120.30 ISBN 2-8318-9359-3
---------------------- Page: 3 ----------------------
SIST IEC 60884-2-4:2010
– 2 – 60884-2-4 © IEC:2007

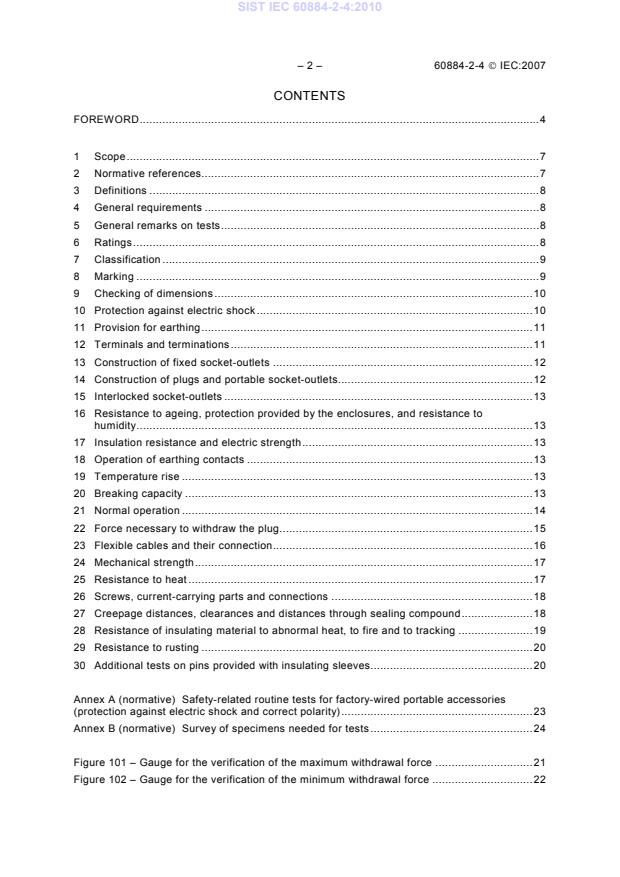

CONTENTS

FOREWORD...........................................................................................................................4

1 Scope...............................................................................................................................7

2 Normative references........................................................................................................7

3 Definitions ........................................................................................................................8

4 General requirements .......................................................................................................8

5 General remarks on tests..................................................................................................8

6 Ratings.............................................................................................................................8

7 Classification ....................................................................................................................9

8 Marking ............................................................................................................................9

9 Checking of dimensions ..................................................................................................10

10 Protection against electric shock.....................................................................................10

11 Provision for earthing......................................................................................................11

12 Terminals and terminations.............................................................................................11

13 Construction of fixed socket-outlets ................................................................................12

14 Construction of plugs and portable socket-outlets............................................................12

15 Interlocked socket-outlets ...............................................................................................13

16 Resistance to ageing, protection provided by the enclosures, and resistance to

humidity..........................................................................................................................13

17 Insulation resistance and electric strength.......................................................................13

18 Operation of earthing contacts ........................................................................................13

19 Temperature rise ............................................................................................................13

20 Breaking capacity ...........................................................................................................13

21 Normal operation ............................................................................................................14

22 Force necessary to withdraw the plug..............................................................................15

23 Flexible cables and their connection................................................................................16

24 Mechanical strength........................................................................................................17

25 Resistance to heat ..........................................................................................................17

26 Screws, current-carrying parts and connections ..............................................................18

27 Creepage distances, clearances and distances through sealing compound......................18

28 Resistance of insulating material to abnormal heat, to fire and to tracking .......................19

29 Resistance to rusting ......................................................................................................20

30 Additional tests on pins provided with insulating sleeves..................................................20

Annex A (normative) Safety-related routine tests for factory-wired portable accessories

(protection against electric shock and correct polarity)...........................................................23

Annex B (normative) Survey of specimens needed for tests ..................................................24

Figure 101 – Gauge for the verification of the maximum withdrawal force ..............................21

Figure 102 – Gauge for the verification of the minimum withdrawal force ...............................22

---------------------- Page: 4 ----------------------
SIST IEC 60884-2-4:2010
60884-2-4 © IEC:2007 – 3 –

Table 1 – Ratings....................................................................................................................9

Table 3 – Relationship between rated current and connectable nominal cross-sectional

areas of copper conductors ...................................................................................................11

Table 11 – Nominal cross-sectional areas of rigid copper conductors for the deflection

test of screwless terminals ....................................................................................................

Table 16 – Maximum and minimum withdrawal forces............................................................16

Table 17 – External dimensions of flexible cables to be accommodated by cord

anchorages ...........................................................................................................................16

Table 18 – Torque test values for cord anchorages................................................................16

Table 19 – Maximum dimensions of flexible cables to be accommodated in rewirable

accessories...........................................................................................................................17

Table 20 – Relationship between rating of accessories, nominal cross-sectional areas of

test conductors and test currents for the tests of temperature rise (Clause 19) and

normal operation (Clause 21) ................................................................................................17

Table 23 – Creepage distances and clearances.....................................................................19

Table A.1 – Diagrammatic representation of routine tests to be applied to factory-wired

portable accessories .............................................................................................................23

Table B.101 – Number of specimens required for the tests ....................................................24

---------------------- Page: 5 ----------------------
SIST IEC 60884-2-4:2010
– 4 – 60884-2-4 © IEC:2007
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PLUGS AND SOCKET-OUTLETS FOR HOUSEHOLD
AND SIMILAR PURPOSES –
Part 2-4: Particular requirements for plugs and socket-outlets for SELV
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any

equipment declared to be in conformity with an IEC Publication.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60884-2-4 has been prepared by subcommittee 23B: Plugs, socket-

outlets and switches, of IEC technical committee 23: Electrical accessories.

This third edition cancels and replaces the second edition published in 1999. It constitutes a

technical revision. The main changes from the previous edition are as follows:
Clause 7 – Classification:

– deletion of classification according to the degree of protection against harmful ingress of

water;

– inapplicability of 7.1.3 of Part 1 concerning classification according to the provision for

earthing:

– inapplicability of 7.2.2 of Part 1 concerning classification according to the existence of

shutters.
---------------------- Page: 6 ----------------------
SIST IEC 60884-2-4:2010
60884-2-4 © IEC:2007 – 5 –
Clause 8 – Marking:
– modification of the symbol for degree of protection to IPXX (Subclause 8.2).
Clause 9 – Checking of dimensions:
– addition of compliance paragraph in 9.1.
Clause 13 – Construction of fixed socket-outlets:
– applicability of 13.14 of Part 1;
– addition of requirement about multiple socket-outlets (Subclause 13.101).
Clause 14 – Construction of plugs and portable socket-outlets:
– modification of compliance paragraph of 14.23;

– addition of requirement about minimum nominal cross-sectional area of cables for cord

extension sets (Subclause 14.101).

Clause 16 – Resistance to ageing, protection provided by the enclosures, and resistance to

humidity:
– applicability of the whole Clause of Part 1.
Clause 21 – Normal operation:

– addition of maximum specified dimensions, including tolerance, of the test plug.

Figures:

– new figures for gauges for the verification of maximum and minimum withdrawal force.

Annexes:

– deletion of informative Annex AA and inclusion of the relevant information in normative

Annex B.
The text of this standard is based on the following documents:
CDV Report on voting
23B/836/CDV 23B/858/RVC

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

This Part 2-4 is intended to be used in conjunction with IEC 60884-1 and IEC 60906-3. It was

established on the basis of the third edition of IEC 60884-1 (2002) and of its Amendment 1

(2006).

This Part 2-4 supplements or modifies the corresponding clauses in IEC 60884-1, so as to

convert that publication into the IEC standard: Particular requirements for plugs and socket-

outlets for SELV.

When a particular subclause of Part 1 is mentioned in this Part 2-4, that subclause applies as

far as reasonable. Where this standard states “addition”, “modification” or “replacement”, the

relevant text of Part 1 is to be adapted accordingly.
---------------------- Page: 7 ----------------------
SIST IEC 60884-2-4:2010
– 6 – 60884-2-4 © IEC:2007
In this standard the following print types are used:
– requirements proper: in roman type;
– test specification: in italic type;
– explanatory notes: in small roman type.

Subclauses or figures which are additional to those in Part 1 are numbered starting from 101;

supplementary annexes are entitled AA, BB, etc.

When clauses of Part 1 are declared as applicable, they apply only where they contain

requirements concerning plugs and socket-outlets for SELV.

A list of all parts of the IEC 60884 series, under the general title: Plugs and socket-outlets for

household and similar purposes, can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until the

maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 8 ----------------------
SIST IEC 60884-2-4:2010
60884-2-4 © IEC:2007 – 7 –
PLUGS AND SOCKET-OUTLETS FOR HOUSEHOLD
AND SIMILAR PURPOSES –
Part 2-4: Particular requirements for plugs and socket-outlets for SELV
1 Scope
Replacement:

This Part 2-4 of IEC 60884 applies to plugs, fixed or portable socket-outlets, and to socket-

outlets for appliances from 6 V up to and including 48 V d.c. or a.c. (50/60 Hz) SELV with rated

current of 16 A, intended for household and similar purposes, either indoors or outdoors.

NOTE 1 The extension of this standard to higher frequencies is under consideration.

This standard does not cover requirements for flush mounting boxes; it covers only those

requirements for surface-type mounting boxes which are necessary for the tests on the socket-

outlet.

This standard also applies to plugs and socket-outlets incorporated in cord extension sets or

integrated in or incorporated in appliances or intended to be fixed to them.

NOTE 2 A socket-outlet integrated in an appliance or equipment is a socket-outlet which is formed by the housing

of the appliance or equipment.

A socket-outlet incorporated in an appliance or equipment is a separate socket-outlet built in or fixed to an

appliance or equipment.

In addition, socket-outlets for appliances or equipment must comply with IEC 60884-2-2.

This standard does not apply to
– plugs, socket-outlets and couplers for industrial purposes;
– appliance couplers;
– fixed socket-outlets combined with fuses, automatic switches, etc.

Plugs and fixed or portable socket-outlets complying with this standard are suitable for use at

ambient temperatures not normally exceeding 25 °C, but occasionally reaching 35 °C.

NOTE 3 Socket-outlets complying with this standard are only suitable for incorporation in equipment in such a way

and in such a place that it is unlikely that the surrounding temperature exceeds 35 °C.

In locations where special conditions prevail, such as in ships, vehicles and the like, and in

hazardous locations, for example where explosions are liable to occur, special constructions

may be required.
2 Normative references
This clause of Part 1 is applicable except as follows:
Addition:

IEC 60884-2-2, Plugs and socket-outlets for household and similar purposes – Part 2:

Particular requirements for socket-outlets for appliances
---------------------- Page: 9 ----------------------
SIST IEC 60884-2-4:2010
– 8 – 60884-2-4 © IEC:2007

IEC 60906-3:1994, IEC system of plugs and socket-outlets for household and similar purposes –

Part 3: SELV plugs and socket-outlets, 16 A 6 V, 12 V, 24 V, 48 V, a.c. and d.c.

ISO 1302:2002, Geometrical Product Specifications (GPS) – Indication of surface texture in

technical product documentation
3 Definitions
This clause of Part 1 is applicable, except as follows:
Addition:
3.101
SELV

voltage which does not exceed 50 V a.c. r.m.s. or 120 V d.c. (ripple free) between conductors,

or between any conductor and earth, in a circuit which is isolated from the supply mains by

means such as a safety isolating transformer or converter with separate windings

NOTE The rated voltages of the systems considered by this standard do not exceed 48 V a.c. and 48 V d.c.

4 General requirements
This clause of Part 1 is applicable.
5 General remarks on tests
This clause of Part 1 is applicable, except as follows:
5.4 Addition after the first paragraph:

When a manufacturer's design is used for d.c., as well as for a.c., three additional specimens

are required for the tests of Clauses 19, 20 and 21.

When a manufacturer's design is used for two or more voltages, three additional specimens

are required for each additional voltage.

All relevant tests are carried out with the specimens having the highest rated voltage(s).

In addition, compliance with the dimensions of standard sheets 1 to 6 of IEC 60906-3 is

checked on one specimen of each type.
NOTE A table showing the specimens required for the tests is given in Annex B.
6 Ratings
This clause of Part 1 is applicable, except as follows:
6.1 Replacement:

Accessories shall be of the type and have voltage and current rating as shown in Table 1.

---------------------- Page: 10 ----------------------
SIST IEC 60884-2-4:2010
60884-2-4 © IEC:2007 – 9 –
Table 1 – Ratings
Type Rated voltage Rated current
V A
2P (rewirable or non-rewirable) AC 6 , 12, 24, 48 16
DC 6 , 12, 24, 48
Non-preferred values.
6.2 This subclause of Part 1 is not applicable.
7 Classification
This clause of Part 1 is applicable, except as follows:
7.1.3 This subclause is not applicable.
7.2.1 This subclause is not applicable.
7.2.2 This subclause is not applicable.
7.2.5 This subclause is not applicable.
7.3 Replacement:

Plugs are classified according to the class of equipment to which they are intended to be

connected:
– plugs for equipment of class III.
NOTE For the description of the classes of equipment, see IEC 61140.
8 Marking
This clause of Part 1 is applicable except as follows:
8.1 Addition:
In addition, the terminals of d.c. accessories shall be marked with symbols.
8.2 Replacement:
When symbols are used, they shall be as follows:

Amperes.......................................................................... A

Volts................................................................................ V

Alternating current............................................................ ~

Direct current ...................................................................

Positive pole.................................................................... +

Negative pole................................................................... –

---------------------- Page: 11 ----------------------
SIST IEC 60884-2-4:2010
– 10 – 60884-2-4 © IEC:2007
Degree of protection, when relevant ................................. IPXX

NOTE 1 Details of construction of symbols are given in IEC 60417 (IEC 60417, Graphical symbols for use on

equipment).
NOTE 2 In the IP code, the letter "X" is replaced by the relevant number.
NOTE 3 Lines formed by the construction of the tool a
...
