IEC 61162-3:2008/AMD2:2014
(Amendment)Amendment 2 - Maritime navigation and radiocommunication equipment and systems - Digital interfaces - Part 3: Serial data instrument network
Amendment 2 - Maritime navigation and radiocommunication equipment and systems - Digital interfaces - Part 3: Serial data instrument network
Amendement 2 - Matériels et systèmes de navigation et de radiocommunication maritimes - Interfaces numériques - Partie 3: Réseau par liaison de données série d'instruments
General Information
- Status
- Published
- Publication Date
- 20-Jul-2014
- Technical Committee
- TC 80 - Maritime navigation and radiocommunication equipment and systems
- Drafting Committee
- WG 6 - TC 80/WG 6
- Current Stage
- PPUB - Publication issued
- Start Date
- 21-Jul-2014
- Completion Date
- 15-Oct-2014
Relations
- Effective Date
- 05-Sep-2023
Overview
IEC 61162-3:2008/AMD2:2014 (Amendment 2) is an update to the international standard for maritime navigation and radiocommunication equipment - Part 3: Serial data instrument network. This amendment modernizes the normative references to later NMEA 2000 documents and extends the set of supported parameter group numbers (PGNs) used to represent marine sensor, AIS and navigation data on serial-data networks. It also adds an informative Annex B that maps legacy IEC 61162-1 sentence types to IEC 61162-3 PGNs to support interoperability and migration.
Key topics
- Updated normative references
- NMEA 2000 Main document → Version 1.210 (January 2013)
- NMEA 2000 Appendix A → Version 2.000 (January 2013) (Application Layer / Parameter Group Definitions)
- NMEA 2000 Appendix B → Version 2.000 (January 2013) (Data Base)
- NMEA 2000 Appendix D → Version 1.210 (January 2013) (Application Notes)
- New parameter group numbers (PGNs)
- 126983 – Alert
- 126984 – Alert response
- 129041 – AIS Aids to Navigation (AtoN) report
- 130316 – Temperature – extended range
- Revised PGNs (examples included in the amendment)
- 126992 System time, 128259 Speed (water referenced), 128267 Water depth, 129285 Route/WP information, 129033 Time and date, 129038/129039/129040 AIS position reports, 129550 GNSS differential correction receiver, 129793–129810 AIS-related groups, etc.
- Annex B (informative)
- Provides conversion tables showing relationships between IEC 61162-1 sentences (NMEA0183-style text sentences) and IEC 61162-3 PGNs, aiding conversion and integration strategies.
Applications
- Shipboard system integrators - mapping legacy IEC 61162-1 data streams to NMEA 2000-style PGNs for centralized serial-data instrument networks.
- Marine electronics manufacturers - ensuring device firmware and documentation conform to the updated NMEA 2000 parameter definitions and PGN assignments.
- Naval architects and system designers - planning interoperable navigation, AIS and GNSS subsystems that rely on updated PGNs for alarms, time, depth, speed, and AIS services.
- Certification bodies and testing labs - verifying compliance with the amended references and PGN usage for product approvals and interoperability testing.
Related standards
- IEC 61162-1 (sentences for serial communication)
- NMEA 2000 Main document and Appendices A, B, D (as updated by this amendment)
This amendment emphasizes interoperability between legacy IEC 61162-1 sentences and modern NMEA 2000 PGN-based data models, making it essential for anyone working on marine instrument networks, AIS, GNSS, and general shipboard data integration.
IEC 61162-3:2008/AMD2:2014 - Amendment 2 - Maritime navigation and radiocommunication equipment and systems - Digital interfaces - Part 3: Serial data instrument network
IEC 61162-3:2008/AMD2:2014 - Amendment 2 - Maritime navigation and radiocommunication equipment and systems - Digital interfaces - Part 3: Serial data instrument network
Frequently Asked Questions
IEC 61162-3:2008/AMD2:2014 is a standard published by the International Electrotechnical Commission (IEC). Its full title is "Amendment 2 - Maritime navigation and radiocommunication equipment and systems - Digital interfaces - Part 3: Serial data instrument network". This standard covers: Amendment 2 - Maritime navigation and radiocommunication equipment and systems - Digital interfaces - Part 3: Serial data instrument network
Amendment 2 - Maritime navigation and radiocommunication equipment and systems - Digital interfaces - Part 3: Serial data instrument network
IEC 61162-3:2008/AMD2:2014 is classified under the following ICS (International Classification for Standards) categories: 47.020.70 - Navigation and control equipment. The ICS classification helps identify the subject area and facilitates finding related standards.
IEC 61162-3:2008/AMD2:2014 has the following relationships with other standards: It is inter standard links to IEC 61162-3:2008. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase IEC 61162-3:2008/AMD2:2014 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of IEC standards.
Standards Content (Sample)

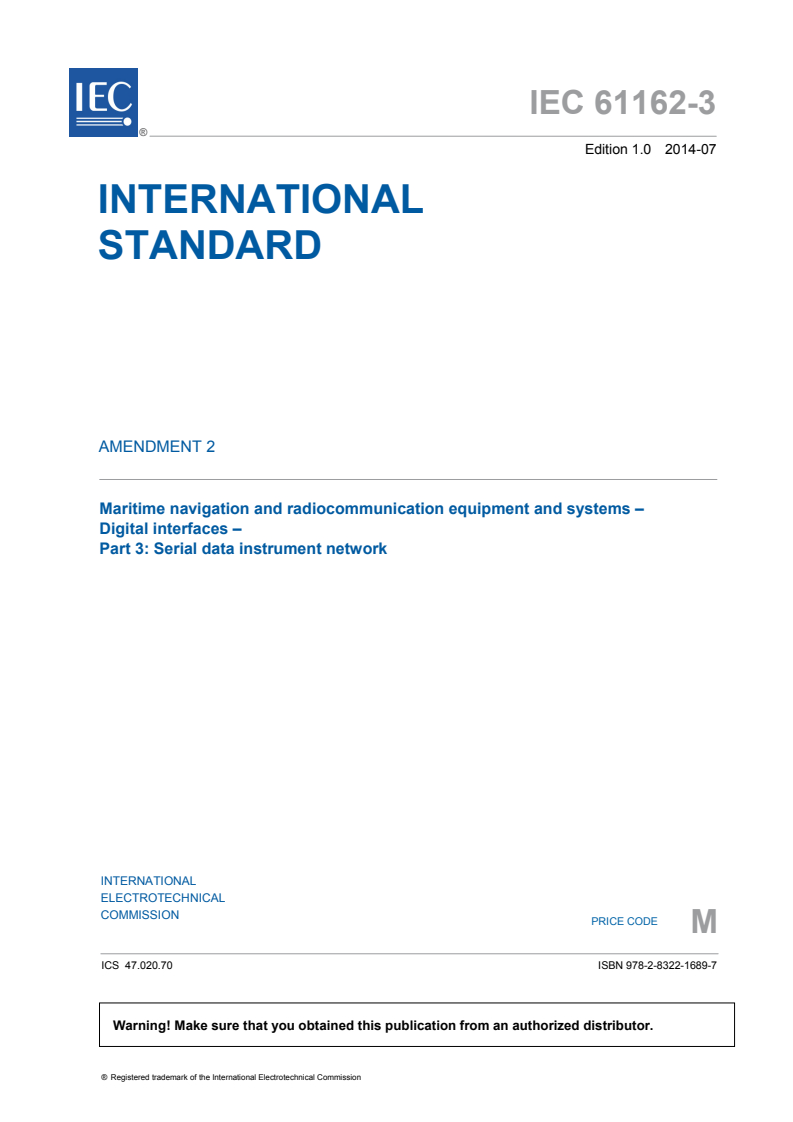

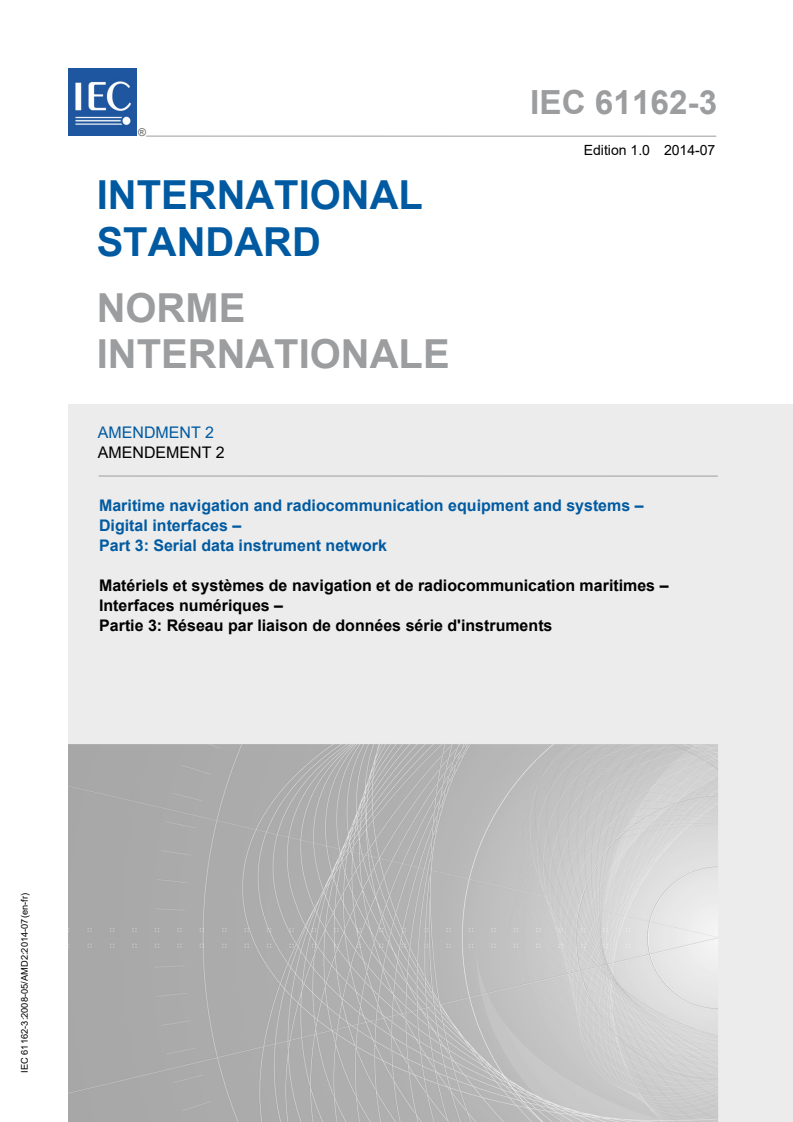

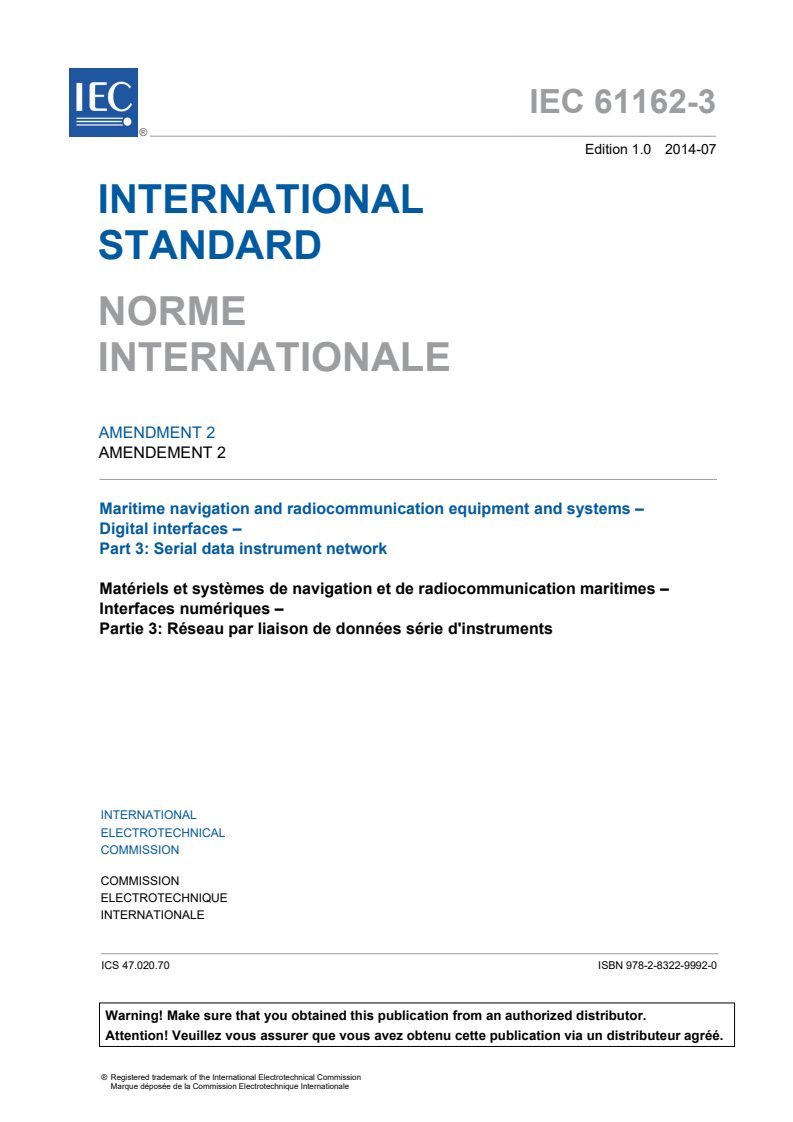

IEC 61162-3 ®
Edition 1.0 2014-07
INTERNATIONAL
STANDARD
AMENDMENT 2
Maritime navigation and radiocommunication equipment and systems –
Digital interfaces –
Part 3: Serial data instrument network
IEC 61162-3:2008-05/AMD2:2014-07(en)
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and
Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14
documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International
iPad. Electrotechnical Vocabulary (IEV) online.
IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in
variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions
committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries
and withdrawn publications. have been collected from earlier publications of IEC TC 37,
77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: csc@iec.ch.
IEC 61162-3 ®
Edition 1.0 2014-07
INTERNATIONAL
STANDARD
AMENDMENT 2
Maritime navigation and radiocommunication equipment and systems –
Digital interfaces –
Part 3: Serial data instrument network
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
M
ICS 47.020.70 ISBN 978-2-8322-1689-7
– 2 – IEC 61162-3:2008/AMD2:2014
IEC 2014

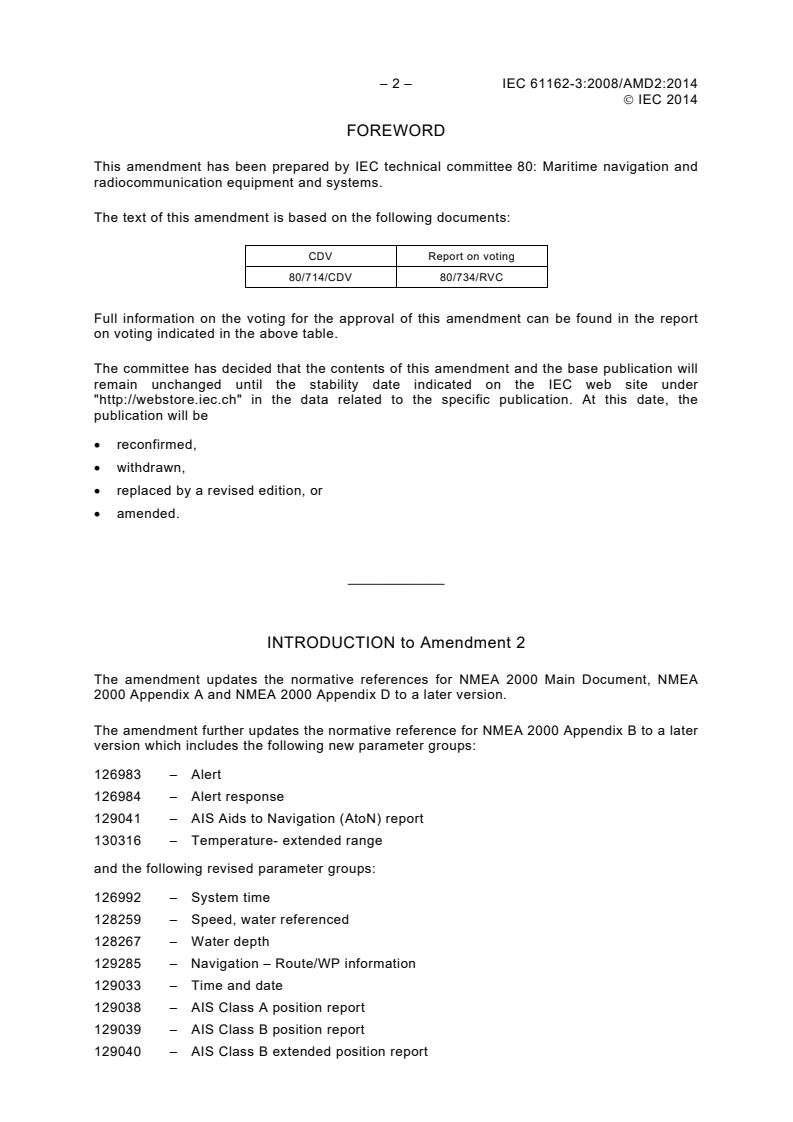

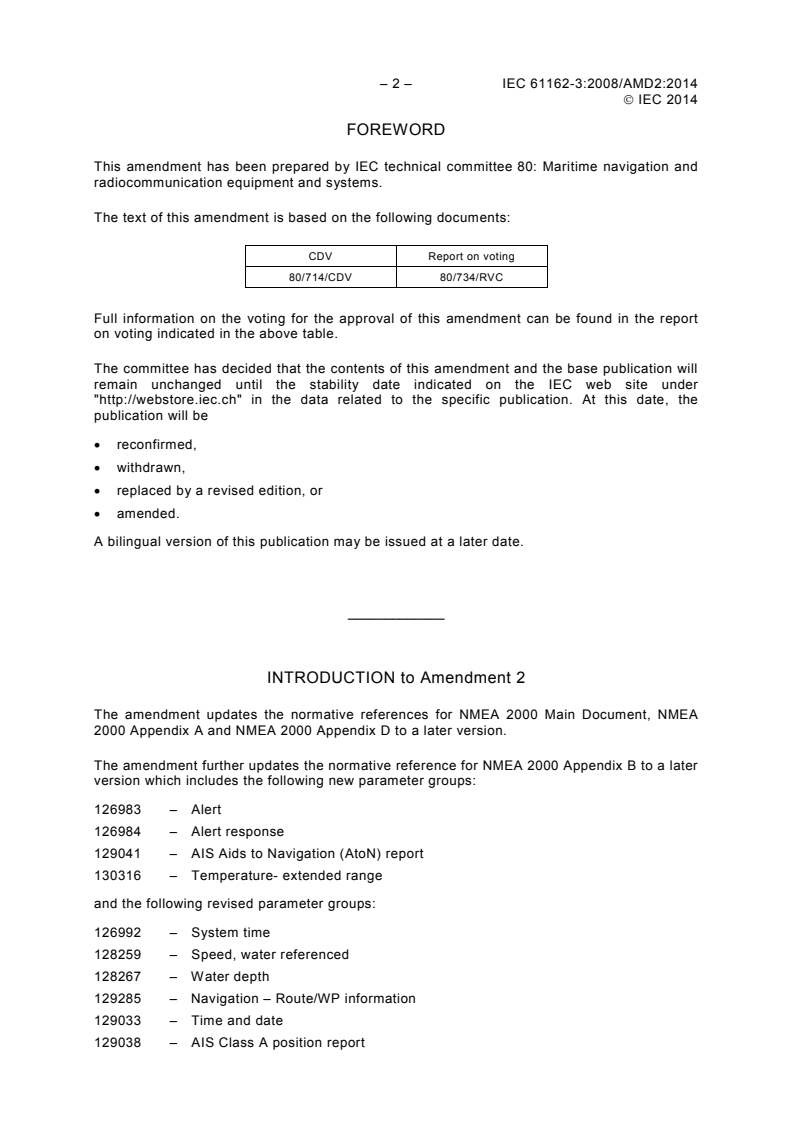

FOREWORD
This amendment has been prepared by IEC technical committee 80: Maritime navigation and
radiocommunication equipment and systems.
The text of this amendment is based on the following documents:
CDV Report on voting
80/714/CDV 80/734/RVC
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.
_____________
INTRODUCTION to Amendment 2
The amendment updates the normative references for NMEA 2000 Main Document, NMEA
2000 Appendix A and NMEA 2000 Appendix D to a later version.
The amendment further updates the normative reference for NMEA 2000 Appendix B to a later
version which includes the following new parameter groups:
126983 – Alert
126984 – Alert response
129041 – AIS Aids to Navigation (AtoN) report
130316 – Temperature- extended range
and the following revised parameter groups:
126992 – System time
128259 – Speed, water referenced
128267 – Water depth
129285 – Navigation – Route/WP information
129033 – Time and date
129038 – AIS Class A position report
IEC 2014
129039 – AIS Class B position report
129040 – AIS Class B extended position report
129550 – GNSS differential correction receiver
129793 – AIS UTC and date report
129794 – AIS Class A static and voyage related data
129796 – AIS acknowledge
129798 – AIS SAR aircraft position report
129800 – AIS UTC/date inquiry
129801 – AIS addressed safety related message
129802 – AIS safety related broadcast message
129803 – AIS interrogation
129804 – AIS assignment mode command
129805 – AIS data link management message
129806 – AIS channel management
129807 – AIS group assignment
129809 – AIS Class B “CS” static data report, Part A
129810 – AIS Class B “CS” static data report, Part B
The amendment further adds a new informative Annex B which shows the relationships
between IEC 61162-1 sentences and IEC 61162-3 parameter group numbers.
1 Scope
Add, at the end of the scope, the following new paragraph:
Relationships between IEC 61162-1 sentences and IEC 61162-3 parameter group numbers
are given in Annex B.
2 Normative references
Replace the existing reference, NMEA 2000 Main document, Version 1.200: October 2004, by
the following:
NMEA 2000 Main document, Version 1.210: January 2013, Serial-Data Networking Of
Marine Electronic Devices
Replace the existing reference, NMEA 2000, Appendix A, Version 1.200: October 2004, by the
following:
NMEA 2000, Appendix A, Version 2.000: January 2013, Serial-Data Networking Of Marine
Electronic Devices – Application Layer (Parameter Group Definitions)
_____________
Available from National Marine Electronics Association (USA), www.nmea.org.
– 4 – IEC 61162-3:2008/AMD2:2014
IEC 2014
Replace the existing reference, as updated by Amendment 1:2010, NMEA 2000, Appendix B,
Version 1.300: May 2009, by the following:
NMEA 2000, Appendix B, Version 2.000: January 2013, Serial-Data Networking Of Marine
Electronic Devices – Data Base
Replace the existing reference, NMEA 2000, Appendix D, Version 1.200: October 2004, by
the following:
NMEA 2000, Appendix D, Version 1.210: January 2013, Serial-Data Networking Of Marine
Electronic Devices – Application Notes
Add, after Annex A, the following new Annex B:
IEC 2014
Annex B
(informative)
Relationship between IEC 61162-1 sentences
and IEC 61162-3 parameter group numbers
Table B.1 and Table B.2 give equivalents for transferring data over IEC 61162-1 interfaces
and IEC 61162-3 interfaces.
Table B.1 – Conversion from IEC 61162-1 to IEC 61162-3
IEC 61162-1 sentence IEC 61162-3 PGN
AAM Waypoint arrival alarm
129284 Navigation data
ABK AIS addressed and binary
129796 AIS acknowledge
broadcast acknowledgement
ABM
AIS addressed binary and
129801 AIS addressed safety related
safety related message
message
129795 AIS addressed binary message
ACA AIS regional channel
129806 AIS channel management
assignment message
ACK Acknowledge alarm
126984 Alert response
ACS AIS channel management
129806 AIS channel management
information source
AIR AIS interrogation request
129083 AIS interrogation
AKD Acknowledge detail alarm
126984 Alert response
condition
126983 Alert
ALA Set detail alarm condition
126983 Alert
ALR Set alarm state
APB Heading/Track Controller
127237 Heading/track control
(Autopilot) Sentence B
129283 Cross track error
129284 Navigation data
BBM AIS broadcast binary
129797 AIS binary broadcast message
message
129802 AIS safety related broadcast
message
BEC Bearing and distance to 129284 Navigation data
waypoint – Dead reckoning
BOD Bearing – Origin to 129284 Navigation data
destination
BWC Bearing and distance to 129284 Navigation data
waypoint – Great circle
BWR Bearing and distance to 129284 Navigation data
waypoint – Rhumb line
BWW Bearing – Waypoint to 129302 Bearing and distance between two
Waypoint marks
129284 Navigation data
CUR Water current layer 130577 Direction data
DBT Depth below transducer 128267 Water depth
DPT Depth 128267 Water depth
DSC Digital selective calling 129808 DSC call information
information
DSE Expanded digital selective 129808 DSC call information
calling
DTM Datum reference 129044 Datum
129045 User datum setting
– 6 – IEC 61162-3:2008/AMD2:2014
IEC 2014
IEC 61162-1 sentence IEC 61162-3 PGN
FSI Frequency set status or 129799 Radio frequency/mode/power
command
GBS GNSS satellite fault detection 129545 GNSS RAIM output
GFA GNSS fix accuracy and 129540 GNSS satellites in view
Integrity
GGA Global positioning system 129025 Position, rapid update
(GPS) fix data
129029 GNSS position data
GLL Geographic position – 129025 Position, rapid update
Latitude/longitude
129029 GNSS position data
GNS GNSS fix data 129025 Position, rapid update
129029 GNSS position data
GSA GNSS DOP and active 129029 GNSS position data
satellites
129539 GNSS DOPs
GST GNSS pseudorange error 129547 GNSS pseudorange error statistics
statistics
GSV GNSS satellites in view 129540 GNSS satellites in view
HDG Heading, deviation and 127250 Vessel heading
variation
127258 Magnetic variation
HDT Heading true 127250 Vessel heading
HSC Heading steering command 127237 Heading track control
HTC Heading/track control 127237 Heading track control
command
HTD Heading/track control data 127237 Heading track control
MSK MSK receiver interface 129550 GNSS differential correction
command receiver interface
MSS MSK receiver signal 129551 GNSS differential correction
receiver signal
MTW Water temperature 130316 Temperature extended range
MWD Wind direction and speed 130306 Wind data
MWV Wind speed and angle 130306 Wind data
OSD Own ship data 127250 Vessel heading
128259 Speed, water referenced
129026 COG, SOG rapid update
129291 Set and drift, rapid update
130577 Direction data
RMB Recommended minimum 129283 Cross track error
navigation information
129284 Navigation data
RMC Recommended minimum 129025 Position, rapid update
specific GNSS data
129026 COG and SOG, rapid update
129029 GNSS position data
ROR Rudder order status 127245 Rudder
ROT Rate of turn 127251 Rate of turn
RSA Rudder sensor angle 127245 Rudder
Navigation – Route/WP
RTE Routes 129285 information
SSD
...
IEC 61162-3 ®
Edition 1.0 2014-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 2
AM ENDEMENT 2
Maritime navigation and radiocommunication equipment and systems –
Digital interfaces –
Part 3: Serial data instrument network
Matériels et systèmes de navigation et de radiocommunication maritimes –
Interfaces numériques –
Partie 3: Réseau par liaison de données série d'instruments
IEC 61162-3:2008-05/AMD2:2014-07(en-fr)
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des
questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé info@iec.ch
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.
About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.
IEC publications search - webstore.iec.ch/advsearchform IEC online collection - oc.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews. With a subscription you will always
committee, …). It also gives information on projects, replaced have access to up to date content tailored to your needs.
and withdrawn publications.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
The world's leading online dictionary on electrotechnology,
Stay up to date on all new IEC publications. Just Published
containing more than 22 000 terminological entries in English
details all new publications released. Available online and
and French, with equivalent terms in 18 additional languages.
once a month by email.
Also known as the International Electrotechnical Vocabulary
(IEV) online.
IEC Customer Service Centre - webstore.iec.ch/csc
If you wish to give us your feedback on this publication or
need further assistance, please contact the Customer Service
Centre: sales@iec.ch.
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.
A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.
Recherche de publications IEC - IEC online collection - oc.iec.ch
webstore.iec.ch/advsearchform Découvrez notre puissant moteur de recherche et consultez
La recherche avancée permet de trouver des publications IEC gratuitement tous les aperçus des publications. Avec un
en utilisant différents critères (numéro de référence, texte, abonnement, vous aurez toujours accès à un contenu à jour
comité d’études, …). Elle donne aussi des informations sur adapté à vos besoins.
les projets et les publications remplacées ou retirées.
Electropedia - www.electropedia.org
IEC Just Published - webstore.iec.ch/justpublished
Le premier dictionnaire d'électrotechnologie en ligne au
Restez informé sur les nouvelles publications IEC. Just
monde, avec plus de 22 000 articles terminologiques en
Published détaille les nouvelles publications parues.
anglais et en français, ainsi que les termes équivalents dans
Disponible en ligne et une fois par mois par email.
16 langues additionnelles. Egalement appelé Vocabulaire
Electrotechnique International (IEV) en ligne.
Service Clients - webstore.iec.ch/csc
Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
sales@iec.ch.
IEC 61162-3 ®
Edition 1.0 2014-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
A MENDMENT 2
AM ENDEMENT 2
Maritime navigation and radiocommunication equipment and systems –
Digital interfaces –
Part 3: Serial data instrument network
Matériels et systèmes de navigation et de radiocommunication maritimes –
Interfaces numériques –
Partie 3: Réseau par liaison de données série d'instruments
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 47.020.70 ISBN 978-2-8322-9992-0
– 2 – IEC 61162-3:2008/AMD2:2014
IEC 2014
FOREWORD
This amendment has been prepared by IEC technical committee 80: Maritime navigation and
radiocommunication equipment and systems.
The text of this amendment is based on the following documents:
CDV Report on voting
80/714/CDV 80/734/RVC
Full information on the voting for the approval of this amendment can be found in the report
on voting indicated in the above table.
The committee has decided that the contents of this amendment and the base publication will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
_____________
INTRODUCTION to Amendment 2
The amendment updates the normative references for NMEA 2000 Main Document, NMEA
2000 Appendix A and NMEA 2000 Appendix D to a later version.
The amendment further updates the normative reference for NMEA 2000 Appendix B to a later
version which includes the following new parameter groups:
126983 – Alert
126984 – Alert response
129041 – AIS Aids to Navigation (AtoN) report
130316 – Temperature- extended range
and the following revised parameter groups:
126992 – System time
128259 – Speed, water referenced
128267 – Water depth
129285 – Navigation – Route/WP information
129033 – Time and date
129038 – AIS Class A position report
129039 – AIS Class B position report
129040 – AIS Class B extended position report
IEC 2014
129550 – GNSS differential correction receiver
129793 – AIS UTC and date report
129794 – AIS Class A static and voyage related data
129796 – AIS acknowledge
129798 – AIS SAR aircraft position report
129800 – AIS UTC/date inquiry
129801 – AIS addressed safety related message
129802 – AIS safety related broadcast message
129803 – AIS interrogation
129804 – AIS assignment mode command
129805 – AIS data link management message
129806 – AIS channel management
129807 – AIS group assignment
129809 – AIS Class B “CS” static data report, Part A
129810 – AIS Class B “CS” static data report, Part B
The amendment further adds a new informative Annex B which shows the relationships
between IEC 61162-1 sentences and IEC 61162-3 parameter group numbers.
1 Scope
Add, at the end of the scope, the following new paragraph:
Relationships between IEC 61162-1 sentences and IEC 61162-3 parameter group numbers
are given in Annex B.
2 Normative references
Replace the existing reference, NMEA 2000 Main document, Version 1.200: October 2004, by
the following:
NMEA 2000 Main document, Version 1.210: January 2013, Serial-Data Networking Of
Marine Electronic Devices
Replace the existing reference, NMEA 2000, Appendix A, Version 1.200: October 2004, by the
following:
NMEA 2000, Appendix A, Version 2.000: January 2013, Serial-Data Networking Of Marine
Electronic Devices – Application Layer (Parameter Group Definitions)
Replace the existing reference, as updated by Amendment 1:2010, NMEA 2000, Appendix B,
Version 1.300: May 2009, by the following:
_____________
Available from National Marine Electronics Association (USA), www.nmea.org.
– 4 – IEC 61162-3:2008/AMD2:2014
IEC 2014
NMEA 2000, Appendix B, Version 2.000: January 2013, Serial-Data Networking Of Marine
Electronic Devices – Data Base
Replace the existing reference, NMEA 2000, Appendix D, Version 1.200: October 2004, by
the following:
NMEA 2000, Appendix D, Version 1.210: January 2013, Serial-Data Networking Of Marine
Electronic Devices – Application Notes
Add, after Annex A, the following new Annex B:
IEC 2014
Annex B
(informative)
Relationship between IEC 61162-1 sentences
and IEC 61162-3 parameter group numbers
Table B.1 and Table B.2 give equivalents for transferring data over IEC 61162-1 interfaces
and IEC 61162-3 interfaces.
Table B.1 – Conversion from IEC 61162-1 to IEC 61162-3
IEC 61162-1 sentence IEC 61162-3 PGN
AAM Waypoint arrival alarm
129284 Navigation data
ABK AIS addressed and binary
129796 AIS acknowledge
broadcast acknowledgement
ABM AIS addressed binary and
129801 AIS addressed safety related
safety related message
message
129795 AIS addressed binary message
AIS regional channel
ACA 129806 AIS channel management
assignment message
ACK Acknowledge alarm
126984 Alert response
ACS AIS channel management
129806 AIS channel management
information source
AIR AIS interrogation request
129083 AIS interrogation
AKD Acknowledge detail alarm
126984 Alert response
condition
126983 Alert
ALA Set detail alarm condition
126983 Alert
ALR Set alarm state
APB Heading/Track Controller
127237 Heading/track control
(Autopilot) Sentence B
129283 Cross track error
129284 Navigation data
BBM AIS broadcast binary
129797 AIS binary broadcast message
message
129802 AIS safety related broadcast
message
BEC Bearing and distance to 129284 Navigation data
waypoint – Dead reckoning
Bearing – Origin to
BOD 129284 Navigation data
destination
BWC Bearing and distance to 129284 Navigation data
waypoint – Great circle
BWR Bearing and distance to 129284 Navigation data
waypoint – Rhumb line
BWW Bearing – Waypoint to 129302 Bearing and distance between two
Waypoint marks
129284 Navigation data
CUR Water current layer 130577 Direction data
DBT Depth below transducer 128267 Water depth
DPT Depth 128267 Water depth
DSC Digital selective calling 129808 DSC call information
information
DSE Expanded digital selective 129808 DSC call information
calling
DTM Datum reference 129044 Datum
129045 User datum setting
– 6 – IEC 61162-3:2008/AMD2:2014
IEC 2014
IEC 61162-1 sentence IEC 61162-3 PGN
FSI Frequency set status or 129799 Radio frequency/mode/power
command
GBS GNSS satellite fault detection 129545 GNSS RAIM output
GFA GNSS fix accuracy and 129540 GNSS satellites in view
Integrity
GGA Global positioning system 129025 Position, rapid update
(GPS) fix data
129029 GNSS position data
GLL Geographic position – 129025 Position, rapid update
Latitude/longitude
129029 GNSS position data
GNS GNSS fix data 129025 Position, rapid update
129029 GNSS position data
GSA GNSS DOP and active 129029 GNSS position data
satellites
129539 GNSS DOPs
GST GNSS pseudorange error 129547 GNSS pseudorange error statistics
statistics
GSV GNSS satellites in view 129540 GNSS satellites in view
HDG Heading, deviation and 127250 Vessel heading
variation
127258 Magnetic variation
HDT Heading true 127250 Vessel heading
HSC Heading steering command 127237 Heading track control
HTC Heading/track control 127237 Heading track control
command
HTD Heading/track control data 127237 Heading track control
MSK MSK receiver interface 129550 GNSS differential correction
command receiver interface
MSS MSK receiver signal 129551 GNSS differential correction
receiver signal
MTW Water temperature 130316 Temperature extended range
MWD Wind direction and speed 130306 Wind data
MWV Wind speed and angle 130306 Wind data
OSD Own ship data 127250 Vessel heading
128259 Speed, water referenced
129026 COG, SOG rapid update
129291 Set and drift, rapid update
130577 Direction data
RMB Recommended minimum 129283 Cross track error
navigation information
129284 Navigation data
RMC Recommended minimum 129025 Position, rapid update
specific GNSS data
129026 COG and SOG, rapid update
129029 GNSS position data
ROR Rudder order status 127245 Rudder
ROT Rate of turn 127251 Rate of turn
RSA Rudder sensor angle 127245 Rudder
Navigation – Route/WP
RTE Routes 129285 information
SSD AIS ship static data 129794 AIS Class A static and voyage
related data
IEC 2014
IEC 61162-1 sentence IEC 61162-3 PGN
THS True heading and status 127250 Vessel heading
130577 Direction data
TLB Target label 128520 Tracked target data
TLL Target latitude and longitude 128520 Tracked target data
TTM Tracked target message 128520 Tracked target data
VBW Dual ground/water speed 128259 Speed, water referenced
130577 Direction data
130578 Vessel speed components
VDM AIS VHF data-link message 129038 AIS Class A position report
129039 AIS Class B position report
129040 AIS Class B extended position
report
129041 AIS Aids to Navigation (AtoN)
report
129792 AIS DGNSS broadcast binary
message
129793 AIS UTC and date report
129794 AIS Class A static and voyage
related data
129795 AIS addressed binary message
129796 AIS acknowledge
129797 AIS binary broadcast message
129798 AIS SAR aircraft position report
129800 AIS UTC/date Inquiry
129801 AIS addressed safety related
message
129802 AIS safety related broadcast
message
129803 AIS interrogation
129804 AIS assignment mode command
129805 AIS data link management
message
129806 AIS channel management
129807 AIS group assignment
129809 AIS Class B "CS" static data
report, Part A
129810 AIS Class B "CS" static data
report, Part B
VDR Set and drift 129291 Set and drift, rapid update
130577 Direction data
– 8 – IEC 61162-3:2008/AMD2:2014
IEC 2014
IEC 61162-1 sentence IEC 61162-3 PGN
VDO AIS VHF data-link own vessel 129308 AIS Class A position report
report
129039 AIS Class B position report
129040 AIS Class B extended position
report
129041 AIS Aids to Navigation (AtoN)
report
129792 AIS DGNSS broadcast binary
message
129793 AIS UTC and date report
129794 AIS Class A static and voyage
related data
129795 AIS addressed binary message
129796 AIS acknowledge
129797 AIS binary broadcast message
129798 AIS SAR aircraft position report
129800 AIS UTC/date Inquiry
129801 AIS addressed safety related
message
129802 AIS safety related broadcast
message
129803 AIS interrogation
129804 AIS assignment mode command
129805 AIS data link management
message
129086 AIS channel management
129807 AIS group assignment
129809 AIS Class B "CS" static data
report, Part A
129810 AIS Class B "CS" static data
report, Part B
VHW Water speed and heading 127250 Vessel heading
128259 Speed, water referenced
130577 Direction data
VLW Dual ground/water distance 128275 Distance log
VPW Speed – Measured parallel to 130306 Wind data
wind
VSD AIS voyage static data 129794 AIS Class A static and voyage
related data
VTG Course over ground and 129026 COG and SOG, rapid update
ground speed
130577 Direction data
WAT Water level detection 130320 Tide station data
WCV Waypoint closure velocity 129284 Navigation data
WNC Distance – Waypoint to 129302 Bearing and distance between two
waypoint marks
WPL Waypoint location 129284 Navigation data
130074 Route and WP service
XTE Cross track error, measured 129283 Cross track error
XTR Cross track error – Dead 129283 Cross track error
reckoning
IEC 2014
IEC 61162-1 sentence IEC 61162-3 PGN
ZDA Time and date 126992 System time
129033 Time and date
ZDL Time and distance to variable 129301 Time to/from mark
point
ZFO UTC and time from origin 129301 Time to/from mark
waypoint
ZTG UTC and time to destination 129284 Navigation data
waypoint
129301 Time to/from mark
Table B.2 – Conversion from IEC 61162-3 to IEC 61162-1
IEC 61162-3 PGN IEC 61162-1 sentence
126983 Alert ALA Set detail alarm condition
ALR Set alarm state
126984 Alert response ACK Acknowledge alarm
AKD Acknowledge detail alarm condition
126992 System time ZDA Time and date
127237 Heading track control APB Heading/track controller (autopilot) sentence B
HSC Heading steering command
HTC Heading/track control command
HTD Heading/track control data
127245 Rudder ROR Rudder order status
RSA Rudder sensor angle
127250 Vessel heading HDG Heading, deviation and variation
HDT Heading true
OSD Own ship data
THS True heading and status
VHW Water speed and heading
127251 Rate of turn ROT Rate of turn
127258 Magnetic variation HDG Heading, deviation and variation
127809 AIS Class B “CS” static data report, VDM AIS VHF data-link message
Part A
127810 AIS Class B “CS” static data report, VDM AIS VHF data-link message
Part B
128259 Speed, water referenced OSD Own ship data
VBW Dual ground/water speed
VHW Water speed and heading
128267 Water depth DBT Depth below transducer
DPT Depth
128275 Distance log VLW Dual ground/water distance
128520 Tracked target data TLB Target label
TLL Target latitude and longitude
TTM Tracked target message
– 10 – IEC 61162-3:2008/AMD2:2014
IEC 2014
IEC 61162-3 PGN IEC 61162-1 sentence
129025 Position, rapid update GGA Global positioning system (GPS) fix data
GLL Geographic position – Latitude/longitude
GNS GNSS fix data
RMC Recommended minimum specific GNSS data
129026 COG and SOG, rapid update OSD Own ship data
RMC Recommended minimum specific GNSS data
VTG Course over ground and ground speed
129029 GNSS position data GGA Global positioning system (GPS) fix data
GLL Geographic position – Latitude/longitude
GNS GNSS fix data
GSA GNSS DOP and active satellites
RMC Recommended minimum specific GNSS data
129033 Time and Date ZDA Time and date
129038 AIS Class A position report VDM AIS VHF data-link message
129039 AIS Class B position report VDM AIS VHF data-link message
VDO AIS VHF data-link own vessel report
129040 AIS Class B extended position VDM AIS VHF data-link message
report
VDO AIS VHF data-link own vessel report
129041 AIS AtoN VDM AIS VHF data-link message
VDO AIS VHF data-link own vessel report
129044 Datum DTM Datum reference
129045 User datum setting DTM Datum reference
129083 AIS interrogation AIR AIS interrogation request
129283 Cross track error APB Heading/track controller (Autopilot) Sentence B
RMB Recommended minimum navigation information
XTE Cross track error, measured
XTR Cross track error – Dead reckoning
129284 Navigation data AAM Waypoint arrival alarm
APB Recommended minimum navigation Information
BEC Bearing and distance to waypoint – Dead reckoning
BOD Bearing – Origin to destination
BWC Bearing and distance to waypoint – Great circle
BWR Bearing and distance to waypoint – Rhumb line
BWW Bearing – Waypoint to waypoint
RMB Recommended minimum navigation information
WCV Waypoint closure velocity
WPL Waypoint location
ZTG UTC and time to destination waypoint
129285 Navigation – Route/WP information RTE Routes
129291 Set and drift, rapid update OSD Own ship data
VDR Set and drift
129301 Time to/from mark ZDL Time and distance to variable point
ZFO UTC and time from origin waypoint
ZTG UTC and time to destination waypoint
IEC 2014
IEC 61162-3 PGN IEC 61162-1 sentence
129302 Bearing and distance between two BWW Bearing – Waypoint to waypoint
marks
WNC Distance – Waypoint to waypoint
129308 AIS Class A position report VDO AIS VHF data-link own vessel report
129539 GNSS DOPs GSA GNSSS DOP and active satellite
129540 GNSS satellites in view GFA GNSS fix accuracy and integrity
GSV GNSS satellites in view
129545 GNSS RAIM output GBS GNSS satellite fault detection
129547 GNSS pseudorange error statistics GST GNSS pseudorange error statistics
129550 GNSS differential correction MSK MSK receiver interface command
receiver interface
129551 GNSS differential correction MSS MSK receiver signal
receiver signal
129708 AIS SAR aircraft position report VDM AIS VHF data-link message
129724 AIS Class A static and voyage SSD AIS ship static data
related data
129792 AIS DGNSS broadcast binary VDM AIS VHF data-link message
message
VDO AIS VHF data-link own vessel report
129793 AIS UTC and date report VDM AIS VHF data-link message
VDO AIS VHF data-link own vessel report
129794 AIS Class A static and voyage VDM AIS VHF data-link message
related data
VDO AIS VHF data-link own vessel report
VSD AIS voyage static data
129795 AIS addressed binary message ABM AIS addressed binary and safety related message
VDM AIS VHF data-link message
VDO AIS VHF data-link own vessel report
129796 AIS acknowledge ABK AIS addressed and binary broadcast
acknowledgement
VDM AIS VHF data-link message
VDO AIS VHF data-link own vessel report
129797 AIS binary broadcast message BBM AIS broadcast binary message
VDM AIS VHF data-link message
VDO AIS VHF data-link own vessel report
129798 AIS SAR aircraft position report VDM AIS VHF data-link message
VDO AIS VHF data-link own vessel report
129799 Radio frequency/mode/power FSI Frequency set status or command
129800 AIS UTC date/enquiry VDM AIS VHF data-link message
VDO AIS VHF data-link own vessel report
129801 AIS addressed safety related ABM AIS addressed binary and safety related message
message
VDM AIS VHF data-link message
VDO AIS VHF data-link own vessel report
129802 AIS safety related broadcast BBM AIS broadcast binary message
message
VDM AIS VHF data-link message
VDO AIS VHF data-link own vessel report
129803 AIS interrogation VDM AIS VHF data-link message
VDO AIS VHF data-link own vessel report
– 12 – IEC 61162-3:2008/AMD2:2014
IEC 2014
IEC 61162-3 PGN IEC 61162-1 sentence
129804 AIS Assignment mode command VDM AIS VHF data-link message
VDO AIS VHF data-link own vessel report
129805 AIS data link management message VDM AIS VHF data-link message
VDO AIS VHF data-link own vessel report
129806 AIS channel management ACA AIS regional channel assignment message
ACS AIS channel management information source
VDM AIS VHF data-link message
VDO AIS VHF data-link own vessel report
129807 AIS group assignment VDM AIS VHF data-link message
VDO AIS VHF data-link own vessel report
129808 DSC call information DSC Digital selective calling information
DSE Expanded digital selective calling
129809 AIS Class “B” static data report, VDM AIS VHF data-link message
Part A
VDO AIS VHF data-link own vessel report
AIS Class “B” static data report,
129810 VDM AIS VHF data-link message
Part B
VDO AIS VHF data-link own vessel report
130074 Route and WP service WPL Waypoint location
130306 Wind data MWD Wind direction and speed
MWV Wind speed and angle
VPW Speed – Measured parallel to wind
130316 Temperature extended range MTW Water temperature
130320 Tide station data WAT Water level detection
130577 Direction data CUR Water current layer
OSD Own ship data
THS True heading and status
VBW Dual ground/water speed
VDR Set and drift
VHW Water speed and heading
VTG Course over ground and
...
記事タイトル：IEC 61162-3:2008/AMD2:2014 - Amendement 2 - 海上航法および無線通信設備およびシステム - デジタルインターフェース - パート3：シリアルデータ計器ネットワーク 記事内容：この記事では、IEC 61162-3:2008のAmendement 2について論じられています。これは、海上航法および無線通信設備およびシステムに焦点を当てたものです。この改正では、特にデジタルインターフェースとシリアルデータ計器ネットワークに関する事項が取り上げられています。これらのシステムの使用に関して明確さと標準化を提供し、各種海洋機器の互換性と相互運用性を確保することを目的としています。改正には、データ伝送速度、プロトコル拡張、新しい機能要件に関する更新が含まれています。また、海洋業界内の理解とコミュニケーションを向上させるための新しい用語や定義も導入されています。
記事のタイトル：IEC 61162-3:2008/AMD2:2014 - 改正2 - 海上航行および無線通信機器およびシステム - デジタルインタフェース - 第3部：シリアルデータ計器ネットワーク 記事内容：この記事では、IEC 61162-3:2008/AMD2:2014の改正2について説明しています。この規格は、海上航行および無線通信機器およびシステムに関するものであり、改正2は特にシリアルデータ計器ネットワークのデジタルインタフェースに焦点を当てています。
기사 제목 : IEC 61162-3:2008/AMD2:2014 - Amendement 2 - 해상 항법 및 무선 통신 장비 및 시스템 - 디지털 인터페이스 - 파트 3: 시리얼 데이터 계기 네트워크 기사 내용 : 이 기사는 IEC 61162-3:2008에 대한 개정 2에 대해 논의하고 있는데, 이는 해상 항법 및 무선 통신 장비 및 시스템에 초점을 맞추고 있다. 이 수정안은 특히 디지털 인터페이스와 시리얼 데이터 계기 네트워크에 대해 다룬다. 이를 통해 다양한 해상 장치 간의 호환성 및 상호 운용성을 보장하기 위해 이러한 시스템의 사용에 대한 명확성과 표준화를 제공하고자 한다. 이 개정안에는 데이터 전송 속도, 프로토콜 확장 및 새로운 기능 요구 사항과 관련된 업데이트가 포함되어 있다. 또한 해상 산업 내의 이해와 소통을 개선하기 위해 새로운 용어와 정의가 소개된다.
The article discusses the amendment 2 made to IEC 61162-3:2008/AMD2:2014, which is a standard for maritime navigation and radiocommunication equipment and systems. This amendment specifically focuses on the digital interfaces of serial data instrument networks.
The article discusses Amendment 2 to the IEC 61162-3:2008, which focuses on maritime navigation and radiocommunication equipment and systems. This amendment specifically addresses digital interfaces and serial data instrument networks. It aims to provide clarity and standardization in the use of these systems, ensuring compatibility and interoperability among various maritime devices. The amendment includes updates regarding data transmission rates, protocol extensions, and new functionality requirements. It also introduces new terms and definitions to improve understanding and communication within the maritime industry.
제목: IEC 61162-3:2008/AMD2:2014 - 개정안 2 - 해상 항법 및 무선 통신 장비 및 시스템 - 디지털 인터페이스 - 제3부: 직렬 데이터 계기 네트워크 기사 내용: 이 기사에서는 IEC 61162-3:2008/AMD2:2014에 대한 개정안 2에 대해 다루고 있습니다. 이 표준은 해상 항법 및 무선 통신 장비 및 시스템에 대한 것으로, 개정안 2는 특히 직렬 데이터 계기 네트워크의 디지털 인터페이스를 다룹니다.
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
