IEC TR 63323:2024

Fibre optic interconnecting devices and passive components - Study of an SC connector adaptor with safety lock mechanism

IEC TR 63323:2024 deals with a new proposal for an SC adaptor connector which includes a flexible retaining element on its top surface, compared to the SC standard adaptor.
With this solution, when the SC plug connector is in place, any accidental disconnection is difficult, as it employs an external tool or a particular unlocking manoeuvre.
This new adaptor is intended primarily for the home network customer optical fibre termination, but it can be used in every situation where safety issues are important (e.g. main distribution frames in central offices, cross-connect cabinets, street cabinets, termination boxes).
It consists of a push-latch-pull mating sequence connection with the assistance of a suitable tool.
This solution assures compatibility with the existing SC interface standard according to IEC 61754-4.

General Information

• Status: Published
• Publication Date: 06-Jun-2024
• ICS: 33.180.10 - Fibres and cables
• Technical Committee: SC 86B - Fibre optic interconnecting devices and passive components
• Current Stage: PPUB - Publication issued
• Start Date: 14-Jun-2024
• Completion Date: 07-Jun-2024

Standards Content (Sample)

IEC TR 63323 ®
Edition 1.0 2024-06
TECHNICAL
REPORT
colour
inside
Fibre optic interconnecting devices and passive components – Study of an SC
connector adaptor with safety lock mechanism
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Secretariat Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform IEC Products & Services Portal - products.iec.ch
The advanced search enables to find IEC publications by a Discover our powerful search engine and read freely all the
variety of criteria (reference number, text, technical publications previews, graphical symbols and the glossary.
committee, …). It also gives information on projects, replaced With a subscription you will always have access to up to date
and withdrawn publications. content tailored to your needs.

IEC Just Published - webstore.iec.ch/justpublished
Electropedia - www.electropedia.org
Stay up to date on all new IEC publications. Just Published
The world's leading online dictionary on electrotechnology,
details all new publications released. Available online and once
containing more than 22 500 terminological entries in English
a month by email.
and French, with equivalent terms in 25 additional languages.

Also known as the International Electrotechnical Vocabulary
IEC Customer Service Centre - webstore.iec.ch/csc
(IEV) online.
If you wish to give us your feedback on this publication or need

further assistance, please contact the Customer Service
Centre: [e-mail].
IEC TR 63323 ®
Edition 1.0 2024-06
TECHNICAL
REPORT
colour
inside
Fibre optic interconnecting devices and passive components – Study of an SC
connector adaptor with safety lock mechanism
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 33.180.10 ISBN 978-2-8322-8961-7
– 2 – IEC TR 63323:2024 © IEC 2024

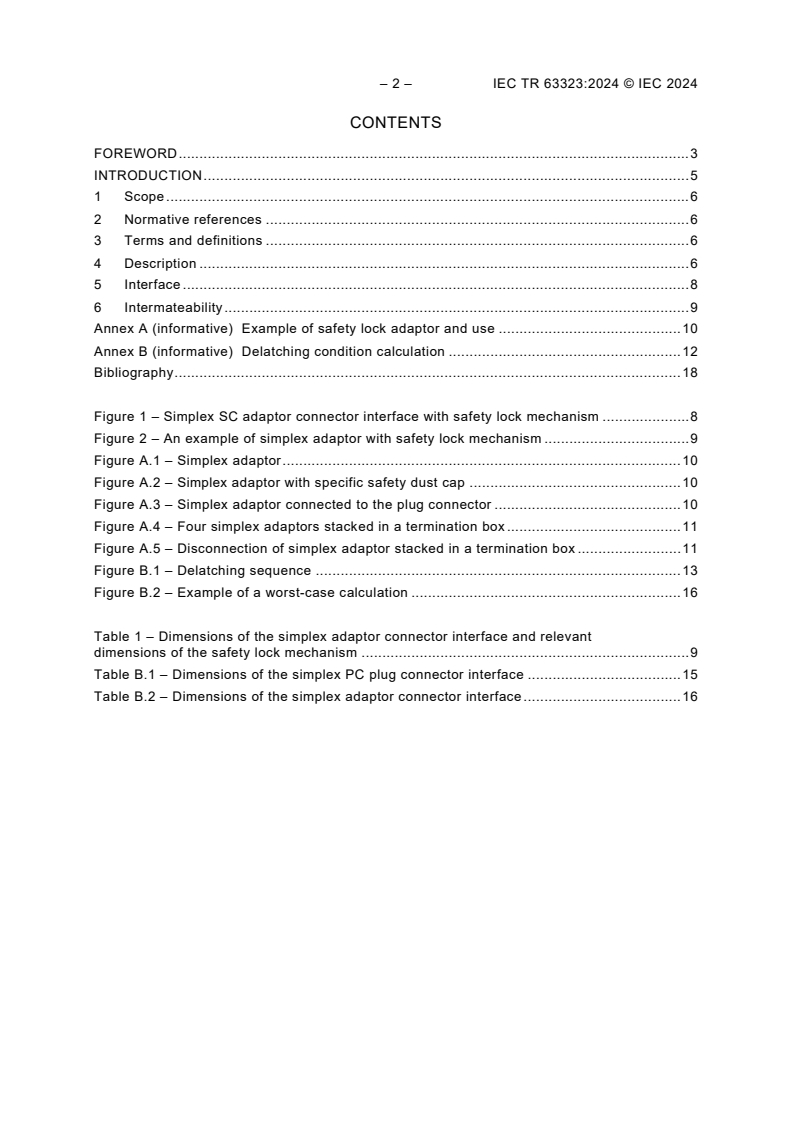

CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Description . 6
5 Interface . 8
6 Intermateability . 9
Annex A (informative) Example of safety lock adaptor and use . 10
Annex B (informative) Delatching condition calculation . 12
Bibliography . 18

Figure 1 – Simplex SC adaptor connector interface with safety lock mechanism . 8
Figure 2 – An example of simplex adaptor with safety lock mechanism . 9
Figure A.1 – Simplex adaptor . 10
Figure A.2 – Simplex adaptor with specific safety dust cap . 10
Figure A.3 – Simplex adaptor connected to the plug connector . 10
Figure A.4 – Four simplex adaptors stacked in a termination box . 11
Figure A.5 – Disconnection of simplex adaptor stacked in a termination box . 11
Figure B.1 – Delatching sequence . 13
Figure B.2 – Example of a worst-case calculation . 16

Table 1 – Dimensions of the simplex adaptor connector interface and relevant
dimensions of the safety lock mechanism . 9
Table B.1 – Dimensions of the simplex PC plug connector interface . 15
Table B.2 – Dimensions of the simplex adaptor connector interface . 16

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
FIBRE OPTIC INTERCONNECTING DEVICES AND PASSIVE
COMPONENTS – STUDY OF AN SC CONNECTOR ADAPTOR
WITH SAFETY LOCK MECHANISM
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as "IEC Publication(s)"). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) IEC draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). IEC takes no position concerning the evidence, validity or applicability of any claimed patent rights in
respect thereof. As of the date of publication of this document, IEC had not received notice of (a) patent(s), which
may be required to implement this document. However, implementers are cautioned that this may not represent
the latest information, which may be obtained from the patent database available at https://patents.iec.ch. IEC
shall not be held responsible for identifying any or all such patent rights.
IEC TR 63323 has been prepared by subcommittee 86B: Fibre optic interconnecting devices
and passive components, of IEC technical committee TC 86: Fibre optics. It is a Technical
Report.
The text of this Technical Report is based on the following documents:
Draft Report on voting
86B/4883/DTR 86B/4922/RVDTR
Full information on the voting for its approval can be found in the report on voting indicated in
the above table.
The language used for the development of this Technical Report is English.

– 4 – IEC TR 63323:2024 © IEC 2024
This document was drafted in accordance with ISO/IEC Directives, Part 2, and developed in
accordance with ISO/IEC Directives, Part 1 and ISO/IEC Directives, IEC Supplement, available
at www.iec.ch/members_experts/refdocs. The main document types developed by IEC are
described in greater detail at www.iec.ch/publications.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under webstore.iec.ch in the data related to the
specific document. At this date, the document will be
• reconfirmed,
• withdrawn, or
• revised.
IMPORTANT – The "colour inside" logo on the cover page of this document indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this document using a colour printer.

INTRODUCTION
Since the very beginning of fibre optic communication technologies, the use of optical
connectors has been restricted to technical and professional environments by expert crews for
installation, operation, and maintenance.
With the diffusion of fibre optic communication technologies in non-professional and consumer
markets, the use of fibre optic communication systems has broadened to users unaware of their
correct handling, particularly for the most accessible items: connector cords.
For standard SC connectors, unintentional disconnection is prevented if the pulling force
applied to the plug connector is lower than 40 N. Beyond this force, a disconnection occurs,
and inconveniences can arise: system optical performance can be impaired; dust can corrupt
the ferrules; and radiation that can be harmful to the eye.
A shuttered adaptor is a means to avoid injury to the eyes by laser light and provides protection
from dust when the plug is disconnected, but it does not protect the disconnected connector.
This document deals with a proposal that aims to solve this problem with a slight modification
of the SC connector adaptor, by introducing a latching mechanism.
Once the latching mechanisms has been unlocked by means of a tool, the disconnection
strength is the same as a standard plug connector.
When the latching mechanisms is locked, it withstands the force applied by a typical handling
force, i.e. <150 N.
– 6 – IEC TR 63323:2024 © IEC 2024
FIBRE OPTIC INTERCONNECTING DEVICES AND PASSIVE
COMPONENTS – STUDY OF AN SC CONNECTOR ADAPTOR
WITH SAFETY LOCK MECHANISM
1 Scope
This document deals with a new proposal for an SC adaptor connector which includes a flexible
retaining element on its top surface, compared to the SC standard adaptor.
With this solution, when the SC plug connector is in place, any accidental disconnection is
difficult, as it employs an external tool or a particular unlocking manoeuvre.
This new adaptor is intended primarily for the home network customer optical fibre termination,
but it can be used in every situation where safety issues are important (e.g. main distribution
frames in central offices, cross-connect cabinets, street cabinets, termination boxes).
It consists of a push-latch-pull mating sequence connection with the assistance of a suitable
tool.
This solution assures compatibility with the existing SC interface standard according to
IEC 61754-4.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies.
For undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 61754-1, Fibre optic interconnecting devices and passive components – Fibre optic
connector interfaces – Part 1: General and guidance
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 61754-1 apply.
ISO and IEC maintain terminology databases for use in standardization at the following
addresses:
• IEC Electropedia: available at https://www.electropedia.org/
• ISO Online browsing platform: available
...
