IEC 60335-2-4:2008

Household and similar electrical appliances - Safety - Part 2-4: Particular requirements for spin extractors

IEC 60335-2-4:2008 deals with the safety of spin extractors incorporated in washing machines that have separate containers for washing and spin extraction for household and similar purposes that have a capacity not exceeding 10 kg of dry cloth and a drum peripheral speed not exceeding 50 m/s, their rated voltages being not more than 250 V for single-phase appliances and 480 V for other appliances. The principal changes in the this edition as compared with the fifth edition of IEC 60335-2-4 are as follows: aligns the text with 60335-1:2001, and its Amendments 1&2; clarifies criteria for the protection against mechanical hazards for double lid appliances (20.103 and 20.104); some notes have been converted to normative text (clause 1, 20.102 and Annex AA).

Appareils électrodomestiques et analogues - Sécurité - Partie 2-4: Règles particulières pour les essoreuses centrifuges

CEI 60335-2-4:2008 traite de la sécurité des essoreuses incorporées dans des machines à laver le linge qui ont des tambours séparés pour le lavage et l'essorage, pour usages domestiques et analogues dont la capacité ne dépasse pas 10 kg de linge sec, dont la vitesse périphérique du tambour ne dépasse pas 50 m/s et dont la tension assignée n'est pas supérieure à 250 V pour les appareils monophasés et à 480 V pour les autres appareils. Les principales modifications de la présente édition par rapport à la cinquième édition de la CEI 60335-2-4 sont les suivantes alignement du texte avec la CEI 60335-1: 2001, et ses Amendements 1 et 2; clarification des critères pour la protection contre les dangers mécaniques pour les appareils ayant deux couvercles (20.103 and 20.104); conversion de certaines notes en exigences (Article 1, 20.102 et Annexe AA).

General Information

• Status: Published
• Publication Date: 18-Sep-2008
• ICS: 13.120 - Domestic safety
• ICS: 97.060 - Laundry appliances
• Technical Committee: TC 61 - Safety of household and similar electrical appliances
• Current Stage: DELPUB - Deleted Publication
• Start Date: 10-Mar-2021
• Completion Date: 25-Oct-2019

Relations

• Amended By: IEC 60335-2-4:2008/AMD1:2012 - Amendment 1 - Household and similar electrical appliances - Safety - Part 2-4: Particular requirements for spin extractors
• Effective Date: 05-Sep-2023
• Amended By: IEC 60335-2-4:2008/AMD2:2017 - Amendment 2 - Household and similar electrical appliances - Safety - Part 2-4: Particular requirements for spin extractors
• Effective Date: 05-Sep-2023
• Revises: IEC 60335-2-4:2002/AMD1:2004/COR1:2004 - Corrigendum 1: Household and similar electrical appliances - Safety - Part 2-4: Particular requirements for spin extractors
• Effective Date: 05-Sep-2023
• Revises: IEC 60335-2-4:2002/COR1:2003 - Corrigendum 1 - Household and similar electrical appliances - Safety - Part 2-4: Particular requirements for spin extractors
• Effective Date: 05-Sep-2023
• Revised: IEC 60335-2-4:2021 - Household and similar electrical appliances - Safety - Part 2-4: Particular requirements for spin extractors
• Effective Date: 05-Sep-2023
• Revises: IEC 60335-2-4:2002/AMD1:2004 - Amendment 1 - Household and similar electrical appliances - Safety - Part 2-4: Particular requirements for spin extractors
• Effective Date: 05-Sep-2023
• Revises: IEC 60335-2-4:2002 - Household and similar electrical appliances - Safety - Part 2-4: Particular requirements for spin extractors
• Effective Date: 05-Sep-2023
• Revises: IEC 60335-2-4:2002/AMD2:2006 - Amendment 2 - Household and similar electrical appliances - Safety - Part 2-4: Particular requirements for spin extractors
• Effective Date: 05-Sep-2023

Overview

IEC 60335-2-4:2008 is the IEC safety standard for spin extractors incorporated in washing machines. It specifies particular safety requirements for household and similar appliances with separate washing and spin-extraction containers, having a capacity not exceeding 10 kg of dry cloth and a drum peripheral speed not exceeding 50 m/s. Rated voltages covered are up to 250 V for single-phase appliances and 480 V for other appliances. This part 2 standard is intended to be used together with IEC 60335-1 (the general safety requirements for household appliances). The consolidated edition includes Amendment 1 (2012) and Amendment 2 (2017).

Key Topics

• Scope and classification: Defines the appliances covered (spin extractors in washing machines) and classification rules.
• Protection against mechanical hazards: Criteria for lids, guards and particularly clarified rules for double-lid appliances (clauses 20.103 and 20.104).
• Electrical safety and testing: Requirements for insulation, leakage current, electric strength, transient overvoltages and moisture resistance; references to test conditions and endurance testing.
• Construction and components: Rules for internal wiring, components, terminals, earthing and resistance to heat, fire and rusting.
• Marking and instructions: Mandatory marking, user instructions and safety information for safe operation and maintenance.
• Special test annexes: Normative annexes include motor ageing tests (Annex C), software evaluation (Annex R) and provisions on rinsing agents (Annex AA).
• Alignment with Part 1: Text and test methods aligned with IEC 60335-1:2001 and its amendments; some former notes converted to normative requirements.

Applications and Who Uses It

IEC 60335-2-4 is used by:

• Manufacturers and product designers of washing machines and spin extractors to design compliant, safe products.
• Test laboratories and certification bodies for type testing and conformity assessment.
• Regulatory authorities and standards committees for national adoption and market surveillance.
• Safety engineers and compliance teams to prepare technical files, instructions for use, and risk assessments.

Practical value: helps ensure mechanical and electrical safety, reduces recall risk, supports CE/CB/IEC compliance and facilitates international market access.

Related Standards

• IEC 60335-1 - Household and similar electrical appliances - Safety (general requirements) - mandatory companion standard.
• IEC 60436 - Rinsing agent provisions referenced in Annex AA (where applicable).

Keywords: IEC 60335-2-4:2008, spin extractors, washing machine safety, household appliance standards, mechanical hazards, conformity testing.

Standards Content (Sample)

IEC 60335-2-4 ®
Edition 6.2 2017-08
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
colour
inside
Household and similar electrical appliances – Safety –
Part 2-4: Particular requirements for spin extractors

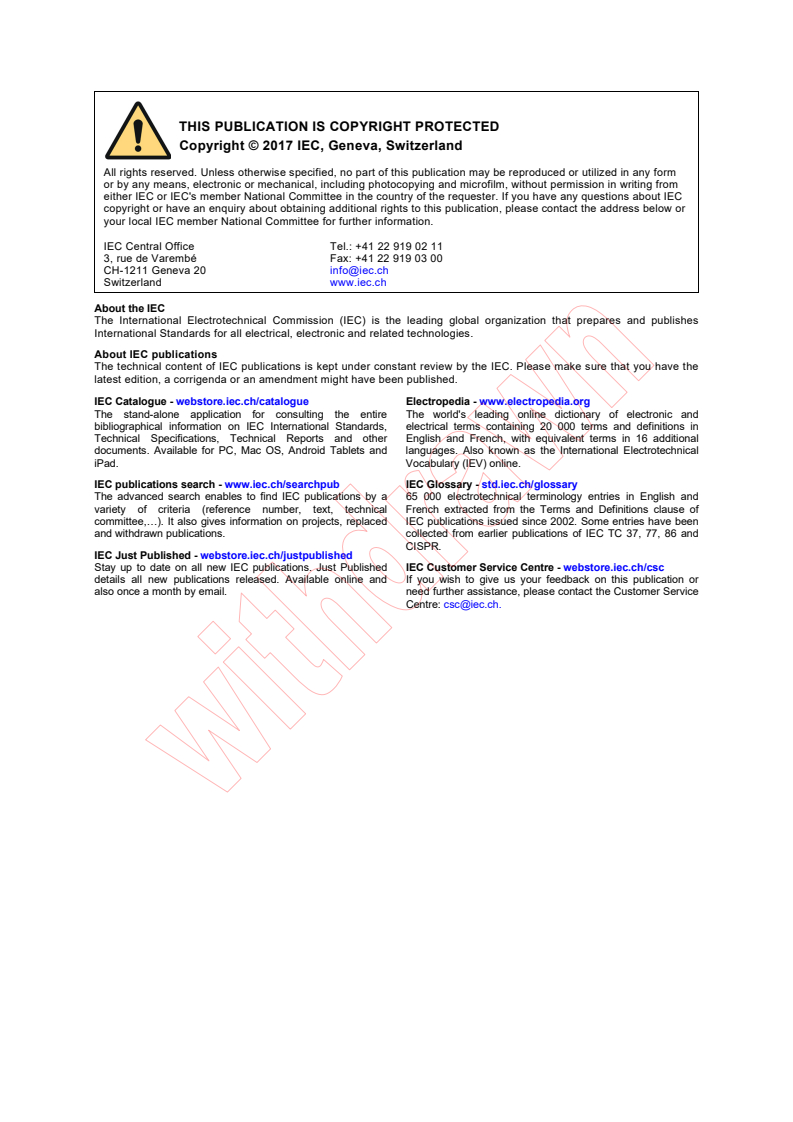

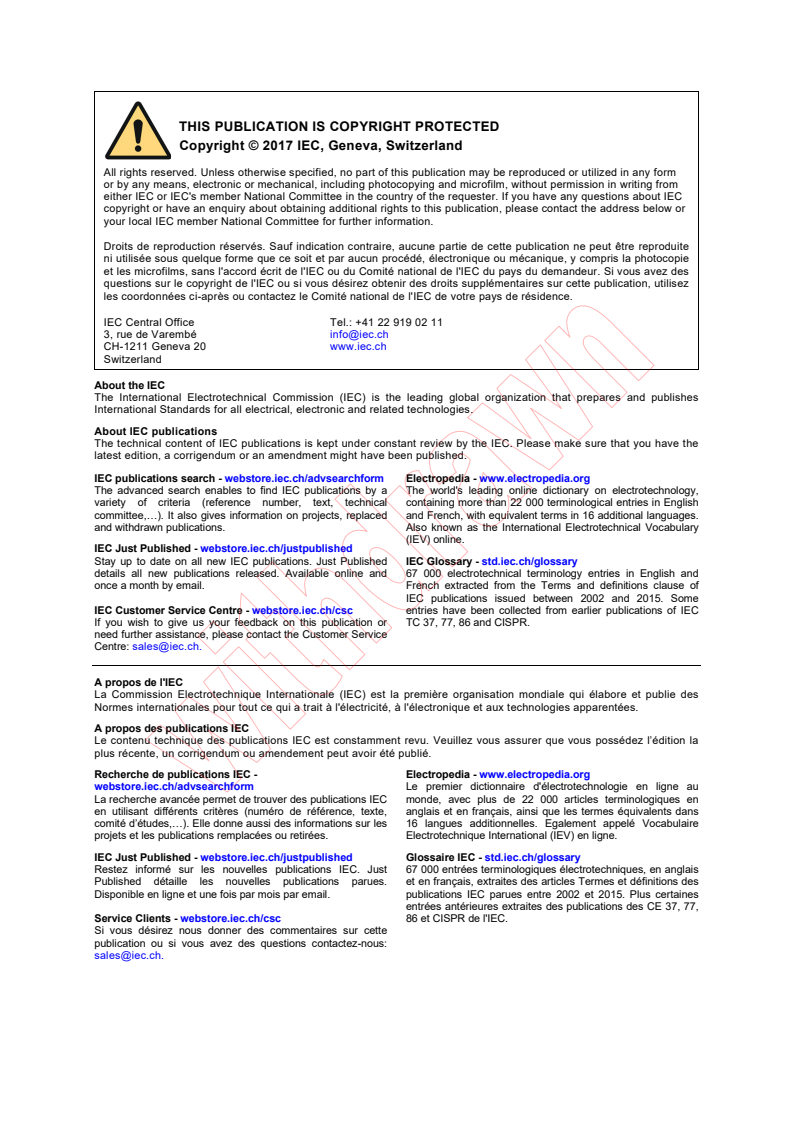

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]

CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 60335-2-4 ®
Edition 6.2 2017-08
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
colour
inside
Household and similar electrical appliances – Safety –

Part 2-4: Particular requirements for spin extractors

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 13.120; 97.060 ISBN 978-2-8322-4797-6

IEC 60335-2-4 ®
Edition 6.2 2017-08
CONSOLIDATED VERSION
REDLINE VERSION
colour
inside
Household and similar electrical appliances – Safety –
Part 2-4: Particular requirements for spin extractors

– 2 – IEC 60335-2-4:2008+AMD1:2012
+AMD2:2017 CSV  IEC 2017

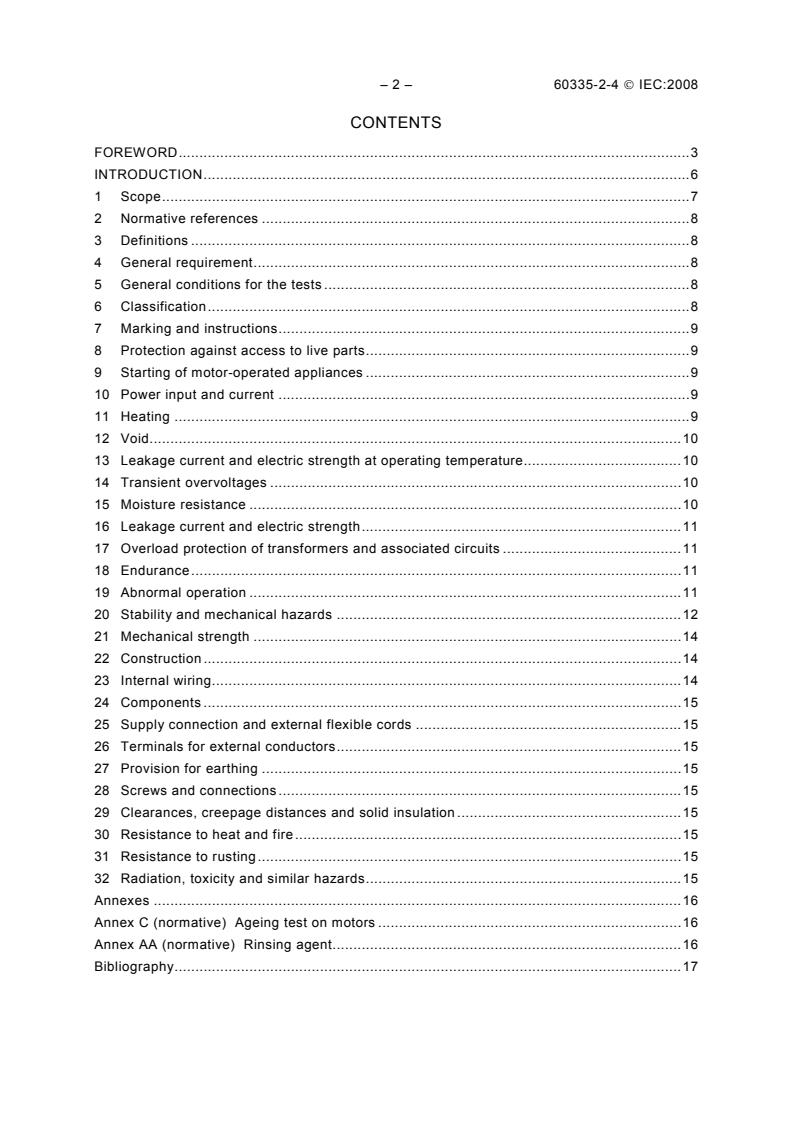

CONTENTS
FOREWORD . 3
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 8
3 Terms and definitions. 8
4 General requirement . 8
5 General conditions for the tests . 8
6 Classification . 8
7 Marking and instructions . 9
8 Protection against access to live parts . 9
9 Starting of motor-operated appliances . 9
10 Power input and current . 9
11 Heating . 9
12 Void. 10
13 Leakage current and electric strength at operating temperature . 10
14 Transient overvoltages . 10
15 Moisture resistance . 10
16 Leakage current and electric strength . 11
17 Overload protection of transformers and associated circuits . 11
18 Endurance . 11
19 Abnormal operation . 11
20 Stability and mechanical hazards . 12
21 Mechanical strength . 14
22 Construction . 15
23 Internal wiring . 15
24 Components . 15
25 Supply connection and external flexible cords . 15
26 Terminals for external conductors . 15
27 Provision for earthing . 15
28 Screws and connections . 16
29 Clearances, creepage distances and solid insulation . 16
30 Resistance to heat and fire . 16
31 Resistance to rusting . 16
32 Radiation, toxicity and similar hazards . 16
Annexes . 17
Annex C (normative) Ageing test on motors . 17
Annex R (normative) Software evaluation . 17
Annex AA (normative) Rinsing agent .
Bibliography . 19

+AMD2:2017 CSV  IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-4: Particular requirements for spin extractors
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendments has been prepared
for user convenience.
IEC 60335-2-4 edition 6.2 contains the sixth edition (2008-09) [documents 61/3677/FDIS and
61/3697/RVD], its amendment 1 (2012-11) [documents 61/4447/FDIS and 61/4500/RVD] and its
amendment 2 (2017-08) [documents 61/5287/CDV and 61/5373/RVC].
In this Redline version, a vertical line in the margin shows where the technical content
is modified by amendments 1 and 2. Additions are in green text, deletions are in
strikethrough red text. A separate Final version with all changes accepted is available
in this publication.
– 4 – IEC 60335-2-4:2008+AMD1:2012
+AMD2:2017 CSV  IEC 2017
International Standard IEC 60335-2-4 has been prepared by IEC technical committee 61:
Safety of household and similar electrical appliances.
The principal changes in this edition as compared with the fifth edition of IEC 60335-2-4 are
as follows (minor changes are not listed):
– aligns the text with IEC 60335-1:2001, and its Amendments 1 and 2;
– clarifies criteria for the protection against mechanical hazards for double lid appliances
(20.103 and 20.104);
– some notes have been converted to normative text (Clause 1, 20.102 and Annex AA).
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for electric spin extractors.
NOTE 2 The following annex contain provisions suitably modified from another IEC standard:
Annex AA Rinsing agent IEC 60436
Void
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states "addition", "modification" or "replacement",
the relevant text in Part 1 is to be adapted accordingly.
NOTE 3 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 4 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
A list of all parts of the IEC 60335 series, under the general title: Household and similar
electrical appliances – Safety, can be found on the IEC website.
The following differences exist in the countries indicated below.
– 3.1.9: As an alternative to the test material specified, pieces of cloth having an area between 4 800 cm and
5 000 cm , with one side at least 55 cm, may be used for the tests (USA).
– 6.1: Class 0I appliances are allowed (Japan).
– 6.2: IPX0 appliances are allowed (USA).
– 15.2: The test is different (USA).
– 18: The test is carried out for 6 000 cycles (Canada and USA).
– 19.7: This subclause is applicable (USA).
– 20.101: The test is not carried out (USA).

+AMD2:2017 CSV  IEC 2017
– 20.103: The requirement is different (USA).
– 20.104: The requirement is different (USA).
– 21.101: There are constructional requirements for metal lids and the tests are different for thermoplastic lids
(USA)
– 21.102: There are constructional requirements for metal lids and the tests are different for thermoplastic lids
(USA).
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE 5 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.

IMPORTANT – The “colour inside” logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this publication using a colour printer.

– 6 – IEC 60335-2-4:2008+AMD1:2012
+AMD2:2017 CSV  IEC 2017
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its
provisions is entrusted to appropriately qualified and experienced persons.
This standard recognizes the internationally accepted level of protection against hazards such
as electrical, mechanical, thermal, fire and radiation of appliances when operated as in
normal use taking into account the manufacturer's instructions. It also covers abnormal
situations that can be expected in practice and takes into account the way in which
electromagnetic phenomena can affect the safe operation of appliances.
This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features which impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
+AMD2:2017 CSV  IEC 2017
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-4: Particular requirements for spin extractors

1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of
– stand alone electric spin extractors, and
– spin extractors incorporated in washing machines that have separate containers for
washing and spin extraction
for household and similar purposes that have a capacity not exceeding 10 kg of dry cloth and
a drum peripheral speed not exceeding 50 m/s, their rated voltages being not more than
250 V for single-phase appliances and 480 V for other appliances.
Appliances not intended for normal household use but which nevertheless may be a source of
danger to the public, such as spin extractors intended to be used by laymen in shops, in light
industry and on farms, and spin extractors for communal use in blocks of flats or in
launderettes are within the scope of this standard.
As far as is practicable, this standard deals with the common hazards presented by appliances
which are encountered by all persons in and around the home. However, in general, it does
not take into account
– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;
– children playing with the appliance.
NOTE 101 Attention is drawn to the fact that
– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may be
necessary;
– in many countries additional requirements are specified by the national health authorities, the national
authorities responsible for the protection of labour, the national water supply authorities and similar authorities.
NOTE 102 This standard does not apply to
– appliances intended exclusively for industrial purposes;
– appliances intended to be used in locations where special conditions prevail, such as the presence of a
corrosive or explosive atmosphere (dust, vapour or gas).

– 8 – IEC 60335-2-4:2008+AMD1:2012
+AMD2:2017 CSV  IEC 2017
2 Normative references
This clause of Part 1 is applicable except as follows.
Addition:
IEC 60730-2-12:2005, Automatic electrical controls for household and similar use – Part 2:
Particular requirements for electrically operated door locks
3 Terms and definitions
This clause of Part 1 is applicable except as follows.
3.1.9 Replacement:
normal operation
operation of the appliance under the following conditions
The drum is filled with textile material having a mass in the dry condition equal to the
maximum mass specified in the instructions. The textile material consists of pre-washed
double hemmed cotton sheets having dimensions of approximately 700 mm × 700 mm and a
2 2
specific mass between 140 g/m and 175 g/m in the dry condition. It is saturated with water
before being evenly distributed in the drum.
4 General requirement
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
5.2 Addition:
The tests of 21.101, 21.102 and 22.101 shall be carried out on the same appliance as that
used for the test of Clause 18.
5.3 Addition:
The tests of 21.101 and 21.102 are carried out before the test of Clause 18. The test of
22.101 is carried out after the test of Clause 18.
6 Classification
This clause of Part 1 is applicable except as follows.
6.1 Modification:
Appliances shall be class I, class II or class III.
6.2 Addition:
Appliances shall be at least IPX4.

+AMD2:2017 CSV  IEC 2017
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
7.10 Addition:
If the off position is only indicated by letters, the word "off" shall be used.
7.12 Addition:
The instructions shall specify the maximum mass of dry cloth in kilograms, to be used in the
appliance.
7.12.1 Addition:
If the label specified in 7.101 is supplied with the appliance, the installation instructions shall
state that it has to be permanently fixed to the wall close to the appliance.
For appliances intended for communal use in blocks of flats, and having an interlock system
that has to be energized in order to release the lid, the installation instructions shall state that
a device for switching off the appliance automatically is not to be installed in the supply
circuit.
7.101 Appliances intended for communal use in blocks of flats, and having an interlock
system that has to be energized in order to release the lid, shall be supplied with a label that
states the substance of the following, unless the instruction is marked on the appliance:
This spin extractor has to be connected to the supply mains before the lid can be opened.
Do not force it open.
8 Protection against access to live parts
This clause of Part 1 is applicable.
9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.
10 Power input and current
This clause of Part 1 is applicable.
11 Heating
This clause of Part 1 is applicable except as follows.
11.7 Replacement:
Appliances are operated for five periods of water extraction, the periods being separated by a
rest period. Each rest period, which includes the braking time, has a duration of 1 min for
each kilogram of dry textile material or 4 min, whichever is longer. During the rest period, the
textile material is re-saturated with water.

– 10 – IEC 60335-2-4:2008+AMD1:2012
+AMD2:2017 CSV  IEC 2017
For appliances incorporating a programmer or timer, the water extraction period is the
maximum allowed by the control.
For other appliances, the water extraction period has a duration of
– 15 min for continuous-flow rinsing appliances;
– 5 min for other appliances.
If a longer period is indicated in the instructions, this period applies instead.
12 Void
13 Leakage current and electric strength at operating temperature
This clause of Part 1 is applicable.
14 Transient overvoltages
This clause of Part 1 is applicable.
15 Moisture resistance
This clause of Part 1 is applicable except as follows.
15.2 Replacement Addition:
Appliances shall be constructed so that spillage of liquid in normal use does not affect their
electrical insulation.
Compliance is checked by the following tests.
Appliances with type X attachment, except those having a specially prepared cord, are fitted
with the lightest permissible type of flexible cord and having the smallest cross-sectional area
specified in Table 13.
The inlet to the discharge pump or to the gravity drain is blocked. The drum is filled as
specified for normal operation, the mass of water being twice the mass of the dry textile
material. Any water remaining after the saturation process is poured into the appliance, which
is supplied at rated voltage and operated for 1 min or the maximum period allowed by the
programmer or timer, whichever is shorter.
In addition, continuous-flow rinsing appliances having a vertical axis are completely filled with
saturated textile material and 10 l of water is poured in over a period of 20 s. The appliance is
then operated while supplied at rated voltage.
For all appliances, 0,5 l of water containing approximately 1 % NaCl and 0,6 % of rinsing
agent, as specified in Annex AA, the solution is poured rapidly over the top of the appliance in
the most unfavourable way so that the spillage solution also flows over the surface of the
appliance that incorporate controls and other places where it may penetrate the appliance
enclosure, the controls being placed in the on most unfavourable position. The controls are
then operated through their working range, this operation being repeated after a period of 5
min.
+AMD2:2017 CSV  IEC 2017
The appliance shall then withstand the electric strength test of 16.3 and inspection shall show
that there is no trace of water on insulation that could result in a reduction of clearances or
creepage distances below the values specified in Clause 29.
16 Leakage current and electric strength
This clause of Part 1 is applicable.
17 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable.
18 Endurance
This clause of Part 1 is replaced by the following.
Appliances having lids that can be opened while the drum is rotating shall be constructed so
that braking mechanisms and lid interlocks withstand the stresses to which they may be
exposed in normal use.
Compliance is checked by the following test.
The appliance is supplied at 1,06 times rated voltage and operated under normal operation
until the motor has reached its maximum speed.
The lid is then fully opened. The test is repeated after the drum has been at rest for a period
long enough to ensure that the appliance does not attain an excessive temperature.
The test is carried out
– for braking mechanisms:
• 3 500 times for separate spin extractors;
• 1 000 times for spin extractors incorporated in washing machines;
– for lid interlocks, 6 000 times.
The textile material is re-saturated with water at least every 250 times.
After the test, the appliance shall be fit for further use and compliance with this standard shall
not be impaired.
NOTE Forced cooling may be used to prevent excessive temperatures and to shorten the test.
19 Abnormal operation
This clause of Part 1 is applicable except as follows.
19.7 Not applicable.
19.9 Not applicable.
– 12 – IEC 60335-2-4:2008+AMD1:2012
+AMD2:2017 CSV  IEC 2017
20 Stability and mechanical hazards
This clause of Part 1 is applicable except as follows.
20.1 Addition:
The drum is empty, or filled as specified for normal operation, whichever is more unfavourable.
20.101 Appliances shall not be adversely affected by an unbalanced load.
Compliance is checked by the following test.
The appliance is placed on a horizontal support and a load having a mass of 0,2 kg or 10 % of
the maximum mass of textile material specified in the instructions, whichever is higher, is
fixed to the inside wall of the drum half-way along its length.
The appliance is supplied at rated voltage and operated for 5 min or the maximum period
allowed by a programmer or timer, whichever is shorter.
The test is carried out four times, the load being moved each time through an angle of 90°
around the wall of the drum.
If compliance relies on the operation of an electronic circuit, the test is repeated with the
fault conditions in a) to g) of 19.11.2 applied one at a time to the electronic circuit.
The appliance shall not overturn and the drum shall not hit other parts except the enclosure.
After the test, the appliance shall be fit for further use.
20.102 The lid or door shall be interlocked so that the appliance can only be operated when
the lid or door is in the closed position.
Compliance is checked by inspection, by manual test and by the following test.
Test probe B of IEC 61032 is applied in order to try and release any interlock that is needed
to comply with the requirement. The interlock shall not release.
20.103 For appliances having a drum with a rotational kinetic energy exceeding 1 500 J, or
– for appliances having a single lid, a maximum peripheral speed exceeding 20 m/s,
– for appliances incorporating two lids, a maximum peripheral speed exceeding 25 m/s,
it shall not be possible to open the lid while the drum is in motion.
Compliance is checked by inspection, by measurement of the maximum peripheral speed, by
calculation of the rotational kinetic energy and by the following test.
The appliance is supplied at rated voltage and operated empty. The force determined during
the test of 22.101 with the lid interlocked is applied to the lid in an attempt to open it.
If compliance relies on the operation of an electronic circuit, the test is repeated under the
following conditions applied separately:
– the fault conditions in a) to g) of 19.11.2 applied one at a time to the electronic circuit;
– the electromagnetic phenomena tests of 19.11.4.1 to 19.11.4.6 applied to the appliance.

+AMD2:2017 CSV  IEC 2017
In an appliance containing lids or doors that are controlled by one or more interlocks, one of
the interlocks may be released provided that the following conditions are fulfilled:
– the lid or door does not move automatically to an open position when the interlock is
released;and
– the appliance will not restart after the cycle in which the interlock was released.
It shall not be possible to open the lid while the drum is in motion.
If the drum is not cylindrical, the peripheral speed is the mean peripheral speed.
NOTE The rotational kinetic energy is calculated from the following formula:
mv
E =
where
E is the rotational kinetic energy, in J;
m is the mass of the cloth specified in the instructions for use, in kg;
v is the maximum peripheral speed of the drum, in m/s.
If the electronic circuit is programmable, the software shall contain measures to control the
fault/error conditions specified in Table R1 and is evaluated in accordance with the relevant
requirements of Annex R.
20.104 For appliances having a drum with a rotational kinetic energy not exceeding 1 500 J
and
– for a appliances having a single lid, a maximum peripheral speed not exceeding 20 m/s,
– for appliances incorporating two lids, a maximum peripheral speed not exceeding 25 m/s,
moving parts shall not be accessible while the motor is energized or when the drum speed
exceeds 60 r/min.
The braking system shall not be affected by the penetration of water.
Compliance is checked by measurement of the maximum peripheral speed, by calculation of
the rotational kinetic energy and by the following test, which is carried out after repeating the
spillage test of 15.2.
NOTE The rotational kinetic energy is calculated in accordance with the formula in 20.103.
The appliance is supplied at rated voltage and operated empty. For appliances having a
single lid and for appliances incorporating two lids where the second lid does not open
independently of the first lid, the lid or first lid as appropriate is gradually opened and
– with an opening of 4 mm to 10 mm, it shall not be possible to touch parts rotating at a
speed exceeding 60 r/min with the test probe 12 of IEC 61032;
– with an opening greater than 10 mm, but not more than 12 mm, it shall not be possible to
touch parts rotating at a speed exceeding 60 r/min with a test rod 3 mm in diameter and
120 mm long. In addition, the test probe B of IEC 61032 is applied and shall not come
within a distance of 20 mm from the rotating parts;
– with an opening greater than 12 mm, the motor shall be disconnected from the supply and
within 7 s, the drum speed shall not exceed 60 r/min.
For appliances incorporating two lids where the second lid opens independently of the first lid,
the first lid is gradually opened and with an opening greater than 50 mm, the motor shall be
disconnected from the supply and within 2 s the drum speed shall not exceed 20 m/s.

– 14 – IEC 60335-2-4:2008+AMD1:2012
+AMD2:2017 CSV  IEC 2017
The second lid is gradually opened and
– with an opening of 4 mm to 10 mm, it shall not be possible to touch parts rotating at a
speed exceeding 60 r/min with the test probe 12 of IEC 61032;
– with an opening greater than 10 mm, but not more than 12 mm, it shall not be possible to
touch parts rotating at a speed exceeding 60 r/min with a test rod 3 mm in diameter and
120 mm long. In addition, the test probe B of IEC 61032 is applied and shall not come
within a distance of 20 mm from the rotating parts;
– with an opening greater than 12 mm and within 7 s, the drum speed shall not exceed
60 r/min.
NOTE The rotational kinetic energy is measured in accordance with the formula in 20.103.
If compliance relies on the operation of an electronic circuit, the test is repeated under the
following conditions applied separately:
– the fault conditions in a) to g) of 19.11.2 applied one at a time to the electronic circuit;
– the electromagnetic phenomena tests of 19.11.4.2 and 19.11.4.5 applied in turn to the
appliance.
In an appliance containing lids or doors that are controlled by one or more interlocks, one of
the interlocks may be released provided that the following conditions are fulfilled:
– the lid or door does not move automatically to an open position when the interlock is
released; and
– the appliance will not restart after the cycle in which the interlock was released.
If the electronic circuit is programmable, the software shall contain measures to control the
fault/error conditions specified in Table R.1 and is evaluated in accordance with the relevant
requirements of Annex R.
20.105 Protective devices fitted in the upper part of spin extractors having a vertical axis
shall be positioned or protected so that the device is not likely to be damaged by textile
material that may escape from the drum in normal use.
Compliance is checked by inspection.
21 Mechanical strength
This clause of Part 1 is applicable except as follows.
21.101 Lids of appliances shall have adequate mechanical strength.
Compliance is checked by the following test.
A rubber hemisphere having a diameter of 70 mm and a hardness between 40 IRHD and
50 IRHD is fixed to a cylinder having a mass of 20 kg and dropped from a height of 100 mm
onto the centre of the lid.
The test is carried out three times, after which the lid shall not be damaged to the extent that
moving parts become accessible.
21.102 Lids and their hinges shall have adequate resistance to distortion.
Compliance is checked by the following test.
A force of 50 N is applied to the open lid in the most unfavourable direction and position.

+AMD2:2017 CSV  IEC 2017
The test is carried out three times, after which the hinges shall not have worked loose and the
appliance shall not be damaged or deformed to such an extent that compliance with the
appropriate requirements of 20.102 to 20.104 is impaired.
22 Construction
This clause of Part 1 is applicable except as follows.
22.101 Interlocks shall be constructed so that lids or doors are unlikely to be forced open in
normal use.
Compliance is checked by the following test.
The lid or door is opened manually as in normal use, the force applied being measured. The
lid or door is closed and interlocked. An attempt is then made to open the lid or door in the
same way.
It shall not be possible to force open the lid or door with a force less than 10 times the value
originally measured, with a minimum of 50 N.
NOTE The test is not carried out if the interlock is not required for compliance with Clause 20.
23 Internal wiring
This clause of Part 1 is applicable.
24 Components
This clause of Part 1 is applicable except as follows.
24.1.4 Modification:
The number of cycles of operation for timers is increased to 10 000.
Addition:
For lid interlocks, the number of cycles of operation declared for Subclauses 6.10 and 6.11 of
IEC 60730-2-12 shall not be less than 6 000.
25 Supply connection and external flexible cords
This clause of Part 1 is applicable.
26 Terminals for external conductors
This clause of Part 1 is applicable.
27 Provision for earthing
This clause of Part 1 is applicable.

– 16 – IEC 60335-2-4:2008+AMD1:2012
+AMD2:2017 CSV  IEC 2017
28 Screws and connections
This clause of Part 1 is applicable.
29 Clearances, creepage distances and solid insulation
This clause of Part 1 is applicable.
30 Resistance to heat and fire
This clause of Part 1 is applicable except as follows.
30.2.3 Not applicable.
31 Resistance to rusting
This clause of Part 1 is applicable.
32 Radiation, toxicity and similar hazards
This clause of Part 1 is applicable.

+AMD2:2017 CSV  IEC 2017
Annexes
The annexes of Part 1 are applicable except as follows.
Annex C
(normative)
Ageing test on motors
Modification:
The value of p in Table C.1 is 2 000.

Annex R
(normative)
Software evaluation
R.2.2.5 Modification:
For programmable electronic circuits with functions requiring software incorporating
measures to control the fault/error conditions specified in Table R.1 or Table R.2, detection of
a fault/error shall occur before compliance with Clause 19, 20.103 and 20.104 is impaired.
R.2.2.9 Modification:
The software and safety-related hardware under its control shall be initialized and shall
terminate before compliance with Clause 19, 20.103 and 20.104 is impaired.

– 18 – IEC 60335-2-4:2008+AMD1:2012
+AMD2:2017 CSV  IEC 2017
Annex AA
(normative)
Rinsing agent
Any commercially available rinsing agent may be used, but if there is any doubt with regards
to the test results, the composition of the rinsing agent shall be as follows:
Parts by mass
Substance
%
1) 15,0
Plurafac LF 221
11,5
Cumene sulfonate (40 % solution)
3,0
Citric acid (anhydrous)
Deionized water 70,5
The rinsing agent has the following properties:
•viscosity, 17 mPa⋅s;
•pH, 2,2 (1 % in water).
NOTE The composition of the rinsing agent is extracted from IEC 60436.
—————————
1) Plurafac LF 221 is the trade name of a product supplied by BASF. This information is given for the convenience
of users of this document and does not constitute an endorsement by IEC of the product named.

+AMD2:2017 CSV  IEC 2017
Bibliography
The bibliography of Part 1 is applicable except as follows.
Addition:
IEC 60436, Electric dishwashers for household use – Methods for measuring the performance
ISO 13732-1, Ergonomics of the thermal environment – Methods for the assessment of human
responses to contact with surfaces – Part 1: Hot surfaces

___________
IEC 60335-2-4 ®
Edition 6.2 2017-08
CONSOLIDATED VERSION
FINAL VERSION
colour
inside
Household and similar electrical appliances – Safety –
Part 2-4: Particular requirements for spin extractors

– 2 – IEC 60335-2-4:2008+AMD1:2012
+AMD2:2017 CSV  IEC 2017
CONTENTS
FOREWORD . 3
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions. 8
4 General requirement . 8
5 General conditions for the tests .
...

IEC 60335-2-4
Edition 6.0 2008-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-4: Particular requirements for spin extractors

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-4: Règles particulières pour les essoreuses centrifuges

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
ƒ Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
ƒ IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
ƒ Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
ƒ Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
ƒ Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
ƒ Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
ƒ Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
ƒ Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: [e-mail]
Tél.: [phone]
Fax: [phone]
IEC 60335-2-4
Edition 6.0 2008-09
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Safety –
Part 2-4: Particular requirements for spin extractors

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-4: Règles particulières pour les essoreuses centrifuges

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
Q
CODE PRIX
ICS 13.120; 97.060 ISBN 978-2-88910-140-5
– 2 – 60335-2-4 © IEC:2008
CONTENTS
FOREWORD.3
INTRODUCTION.6
1 Scope.7
2 Normative references .8
3 Definitions .8
4 General requirement.8
5 General conditions for the tests .8
6 Classification.8
7 Marking and instructions.9
8 Protection against access to live parts.9
9 Starting of motor-operated appliances .9
10 Power input and current .9
11 Heating .9
12 Void.10
13 Leakage current and electric strength at operating temperature.10
14 Transient overvoltages .10
15 Moisture resistance .10
16 Leakage current and electric strength.11
17 Overload protection of transformers and associated circuits .11
18 Endurance.11
19 Abnormal operation .11
20 Stability and mechanical hazards .12
21 Mechanical strength .14
22 Construction .14
23 Internal wiring.14
24 Components .15
25 Supply connection and external flexible cords .15
26 Terminals for external conductors.15
27 Provision for earthing .15
28 Screws and connections .15
29 Clearances, creepage distances and solid insulation .15
30 Resistance to heat and fire.15
31 Resistance to rusting.15
32 Radiation, toxicity and similar hazards.15
Annexes .16
Annex C (normative) Ageing test on motors .16
Annex AA (normative) Rinsing agent.16
Bibliography.17

60335-2-4 © IEC:2008 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-4: Particular requirements for spin extractors

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any
equipment declared to be in conformity with an IEC Publication.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60335-2-4 has been prepared by IEC technical committee 61:
Safety of household and similar electrical appliances.
This sixth edition cancels and replaces the fifth edition published in 2002 including its
Amendment 1 (2004) and Amendment 2 (2006). It constitutes a technical revision.
The principal changes in this edition as compared with the fifth edition of IEC 60335-2-4 are
as follows (minor changes are not listed):
– aligns the text with IEC 60335-1:2001, and its Amendments 1 and 2;
– clarifies criteria for the protection against mechanical hazards for double lid appliances
(20.103 and 20.104);
– some notes have been converted to normative text (Clause 1, 20.102 and Annex AA).

– 4 – 60335-2-4 © IEC:2008
The text of this standard is based on the following documents:
FDIS Report on voting
61/3677/FDIS 61/3697/RVD
Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for electric spin extractors.
NOTE 2 The following annex contain provisions suitably modified from another IEC standard:
Annex AA Rinsing agent IEC 60436
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states "addition", "modification" or "replacement",
the relevant text in Part 1 is to be adapted accordingly.
NOTE 3 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 4 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
A list of all parts of the IEC 60335 series, under the general title: Household and similar
electrical appliances – Safety, can be found on the IEC website.
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the maintenance result date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
60335-2-4 © IEC:2008 – 5 –
NOTE 5 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.
The following differences exist in the countries indicated below.
3.1.9: As an alternative to the test material specified, pieces of cloth having an area between 4 800 cm and
5 000 cm , with one side at least 55 cm, may be used for the tests (USA).
6.1: Class 0I appliances are allowed (Japan).
6.2: IPX0 appliances are allowed (USA).
15.2: The test is different (USA).
18: The test is carried out for 6 000 cycles (Canada and USA).
19.7: This subclause is applicable (USA).
20.101: The test is not carried out (USA).
20.103: The requirement is different (USA).
20.104: The requirement is different (USA).
21.101: There are constructional requirements for metal lids and the tests are different for thermoplastic lids
(USA)
21.102: There are constructional requirements for metal lids and the tests are different for thermoplastic lids
(USA).
– 6 – 60335-2-4 © IEC:2008
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its
provisions is entrusted to appropriately qualified and experienced persons.
This standard recognizes the internationally accepted level of protection against hazards such
as electrical, mechanical, thermal, fire and radiation of appliances when operated as in
normal use taking into account the manufacturer's instructions. It also covers abnormal
situations that can be expected in practice and takes into account the way in which
electromagnetic phenomena can affect the safe operation of appliances.
This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features which impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
60335-2-4 © IEC:2008 – 7 –
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-4: Particular requirements for spin extractors

1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of
– stand alone electric spin extractors, and
– spin extractors incorporated in washing machines that have separate containers for
washing and spin extraction
for household and similar purposes that have a capacity not exceeding 10 kg of dry cloth and
a drum peripheral speed not exceeding 50 m/s, their rated voltages being not more than
250 V for single-phase appliances and 480 V for other appliances.
Appliances not intended for normal household use but which nevertheless may be a source of
danger to the public, such as spin extractors intended to be used by laymen in shops, in light
industry and on farms, and spin extractors for communal use in blocks of flats or in
launderettes are within the scope of this standard.
As far as is practicable, this standard deals with the common hazards presented by appliances
which are encountered by all persons in and around the home. However, in general, it does
not take into account
– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;
– children playing with the appliance.
NOTE 101 Attention is drawn to the fact that
– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may be
necessary;
– in many countries additional requirements are specified by the national health authorities, the national
authorities responsible for the protection of labour, the national water supply authorities and similar authorities.
NOTE 102 This standard does not apply to
– appliances intended exclusively for industrial purposes;
– appliances intended to be used in locations where special conditions prevail, such as the presence of a
corrosive or explosive atmosphere (dust, vapour or gas).

– 8 – 60335-2-4 © IEC:2008
2 Normative references
This clause of Part 1 is applicable except as follows.
Addition:
IEC 60730-2-12:2005, Automatic electrical controls for household and similar use – Part 2:
Particular requirements for electrically operated door locks
3 Definitions
This clause of Part 1 is applicable except as follows.
3.1.9 Replacement:
normal operation
operation of the appliance under the following conditions
The drum is filled with textile material having a mass in the dry condition equal to the
maximum mass specified in the instructions. The textile material consists of pre-washed
double hemmed cotton sheets having dimensions of approximately 700 mm × 700 mm and a
2 2
specific mass between 140 g/m and 175 g/m in the dry condition. It is saturated with water
before being evenly distributed in the drum.
4 General requirement
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
5.2 Addition:
The tests of 21.101, 21.102 and 22.101 shall be carried out on the same appliance as that
used for the test of Clause 18.
5.3 Addition:
The tests of 21.101 and 21.102 are carried out before the test of Clause 18. The test of
22.101 is carried out after the test of Clause 18.
6 Classification
This clause of Part 1 is applicable except as follows.
6.1 Modification:
Appliances shall be class I, class II or class III.
6.2 Addition:
Appliances shall be at least IPX4.

60335-2-4 © IEC:2008 – 9 –
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
7.10 Addition:
If the off position is only indicated by letters, the word "off" shall be used.
7.12 Addition:
The instructions shall specify the maximum mass of dry cloth in kilograms, to be used in the
appliance.
7.12.1 Addition:
If the label specified in 7.101 is supplied with the appliance, the installation instructions shall
state that it has to be permanently fixed to the wall close to the appliance.
For appliances intended for communal use in blocks of flats, and having an interlock system
that has to be energized in order to release the lid, the installation instructions shall state that
a device for switching off the appliance automatically is not to be installed in the supply
circuit.
7.101 Appliances intended for communal use in blocks of flats, and having an interlock
system that has to be energized in order to release the lid, shall be supplied with a label that
states the substance of the following, unless the instruction is marked on the appliance:
This spin extractor has to be connected to the supply mains before the lid can be opened.
Do not force it open.
8 Protection against access to live parts
This clause of Part 1 is applicable.
9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.
10 Power input and current
This clause of Part 1 is applicable.
11 Heating
This clause of Part 1 is applicable except as follows.
11.7 Replacement:
Appliances are operated for five periods of water extraction, the periods being separated by a
rest period. Each rest period, which includes the braking time, has a duration of 1 min for
each kilogram of dry textile material or 4 min, whichever is longer. During the rest period, the
textile material is re-saturated with water.

– 10 – 60335-2-4 © IEC:2008
For appliances incorporating a programmer or timer, the water extraction period is the
maximum allowed by the control.
For other appliances, the water extraction period has a duration of
– 15 min for continuous-flow rinsing appliances;
– 5 min for other appliances.
If a longer period is indicated in the instructions, this period applies instead.
12 Void
13 Leakage current and electric strength at operating temperature
This clause of Part 1 is applicable.
14 Transient overvoltages
This clause of Part 1 is applicable.
15 Moisture resistance
This clause of Part 1 is applicable except as follows.
15.2 Replacement:
Appliances shall be constructed so that spillage of liquid in normal use does not affect their
electrical insulation.
Compliance is checked by the following tests.
Appliances with type X attachment, except those having a specially prepared cord, are fitted
with the lightest permissible type of flexible cord and having the smallest cross-sectional area
specified in Table 13.
The inlet to the discharge pump or to the gravity drain is blocked. The drum is filled as
specified for normal operation, the mass of water being twice the mass of the dry textile
material. Any water remaining after the saturation process is poured into the appliance, which
is supplied at rated voltage and operated for 1 min or the maximum period allowed by the
programmer or timer, whichever is shorter.
In addition, continuous-flow rinsing appliances having a vertical axis are completely filled with
saturated textile material and 10 l of water is poured in over a period of 20 s. The appliance is
then operated while supplied at rated voltage.
For all appliances, 0,5 l of water containing approximately 1 % NaCl and 0,6 % of rinsing
agent, as specified in Annex AA, is poured over the top of the appliance, the controls being
placed in the on position. The controls are then operated through their working range, this
operation being repeated after a period of 5 min.
The appliance shall then withstand the electric strength test of 16.3 and inspection shall show
that there is no trace of water on insulation that could result in a reduction of clearances or
creepage distances below the values specified in Clause 29.

60335-2-4 © IEC:2008 – 11 –
16 Leakage current and electric strength
This clause of Part 1 is applicable.
17 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable.
18 Endurance
This clause of Part 1 is replaced by the following.
Appliances having lids that can be opened while the drum is rotating shall be constructed so
that braking mechanisms and lid interlocks withstand the stresses to which they may be
exposed in normal use.
Compliance is checked by the following test.
The appliance is supplied at 1,06 times rated voltage and operated under normal operation
until the motor has reached its maximum speed.
The lid is then fully opened. The test is repeated after the drum has been at rest for a period
long enough to ensure that the appliance does not attain an excessive temperature.
The test is carried out
– for braking mechanisms:
• 3 500 times for separate spin extractors;
• 1 000 times for spin extractors incorporated in washing machines;
– for lid interlocks, 6 000 times.
The textile material is re-saturated with water at least every 250 times.
After the test, the appliance shall be fit for further use and compliance with this standard shall
not be impaired.
NOTE Forced cooling may be used to prevent excessive temperatures and to shorten the test.
19 Abnormal operation
This clause of Part 1 is applicable except as follows.
19.7 Not applicable.
19.9 Not applicable.
– 12 – 60335-2-4 © IEC:2008
20 Stability and mechanical hazards
This clause of Part 1 is applicable except as follows.
20.1 Addition:
The drum is empty, or filled as specified for normal operation, whichever is more unfavourable.
20.101 Appliances shall not be adversely affected by an unbalanced load.
Compliance is checked by the following test.
The appliance is placed on a horizontal support and a load having a mass of 0,2 kg or 10 % of
the maximum mass of textile material specified in the instructions, whichever is higher, is
fixed to the inside wall of the drum half-way along its length.
The appliance is supplied at rated voltage and operated for 5 min or the maximum period
allowed by a programmer or timer, whichever is shorter.
The test is carried out four times, the load being moved each time through an angle of 90°
around the wall of the drum.
The appliance shall not overturn and the drum shall not hit other parts except the enclosure.
After the test, the appliance shall be fit for further use.
20.102 The lid or door shall be interlocked so that the appliance can only be operated when
the lid or door is in the closed position.
Compliance is checked by inspection, by manual test and by the following test.
Test probe B of IEC 61032 is applied in order to try and release any interlock that is needed
to comply with the requirement. The interlock shall not release.
20.103 For appliances having a drum with a rotational kinetic energy exceeding 1 500 J, or
– for appliances having a single lid, a maximum peripheral speed exceeding 20 m/s,
– for appliances incorporating two lids, a maximum peripheral speed exceeding 25 m/s,
it shall not be possible to open the lid while the drum is in motion.
Compliance is checked by inspection, by measurement of the maximum peripheral speed, by
calculation of the rotational kinetic energy and by the following test.
The appliance is supplied at rated voltage and operated empty. The force determined during
the test of 22.101 with the lid interlocked is applied to the lid in an attempt to open it.
It shall not be possible to open the lid while the drum is in motion.
If the drum is not cylindrical, the peripheral speed is the mean peripheral speed.

60335-2-4 © IEC:2008 – 13 –
NOTE The rotational kinetic energy is calculated from the following formula:
mv
E =
where
E is the rotational kinetic energy, in J;
m is the mass of the cloth specified in the instructions for use, in kg;
v is the maximum peripheral speed of the drum, in m/s.
20.104 For appliances having a drum with a rotational kinetic energy not exceeding 1 500 J
and
– for a appliances having a single lid, a maximum peripheral speed not exceeding 20 m/s,
– for appliances incorporating two lids, a maximum peripheral speed not exceeding 25 m/s,
moving parts shall not be accessible while the motor is energized or when the drum speed
exceeds 60 r/min.
The braking system shall not be affected by the penetration of water.
Compliance is checked by measurement of the maximum peripheral speed, by calculation of
the rotational kinetic energy and by the following test, which is carried out after repeating the
spillage test of 15.2.
The appliance is supplied at rated voltage and operated empty. For appliances having a
single lid and for appliances incorporating two lids where the second lid does not open
independently of the first lid, the lid or first lid as appropriate is gradually opened and
– with an opening of 4 mm to 10 mm, it shall not be possible to touch parts rotating at a
speed exceeding 60 r/min with the test probe 12 of IEC 61032;
– with an opening greater than 10 mm, but not more than 12 mm, it shall not be possible to
touch parts rotating at a speed exceeding 60 r/min with a test rod 3 mm in diameter and
120 mm long. In addition, the test probe B of IEC 61032 is applied and shall not come
within a distance of 20 mm from the rotating parts;
– with an opening greater than 12 mm, the motor shall be disconnected from the supply and
within 7 s, the drum speed shall not exceed 60 r/min.
For appliances incorporating two lids where the second lid opens independently of the first lid,
the first lid is gradually opened and with an opening greater than 50 mm, the motor shall be
disconnected from the supply and within 2 s the drum speed shall not exceed 20 m/s.
The second lid is gradually opened and
– with an opening of 4 mm to 10 mm, it shall not be possible to touch parts rotating at a
speed exceeding 60 rev/min with the test probe 12 of IEC 61032;
– with an opening greater than 10 mm, but not more than 12 mm, it shall not be possible to
touch parts rotating at a speed exceeding 60 r/min with a test rod 3 mm in diameter and
120 mm long. In addition, the test probe B of IEC 61032 is applied and shall not come
within a distance of 20 mm from the rotating parts;
– with an opening greater than 12 mm and within 7 s, the drum speed shall not exceed
60 r/min.
NOTE The rotational kinetic energy is measured in accordance with the formula in 20.103.

– 14 – 60335-2-4 © IEC:2008
20.105 Protective devices fitted in the upper part of spin extractors having a vertical axis
shall be positioned or protected so that the device is not likely to be damaged by textile
material that may escape from the drum in normal use.
Compliance is checked by inspection.
21 Mechanical strength
This clause of Part 1 is applicable except as follows.
21.101 Lids of appliances shall have adequate mechanical strength.
Compliance is checked by the following test.
A rubber hemisphere having a diameter of 70 mm and a hardness between 40 IRHD and
50 IRHD is fixed to a cylinder having a mass of 20 kg and dropped from a height of 100 mm
onto the centre of the lid.
The test is carried out three times, after which the lid shall not be damaged to the extent that
moving parts become accessible.
21.102 Lids and their hinges shall have adequate resistance to distortion.
Compliance is checked by the following test.
A force of 50 N is applied to the open lid in the most unfavourable direction and position.
The test is carried out three times, after which the hinges shall not have worked loose and the
appliance shall not be damaged or deformed to such an extent that compliance with the
appropriate requirements of 20.102 to 20.104 is impaired.
22 Construction
This clause of Part 1 is applicable except as follows.
22.101 Interlocks shall be constructed so that lids or doors are unlikely to be forced open in
normal use.
Compliance is checked by the following test.
The lid or door is opened manually as in normal use, the force applied being measured. The
lid or door is closed and interlocked. An attempt is then made to open the lid or door in the
same way.
It shall not be possible to force open the lid or door with a force less than 10 times the value
originally measured, with a minimum of 50 N.
NOTE The test is not carried out if the interlock is not required for compliance with Clause 20.
23 Internal wiring
This clause of Part 1 is applicable.

60335-2-4 © IEC:2008 – 15 –
24 Components
This clause of Part 1 is applicable except as follows.
24.1.4 Modification:
The number of cycles of operation for timers is increased to 10 000.
Addition:
For lid interlocks, the number of cycles of operation declared for Subclauses 6.10 and 6.11 of
IEC 60730-2-12 shall not be less than 6 000.
25 Supply connection and external flexible cords
This clause of Part 1 is applicable.
26 Terminals for external conductors
This clause of Part 1 is applicable.
27 Provision for earthing
This clause of Part 1 is applicable.
28 Screws and connections
This clause of Part 1 is applicable.
29 Clearances, creepage distances and solid insulation
This clause of Part 1 is applicable.
30 Resistance to heat and fire
This clause of Part 1 is applicable except as follows.
30.2.3 Not applicable.
31 Resistance to rusting
This clause of Part 1 is applicable.
32 Radiation, toxicity and similar hazards
This clause of Part 1 is applicable.

– 16 – 60335-2-4 © IEC:2008
Annexes
The annexes of Part 1 are applicable except as follows.
Annex C
(normative)
Ageing test on motors
Modification:
The value of p in Table C.1 is 2 000.

Annex AA
(normative)
Rinsing agent
Any commercially available rinsing agent may be used, but if there is any doubt with regards
to the test results, the composition of the rinsing agent shall be as follows:
Parts by mass
Substance
%
1) 15,0
Plurafac LF 221
11,5
Cumene sulfonate (40 % solution)
3,0
Citric acid (anhydrous)
Deionized water 70,5
The rinsing agent has the following properties:
• viscosity, 17 mPa⋅s;
• pH, 2,2 (1 % in water).
NOTE The composition of the rinsing agent is extracted from IEC 60436.
—————————
1) Plurafac LF 221 is the trade name of a product supplied by BASF. This information is given for the convenience
of users of this document and does not constitute an endorsement by IEC of the product named.

60335-2-4 © IEC:2008 – 17 –
Bibliography
The bibliography of Part 1 is applicable except as follows.
Addition:
IEC 60436, Electric dishwashers for household use – Methods for measuring the performance
ISO 13732-1, Ergonomics of the thermal environment – Methods for the assessment of human
responses to contact with surfaces – Part 1: Hot surfaces

___________
– 18 – 60335-2-4 © CEI:2008
SOMMAIRE
AVANT-PROPOS.19
INTRODUCTION.22
1 Domaine d'application .23
2 Références normatives.24
3 Définitions .24
4 Exigences générales .24
5 Conditions générales d'essais .24
6 Classification.24
7 Marquage et instructions .25
8 Protection contre l'accès aux parties actives .25
9 Démarrage des appareils à moteur.25
10 Puissance et courant .25
11 Echauffements .26
12 Vacant.26
13 Courant de fuite et rigidité diélectrique à la température de régime .26
14 Surtensions transitoires.26
15 Résistance à l'humidité.26
16 Courant de fuite et rigidité diélectrique .27
17 Protection contre la surcharge des transformateurs et des circuits associés.27
18 Endurance.27
19 Fonctionnement anormal .28
20 Stabilité et dangers mécaniques .28
21 Résistance mécanique .30
22 Construction .31
23 Conducteurs internes .31
24 Composants .31
25 Raccordement au réseau et câbles souples extérieurs .31
26 Bornes pour conducteurs externes .31
27 Dispositions en vue de la mise à la terre .31
28 Vis et connexions .31
29 Distances dans l'air, lignes de fuite et isolation solide .32
30 Résistance à la chaleur et au feu.32
31 Protection contre la rouille.32
32 Rayonnement, toxicité et dangers analogues.32
Annexes .
...

IEC 60335-2-4 ®
Edition 6.1 2012-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-4: Particular requirements for spin extractors

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-4: Règles particulières pour les essoreuses centrifuges

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,

please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni
utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les

microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.

Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette

publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé Fax: [phone]
CH-1211 Geneva 20 [e-mail]
Switzerland www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

Useful links:
IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org
The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and
by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and
committee,…). definitions in English and French, with equivalent terms in
It also gives information on projects, replaced and additional languages. Also known as the International
withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc
Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication
details all new publications released. Available on-line and or need further assistance, please contact the
also once a month by email. Customer Service Centre: [e-mail].

A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.

Liens utiles:
Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org
La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes
publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000
référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que
Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.
publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique
International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.
Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur
Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions
contactez-nous: [e-mail].
IEC 60335-2-4 ®
Edition 6.1 2012-11
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Household and similar electrical appliances – Safety –

Part 2-4: Particular requirements for spin extractors

Appareils électrodomestiques et analogues – Sécurité –

Partie 2-4: Règles particulières pour les essoreuses centrifuges

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.120; 97.060 ISBN 978-2-8322-0486-3

– 2 – 60335-2-4  IEC:2008+A1:2012

CONTENTS
FOREWORD . 3

INTRODUCTION . 6

1 Scope . 7

2 Normative references . 8

3 Terms and definitions. 8

4 General requirement . 8

5 General conditions for the tests . 8

6 Classification . 8
7 Marking and instructions . 9
8 Protection against access to live parts . 9
9 Starting of motor-operated appliances . 9
10 Power input and current . 9
11 Heating . 9
12 Void. 10
13 Leakage current and electric strength at operating temperature . 10
14 Transient overvoltages . 10
15 Moisture resistance . 10
16 Leakage current and electric strength . 11
17 Overload protection of transformers and associated circuits . 11
18 Endurance . 11
19 Abnormal operation . 11
20 Stability and mechanical hazards . 11
21 Mechanical strength . 14
22 Construction . 15
23 Internal wiring . 15
24 Components . 15
25 Supply connection and external flexible cords . 15
26 Terminals for external conductors . 15
27 Provision for earthing . 15

28 Screws and connections . 15
29 Clearances, creepage distances and solid insulation . 16
30 Resistance to heat and fire . 16
31 Resistance to rusting . 16
32 Radiation, toxicity and similar hazards . 16

Annexes . 17
Annex C (normative) Ageing test on motors . 17
Annex R (normative) Software evaluation . 17
Annex AA (normative) Rinsing agent . 18

Bibliography . 19

60335-2-4  IEC:2008+A1:2012 – 3 –

INTERNATIONAL ELECTROTECHNICAL COMMISSION

____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-4: Particular requirements for spin extractors

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

This consolidated version of IEC 60335-2-4 consists of the sixth edition (2008)
[documents 61/3677/FDIS and 61/3697/RVD] and its amendment 1 (2012) [documents
61/4447/FDIS and 61/4500/RVD]. It bears the edition number 6.1.
The technical content is therefore identical to the base edition and its amendment and
has been prepared for user convenience. A vertical line in the margin shows where the
base publication has been modified by amendment 1. Additions and deletions are
displayed in red, with deletions being struck through.

– 4 – 60335-2-4  IEC:2008+A1:2012

International Standard IEC 60335-2-4 has been prepared by IEC technical committee 61:
Safety of household and similar electrical appliances.

The principal changes in this edition as compared with the fifth edition of IEC 60335-2-4 are
as follows (minor changes are not listed):

– aligns the text with IEC 60335-1:2001, and its Amendments 1 and 2;

– clarifies criteria for the protection against mechanical hazards for double lid appliances

(20.103 and 20.104);
– some notes have been converted to normative text (Clause 1, 20.102 and Annex AA).

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for electric spin extractors.
NOTE 2 The following annex contain provisions suitably modified from another IEC standard:
Annex AA Rinsing agent IEC 60436
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states "addition", "modification" or "replacement",
the relevant text in Part 1 is to be adapted accordingly.
NOTE 3 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 4 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.

A list of all parts of the IEC 60335 series, under the general title: Household and similar
electrical appliances – Safety, can be found on the IEC website.
The following differences exist in the countries indicated below.
– 3.1.9: As an alternative to the test material specified, pieces of cloth having an area between 4 800 cm and
5 000 cm , with one side at least 55 cm, may be used for the tests (USA).
– 6.1: Class 0I appliances are allowed (Japan).
– 6.2: IPX0 appliances are allowed (USA).
– 15.2: The test is different (USA).
– 18: The test is carried out for 6 000 cycles (Canada and USA).
– 19.7: This subclause is applicable (USA).
– 20.101: The test is not carried out (USA).
– 20.103: The requirement is different (USA).

60335-2-4  IEC:2008+A1:2012 – 5 –

– 20.104: The requirement is different (USA).

– 21.101: There are constructional requirements for metal lids and the tests are different for thermoplastic lids

(USA)
– 21.102: There are constructional requirements for metal lids and the tests are different for thermoplastic lids

(USA).
The committee has decided that the contents of the base publication and its amendments will

remain unchanged until the stability date indicated on the IEC web site under

"http://webstore.iec.ch" in the data related to the specific publication. At this date, the

publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE 5 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.

IMPORTANT – The “colour inside” logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this publication using a colour printer.

– 6 – 60335-2-4  IEC:2008+A1:2012

INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its

provisions is entrusted to appropriately qualified and experienced persons.

This standard recognizes the internationally accepted level of protection against hazards such

as electrical, mechanical, thermal, fire and radiation of appliances when operated as in

normal use taking into account the manufacturer's instructions. It also covers abnormal

situations that can be expected in practice and takes into account the way in which

electromagnetic phenomena can affect the safe operation of appliances.

This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features which impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
60335-2-4  IEC:2008+A1:2012 – 7 –

HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –

SAFETY –
Part 2-4: Particular requirements for spin extractors

1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of
– stand alone electric spin extractors, and
– spin extractors incorporated in washing machines that have separate containers for
washing and spin extraction
for household and similar purposes that have a capacity not exceeding 10 kg of dry cloth and
a drum peripheral speed not exceeding 50 m/s, their rated voltages being not more than
250 V for single-phase appliances and 480 V for other appliances.
Appliances not intended for normal household use but which nevertheless may be a source of
danger to the public, such as spin extractors intended to be used by laymen in shops, in light
industry and on farms, and spin extractors for communal use in blocks of flats or in
launderettes are within the scope of this standard.
As far as is practicable, this standard deals with the common hazards presented by appliances
which are encountered by all persons in and around the home. However, in general, it does
not take into account
– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;
– children playing with the appliance.
NOTE 101 Attention is drawn to the fact that
– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may be
necessary;
– in many countries additional requirements are specified by the national health authorities, the national
authorities responsible for the protection of labour, the national water supply authorities and similar authorities.
NOTE 102 This standard does not apply to
– appliances intended exclusively for industrial purposes;
– appliances intended to be used in locations where special conditions prevail, such as the presence of a
corrosive or explosive atmosphere (dust, vapour or gas).

– 8 – 60335-2-4  IEC:2008+A1:2012

2 Normative references
This clause of Part 1 is applicable except as follows.

Addition:
IEC 60730-2-12:2005, Automatic electrical controls for household and similar use – Part 2:

Particular requirements for electrically operated door locks

3 Terms and definitions
This clause of Part 1 is applicable except as follows.
3.1.9 Replacement:
normal operation
operation of the appliance under the following conditions
The drum is filled with textile material having a mass in the dry condition equal to the
maximum mass specified in the instructions. The textile material consists of pre-washed
double hemmed cotton sheets having dimensions of approximately 700 mm × 700 mm and a
2 2
specific mass between 140 g/m and 175 g/m in the dry condition. It is saturated with water
before being evenly distributed in the drum.
4 General requirement
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
5.2 Addition:
The tests of 21.101, 21.102 and 22.101 shall be carried out on the same appliance as that
used for the test of Clause 18.
5.3 Addition:
The tests of 21.101 and 21.102 are carried out before the test of Clause 18. The test of
22.101 is carried out after the test of Clause 18.
6 Classification
This clause of Part 1 is applicable except as follows.
6.1 Modification:
Appliances shall be class I, class II or class III.
6.2 Addition:
Appliances shall be at least IPX4.

60335-2-4  IEC:2008+A1:2012 – 9 –

7 Marking and instructions
This clause of Part 1 is applicable except as follows.

7.10 Addition:
If the off position is only indicated by letters, the word "off" shall be used.

7.12 Addition:
The instructions shall specify the maximum mass of dry cloth in kilograms, to be used in the
appliance.
7.12.1 Addition:
If the label specified in 7.101 is supplied with the appliance, the installation instructions shall
state that it has to be permanently fixed to the wall close to the appliance.
For appliances intended for communal use in blocks of flats, and having an interlock system
that has to be energized in order to release the lid, the installation instructions shall state that
a device for switching off the appliance automatically is not to be installed in the supply
circuit.
7.101 Appliances intended for communal use in blocks of flats, and having an interlock
system that has to be energized in order to release the lid, shall be supplied with a label that
states the substance of the following, unless the instruction is marked on the appliance:
This spin extractor has to be connected to the supply mains before the lid can be opened.
Do not force it open.
8 Protection against access to live parts
This clause of Part 1 is applicable.
9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.

10 Power input and current
This clause of Part 1 is applicable.
11 Heating
This clause of Part 1 is applicable except as follows.
11.7 Replacement:
Appliances are operated for five periods of water extraction, the periods being separated by a
rest period. Each rest period, which includes the braking time, has a duration of 1 min for
each kilogram of dry textile material or 4 min, whichever is longer. During the rest period, the
textile material is re-saturated with water.

– 10 – 60335-2-4  IEC:2008+A1:2012

For appliances incorporating a programmer or timer, the water extraction period is the

maximum allowed by the control.

For other appliances, the water extraction period has a duration of

– 15 min for continuous-flow rinsing appliances;

– 5 min for other appliances.
If a longer period is indicated in the instructions, this period applies instead.

12 Void
13 Leakage current and electric strength at operating temperature
This clause of Part 1 is applicable.
14 Transient overvoltages
This clause of Part 1 is applicable.
15 Moisture resistance
This clause of Part 1 is applicable except as follows.
15.2 Replacement:
Appliances shall be constructed so that spillage of liquid in normal use does not affect their
electrical insulation.
Compliance is checked by the following tests.
Appliances with type X attachment, except those having a specially prepared cord, are fitted
with the lightest permissible type of flexible cord and having the smallest cross-sectional area
specified in Table 13.
The inlet to the discharge pump or to the gravity drain is blocked. The drum is filled as
specified for normal operation, the mass of water being twice the mass of the dry textile
material. Any water remaining after the saturation process is poured into the appliance, which

is supplied at rated voltage and operated for 1 min or the maximum period allowed by the
programmer or timer, whichever is shorter.
In addition, continuous-flow rinsing appliances having a vertical axis are completely filled with
saturated textile material and 10 l of water is poured in over a period of 20 s. The appliance is
then operated while supplied at rated voltage.
For all appliances, 0,5 l of water containing approximately 1 % NaCl and 0,6 % of rinsing
agent, as specified in Annex AA, is poured over the top of the appliance, the controls being
placed in the on position. The controls are then operated through their working range, this
operation being repeated after a period of 5 min.
The appliance shall then withstand the electric strength test of 16.3 and inspection shall show
that there is no trace of water on insulation that could result in a reduction of clearances or
creepage distances below the values specified in Clause 29.

60335-2-4  IEC:2008+A1:2012 – 11 –

16 Leakage current and electric strength

This clause of Part 1 is applicable.

17 Overload protection of transformers and associated circuits

This clause of Part 1 is applicable.

18 Endurance
This clause of Part 1 is replaced by the following.
Appliances having lids that can be opened while the drum is rotating shall be constructed so
that braking mechanisms and lid interlocks withstand the stresses to which they may be
exposed in normal use.
Compliance is checked by the following test.
The appliance is supplied at 1,06 times rated voltage and operated under normal operation
until the motor has reached its maximum speed.
The lid is then fully opened. The test is repeated after the drum has been at rest for a period
long enough to ensure that the appliance does not attain an excessive temperature.
The test is carried out
– for braking mechanisms:
• 3 500 times for separate spin extractors;
• 1 000 times for spin extractors incorporated in washing machines;
– for lid interlocks, 6 000 times.
The textile material is re-saturated with water at least every 250 times.
After the test, the appliance shall be fit for further use and compliance with this standard shall
not be impaired.
NOTE Forced cooling may be used to prevent excessive temperatures and to shorten the test.

19 Abnormal operation
This clause of Part 1 is applicable except as follows.
19.7 Not applicable.
19.9 Not applicable.
20 Stability and mechanical hazards
This clause of Part 1 is applicable except as follows.

– 12 – 60335-2-4  IEC:2008+A1:2012

20.1 Addition:
The drum is empty, or filled as specified for normal operation, whichever is more unfavourable.

20.101 Appliances shall not be adversely affected by an unbalanced load.

Compliance is checked by the following test.

The appliance is placed on a horizontal support and a load having a mass of 0,2 kg or 10 % of

the maximum mass of textile material specified in the instructions, whichever is higher, is

fixed to the inside wall of the drum half-way along its length.
The appliance is supplied at rated voltage and operated for 5 min or the maximum period
allowed by a programmer or timer, whichever is shorter.
The test is carried out four times, the load being moved each time through an angle of 90°
around the wall of the drum.
If compliance relies on the operation of an electronic circuit, the test is repeated with the
fault conditions in a) to g) of 19.11.2 applied one at a time to the electronic circuit.
The appliance shall not overturn and the drum shall not hit other parts except the enclosure.
After the test, the appliance shall be fit for further use.
20.102 The lid or door shall be interlocked so that the appliance can only be operated when
the lid or door is in the closed position.
Compliance is checked by inspection, by manual test and by the following test.
Test probe B of IEC 61032 is applied in order to try and release any interlock that is needed
to comply with the requirement. The interlock shall not release.
20.103 For appliances having a drum with a rotational kinetic energy exceeding 1 500 J, or
– for appliances having a single lid, a maximum peripheral speed exceeding 20 m/s,
– for appliances incorporating two lids, a maximum peripheral speed exceeding 25 m/s,
it shall not be possible to open the lid while the drum is in motion.

Compliance is checked by inspection, by measurement of the maximum peripheral speed, by
calculation of the rotational kinetic energy and by the following test.
The appliance is supplied at rated voltage and operated empty. The force determined during
the test of 22.101 with the lid interlocked is applied to the lid in an attempt to open it.
If compliance relies on the operation of an electronic circuit, the test is repeated under the
following conditions applied separately:
– the fault conditions in a) to g) of 19.11.2 applied one at a time to the electronic circuit;
– the electromagnetic phenomena tests of 19.11.4.1 to 19.11.4.6 applied to the appliance.
In an appliance containing lids or doors that are controlled by one or more interlocks, one of
the interlocks may be released provided that the following conditions are fulfilled:
– the lid or door does not move automatically to an open position when the interlock is
released;and
60335-2-4  IEC:2008+A1:2012 – 13 –

– the appliance will not restart after the cycle in which the interlock was released.

It shall not be possible to open the lid while the drum is in motion.

If the drum is not cylindrical, the peripheral speed is the mean peripheral speed.

NOTE The rotational kinetic energy is calculated from the following formula:

mv
E =
where
E is the rotational kinetic energy, in J;
m is the mass of the cloth specified in the instructions for use, in kg;
v is the maximum peripheral speed of the drum, in m/s.
If the electronic circuit is programmable, the software shall contain measures to control the
fault/error conditions specified in Table R1 and is evaluated in accordance with the relevant
requirements of Annex R.
20.104 For appliances having a drum with a rotational kinetic energy not exceeding 1 500 J
and
– for a appliances having a single lid, a maximum peripheral speed not exceeding 20 m/s,
– for appliances incorporating two lids, a maximum peripheral speed not exceeding 25 m/s,
moving parts shall not be accessible while the motor is energized or when the drum speed
exceeds 60 r/min.
The braking system shall not be affected by the penetration of water.
Compliance is checked by measurement of the maximum peripheral speed, by calculation of
the rotational kinetic energy and by the following test, which is carried out after repeating the
spillage test of 15.2.
NOTE The rotational kinetic energy is calculated in accordance with the formula in 20.103.
The appliance is supplied at rated voltage and operated empty. For appliances having a
single lid and for appliances incorporating two lids where the second lid does not open
independently of the first lid, the lid or first lid as appropriate is gradually opened and
– with an opening of 4 mm to 10 mm, it shall not be possible to touch parts rotating at a

speed exceeding 60 r/min with the test probe 12 of IEC 61032;
– with an opening greater than 10 mm, but not more than 12 mm, it shall not be possible to
touch parts rotating at a speed exceeding 60 r/min with a test rod 3 mm in diameter and
120 mm long. In addition, the test probe B of IEC 61032 is applied and shall not come
within a distance of 20 mm from the rotating parts;
– with an opening greater than 12 mm, the motor shall be disconnected from the supply and
within 7 s, the drum speed shall not exceed 60 r/min.
For appliances incorporating two lids where the second lid opens independently of the first lid,
the first lid is gradually opened and with an opening greater than 50 mm, the motor shall be
disconnected from the supply and within 2 s the drum speed shall not exceed 20 m/s.
The second lid is gradually opened and
– with an opening of 4 mm to 10 mm, it shall not be possible to touch parts rotating at a
speed exceeding 60 r/min with the test probe 12 of IEC 61032;

– 14 – 60335-2-4  IEC:2008+A1:2012

– with an opening greater than 10 mm, but not more than 12 mm, it shall not be possible to

touch parts rotating at a speed exceeding 60 r/min with a test rod 3 mm in diameter and

120 mm long. In addition, the test probe B of IEC 61032 is applied and shall not come

within a distance of 20 mm from the rotating parts;

– with an opening greater than 12 mm and within 7 s, the drum speed shall not exceed

60 r/min.
NOTE The rotational kinetic energy is measured in accordance with the formula in 20.103.

If compliance relies on the operation of an electronic circuit, the test is repeated under the

following conditions applied separately:

– the fault conditions in a) to g) of 19.11.2 applied one at a time to the electronic circuit;
– the electromagnetic phenomena tests of 19.11.4.2 and 19.11.4.5 applied in turn to the
appliance.
In an appliance containing lids or doors that are controlled by one or more interlocks, one of
the interlocks may be released provided that the following conditions are fulfilled:
– the lid or door does not move automatically to an open position when the interlock is
released; and
– the appliance will not restart after the cycle in which the interlock was released.
If the electronic circuit is programmable, the software shall contain measures to control the
fault/error conditions specified in Table R.1 and is evaluated in accordance with the relevant
requirements of Annex R.
20.105 Protective devices fitted in the upper part of spin extractors having a vertical axis
shall be positioned or protected so that the device is not likely to be damaged by textile
material that may escape from the drum in normal use.
Compliance is checked by inspection.
21 Mechanical strength
This clause of Part 1 is applicable except as follows.
21.101 Lids of appliances shall have adequate mechanical strength.
Compliance is checked by the following test.

A rubber hemisphere having a diameter of 70 mm and a hardness between 40 IRHD and
50 IRHD is fixed to a cylinder having a mass of 20 kg and dropped from a height of 100 mm
onto the centre of the lid.
The test is carried out three times, after which the lid shall not be damaged to the extent that
moving parts become accessible.
21.102 Lids and their hinges shall have adequate resistance to distortion.
Compliance is checked by the following test.
A force of 50 N is applied to the open lid in the most unfavourable direction and position.
The test is carried out three times, after which the hinges shall not have worked loose and the
appliance shall not be damaged or deformed to such an extent that compliance with the
appropriate requirements of 20.102 to 20.104 is impaired.

60335-2-4  IEC:2008+A1:2012 – 15 –

22 Construction
This clause of Part 1 is applicable except as follows.

22.101 Interlocks shall be constructed so that lids or doors are unlikely to be forced open in

normal use.
Compliance is checked by the following test.

The lid or door is opened manually as in normal use, the force applied being measured. The

lid or door is closed and interlocked. An attempt is then made to open the lid or door in the

same way.
It shall not be possible to force open the lid or door with a force less than 10 times the value
originally measured, with a minimum of 50 N.
NOTE The test is not carried out if the interlock is not required for compliance with Clause 20.
23 Internal wiring
This clause of Part 1 is applicable.
24 Components
This clause of Part 1 is applicable except as follows.
24.1.4 Modification:
The number of cycles of operation for timers is increased to 10 000.
Addition:
For lid interlocks, the number of cycles of operation declared for Subclauses 6.10 and 6.11 of
IEC 60730-2-12 shall not be less than 6 000.
25 Supply connection and external flexible cords
This clause of Part 1 is applicable.
26 Terminals for external conductors
This clause of Part 1 is applicable.
27 Provision for earthing
This clause of Part 1 is applicable.
28 Screws and connections
This clause of Part 1 is applicable.

– 16 – 60335-2-4  IEC:2008+A1:2012

29 Clearances, creepage distances and solid insulation

This clause of Part 1 is applicable.

30 Resistance to heat and fire

This clause of Part 1 is applicable except as follows.

30.2.3 Not applicable.
31 Resistance to rusting
This clause of Part 1 is applicable.
32 Radiation, toxicity and similar hazards
This clause of Part 1 is applicable.

60335-2-4  IEC:2008+A1:2012 – 17 –

Annexes
The annexes of Part 1 are applicable except as follows.

Annex C
(normative)
Ageing test on motors
Modification:
The value of p in Table C.1 is 2 000.

Annex R
(normative)
Software evaluation
R.2.2.5 Modification:
For programmable electronic circuits with functions requiring software incorporating
measures to control the fault/error conditions specified in Table R.1 or Table R.2, detection of
a fault/error shall occur before compliance with Clause 19, 20.103 and 20.104 is impaired.
R.2.2.9 Modification:
The software and safety-related hardware under its control shall be initialized and shall
terminate before compliance with Clause 19, 20.103 and 20.104 is impaired.

– 18 – 60335-2-4  IEC:2008+A1:2012

Annex AA
(normative)
Rinsing agent
Any commercially available rinsing agent may be used, but if there is any doubt with regards

to the test results, the composition of the rinsing agent shall be as follows:

Parts by mass
Substance
%
1)
15,0
Plurafac LF 221
11,5
Cumene sulfonate (40 % solution)
3,0
Citric acid (anhydrous)
Deionized water 70,5
The rinsing agent has the following properties:
• viscosity, 17 mPa⋅s;
• pH, 2,2 (1 % in water).
NOTE The composition of the rinsing agent is extracted from IEC 60436.

—————————
1) Plurafac LF 221 is the trade name of a product supplied by BASF. This information is given for the convenience
of users of this document and does not constitute an endorsement by IEC of the product named.

60335-2-4  IEC:2008+A1:2012 – 19 –

Bibliography
The bibliography of Part 1 is applicable except as follows.

Addition:
IEC 60436, Electric dishwashers for household use – Methods for measuring the performance

ISO 13732-1, Ergonomics of the thermal environment – Methods for the assessment of human

responses to contact with surfaces – Part 1: Hot surfaces

___________
-----------
...

IEC 60335-2-4 ®
Edition 6.2 2017-08
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONAL
colour
inside
Household and similar electrical appliances – Safety –
Part 2-4: Particular requirements for spin extractors

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-4: Règles particulières pour les essoreuses centrifuges

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez
les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigendum or an amendment might have been published.

IEC publications search - webstore.iec.ch/advsearchform Electropedia - www.electropedia.org
The advanced search enables to find IEC publications by a The world's leading online dictionary on electrotechnology,
variety of criteria (reference number, text, technical containing more than 22 000 terminological entries in English
committee,…). It also gives information on projects, replaced and French, with equivalent terms in 16 additional languages.
and withdrawn publications. Also known as the International Electrotechnical Vocabulary

(IEV) online.
IEC Just Published - webstore.iec.ch/justpublished
Stay up to date on all new IEC publications. Just Published IEC Glossary - std.iec.ch/glossary
details all new publications released. Available online and 67 000 electrotechnical terminology entries in English and
once a month by email. French extracted from the Terms and definitions clause of
IEC publications issued between 2002 and 2015. Some
IEC Customer Service Centre - webstore.iec.ch/csc entries have been collected from earlier publications of IEC
If you wish to give us your feedback on this publication or TC 37, 77, 86 and CISPR.

need further assistance, please contact the Customer Service

Centre: [e-mail].
A propos de l'IEC
La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des
Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC
Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la
plus récente, un corrigendum ou amendement peut avoir été publié.

Recherche de publications IEC - Electropedia - www.electropedia.org
webstore.iec.ch/advsearchform Le premier dictionnaire d'électrotechnologie en ligne au

La recherche avancée permet de trouver des publications IEC monde, avec plus de 22 000 articles terminologiques en
en utilisant différents critères (numéro de référence, texte, anglais et en français, ainsi que les termes équivalents dans
comité d’études,…). Elle donne aussi des informations sur les 16 langues additionnelles. Egalement appelé Vocabulaire
projets et les publications remplacées ou retirées. Electrotechnique International (IEV) en ligne.

IEC Just Published - webstore.iec.ch/justpublished Glossaire IEC - std.iec.ch/glossary
Restez informé sur les nouvelles publications IEC. Just 67 000 entrées terminologiques électrotechniques, en anglais
Published détaille les nouvelles publications parues. et en français, extraites des articles Termes et définitions des
Disponible en ligne et une fois par mois par email. publications IEC parues entre 2002 et 2015. Plus certaines
entrées antérieures extraites des publications des CE 37, 77,
Service Clients - webstore.iec.ch/csc 86 et CISPR de l'IEC.

Si vous désirez nous donner des commentaires sur cette
publication ou si vous avez des questions contactez-nous:
[e-mail].
IEC 60335-2-4 ®
Edition 6.2 2017-08
CONSOLIDATED VERSION
INTERNATIONAL
STANDARD
NORME
INTERNATIONAL
colour
inside
Household and similar electrical appliances – Safety –

Part 2-4: Particular requirements for spin extractors

Appareils électrodomestiques et analogues – Sécurité –

Partie 2-4: Règles particulières pour les essoreuses centrifuges

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 13.120; 97.060 ISBN 978-2-8322-7763-8

IEC 60335-2-4 ®
Edition 6.2 2017-08
CONSOLIDATED VERSION
REDLINE VERSION
VERSION REDLINE
colour
inside
Household and similar electrical appliances – Safety –
Part 2-4: Particular requirements for spin extractors

Appareils électrodomestiques et analogues – Sécurité –
Partie 2-4: Règles particulières pour les essoreuses centrifuges

– 2 – IEC 60335-2-4:2008+AMD1:2012
+AMD2:2017 CSV  IEC 2017
CONTENTS
FOREWORD . 3
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 8
3 Terms and definitions . 8
4 General requirement . 8
5 General conditions for the tests . 8
6 Classification . 8
7 Marking and instructions . 9
8 Protection against access to live parts . 9
9 Starting of motor-operated appliances . 9
10 Power input and current . 9
11 Heating . 9
12 Void. 10
13 Leakage current and electric strength at operating temperature . 10
14 Transient overvoltages . 10
15 Moisture resistance . 10
16 Leakage current and electric strength . 11
17 Overload protection of transformers and associated circuits . 11
18 Endurance . 11
19 Abnormal operation . 11
20 Stability and mechanical hazards . 12
21 Mechanical strength . 14
22 Construction . 15
23 Internal wiring . 15
24 Components . 15
25 Supply connection and external flexible cords . 15
26 Terminals for external conductors . 15
27 Provision for earthing . 15
28 Screws and connections . 16
29 Clearances, creepage distances and solid insulation . 16
30 Resistance to heat and fire . 16
31 Resistance to rusting . 16
32 Radiation, toxicity and similar hazards . 16
Annexes . 17
Annex C (normative) Ageing test on motors . 17
Annex R (normative) Software evaluation . 17
Annex AA (normative) Rincing agent .
Bibliography . 19

+AMD2:2017 CSV  IEC 2017
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-4: Particular requirements for spin extractors
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This consolidated version of the official IEC Standard and its amendments has been prepared
for user convenience.
IEC 60335-2-4 edition 6.2 contains the sixth edition (2008-09) [documents 61/3677/FDIS and
61/3697/RVD], its amendment 1 (2012-11) [documents 61/4447/FDIS and 61/4500/RVD] and its
amendment 2 (2017-08) [documents 61/5287/CDV and 61/5373/RVC].
In this Redline version, a vertical line in the margin shows where the technical
content is modified by amendments 1 and 2. Additions are in green text,
deletions are in strikethrough red text. A separate Final version with all changes
accepted is available in this publication.

– 4 – IEC 60335-2-4:2008+AMD1:2012
+AMD2:2017 CSV  IEC 2017
International Standard IEC 60335-2-4 has been prepared by IEC technical committee 61:
Safety of household and similar electrical appliances.
The principal changes in this edition as compared with the fifth edition of IEC 60335-2-4 are
as follows (minor changes are not listed):
– aligns the text with IEC 60335-1:2001, and its Amendments 1 and 2;
– clarifies criteria for the protection against mechanical hazards for double lid appliances
(20.103 and 20.104);
– some notes have been converted to normative text (Clause 1, 20.102 and Annex AA).
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fourth edition (2001) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for electric spin extractors.
NOTE 2 The following annex contain provisions suitably modified from another IEC standard:
Annex AA Rinsing agent IEC 60436
Void
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states "addition", "modification" or "replacement",
the relevant text in Part 1 is to be adapted accordingly.
NOTE 3 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 4 The following print types are used:
– requirements: in roman type;
– test specifications: in italic type;
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and the
associated noun are also in bold.
A list of all parts of the IEC 60335 series, under the general title: Household and similar
electrical appliances – Safety, can be found on the IEC website.
The following differences exist in the countries indicated below.
– 3.1.9: As an alternative to the test material specified, pieces of cloth having an area between 4 800 cm and
5 000 cm , with one side at least 55 cm, may be used for the tests (USA).
– 6.1: Class 0I appliances are allowed (Japan).
– 6.2: IPX0 appliances are allowed (USA).
– 15.2: The test is different (USA).
– 18: The test is carried out for 6 000 cycles (Canada and USA).
– 19.7: This subclause is applicable (USA).
– 20.101: The test is not carried out (USA).

+AMD2:2017 CSV  IEC 2017
– 20.103: The requirement is different (USA).
– 20.104: The requirement is different (USA).
– 21.101: There are constructional requirements for metal lids and the tests are different for thermoplastic lids
(USA)
– 21.102: There are constructional requirements for metal lids and the tests are different for thermoplastic lids
(USA).
The committee has decided that the contents of the base publication and its amendments will
remain unchanged until the stability date indicated on the IEC web site under
"http://webstore.iec.ch" in the data related to the specific publication. At this date, the
publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
NOTE 5 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.

IMPORTANT – The “colour inside” logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct understanding
of its contents. Users should therefore print this publication using a colour printer.

– 6 – IEC 60335-2-4:2008+AMD1:2012
+AMD2:2017 CSV  IEC 2017
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its
provisions is entrusted to appropriately qualified and experienced persons.
This standard recognizes the internationally accepted level of protection against hazards such
as electrical, mechanical, thermal, fire and radiation of appliances when operated as in
normal use taking into account the manufacturer's instructions. It also covers abnormal
situations that can be expected in practice and takes into account the way in which
electromagnetic phenomena can affect the safe operation of appliances.
This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 1 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 2 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.
An appliance that complies with the text of this standard will not necessarily be considered to
comply with the safety principles of the standard if, when examined and tested, it is found to
have other features which impair the level of safety covered by these requirements.
An appliance employing materials or having forms of construction differing from those detailed
in the requirements of this standard may be examined and tested according to the intent of
the requirements and, if found to be substantially equivalent, may be considered to comply
with the standard.
+AMD2:2017 CSV  IEC 2017
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-4: Particular requirements for spin extractors

1 Scope
This clause of Part 1 is replaced by the following.
This International Standard deals with the safety of
– stand alone electric spin extractors, and
– spin extractors incorporated in washing machines that have separate containers for
washing and spin extraction
for household and similar purposes that have a capacity not exceeding 10 kg of dry cloth and
a drum peripheral speed not exceeding 50 m/s, their rated voltages being not more than
250 V for single-phase appliances and 480 V for other appliances.
Appliances not intended for normal household use but which nevertheless may be a source of
danger to the public, such as spin extractors intended to be used by laymen in shops, in light
industry and on farms, and spin extractors for communal use in blocks of flats or in
launderettes are within the scope of this standard.
As far as is practicable, this standard deals with the common hazards presented by appliances
which are encountered by all persons in and around the home. However, in general, it does
not take into account
– persons (including children) whose
• physical, sensory or mental capabilities; or
• lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction;
– children playing with the appliance.
NOTE 101 Attention is drawn to the fact that
– for appliances intended to be used in vehicles or on board ships or aircraft, additional requirements may be
necessary;
– in many countries additional requirements are specified by the national health authorities, the national
authorities responsible for the protection of labour, the national water supply authorities and similar authorities.
NOTE 102 This standard does not apply to
– appliances intended exclusively for industrial purposes;
– appliances intended to be used in locations where special conditions prevail, such as the presence of a
corrosive or explosive atmosphere (dust, vapour or gas).

– 8 – IEC 60335-2-4:2008+AMD1:2012
+AMD2:2017 CSV  IEC 2017
2 Normative references
This clause of Part 1 is applicable except as follows.
Addition:
IEC 60730-2-12:2005, Automatic electrical controls for household and similar use – Part 2:
Particular requirements for electrically operated door locks
3 Terms and definitions
This clause of Part 1 is applicable except as follows.
3.1.9 Replacement:
normal operation
operation of the appliance under the following conditions
The drum is filled with textile material having a mass in the dry condition equal to the
maximum mass specified in the instructions. The textile material consists of pre-washed
double hemmed cotton sheets having dimensions of approximately 700 mm × 700 mm and a
2 2
specific mass between 140 g/m and 175 g/m in the dry condition. It is saturated with water
before being evenly distributed in the drum.
4 General requirement
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
5.2 Addition:
The tests of 21.101, 21.102 and 22.101 shall be carried out on the same appliance as that
used for the test of Clause 18.
5.3 Addition:
The tests of 21.101 and 21.102 are carried out before the test of Clause 18. The test of
22.101 is carried out after the test of Clause 18.
6 Classification
This clause of Part 1 is applicable except as follows.
6.1 Modification:
Appliances shall be class I, class II or class III.
6.2 Addition:
Appliances shall be at least IPX4.

+AMD2:2017 CSV  IEC 2017
7 Marking and instructions
This clause of Part 1 is applicable except as follows.
7.10 Addition:
If the off position is only indicated by letters, the word "off" shall be used.
7.12 Addition:
The instructions shall specify the maximum mass of dry cloth in kilograms, to be used in the
appliance.
7.12.1 Addition:
If the label specified in 7.101 is supplied with the appliance, the installation instructions shall
state that it has to be permanently fixed to the wall close to the appliance.
For appliances intended for communal use in blocks of flats, and having an interlock system
that has to be energized in order to release the lid, the installation instructions shall state that
a device for switching off the appliance automatically is not to be installed in the supply
circuit.
7.101 Appliances intended for communal use in blocks of flats, and having an interlock
system that has to be energized in order to release the lid, shall be supplied with a label that
states the substance of the following, unless the instruction is marked on the appliance:
This spin extractor has to be connected to the supply mains before the lid can be opened.
Do not force it open.
8 Protection against access to live parts
This clause of Part 1 is applicable.
9 Starting of motor-operated appliances
This clause of Part 1 is not applicable.
10 Power input and current
This clause of Part 1 is applicable.
11 Heating
This clause of Part 1 is applicable except as follows.
11.7 Replacement:
Appliances are operated for five periods of water extraction, the periods being separated by a
rest period. Each rest period, which includes the braking time, has a duration of 1 min for
each kilogram of dry textile material or 4 min, whichever is longer. During the rest period, the
textile material is re-saturated with water.

– 10 – IEC 60335-2-4:2008+AMD1:2012
+AMD2:2017 CSV  IEC 2017
For appliances incorporating a programmer or timer, the water extraction period is the
maximum allowed by the control.
For other appliances, the water extraction period has a duration of
– 15 min for continuous-flow rinsing appliances;
– 5 min for other appliances.
If a longer period is indicated in the instructions, this period applies instead.
12 Void
13 Leakage current and electric strength at operating temperature
This clause of Part 1 is applicable.
14 Transient overvoltages
This clause of Part 1 is applicable.
15 Moisture resistance
This clause of Part 1 is applicable except as follows.
15.2 Replacement Addition:
Appliances shall be constructed so that spillage of liquid in normal use does not affect their
electrical insulation.
Compliance is checked by the following tests.
Appliances with type X attachment, except those having a specially prepared cord, are fitted
with the lightest permissible type of flexible cord and having the smallest cross-sectional area
specified in Table 13.
The inlet to the discharge pump or to the gravity drain is blocked. The drum is filled as
specified for normal operation, the mass of water being twice the mass of the dry textile
material. Any water remaining after the saturation process is poured into the appliance, which
is supplied at rated voltage and operated for 1 min or the maximum period allowed by the
programmer or timer, whichever is shorter.
In addition, continuous-flow rinsing appliances having a vertical axis are completely filled with
saturated textile material and 10 l of water is poured in over a period of 20 s. The appliance is
then operated while supplied at rated voltage.
For all appliances, 0,5 l of water containing approximately 1 % NaCl and 0,6 % of rinsing
agent, as specified in Annex AA, the solution is poured rapidly over the top of the appliance in
the most unfavourable way so that the spillage solution also flows over the surface of the
appliance that incorporate controls and other places where it may penetrate the appliance
enclosure, the controls being placed in the on most unfavourable position. The controls are
then operated through their working range, this operation being repeated after a period of 5
min.
+AMD2:2017 CSV  IEC 2017
The appliance shall then withstand the electric strength test of 16.3 and inspection shall show
that there is no trace of water on insulation that could result in a reduction of clearances or
creepage distances below the values specified in Clause 29.
16 Leakage current and electric strength
This clause of Part 1 is applicable.
17 Overload protection of transformers and associated circuits
This clause of Part 1 is applicable.
18 Endurance
This clause of Part 1 is replaced by the following.
Appliances having lids that can be opened while the drum is rotating shall be constructed so
that braking mechanisms and lid interlocks withstand the stresses to which they may be
exposed in normal use.
Compliance is checked by the following test.
The appliance is supplied at 1,06 times rated voltage and operated under normal operation
until the motor has reached its maximum speed.
The lid is then fully opened. The test is repeated after the drum has been at rest for a period
long enough to ensure that the appliance does not attain an excessive temperature.
The test is carried out
– for braking mechanisms:
• 3 500 times for separate spin extractors;
• 1 000 times for spin extractors incorporated in washing machines;
– for lid interlocks, 6 000 times.
The textile material is re-saturated with water at least every 250 times.
After the test, the appliance shall be fit for further use and compliance with this standard shall
not be impaired.
NOTE Forced cooling may be used to prevent excessive temperatures and to shorten the test.
19 Abnormal operation
This clause of Part 1 is applicable except as follows.
19.7 Not applicable.
19.9 Not applicable.
– 12 – IEC 60335-2-4:2008+AMD1:2012
+AMD2:2017 CSV  IEC 2017
20 Stability and mechanical hazards
This clause of Part 1 is applicable except as follows.
20.1 Addition:
The drum is empty, or filled as specified for normal operation, whichever is more unfavourable.
20.101 Appliances shall not be adversely affected by an unbalanced load.
Compliance is checked by the following test.
The appliance is placed on a horizontal support and a load having a mass of 0,2 kg or 10 % of
the maximum mass of textile material specified in the instructions, whichever is higher, is
fixed to the inside wall of the drum half-way along its length.
The appliance is supplied at rated voltage and operated for 5 min or the maximum period
allowed by a programmer or timer, whichever is shorter.
The test is carried out four times, the load being moved each time through an angle of 90°
around the wall of the drum.
If compliance relies on the operation of an electronic circuit, the test is repeated with the
fault conditions in a) to g) of 19.11.2 applied one at a time to the electronic circuit.
The appliance shall not overturn and the drum shall not hit other parts except the enclosure.
After the test, the appliance shall be fit for further use.
20.102 The lid or door shall be interlocked so that the appliance can only be operated when
the lid or door is in the closed position.
Compliance is checked by inspection, by manual test and by the following test.
Test probe B of IEC 61032 is applied in order to try and release any interlock that is needed
to comply with the requirement. The interlock shall not release.
20.103 For appliances having a drum with a rotational kinetic energy exceeding 1 500 J, or
– for appliances having a single lid, a maximum peripheral speed exceeding 20 m/s,
– for appliances incorporating two lids, a maximum peripheral speed exceeding 25 m/s,
it shall not be possible to open the lid while the drum is in motion.
Compliance is checked by inspection, by measurement of the maximum peripheral speed, by
calculation of the rotational kinetic energy and by the following test.
The appliance is supplied at rated voltage and operated empty. The force determined during
the test of 22.101 with the lid interlocked is applied to the lid in an attempt to open it.
If compliance relies on the operation of an electronic circuit, the test is repeated under the
following conditions applied separately:
– the fault conditions in a) to g) of 19.11.2 applied one at a time to the electronic circuit;
– the electromagnetic phenomena tests of 19.11.4.1 to 19.11.4.6 applied to the appliance.

+AMD2:2017 CSV  IEC 2017
In an appliance containing lids or doors that are controlled by one or more interlocks, one of
the interlocks may be released provided that the following conditions are fulfilled:
– the lid or door does not move automatically to an open position when the interlock is
released;and
– the appliance will not restart after the cycle in which the interlock was released.
It shall not be possible to open the lid while the drum is in motion.
If the drum is not cylindrical, the peripheral speed is the mean peripheral speed.
NOTE The rotational kinetic energy is calculated from the following formula:
mv
E =
where
E is the rotational kinetic energy, in J;
m is the mass of the cloth specified in the instructions for use, in kg;
v is the maximum peripheral speed of the drum, in m/s.
If the electronic circuit is programmable, the software shall contain measures to control the
fault/error conditions specified in Table R1 and is evaluated in accordance with the relevant
requirements of Annex R.
20.104 For appliances having a drum with a rotational kinetic energy not exceeding 1 500 J
and
– for a appliances having a single lid, a maximum peripheral speed not exceeding 20 m/s,
– for appliances incorporating two lids, a maximum peripheral speed not exceeding 25 m/s,
moving parts shall not be accessible while the motor is energized or when the drum speed
exceeds 60 r/min.
The braking system shall not be affected by the penetration of water.
Compliance is checked by measurement of the maximum peripheral speed, by calculation of
the rotational kinetic energy and by the following test, which is carried out after repeating the
spillage test of 15.2.
NOTE The rotational kinetic energy is calculated in accordance with the formula in 20.103.
The appliance is supplied at rated voltage and operated empty. For appliances having a
single lid and for appliances incorporating two lids where the second lid does not open
independently of the first lid, the lid or first lid as appropriate is gradually opened and
– with an opening of 4 mm to 10 mm, it shall not be possible to touch parts rotating at a
speed exceeding 60 r/min with the test probe 12 of IEC 61032;
– with an opening greater than 10 mm, but not more than 12 mm, it shall not be possible to
touch parts rotating at a speed exceeding 60 r/min with a test rod 3 mm in diameter and
120 mm long. In addition, the test probe B of IEC 61032 is applied and shall not come
within a distance of 20 mm from the rotating parts;
– with an opening greater than 12 mm, the motor shall be disconnected from the supply and
within 7 s, the drum speed shall not exceed 60 r/min.
For appliances incorporating two lids where the second lid opens independently of the first lid,
the first lid is gradually opened and with an opening greater than 50 mm, the motor shall be
disconnected from the supply and within 2 s the drum speed shall not exceed 20 m/s.

– 14 – IEC 60335-2-4:2008+AMD1:2012
+AMD2:2017 CSV  IEC 2017
The second lid is gradually opened and
– with an opening of 4 mm to 10 mm, it shall not be possible to touch parts rotating at a
speed exceeding 60 r/min with the test probe 12 of IEC 61032;
– with an opening greater than 10 mm, but not more than 12 mm, it shall not be possible to
touch parts rotating at a speed exceeding 60 r/min with a test rod 3 mm in diameter and
120 mm long. In addition, the test probe B of IEC 61032 is applied and shall not come
within a distance of 20 mm from the rotating parts;
– with an opening greater than 12 mm and within 7 s, the drum speed shall not exceed
60 r/min.
NOTE The rotational kinetic energy is measured in accordance with the formula in 20.103.
If compliance relies on the operation of an electronic circuit, the test is repeated under the
following conditions applied separately:
– the fault conditions in a) to g) of 19.11.2 applied one at a time to the electronic circuit;
– the electromagnetic phenomena tests of 19.11.4.2 and 19.11.4.5 applied in turn to the
appliance.
In an appliance containing lids or doors that are controlled by one or more interlocks, one of
the interlocks may be released provided that the following conditions are fulfilled:
– the lid or door does not move automatically to an open position when the interlock is
released; and
– the appliance will not restart after the cycle in which the interlock was released.
If the electronic circuit is programmable, the software shall contain measures to control the
fault/error conditions specified in Table R.1 and is evaluated in accordance with the relevant
requirements of Annex R.
20.105 Protective devices fitted in the upper part of spin extractors having a vertical axis
shall be positioned or protected so that the device is not likely to be damaged by textile
material that may escape from the drum in normal use.
Compliance is checked by inspection.
21 Mechanical strength
This clause of Part 1 is applicable except as follows.
21.101 Lids of appliances shall have adequate mechanical strength.
Compliance is checked by the following test.
A rubber hemisphere having a diameter of 70 mm and a hardness between 40 IRHD and
50 IRHD is fixed to a cylinder having a mass of 20 kg and dropped from a height of 100 mm
onto the centre of the lid.
The test is carried out three times, after which the lid shall not be damaged to the extent that
moving parts become accessible.
21.102 Lids and their hinges shall have adequate resistance to distortion.
Compliance is checked by the following test.
A force of 50 N is applied to the open lid in the most unfavourable direction and position.

+AMD2:2017 CSV  IEC 2017
The test is carried out three times, after which the hinges shall not have worked loose and the
appliance shall not be damaged or deformed to such an extent that compliance with the
appropriate requirements of 20.102 to 20.104 is impaired.
22 Construction
This clause of Part 1 is applicable except as follows.
22.101 Interlocks shall be constructed so that lids or doors are unlikely to be forced open in
normal use.
Compliance is checked by the following test.
The lid or door is opened manually as in normal use, the force applied being measured. The
lid or door is closed and interlocked. An attempt is then made to open the lid or door in the
same way.
It shall not be possible to force open the lid or door with a force less than 10 times the value
originally measured, with a minimum of 50 N.
NOTE The test is not carried out if the interlock is not required for compliance with Clause 20.
23 Internal wiring
This clause of Part 1 is applicable.
24 Components
This clause of Part 1 is applicable except as follows.
24.1.4 Modification:
The number of cycles of operation for timers is increased to 10 000.
Addition:
For lid interlocks, the number of cycles of operation declared for Subclauses 6.10 and 6.11 of
IEC 60730-2-12 shall not be less than 6 000.
25 Supply connection and external flexible cords
This clause of Part 1 is applicable.
26 Terminals for external conductors
This clause of Part 1 is applicable.
27 Provision for earthing
This clause of Part 1 is applicable.

– 16 – IEC 60335-2-4:2008+AMD1:2012
+AMD2:2017 CSV  IEC 2017
28 Screws and connections
This clause of Part 1 is applicable.
29 Clearances, creepage distances and solid insulation
This clause of Part 1 is applicable.
30 Resistance to heat and fire
This clause of Part 1 is applicable except as follows.
30.2.3 Not applicable.
31 Resistance to rusting
This clause of Part 1 is applicable.
32 Radiation, toxicity and similar hazards
This clause of Part 1 is applicable.

+AMD2:2017 CSV  IEC 2017
Annexes
The annexes of Part 1 are applicable except as follows.

Annex C
(normative)
Ageing test on motors
Modification:
The value of p in Table C.1 is 2 000.

Annex R
(normative)
Software evaluation
R.2.2.5 Modification:
For programmable electronic circuits with functions requiring software incorporating
measures to control the fault/error conditions specified in Table R.1 or Table R.2, detection of
a fault/error shall occur before compliance with Clause 19, 20.103 and 20.104 is impaired.
R.2.2.9 Modification:
The software and safety-related hardware under its control shall be initialized and shall
is impaired.
terminate be
...
