Passive RF and microwave devices, intermodulation level measurement - Part 4: Measurement of passive intermodulation in coaxial cables

IEC 62037-4:2012 is part of the IEC 62037 series, and defines test fixtures and procedures recommended for measuring levels of passive intermodulation generated by coaxial cables. Two dynamic test methods and a static test method are defined.

Dispositifs RF et à micro-ondes passifs, mesure du niveau d'intermodulation - Partie 4: Mesure de l'intermodulation passive dans les câbles coaxiaux

La CEI 62037-4:2012 définit les dispositifs et les procédures d'essai recommandés pour mesurer les niveaux d'intermodulation passive générés par les câbles coaxiaux. Deux méthodes d'essais dynamiques et une méthode d'essai statique sont définies. Tous les câbles coaxiaux sont soumis à l'essai statique et à l'essai dynamique d'une boucle de câble fixée. Les câbles classés comme souples ou semi-souples sont en plus soumis à l'essai dynamique avec outil de flexion.

General Information

Status
Published
Publication Date
23-Jul-2012
Current Stage
PPUB - Publication issued
Start Date
24-Jul-2012
Completion Date
24-Jul-2012
Ref Project

Buy Standard

Standard
IEC 62037-4:2012 - Passive RF and microwave devices, intermodulation level measurement - Part 4: Measurement of passive intermodulation in coaxial cables
English and French language
19 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

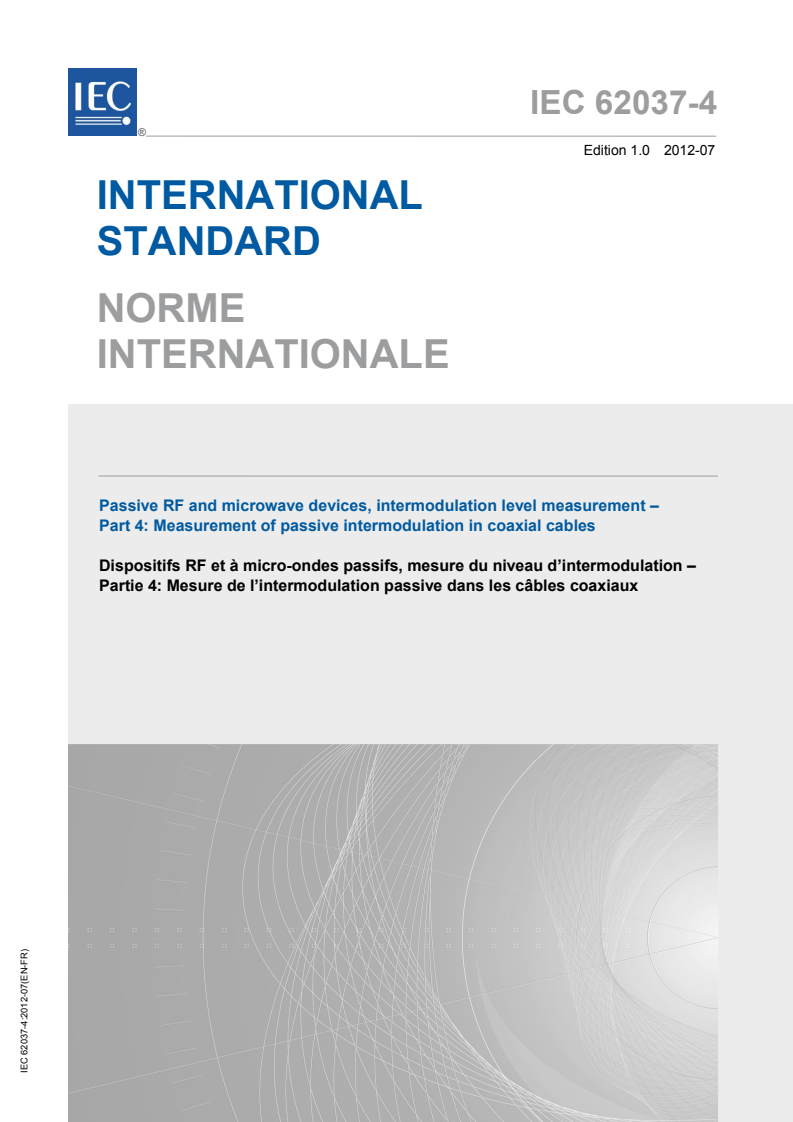

IEC 62037-4
Edition 1.0 2012-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Passive RF and microwave devices, intermodulation level measurement –
Part 4: Measurement of passive intermodulation in coaxial cables
Dispositifs RF et à micro-ondes passifs, mesure du niveau d’intermodulation –
Partie 4: Mesure de l’intermodulation passive dans les câbles coaxiaux
IEC 62037-4:2012-07(EN-FR)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2012 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite

ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie

et les microfilms, sans l'accord écrit de l'IEC ou du Comité national de l'IEC du pays du demandeur. Si vous avez des

questions sur le copyright de l'IEC ou si vous désirez obtenir des droits supplémentaires sur cette publication, utilisez

les coordonnées ci-après ou contactez le Comité national de l'IEC de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing more than 30 000 terms and

Technical Specifications, Technical Reports and other definitions in English and French, with equivalent terms in 14

documents. Available for PC, Mac OS, Android Tablets and additional languages. Also known as the International

iPad. Electrotechnical Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a More than 55 000 electrotechnical terminology entries in

variety of criteria (reference number, text, technical English and French extracted from the Terms and Definitions

committee,…). It also gives information on projects, replaced clause of IEC publications issued since 2002. Some entries

and withdrawn publications. have been collected from earlier publications of IEC TC 37,

77, 86 and CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: csc@iec.ch.
A propos de l'IEC

La Commission Electrotechnique Internationale (IEC) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications IEC

Le contenu technique des publications IEC est constamment revu. Veuillez vous assurer que vous possédez l’édition la

plus récente, un corrigendum ou amendement peut avoir été publié.
Catalogue IEC - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
Application autonome pour consulter tous les renseignements
Le premier dictionnaire en ligne de termes électroniques et
bibliographiques sur les Normes internationales,
électriques. Il contient plus de 30 000 termes et définitions en
Spécifications techniques, Rapports techniques et autres
anglais et en français, ainsi que les termes équivalents dans
documents de l'IEC. Disponible pour PC, Mac OS, tablettes
14 langues additionnelles. Egalement appelé Vocabulaire
Android et iPad.
Electrotechnique International (IEV) en ligne.
Recherche de publications IEC - www.iec.ch/searchpub
Glossaire IEC - std.iec.ch/glossary

La recherche avancée permet de trouver des publications IEC Plus de 55 000 entrées terminologiques électrotechniques, en

en utilisant différents critères (numéro de référence, texte, anglais et en français, extraites des articles Termes et

comité d’études,…). Elle donne aussi des informations sur les Définitions des publications IEC parues depuis 2002. Plus

projets et les publications remplacées ou retirées. certaines entrées antérieures extraites des publications des

CE 37, 77, 86 et CISPR de l'IEC.
IEC Just Published - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications IEC. Just

Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur cette

Disponible en ligne et aussi une fois par mois par email. publication ou si vous avez des questions contactez-nous:

csc@iec.ch.
---------------------- Page: 2 ----------------------

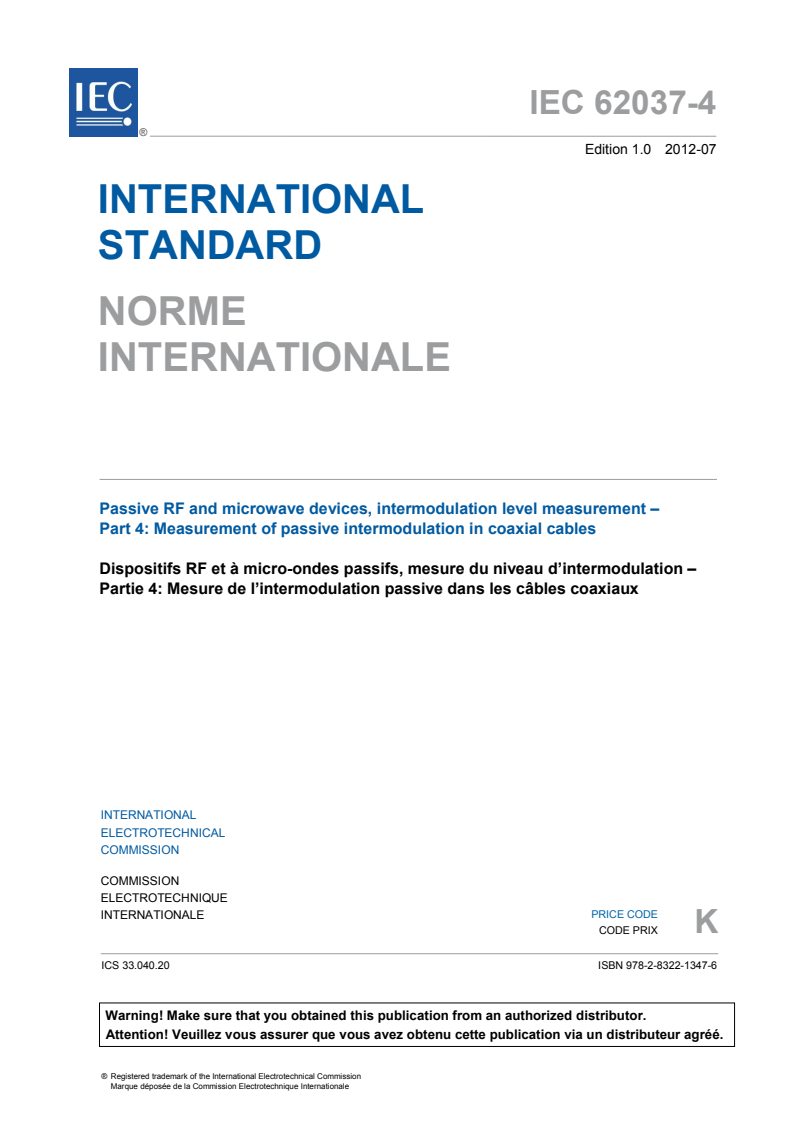

IEC 62037-4
Edition 1.0 2012-07
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Passive RF and microwave devices, intermodulation level measurement –
Part 4: Measurement of passive intermodulation in coaxial cables
Dispositifs RF et à micro-ondes passifs, mesure du niveau d’intermodulation –
Partie 4: Mesure de l’intermodulation passive dans les câbles coaxiaux
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX K
ICS 33.040.20 ISBN 978-2-8322-1347-6

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

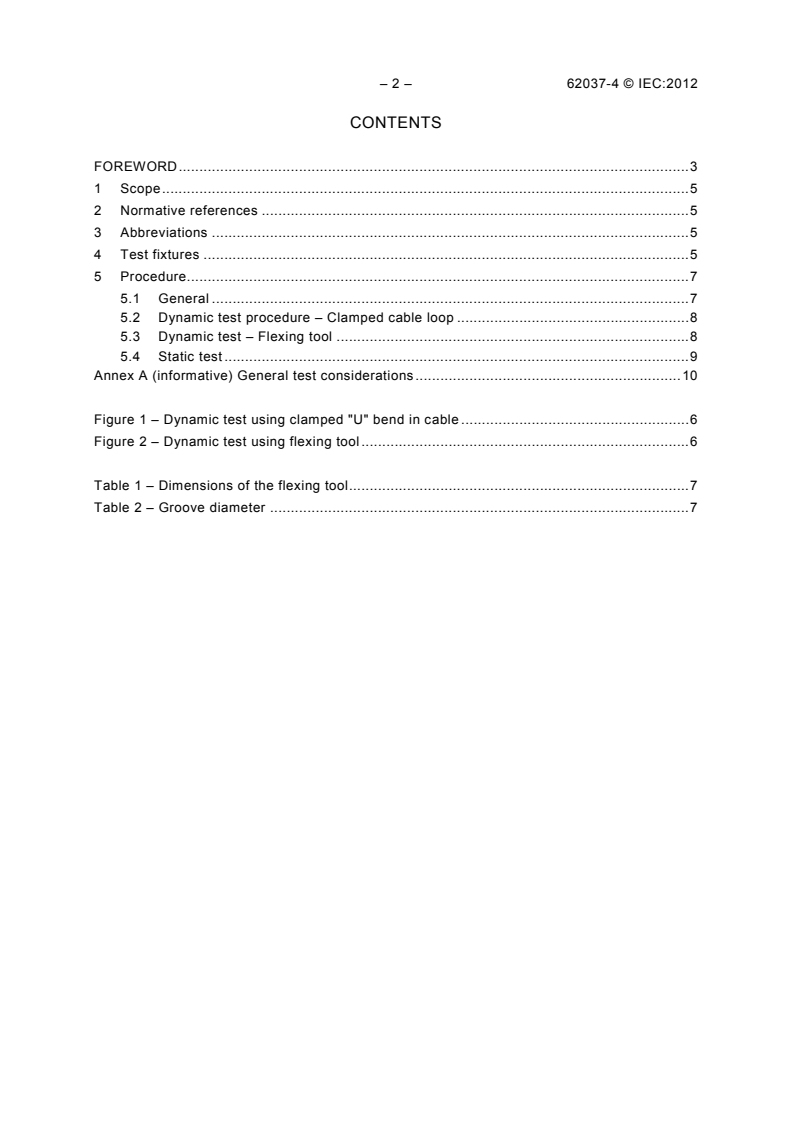

– 2 – 62037-4 © IEC:2012
CONTENTS

FOREWORD ........................................................................................................................... 3

1 Scope ............................................................................................................................... 5

2 Normative references ....................................................................................................... 5

3 Abbreviations ................................................................................................................... 5

4 Test fixtures ..................................................................................................................... 5

5 Procedure......................................................................................................................... 7

5.1 General ................................................................................................................... 7

5.2 Dynamic test procedure – Clamped cable loop ........................................................ 8

5.3 Dynamic test – Flexing tool ..................................................................................... 8

5.4 Static test ................................................................................................................ 9

Annex A (informative) General test considerations ................................................................ 10

Figure 1 – Dynamic test using clamped "U" bend in cable ....................................................... 6

Figure 2 – Dynamic test using flexing tool ............................................................................... 6

Table 1 – Dimensions of the flexing tool .................................................................................. 7

Table 2 – Groove diameter ..................................................................................................... 7

---------------------- Page: 4 ----------------------
62037-4 © IEC:2012 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PASSIVE RF AND MICROWAVE DEVICES,
INTERMODULATION LEVEL MEASUREMENT –
Part 4: Measurement of passive intermodulation in coaxial cables
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62037-4 has been prepared by technical committee 46: Cables,

wires, waveguides, R.F. connectors, R.F. and microwave passive components and
accessories.

This bilingual version (2014-01) corresponds to the monolingual English version, published in

2012-07.
The text of this standard is based on the following documents:
FDIS Report on voting
46/418/FDIS 46/434/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.
The French version of this standard has not been voted upon.
---------------------- Page: 5 ----------------------
– 4 – 62037-4 © IEC:2012

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

A list of all the parts in the IEC 62037 series, published under the general title Passive r.f. and

microwave devices, intermodulation level measurement can be found on the IEC website.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
---------------------- Page: 6 ----------------------
62037-4 © IEC:2012 – 5 –
PASSIVE RF AND MICROWAVE DEVICES,
INTERMODULATION LEVEL MEASUREMENT –
Part 4: Measurement of passive intermodulation in coaxial cables
1 Scope

This part of IEC 62037 defines test fixtures and procedures recommended for measuring

levels of passive intermodulation generated by coaxial cables. Two dynamic test methods and

a static test method are defined.

All coaxial cables are subjected to the static and clamped cable loop dynamic test.

Cables classified as flexible or semi-flexible are additionally subjected to the flexing tool

dynamic test.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and

are indispensable for its application. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any
amendments) applies.

IEC 62037-1, Passive r.f. and microwave devices, intermodulation level measurement –

Part 1: General requirements and measuring methods

IEC 62037-3, Passive r.f. and microwave devices, intermodulation level measurement –

Part 3: Measurement or passive intermodulation in coaxial connectors
3 Abbreviations
DUT Device under test
IM Intermodulation
4 Test fixtures

For the dynamic tests, appropriate test fixtures are required. For the clamped cable loop test

(see 5.2), a method shall be provided for laterally moving the cable and for clamping the cable

each side of the region of movement, as shown schematically in Figure 1. Design of the

clamps shall be such as to firmly support the cable at the required points without causing

damage to the cable by crushing or kinking.

In the moving test using the flexing tool (see 5.3), the cable is flexed by a fixture through

which the cable is threaded as shown in Figure 2. General design for the fixture is shown in

Figure 2, and the detailed dimensions for different cable sizes (and different specified bend

radii) are listed in Table 1 and Table 2.
---------------------- Page: 7 ----------------------
– 6 – 62037-4 © IEC:2012
d3
d1 d1
Clamp Clamp
To test set To load
IEC 1535/12
Figure 1 – Dynamic test using clamped "U" bend in cable
X + D
Test port
DUT
Clamps
IEC 1536/12
R = ½ D
Figure 2 – Dynamic test using flexing tool
---------------------- Page: 8 ----------------------
62037-4 © IEC:2012 – 7 –
D is equal to or greater than the nominal diameter of the cable under test.

Values X, Y and Z depend on minimum bend radius of the cable for repeated bending.

Table 1 – Dimensions of the flexing tool
≥ diameter of the cable
R_min Minimum bend radius of the cable for repeated bending
X See Table 2
2 × R_min
X + 2,5 × cable diameter
Table 2 – Groove diameter
Minimum bending radius of cable under test Groove diameter X
R_min ≤ 33 mm 66
33 mm < R_min ≤ 47 mm
136
47 mm < R_min ≤ 68 mm
68 mm < R_min ≤ 100 mm 200

Other values may be used if agreed upon by the customer and supplier or specified by the

manufacturer.
5 Procedure
5.1 General
The test method of IEC 62037-1 shall be used.

Intermodulation in long cables is measured using the reverse set-up because of the significant

attenuation of these cables. If the cable to be measured is long enough, i.e. with a one-way

insertion loss of 10 dB or greater, it is required only to connectorize the end to be tested.

Use connectors with known low IM performance relative to the DUT. Soldered joints are

preferred. Similarly, if a termination is required, this shall also be of known low IM

performance relative to the DUT. See IEC 62037-3 for additional information.

Perform the required tests for the appropriate cable type as described in 5.2, 5.3 and 5.4.

---------------------- Page: 9 ----------------------
– 8 – 62037-4 © IEC:2012
5.2 Dynamic test procedure – Clamped cable loop
The procedure is as follows:

a) Connect the cable to be tested to the IM test set, and to the low IM termination if used (for

short cables) as shown in Figure 1. Bend the cable into a "U" shape and position clamps

on the limbs of the "U" as shown.

b) Adjust the radius of the "U" bend and the positions of the clamps so that dimensions "R"

are at the minimum bend radius for the cable under test. Then firmly clamp the cable on

both sides of the movement region, so that mechanical stresses resulting from cable

movement are not transmitted to the test set or load connections, possibly creating high

IM conditions.

c) The test described in item b) shall also be conducted on another sample, except done at

the multiple bend radius. Prior to conducting the test, the cable shall be subjected to

multiple bends.

d) Record the level of passive intermodulation generated in the static condition.

e) Apply movement to the cable in each of three directions, d1, d2, d3, as shown in Figure 1.

The movement may be applied by hand, or by suitable mechanical means. If mechanical

means is used, this shall cause no damage to the cable (e.g. by kinking or crushing) at the

point of application or elsewhere.

• The amplitude of movement in each direction for the cable size under test shall be a

minimum of 20 mm.
• The amplitude may be of a higher value if specified.
A minimum of 3 cycles (movement in both directions) per axis shall be performed;
each cycle shall be between 1 s and 5 s duration.

f) Record the maximum level of passive intermodulation generated during movement.

NOTE If using a spectrum analyser, it is helpful to use the “max-hold” function.

g) Finally, record the level of passive intermodulation generated in the static condition after

movement has ceased.
5.3 Dynamic test – Flexing tool
The procedure is as follows:

a) Thread the cable to be tested through the flexing tool, and connect the ends to the IM test

set, and to the low IM termination if used (for short cables) as shown in Figure 2. Fasten

clamps at the ends of the cable length, so that mechanical stresses resulting from cable

movement are not transmitted to the test set or load connections, possibly creating high

IM conditions.
b) Record the level of passive inter
...
