Printed electronics - Part 302-1: Equipment - Inkjet - Imaging based measurement of jetting speed

IEC 62899-302-1:2017(E) specifies the method for determining inkjet drop speed based on visualized droplet images obtained by a drop analysis system. This measurement standardization is limited to drop-on-demand-type of inkjet and is not applicable to continuous inkjet. This document includes the test process, image processing software algorithm, and analysis of jetting behavior.

General Information

Status
Published
Publication Date
09-Aug-2017
Technical Committee
Current Stage
BPUB - Publication being printed
Start Date
21-Jul-2017
Ref Project

Buy Standard

Standard
IEC 62899-302-1:2017 - Printed electronics - Part 302-1: Equipment - Inkjet - Imaging based measurement of jetting speed
English language
18 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

IEC 62899-302-1
Edition 1.0 2017-08
INTERNATIONAL
STANDARD
colour
inside
Printed electronics –
Part 302-1: Equipment – Inkjet – Imaging based measurement of jetting speed
IEC 62899-302-1:2017-08(en)
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2017 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC

copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or

your local IEC member National Committee for further information.
IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org

The stand-alone application for consulting the entire The world's leading online dictionary of electronic and

bibliographical information on IEC International Standards, electrical terms containing 20 000 terms and definitions in

Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional

documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical

iPad. Vocabulary (IEV) online.

IEC publications search - www.iec.ch/searchpub IEC Glossary - std.iec.ch/glossary

The advanced search enables to find IEC publications by a 65 000 electrotechnical terminology entries in English and

variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of

committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been

and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc

details all new publications released. Available online and If you wish to give us your feedback on this publication or

also once a month by email. need further assistance, please contact the Customer Service

Centre: csc@iec.ch.
---------------------- Page: 2 ----------------------
IEC 62899-302-1
Edition 1.0 2017-08
INTERNATIONAL
STANDARD
colour
inside
Printed electronics –
Part 302-1: Equipment – Inkjet – Imaging based measurement of jetting speed
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 19.080; 37.100.10 ISBN 978-2-8322-4683-2

Warning! Make sure that you obtained this publication from an authorized distributor.

® Registered trademark of the International Electrotechnical Commission
---------------------- Page: 3 ----------------------

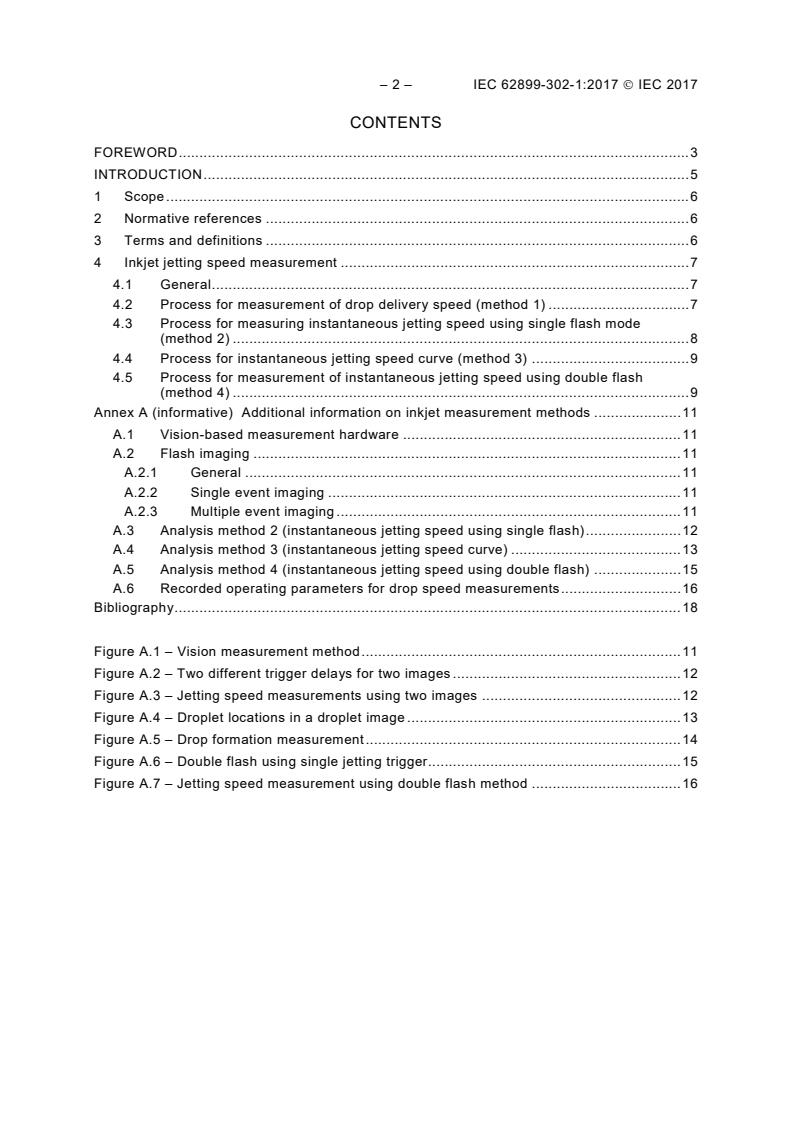

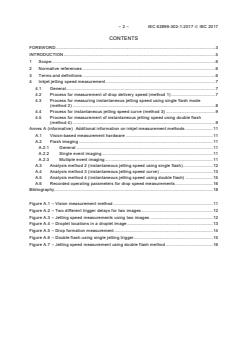

– 2 – IEC 62899-302-1:2017  IEC 2017
CONTENTS

FOREWORD ........................................................................................................................... 3

INTRODUCTION ..................................................................................................................... 5

1 Scope .............................................................................................................................. 6

2 Normative references ...................................................................................................... 6

3 Terms and definitions ...................................................................................................... 6

4 Inkjet jetting speed measurement .................................................................................... 7

4.1 General ................................................................................................................... 7

4.2 Process for measurement of drop delivery speed (method 1) .................................. 7

4.3 Process for measuring instantaneous jetting speed using single flash mode

(method 2) .............................................................................................................. 8

4.4 Process for instantaneous jetting speed curve (method 3) ...................................... 9

4.5 Process for measurement of instantaneous jetting speed using double flash

(method 4) .............................................................................................................. 9

Annex A (informative) Additional information on inkjet measurement methods ..................... 11

A.1 Vision-based measurement hardware ................................................................... 11

A.2 Flash imaging ....................................................................................................... 11

A.2.1 General ......................................................................................................... 11

A.2.2 Single event imaging ..................................................................................... 11

A.2.3 Multiple event imaging ................................................................................... 11

A.3 Analysis method 2 (instantaneous jetting speed using single flash) ....................... 12

A.4 Analysis method 3 (instantaneous jetting speed curve) ......................................... 13

A.5 Analysis method 4 (instantaneous jetting speed using double flash) ..................... 15

A.6 Recorded operating parameters for drop speed measurements ............................. 16

Bibliography .......................................................................................................................... 18

Figure A.1 – Vision measurement method ............................................................................. 11

Figure A.2 – Two different trigger delays for two images ....................................................... 12

Figure A.3 – Jetting speed measurements using two images ................................................ 12

Figure A.4 – Droplet locations in a droplet image .................................................................. 13

Figure A.5 – Drop formation measurement ............................................................................ 14

Figure A.6 – Double flash using single jetting trigger............................................................. 15

Figure A.7 – Jetting speed measurement using double flash method .................................... 16

---------------------- Page: 4 ----------------------
IEC 62899-302-1:2017 © IEC 2017 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
PRINTED ELECTRONICS –
Part 302-1: Equipment – Inkjet – Imaging based
measurement of jetting speed
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 62899-302-1 has been prepared by Technical committee 119:

Printed electronics.
The text of this standard is based on the following documents:
FDIS Report on voting
119/168/FDIS 119/183/RVD

Full information on the voting for the approval of this International Standard can be found in

the report on voting indicated in the above table.

This document has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 5 ----------------------
– 4 – IEC 62899-302-1:2017  IEC 2017

A list of all parts in the IEC 62899 series, published under the general title Printed electronics,

can be found on the IEC website.

The committee has decided that the contents of this document will remain unchanged until the

stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to

the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 6 ----------------------
IEC 62899-302-1:2017 © IEC 2017 – 5 –
INTRODUCTION

Inkjet technology uses micro nozzles to precisely eject droplets. For printing, these droplets

are patterned on a substrate. Inkjet is a mature technology that has been used widely in home,

commercial, and industrial applications. When using inkjet technology, the volume of a droplet

can be controlled down to the tenth of a picoliter (pl). Furthermore, the droplet can be placed

onto the substrate with an accuracy of micrometers (µm). Because of these features and

others, inkjet technology has emerged as one of the most powerful tools for patterning

electronic devices, medical dispensing, high precision industrial applications, and more. Inkjet

patterning for electronics is an additive process wherein the addition of multiple layers of the

pattern does not require the removal of any previously deposited material, unlike the

conventional photolithography process. Inkjet also reduces waste when used in more

traditional printing applications and when it is used for dispensing. As a result, inkjet

technology significantly reduces waste of what are often very expensive materials and is also

more environmentally friendly.

As applications for inkjet broaden, a wider variety of jetting materials should be dispensed

precisely from inkjet heads. For both new and traditional applications, droplet behaviour from

the inkjet head should be measured properly to evaluate and control jetting behaviour. Vision-

based measurement techniques are widely used in inkjet-based manufacturing systems, since

physical insight into jetting behaviour can be obtained from visual images. The droplet jetting

speed and droplet volume are the most frequently measured jetting performance parameters

obtained from droplet images.

Using information obtained from vision-based measurement systems about inkjet droplet

formation and characteristics, developers can adjust ink formulations and jetting parameters,

in order to improve performance.

Note, however, that the measured jet performance and evaluation may vary considerably

according to the measurement method since there is no standard measurement procedure

available. It may be difficult for process engineers to judge the data sheets of jet performance

provided by ink and inkjet head manufacturers since there are no fair test methods, thus

causing potentially untrustworthy results. Therefore, the purpose of this document is to

provide a standard inkjet measurement method.
---------------------- Page: 7 ----------------------
– 6 – IEC 62899-302-1:2017  IEC 2017
PRINTED ELECTRONICS –
Part 302-1: Equipment – Inkjet – Imaging based
measurement of jetting speed
1 Scope

This part of IEC 62899 specifies the method for determining inkjet drop speed based on

visualized droplet images obtained by a drop analysis system. This measurement

standardization is limited to drop-on-demand-type of inkjet and is not applicable to continuous

inkjet. This document includes the test process, image processing software algorithm, and

analysis of jetting behavior.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following

addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
3.1
inkjet printing

type of printing in which a digital image is created by propelling droplets of ink onto a

substrate
3.2
drop analysis system
vision-based equipment that can both image and measure inkjet droplets
3.3
drop speed
distance divided by the time it takes the drop to traverse the distance
3.4
drop delivery speed

total distance between the inkjet print-head nozzle plate and the substrate, divided by the

time interval between jet triggering and drop arrival
3.5
drop trajectory

drop’s direction of travel, often characterised as an angle relative to the nozzle plate

3.6
drop repeatability

droplet jetting behaviour whereby each drop ejected from the nozzle is the same as every

other
---------------------- Page: 8 ----------------------
IEC 62899-302-1:2017 © IEC 2017 – 7 –

Note 1 to entry: Drop repeatability is often visualized by displaying individual drops, one per frame, so the

characteristics of each can be compared and contrasted. It is quantified by measuring the standard deviation of the

drops.
3.7
drop trace

plot of droplet locations from sequential images to understand jetting behaviour including

ligament and satellites
3.8
single event imaging
method of capturing each drop image that represents a single jetting event

Note 1 to entry: Raw images of individual drops are in no way added or averaged to produce the final image.

3.9
multiple event imaging

method of capturing each drop image that represents an average or sum of multiple jetting

events

Note 1 to entry: Raw images of individual drops are added or averaged to produce the final image.

3.10
single flash mode
LED or high power light that is flashed once per jetting event

Note 1 to entry: Single flash mode may be used with single- or multiple-event imaging.

3.11
double flash mode

LED or high power light that is quickly flashed twice per jetting event, thereby capturing the

same individual drop in two different locations within the camera field of view

Note 1 to entry: Double flash mode may be used with single or multiple event imaging.

3.12
sequential image

series of jetting images starting from the jetting trigger signal to the time of interest

Note 1 to entry: Sequential images can be obtained from the drop analysis system by increasing the trigger delay

of the flash with respect to jetting signal.
3.13
jetting speed curve
jetting speed plot with respect to time, which is calculated from the drop trace

Note 1 to entry: The information includes the relative jetting speed of the main droplet with respect to satellites.

4 Inkjet jetting speed measurement
4.1 General

Inkjet jetting speed shall be measured by using one of the following methods, unless there is

a user and supplier agreement. See Annex A for additional information on inkjet measurement

methods.
4.2 Process for measurement of drop delivery speed (method 1)

This process describes the measurement method for drop delivery speed from the time of the

jetting trigger to the time the drop reaches the target location.
---------------------- Page: 9 ----------------------
– 8 – IEC 62899-302-1:2017  IEC 2017

1) Commence printing with the desired specifications (frequency, ink selection, waveform,

etc.). It is recommended to record the jetting conditions, in addition to those described in

Clause A.6.

2) Specify the target stand-off distance S from the nozzle surface, which usually corresponds

to the distance between the nozzle surface and the substrate.
NOTE Stand-off distances between 0,3 mm and 2,5 mm are typical.

3) Determine the time (T) for the leading edge of the droplet to reach the target stand-off

distance by increasing the delay time of the strobe light flash. This process may be

performed automatically, or manually. The duration of the flash should not be greater than

a few hundred nanoseconds to avoid image blur of the droplet. The flash intensity should

be sufficient to allow discrimination between the drop edge and the background, without

saturating the image.
4) The drop delivery speed V can be calculated as:
V= (1)

5) The calibration factor F (µm/pixel) should be determined at the optical magnification used

by the drop analysis system to determine drop delivery speed (m/s) from Formula (1). The

bottom locations of the droplet are used for the droplet location if the droplet has a long

ligament.
4.3 Process for measuring instantaneous jetting speed using single flash mode
(method 2)
This process describes the measurement method
...
