Ships and marine technology -- Servicing of immersion suits, anti-exposure suits and constant wear suits

This document, in conjunction with ISO 18079-1, specifies provisions for servicing stations conducting servicing of immersion suits, anti-exposure suits and constant wear suits, including, but not limited to, those subject to IMO regulations, recommendations and guidelines.

Navires et technologie maritime -- Entretien des combinaisons d'immersion, des vêtements de survie et des combinaisons de port permanent

General Information

Status
Published
Publication Date
11-Jul-2019
Current Stage
6060 - International Standard published
Start Date
18-Jun-2019
Completion Date
12-Jul-2019
Ref Project

Buy Standard

Standard
ISO 19912:2019 - Ships and marine technology -- Servicing of immersion suits, anti-exposure suits and constant wear suits
English language
11 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

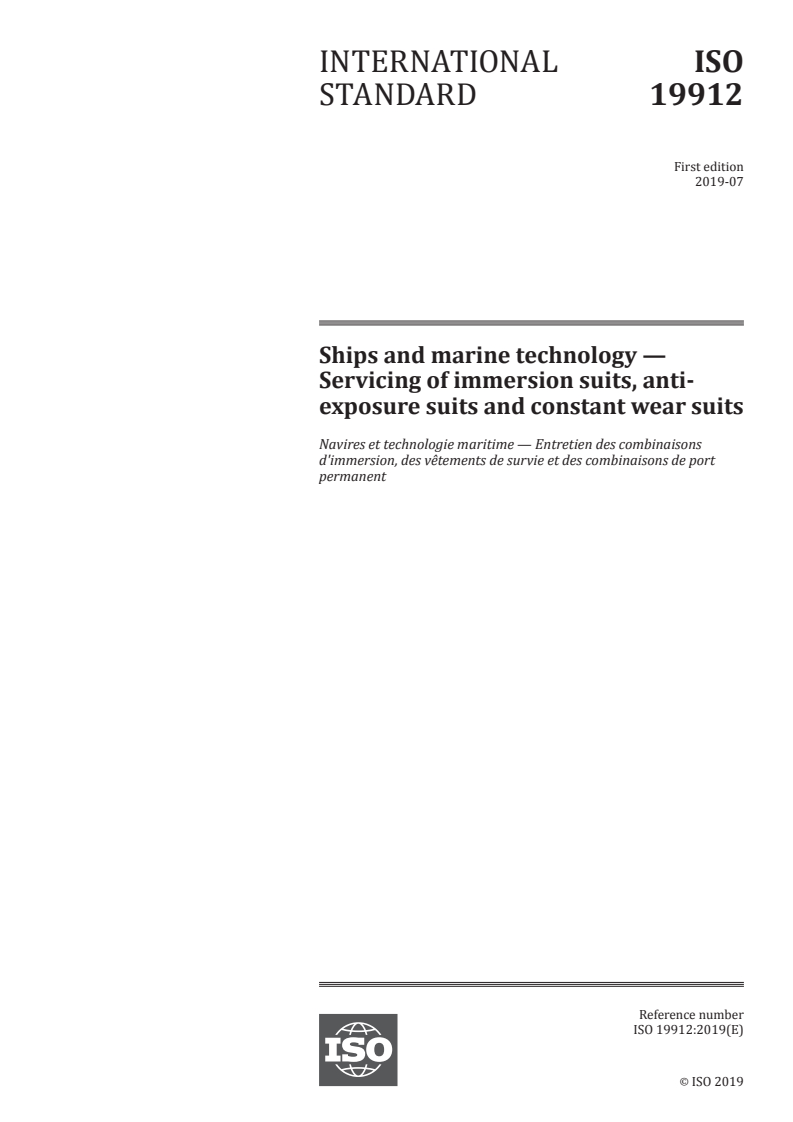

INTERNATIONAL ISO
STANDARD 19912
First edition
2019-07
Ships and marine technology —
Servicing of immersion suits, anti-
exposure suits and constant wear suits
Navires et technologie maritime — Entretien des combinaisons
d'immersion, des vêtements de survie et des combinaisons de port
permanent
Reference number
ISO 19912:2019(E)
ISO 2019
---------------------- Page: 1 ----------------------
ISO 19912:2019(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2019

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 19912:2019(E)

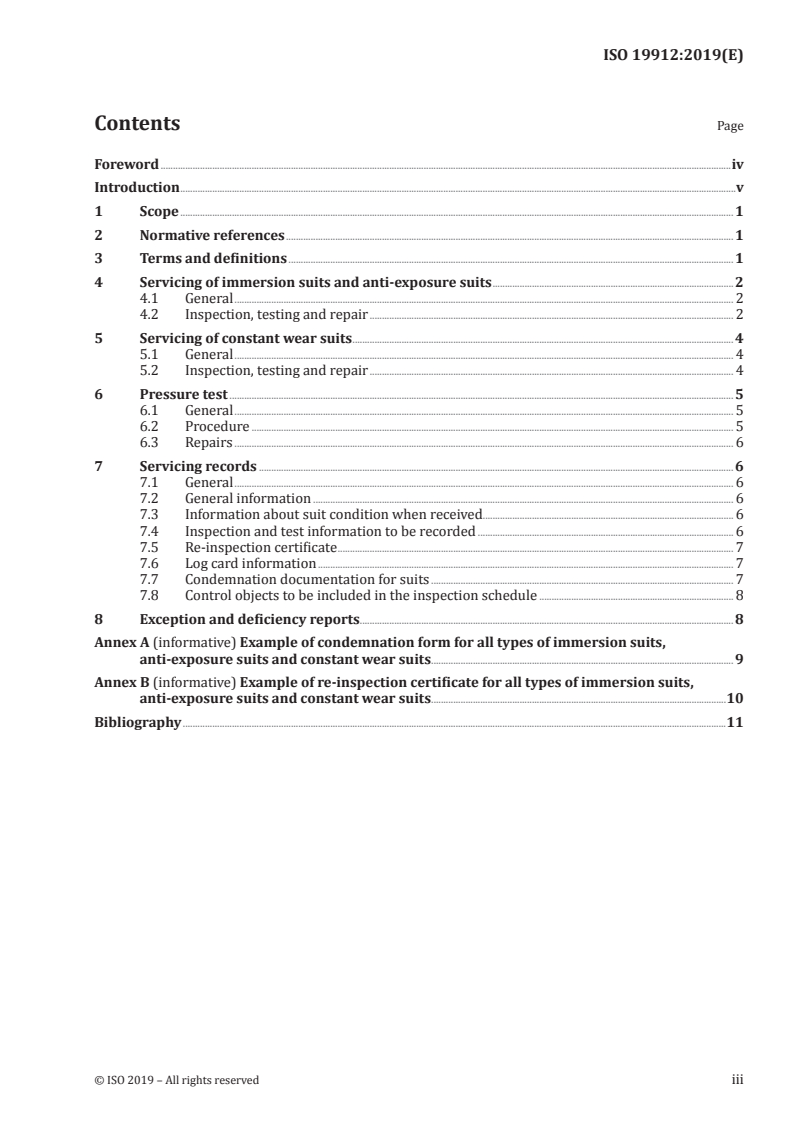

Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Servicing of immersion suits and anti-exposure suits .................................................................................................. 2

4.1 General ........................................................................................................................................................................................................... 2

4.2 Inspection, testing and repair .................................................................................................................................................... 2

5 Servicing of constant wear suits ........................................................................................................................................................... 4

5.1 General ........................................................................................................................................................................................................... 4

5.2 Inspection, testing and repair .................................................................................................................................................... 4

6 Pressure test ............................................................................................................................................................................................................. 5

6.1 General ........................................................................................................................................................................................................... 5

6.2 Procedure .................................................................................................................................................................................................... 5

6.3 Repairs ........................................................................................................................................................................................................... 6

7 Servicing records ................................................................................................................................................................................................. 6

7.1 General ........................................................................................................................................................................................................... 6

7.2 General information ........................................................................................................................................................................... 6

7.3 Information about suit condition when received...................................................................................................... 6

7.4 Inspection and test information to be recorded ........................................................................................................ 6

7.5 Re-inspection certificate ................................................................................................................................................................. 7

7.6 Log card information ......................................................................................................................................................................... 7

7.7 Condemnation documentation for suits ........................................................................................................................... 7

7.8 Control objects to be included in the inspection schedule ............................................................................... 8

8 Exception and deficiency reports........................................................................................................................................................ 8

Annex A (informative) Example of condemnation form for all types of immersion suits,

anti-exposure suits and constant wear suits ........................................................................................................................... 9

Annex B (informative) Example of re-inspection certificate for all types of immersion suits,

anti-exposure suits and constant wear suits ........................................................................................................................10

Bibliography .............................................................................................................................................................................................................................11

© ISO 2019 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 19912:2019(E)

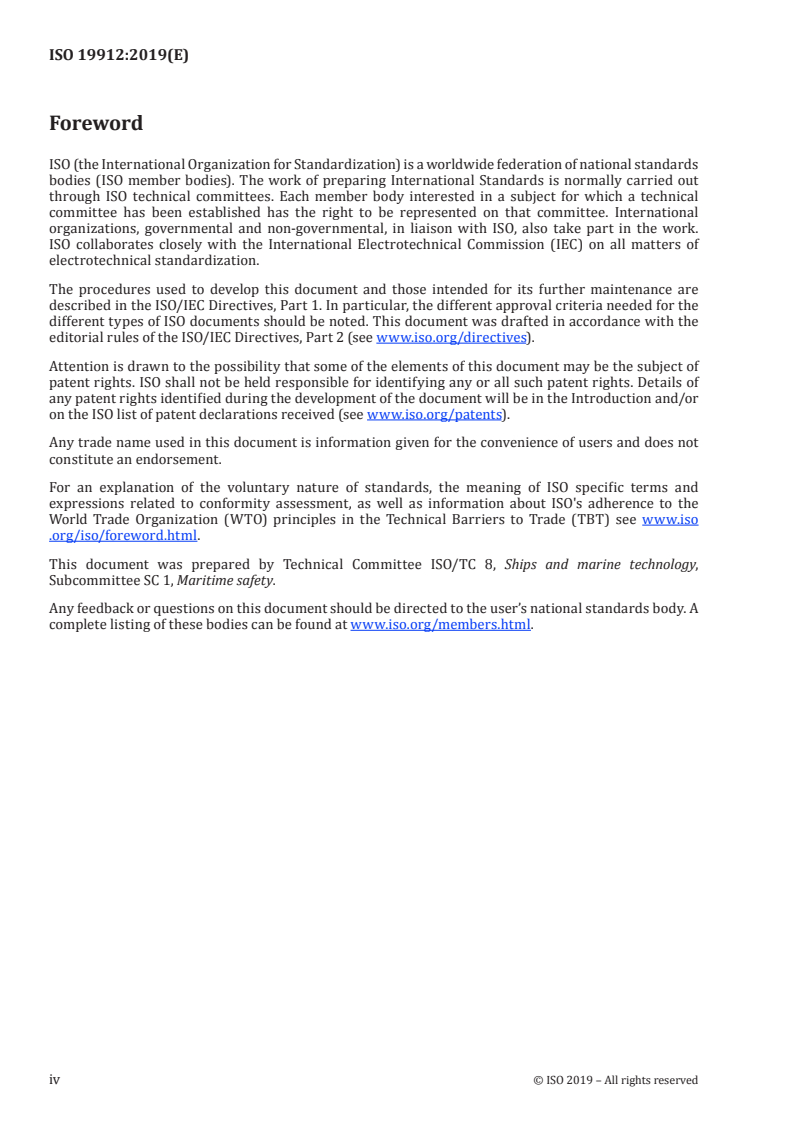

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso

.org/iso/foreword .html.

This document was prepared by Technical Committee ISO/TC 8, Ships and marine technology,

Subcommittee SC 1, Maritime safety.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 19912:2019(E)
Introduction

The IMO International Convention on the Safety of Life at Sea of 1974 (SOLAS 74) sets requirements

for the monthly inspection and periodic inspection of life-saving appliances, including immersion

suits, anti-exposure suits and constant wear suits. The IMO has circulated guidelines which are not

sufficiently detailed as to provide uniform application by crews on board ships and for authorisation of

servicing stations.

This document addresses the servicing of immersion suits, anti-exposure suits and constant wear suits.

It is intended for use as a companion to the IMO recommendations. It is also intended to encompass all

other relevant personal protective suits not covered by SOLAS regulations.
© ISO 2019 – All rights reserved v
---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 19912:2019(E)
Ships and marine technology — Servicing of immersion
suits, anti-exposure suits and constant wear suits
1 Scope

This document, in conjunction with ISO 18079-1, specifies provisions for servicing stations conducting

servicing of immersion suits, anti-exposure suits and constant wear suits, including, but not limited to,

those subject to IMO regulations, recommendations and guidelines.
2 Normative references

The following referenced documents are referred to in the text in such a way that some or all of their

content constitutes requirements of this document. For undated references, the latest edition of the

referenced document (including any amendments) applies.

ISO 18079-1, Ships and marine technology — Servicing of inflatable life-saving appliances — Part 1: General

ISO 18079-3, Ships and marine technology — Servicing of inflatable life-saving appliances — Part 3:

Inflatable lifejackets
3 Terms and definitions

For the purposes of this document, the terms and definitions given in ISO 18079-1 and the following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
3.1
immersion suit

protective suit including head, hand and feet protection which reduces the body heat loss of a person

wearing it in cold water
3.2
anti-exposure suit

protective suit designed for use by rescue boat crews and marine evacuation system parties, with head

and hand protection, but the feet need not be covered, and a minimum buoyancy of 70 N

3.3
constant wear suit

protective suit designed to be routinely worn for activities on or near water in anticipation of accidental

immersion in water, but permitting physical activity to such an extent that actions can be undertaken

without undue encumbrance and thus, head, hands and feet need not be covered
3.4
dry suit

protective suit designed to protect the user against the effect of cold water immersion by precluding

the entry of water upon immersion
3.5
wet suit

protective suit designed to protect the user against the effect of cold water immersion by providing

insulation and permitting the entry and exit of water upon immersion
© ISO 2019 – All rights reserved 1
---------------------- Page: 6 ----------------------
ISO 19912:2019(E)
3.6
helicopter transit suit
constant wear suit (3.3) worn by helicopter occupants
3.7
passenger suit
suit worn by passengers being transported over water
3.8
rescue suit

suit worn by professional users designated to perform search and rescue operations

3.9
flood response suit

suit worn by professional users designated to carry out flood response operations

3.10
floatation suit

suit incorporating inherent buoyant materials (3.12) for the purpose of floatation of the wearer in water

3.11
authorized repair station
authorized servicing station

station authorized by the suit manufacturer to perform repairs or servicing and acceptable to the

Administration
3.12
inherent buoyant material

material that provides buoyancy, forming a permanent or separate part of the suit, with a density less

than that of water
3.13
retro-reflective tape
material that reflects light beams back to their point of origin
3.14
buddy line

length of cord which can be tied or otherwise fixed to another person, or to that person’s personal

flotation device or other objects, so as to keep a user in the vicinity of that person or object with a view

to making location and thus rescue easier
4 Servicing of immersion suits and anti-exposure suits
4.1 General

Immersion and anti-exposure suits encompass dry suits and wet suits intended for planned immersion

or emergency abandonment that are not normally used as constant wear.

Periodic servicing and repair of immersion and anti-exposure suits shall be carried out in accordance

with the requirements of ISO 18079-1 and the appropriate manufacturer's servicing manual and

instructions. The tests and procedures shall include, but not be limited to, those specified in 4.2.

4.2 Inspection, testing and repair

4.2.1 Check closures on storage bag as well as general condition of bag, if provided.

4.2.2 Ensure donning instructions are legible. Confirm that suit is the type and size identified on the

bag, if provided.
2 © ISO 2019 – All rights reserved
---------------------- Page: 7 ----------------------
ISO 19912:2019(E)

4.2.3 Unpack and visually inspect the suit for damage and signs of moisture or dampness. The

suit shall be dry inside and out. All outer materials shall be checked for rips, tears and punctures. All

separable inherent buoyant or insulation materials shall be removed for inspection. All inherent buoyant

or insulation materials, both fixed and separable, shall be checked for rips, tears and undue compression,

stiffening, cracking or deterioration.

Rips, tears or punctures shall be repaired in accordance with the manufacturer's instructions by an

authorized servicing station using proper parts and certified personnel. Deterioration or damage to inner

buoyancy and insulation materials shall be referred to the manufacturer for further checks and advice.

4.2.4 Check the zipper by fully opening and closing to check for ease of operation. Where lubricant

is recommended by the manufacturer, lubricate the zipper acco
...
