ISO 7718-2:2016

Aircraft - Passenger doors interface requirements for connection of passenger boarding bridge or passenger transfer vehicle - Part 2: Upper deck doors

ISO 7718-2:2016 specifies the minimum dimensional and unobstructed space requirements around future civil-passenger transport aircraft upper deck passenger doors when they are intended to be compatible with passenger boarding bridges planned in airports worldwide. This document is not applicable to existing models of civil transport aircraft, or derivative models with entry into service up to year 2000 with the same fuselage, for which the aircraft-mating section of passenger boarding bridges or passenger transfer vehicles is expected to be compatible with ISO 16004. However, it is expected that the design of such aircraft types may be taken into account for design of passenger boarding bridges capable of upper deck servicing, in addition to this document. It is not the intent of this document to restrict in any way the basic design of any future types of civil-passenger transport aircraft. It aims, however, at clarifying for aircraft design engineers the design characteristics which would make it difficult or impossible for a new type of aircraft to adequately connect with airport passenger boarding bridges. Should basic aircraft design requirements impose on a future model certain dimensional characteristics not complying with this document, note that: - either alternative methods of embarking/disembarking passengers will need to be implemented, such as using the internal aircraft stairs, etc.; - or upper deck passenger boarding bridges in the airports where such a new type of aircraft is to operate will require some degree of modification/reworking; - or additional interface devices/equipment will be required in order to connect such a new type of aircraft with existing upper deck passenger boarding bridges. Each case results in increased aircraft-handling constraints and operating cost.

Aéronefs — Exigences d'interface des portes passagers pour accouplement d'une passerelle passagers ou de véhicules de transfert de passagers — Partie 2: Portes de pont supérieur

General Information

• Status: Published
• Publication Date: 11-Dec-2016
• ICS: 49.100 - Ground service and maintenance equipment
• Technical Committee: ISO/TC 20/SC 9 - Air cargo and ground equipment
• Drafting Committee: ISO/TC 20/SC 9 - Air cargo and ground equipment
• Current Stage: 9599 - Withdrawal of International Standard
• Start Date: 06-Feb-2025
• Completion Date: 13-Dec-2025

Relations

• Revised: ISO 7718-2:2025 - Aircraft - Passenger doors interface requirements for connection of passenger boarding bridge or passenger transfer vehicle - Part 2: Upper deck doors
• Effective Date: 10-Jun-2023
• Revises: ISO 7718-2:2009 - Aircraft - Passenger doors interface requirements for connection of passenger boarding bridge - Part 2: Upper deck doors
• Effective Date: 28-May-2016

Overview

ISO 7718-2:2016 specifies minimum dimensional and unobstructed-space requirements around upper-deck passenger doors of future civil transport aircraft intended to interface with passenger boarding bridges (PBBs) or passenger transfer vehicles. It clarifies the door and fuselage characteristics that support safe, economical connection with airport boarding bridges while avoiding restrictions on aircraft basic design. The standard applies to future aircraft designs and is not intended for existing models or derivatives (entry into service up to year 2000), which are expected to follow ISO 16004.

Key topics and requirements

• Unobstructed interface zone: The standard defines a hatched area around the upper-deck door opening (see Figure 1) that shall be kept free of external features such as aerials, drains, pitot heads, static ports, sensors, probes, aerodynamic strakes, access panels, etc.
• Allowable protrusions: Small protrusions to divert rainwater are allowed only if they are not part of the aircraft’s structural or aerodynamic integrity and do not interfere with PBB canopy deployment.
• Minimum fuselage radius: The cross‑section radius of the fuselage in the interface area should not be less than 1.6 m (63 in).
• Door sill height: The passenger door sill height above ground during normal airport servicing should not exceed 8.4 m (330 in).
• Interface dimensions (Figure 1 examples): The standard provides example bridge‑opening and clearance dimensions (for reference in aircraft and PBB design), for example:
  • a (max) = 2 100 mm (82.7 in)
  • b (max) = 2 850 mm (112.2 in)
  • c (min) = 4 800 mm (189.0 in)
  • d (min) = 300 mm (11.8 in)
  • e (note) = 2 700 mm (106.3 in)
• Main-deck compatibility: Where a single boarding bridge serves both main and upper deck doors, ISO 7718-1 and ISO 16004 requirements must be considered alongside ISO 7718-2.

Practical applications and users

• Aircraft design engineers: Use ISO 7718-2 during preliminary and detail design to ensure upper-deck door geometry facilitates PBB connection and minimizes retrofit or operational penalties.
• Airport planners and ground‑handling organizations: Reference the standard when specifying or upgrading passenger boarding bridges and passenger transfer vehicles to ensure compatibility with future aircraft.
• Manufacturers of boarding bridges and interface equipment: Apply the dimensional and clearance criteria to design PBB cabins, canopies and interface adapters that safely connect to upper-deck doors.
• Airline operations and ground handlers: Understand implications for turnaround procedures, ramp compatibility and potential need for alternative embarkation methods or specialized interface devices.

Related standards

• ISO 7718-1 - Part 1: Main deck doors (main‑deck boarding interface)
• ISO 16004 - Passenger boarding bridge / transfer vehicle interface requirements (legacy compatibility)

ISO 7718-2 helps reduce aircraft-handling constraints and operating costs by promoting standardized upper-deck door geometries and unobstructed interface zones for worldwide passenger boarding bridge compatibility.

Standards Content (Sample)

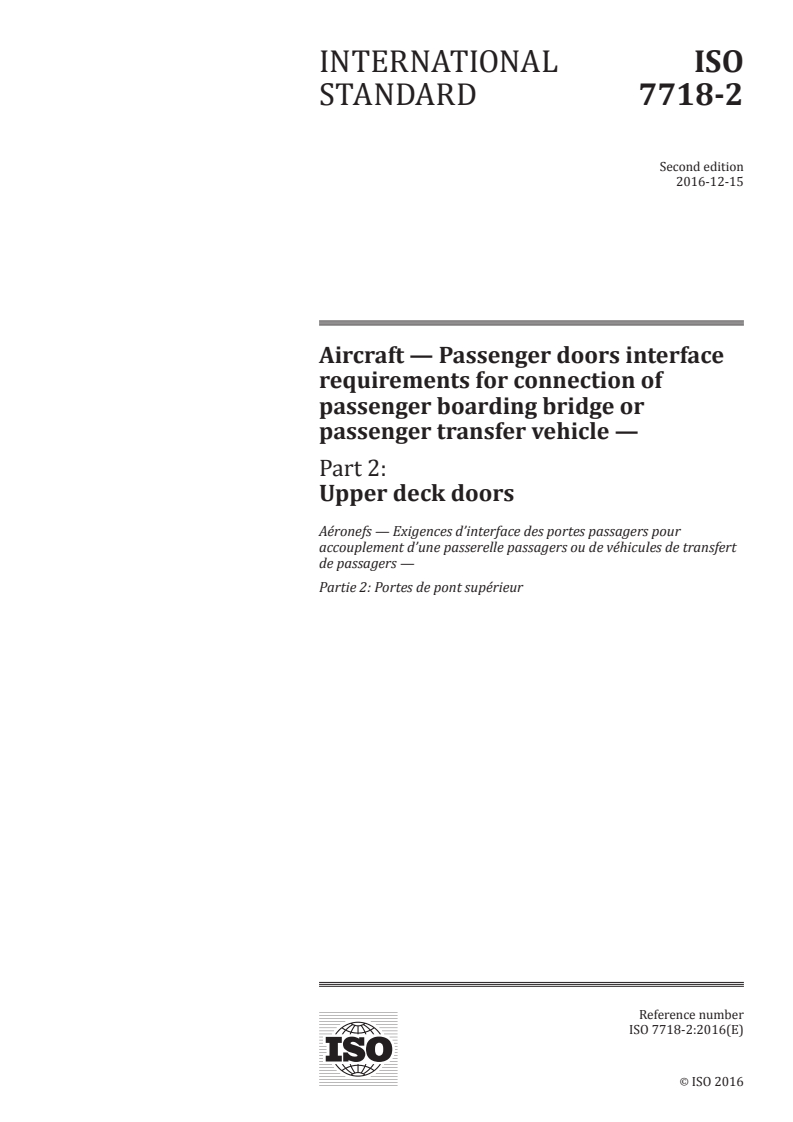

INTERNATIONAL ISO
STANDARD 7718-2
Second edition
2016-12-15
Aircraft — Passenger doors interface
requirements for connection of
passenger boarding bridge or
passenger transfer vehicle —
Part 2:
Upper deck doors
Aéronefs — Exigences d’interface des portes passagers pour
accouplement d’une passerelle passagers ou de véhicules de transfert
de passagers —
Partie 2: Portes de pont supérieur
Reference number
©
ISO 2016
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2016 – All rights reserved

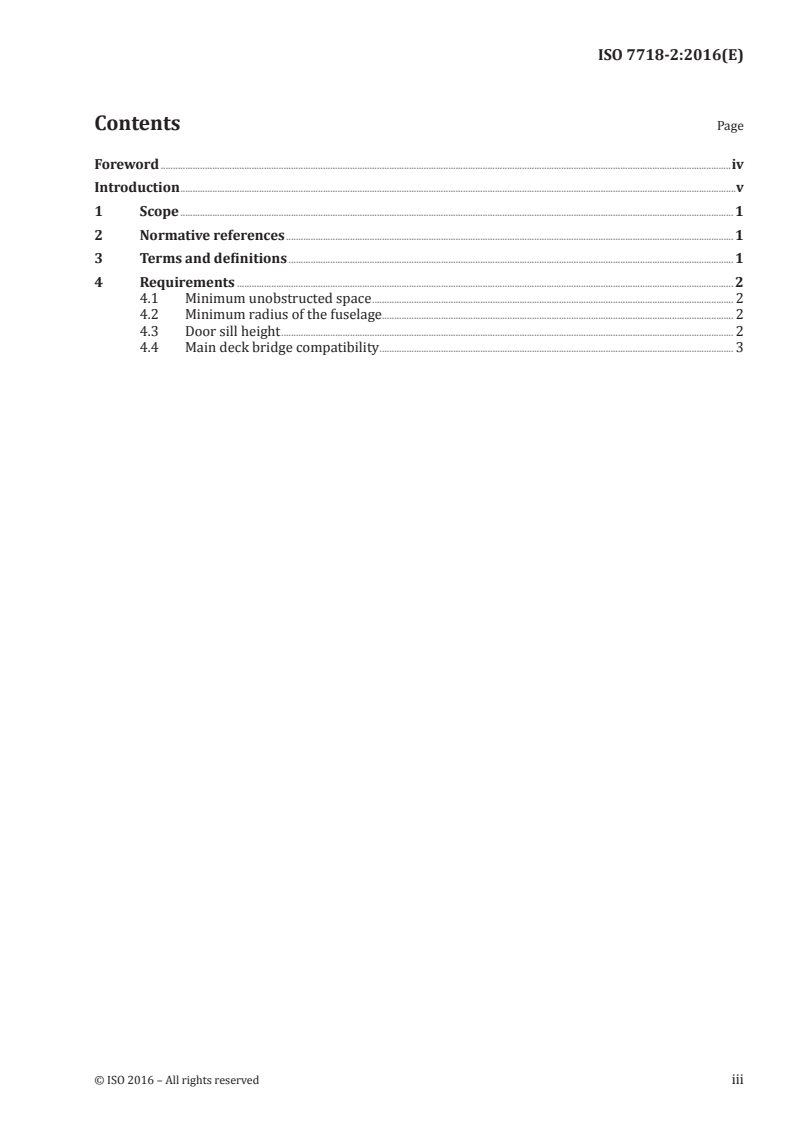

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Requirements . 2
4.1 Minimum unobstructed space . 2
4.2 Minimum radius of the fuselage. 2
4.3 Door sill height . 2
4.4 Main deck bridge compatibility . 3

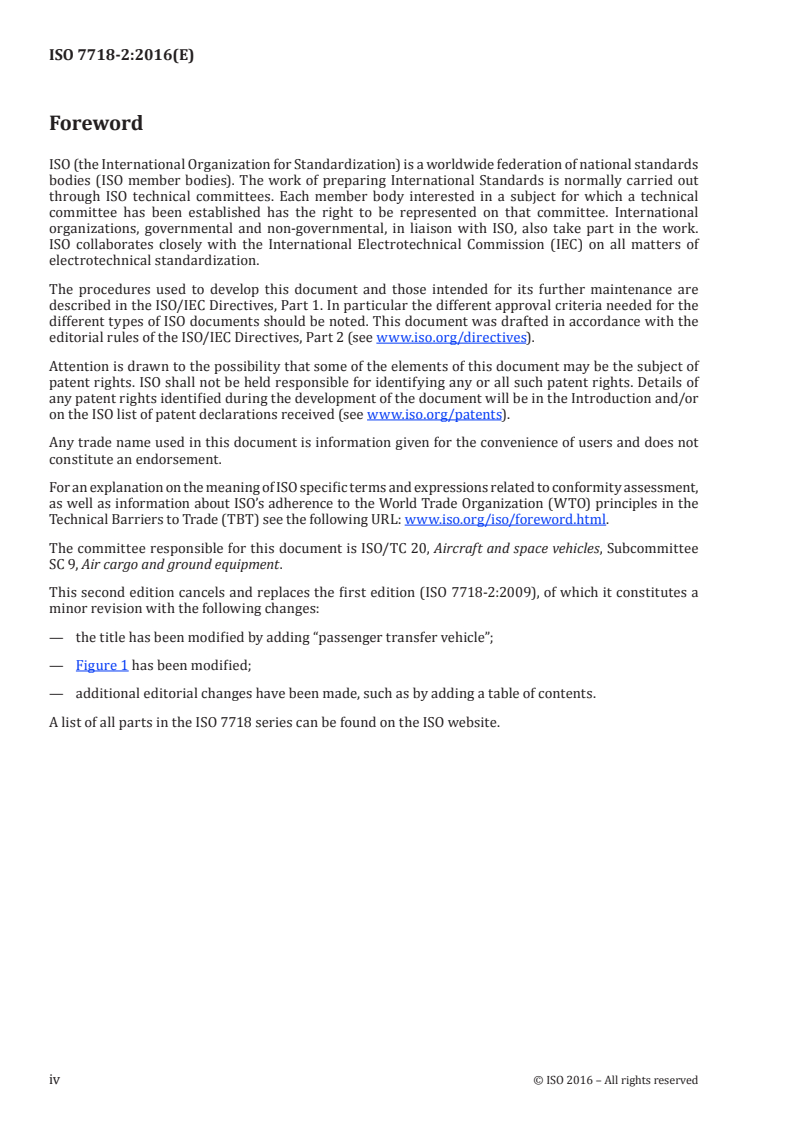

Foreword
