ISO 13061-15:2017

Physical and mechanical properties of wood - Test methods for small clear wood specimens - Part 15: Determination of radial and tangential swelling

ISO 13061-15:2017 specifies a method for the determination of linear swelling in the radial and tangential directions of wood.

Propriétés physiques et mécaniques du bois — Méthodes d'essais sur petites éprouvettes de bois sans défauts — Partie 15: Détermination du gonflement radial et tangentiel

General Information

• Status: Published
• Publication Date: 17-Jul-2017
• ICS: 79.040 - Wood, sawlogs and sawn timber
• Technical Committee: ISO/TC 218 - Timber
• Drafting Committee: ISO/TC 218/WG 4 - Test methods
• Current Stage: 9599 - Withdrawal of International Standard
• Start Date: 05-May-2025
• Completion Date: 13-Dec-2025

Relations

• Revised: ISO 13061-15:2025 - Physical and mechanical properties of wood - Test methods for small clear wood specimens - Part 15: Determination of radial and tangential swelling
• Effective Date: 13-Jan-2024
• Revises: ISO 4859:1982 - Wood - Determination of radial and tangential swelling
• Effective Date: 29-Mar-2014
• Revised: ISO 3130:1975 - Wood - Determination of moisture content for physical and mechanical tests
• Effective Date: 16-Jul-2011

Overview

ISO 13061-15:2017 specifies a standardized laboratory method for measuring linear swelling of wood in the radial and tangential directions using small clear specimens. The standard defines specimen preparation, drying and soaking procedures, measurement accuracy, and the calculation and reporting of radial and tangential swelling expressed as a percentage change from oven-dry dimensions to fully saturated dimensions.

Key topics and technical requirements

• Scope: Determination of linear swelling in radial and tangential directions for small clear wood specimens.
• Specimen size and orientation: Rectangular prisms with at least 20 mm in radial and tangential directions and ≥ 5 mm along the grain; growth-ring inclination to radial faces ≤ 10°.
• Conditioning:
  • Oven‑dry: Dry to constant mass at (103 ± 2) °C, cool in a desiccator, then measure.
  • Fully saturated: Soak in distilled water at (20 ± 2) °C until dimensions stabilize (measure every 3 days).
• Measurement accuracy: Instruments accurate to 0.02 mm; measuring faces 5–8 mm diameter; balance accurate to 0.001 g.
• Acceptance criteria for stability: Change between successive weighings ≤ 0.2% or dimensional change ≤ 0.02 mm for drying; dimensional change ≤ 0.02 mm for saturation.
• Calculation: Linear swelling percentage for each direction:
  • Radial: α_r = (l_r2 − l_r1) / l_r1 × 100%
  • Tangential: α_t = (l_t2 − l_t1) / l_t1 × 100%
    Results expressed to the nearest 0.1%; report mean and standard deviation.
• Reporting: Include reference to ISO 13061-15, sampling per ISO 3129, measurement details, test results, statistics, test date, and testing organization.

Applications and users

ISO 13061-15 is used where accurate quantification of wood dimensional stability is required:

• Wood testing and materials laboratories performing physical and mechanical tests on timber.
• Timber and engineered wood product manufacturers assessing moisture-related dimensional changes for design, quality control, and specification compliance.
• Researchers and material scientists studying hygroscopic behavior, swelling anisotropy (radial vs. tangential), coatings, adhesives, or treatments that affect dimensional stability.
• Standards bodies, certification schemes, and procurement specifications that reference standardized swelling data for construction, furniture, joinery, and wood composites.

Keywords: ISO 13061-15, radial swelling, tangential swelling, wood testing, small clear wood specimens, oven-dry, fibre saturation point, dimensional stability.

Related standards

• ISO 3129 - Sampling and general requirements for small clear wood specimens (referenced for specimen selection).
• ISO 24294 - Timber vocabulary (terms and definitions).
• Other parts of the ISO 13061 series cover complementary physical and mechanical test methods.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 13061-15
First edition
2017-06
Physical and mechanical properties of
wood — Test methods for small clear
wood specimens —
Part 15:
Determination of radial and tangential
swelling
Propriétés physiques et mécaniques du bois — Méthodes d’essais sur
petites éprouvettes de bois sans défauts —
Partie 15: Détermination du gonflement radial et tangentiel
Reference number
©
ISO 2017
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2017 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 1
5 Apparatus . 1
6 Preparation of test pieces . 2
7 Procedure. 2
7.1 Determination of the dimensions of test pieces at absolutely dry (oven-dry) condition . 2
7.2 Determination of the dimensions of test pieces in fully saturated condition . 2
8 Calculation and expression of results . 3
9 Test report . 3

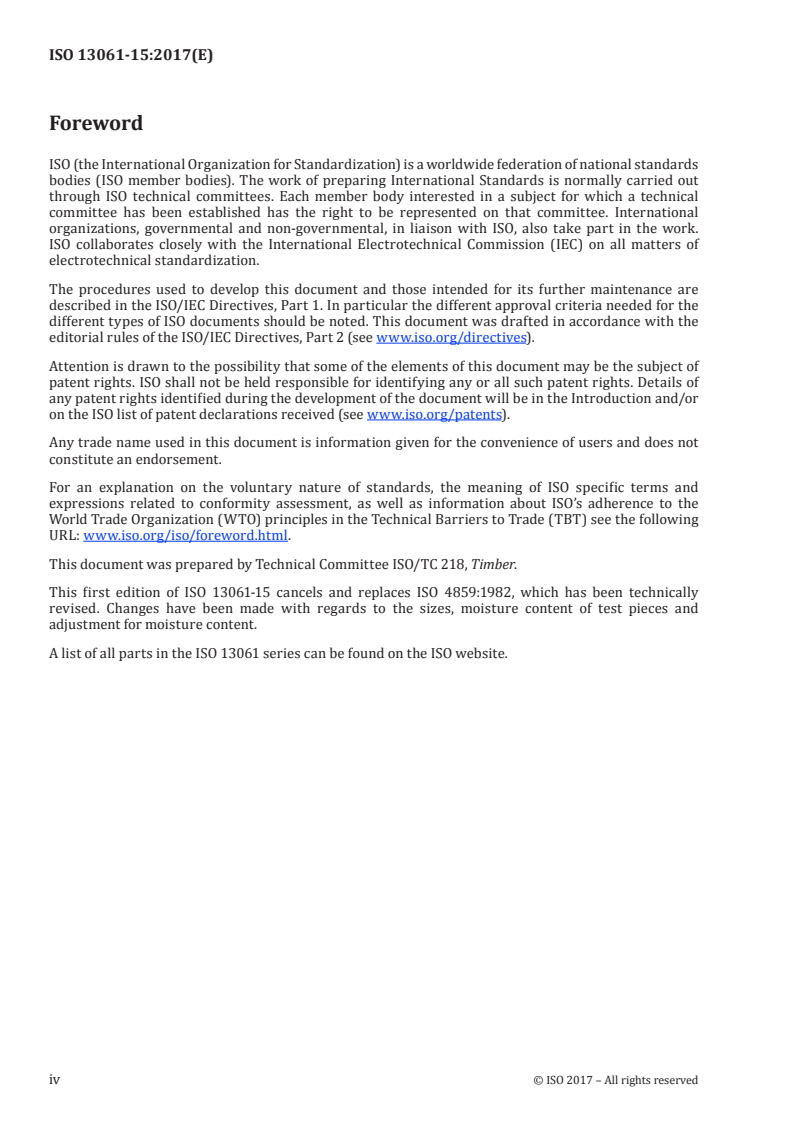

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO’s adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: w w w . i s o .org/ iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 218, Timber.
This first edition of ISO 13061-15 cancels and replaces ISO 4859:1982, which has been technically
revised. Changes have been made with regards to the sizes, moisture content of test pieces and
adjustment for moisture content.
A list of all parts in the ISO 13061 series can be found on the ISO website.
iv © ISO 2017 – All rights reserved

INTERNATIONAL STANDARD ISO 13061-15:2017(E)
Physical and mechanical properties of wood — Test
methods for small clear wood specimens —
Part 15:
Determin
...
