ISO/FDIS 14096-1: Non-destructive Testing – Qualification of Radiographic Film Digitisation Systems – Part 1: Definitions, Quantitative Measurements of Image Quality Parameters, Standard Reference Film, and Qualitative Control specifies standardized procedures for evaluating the performance of radiographic film digitisation systems. Published by the International Organization for Standardization (ISO), this document establishes a framework for assessing key parameters such as spatial resolution, spatial linearity, density range, density contrast sensitivity, and characteristic transfer curve. Using a standard reference film with a series of test targets, these procedures support consistent and reliable quality control across non-destructive testing (NDT) environments.

Key Topics

• Radiographic Film Digitisation Process: Assessment of how analog radiographic films are converted to digital format, ensuring accurate reporting and traceability for industrial inspections.
• Image Quality Parameters: Standardized measurement of critical characteristics, including:
  • Spatial resolution and spatial linearity: Evaluating the system’s ability to distinguish fine details and maintain accurate geometry during digitisation.
  • Density range: Verifying the measurable optical density range (typically from 0.5 to 4.5) for comprehensive film evaluation.
  • Density contrast sensitivity: Confirming the digitiser’s capability to detect fine differences down to 0.02 optical density.
  • Characteristic transfer curve: Establishing the relationship between input film density and digital output, ensuring consistent digital representation.
• Standard Reference Film: Utilization of a film with specific test targets, as defined in Annex B, to verify system accuracy and stability.
  • Suitable for film sizes up to 350 × 430 mm², spatial resolution to 10 µm, and low film noise.
• Quality Control Integration: Procedures designed to be incorporated into digitisation system software for ongoing, automated performance monitoring and long-term system stability checks.

Applications

ISO/FDIS 14096-1 provides high value in several industrial and technical fields by enabling:

• Industrial Radiography Quality Assurance: Ensuring radiographic film digitizers meet stringent performance criteria, contributing to reliable component inspection in sectors like aerospace, automotive, energy, and manufacturing.
• Data Traceability and Archiving: Facilitating the accurate digitization and long-term storage of radiographic test data for auditing, regulatory compliance, and ongoing process improvement.
• Calibration and Maintenance: Offering repeatable procedures for system calibration and preventive maintenance to detect drift or failures in digitisation performance early.
• Interlaboratory Comparability: Enabling different organizations or laboratories to align on image quality standards for global harmonization in non-destructive testing.

The standard is not intended to address signal processing or visual display aspects of digitised images, instead focusing on the initial capture and conversion process.

Related Standards

For full compliance and comprehensive application, users should consult the following related ISO standards:

• ISO 11699-1 – Non-destructive testing - Industrial radiographic film - Part 1: Classification of film systems for industrial radiography
• ISO 14096-2 – Non-destructive testing - Qualification of radiographic film digitisation systems - Part 2: Minimum requirements
• ISO 19232-5 – Non-destructive testing - Image quality of radiographs - Part 5: Determination of the image unsharpness and basic spatial resolution value using duplex wire-type image quality indicators

These documents collectively provide a robust foundation for radiographic digitisation system qualification, operational reliability, and quality control in non-destructive testing.

---

Keywords: ISO 14096-1, non-destructive testing, radiographic film digitisation, image quality, spatial resolution, density range, quality control, standard reference film, NDT, industrial radiography, calibration, measurement procedures, digitizer qualification, spatial linearity, density contrast sensitivity

Standards Content (Sample)

FINAL DRAFT
International
Standard
ISO/TC 135/SC 5
Non-destructive testing —
Secretariat: DIN
Qualification of radiographic film
Voting begins on:
digitisation systems —
2026-05-26
Part 1:
Voting terminates on:
2026-07-21
Definitions, quantitative
measurements of image quality
parameters, standard reference film
and qualitative control
Essais non destructifs — Qualification des systèmes de
numérisation des films radiographiques —
Partie 1: Définitions, mesures quantitatives des paramètres
de qualité de l’image, film de référence normalisé et contrôle
qualitatif
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
ISO/CEN PARALLEL PROCESSING LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
Reference number
FINAL DRAFT
International
Standard
ISO/TC 135/SC 5
Non-destructive testing —
Secretariat: DIN
Qualification of radiographic film
Voting begins on:
digitisation systems —
Part 1:
Voting terminates on:
Definitions, quantitative
measurements of image quality
parameters, standard reference film
and qualitative control
Essais non destructifs — Qualification des systèmes de
numérisation des films radiographiques —
Partie 1: Définitions, mesures quantitatives des paramètres
de qualité de l’image, film de référence normalisé et contrôle
qualitatif
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
© ISO 2026
IN ADDITION TO THEIR EVALUATION AS
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
ISO/CEN PARALLEL PROCESSING
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
or ISO’s member body in the country of the requester.
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland Reference number
ii

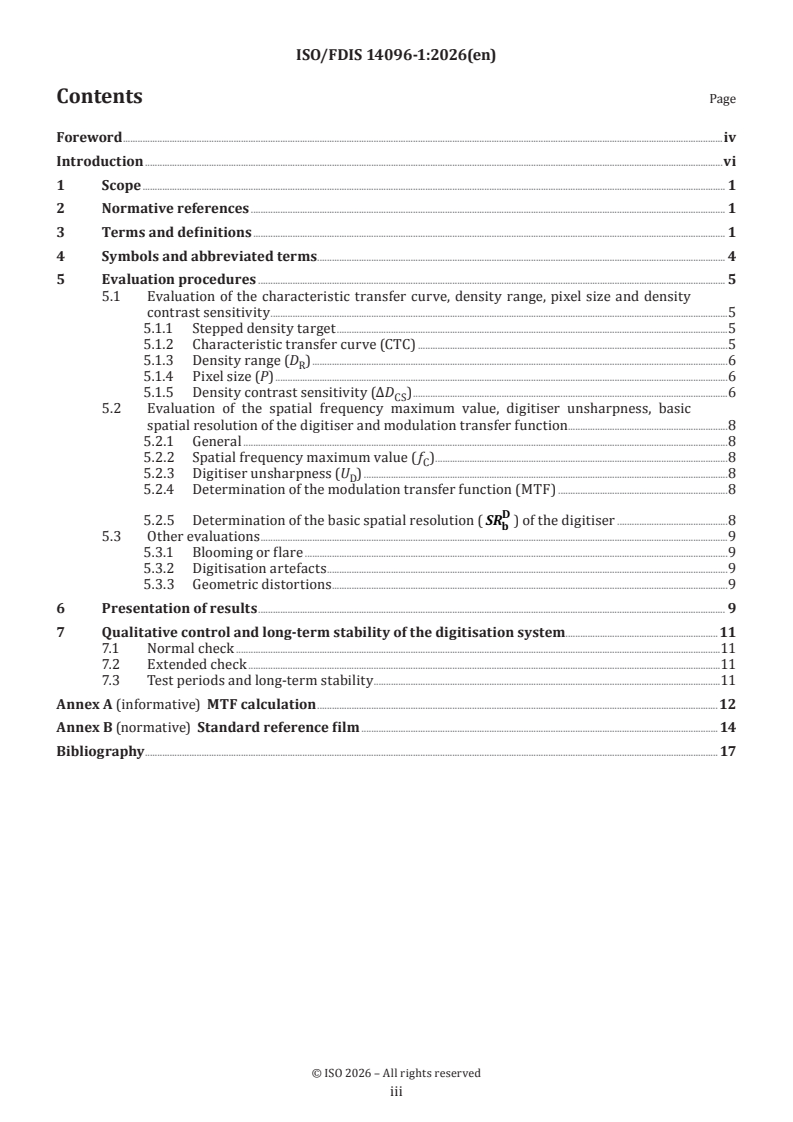

Contents Page
Foreword .iv
Introduction .vi
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms. 4
5 Evaluation procedures . 5
5.1 Evaluation of the characteristic transfer curve, density range, pixel size and density
contrast sensitivity .5
5.1.1 Stepped density target .5
5.1.2 Characteristic transfer curve (CTC) .5
5.1.3 Density range (D ) .6
R
5.1.4 Pixel size (P) .6
5.1.5 Density contrast sensitivity (ΔD ) .6
CS
5.2 Evaluation of the spatial frequency maximum value, digitiser unsharpness, basic
spatial resolution of the digitiser and modulation transfer function .8
5.2.1 General .8
5.2.2 Spatial frequency maximum value ( f ) .8
C
5.2.3 Digitiser unsharpness (U ) .8
D
5.2.4 Determination of the modulation transfer function (MTF) .8
D
5.2.5 Determination of the basic spatial resolution (SR ) of the digitiser .8
b
5.3 Other evaluations .9
5.3.1 Blooming or flare .9
5.3.2 Digitisation artefacts .9
5.3.3 Geometric distortions . .9
6 Presentation of results . 9
7 Qualitative control and long-term stability of the digitisation system.11
7.1 Normal check .11
7.2 Extended check .11
7.3 Test periods and long-term stability .11
Annex A (informative) MTF calculation .12
Annex B (normative) Standard reference film . 14
Bibliography . 17

iii

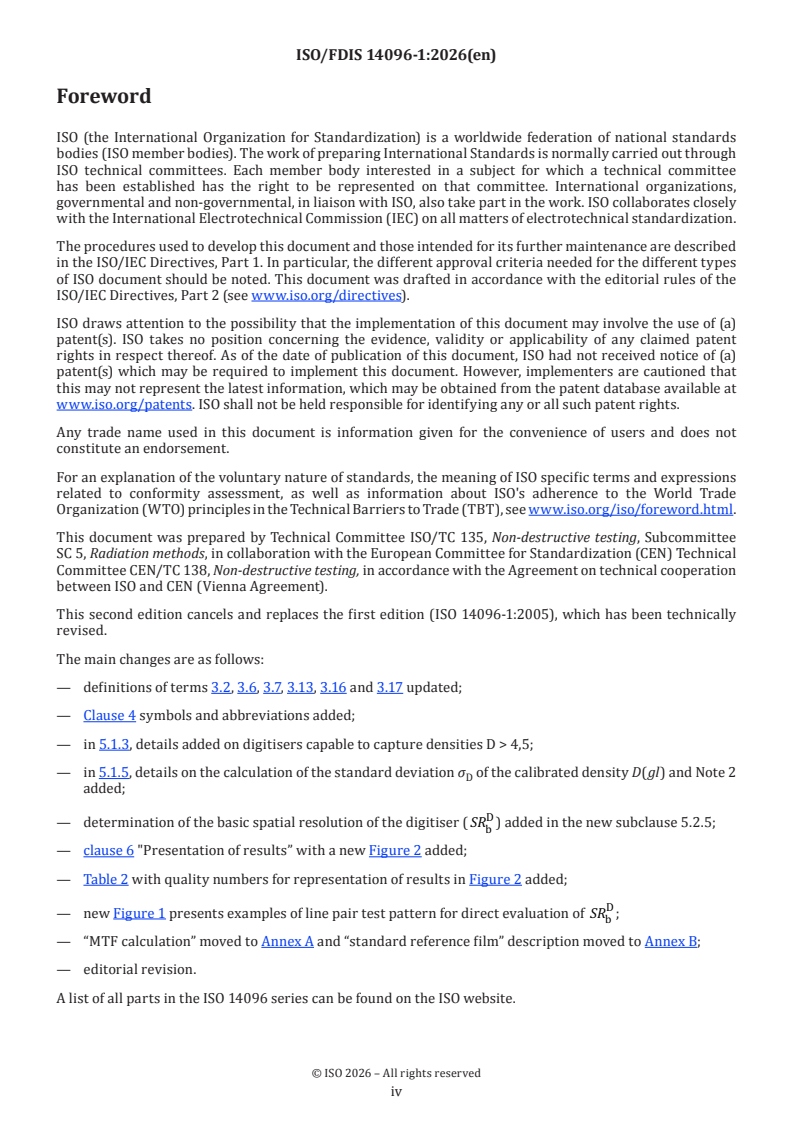

Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 135, Non-destructive testing, Subcommittee
SC 5, Radiation methods, in collaboration with the European Committee for Standardization (CEN) Technical
Committee CEN/TC 138, Non-destructive testing, in accordance with the Agreement on technical cooperation
between ISO and CEN (Vienna Agreement).
This second edition cancels and replaces the first edition (ISO 14096-1:2005), which has been technically
revised.
The main changes are as follows:
— definitions of terms 3.2, 3.6, 3.7, 3.13, 3.16 and 3.17 updated;
— Clause 4 symbols and abbreviations added;
— in 5.1.3, details added on digitisers capable to capture densities D > 4,5;
— in 5.1.5, details on the calculation of the standard deviation σ of the calibrated density D(gl) and Note 2
D
added;
D
— determination of the basic spatial resolution of the digitiser (SR ) added in the new subclause 5.2.5;
b
— clause 6 "Presentation of results” with a new Figure 2 added;
— Table 2 with quality numbers for representation of results in Figure 2 added;
D
— new Figure 1 presents examples of line pair test pattern for direct evaluation of SR ;
b
— “MTF calculation” moved to Annex A and “standard reference film” description moved to Annex B;
— editorial revision.
A list of all parts in the ISO 14096 series can be found on the ISO website.

iv
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

v
Introduction
Radiographic film systems are used for industrial inspection by X- and gamma rays. For computer-supported
analysis, transmission and storage, the information stored in the radiographic film is converted into digital
data (digitisation). This document provides quantitative evaluation procedures which form the basis for
minimum requirements specified in ISO 14096-2.

vi
FINAL DRAFT International Standard ISO/FDIS 14096-1:2026(en)
Non-destructive testing — Qualification of radiographic film
digitisation systems —
Part 1:
Definitions, quantitative measurements of image quality
parameters, standard reference film and qualitative control
1 Scope
This document specifies procedures for the evaluation of basic performance parameters of the radiographic
film digitisation process, such as spatial resolution and spatial linearity, density range, density contrast
sensitivity and characteristic transfer curve, which are applied in ISO 14096-2. These procedures can be
integrated into the system software, and together with a standard reference film (see Annex B), used for
quality control of the digitisation process. This reference film provides a series of test targets for performance
evaluation. The test targets are suitable for evaluating a digitisation system with a basic spatial resolution
down to 10 µm, a density contrast sensitivity down to 0,02 optical density, a density range of 0,5 to 4,5 and a
film size capacity of (350 × 430) mm .
This document does not address signal processing and display of the digitised data.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 11699-1, Non-destructive testing — Industrial radiographic film — Part 1: Classification of film systems for
industrial radiography
ISO 14096-2, Non-destructive testing — Qualification of radiographic film digitisation systems — Part 2:
Minimum requirements
ISO 19232-5, Non-destructive testing — Image quality of radiographs — Part 5: Determination of the image
unsharpness and basic spatial resolution value using duplex wire-type image quality indicators
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
radiographic film digitisation system
digitiser
sequential application of the two functions below:

a) detection of the diffuse transmittance of a small unit area of the film (pixel, picture element) by means
of an optical detector, giving an electric output signal (geometrical digitisation);
b) conversion of the above electrical signal into a numerical value (densitometrical digitisation)
3.2
scanning aperture
S
A
spatial extension (area) on the radiographic film through which the digitiser performs the scanning of one
pixel for geometrical digitisation
Note 1 to entry: The size of the scanning aperture corresponds:
a) in the case of rectangular aperture, to the longer side;
b) in the case of circular aperture, to the diameter.
Note 2 to entry: The scanning aperture limits the basic spatial resolution of the digitiser.
3.3
pixel size
P
geometrical centre-to-centre distance between adjacent pixels in a row (horizontal pitch P ) or column
h
(vertical pitch P ) of the scanned image
v
D
Note 1 to entry: The pixel size is the limiting value of the basic spatial resolution SR of the digitization system.
b
3.4
optical density
D
logarithmic value to the base 10 of the diffuse light intensity ratio in front of (I ) and behind (I ) the
0 D
radiographic film according to Formula (1):
I
D= lg (1)
I
D
3.5
edge response function
ERF
resulting profile across a step function after digitisation into optical density values
3.6
digitiser unsharpness
U
D
blurring of sharp edges by the scanning aperture (3.2), scattered light, flare or electronic bandwidth
Note 1 to entry: The basic spatial resolution SRbD (3.13) of the digitiser in mm is the half of the value of U or the
D
inverse of 2∙f approximately the spatial frequency value at 10 % MTF
M, .
Note 2 to entry: Internal device algorithms for smoothing or interpolation influence U ), thus the use of raw scan is
D
often recommended.
3.7
spatial frequency
f
measure of how often sinusoidal components of the structure repeat per unit of distance
Note 1 to entry: The period of this function is measured in number of line pairs per millimetre (lp/mm).

3.8
spatial frequency maximum value
f
c
value in number of line pairs per millimetre given by the Nyquist sampling theorem, see Formula (2):
fP12/ (2)

c
Note 1 to entry: In practice, the scanning aperture, the mechanics, and the electronics of the digitiser reduce this
theoretical value.
3.9
modulation transfer function
MTF
normalised magnitude of the Fourier-transform (FT) of the differentiated spatial optical density edge
response function (3.5) describing the unsharpness function of the digitiser (contrast transmission as a
function of the object size)
Note 1 to entry: The principle of determining the MTF is visualised in Figure A.1.
Note 2 to entry: This MTF calculation is based on optical densities, which correspond to the X-ray dose.
3.10
density range
D
R
range of maximum and minimum optical densities measurable with the digitiser, where the digitiser
guarantees a minimum density contrast sensitivity (3.14)
Note 1 to entry: Depending on the construction of the digitiser, this density range can be split into several working
ranges (3.15), e.g., by a different illumination power and/or a different detector integration time.
3.11
characteristic transfer curve
CTC
relationship between the optical density of the film and the digitised data
3.12
digital resolution
number of bits provided by the analogue-to-digital converter of the digitiser used for densitometrical
digitisation
N
Note 1 to entry: A digital resolution of N bits corresponds to 2 digital values.
3.13
basic spatial resolution of the digitisation system
D
SR
b
half of the measured digitiser unsharpness (3.6)U measured in a row (horizontal) and in a column (vertical)
D
of the scanned image, which corresponds to the effective pixel size and to the larger of both of the two
measured values
D
Note 1 to entry: For the measurement of SR , a duplex wire IQI according to ISO 19232-5 is exposed directly on the
b
film or a film print with sufficient resolution, can be used (see Figure 1 a and b for examples).
D image
Note 2 to entry: The measurement of SR is described in ISO 19232-5:2018, as iSR measurement, illustrated in
b b
Figure B.1.
Note 3 to entry: See also 3.6, 5.2.4 and 5.2.5 for an alternative measurement using a sharp edge target and the 10 %
value of the Modulation Transfer Function (3.9) of this edge target (MTF ), see Annexes A and B.
10 %,
3.14
density contrast sensitivity
ΔD
CS
minimum density variation of the film, which is resolved by the digitiser
Note 1 to entry: ΔD is mainly determined by the digitisation noise of the digitiser (noise of the light source and
CS
detector), if the film noise can be neglected.
3.15
working range
D
WR
range of optical densities, where the digitiser guarantees a minimum density contrast sensitivity (3.14) in
one single acquisition (3.16)
Note 1 to entry: Only in this density range the digitised data can be used for evaluation. Depending on the digitiser
construction there can be more than one working range, e.g. for brighter or darker films.
3.16
single acquisition
digitisation of one radiographic film performed in one single process
Note 1 to entry: The result of a single acquisition is a collection of data without any further processing. A specified and
unique set of parameters of the digitisation system is used for this acquisition.
3.17
standard reference film
photographic image on an industrial radiographic film containing most of the reference targets described in
this document
3.18
target
physical pattern on a radiograph that is used to evaluate the digitiser
4 Symbols and abbreviated terms
For the purposes of this document, the symbols and abbreviated terms given in Table 1 apply.
Table 1 — Symbols and abbreviated terms
Symbol or abbreviated
Definition
term
CTC characteristic transfer curve of the digitiser
D optical density of film
D constant optical density of an additional film
A
D(gl) calibrated optical density according to the CTC at grey level gl
D(gl ) calibrated optical density according to the CTC at grey level gl
n n
D(gl ) calibrated optical density according to the CTC at grey level gl
m m
range of maximum and minimum optical densities, which can be measured by the digitis-
D
R
er with a guaranteed minimum density contrast sensitivity
ΔD density contrast sensitivity
CS
D working range, optical density range in a single acquisition
WR
ERF edge response function
f spatial frequency
f spatial frequency maximum value
c
f spatial frequency value at 10 % MTF
M
gl digitised data values (grey levels) for an area of (15 × 15) pixels
j,i
TTaabblle 1 e 1 ((ccoonnttiinnueuedd))
Symbol or abbreviated
Definition
term
I diffuse light intensity in front of the radiographic film
I diffuse light intensity behind the radiographic film
D
iSR interpolated basic spatial image resolution, see ISO 19232-5
b
LSF Line spread function
m modulation
MTF modulation transfer function
MTF 10 % magnitude value of the modulation transfer function
10 %
P pixel size
P horizontal pitch
h
P vertical pitch
v
S scanning aperture
A
D
basic spatial resolution of the digitiser
SR
b
standard deviation of optical densities
σ
D
U digitiser unsharpness
D
5 Evaluation procedures
5.1 Evaluation of the characteristic transfer curve, density range, pixel size and density
contrast sensitivity
5.1.1 Stepped density target
For the measurement of the characteristic transfer curve, the density range and the density contrast
s
...
