ISO 5655:2000
(Main)Photography — Industrial radiographic films (roll and sheet) and metal intensifying screens — Dimensions
Photography — Industrial radiographic films (roll and sheet) and metal intensifying screens — Dimensions
This International Standard specifies the preferred and recognized sizes and cutting dimensions of industrial radiographic roll and sheet films and metal intensifying screens. It also specifies package markings. The shaping of the corners of screens is not specified.
Photographie — Films radiographiques industriels (rouleaux et feuilles) et écrans intensificateurs en métal — Dimensions
General Information
Relations
Standards Content (Sample)

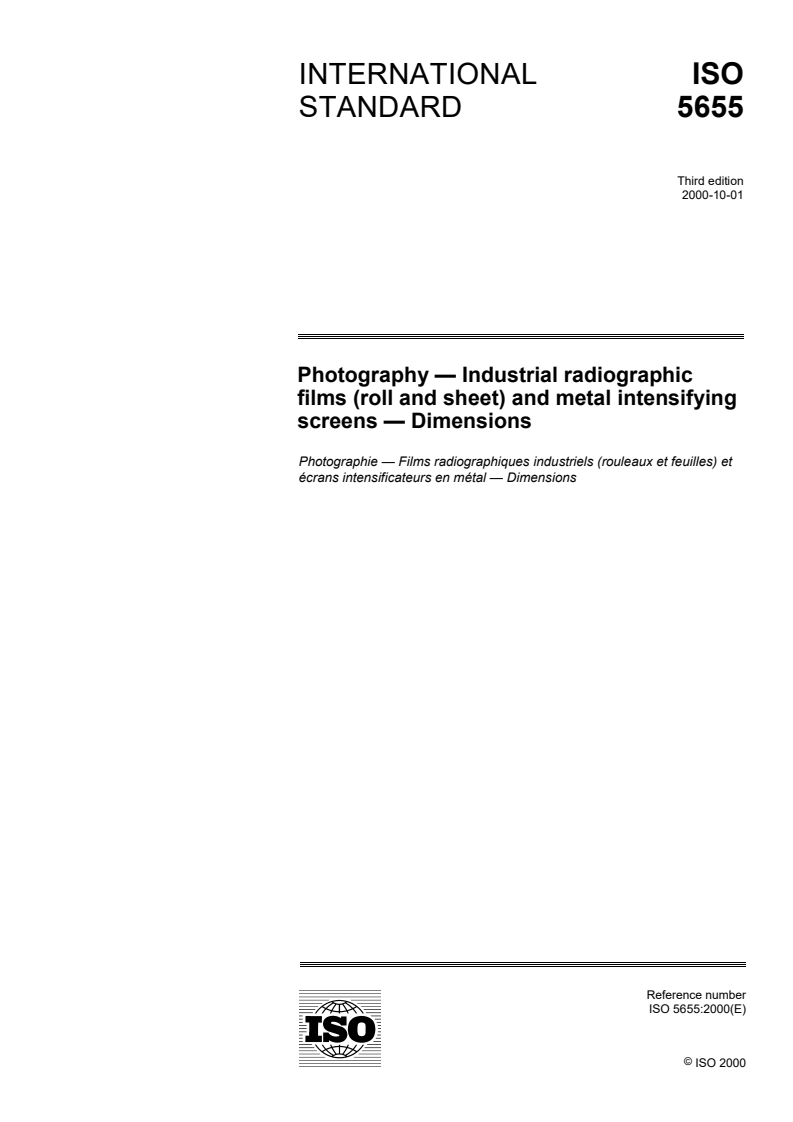

INTERNATIONAL ISO
STANDARD 5655
Third edition
2000-10-01
Photography — Industrial radiographic
films (roll and sheet) and metal intensifying
screens — Dimensions
Photographie — Films radiographiques industriels (rouleaux et feuilles) et
écrans intensificateurs en métal — Dimensions
Reference number
ISO 5655:2000(E)
©
ISO 2000
---------------------- Page: 1 ----------------------
ISO 5655:2000(E)

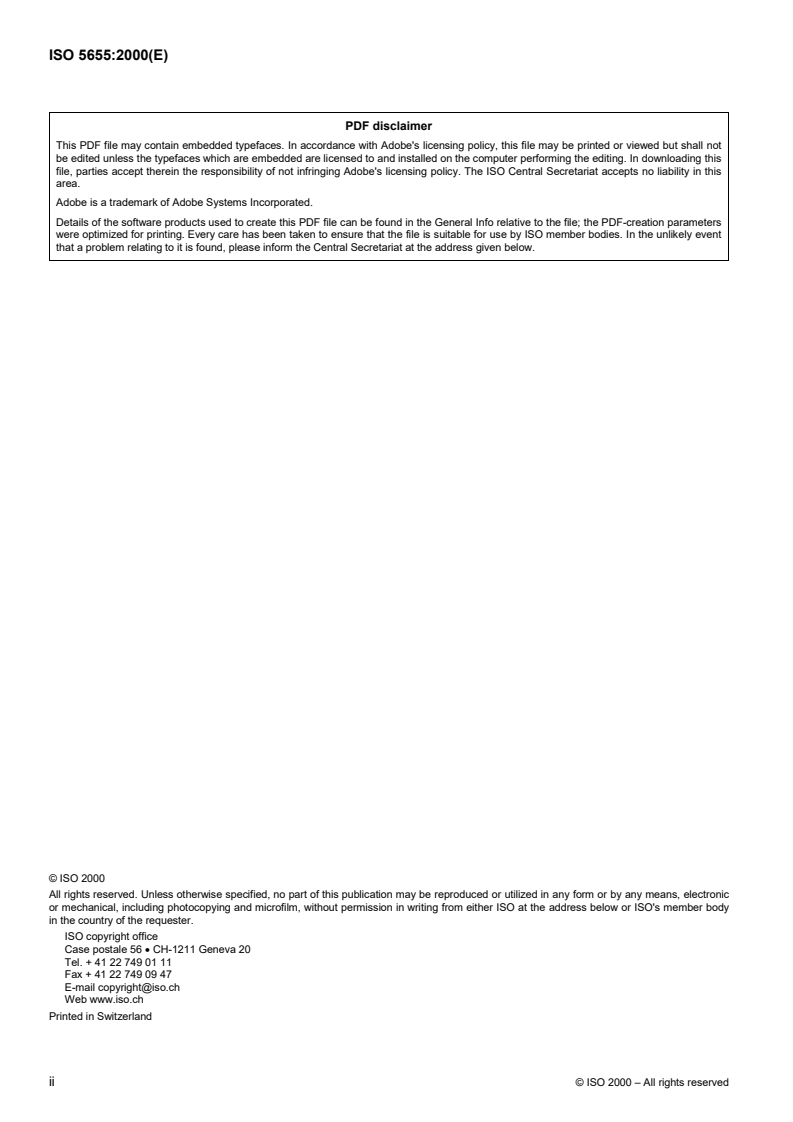

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.
© ISO 2000
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 � CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
ii © ISO 2000 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 5655:2000(E)

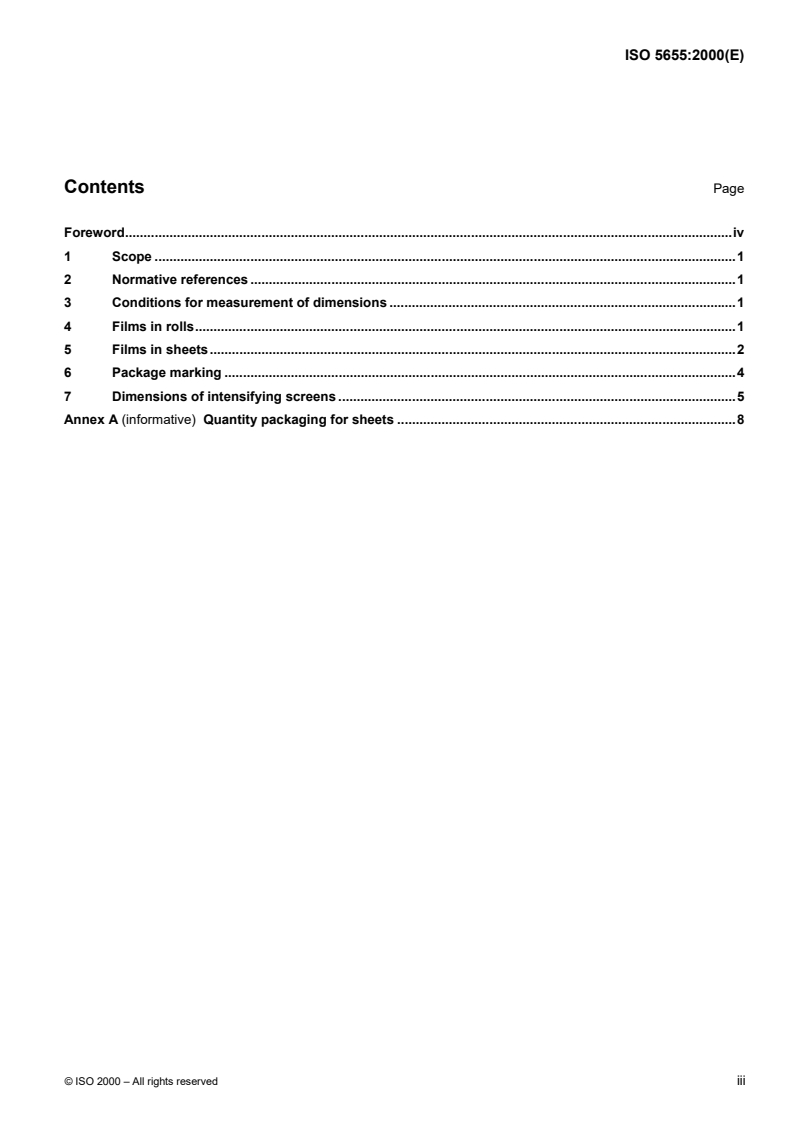

Contents Page
Foreword.iv
1 Scope .1
2 Normative references .1
3 Conditions for measurement of dimensions .1
4 Films in rolls.1
5 Films in sheets.2
6 Package marking .4
7 Dimensions of intensifying screens .5
Annex A (informative) Quantity packaging for sheets .8
© ISO 2000 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO 5655:2000(E)

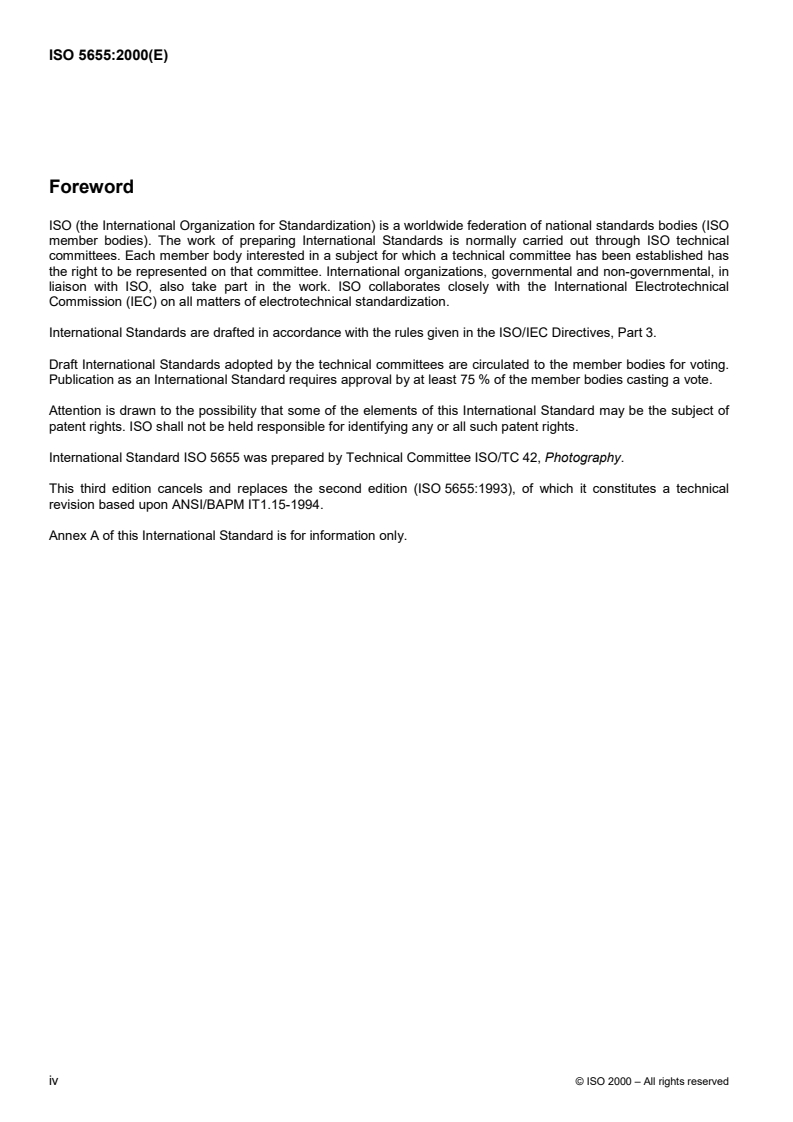

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
International Standard ISO 5655 was prepared by Technical Committee ISO/TC 42, Photography.
This third edition cancels and replaces the second edition (ISO 5655:1993), of which it constitutes a technical
revision based upon ANSI/BAPM IT1.15-1994.
Annex A of this International Standard is for information only.
iv © ISO 2000 – All rights reserved
---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 5655:2000(E)
Photography — Industrial radiographic films (roll and sheet)
and metal intensifying screens — Dimensions
1 Scope
This International Standard specifies the preferred and recognized sizes and cutting dimensions of industrial
radiographic roll and sheet films and metal intensifying screens. It also specifies package markings.
The shaping of the corners of screens is not specified.
2 Normative references
The following normative documents contain provisions which, through reference in this text, constitute provisions of
this International Standard. For dated references, subsequent amendments to, or revisions of, any of these
publications do not apply. However, parties to agreements based on this International Standard are encouraged to
investigate the possibility of applying the most recent editions of the normative documents indicated below. For
undated references, the latest edition of the normative document referred to applies. Members of ISO and IEC
maintain registers of currently valid International Standards.
ISO 1:1975, Standard reference temperature for industrial length measurements.
ISO 554:1976, Standard atmospheres for conditioning and/or testing — Specifications.
3 Conditions for measurement of dimensions
The dimensions and tolerances specified in this International Standard apply at the time of manufacture, measured
under atmospheric conditions of (23� 2) °C and (50� 5) % relative humidity, as specified in ISO 554.
Dimensions may be altered by a permanent shrinkage due to aging and by a temporary shrinkage or swell due to
changes in moisture content or temperature. Normally, dimensionally stable polyester base is used for these film
products, and there should be no departure from the specified dimensions by more than 0,05 % greater than the
maximum dimension and� 0,08 % less than the minimum dimension at the time of opening the package.
All measuring-instrument calibrations shall be conducted at a temperature of 20 °C, as specified in ISO 1, and a
relative humidity of 50 %.
4 Films in rolls
4.1 Width of rolls
4.1.1 Preferred widths
Roll widths of preferred sizes shall conform to the values given in Table 1.
© ISO 2000 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO 5655:2000(E)
4.1.2 General slitting and tolerance rules
For rolls not shown in Table 1, the slitting and tolerance rules shall conform to the values given in Table 2.
Table 1 — Widths of films in rolls — Preferred sizes
Nominal Aim Tolerance
mm mm mm
35 34,5 � 0,5
60 59,5 � 0,5
70 69,5 � 0,5
100 98,5 � 0,5
130 128 � 1,0
180 178 � 1,0
300 298 � 1,0
350 354 � 1,0
400 398 � 1,0
Table 2 — Slitting and tolerance rules for roll widths
Nominal Aim Tolerance
Up to and including 12 cm Nominal minus 1,5 mm
� 0,5 mm
Greater than 12 cm, up to and Nominal minus 2,0 mm � 1,0 mm
a
including 65 cm
Greater than 65 cm Nominal minus 2,5 mm
� 1,5 mm
a
For 35 cm and 43 cm nominal, the aim values are obtained by using the nominal values
of 35,6 cm and 43,2 cm, respectively.
4.2 Length of rolls
For rolls of width up to and including 100 mm nominal, the preferred nominal lengths shall be 90 m, 100 m, 150 m
and 305 m.
...
