ISO 7240-1:2014

Fire detection and alarm systems — Part 1: General and definitions

ISO 7240-1:2014 provides a set of general guidelines and definitions used in describing the fire detection and alarm system (FDAS) equipment installed in and around buildings, and the tests and requirements for these equipments in the other parts of ISO 7240. ISO 7240-1:2014 does not apply to smoke alarms, the requirements for which are specified in ISO 12239.

Systèmes de détection et d'alarme d'incendie — Partie 1: Généralités et définitions

General Information

• Status: Published
• Publication Date: 20-May-2014
• ICS: 13.220.20 - Fire protection
• Technical Committee: ISO/TC 21/SC 3 - Fire detection and alarm systems
• Drafting Committee: ISO/TC 21/SC 3 - Fire detection and alarm systems
• Current Stage: 9092 - International Standard to be revised
• Completion Date: 28-Oct-2022

Relations

• Revises: ISO 7240-1:2005 - Fire detection and alarm systems — Part 1: General and definitions
• Effective Date: 03-Oct-2009

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 7240-1
Third edition
2014-06-01
Fire detection and alarm systems —
Part 1:
General and definitions
Systèmes de détection et d’alarme d’incendie —
Partie 1: Généralités et définitions
Reference number
ISO 7240-1:2014(E)
©
ISO 2014

---------------------- Page: 1 ----------------------
ISO 7240-1:2014(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2014
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2014 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 7240-1:2014(E)

Contents Page
Foreword .iv
Introduction .vi
1 Scope . 1
2 Terms and definitions and abbreviated terms . 1
2.1 Definitions . 1
2.2 Abbreviated terms .15
3 Functions .15
© ISO 2014 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 7240-1:2014(E)

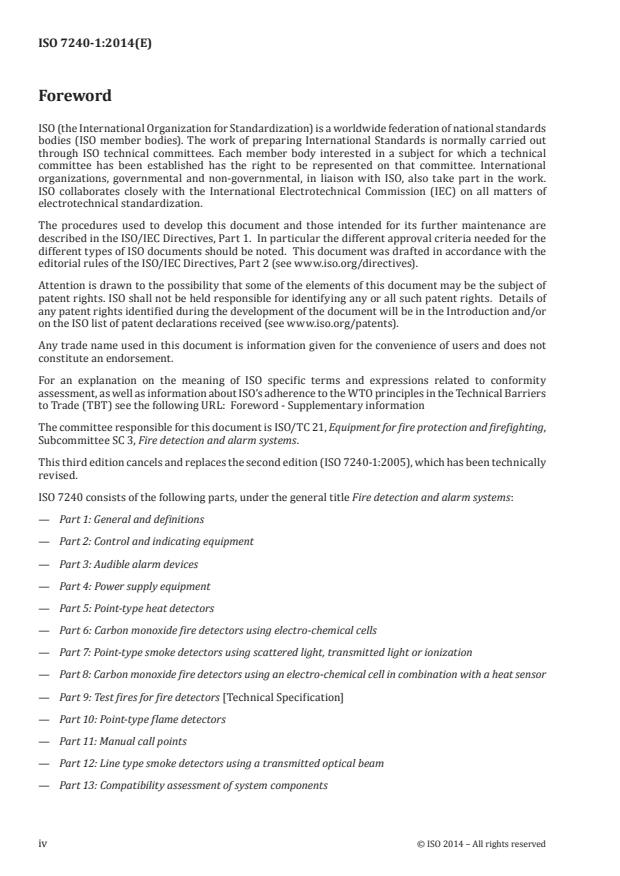

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 21, Equipment for fire protection and firefighting,
Subcommittee SC 3, Fire detection and alarm systems.
This third edition cancels and replaces the second edition (ISO 7240-1:2005), which has been technically
revised.
ISO 7240 consists of the following parts, under the general title Fire detection and alarm systems:
— Part 1: General and definitions
— Part 2: Control and indicating equipment
— Part 3: Audible alarm devices
— Part 4: Power supply equipment
— Part 5: Point-type heat detectors
— Part 6: Carbon monoxide fire detectors using electro-chemical cells
— Part 7: Point-type smoke detectors using scattered light, transmitted light or ionization
— Part 8: Carbon monoxide fire detectors using an electro-chemical cell in combination with a heat sensor
— Part 9: Test fires for fire detectors [Technical Specification]
— Part 10: Point-type flame detectors
— Part 11: Manual call points
— Part 12: Line type smoke detectors using a transmitted optical beam
— Part 13: Compatibility assessment of system components
iv © ISO 2014 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 7240-1:2014(E)

— Part 14: Design, installation, commissioning and service of fire detection and fire alarm systems in and
around buildings
— Part 15: Point type fire detectors using scattered light, transmitted light or ionization sensors in
combination with a heat sensor
— Part 16: Sound system control and indicating equipment
— Part 17: Short-circuit-isolators
— Part 18: Input/output devices
— Part 19: Design, installation, commissioning and service of sound systems for emergency purposes
— Part 20: Aspirating smoke detectors
— Part 21: Routing equipment
— Part 22: Smoke-detection equipment for ducts
— Part 23: Visual alarm devices
— Part 24: Sound system loudspeakers
— Part 25: Components using radio transmission paths
— Part 27: Point-type fire detectors using a scattered-light, transmitted-light or ionization smoke sensor,
an electrochemical-cell carbon-monoxide sensor and a heat sensor
— Part 28: Fire protection control equipment
The following parts are in preparation
— Part 29: Video fire detectors
© ISO 2014 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO 7240-1:2014(E)

Introduction
ISO 7240 (all parts) specifies components of fire detection and alarm systems, requirements for their
interconnection and installation and the performance, testing, and servicing of parts or of complete
systems. It provides
— local and/or remote signals to organizations having authority to respond to fire alarms, and
— signals to initiate the operation of fire protection equipment and other systems.
A fire detection and alarm system may be activated by automatic detection devices or by manual
operation and should fulfil its functions without errors or omissions, including
— detecting quickly enough to fulfil its intended function,
— reliably transmitting the detection signal to the control and indicating equipment and, if applicable,
the fire alarm receiving station,
— translating the detection signal into a clear alarm signal that will attract the attention of occupants
in an immediate and unmistakable way,
— remaining insensitive to phenomena other than those which its function is to detect, and
— signalling immediately and clearly any supervised fault that might jeopardize the correct
performance of the fire detection and alarm system.
A fire detection and alarm system should not
— be adversely affected by any other systems whether associated with it, or not
— be rendered partially or totally inoperative by the fire or the phenomenon which it is designed to
detect before the fire or phenomenon has been detected.
ISO 7240 (all parts) applies to fire detection and alarm systems installed in and around buildings. It can be
used as a basis for the assessment of systems for other purposes, e.g. mines, ships, but the specific nature
of each application should be considered before use. Additional performance and environmental tests
may be necessary. It does not preclude the manufacture or use of systems having special characteristics
suitable for protection of specific risks against specific hazards.
A fire detection and alarm system is required to function satisfactorily not only in the event of fire, but
also during and after exposure to conditions likely to be met in practice such as corrosion, vibration,
direct impact, indirect shock, and electromagnetic interference. Some tests specified are intended to
assess the performance of system components under such conditions.
The performance of components of fire detection and alarm systems is assessed from the results
obtained in the specific tests. The compliance of a component with the relevant part of ISO 7240 does not
necessarily ensure that the component will function correctly when connected with another component
also conforming to the relevant part of ISO 7240 (e.g. a fire detector with fire detection control and
indicating equipment), unless both components have been assessed together as conforming to the
requirements for a fire detection and alarm system. Requirements for the assessment of the compatibility
of system components are specified in ISO 7240-13. Satisfactory operation of an installed system should
be confirmed by testing after completion of the installation (see ISO 7240-14). ISO 7240 (all parts) is not
intended to place any other restrictions on the design and construction of such components.
If appropriate, ISO 7240 (all parts) can be applied to the detection part of extinguishing systems, excluding
sprinkler heads, although the sensitivity requirements might not be applicable in every instance.
As this revision of this part of ISO 7240 includes terms and definitions collated from other parts of
ISO 7240, there may now be some duplication and minor variances which will be corrected in future
revisions of the other parts of ISO 7240.
vi © ISO 2014 – All rights reserved

---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 7240-1:2014(E)
Fire detection and alarm systems —
Part 1:
General and definitions
1 Scope
This part of ISO 7240 provides a set of general guidelines and definitions used in describing the fire
detection and alarm system (FDAS) equipment installed in and around buildings, and the tests and
requirements for these equipments in the other parts of ISO 7240.
ISO 7240 does not apply to smoke alarms, the requirements for which are specified in ISO 12239.
2 Terms and definitions and abbreviated terms
For the purposes of this document, the following terms and definitions and abbreviated terms apply.
2.1 Definitions
2.1.1
A-weighted sound pressure level
twenty times the logarithm to base ten of the ratio of the root-mean-square A-weighted sound pressure
to the reference pressure of 20 μPa at 1 kHz, expressed in decibels
Note 1 to entry: The A-weighting characteristics are given in IEC 61672–1.
2.1.2
absorbance index
cf. m (2.1.83)
2.1.3
access level
one of several states of equipment in which selected
— controls can be operated,
— manual operations can be carried out,
— indications are visible, and/or
— information can be obtained
2.1.4
addressable point
point which can be individually identified at the control and indicating equipment (see Figure 1, items B
and M)
Note 1 to entry: Compare point (2.1.101).
2.1.5
aerosol density
smoke density
amount of particulates per volume as described operationally by one of two parameters:
© ISO 2014 – All rights reserved 1

---------------------- Page: 7 ----------------------
ISO 7240-1:2014(E)

— m (2.1.83), an absorbance index, used in the testing of smoke detectors using scattered or transmitted
light;
— y (2.1.141), a dimensionless variable, used in the testing of smoke detectors using ionization
Note 1 to entry: These parameters are not concentrations sensu stricto, but represent values which are proportional
to the concentration and have been shown to function in lieu of a true concentration value for the purposes of
tests.
2.1.6
alarm
signal, or condition, warning of an emergency
2.1.7
alarm indication
indication (at the indicating equipment, see Figure 1, items B and M) to show that a detection signal has
been received
2.1.8
alert signal
audible signal complying with ISO 7731 or visual signal or a combination of audible and visual signals
that call attention to the possibility of a hazardous or dangerous situation
2.1.9
alphanumeric display
indicator capable of giving information by the display of messages consisting of text and/or numeric
characters
2.1.10
analogue detector
detector which gives an output signal representing the value of the sensed phenomenon
Note 1 to entry: This may be a true analogue signal or a digitally encoded equivalent of the sensed value.
2.1.11
ancillary equipment
equipment which supports fire detection and fire alarm functions not currently defined in ISO 7240
Note 1 to entry: See Figure 1, item N.
2.1.12
ancillary function
action performed by equipment not related to fire detection or fire alarm system
Note 1 to entry: See Figure 1, item O.
2.1.13
aspirating smoke detector
smoke detector, in which air and aerosols are drawn through a sampling device and carried to one or
more smoke-sensing elements by an integral aspirator (e.g. fan or pump)
Note 1 to entry: Each smoke sensing element may contain more than one sensor exposed to the same smoke
sample.
2.1.14
audible alarm device
AAD
component intended to signal an audible warning of fire to the occupants of a building
Note 1 to entry: AADs are sometimes referred to as “fire alarm sounders”.
2 © ISO 2014 – All rights reserved

---------------------- Page: 8 ----------------------
ISO 7240-1:2014(E)

2.1.15
cabinet
housing that affords a degree of protection and robustness to its constituent parts and subassemblies
2.1.16
certification
third party attestation related to products, processes, systems, or persons
[SOURCE: ISO 1700:2004, 5.5]
2.1.17
combination detector
detector combining two or more detecting principles in a single housing
2.1.18
combustion gas detector
fire detector sensitive to gaseous products of combustion and/or thermal decomposition
EXAMPLE Carbon monoxide gas fire detector.
2.1.19
commissioning
process that verifies the installed equipment or system meets the defined requirements
2.1.20
compatibility
ability of a component of a FDAS to operate with another component of the same FDAS
2.1.21
competent person
person who, in relation to the work undertaken, has the necessary knowledge, skill, and experience to
complete the work satisfactorily and without danger or injury to any person
2.1.22
component
device contained in one housing performing at least one or part of a function of a FDAS
EXAMPLE Fire detectors, alarm devices, and control and indicating equipment are components of a FDAS.
Note 1 to entry: Where a function is distributed in separate cabinets, each cabinet is considered as a separate
component.
2.1.23
configuration
arrangement of components of a FDAS specified by number, type, and topology, together with any
necessary limits on the transmission paths
2.1.24
confirmation signal
signal from a fire detector or manual call point which terminates a first alarm state
2.1.25
control and indicating equipment
cf. fire alarm control and indicating equipment (2.1.46) and fire detection control and indicating equipment
(2.1.56)
2.1.26
detachable detector
detector which is designed for removal of the head from its base
© ISO 2014 – All rights reserved 3

---------------------- Page: 9 ----------------------
ISO 7240-1:2014(E)

2.1.27
detection circuit
transmission path which connects points to the FDCIE
Note 1 to entry: See Figure 1, item B.
Note 2 to entry: Compare point (2.1.101) and transmission path (2.1.130).
2.1.28
detection concept
description of the design of the FDAS with a justification of the choice of detectors, its sensitivity and its
spacing; description of the alarm organization, i.e. all measures to be taken in case of an alarm
2.1.29
detection signal
signal from a detection device (see Figure 1, item A) to show that a fire has been detected
2.1.30
detector response
defined change of the status of a fire detector after actuation of an alarm signal
2.1.31
differential detector
detector which initiates an alarm when the difference (normally small) in the magnitudes of the
measured phenomenon at two or more places exceeds a certain value for a specified time
2.1.32
documentation
drawings and instructions necessary to understand and to operate the FDAS
2.1.33
earth fault
unwanted connection between earth potential and any part of the control and indicating equipment (see
Figure 1, items B and M), transmission paths to the control and indicating equipment, or transmission
paths between parts of the control and indicating equipment
2.1.34
emergency
imminent risk or serious threat to persons or property
2.1.35
emergency detection system
application intended for the protection of life, property, or the environment such as
— FDAS,
— gas detection system,
— intrusion and hold-up alarm,
— closed circuit television,
— access control, and
— manual call point
4 © ISO 2014 – All rights reserved

---------------------- Page: 10 ----------------------
ISO 7240-1:2014(E)

2.1.36
emergency management plan
documented procedure that considers all aspects of the management of an emergency to ensure the
safety of building occupants
Note 1 to entry: The emergency management plan is likely to include the evacuation of building occupants, but
under certain circumstances, the retention of occupants in their current locations can be preferable.
2.1.37
evacuation plan
part of the emergency management plan dealing with the safe and orderly evacuation of building
occupants
2.1.38
evacuate signal
audible or visual signal or a combination of audible and visual signals complying with ISO 8201 that
means “evacuate the building immediately”
2.1.39
fault warning routing equipment
equipment which routes a fault warning signal to a fault warning receiving station
Note 1 to entry: See Figure 1, item J.
2.1.40
fault warning receiving station
centre from which the necessary corrective measures can be initiated on receipt of a fault signal
Note 1 to entry: See Figure 1, item K.
2.1.41
field
subdivision of a window
Note 1 to entry: See fault warning receiving station (2.1.40).
2.1.42
final voltage
lowest recommended voltage to which a battery should be discharged
Note 1 to entry: The final voltage is specified by the battery manufacturer.
2.1.43
fire alarm and fault warning transmission system
system used for routing fire alarm and fault warning signals from FDAS to fire alarm and fault warning
receiving stations
2.1.44
fire alarm circuit
DEPRECATED: sound system alarm circuit
transmission path that connects the FACIE to loudspeaker, AAD or VAD
2.1.45
fire alarm condition
DEPRECATED: sound system alarm condition
audible voice or tone signal (recorded or live) operating in one or more emergency zones
2.1.46
fire alarm control and indicating equipment
FACIE
DEPRECATED: sound system control and indicating equipment
component that is used to
© ISO 2014 – All rights reserved 5

---------------------- Page: 11 ----------------------
ISO 7240-1:2014(E)

a) receive alarm signals from an emergency detection system(s),
b) receive audio messages from emergency microphones,
c) determine signal priority and routing,
d) cause audible warning signals to be broadcast to emergency loudspeaker zones,
e) automatically supervise the correct functioning of the system and give audible and visible warning
of specified faults, and
f) provide manual controls and visual status indicators
2.1.47
fire alarm output control
DEPRECATED: sound system output control
manual control used to cause one or more emergency zones to sound an audible signal
2.1.48
fire alarm receiving station
centre, on or remote from the protected premises, from which the necessary fire protection or firefighting
measures can be initiated at any time on receipt of a fire alarm signal
Note 1 to entry: See Figure 1, item F.
2.1.49
fire alarm routing equipment
intermediate
...
