ISO 19214:2017
(Main)Microbeam analysis — Analytical electron microscopy — Method of determination for apparent growth direction of wirelike crystals by transmission electron microscopy
Microbeam analysis — Analytical electron microscopy — Method of determination for apparent growth direction of wirelike crystals by transmission electron microscopy
ISO 19214:2017 prescribes a method for the determination of apparent growth direction by transmission electron microscopy. It is applicable to all kinds of wirelike crystalline materials fabricated by various methods. This document can also guide in ascertaining an axis direction of the second-phase particles with a rod-like or polygonal shape in steels, alloys or other materials. The applicable diameter or width of the crystals to be tested is in the range of tens to hundreds of nanometres, depending on the accelerating voltage of the TEM and the material itself. NOTE In the present document, wirelike crystals, beltlike crystals, needle-shaped second-phase particles, etc. are all subsumed by the broad category of wirelike crystals.
Analyse par microfaisceaux — Microscopie électronique analytique — Méthode de détermination de la direction apparente de croissance des cristaux filiformes par microscopie électronique en transmission
General Information
Relations
Standards Content (Sample)

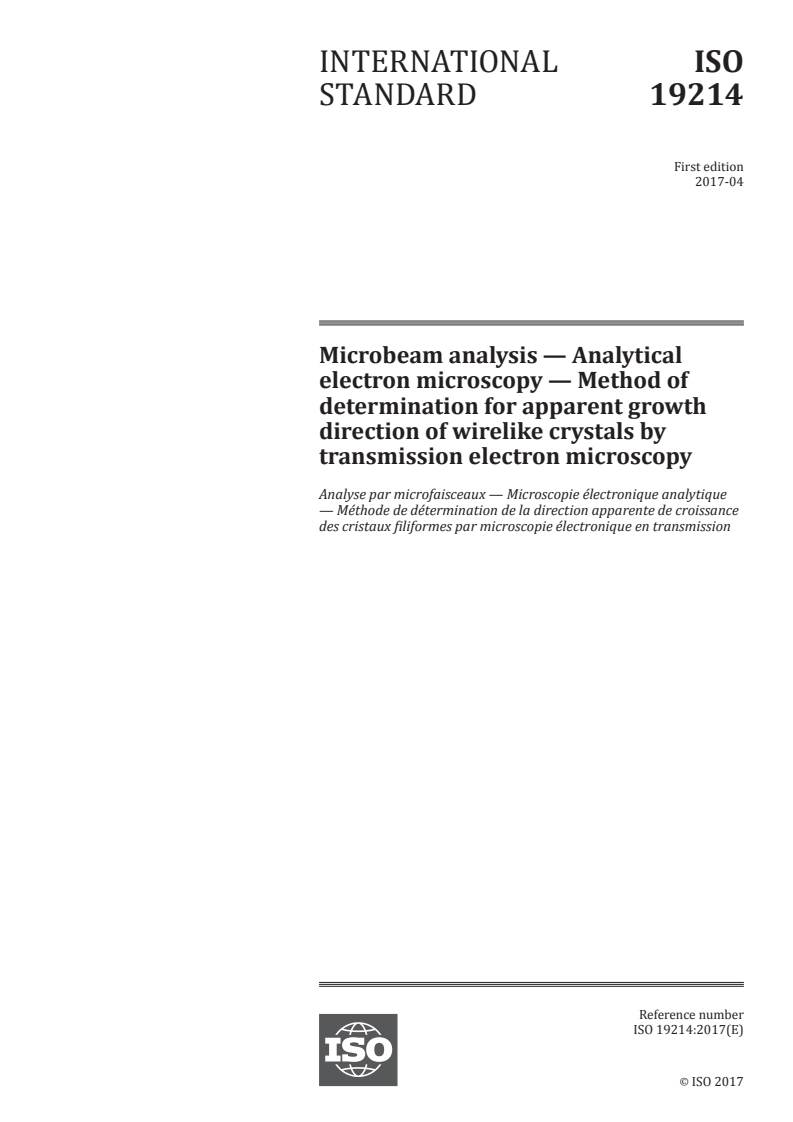

INTERNATIONAL ISO
STANDARD 19214
First edition
2017-04
Microbeam analysis — Analytical
electron microscopy — Method of
determination for apparent growth
direction of wirelike crystals by
transmission electron microscopy
Analyse par microfaisceaux — Microscopie électronique analytique
— Méthode de détermination de la direction apparente de croissance
des cristaux filiformes par microscopie électronique en transmission
Reference number
©
ISO 2017
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved

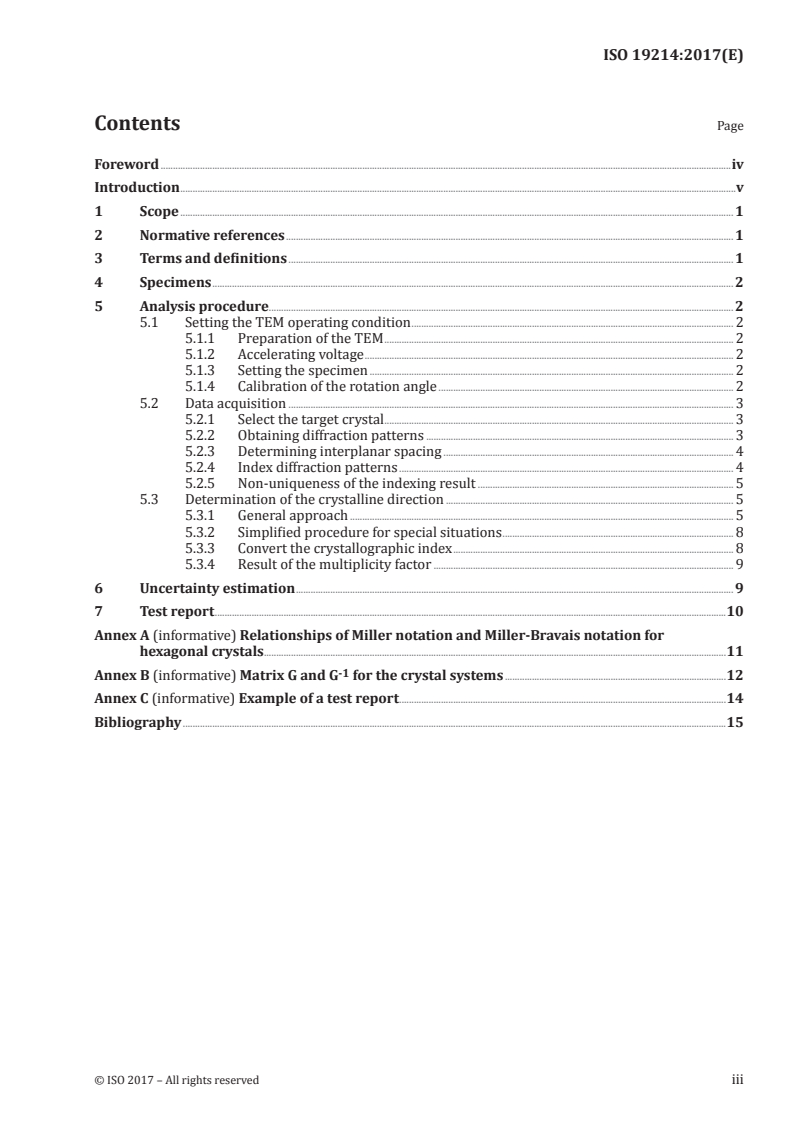

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Specimens . 2
5 Analysis procedure . 2
5.1 Setting the TEM operating condition . 2
5.1.1 Preparation of the TEM . 2
5.1.2 Accelerating voltage . 2
5.1.3 Setting the specimen . 2
5.1.4 Calibration of the rotation angle . 2
5.2 Data acquisition . 3
5.2.1 Select the target crystal . 3
5.2.2 Obtaining diffraction patterns . 3
5.2.3 Determining interplanar spacing . 4
5.2.4 Index diffraction patterns . 4
5.2.5 Non-uniqueness of the indexing result . 5
5.3 Determination of the crystalline direction . 5
5.3.1 General approach . 5
5.3.2 Simplified procedure for special situations . 8
5.3.3 Convert the crystallographic index . 8
5.3.4 Result of the multiplicity factor . 9
6 Uncertainty estimation . 9
7 Test report .10
Annex A (informative) Relationships of Miller notation and Miller-Bravais notation for
hexagonal crystals .11
-1
Annex B (informative) Matrix G and G for the crystal systems .12
Annex C (informative) Example of a test report .14
Bibliography .15

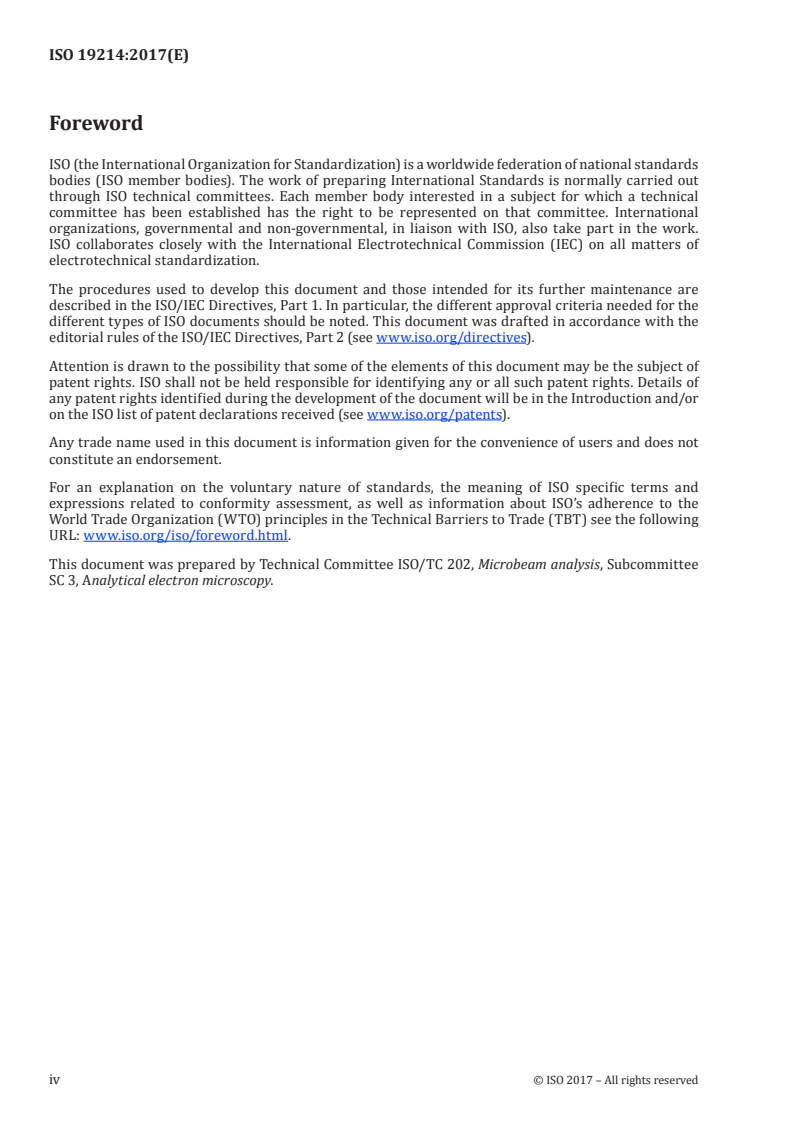

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO’s adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: w w w . i s o .org/ iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 202, Microbeam analysis, Subcommittee
SC 3, Analytical electron microscopy.
iv © ISO 2017 – All rights reserved
Introduction
Wirelike crystals (including beltlike crystals) are a main component in some advanced materials,
especially nanomaterials, and also appear in traditional materials, such as needle-shaped precipitates
in steels and alloys. Controlling the microstructure of these materials during fabrication is very
important for quality control considerations. To control the microstructure and thereby improve the
service properties of the relevant materials, the apparent growth direction or the longest axis of the
wires is one of the essential parameters. This direction is generally determined for wirelike crystals
whose diameter or thickness and width is ranged from tens to hundreds of nanometres by transmission
electron microscopy (TEM).
INTERNATIONAL STANDARD ISO 19214:2017(E)
Microbeam analysis — Analytical electron microscopy —
Method of determination for apparent growth direction of
wirelike crystals by transmission electron microscopy
1 Scope
This document prescribes a method for the determination of apparent growth direction by transmission
electron microscopy. It is applicable to all kinds of wirelike crystalline materials fabricated by various
methods. This document can also guide in ascertaining an axis direction of the second-phase particles
with a rod-like or polygonal shape in steels, alloys or other materials. The applicable diameter or
width of the crystals to be tested is in the range of tens to hundreds of nanometres, depending on the
accelerating voltage of the TEM and the material itself.
NOTE In the present document, wirelike crystals, beltlike crystals, needle-shaped second-phase particles,
etc. are all subsumed by the broad category of wirelike crystals.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 24173, Microbeam analysis — Guidelines for orientation measurement using electron backscatter
diffraction
ISO 25498:2010, Microbeam analysis — Analytical electron microscopy — Selected-area electron
diffraction analysis using a transmission electron microscope
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 24173 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http:// www .electropedia .org/
— ISO Online browsing platform: available at http:// www .iso .org/ obp
3.1
wirelike crystal
crystal resembling a thread with a diameter or width measuring in nanometres
3.2
apparent growth direction
crystalline direction which is parallel to the longest dimension of a single crystal
Note 1 to entry: Apparent growth direction does not involve mechanisms of the phase interface migration.
3.3
Miller notation
indexing system for diffraction patterns, which describes a crystal lattice by three axes coordinate
3.4
Miller-Bravais notation
indexing system for diffraction patterns of hexagonal crystal, which describes the lattice by four axes
coordinate
4 Specimens
4.1 The sample crystals shall be clean, without contamination or oxidation. They are stable under
electron beam irradiation during TEM analysis.
4.2 Powder or extracted powder specimens of the crystals may be analyzed. The sample powder shall
be well dispersed by a suitable technique so that individual crystals can be observed under the TEM.
NOTE One of the techniques in common use is ultrasonic dispersion. In this method, the sample powder
is immersed in ethanol or pure water and dispersed by ultrasonication for about 0,5 h to 1 h, then dropped
onto the supporting film surface of a microgrid. Afterward, the microgrids are dried at room temperature. The
wirelike crystals are usually parallel to the supporting film plane. Other techniques to prepare individual crystal
[2]
specimens can also be adopted, depending upon the physical characteristics of the sample .
4.3 The precipitates or second-phase particles in steels, alloys and the like may be extracted, then
treated as powder specimens; see 4.2.
4.4 Thin-foil specimens of various solid substances prepared by suitable methods are applicable. The
[3]
specimen shall be thin enough to transmit the electron beam .
5 Analysis procedure
5.1 Setting the TEM operating condition
5.1.1 Preparation of the TEM
The TEM working condition shall comply with ISO 25498:2010, 8.1.
5.1.2 Accelerating voltage
The applicable accelerating voltage of the TEM for the analysis mainly depends upon the thickness of
the specimen to be studied. Stability of the crystals under electron beam irradiation is also important
for the accelerating voltage setting. As long as the structure and/or morphology of the specimen are not
altered during the analysis, clear images and sharp diffraction patterns can be obtained on the TEM.
The corresponding accelerating voltage or higher may be suitable for the work.
5.1.3 Setting the specimen
Place the specimen to be tested firmly in the double-tilting or tilting-rotation specimen holder, then
insert the holder into the specimen chamber. It is recommended to use the cold finger of TEM before
conditioning.
5.1.4 Calibration of the rotation angle
As specified in ISO 25498:2010, 8.1.6, to be able to successfully correlate the axis of interest in an
image with the corresponding diffraction pattern, the rotation angle between the micrograph and i
...
