Overview

ISO/FDIS 18489 addresses the cracked round bar (CRB) test method for evaluating the resistance to slow crack growth (SCG) in thermoplastic materials used for piping systems. The standard is designed for polyethylene (PE) and also provides test parameters for polypropylene (PP) and unplasticized polyamide (PA-U).

This method is especially useful for pipe, fitting, and material qualification where long-term crack resistance is critical. It supports accelerated fracture-mechanics characterization at 23 °C, helping laboratories assess material performance in a practical timeframe without relying on elevated temperatures or time-reducing liquids.

The scope includes test specimens prepared from:

• Compression moulded sheets
• Extruded rods or pipes
• Injection moulded fittings of suitable thickness

ISO 18489 is widely relevant for evaluating both virgin and non-virgin thermoplastic materials, including reused and recycled materials.

Key Topics

The standard focuses on a controlled cyclic tensile test using a cylindrical specimen with a circumferential razor-sharp notch. The notch promotes crack initiation and allows measurement of the specimen’s resistance to slow crack growth under repeated loading.

Key elements include:

• Cyclic loading under load control
• Sinusoidal waveform with constant maximum and minimum load values
• Load ratio, R, and load-cycle frequency
• Initial crack length determined after testing
• Data treatment using stress range and failure cycle number
• Log-log evaluation of stress range versus failure cycles

The document also defines:

• Test specimen geometry and dimensions
• Notching requirements
• Conditioning and test atmosphere
• Reporting requirements
• Optional recalculation and single-point interpolation for reference geometries

For PE, the informative annexes provide practical guidance on specimen preparation and typical test parameter ranges, supporting consistent laboratory test methods and more reliable comparison of results.

Applications

ISO 18489 is valuable in the plastics piping industry where slow crack growth resistance affects service life and product reliability. Typical applications include:

• Material ranking and pre-selection
• Pipe and fitting qualification
• Quality control for thermoplastic pipe materials
• Comparative testing of PE grades, especially PE 80 and PE 100
• Assessment of recycled or reused thermoplastics
• Research and development of new piping compounds

Because the method is designed for accelerated testing at ambient temperature, it is well suited to performance screening in product development and compliance workflows.

Related Standards

ISO 18489 references and aligns with several important standards used in plastics testing:

• ISO 291 - Plastics - Standard atmospheres for conditioning and testing
• ISO 2818 - Plastics - Preparation of test specimens by machining
• ISO 16770 - Relevant for PE specimen moulding conditions mentioned in the annexes

Together, these standards support a consistent framework for thermoplastic materials testing, slow crack growth evaluation, and piping system performance assessment.

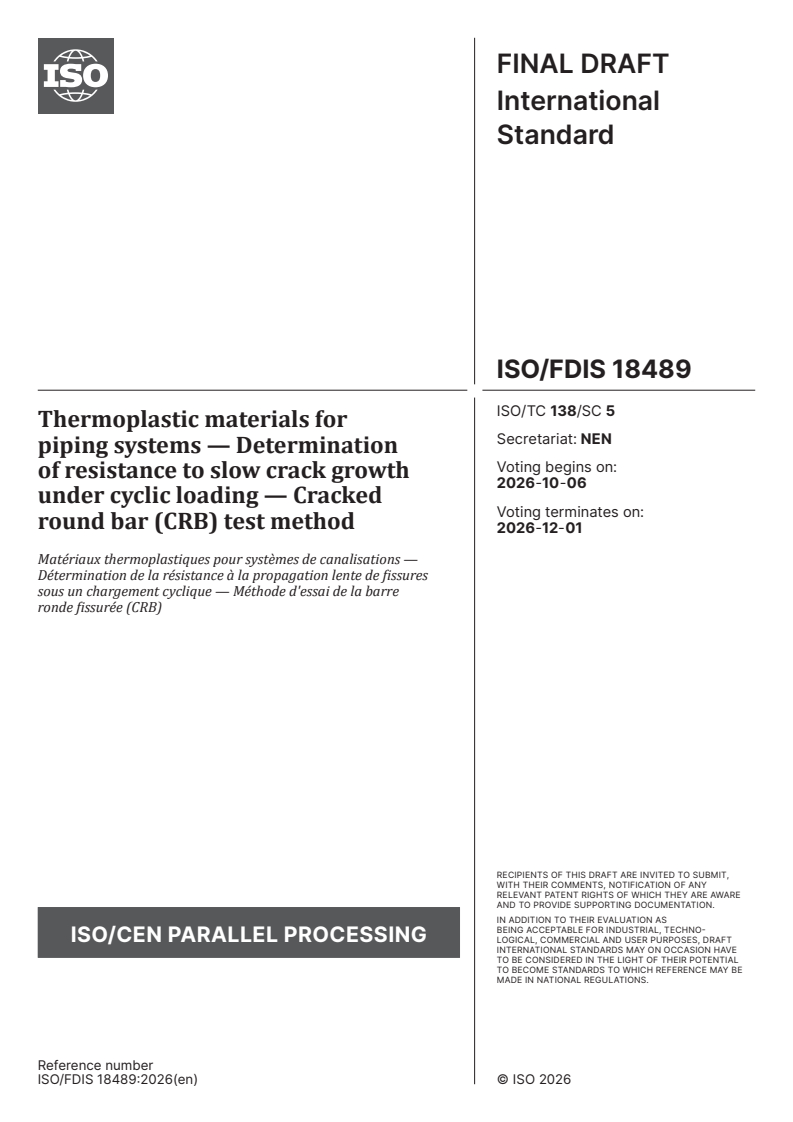

FINAL DRAFT
International
Standard
ISO/TC 138/SC 5
Thermoplastic materials for
Secretariat: NEN
piping systems — Determination
Voting begins on:
of resistance to slow crack growth
2026-10-06
under cyclic loading — Cracked
Voting terminates on:
round bar (CRB) test method
2026-12-01
Matériaux thermoplastiques pour systèmes de canalisations —
Détermination de la résistance à la propagation lente de fissures
sous un chargement cyclique — Méthode d'essai de la barre
ronde fissurée (CRB)
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO­
ISO/CEN PARALLEL PROCESSING LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
Reference number
FINAL DRAFT
International
Standard
ISO/TC 138/SC 5
Thermoplastic materials for
Secretariat: NEN
piping systems — Determination
Voting begins on:
of resistance to slow crack growth
under cyclic loading — Cracked
Voting terminates on:
round bar (CRB) test method
Matériaux thermoplastiques pour systèmes de canalisations —
Détermination de la résistance à la propagation lente de fissures
sous un chargement cyclique — Méthode d'essai de la barre
ronde fissurée (CRB)
© ISO 2026
All rights reserved.
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
This ISO publication is protected by copyright and is owned by ISO and/or its licensors.
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
The content of this ISO publication is provided under licence, not sold. Use is subject to the applicable licence terms issued by ISO,
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
an ISO member body, or an authorized third-party distributor.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO­
Except as required for implementation or expressly permitted by a separate licence, no part of this ISO publication may be
ISO/CEN PARALLEL PROCESSING
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
reproduced, distributed, modified, used, or made available in any form or by any means – electronic or mechanical, including
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
photocopying, scanning, recording, or posting on internal or external digital platforms. TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
Any use beyond the scope of the granted rights is prohibited and may result in legal action.
MADE IN NATIONAL REGULATIONS.
ISO copyright office
CP 401 • CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
Reference number
ii

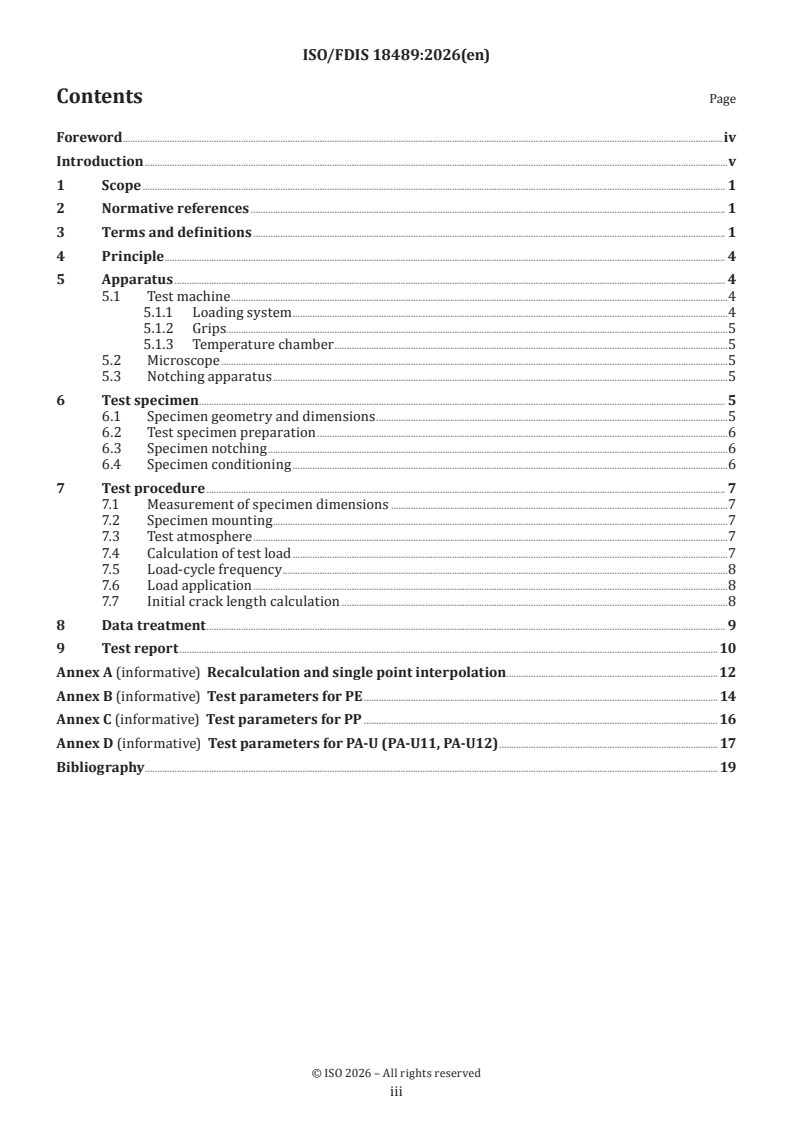

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Principle . 4
5 Apparatus . 4
5.1 Test machine .4
5.1.1 Loading system .4
5.1.2 Grips.5
5.1.3 Temperature chamber .5
5.2 Microscope .5
5.3 Notching apparatus .5
6 Test specimen . 5
6.1 Specimen geometry and dimensions .5
6.2 Test specimen preparation .6
6.3 Specimen notching .6
6.4 Specimen conditioning .6
7 Test procedure . 7
7.1 Measurement of specimen dimensions .7
7.2 Specimen mounting . .7
7.3 Test atmosphere .7
7.4 Calculation of test load .7
7.5 Load-cycle frequency .8
7.6 Load application .8
7.7 Initial crack length calculation .8
8 Data treatment . 9
9 Test report .10
Annex A (informative) Recalculation and single point interpolation .12
Annex B (informative) Test parameters for PE . 14
Annex C (informative) Test parameters for PP .16
Annex D (informative) Test parameters for PA-U (PA-U11, PA-U12) . 17
Bibliography . 19

iii

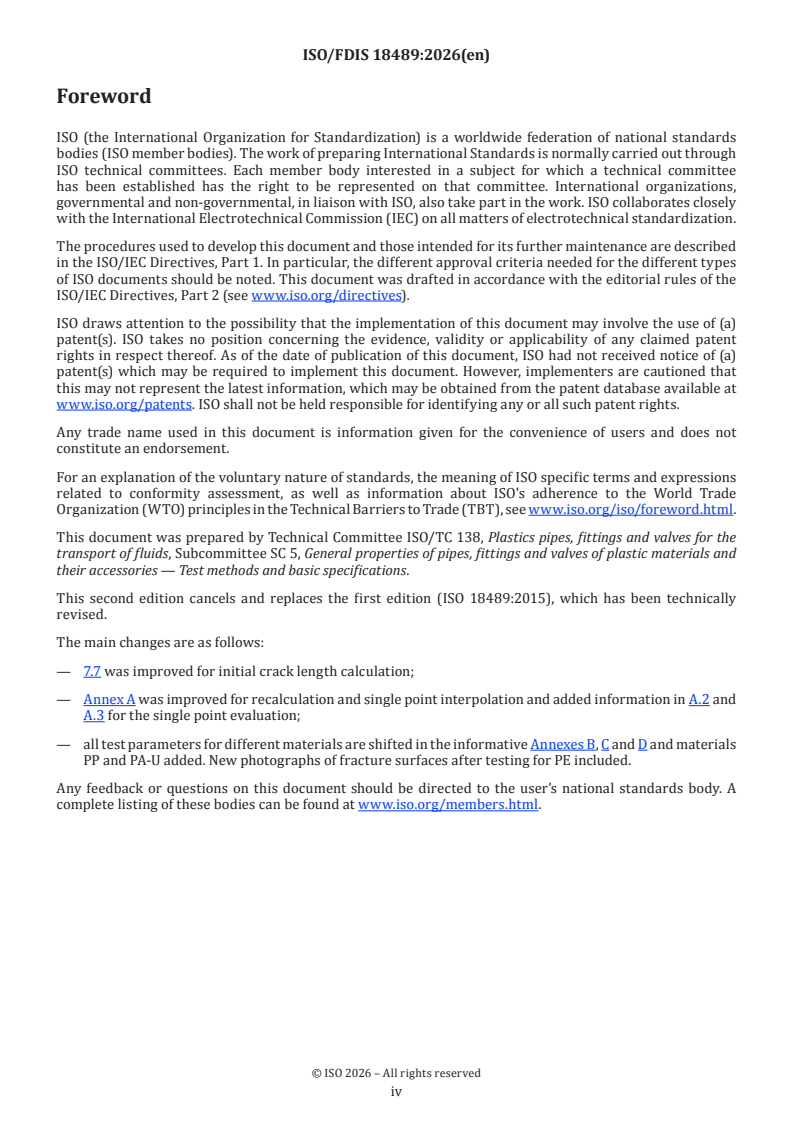

Foreword
