ISO 14817-2:2015

Intelligent transport systems — ITS central data dictionaries — Part 2: Governance of the Central ITS Data Concept Registry

ISO 14817-2:2015 specifies the registration process to enter data concepts into the Central ITS Data Concept Registry (CIDCR). The CIDCR is designed to include data concepts that conform to ISO 14817-1. These data concepts may be derived from the system architecture defined in ISO 14813, but may also support data concepts using alternative International, Regional or National System Architecture methodologies or techniques.

Systèmes intelligents de transport — Dictionnaires de données centrales des ITS — Partie 2: Gouvernance du registre central de concept des données des ITS

General Information

• Status: Published
• Publication Date: 18-Oct-2015
• ICS: 03.220.01 - Transport in general
• ICS: 35.240.60 - IT applications in transport
• Technical Committee: ISO/TC 204 - Intelligent transport systems
• Drafting Committee: ISO/TC 204/WG 1 - Architecture
• Current Stage: 9093 - International Standard confirmed
• Completion Date: 15-Aug-2022

Relations

• Revises: ISO 14817:2002 - Transport information and control systems — Requirements for an ITS/TICS central Data Registry and ITS/TICS Data Dictionaries
• Effective Date: 28-Dec-2013

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 14817-2
First edition
2015-10-15

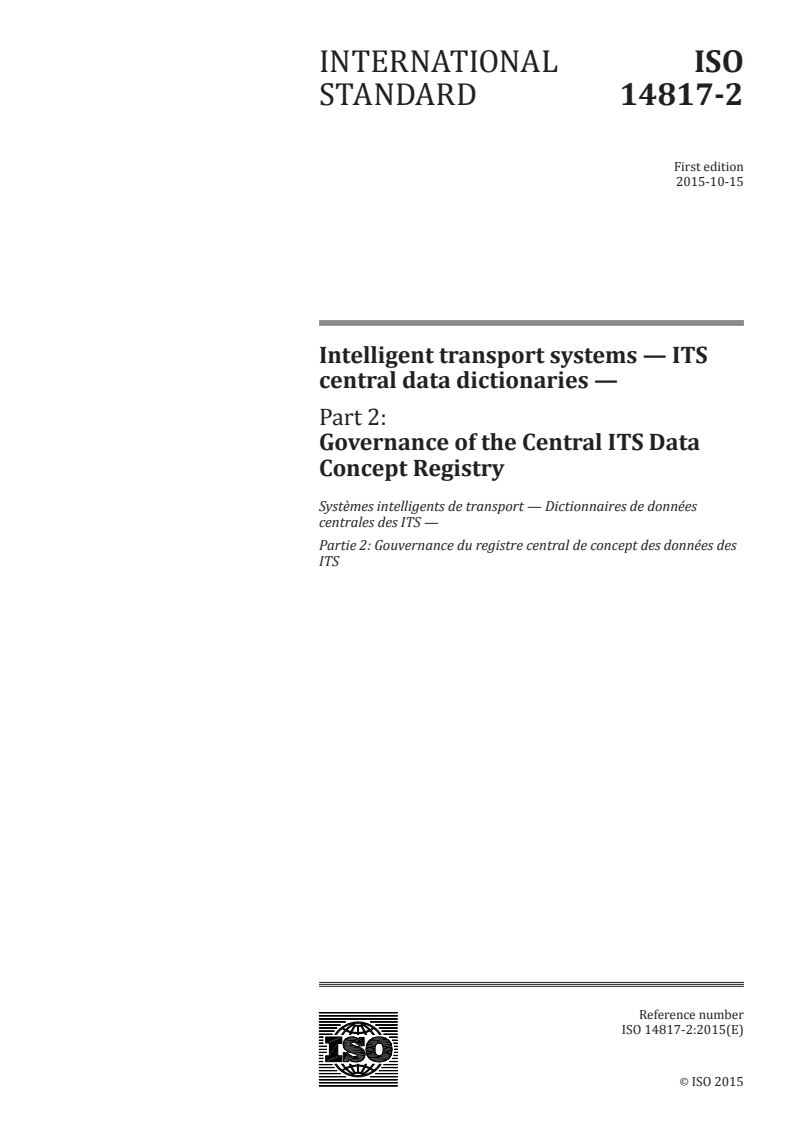

Intelligent transport systems — ITS
central data dictionaries —
Part 2:
Governance of the Central ITS Data
Concept Registry
Systèmes intelligents de transport — Dictionnaires de données
centrales des ITS —
Partie 2: Gouvernance du registre central de concept des données des
ITS
Reference number
ISO 14817-2:2015(E)
©
ISO 2015

---------------------- Page: 1 ----------------------
ISO 14817-2:2015(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2015 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 14817-2:2015(E)

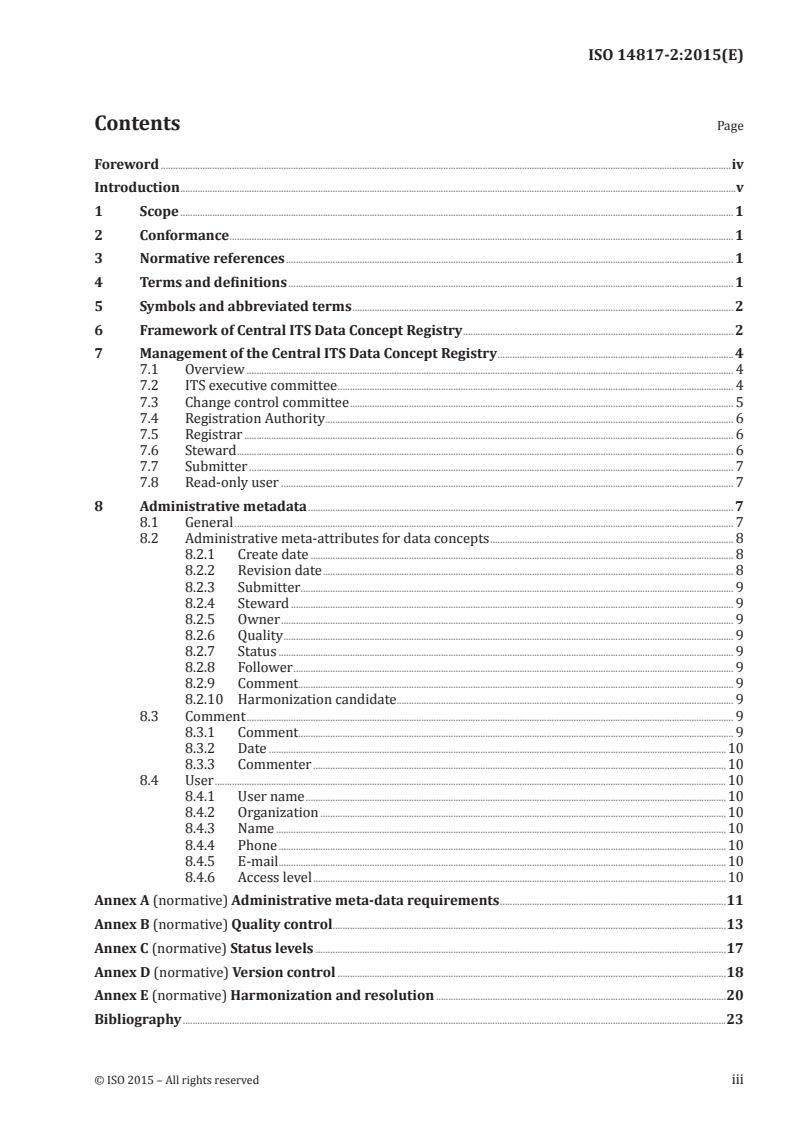

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Conformance . 1
3 Normative references . 1
4 Terms and definitions . 1
5 Symbols and abbreviated terms . 2
6 Framework of Central ITS Data Concept Registry . 2
7 Management of the Central ITS Data Concept Registry . 4
7.1 Overview . 4
7.2 ITS executive committee . 4
7.3 Change control committee . 5
7.4 Registration Authority . 6
7.5 Registrar . 6
7.6 Steward . 6
7.7 Submitter . 7
7.8 Read-only user . 7
8 Administrative metadata . 7
8.1 General . 7
8.2 Administrative meta-attributes for data concepts . 8
8.2.1 Create date . 8
8.2.2 Revision date . 8
8.2.3 Submitter . 9
8.2.4 Steward . 9
8.2.5 Owner . 9
8.2.6 Quality . 9
8.2.7 Status . 9
8.2.8 Follower . 9
8.2.9 Comment. 9
8.2.10 Harmonization candidate . 9
8.3 Comment . 9
8.3.1 Comment. 9
8.3.2 Date .10
8.3.3 Commenter .10
8.4 User .10
8.4.1 User name .10
8.4.2 Organization .10
8.4.3 Name .10
8.4.4 Phone .10
8.4.5 E-mail .10
8.4.6 Access level .10
Annex A (normative) Administrative meta-data requirements .11
Annex B (normative) Quality control .13
Annex C (normative) Status levels .17
Annex D (normative) Version control .18
Annex E (normative) Harmonization and resolution .20
Bibliography .23
© ISO 2015 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 14817-2:2015(E)

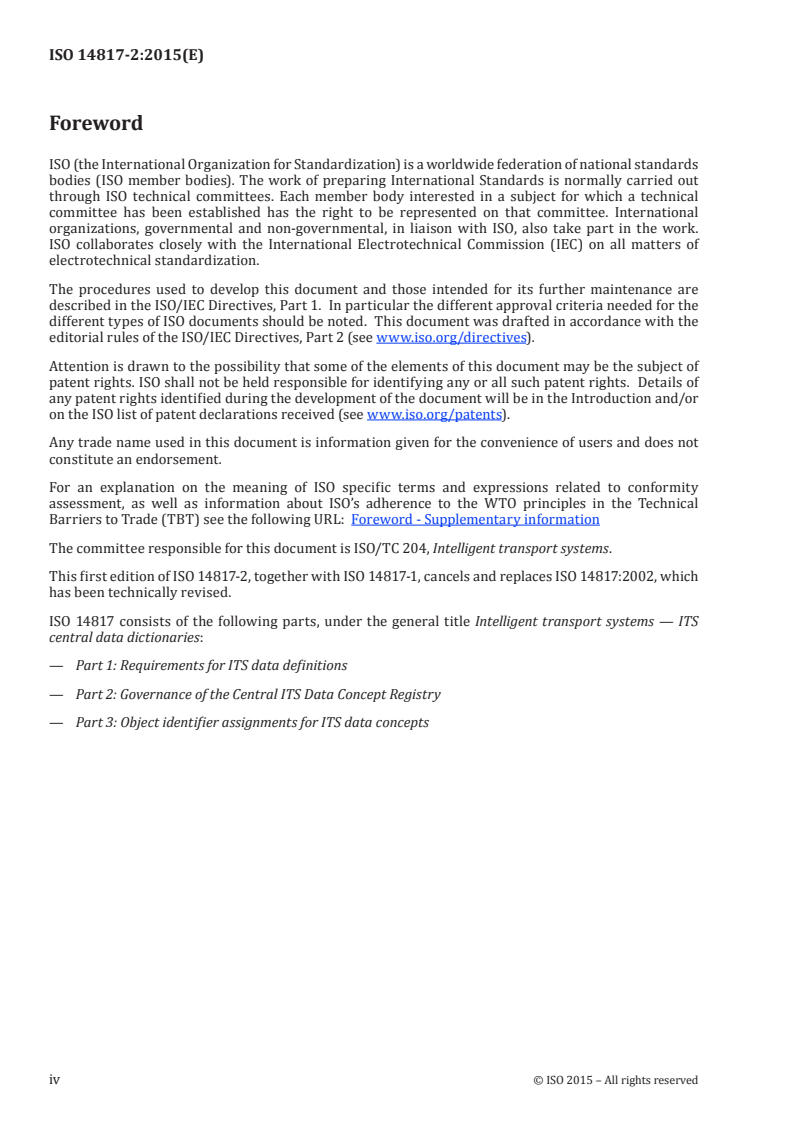

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 204, Intelligent transport systems.
This first edition of ISO 14817-2, together with ISO 14817-1, cancels and replaces ISO 14817:2002, which
has been technically revised.
ISO 14817 consists of the following parts, under the general title Intelligent transport systems — ITS
central data dictionaries:
— Part 1: Requirements for ITS data definitions
— Part 2: Governance of the Central ITS Data Concept Registry
— Part 3: Object identifier assignments for ITS data concepts
iv © ISO 2015 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 14817-2:2015(E)

Introduction
Background
This International Standard has been developed by ISO/TC 204, in order to provide a framework for the
documentation and registration of data that passes through system interfaces within the Intelligent
transport systems (ITS) domain. It is designed to maximize interoperability and facilitate information
re-use across system interfaces.
Vision statement
This International Standard envisions a harmonized approach to ITS data concepts to promote maximum
interoperability of data within the ITS sector by the creation and maintenance of the “Central ITS
Data Concept Registry” (CIDCR), supported by interface and application specific ITS data dictionaries,
created and maintained in a common and interoperable form, and to ensure the minimization of
duplication by clear rules for data concept definition and data concept registry management.
Mission statement
The mission is to develop tools that will promote a holistic, integrated approach involving vehicle
technology, infrastructure, and the road user to increase transport safety and efficiency. Specifically,
this International Standard defines the principles and concepts; scope; field of application; rules and
procedures; definition and concept of operation for the CIDCR and ITS functional data dictionaries; and
makes provision for the migration of data concepts from ITS functional data dictionaries to the CIDCR
so as to maximize interoperability and minimize proliferation of similar (but inconsistently defined)
data concept entries.
This International Standard defines the framework, formats, and procedures used to define information
and information exchanges within the ITS sector. This International Standard is designed to be used
by the ITS community at large, but should be of special interest to application developers, equipment
providers, and data concept registry managers.
This International Standard specifies a set of meta-attributes for ITS data concepts, as well as
associated conventions and schemes that enable the description, standardization and management of
all exchanged ITS data. Through consistent use of these common structures and associated conventions
and schemes, interchange of data and information among the various ITS functional subsystems via
their specific application systems can be maximized. This International Standard also supports re-use
of data elements and other data concepts across various ITS functional subsystems and their specific
application systems
The formats and processes defined within this International Standard are consistent with
implementation(s) of the ISO ITS System Architecture defined in the ISO 14813 Standardization
deliverables, particularly parts that discuss core TICS reference architecture and example elaboration.
This does not preclude the application of data concept registries using alternative international,
regional or national system architecture methodologies or techniques, indeed, common formats and
processes will ease migration and interoperability between such approaches.
The ITS data concepts that populate the CIDCR or data dictionary may originate from a ‘Computer-
Aided Software Engineering’ (CASE) tool implementation of the ISO 14813 ITS Reference Architecture,
from International Standards for ITS, from National implementations for ITS, or from the submission
by relevant users. Data dictionary entries are not limited to those generated by object oriented
methodologies.
Overview of Central ITS Data Concept Registry
The scope of ITS applications covers numerous ISO/TC 204 functional areas as well as national and
regional ITS organizations, each having an established group of stakeholders. The international
integration of ITS applications is one of the major development issues, so that data defined and
gathered in one of these functional areas (e.g. traffic management, traveller information) can be applied
© ISO 2015 – All rights reserved v

---------------------- Page: 5 ----------------------
ISO 14817-2:2015(E)

in another. For this type of interoperability the definition of data that can persist across different
functional areas must be standardized. The CIDCR meets this requirement.
The CIDCR supports the standardization and harmonization of data concepts (e.g. data elements) from
different stakeholder groups. The ITS stakeholder community is large and diverse as evidenced by
the number of working groups within ISO/TC 204 and the number of national or regional ITS bodies
participating. The definition of key data elements will arise from numerous sources. Moreover different
groups will have an interest in the definition of the same data concept, which could lead to the prospect
of duplicate or similar definitions being developed. The CIDCR will assist in promoting the reuse of
previously defined data and minimizing data duplication.
The complete ITS distributed system will be very large, both in geographic extent and in the number
and diversity of the application areas, inevitably leading to the independent development of sub-
systems. In this context, a second major purpose of the CIDCR is to document and register interface
dialogues. This process provides the main foundation for interoperability, by also focusing on those
data concepts which cross an interface, but which are not necessarily harmonized throughout ITS. The
semantics of data concepts may be documented by recording the associations of the data models in
which they participate.
The operational concept of the data concept registration is described in the following subclauses. See
Annex A for specific procedural details.
Document overview
This clause provides an overview of this International Standard. Clause 1 identifies the scope of this
part of ISO 14817. Clause 2 identifies requirements for conformance to this part of ISO 14817. Clause 3
identifies references required for proper implementation of this part of ISO 14817. Clause 4 defines
terms used in this part of ISO 14817 and Clause 5 lists the abbreviations.
The requirements for the CIDCR begin in Clause 6 with an overview of the concept of operations. A
framework describing the registration of different types of data concepts in the CIDCR and the
registration status levels are presented.
Clause 7 identifies the management of the CIDCR and identifies the major actors that interface with
the registry and their responsibilities. Clause 8 then identifies the administrative meta-attributes
associated with each data concept.
The annexes to this part of ISO 14817 describe the specific details for implementing the requirements
introduced in Clause 6 to Clause 8. Annex A details when specific meta-attributes are required for each
type of data concept. Annex B defines the process used for quality control within the CIDCR, Annex C
defines the registration status levels and Annex D defines the rules for version control. Finally, Annex E
defines guidelines for harmonization.
The Bibliography includes a list of documents related to this part of ISO 14817.
vi © ISO 2015 – All rights reserved

---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 14817-2:2015(E)
Intelligent transport systems — ITS central data
dictionaries —
Part 2:
Governance of the Central ITS Data Concept Registry
1 Scope
This part of ISO 14817 specifies the registration process to enter data concepts into the Central ITS
Data Concept Registry (CIDCR).
The CIDCR is designed to include data concepts that conform to ISO 14817-1. These data concepts may
be derived from the system architecture defined in ISO 14813, but may also support data concepts
using alternative International, Regional or National System Architecture methodologies or techniques.
2 Conformance
This part of ISO 14817 prescribes a conceptual model, but not a physical implementation. Therefore, the
meta model need not be physically implemented exactly as specified. However, it should be possible to
map unambiguously to and from the implementation and the meta model.
A conforming implementation shall support all processes defined by this part of ISO 14817.
3 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 14817-1, Intelligent transport systems — ITS central data dictionaries — Part 1: Requirements for ITS
data definitions
ISO 14817-3, Intelligent transport systems — ITS central data dictionaries — Part 3: Object identifier
assignments for ITS data concepts
4 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 14817-1, ISO 14817-3 and the
following apply.
4.1
data concept registration process
process by which data is formally described and provided to an approved location in the data
concept registry
Note 1 to entry: This process is effected under the control of the “ITS Registrar”, in accordance with the
requirements of this part of ISO 14817.
4.2
ITS registrar
organizational element or an individual appointed by ISO/TC 204 to undertake the day-to-day
management of the data concept registry process
© ISO 2015 – All rights reserved 1

---------------------- Page: 7 ----------------------
ISO 14817-2:2015(E)

5 Symbols and abbreviated terms
ASN.1 Abstract Syntax Notation One
ANSI American National Standards Institute
CASE Computer-Aided Software Engineering
CCC Change Control Committee
CIDCR Central ITS Data Concept Registry
DCI Data concept identifier
DD Data Dictionary
DCR Data Concept Registry
ExCom Executive Committee
ID identification
IEC International Electrotechnical Commission
ISO International Organization for Standardization
ITS Intelligent transport system(s)
N/A not applicable
OID object identifier
OSI Open System Interconnection
RA Registration Authority
TC Technical Committee
UML Unified Modelling Language
URL Uniform Resource Locator
6 Framework of Central ITS Data Concept Registry
The overall framework for the CIDCR is presented in Figure 1. It illustrates the relationships among
the following:
— ITS architectures (and data models);
— ITS data dictionaries (that are intended to include all data concepts);
— CIDCR;
— ITS Applications.
2 © ISO 2015 – All rights reserved

---------------------- Page: 8 ----------------------
ISO 14817-2:2015(E)

Central ITS
ITS
Data Concept
Data Dictionary
ITS
Submitted Registry
(CIDCR)
Data Concepts
Architecture
Standardized/
ITS Content
Harmonized Data
Registration
Data
Concepts
and
Concepts
ITS
Harmonization
associated Registered
(Semantics
Application
Data Concepts
and
Promotion
Information Syntax)
ITS
Semantics Developed
Information
within
Model
Functional
Area Unique Functional Area Data Concepts
Standards and Stewards
Registrar Developers
Application and and and
Developers Submitters CCC Users
Figure 1 — CIDCR operational framework
For each of these elements, Figure 1 also lists their key functions. For data dictionaries, the CIDCR,
and the applications it further identifies the key stakeholders or stakeholder groups that participate
in or manage their operations. Finally, Figure 1 illustrates the information exchanged between these
operational elements.
The ITS data dictionaries contain data concepts based on information flows documented in an ITS
Architecture.
NOTE There may be multiple architectures, each with multiple versions that are referenced.
The data dictionaries in Figure 1 may be developed, for example, by ISO/TC 204 or regional or National
“Standards Development Organizations” (SDOs), public agencies, or private companies. These data
dictionaries are the responsibility of their respective SDOs, regional or National bodies. Each data
dictionary shall be associated with a data steward and/or data submitter, using the process defined
in this part of ISO 14817, to submit data concepts from their respective data dictionaries to the CIDCR.
Furthermore, these data dictionaries should use registered data concepts from the CIDCR rather than
invent new data concepts. The use of such registered data concepts will help to avoid redundancy in
data concepts.
The CIDCR shall be the repository for submitted data concepts. Through the efforts of the data stewards,
the registrar and the CIDCR change control committee (CCC) support identification of harmonization
opportunities, recommendations for harmonization, and promotion of data concepts to higher quality
levels where warranted. Finally, the CIDCR can provide data concepts to developers and other users for
use in ITS applications.
Developers and other users should use data concepts from the CIDCR at the highest (“Preferred”) quality
level. The data concepts at this level are described unambiguously, harmonized across ITS sectors, and
are considered representative of published data standards.
Table 1 presents a summary of the distinguishing characteristics between a data dictionary and the
CIDCR.
© ISO 2015 – All rights reserved 3

---------------------- Page: 9 ----------------------
ISO 14817-2:2015(E)

Table 1 — Distinguishing characteristics of data dictionaries and the CIDCR
ITS Data Dictionary CIDCR
Multiple data dictionaries One (International) data concept registry
Covers single functional area Covers multiple functional areas
Managed by a functional area steward Managed by the CCC
Harmonized within the functional area Harmonized across the ITS sector
7 Management of the Central ITS Data Concept Registry
7.1 Overview
Organizational roles associated with the ITS data concept registration process shall be established. The
organizational roles for the CIDCR shall include the Executive Committee (ExCom), the Change Control
Committee (CCC), the Registrar, Stewards, Submitters, and Read-only Users. A summary of each role
is provided in this Clause. Clause 8 provides a description of the purpose, specific responsibilities, and
membership or selection criteria for each role.
Figure 2 provides a high level view of how these organizational roles are related within the context
of the CIDCR.
ExCom
Registration
CCC
Authority
Registrar
Steward
Read-Only
User
CIDCR
Submitter
Figure 2 — Organizational chart for the CIDCR
7.2 ITS executive committee
The CIDCR Executive Committee (ExCom) shall be an organization established by ISO/TC 204. It shall be
responsible for administering responsibilities and authority delegated by ISO/TC 204 in relation to the
CIDCR. TC 204 shall specify precise reporting responsibilities for the ExCom. ExCom procedures and
practices shall be subject to review and approval by TC 204 or its designated organizational component.
The ITS ExCom shall be responsible for overall policy and business direction for the CIDCR, to include
the following.
a) Establishing overall registry policies, such as the application process for Submitters.
4 © ISO 2015 – All rights reserved

---------------------- Page: 10 ----------------------
ISO 14817-2:2015(E)

b) Resolution of all business management issues pertaining to the registry, including, but not limited to:
1) addressing copyright issues;
2) appointing representatives to the CCC;
3) appointing stewards;
4) selecting the registration authority;
5) addressing funding issues;
6) defining ExCom membership.
c) Ensuring the long-term success and performance of the registry.
d) Establishing and updating the registry charter and strategic plans.
e) Meeting at least semi-annually in face-to-face meetings, with additional meetings and/or
teleconferences held as needed.
The ExCom will normally fulfil its responsibilities via consensus building. Intransigent issues may be
resolved by ISO/TC 204, and whenever deemed appropriate in consultation with CEN/TC 278.
7.3 Change control committee
The CIDCR Change Control Committee (CCC) shall be the organization that is constituted to provide
overall technical direction of the CIDCR and its contents, and its operation. The structure, staffing,
procedures, and membership of the CCC are determined by the CIDCR ExCom. The membership of the
CCC should include the Stewards.
The CCC is responsible for the following:
a) overall conduct of ITS registration operations;
b) promoting the reuse and sharing of data in the CIDCR within and across ITS functional-areas, and
among external interested parties to the ITS enterprise;
c) progressing data concepts through registry registration “Qualified” and “Preferred” quality levels;
d) identifying data concepts to be registered from external data concept registries or data dictionaries;
e) resolving technical issues associated with registered data concepts
...
