ISO/TR 15069:2018

Series 1 freight containers - Handling and securing - Rationale for ISO 3874:2017, Annexes A to E

This document gives the background to the requirements specified in ISO 3874:2017, Annexes A to E.

Conteneurs de la série 1 — Manutention et fixation — Complément aux annexes A à E de l'ISO 3874

General Information

• Status: Published
• Publication Date: 18-Sep-2018
• ICS: 55.180.10 - General purpose containers
• Technical Committee: ISO/TC 104/SC 1 - General purpose containers
• Drafting Committee: ISO/TC 104/SC 1/WG 2 - Handling and securing
• Current Stage: 6060 - International Standard published
• Start Date: 19-Sep-2018
• Completion Date: 13-Dec-2025

Relations

• Consolidated By: ISO 7906:2022 - Leather - Tests for colour fastness - General principles of testing
• Effective Date: 06-Jun-2022
• Revises: ISO/TR 15069:1997 - Series 1 freight containers - Handling and securing - Rationale for ISO 3874 Annex A
• Effective Date: 29-Jul-2017

Overview

ISO/TR 15069:2018 is a Technical Report that explains the technical and operational rationale behind the requirements in ISO 3874:2017, Annexes A–E. Focused on Series 1 freight containers - handling and securing, the report documents why specific dimensions, tolerances and strength tests were chosen for devices such as twistlocks, collars and intermediate plates. It is intended as background guidance for designers, operators and regulators responsible for container securing and handling.

Key Topics and Requirements

• Scope and purpose
  • Provides background to ISO 3874:2017 Annexes A–E; validates dimensions and strength against industry practice (e.g., Container Securing Manual for large vessels).
• Twistlocks (general)
  • Defines terms used for manual, semi-automatic and fully automatic twistlocks (FAT), Automatic Container Locks (AL) and Midlocks.
  • Notes that automatic locks operate as a system and require new functional testing.
• Dimensions
  • Top/bottom cones: Designed so load-bearing area in an ISO 1161 corner fitting is larger than 800 mm².
  • Intermediate plate: Universal thickness set at 28 mm; prior flange-area minimum (4 500 mm²) was removed due to diverse designs.
  • Handle and collar dimensions chosen to allow operation and account for ISO 668 tolerances; collar length set at 117 mm for 20 ft use.
  • Distance between top and bottom lock: Defined as intermediate plate thickness plus two times (33 ± 1) mm to ensure cone rotation.
• Strength requirements
  • Manual/semi‑automatic twistlocks: tensile strength aligned with ISO 17905:2015 (value in 2017 edition set to 150 kN for certain cases); intermediate plate compression increased to 1 000 kN; additional 150 kN compression test simulates misalignment; collar shear: 300 kN longitudinal, 150 kN transverse.
  • Automatic/container locks: intermediate plate compression 1 000 kN; cone compression 150 kN; shear-resisting structure required where collars are absent. Tensile values referenced to ISO 17905:2015.

Applications and Users

• Practical use for:
  • Container and twistlock manufacturers (design, testing, type approval)
  • Ship operators, terminal operators and cargo securing planners
  • Classification societies, regulators and safety inspectors
  • Engineers producing container securing manuals and ship stowage procedures
• Helps ensure safe lifting, stacking and securing of Series 1 freight containers across sea, rail and road transport modes.

Related Standards

• ISO 3874:2017 - Series 1 freight containers: handling and securing (normative)
• ISO 1161 - Corner and intermediate fittings
• ISO 668 - Container dimensions and ratings
• ISO 1496 series - Container specification and testing
• ISO 17905:2015 - Container securing devices (tensile/strength guidance)

Keywords: ISO/TR 15069:2018, ISO 3874:2017, series 1 freight containers, twistlocks, handling and securing, intermediate plate, tensile strength, compression strength, shear strength, automatic locks.

Standards Content (Sample)

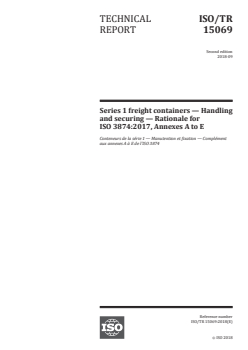

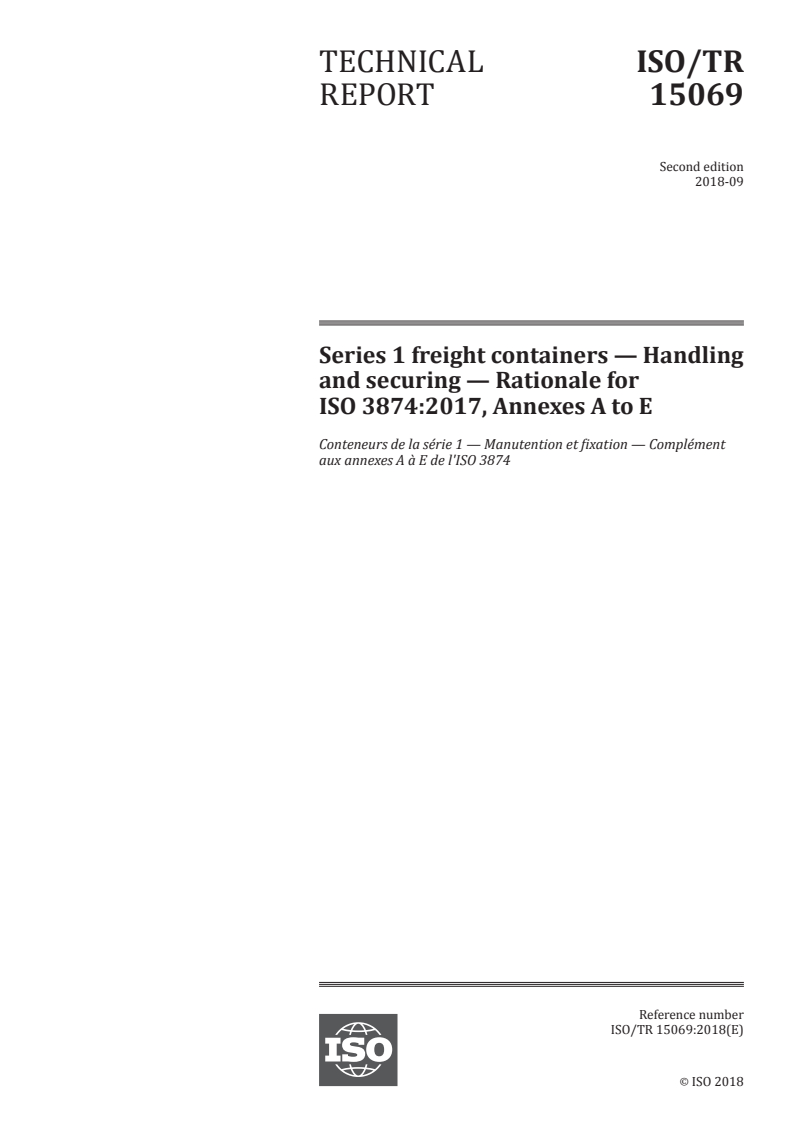

TECHNICAL ISO/TR
REPORT 15069
Second edition
2018-09
Series 1 freight containers — Handling
and securing — Rationale for
ISO 3874:2017, Annexes A to E
Conteneurs de la série 1 — Manutention et fixation — Complément
aux annexes A à E de l'ISO 3874
Reference number
©
ISO 2018
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

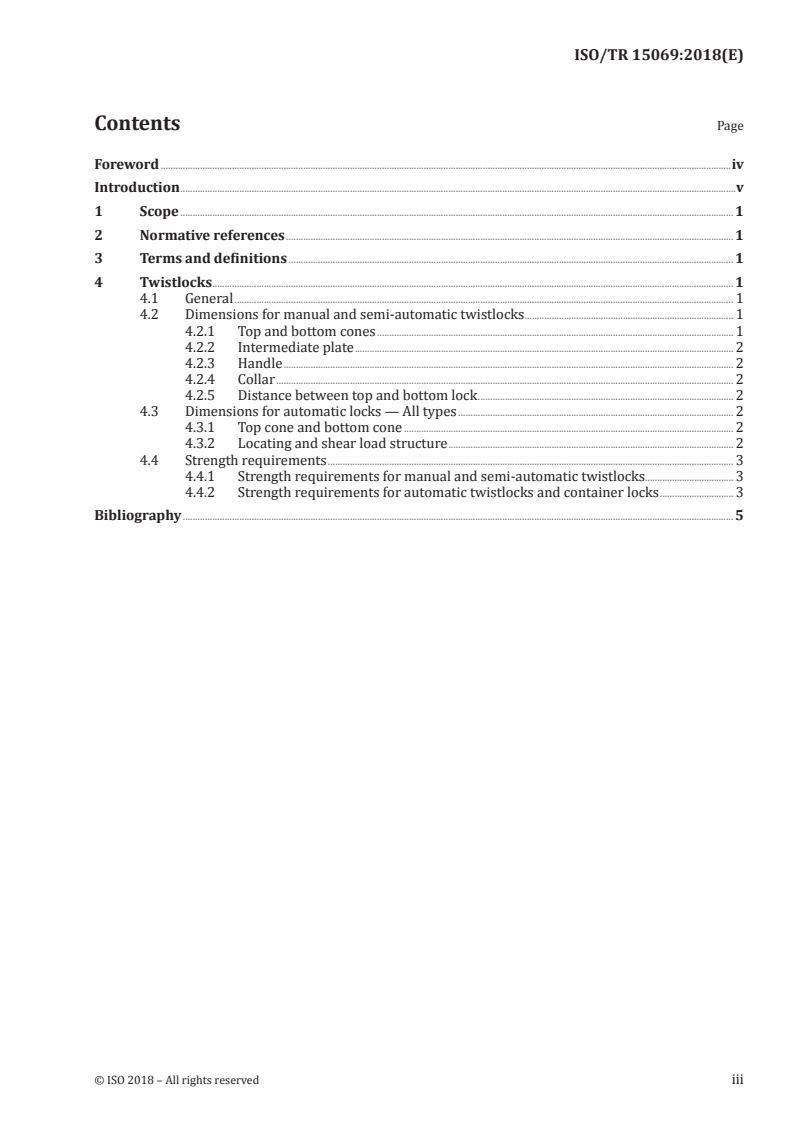

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Twistlocks . 1
4.1 General . 1
4.2 Dimensions for manual and semi-automatic twistlocks . 1
4.2.1 Top and bottom cones . 1
4.2.2 Intermediate plate . 2
4.2.3 Handle . 2
4.2.4 Collar . 2
4.2.5 Distance between top and bottom lock . 2
4.3 Dimensions for automatic locks — All types . 2
4.3.1 Top cone and bottom cone . 2
4.3.2 Locating and shear load structure . 2
4.4 Strength requirements . 3
4.4.1 Strength requirements for manual and semi-automatic twistlocks. 3
4.4.2 Strength requirements for automatic twistlocks and container locks . 3
Bibliography . 5

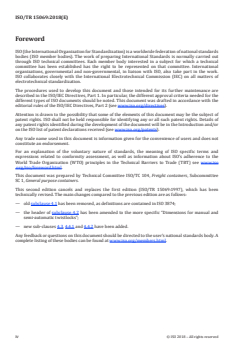

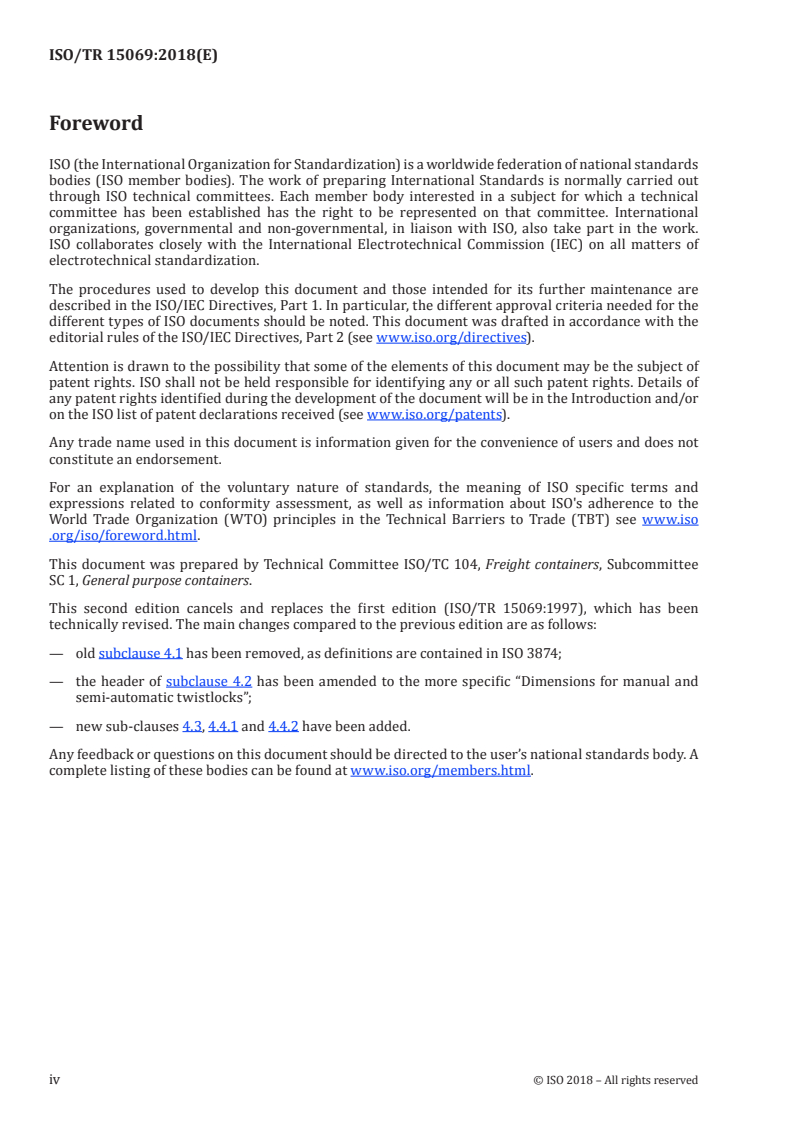

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 104, Freight containers, Subcommittee
SC 1, General purpose containers.
This second edition cancels and replaces the first edition (ISO/TR 15069:1997), which has been
technically revised. The main changes compared to the previous edition are as follows:
— old subclause 4.1 has been removed, as definitions are contained in ISO 3874;
— the header of subclause 4.2 has been amended to the more specific “Dimensions for manual and
semi-automatic twistlocks”;
— new sub-clauses 4.3, 4.4.1 and 4.4.2 have been added.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2018 – All rights reserved

Introduction
The methods of handling and securing series 1 freight containers built and tested in accordance with
the latest editions of the ISO 1496 series are specified in ISO 3874.
This document is published in the form of a Technical Report with the intention of providing the
technical and operational background to the requirements specified in ISO 3874:2017, Annexes A to E.
Dimensions, tolerances and strength requirements noted in ISO 3874 and this document were validated
against the approved Container Securing Manual for the largest vessels afloat at the time namely the
Maersk Line “Triple E” class.
Noting that ISO 17905:2015 was published early in the period of revision, it was decided, in order to
avoid conflicting data, to adopt the strength requirements therein directly in this version of ISO 3874.
Items not in common use were removed from the tables before inclusion in ISO 3874.
TECHNICAL REPORT ISO/TR 15069:2018(E)
Series 1 freight containers — Handling and securing —
Rationale for ISO 3874:2017, Annexes A to E
1 Scope
This document gives the background to the requirements specified in ISO 3874:2017, Annexes A to E.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 830, Freight containers — Vocabulary
ISO 3874:2017, Series 1 freight containers — Handling and securing
3 Terms and definitions
For the purposes of this document, the terms and definitions g
...
