ISO/TR 8417
First edition
Risk management of particulate
2024-10
contamination for devices with
intravascular access
Gestion des risques de contamination particulaire pour les
dispositifs d'accès intravasculaire
Reference number
© ISO 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 References . 1
3 Terms and definitions . 1
4 Risk management on particulate contamination . 1
4.1 Application of risk management .1
4.2 Determination of particulate contamination .2
Annex A (informative) Examples for hazards and risk control options related to particulate
matter . 3
Annex B (informative) Rationales and history of the development of this document . 7
Bibliography . 9
iii

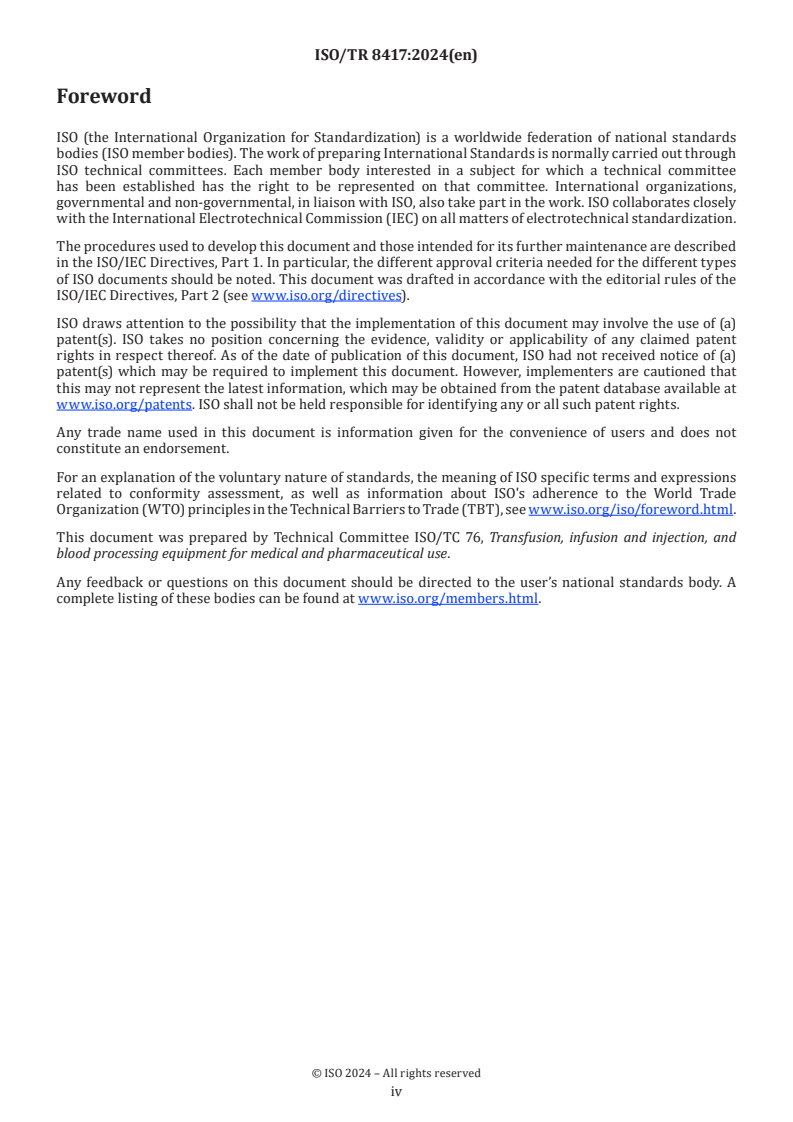

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 76, Transfusion, infusion and injection, and
blood processing equipment for medical and pharmaceutical use.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
Introduction
Medical devices, that are part of the fluid path for delivery directly into circulating blood or are connected
to those devices (such as administration or extension sets), include a risk of delivering particulate matter to
the patient’s body.
These particulates can be created or transferred to the devices during the production or application of those
devices and can cause a variety of severe and fatal harms to patients (such as phlebitis, pulmonary emboli,
pulmonary granulomas, immune system dysfunction, pulmonary dysfunction, infarction and death).
All parenteral products contain such particulate matter, as it is technically impossible to produce and use
these devices without creating or transferring these particles to the devices. This is considered in technical
standards and international pharmacopoeias that identify limits of particulate contamination, but these
limits can only be considered as a definition of the maximum particle load that is based on current technical
state of the art for various particle size ranges.
Several studies and publications imply, that no rationale for any tolerable number for the particulate
contamination exists. The occurrence rates of related severe and fatal complications in patients that receive
parenteral infusions is closely related to factors such as:
— route of administration;
— particle size and shape;
— number of particles injected;
— particle composition;
— patient population;
— exposure by multiple devices.
Additionally, the current specifications in standards and international pharmacopoeias are omitting the fact,
that medical devices and drug containers are typically used in combinations with each other (e.g. container,
infusion set, IV-catheter) and/or in parallel (e.g. several infusions running in parallel or in sequence) and/
or repeatedly (e.g. several containers/infusion sets being used consecutively). With any of these, the total
particulate load that patients receive is an addition of all those sources.
As the complexity of the number of influencing factors and their interrelations do not allow the derivation
of any safe level of particulate contamination, the current specifications in standards and pharmacopeia
can lead to an inappropriate assumption of safety by manufacturers, regulators, authorities, and clinical
practitioners when these levels are met.
This document is intended to provide alternative perspectives on how to control risks related to particulate
contaminations and to guide manufacturers, regulators, and authorities into a more comprehensive
assessment of the measures related to reducing particulate contaminations.
The leading concept behind this alternative perspective is to apply the general methodology of risk
management to identify, assess and control the risks that are related to particulate matter rather than
defining an unsubstantiated level of assumed safety.
v
Technical Report ISO/TR 8417:2024(en)
Risk management of particulate contamination for devices
with intravascular access
1 Scope
This document
— provides information on the determination of particulate loads;
— reports on established methods for a comprehensive risk analysis on potential particle sources and
related risks in design, manufacturing, and application of devices.
This document is applicable to medical devices that are used to provide intravenous access to patients to
deliver liquids.
NOTE For routes of administration that are not intravenous, the information in this document might be relevant
to assist in the identification of sources of potential particulate contamination.
2 References
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 14971, Medical devices — Application of risk management to medical devices
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 14971 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www. iso. org/o bp
— IEC Electropedia: available at https:// www.e lectropedia. org/
3.1
particle
minute piece of matter with defined physical boundaries
[SOURCE: ISO 14644-1:2015, 3.2.1]
4 Risk management on particulate contamination
4.1 Application of risk management
Medical devices are designed and manufactured in such a way to eliminate or reduce the probability of
particulate contamination of the fluid path of the devices and other surfaces which are relevant for the
application of the devices.
To identify, assess and control the related risks, the general methodology of ISO 14971 is applied. Annex A
lists known sources of particulate contamination of medical devices.
It is expected that medical device manufacturers create or update risk management files to include all
relevant and applicable risks from Annex A and implement feasible control measures.
4.2 Determination of particulate contamination
The particulate contamination of infusion sets, and their components and accessories are determined by
quantitative testing to assess initial particle loads.
To be able to verify the effectiveness of risk control methods, before or after potential changes, quantitative
or qualitative methods are commonly used.
Some of the applicable related methods are described in:
— ISO 8536-4:2019, A.2;
— European Pharmacopoeia 2.9.19, 2.9.20;
— US Pharmacopoeia 787, 788, 790, 1790;
— Japanese Pharmacopoeia 6.07, 6.06;
— ISO/TR 19727.
Annex A
(informative)
Examples for hazards and risk control options related to
particulate matter
Table A.1 shows example for hazards and risk control options related to particle matter.
Table A.1 — Example for hazards and risk control options related to particle matter
Protective measures in the Protective measures
Source or nature of contam- Approaches for safe device Approaches for safe manu- Information for
Risk source group medical device itself or in in the manufacturing
ination design facture safety
the manufacturing process process
Moulding Metal parts from tools Design of moving parts, split Controlled environment Properly specified require- Mould preventative mainte- Cleaning instructions
line and gates (Clean room etc.) ments/limits for geometrical nance for equipment
Mould release agents
defects (flash, etc.)
Selection of materials and Unidirectional air flow over Tool design (i.e. sprue less
Flash
additives moving parts of mould or runner less designs/hot
sprues/gates
runners)
Parts demoulding (avoid Peripheral material supply
falling parts
drop parts) “Cleaning”, shaking, blow-
Validated moulding processes
Damaged parts (e.g. not fully
ing, vacuum, managing
Maintenance and cleaning of
ejected parts)
electro-static charge
moulding press/ machines
Visual checks/camera
Conveyer systems
control for ejection
Extrusion Water bath particulates Filtration system for the Cleaning and maintenance of Cleaning instructions
cooling water equipment, tools, extrusion for equipment
Chill roll for film extrusion
head
Material selection
Cutting of tube segments
Sharp, regularly maintained
Extrusion head
blades for cutting
Controlled environment (clean
room etc.) – separate areas
for the extrusion machine and
the post-extrusion processing
(cooling, coiling)
See applicable elements from
“moulding”
Purchasing/ in- Insufficient control over sup- Double bagging of compo- Incoming inspection on
coming goods pliers and goods nents particulate contamination (for
monitoring and comparison
“Contaminated” raw materials
between parts and suppliers)
Sampling (opening/ closing
Supplier audits
bags)
Quality agreements
Shipping/transportation from
vendor to manufacturer Technical specifications for
storage condition
Properly specified require-
ments/limits
Procedures for material
handling (where, by whom,
opening/ closing of bags, in
which state is material trans-
ported after incoming goods
inspection
...
