ISO 10958-2:2015

Snowboards - Binding mounting area - Part 2: Requirements and test methods for snowboards with inserts

ISO 10958-2:2015 specifies requirements and test methods for snowboards as sports equipment on which bindings are attached by means of inserts that are not removable and screws. It contains data for the manufacturer of snowboards, bindings and retention devices concerning dimensions, tests and other specifications for the binding mounting area. For dimensions with no tolerance indicated, a tolerance of ±1 mm is valid.

Surfs des neiges — Zone de montage de la fixation — Partie 2: Exigences et méthodes d'essai relatives aux surfs des neiges munis d'inserts

L'ISO 10958-2:2015 spécifie les exigences et méthodes d'essai relatives aux surfs des neiges utilisés en tant qu'équipements de sport dont les fixations sont maintenues en place par des inserts fixes et des vis. Elle contient des données relatives aux dimensions, essais et autres spécifications concernant la zone de montage de la fixation, ces informations étant destinées aux fabricants de surfs des neiges, de fixations et de dispositifs de retenue. Pour les dimensions auxquelles aucune tolérance n'est associée, une tolérance de ± 1 mm est permise.

General Information

• Status: Published
• Publication Date: 09-Jun-2015
• ICS: 97.220.20 - Winter sports equipment
• Technical Committee: ISO/TC 83/SC 4 - Snowsports equipment
• Drafting Committee: ISO/TC 83/SC 4/WG 3 - Skis and snowboards
• Current Stage: 9093 - International Standard confirmed
• Start Date: 10-Dec-2025
• Completion Date: 13-Dec-2025

Relations

• Revises: ISO 10958-2:2004 - Snowboards - Binding mounting area - Part 2: Requirements and test methods for snowboards with inserts
• Effective Date: 05-Jul-2014

Overview

ISO 10958-2:2015 - "Snowboards - Binding mounting area - Part 2: Requirements and test methods for snowboards with inserts" specifies dimensional, strength and test requirements for snowboards that use permanently fixed, threaded inserts and screws to attach bindings. It provides manufacturers and test laboratories with standardized specifications for the binding mounting area, including thread geometry, insert depth, engagement, mechanical strength and marking. For dimensions without a stated tolerance, a tolerance of ±1 mm applies.

Key topics and technical requirements

• Insert and screw dimensions
  • Inserts: internal thread M6×1, 6H (ISO 68-1 referenced)
  • Screws: external thread M6×1, 6g
  • Minimum insert well depth i = 5.5 mm
  • Minimum screw engagement E = 2.0 threads
  • Effective threaded depth at least 5.5 mm
  • Maximum countersink depth c = 2.5 mm
• Strength requirements
  • Retention strength (axial pull-out):
    • Minimum 4 500 N for snowboards with suggested rider mass ≥ 45 kg
    • Minimum 3 500 N for suggested rider mass 25 kg to <45 kg
  • Spin resistance (rotational): minimum 20 N·m
• Test apparatus and procedures
  • Retention test: Universal Test Machine (UTM) with pull-out device, support rollers (distance typically 200 mm; 100 mm for very light boards), minimum load range 10 000 N; tests at room temperature (23 ± 5) °C.
  • Spin test: torque device (e.g., long screw with counter-nut) and handheld torque gauge readable to ±2.5 N·m; torque to 20 N·m while board is clamped.
  • Test report must reference ISO 10958-2:2015 and include manufacturer, model, serial number, compliance statement, deviations and test date.
• Marking
  • Boards with suggested rider mass between 25 kg and 45 kg (and those below 25 kg) must carry a clearly visible permanent mark of minimum size 10 mm, placed outside the binding mounting area.

Applications and who uses this standard

• Snowboard manufacturers and designers - to specify insert geometry, ensure minimum mechanical performance and document compliance.
• Binding and retention device manufacturers - to match binding patterns and screw engagement with snowboard inserts.
• Independent testing laboratories and conformity assessment bodies - to perform retention and spin-resistance tests and produce standardized test reports.
• Product safety engineers, procurement and quality assurance teams - to verify supplier conformity and reduce risk of binding failure in service.

Related standards

• ISO 10958-1: (Snowboards - Binding mounting area - Part 1) - requirements for snowboards without inserts
• ISO 68-1:1998 - Metric screw threads (basic profile) - referenced for thread tolerances

Keywords: ISO 10958-2:2015, snowboards binding mounting area, binding inserts, retention strength, spin resistance, M6×1 insert, insert well depth, screw engagement, test methods.

Standards Content (Sample)

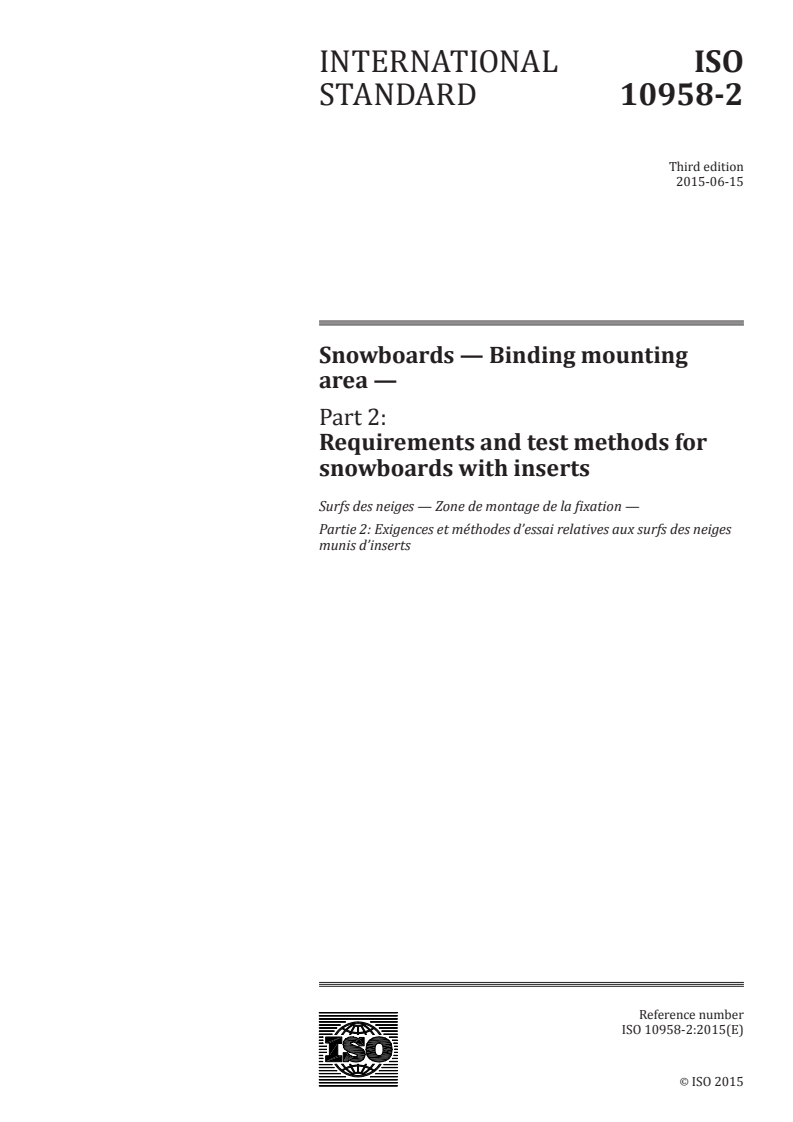

INTERNATIONAL ISO
STANDARD 10958-2
Third edition
2015-06-15
Snowboards — Binding mounting
area —
Part 2:
Requirements and test methods for
snowboards with inserts
Surfs des neiges — Zone de montage de la fixation —
Partie 2: Exigences et méthodes d’essai relatives aux surfs des neiges
munis d’inserts
Reference number
©
ISO 2015
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2015 – All rights reserved

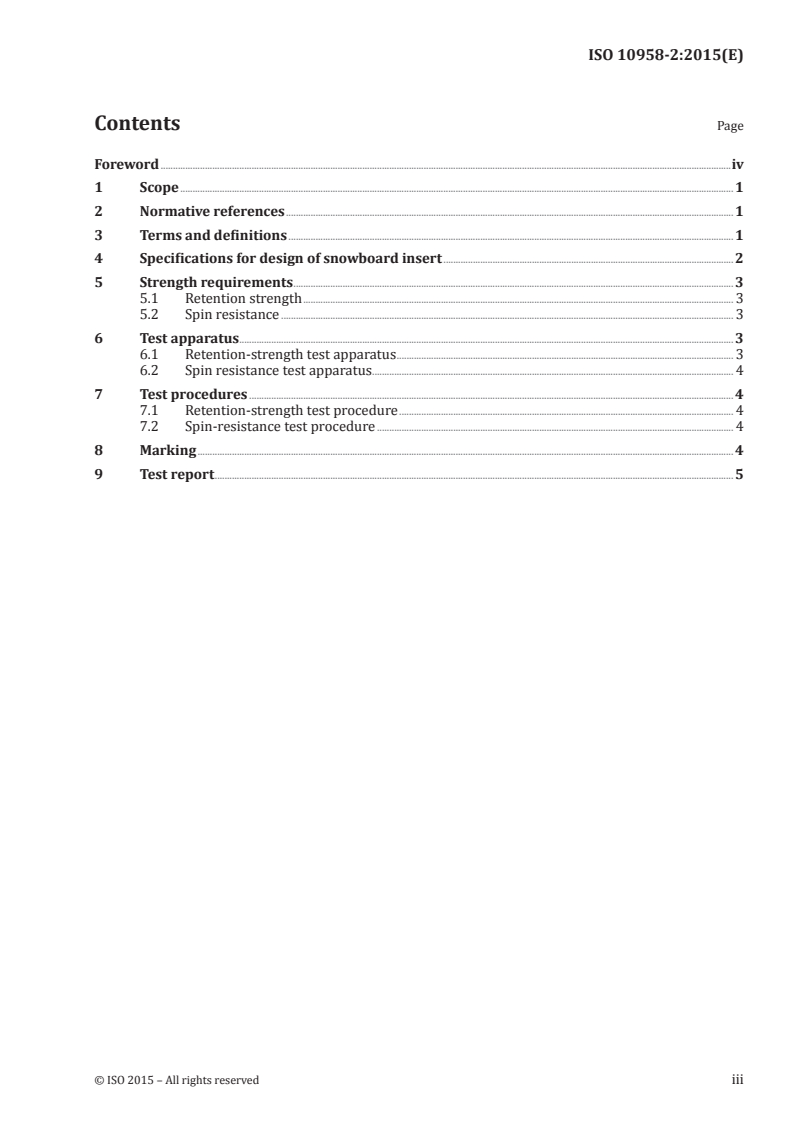

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Specifications for design of snowboard insert . 2
5 Strength requirements . 3
5.1 Retention strength . 3
5.2 Spin resistance . 3
6 Test apparatus . 3
6.1 Retention-strength test apparatus . 3
6.2 Spin resistance test apparatus . 4
7 Test procedures . 4
7.1 Retention-strength test procedure . 4
7.2 Spin-resistance test procedure . 4
8 Marking . 4
9 Test report . 5

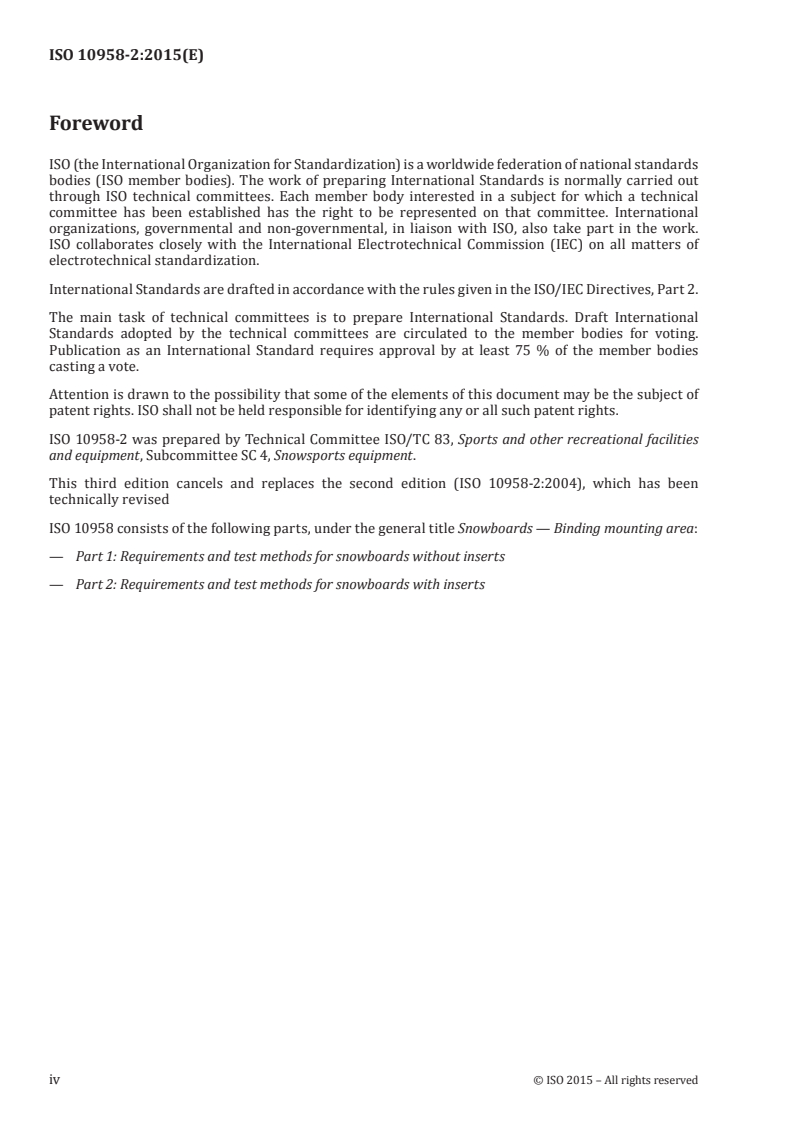

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 10958-2 was prepared by Technical Committee ISO/TC 83, Sports and other recreational facilities
and equipment, Subcommittee SC 4, Snowsports equipment.
This third edition cancels and replaces the second edition (ISO 10958-2:2004), which has been
technically revised
ISO 10958 consists of the following parts, under the general title Snowboards — Binding mounting area:
— Part 1: Requirements and test methods for snowboards without inserts
— Part 2: Requirements and test methods for snowboards with inserts
iv © ISO 2015 – All rights reserved
...

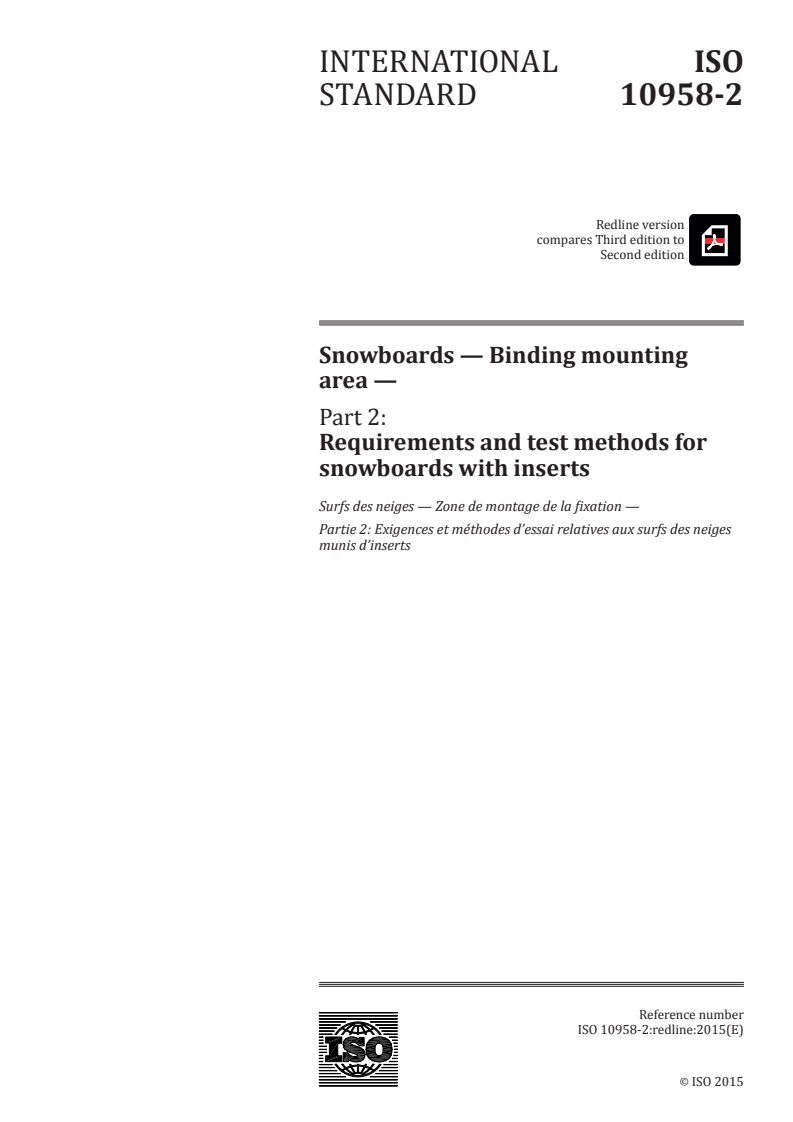

INTERNATIONAL ISO
STANDARD 10958-2
Redline version
compares Third edition to
Second edition
Snowboards — Binding mounting
area —
Part 2:
Requirements and test methods for
snowboards with inserts
Surfs des neiges — Zone de montage de la fixation —
Partie 2: Exigences et méthodes d’essai relatives aux surfs des neiges
munis d’inserts
Reference number
ISO 10958-2:redline:2015(E)
©
ISO 2015
ISO 10958-2:redline:2015(E)

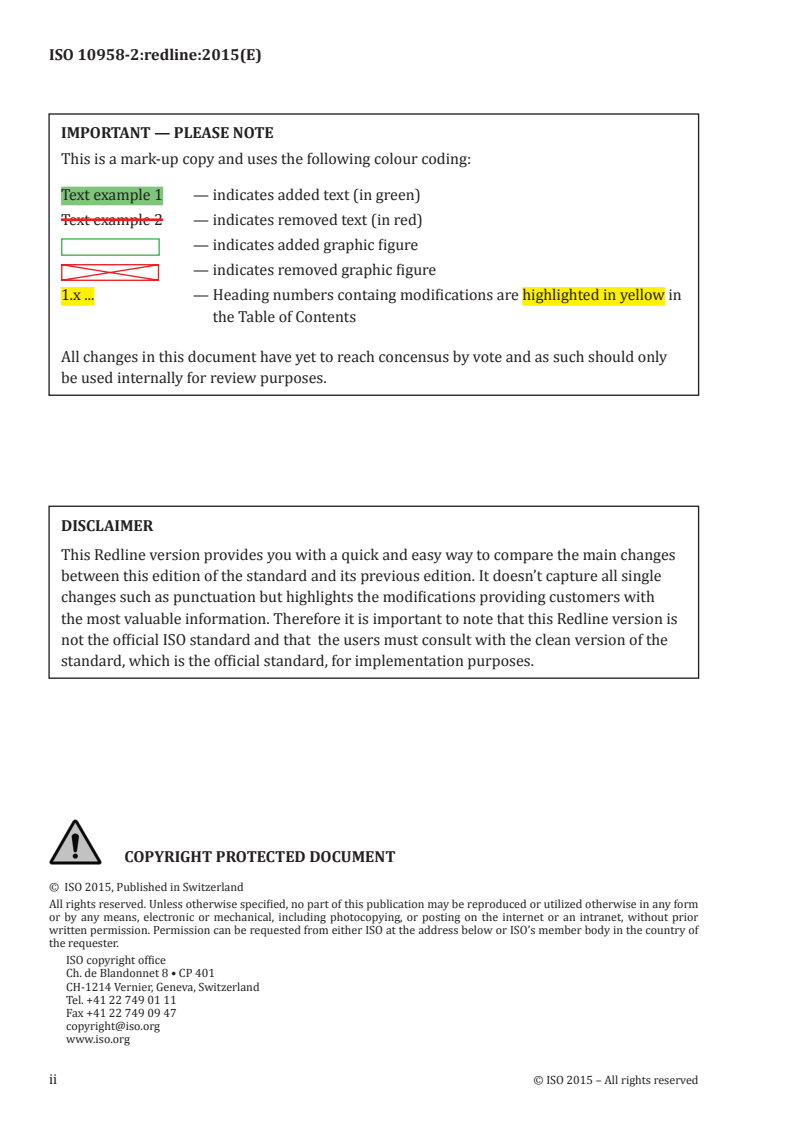

IMPORTANT — PLEASE NOTE
This is a mark-up copy and uses the following colour coding:
Text example 1 — indicates added text (in green)
— indicates removed text (in red)
Text example 2
— indicates added graphic figure
— indicates removed graphic figure
1.x . — Heading numbers containg modifications are highlighted in yellow in
the Table of Contents
All changes in this document have yet to reach concensus by vote and as such should only
be used internally for review purposes.
DISCLAIMER
This Redline version provides you with a quick and easy way to compare the main changes
between this edition of the standard and its previous edition. It doesn’t capture all single
changes such as punctuation but highlights the modifications providing customers with
the most valuable information. Therefore it is important to note that this Redline version is
not the official ISO standard and that the users must consult with the clean version of the
standard, which is the official standard, for implementation purposes.
© ISO 2015, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2015 – All rights reserved

ISO 10958-2:redline:2015(E)

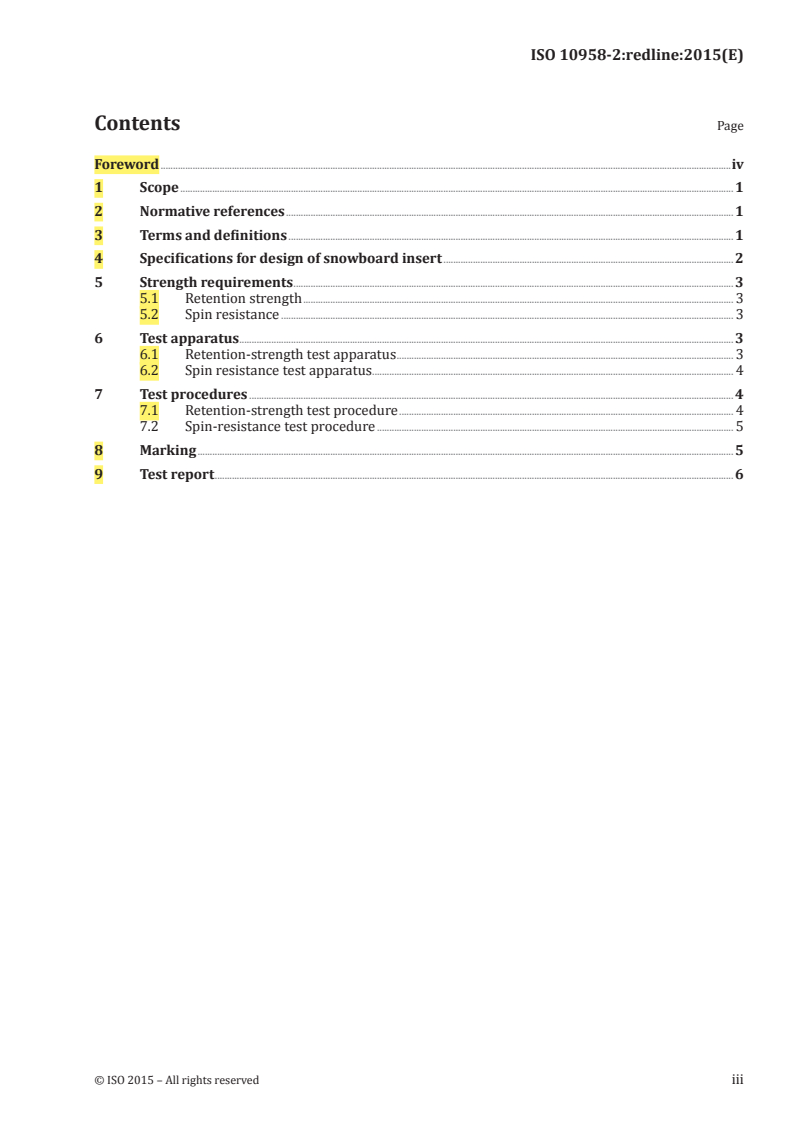

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Specifications for design of snowboard insert . 2
5 Strength requirements . 3
5.1 Retention strength . 3
5.2 Spin resistance . 3
6 Test apparatus . 3
6.1 Retention-strength test apparatus . 3
6.2 Spin resistance test apparatus . 4
7 Test procedures . 4
7.1 Retention-strength test procedure . 4
7.2 Spin-resistance test procedure . 5
8 Marking . 5
9 Test report . 6
ISO 10958-2:redline:2015(E)

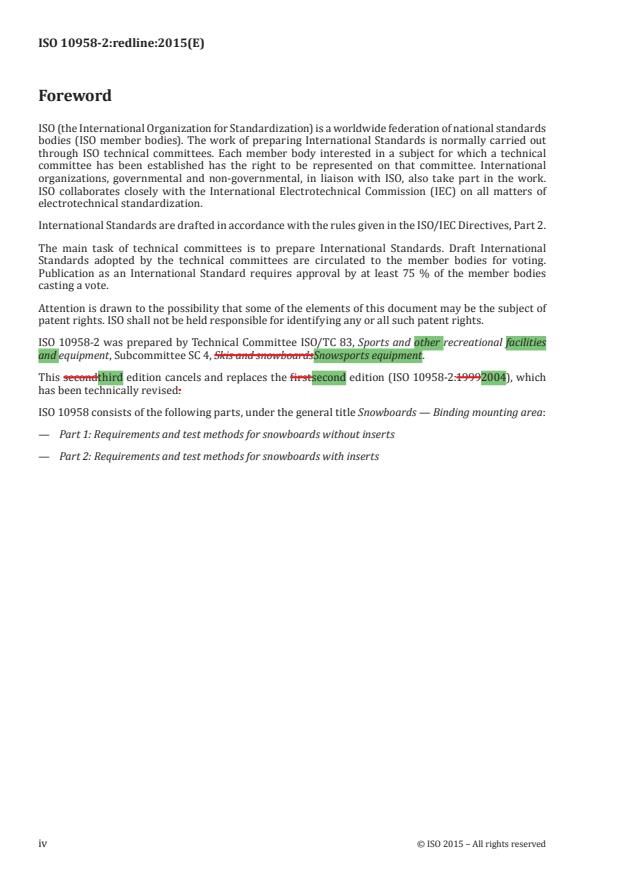

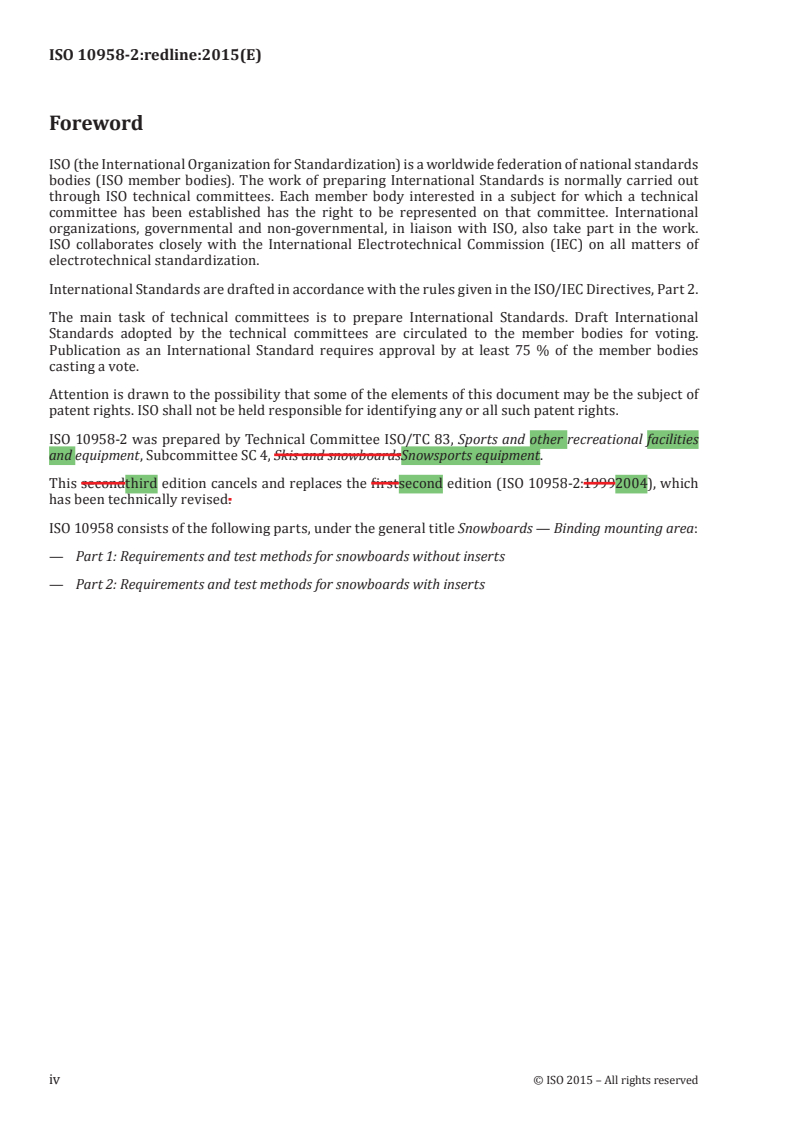

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International
Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies
casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 10958-2 was prepared by Technical Committee ISO/TC 83, Sports and other recreational facilities
and equipment, Subcommittee SC 4, Skis and snowboardsSnowsports equipment.
This secondthird edition cancels and replaces the firstsecond edition (ISO 10958-2:19992004), which
has been technica
...

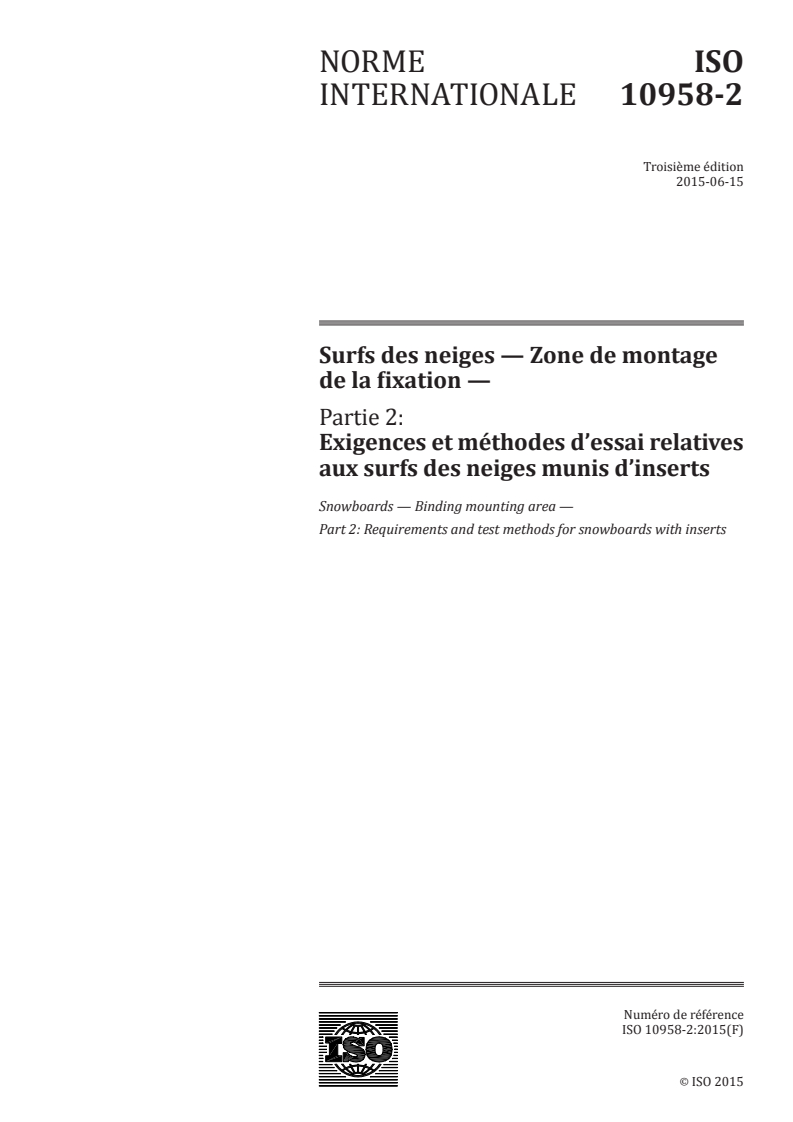

NORME ISO
INTERNATIONALE 10958-2
Troisième édition
2015-06-15
Surfs des neiges — Zone de montage
de la fixation —
Partie 2:
Exigences et méthodes d’essai relatives
aux surfs des neiges munis d’inserts
Snowboards — Binding mounting area —
Part 2: Requirements and test methods for snowboards with inserts
Numéro de référence
©
ISO 2015
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2015, Publié en Suisse
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni utilisée
sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie, l’affichage sur
l’internet ou sur un Intranet, sans autorisation écrite préalable. Les demandes d’autorisation peuvent être adressées à l’ISO à
l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2015 – Tous droits réservés

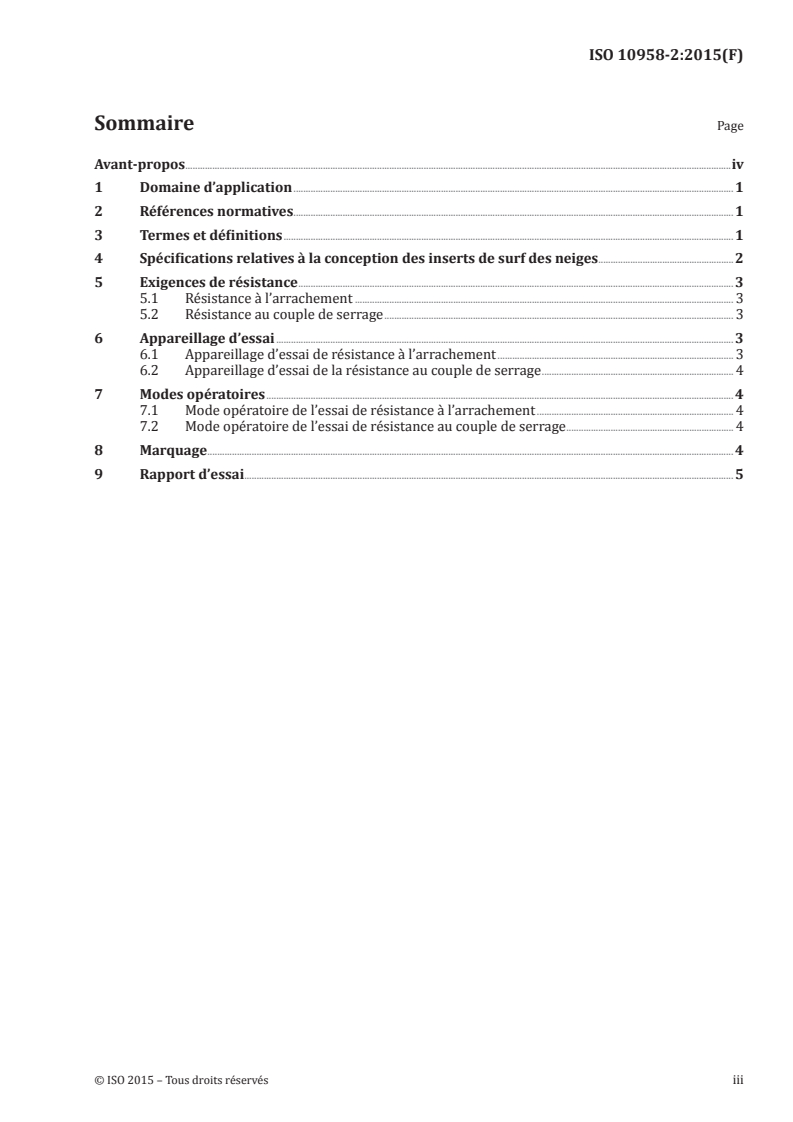

Sommaire Page
Avant-propos .iv
1 Domaine d’application . 1
2 Références normatives . 1
3 Termes et définitions . 1
4 Spécifications relatives à la conception des inserts de surf des neiges .2
5 Exigences de résistance . 3
5.1 Résistance à l’arrachement . 3
5.2 Résistance au couple de serrage . 3
6 Appareillage d’essai . 3
6.1 Appareillage d’essai de résistance à l’arrachement . 3
6.2 Appareillage d’essai de la résistance au couple de serrage . 4
7 Modes opératoires . 4
7.1 Mode opératoire de l’essai de résistance à l’arrachement . 4
7.2 Mode opératoire de l’essai de résistance au couple de serrage . 4
8 Marquage . 4
9 Rapport d’essai . 5

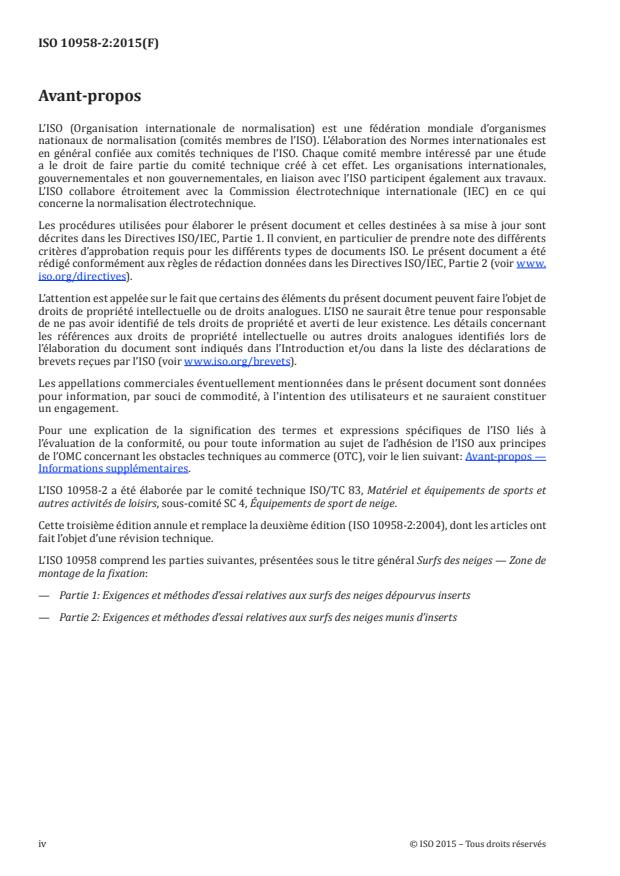

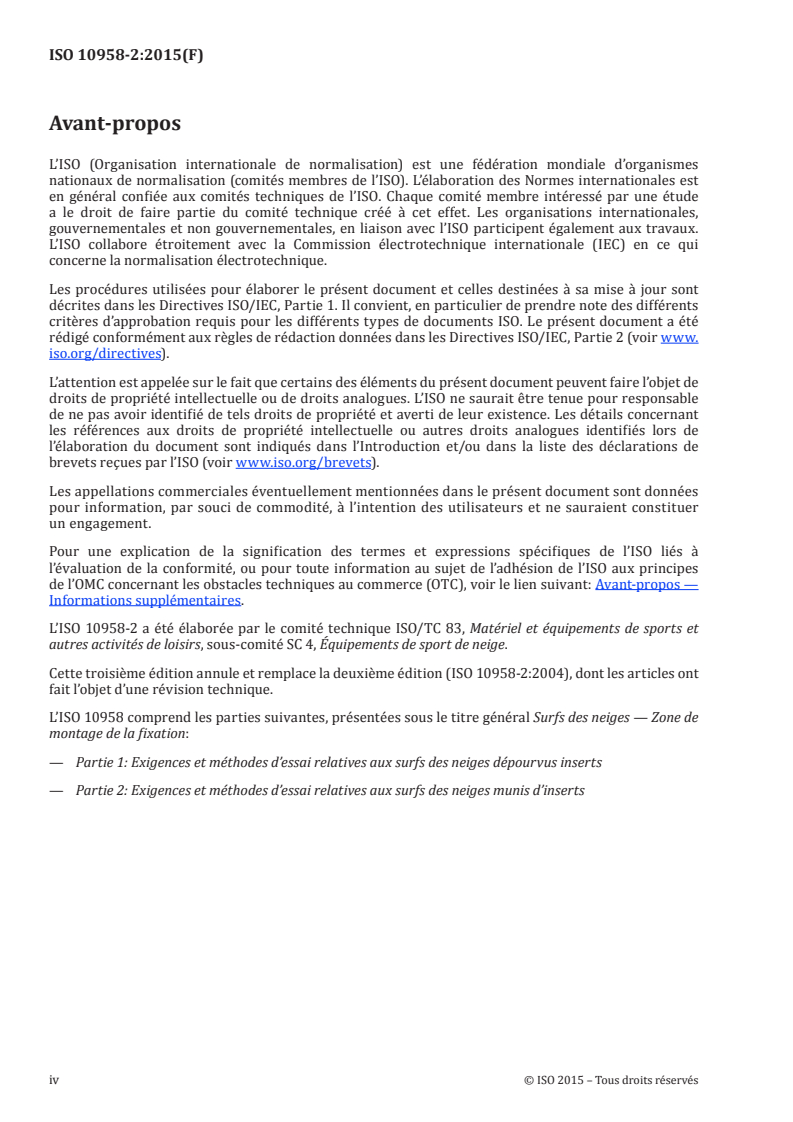

Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération mondiale d’organismes
nationaux de normalisation (comités membres de l’ISO). L’élaboration des Normes internationales est
en général confiée aux comités techniques de l’ISO. Chaque comité membre intéressé par une étude
a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec l’ISO participent également aux travaux.
L’ISO collabore étroitement avec la Commission électrotechnique internationale (IEC) en ce qui
concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier de prendre note des différents
critères d’approbation requis pour les différents types de documents ISO. Le présent document a été
rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir www.
iso.org/directives).
L’attention est appelée sur le fait que certains des éléments du présent document peuvent faire l’objet de
droits de propriété intellectuelle ou de droits analogues. L’ISO ne saurait être tenue pour responsable
de ne pas avoir identifié de tels droits de propriété et averti de leur existence. Les détails concernant
les références aux droits de propriété intellectuelle ou autres droits analogues identifiés lors de
l’élaboration du document sont indiqués dans l’Introduction et/ou dans la liste des déclarations de
brevets reçues par l’ISO (voir www.iso.org/brevets).
Les appellations commerciales éventuellement mentionnées dans le présent document sont données
pour information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer
un engagement.
Pour une explication de la signification des termes et expressions spécifiques de l’ISO liés à
l’évaluation de la conformité, ou pour toute information au sujet de l’adhésion de l’ISO aux principes
de l’OMC concernant les obstacles techniques au commerce (OTC), voir le lien suivant: Avant-propos —
Informations supplémentaires.
L’ISO 10958-2 a été élaborée par le comité technique ISO/TC 83, Matériel et équipements de sports et
autres activités de loisirs, sous-comité SC 4, Équipements de sport de neige.
Cette troisième édition annule et remplace la deuxième édition (ISO 10958-2:2004), dont les articles ont
fait l’objet d’une révision technique.
L’ISO 10958 comprend les parties suivantes, présentées sous le titre général Surfs des neiges — Zone de
montage de la fixation:
— Partie 1: Exigences et méthodes d’essai relatives aux surfs des neiges dépourvus inserts
— Partie 2: Exigences et méthodes d’essai relatives aux surfs des neiges munis d’inserts
iv © ISO 2015 – Tous droits réservés

NORME INTERNATIONALE ISO 10958-2:2015(F)
Surfs des neiges — Zone de montage de la fixation —
Partie 2:
Exigences et méthodes d’essai relatives aux surfs des
neiges munis d’insert
...
