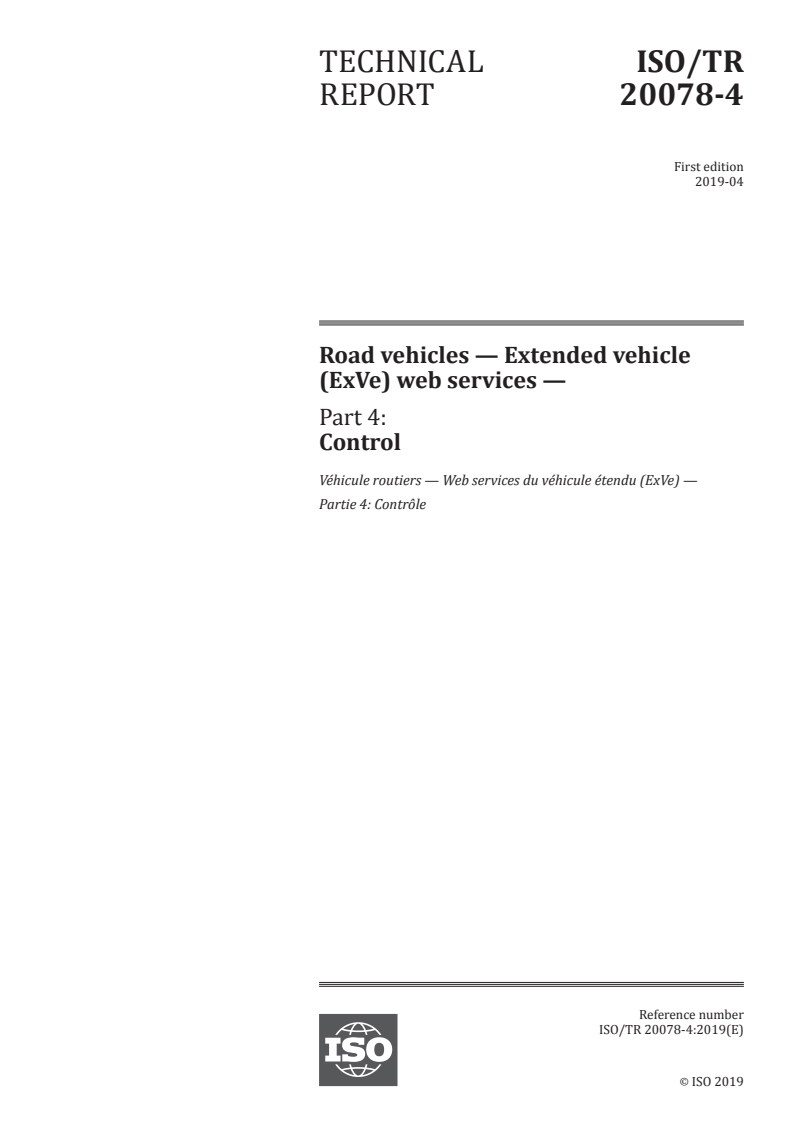

TECHNICAL ISO/TR
REPORT 20078-4
First edition
2019-04
Road vehicles — Extended vehicle
(ExVe) web services —
Part 4:
Control
Véhicule routiers — Web services du véhicule étendu (ExVe) —
Partie 4: Contrôle
Reference number
ISO/TR 20078-4:2019(E)
©
ISO 2019
---------------------- Page: 1 ----------------------
ISO/TR 20078-4:2019(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2019
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/TR 20078-4:2019(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms, definitions and abbreviations . 1
4 Roles . 1
4.1 Resource owner. 1
4.1.1 Resources . 1
4.1.2 Containers. 2
4.2 Accessing Party . 3
4.3 Offering Party . 4
5 Processes . 4
5.1 Registration . 4
5.1.1 Accept registration of a requesting Party . 4
5.1.2 Reject Registration of a requesting Party . 4
5.1.3 Accept Resource Owner Registration . 5
5.1.4 Reject Resource Owner Registration . 5
5.2 Resources . 6
5.2.1 Grant Access to Resources . 6
5.2.2 Reject Access to Resources. 7
5.2.3 Ignore Access Request to Resources . 8
5.2.4 Revoke Access to Resources . 8
5.3 Containers . 9
5.3.1 Creation of a Container. 9
5.3.2 Deletion of a Container . 9
5.3.3 Grant Access to Resources grouped by a Containers .10
5.3.4 Reject Access to Containers .11
5.3.5 Ignore Access Request to Containers .12
5.3.6 Revoke Access to Containers .12
5.4 Resource Access .13
5.4.1 Access .13
5.4.2 No Access .13
Annex A (informative) Registration of the service/application owner at the Accessing Party .15
Bibliography .16
© ISO 2019 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/TR 20078-4:2019(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso
.org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 31,
Data communication.
A list of all parts in the ISO 20078 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/members .html.
iv © ISO 2019 – All rights reserved
---------------------- Page: 4 ----------------------
TECHNICAL REPORT ISO/TR 20078-4:2019(E)
Road vehicles — Extended vehicle (ExVe) web services —
Part 4:
Control
1 Scope
This document describes the processes of an Offering Party’s implementation to provide (ISO 20078-2)
Access controlled (ISO 20078-3) Resources (ISO 20078-1) to Accessing Parties. The processes are
summarized as: Registration of different stakeholder as well as granting, denying and revoking of
Access to Resources. Those processes are held as examples of combining ISO 20078-1, ISO 20078-2 and
ISO 20078-3 and can vary depending on the actual implementation of the Offering Party.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 20078-1, Road vehicles — Extended vehicle (ExVe) ‘web services’ — Part 1: Content
3 Terms, definitions and abbreviations
For the purposes of this document, the terms, definitions and abbreviations given in ISO 20078-1 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https: //www .iso .org/obp
— IEC Electropedia: available at http: //www .electropedia .org/
4 Roles
4.1 Resource owner
4.1.1 Resources
The Resource Owner is in control of the access to its Resources. To control access, the Resource Owner
uses the processes: granting, denying, ignoring and revoking.
© ISO 2019 – All rights reserved 1
---------------------- Page: 5 ----------------------
ISO/TR 20078-4:2019(E)
Figure 1 — The Resource Owner grants, denies or revokes access to Resources
Figure 1 illustrates an example of how a Resource Owner controls access to Resources offered to
the accessing Party by the offering Party. The Resource Owner can grant, deny or revoke access
(ISO 20078-3) to its Resources at any time.
— Granting: The Resource Owner reviews the resources presented by the Offering Party and decides
to grant access to the Accessing Party.
— Denying: The Resource Owner reviews the Resources presented by the Offering Party and decides
to deny access to the Accessing Party.
— Ignoring: The Resource Owner does not grant or deny access to the Accessing Party. The request
stays pending for a pre-defined time, after which it will be denied.
— Revoking: The Resource Owner revokes an already granted access to an Accessing Party.
NOTE The Accessing Party is a third-party service provider or the VM when acting as a service provider
both acting for after sales services after the ExVe has been sold or leased.
4.1.2 Containers
The Resource Owner is in control of the Access (ISO 20078-3) to their Resources (ISO 20078-1) grouped
by a Container. The Resource Owner uses the processes: registration, granting, denying, ignoring,
revoking to grant, deny or revoke Access Resources.
The content of a Container is defined by the Accessing Party or the Offering Party. The Offering Party
offers the Container with the granted Resources if available.
2 © ISO 2019 – All rights reserved
---------------------- Page: 6 ----------------------
ISO/TR 20078-4:2019(E)
Figure 2 — The Resource Owner grants, denies or revokes Access to Containers
Figure 2 displays an example for one Accessing Party. The Accessing Party or the Offering Party defines
Containers, each identified by a unique “CID”, to Access Resources of the Offering Party. The Resource
Owner can individually grant, deny or revoke — at any time — Access (ISO 20078-3) to Resources of
defined Containers (ISO 20078-1). Such decisions made by the Resource Owner are collectively called
the request permission processes. Possible states or outcomes of these processes are:
— Granted: A certain Container is defined by the Accessing or the Offering Party. The Resource Owner
grants Access to the Container for the Accessing Party. Through this grant process the Resource
Owner verifies that both the Resources, and the purpose of data processing of the Container are
presented by the Offering Party; see Figure 15 and/or Figures 16 and 17.
— Denied: A certain Container is defined by the Accessing or the Offering Party. The Resource Owner
denies the Access to the Container for the Accessing Party. Because of this action, the Resource
Owner does not approve the Access to the Resources and/or the purpose of data processing of the
Container that are presented by the Offering Party; see Figure 18.
— Pending/Ignored: A certain Container is defined by the Accessing or the Offering Party and selected
for a grant request. After starting the request, the Resource Owner does not continue to either grant
or to deny. The request stays pending as long as it is ignored by the Resource Owner. If a pre-defined
time passes, and the request has been ignored, it is denied by the Offering Party; see Figure 19.
— Revoked: A certain Container is defined by the Accessing Party or the Offering Party and was granted
by the Resource Owner. After a certain time, the Resource Owner revokes the Access to Resources
of the Container for the Accessing Party. This immediately denies any further Access to Resources
for the Accessing Party; see Figure 20.
4.2 Accessing Party
The Accessing Party uses the issued credentials to authenticate itself when requesting Access tokens
from the Offering Party. To retrieve an Access token and Access the Resource Owner’s Resources, an
explicit grant from the Resource Owner is required.
© ISO 2019 – All rights reserved 3
---------------------- Page: 7 ----------------------
ISO/TR 20078-4:2019(E)
Afterwards the Accessing Party registers its own digital customers on its digital services/applications
and/or on its resource providing services; see Annex A.1 as an example.
These digital customers consume the digital services/applications that are developed, offered
and maintained by the Accessing Party. These services are available for use for as long as Access to
Resources of the Offering Party is granted by the Resource Owner.
4.3 Offering Party
The Offering Party makes Resources available via web-services for Access by an Accessing Party. The
Offering Party provides Access to Resources based on the consent of the Resource Owner either on
a single resource or Resources grouped by a Container. Additionally, the Offering Party manages the
processes defined in (Clause 5).
5 Processes
5.1 Registration
5.1.1 Accept registration of a requesting Party
A requesting Party (not yet an Accessing Party) sends a registration request with the mandatory
registration information (identification) to the Offering Party.
Figure 3 — Registration request of a requesting Party accepted by the Offering Party
The approval of the registration is in responsibility of the Offering Party. If the registration is approved,
the Offering Party provides information on how to Access web-services and (if available) web portals,
e.g. web service documentation, URIs and necessary credentials.
After successful registration, the requesting Party receives the role of an Accessing Party and may (for
example) create Containers.
The registration process (Figure
...
