Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 22088-5
First edition
2006-08-01


Plastics — Determination of resistance to
environmental stress cracking (ESC) —
Part 5:
Constant tensile deformation method
Plastiques — Détermination de la fissuration sous contrainte dans un
environnement donné (ESC) —
Partie 5: Méthode de déformation en traction constante





Reference number
ISO 22088-5:2006(E)
©
ISO 2006

---------------------- Page: 1 ----------------------
ISO 22088-5:2006(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.


©  ISO 2006
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland

ii © ISO 2006 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 22088-5:2006(E)
Contents Page
Foreword. iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions. 2
4 Principle. 3
5 Apparatus . 4
6 Conditioning and test conditions. 5
6.1 Conditioning. 5
6.2 Test temperature. 5
6.3 Test medium. 5
7 Test specimens . 5
7.1 Shape and dimensions. 5
7.2 Number . 5
7.3 Preparation . 6
8 Test stress . 6
9 Procedure . 7
10 Expression of results . 7
11 Precision. 7
12 Test report . 8
Bibliography . 9

© ISO 2006 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 22088-5:2006(E)

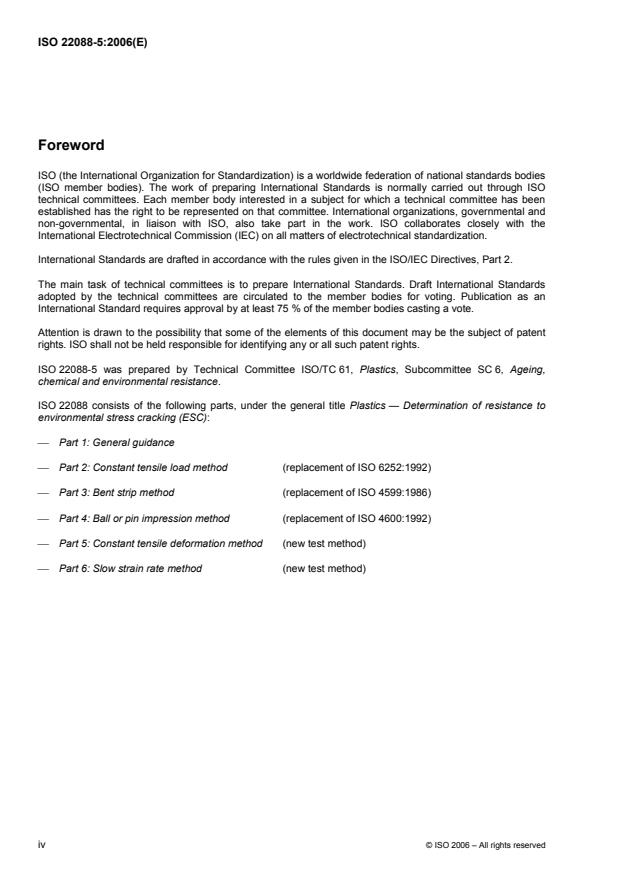

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 22088-5 was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 6, Ageing,
chemical and environmental resistance.
ISO 22088 consists of the following parts, under the general title Plastics — Determination of resistance to
environmental stress cracking (ESC):
⎯ Part 1: General guidance
⎯ Part 2: Constant tensile load method (replacement of ISO 6252:1992)
⎯ Part 3: Bent strip method (replacement of ISO 4599:1986)
⎯ Part 4: Ball or pin impression method (replacement of ISO 4600:1992)
⎯ Part 5: Constant tensile deformation method (new test method)
⎯ Part 6: Slow strain rate method (new test method)

iv © ISO 2006 – All rights reserved

---------------------- Page: 4 ----------------------
INTERNATIONAL STANDARD ISO 22088-5:2006(E)

Plastics — Determination of resistance to environmental stress
cracking (ESC) —
Part 5:
Constant tensile deformation method
1 Scope
This part of ISO 22088 specifies a method for the determination of the environmental stress cracking (ESC)
behaviour of thermoplastics when they are subjected to a constant tensile deformation in the presence of a
chemical medium.
It is applicable to test specimens prepared by moulding and/or machining and can be used for the assessment
of the ESC behaviour of plastic materials exposed to different environments, as well as for the determination
of the ESC behaviour of different plastic materials exposed to a specific environment.
This is essentially a ranking test and is not intended to provide data to be used for design or performance
prediction.
NOTE Alternative methods for the determination of environmental stress cracking by means of a constant-strain test
are specified in ISO 22088-3 and ISO 22088-4. A method for the determination of environmental stress cracking by means
of a constant tensile load is specified in ISO 22088-2.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO 293, Plastics — Compression moulding of test specimens of thermoplastic materials
ISO 294-1, Plastics — Injection moulding of test specimens of thermoplastic materials — Part 1: General
principles, and moulding of multipurpose and bar test specimens
ISO 294-5, Plastics — Injection moulding of test specimens of thermoplastic materials — Part 5: Preparation
of standard specimens for investigating anisotropy
ISO 527-2, Plastics — Determination of tensile properties — Part 2: Test conditions for moulding and
extrusion plastics
ISO 2818, Plastics — Preparation of test specimens by machining
ISO 22088-1:2006, Plastics — Determination of resistance to environmental stress cracking (ESC) — Part 1:
General guidance
© ISO 2006 – All rights reserved 1

---------------------- Page: 5 ----------------------
ISO 22088-5:2006(E)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
stress relaxation
time-dependent decrease in stress
3.2
initial stress
stress occurring when a specimen is first subjected to a constant strain
3.3
stress ratio
ratio of the initial stress to the stress after a certain amount of time
3.4
stress relaxation curve
curve obtained by plotting the stress ratio as ordinate and the logarithm of time as abscissa
3.5
critical stress
maximum stress that can be applied without altering the stress relaxation curve
NOTE The shape of a stress relaxation curve depends upon the strain applied (see Figure 1). Below a certain strain,
further reduction of the strain does not change the curve. The stress at this particular strain is defined as the critical stress.

Key
t time
σ initial stress
0
σ stress at time t
σ/σ stress ratio

0
NOTE 1 The numbers 1 to 5 indicate the order in which the tests were performed.
NOTE 2 The strains applied to the specimens were as follows: curve 2 > curve 1 > curve 3 > curve 4 > curve 5.
NOTE 3 The stress applied in curve 4 corresponds to the critical stress.
Figure 1 — Determination of critical stress
2 © ISO 2006 – All rights reserved

---------------------- Page: 6 ------
...

NORME ISO
INTERNATIONALE 22088-5
Première édition
2006-08-01


Plastiques — Détermination de la
fissuration sous contrainte dans un
environnement donné (ESC) —
Partie 5:
Méthode de déformation en traction
constante
Plastics — Determination of resistance to environmental stress cracking
(ESC) —
Part 5: Constant tensile deformation method



Numéro de référence
ISO 22088-5:2006(F)
©
ISO 2006

---------------------- Page: 1 ----------------------
ISO 22088-5:2006(F)

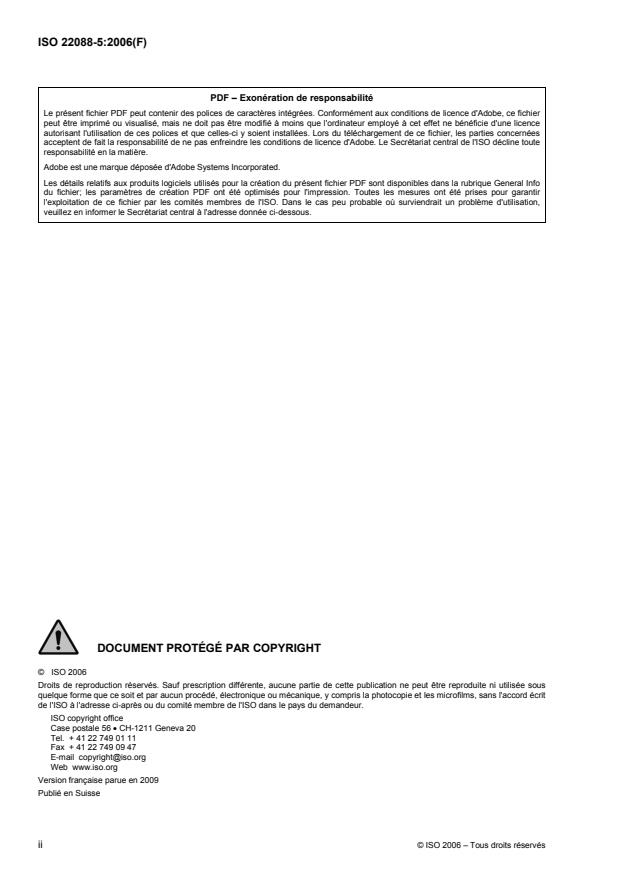

PDF – Exonération de responsabilité

Le présent fichier PDF peut contenir des polices de caractères intégrées. Conformément aux conditions de licence d'Adobe, ce fichier
peut être imprimé ou visualisé, mais ne doit pas être modifié à moins que l'ordinateur employé à cet effet ne bénéficie d'une licence
autorisant l'utilisation de ces polices et que celles-ci y soient installées. Lors du téléchargement de ce fichier, les parties concernées
acceptent de fait la responsabilité de ne pas enfreindre les conditions de licence d'Adobe. Le Secrétariat central de l'ISO décline toute
responsabilité en la matière.
Adobe est une marque déposée d'Adobe Systems Incorporated.
Les détails relatifs aux produits logiciels utilisés pour la création du présent fichier PDF sont disponibles dans la rubrique General Info
du fichier; les paramètres de création PDF ont été optimisés pour l'impression. Toutes les mesures ont été prises pour garantir
l'exploitation de ce fichier par les comités membres de l'ISO. Dans le cas peu probable où surviendrait un problème d'utilisation,
veuillez en informer le Secrétariat central à l'adresse donnée ci-dessous.


DOCUMENT PROTÉGÉ PAR COPYRIGHT


©  ISO 2006
Droits de reproduction réservés. Sauf prescription différente, aucune partie de cette publication ne peut être reproduite ni utilisée sous
quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les microfilms, sans l'accord écrit
de l'ISO à l'adresse ci-après ou du comité membre de l'ISO dans le pays du demandeur.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Version française parue en 2009
Publié en Suisse

ii © ISO 2006 – Tous droits réservés

---------------------- Page: 2 ----------------------
ISO 22088-5:2006(F)
Sommaire Page
Avant-propos. iv
1 Domaine d'application. 1
2 Références normatives . 1
3 Termes et définitions. 2
4 Principe. 3
5 Appareillage . 4
6 Conditionnement et conditions d'essai. 6
6.1 Conditionnement . 6
6.2 Température d'essai . 6
6.3 Milieu d'essai. 6
7 Éprouvettes . 6
7.1 Forme et dimensions. 6
7.2 Nombre . 6
7.3 Préparation . 7
8 Contrainte d'essai. 7
9 Mode opératoire . 8
10 Expression des résultats . 8
11 Fidélité . 8
12 Rapport d'essai . 8
Bibliographie . 10

© ISO 2006 – Tous droits réservés iii

---------------------- Page: 3 ----------------------
ISO 22088-5:2006(F)
Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes nationaux de
normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est en général confiée
aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude a le droit de faire partie du
comité technique créé à cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec l'ISO participent également aux travaux. L'ISO collabore étroitement avec
la Commission électrotechnique internationale (CEI) en ce qui concerne la normalisation électrotechnique.
Les Normes internationales sont rédigées conformément aux règles données dans les Directives ISO/CEI,
Partie 2.
La tâche principale des comités techniques est d'élaborer les Normes internationales. Les projets de Normes
internationales adoptés par les comités techniques sont soumis aux comités membres pour vote. Leur
publication comme Normes internationales requiert l'approbation de 75 % au moins des comités membres
votants.
L'attention est appelée sur le fait que certains des éléments du présent document peuvent faire l'objet de
droits de propriété intellectuelle ou de droits analogues. L'ISO ne saurait être tenue pour responsable de ne
pas avoir identifié de tels droits de propriété et averti de leur existence.
L'ISO 22088-5 a été élaborée par le comité technique ISO/TC 61, Plastiques, sous-comité SC 6,
Vieillissement et résistance aux agents chimiques et environnants.
L'ISO 22088 comprend les parties suivantes, présentées sous le titre général Plastiques — Détermination de
la fissuration sous contrainte dans un environnement donné (ESC):
⎯ Partie 1: Lignes directrices générales
⎯ Partie 2: Méthode sous contrainte de traction constante (remplace l'ISO 6252:1992)
⎯ Partie 3: Méthode de l'éprouvette courbée (remplace l'ISO 4599:1986)
⎯ Partie 4: Méthode par enfoncement de billes ou de goupilles (remplace l'ISO 4600:1992)
⎯ Partie 5: Méthode de déformation en traction constante (nouvelle méthode d'essai)
⎯ Partie 6: Méthode à vitesse de déformation lente (nouvelle méthode d'essai)

iv © ISO 2006 – Tous droits réservés

---------------------- Page: 4 ----------------------
NORME INTERNATIONALE ISO 22088-5:2006(F)

Plastiques — Détermination de la fissuration sous contrainte
dans un environnement donné (ESC) —
Partie 5:
Méthode de déformation en traction constante
1 Domaine d'application
La présente partie de l'ISO 22088 spécifie une méthode de détermination de la fissuration sous contrainte
dans un environnement donné (ESC) des thermoplastiques lorsque ceux-ci sont soumis à une déformation en
traction constante en présence d'un milieu chimique.
Elle est applicable aux éprouvettes préparées par moulage et/ou usinage, et peut être utilisée à la fois pour
l'évaluation de l'ESC de matières plastiques exposées à différents environnements, et pour la détermination
de l'ESC de différentes matières plastiques exposées à un environnement spécifique.
Il s'agit essentiellement d'un essai de classement qui n'est pas destiné à fournir des données exploitables
pour la conception ou la prévision des performances.
NOTE Des méthodes différentes de détermination de l'ESC par un essai de déformation constante sont spécifiées
dans l'ISO 22088-3 et l'ISO 22088-4. Une méthode de détermination sous contrainte de traction constante est spécifiée
dans l'ISO 22088-2.
2 Références normatives
Les documents de référence suivants sont indispensables pour l'application du présent document. Pour les
références datées, seule l'édition citée s'applique. Pour les références non datées, la dernière édition du
document de référence (y compris les amendements) s'applique.
ISO 293, Plastiques — Moulage par compression des éprouvettes en matières thermoplastiques
ISO 294-1, Plastiques — Moulage par injection des éprouvettes de matériaux thermoplastiques — Partie 1:
Principes généraux et moulage des éprouvettes à usages multiples et des barreaux
ISO 294-5, Plastiques — Moulage par injection des éprouvettes de matériaux thermoplastiques — Partie 5:
Préparation d'éprouvettes normalisées pour déterminer l'anisotropie
ISO 527-2, Plastiques — Détermination des propriétés en traction — Partie 2: Conditions d´essai des
plastiques pour moulage et extrusion
ISO 2818, Plastiques — Préparation des éprouvettes par usinage
ISO 22088-1:2006, Plastiques — Détermination de la fissuration sous contrainte dans un environnement
donné (ESC) — Partie 1: Lignes directrices générales
© ISO 2006 – Tous droits réservés 1

---------------------- Page: 5 ----------------------
ISO 22088-5:2006(F)
3 Termes et définitions
Pour les besoins du présent document, les termes et définitions suivants s'appliquent.
3.1
relaxation en contrainte
diminution de la contrainte en fonction du temps
3.2
contrainte initiale
contrainte apparaissant lorsqu'une éprouvette est soumise à une déformation constante pour la première fois
3.3
rapport de contrainte
rapport de la contrainte initiale à la contrainte enregistrée après un certain délai
3.4
courbe de relaxation en contrainte
courbe obtenue par un graphique représentant le rapport de contrainte sur l'axe des ordonnées et le
logarithme du temps sur l'axe des abscisses
3.5
contrainte critique
contrainte maximale possible sans modification de la courbe de relaxation en contrainte
NOTE La forme de la courbe de relaxation en contrainte dépend du niveau de déformation appliqué (voir Figure 1).
En deçà d'un certain niveau, une diminution supplémentaire de la déformation ne modifie pas la courbe. La contrainte
enregistrée à ce niveau de déformation est définie comme étant la contrainte critique.
2 © ISO 2006 – Tous droits réservés

---------------------- Page: 6 ----------------------
ISO 22088-5:2006(F)

Légende
t temps
σ contrainte initiale
0
σ contrainte au temps t
σ/σ rapport de contrainte

0
NOTE 1 Les nombres 1 à 5 indiquent l'ordre de réalisation des essais.
NOTE 2 Les niveaux de déformation appliqués aux éprouvettes sont les suivants:
courbe 2 > courbe 1 > courbe 3 > courbe 4 > courbe 5.
NOTE 3 La contrainte appliquée à la courbe 4 correspond à la contrainte critique.
Figure 1 — Détermination de la contrainte critique
4 Principe
Une éprouvette maintenue à une déformation constante est exposée à un environnement chimique donné, à
une température d'essai sélectionnée. La déformation est produite par une force de traction initiale, inférieure
à celle appliquée au seuil d'écoulement (ou au point de rupture si le matériau ne présente pas de s
...
