Determination of the resistance to jet fires of passive fire protection materials

This document describes a method of determining the resistance to jet fires of passive fire protection materials and systems. It gives an indication of how passive fire protection materials behave in a jet fire and provides performance data under the specified conditions. It does not include an assessment of other properties of the passive fire protection material such as weathering, ageing, shock resistance, impact or explosion resistance, or smoke production. Complete I-beams and columns cannot be tested to this document due to disruption of the characteristics of the jet.

Détermination de la résistance aux feux propulsés des matériaux de protection passive contre l'incendie

General Information

Status
Published
Publication Date
30-Jun-2021
Current Stage
5060 - Close of voting Proof returned by Secretariat
Start Date
03-Jun-2021
Completion Date
02-Jun-2021
Ref Project

RELATIONS

Buy Standard

Standard
ISO 22899-1:2021 - Determination of the resistance to jet fires of passive fire protection materials
English language
43 pages
sale 15% off
Preview
sale 15% off
Preview
Draft
ISO/FDIS 22899-1:Version 03-apr-2021 - Determination of the resistance to jet fires of passive fire protection materials
English language
43 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

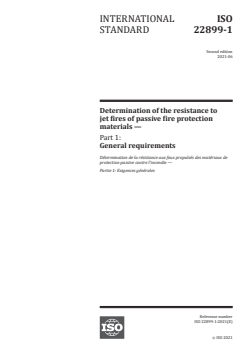

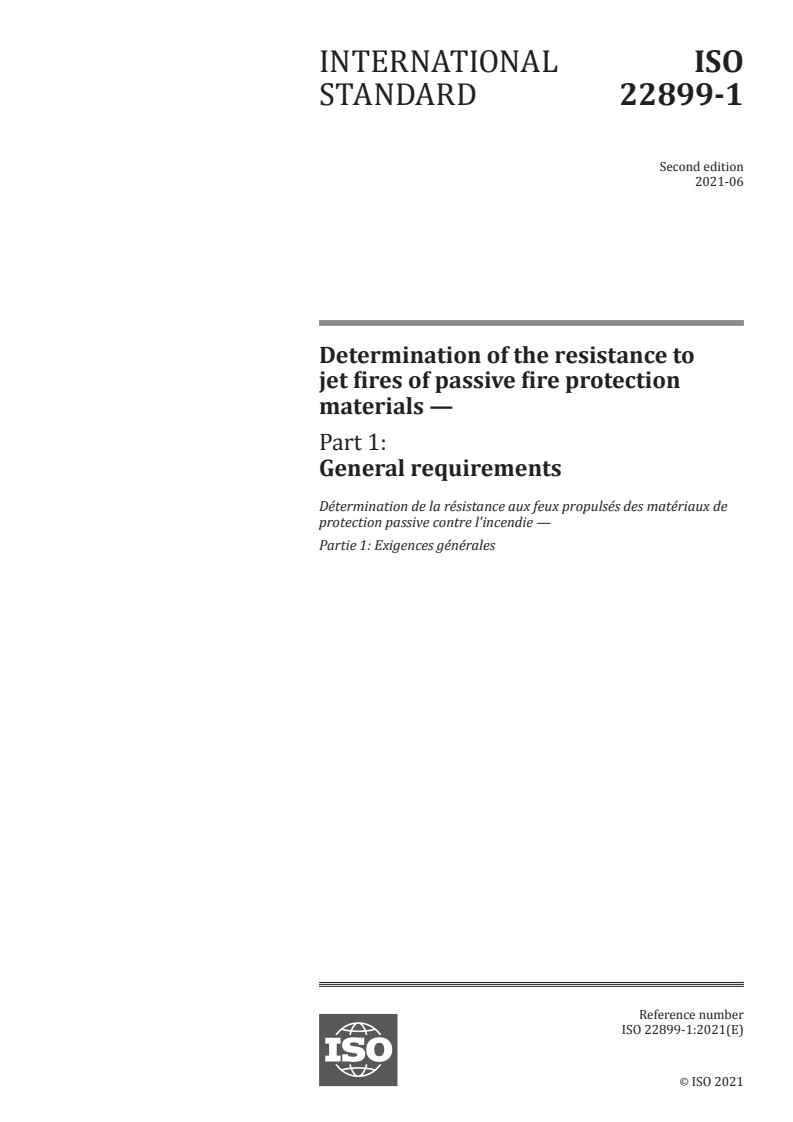

INTERNATIONAL ISO
STANDARD 22899-1
Second edition
2021-06
Determination of the resistance to
jet fires of passive fire protection
materials —
Part 1:
General requirements
Détermination de la résistance aux feux propulsés des matériaux de
protection passive contre l'incendie —
Partie 1: Exigences générales
Reference number
ISO 22899-1:2021(E)
ISO 2021
---------------------- Page: 1 ----------------------
ISO 22899-1:2021(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2021

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved
---------------------- Page: 2 ----------------------
ISO 22899-1:2021(E)

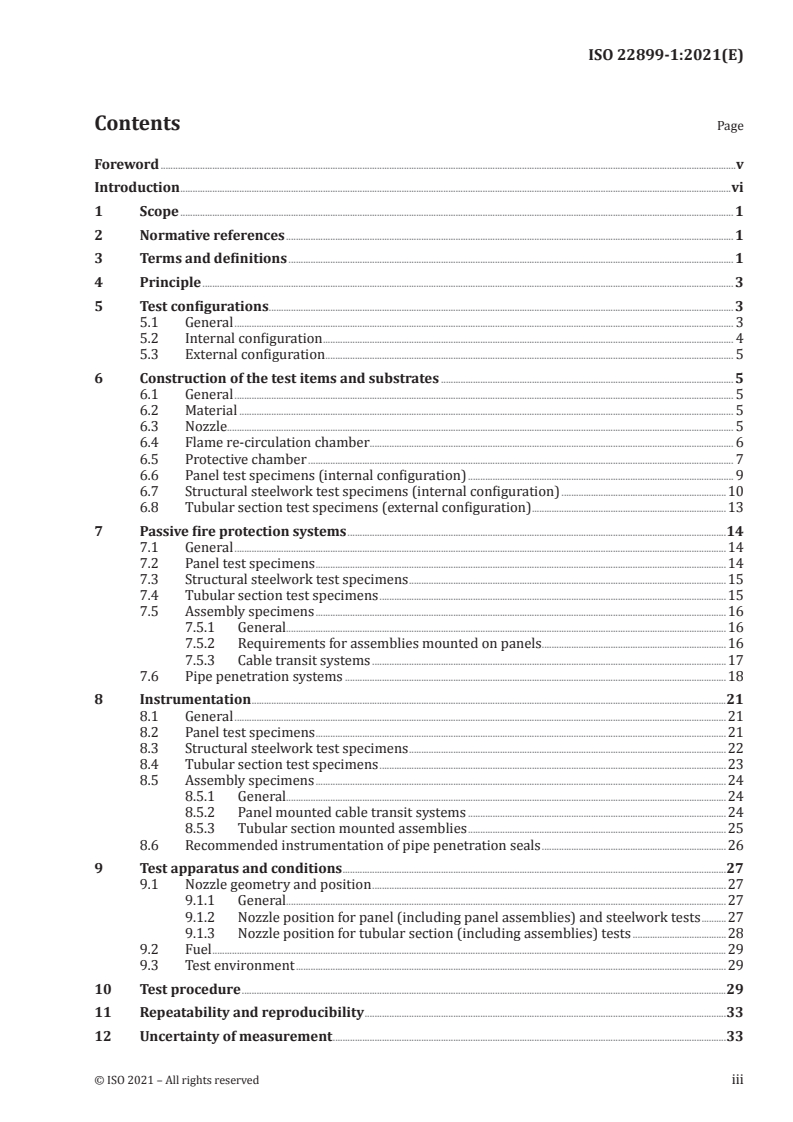

Contents Page

Foreword ..........................................................................................................................................................................................................................................v

Introduction ................................................................................................................................................................................................................................vi

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Principle ........................................................................................................................................................................................................................ 3

5 Test configurations ............................................................................................................................................................................................. 3

5.1 General ........................................................................................................................................................................................................... 3

5.2 Internal configuration ....................................................................................................................................................................... 4

5.3 External configuration ...................................................................................................................................................................... 5

6 Construction of the test items and substrates ....................................................................................................................... 5

6.1 General ........................................................................................................................................................................................................... 5

6.2 Material ......................................................................................................................................................................................................... 5

6.3 Nozzle.............................................................................................................................................................................................................. 5

6.4 Flame re-circulation chamber.................................................................................................................................................... 6

6.5 Protective chamber ............................................................................................................................................................................. 7

6.6 Panel test specimens (internal configuration) ............................................................................................................ 9

6.7 Structural steelwork test specimens (internal configuration) ...................................................................10

6.8 Tubular section test specimens (external configuration) ...............................................................................13

7 Passive fire protection systems ..........................................................................................................................................................14

7.1 General ........................................................................................................................................................................................................14

7.2 Panel test specimens .......................................................................................................................................................................14

7.3 Structural steelwork test specimens .................................................................................................................................15

7.4 Tubular section test specimens .............................................................................................................................................15

7.5 Assembly specimens .......................................................................................................................................................................16

7.5.1 General...................................................................................................................................................................................16

7.5.2 Requirements for assemblies mounted on panels .................. .........................................................16

7.5.3 Cable transit systems ................................................................................................................................................17

7.6 Pipe penetration systems ...........................................................................................................................................................18

8 Instrumentation .................................................................................................................................................................................................21

8.1 General ........................................................................................................................................................................................................21

8.2 Panel test specimens .......................................................................................................................................................................21

8.3 Structural steelwork test specimens .................................................................................................................................22

8.4 Tubular section test specimens .............................................................................................................................................23

8.5 Assembly specimens .......................................................................................................................................................................24

8.5.1 General...................................................................................................................................................................................24

8.5.2 Panel mounted cable transit systems .........................................................................................................24

8.5.3 Tubular section mounted assemblies .........................................................................................................25

8.6 Recommended instrumentation of pipe penetration seals ...........................................................................26

9 Test apparatus and conditions ............................................................................................................................................................27

9.1 Nozzle geometry and position ................................................................................................................................................27

9.1.1 General...................................................................................................................................................................................27

9.1.2 Nozzle position for panel (including panel assemblies) and steelwork tests ..........27

9.1.3 Nozzle position for tubular section (including assemblies) tests ......................................28

9.2 Fuel .................................................................................................................................................................................................................29

9.3 Test environment ...............................................................................................................................................................................29

10 Test procedure .....................................................................................................................................................................................................29

11 Repeatability and reproducibility ...................................................................................................................................................33

12 Uncertainty of measurement ................................................................................................................................................................33

© ISO 2021 – All rights reserved iii
---------------------- Page: 3 ----------------------

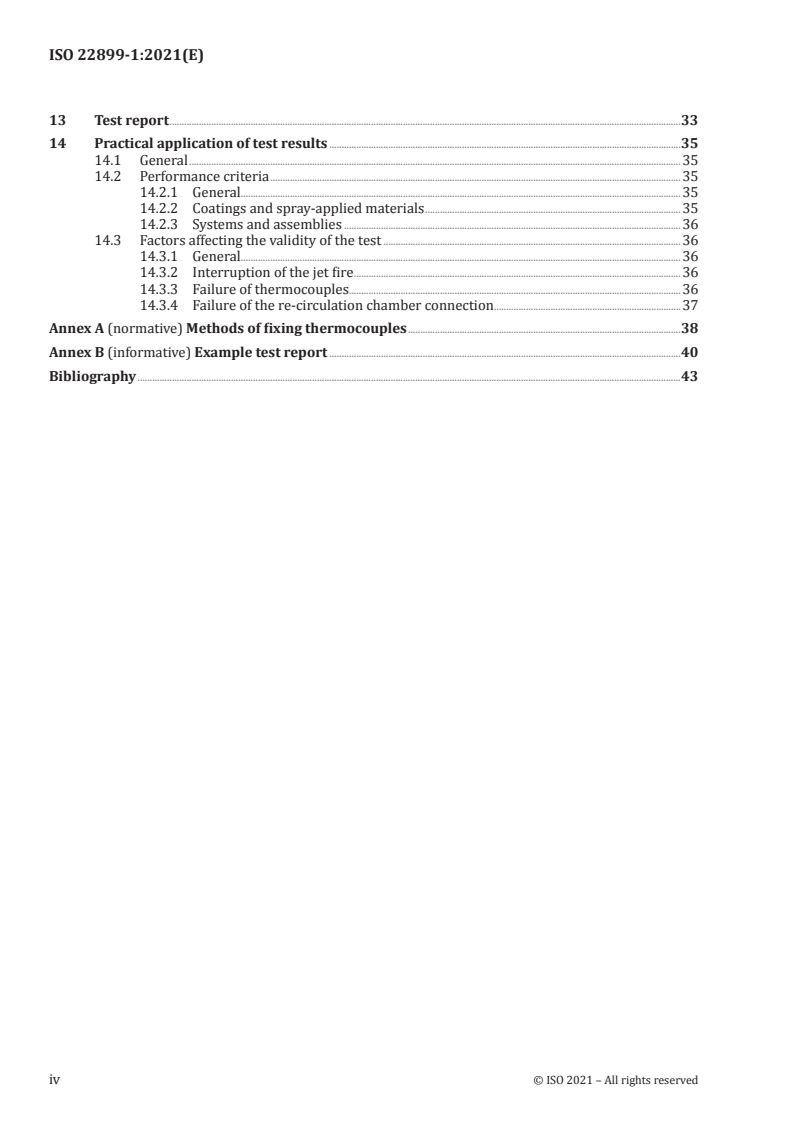

ISO 22899-1:2021(E)

13 Test report ................................................................................................................................................................................................................33

14 Practical application of test results ...............................................................................................................................................35

14.1 General ........................................................................................................................................................................................................35

14.2 Performance criteria .......................................................................................................................................................................35

14.2.1 General...................................................................................................................................................................................35

14.2.2 Coatings and spray-applied materials ........................................................................................................35

14.2.3 Systems and assemblies .........................................................................................................................................36

14.3 Factors affecting the validity of the test .........................................................................................................................36

14.3.1 General...................................................................................................................................................................................36

14.3.2 Interruption of the jet fire .....................................................................................................................................36

14.3.3 Failure of thermocouples .................. .....................................................................................................................36

14.3.4 Failure of the re-circulation chamber connection ............................................................................37

Annex A (normative) Methods of fixing thermocouples ...............................................................................................................38

Annex B (informative) Example test report ...............................................................................................................................................40

Bibliography .............................................................................................................................................................................................................................43

iv © ISO 2021 – All rights reserved
---------------------- Page: 4 ----------------------
ISO 22899-1:2021(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 92 Fire safety, Subcommittee SC 2, Fire

containment.

This second edition cancels and replaces the first edition (ISO 22899-1:2007), which has been

technically revised. The main changes compared to the previous edition are as follows:

— Corrections to figures;
— Revision of the method of test for penetration seals.
A list of all parts in the ISO 22899 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
© ISO 2021 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO 22899-1:2021(E)
Introduction

The test procedure described in this document enables the determination of properties of passive

fire protection materials. This test is designed to give an indication of how passive fire protection

materials are likely to perform in a jet fire. The dimensions of the test specimen can be smaller than

typical structure or plant items and the release of gas can be substantially less than that which can

occur in a credible event. However, individual thermal and mechanical loads imparted to the passive

fire protection material from the jet fire defined in this document have been shown to be similar to

those imparted from large-scale jet fires resulting from high-pressure releases of natural gas.

NOTE Guidance on the applicability of the test is intended to be covered in a future part of the ISO 22899

series.

Although the method specified in this document has been designed to simulate certain conditions

that occur in an actual jet fire, it cannot reproduce them all exactly and the thermal and mechanical

loads do not necessarily coincide. The results of this test do not guarantee safety but may be used as

elements of a fire risk assessment for structures or plants. This should also take into account all the

other factors that are pertinent to an assessment of the fire hazard for a particular end use. The test is

[3]

not intended to replace the hydrocarbon fire resistance test (ISO/TR 834-3/EN 1363-2 ) but is seen as

a complementary test.

Users of this document are advised to consider the desirability of third-party certification/inspection/

testing of product conformity with this document.
vi © ISO 2021 – All rights reserved
---------------------- Page: 6 ----------------------
INTERNATIONAL STANDARD ISO 22899-1:2021(E)
Determination of the resistance to jet fires of passive fire
protection materials —
Part 1:
General requirements
1 Scope

This document describes a method of determining the resistance to jet fires of passive fire protection

materials and systems. It gives an indication of how passive fire protection materials behave in a jet fire

and provides performance data under the specified conditions.

It does not include an assessment of other properties of the passive fire protection material such as

weathering, ageing, shock resistance, impact or explosion resistance, or smoke production.

Complete I-beams and columns cannot be tested to this document due to disruption of the characteristics

of the jet.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 834-1:1999, Fire-resistance tests — Elements of building construction — Part 1: General requirements

ISO 13702, Petroleum and natural gas industries — Control and mitigation of fires and explosions on

offshore production installations — Requirements and guidelines
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
assembly
unit or structure composed of a combination of materials or products, or both
3.2
critical temperature

maximum temperature that the equipment, assembly (3.1) or structure to be protected may be allowed

to reach
3.3
Delta Tmax
maximum temperature rise (3.18) recorded by any of the installed thermocouples
© ISO 2021 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO 22899-1:2021(E)
3.4
fire barrier

separating element that resists the passage of flame and/or heat and/or effluents for a period of time

under specified conditions
3.5
fire resistance

ability of an item to fulfil, for a stated period of time, the required stability and/or integrity (3.8) and/

or thermal insulation and/or other expected duty, reaching the critical temperature (3.2) specified in a

standard fire-resistance test
3.6
fire test

procedure designed to measure or assess the performance of a material, product, structure or system

to one or more aspects of fire
3.7
flame re-circulation chamber

mild steel box, open at the front, into which the jet fire (3.10) is directed giving a re-circulating flame

resulting in a fireball
Note 1 to entry: Materials other than mild steel may be used when appropriate.
3.8
integrity

ability of a separating element, when exposed to fire on one side, to prevent the passage of flames and

hot gases or occurrence of flames on the unexposed side, for a stated period of time in a standard fire

resistance (3.5) test
3.9
intermediate-scale test
test performed on an item of medium dimensions

Note 1 to entry: A test performed on an item of which the maximum dimension is between 1 m and 3 m is usually

called an intermediate-scale test. This document describes an intermediate-scale jet fire test (3.6).

3.10
jet fire
ignited discharge of propane vapour under pressure
3.11
jet nozzle
orifice from which the flammable material issues
3.12
outside specimen diameter

specimen diameter measured to the outer surface of the passive fire protection (3.13) system on a

tubular specimen
3.13
passive fire protection

coating or cladding arrangement or free-standing system that, in the event of fire, provides thermal

protection to restrict the rate at which heat is transmitted to the object or area being protected

Note 1 to entry: The term "passive" is used to distinguish the systems tested, including those systems that react

chemically, e.g. intumescents, from active systems such as water deluge.
3.14
passive fire protection material

coating or cladding that, in the event of a fire, provides thermal protection to restrict the rate at which

heat is transmitted to the object or area being protected
2 © ISO 2021 – All rights reserved
---------------------- Page: 8 ----------------------
ISO 22899-1:2021(E)
3.15
passive fire protection system

removable jacket or inspection panel, cable transit system, pipe penetration seal (3.16) or other such

system that, in the event of a fire, provides thermal protection to restrict the rate at which heat is

transmitted to the object or area being protected
3.16
penetration seal

system used to maintain the fire resistance (3.5) of a separating element at the position where there is

provision for services to pass through the separating element
3.17
protective chamber

mild steel box, open at the front and back, which is designed to be attached to the rear of the flame

re-circulation chamber (3.7) to shield the rear of the flame re-circulation chamber from environmental

influences

Note 1 to entry: A protective chamber is not required for tubular section tests but may be used to provide

additional stability to the flame re-circulation chamber.
3.18
temperature rise

increase in measured temperature above the initial temperature at a given location

4 Principle

The method presented in this document provides an indication of how passive fire protection materials

perform in a jet fire that can occur, for example, in petrochemical installations. It aims at simulating

[4]

the thermal and mechanical loads imparted to passive fire protection material by large-scale jet fires

resulting from high-pressure releases of flammable gas, pressure liquefied gas or flashing liquid fuels.

Jet fires give rise to high convective and radiative heat fluxes as well as high erosive forces. To generate

both types of heat flux in sufficient quantity, a 0,3 kg s sonic release of gas is aimed into a shallow

chamber, producing a fireball with an extended tail. The flame thickness is thereby increased and hence

so is the heat radiated to the test specimen. Propane is used as the fuel since it has a greater propensity

to form soot than does natural gas and can therefore produce a flame of higher luminosity. High erosive

forces are generated by the release of the sonic velocity gas jet 1 m from specimen surface.

5 Test configurations
5.1 General
There are two basic configurations under which the test can be operated:

a) an internal configuration where one or more of the inner faces of the flame re-circulation chamber

incorporates the test construction;

b) an external configuration where the test construction is installed on supports in front of the flame

re-circulation chamber.
These two alternative configurations are shown in Figures 1 and 2.
© ISO 2021 – All rights reserved 3
---------------------- Page: 9 ----------------------
ISO 22899-1:2021(E)
Dimensions in millimetres
Key
1 protective chamber
2 jet nozzle
3 supports

Flame re-circulation chamber either with coated inner surfaces or with the rear face replaced by a panel to form

the test construction.
Figure 1 — Layout for internal configuration
Dimensions in millimetres
Key
1 flame re-circulation chamber
2 flame re-circulation chamber support
3 test construction
4 test construction support
5 jet nozzle
Figure 2 — Layout for external configuration
5.2 Internal configuration

The internal test configuration is used for determining the jet fire resistance of:

a) protection systems for plane surfaces;
b) protection systems for edge features;
c) fire barriers;
4 © ISO 2021 – All rights reserved
---------------------- Page: 10 ----------------------
ISO 22899-1:2021(E)
d) penetration systems used in conjunction with fire barriers.
5.3 External configuration

The external test configuration is used for determining the jet fire resistance of protected hollow

sections or assemblies mounted on hollow sections.
6 Construction of the test items and substrates
6.1 General

The key items required for the test are the jet release nozzle, the flame re-circulation chamber and a

protective chamber. These items are all required for the internal configurations of the test and the test

specimen forms all or part of the flame re-circulation chamber. In the external configurations of the

test, the flame re-circulation chamber is only used to help produce the fireball and it is not necessary to

use the protective chamber.
6.2 Material

The material normally used is 10 mm thick steel plate conforming to ISO 630-1:2011, Grade Fe 430. All-

welded construction shall be used and all welds shall be 5 mm fillet and continuous unless otherwise

stated. The use of substrates manufactured from other materials or thicknesses other than 10 mm shall

be documented in the report.

All dimensions are in millimetres and, unless otherwise stated, the following tolerances shall be used:

— whole number ±1,0 mm
— decimal to point ,0 ±0,4 mm
— decimal to point ,00 ±0,2 mm
— angles ±0’ 30”
— radii ±0,4 mm
6.3 Nozzle

The fuel is released towards the specimen from a nozzle. The tapered, converging nozzle shall be of

length 200 ± 1 mm, inlet diameter 52 ± 0,5 mm and outlet diameter 17,8 ± 0,2 mm. Figure 3 shows

the details of construction. The nozzle shall be constructed of heat resistant stainless steel. Provisions

shall be made for fitting a sighting device.
Dimensions in millimetres
Figure 3 — Nozzle
© ISO 2021 – All rights reserved 5
---------------------- Page: 11 ----------------------
ISO 22899-1:2021(E)
6.4 Flame re-circulation chamber

The side, top and bottom walls of the flame re-circulation chamber shall be constructed from mild

steel of 10 mm thickness. The rear wall of the chamber shall either be constructed of 10 mm thick steel

welded to the sides of the chamber or of a panel bolted on to form the rear wall. If the substrate material

is not steel or the substrate thickness is not 10 mm, the material and thickness used shall be stated in

the test report. The details of construction of the flame re-circulation chamber are given in Figure 5.

The flame re-circulation chamber, having nominal internal dimensions 1 500 mm × 1 500 mm ×

500 mm, shall be used for each test. The chamber is flanged at the rear to allow bolting on of a panel

when required and attachment, by bolting or clamping, of the protective chamber when required. A

general view of the flame re-circulation chamber is shown in Figure 4 and details of construction are

shown in Figure 5.
Dimensions in millimetres
Key
1 flame re-circulation chamber
Jet position.
Figure 4 — General view of flame re-circulation chamber

Details of the flange construction, apart from the hole spacing, are not given as one of two methods may

be used:

a) The flanges may be constructed by welding L-section steel to the rear of each wall.

b) For structural steelwork specimens, the rear wall may be constructed by continuously welding a

1 620 mm × 1 620 mm plate on to the rear of the flame re-circulation chamber and drilling holes at

the appropriate locations in the plate extending beyond the sides of the chamber.

Inner walls that do not form part of the specimen, e.g. the sidewalls in a panel test, shall be protected

from distortion by an alkaline earth silicate board or other suitable form of passive fire protection or

insulation material.

When testing in the external configuration, the recirculation chamber shall have a rear wall and the

recirculation chamber shall be insulated.
6 © ISO 2021 – All rights reserved
---------------------- Page: 12 ----------------------
ISO 22899-1:2021(E)
Dimensions in millimetres
Key
1 lifting lug, 25 mm thick machined steel
2 sixteen holes drilled, ∅ 18
Figure 5 — Construction of flame re-circulation chamber
6.5 Protective chamber

The protective chamber (nominal internal dimensions 1 500 mm × 1 500 mm × 1 000 mm) is used

to shield the rear of the flame re-circulati
...

FINAL
INTERNATIONAL ISO/FDIS
DRAFT
STANDARD 22899-1
ISO/TC 92/SC 2
Determination of the resistance to
Secretariat: ANSI
jet fires of passive fire protection
Voting begins on:
2021-04-07 materials —
Voting terminates on:
Part 1:
2021-06-02
General requirements
Détermination de la résistance aux feux propulsés des matériaux de
protection passive contre l'incendie —
Partie 1: Exigences générales
RECIPIENTS OF THIS DRAFT ARE INVITED TO
SUBMIT, WITH THEIR COMMENTS, NOTIFICATION
OF ANY RELEVANT PATENT RIGHTS OF WHICH
THEY ARE AWARE AND TO PROVIDE SUPPOR TING
DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
Reference number
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
ISO/FDIS 22899-1:2021(E)
LOGICAL, COMMERCIAL AND USER PURPOSES,
DRAFT INTERNATIONAL STANDARDS MAY ON
OCCASION HAVE TO BE CONSIDERED IN THE
LIGHT OF THEIR POTENTIAL TO BECOME STAN-
DARDS TO WHICH REFERENCE MAY BE MADE IN
NATIONAL REGULATIONS. ISO 2021
---------------------- Page: 1 ----------------------
ISO/FDIS 22899-1:2021(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2021

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved
---------------------- Page: 2 ----------------------
ISO/FDIS 22899-1:2021(E)
Contents Page

Foreword ..........................................................................................................................................................................................................................................v

Introduction ................................................................................................................................................................................................................................vi

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative references ...................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 Principle ........................................................................................................................................................................................................................ 3

5 Test configurations ............................................................................................................................................................................................. 3

5.1 General ........................................................................................................................................................................................................... 3

5.2 Internal configuration ....................................................................................................................................................................... 4

5.3 External configuration ...................................................................................................................................................................... 5

6 Construction of the test items and substrates ....................................................................................................................... 5

6.1 General ........................................................................................................................................................................................................... 5

6.2 Material ......................................................................................................................................................................................................... 5

6.3 Nozzle.............................................................................................................................................................................................................. 5

6.4 Flame re-circulation chamber.................................................................................................................................................... 6

6.5 Protective chamber ............................................................................................................................................................................. 7

6.6 Panel test specimens (internal configuration) ............................................................................................................ 9

6.7 Structural steelwork test specimens (internal configuration) ...................................................................10

6.8 Tubular section test specimens (external configuration) ...............................................................................13

7 Passive fire protection systems ..........................................................................................................................................................14

7.1 General ........................................................................................................................................................................................................14

7.2 Panel test specimens .......................................................................................................................................................................14

7.3 Structural steelwork test specimens .................................................................................................................................15

7.4 Tubular section test specimens .............................................................................................................................................15

7.5 Assembly specimens .......................................................................................................................................................................16

7.5.1 General...................................................................................................................................................................................16

7.5.2 Requirements for assemblies mounted on panels .................. .........................................................16

7.5.3 Cable transit systems ................................................................................................................................................17

7.6 Pipe penetration systems ...........................................................................................................................................................18

8 Instrumentation .................................................................................................................................................................................................21

8.1 General ........................................................................................................................................................................................................21

8.2 Panel test specimens .......................................................................................................................................................................21

8.3 Structural steelwork test specimens .................................................................................................................................22

8.4 Tubular section test specimens .............................................................................................................................................23

8.5 Assembly specimens .......................................................................................................................................................................24

8.5.1 General...................................................................................................................................................................................24

8.5.2 Panel mounted cable transit systems .........................................................................................................24

8.5.3 Tubular section mounted assemblies .........................................................................................................25

8.6 Recommended instrumentation of pipe penetration seals ...........................................................................26

9 Test apparatus and conditions ............................................................................................................................................................27

9.1 Nozzle geometry and position ................................................................................................................................................27

9.1.1 General...................................................................................................................................................................................27

9.1.2 Nozzle position for panel (including panel assemblies) and steelwork tests ..........27

9.1.3 Nozzle position for tubular section (including assemblies) tests ......................................28

9.2 Fuel .................................................................................................................................................................................................................29

9.3 Test environment ...............................................................................................................................................................................29

10 Test procedure .....................................................................................................................................................................................................29

11 Repeatability and reproducibility ...................................................................................................................................................33

12 Uncertainty of measurement ................................................................................................................................................................33

© ISO 2021 – All rights reserved iii
---------------------- Page: 3 ----------------------
ISO/FDIS 22899-1:2021(E)

13 Test report ................................................................................................................................................................................................................33

14 Practical application of test results ...............................................................................................................................................35

14.1 General ........................................................................................................................................................................................................35

14.2 Performance criteria .......................................................................................................................................................................35

14.2.1 General...................................................................................................................................................................................35

14.2.2 Coatings and spray-applied materials ........................................................................................................35

14.2.3 Systems and assemblies .........................................................................................................................................36

14.3 Factors affecting the validity of the test .........................................................................................................................36

14.3.1 General...................................................................................................................................................................................36

14.3.2 Interruption of the jet fire .....................................................................................................................................36

14.3.3 Failure of thermocouples .................. .....................................................................................................................36

14.3.4 Failure of the re-circulation chamber connection ............................................................................37

Annex A (normative) Methods of fixing thermocouples ...............................................................................................................38

Annex B (informative) Example test report ...............................................................................................................................................40

Bibliography .............................................................................................................................................................................................................................43

iv © ISO 2021 – All rights reserved
---------------------- Page: 4 ----------------------
ISO/FDIS 22899-1:2021(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 92 Fire safety, Subcommittee SC 2, Fire

containment.

This second edition cancels and replaces the first edition (ISO 22899-1:2007), which has been

technically revised. The main changes compared to the previous edition are as follows:

— Corrections to figures;
— Revision of the method of test for penetration seals.
A list of all parts in the ISO 22899 series can be found on the ISO website.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
© ISO 2021 – All rights reserved v
---------------------- Page: 5 ----------------------
ISO/FDIS 22899-1:2021(E)
Introduction

The test procedure described in this document enables the determination of properties of passive

fire protection materials. This test is designed to give an indication of how passive fire protection

materials are likely to perform in a jet fire. The dimensions of the test specimen can be smaller than

typical structure or plant items and the release of gas can be substantially less than that which can

occur in a credible event. However, individual thermal and mechanical loads imparted to the passive

fire protection material from the jet fire defined in this document have been shown to be similar to

those imparted from large-scale jet fires resulting from high-pressure releases of natural gas.

NOTE Guidance on the applicability of the test is intended to be covered in a future part of the ISO 22899 series.

Although the method specified in this document has been designed to simulate certain conditions

that occur in an actual jet fire, it cannot reproduce them all exactly and the thermal and mechanical

loads do not necessarily coincide. The results of this test do not guarantee safety but may be used as

elements of a fire risk assessment for structures or plants. This should also take into account all the

other factors that are pertinent to an assessment of the fire hazard for a particular end use. The test is

[3]

not intended to replace the hydrocarbon fire resistance test (ISO/TR 834-3/EN 1363-2 ) but is seen as

a complementary test.

Users of this document are advised to consider the desirability of third-party certification/inspection/

testing of product conformity with this document.
vi © ISO 2021 – All rights reserved
---------------------- Page: 6 ----------------------
FINAL DRAFT INTERNATIONAL STANDARD ISO/FDIS 22899-1:2021(E)
Determination of the resistance to jet fires of passive fire
protection materials —
Part 1:
General requirements
1 Scope

This document describes a method of determining the resistance to jet fires of passive fire protection

materials and systems. It gives an indication of how passive fire protection materials behave in a jet fire

and provides performance data under the specified conditions.

It does not include an assessment of other properties of the passive fire protection material such as

weathering, ageing, shock resistance, impact or explosion resistance, or smoke production.

Complete I-beams and columns cannot be tested to this document due to disruption of the characteristics

of the jet.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 834-1:1999, Fire-resistance tests — Elements of building construction — Part 1: General requirements

ISO 13702, Petroleum and natural gas industries — Control and mitigation of fires and explosions on

offshore production installations — Requirements and guidelines
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
assembly
unit or structure composed of a combination of materials or products, or both
3.2
critical temperature

maximum temperature that the equipment, assembly (3.1) or structure to be protected may be allowed

to reach
3.3
Delta Tmax
maximum temperature rise (3.18) recorded by any of the installed thermocouples
© ISO 2021 – All rights reserved 1
---------------------- Page: 7 ----------------------
ISO/FDIS 22899-1:2021(E)
3.4
fire barrier

separating element that resists the passage of flame and/or heat and/or effluents for a period of time

under specified conditions
3.5
fire resistance

ability of an item to fulfil, for a stated period of time, the required stability and/or integrity (3.8) and/

or thermal insulation and/or other expected duty, reaching the critical temperature (3.2) specified in a

standard fire-resistance test
3.6
fire test

procedure designed to measure or assess the performance of a material, product, structure or system

to one or more aspects of fire
3.7
flame re-circulation chamber

mild steel box, open at the front, into which the jet fire (3.10) is directed giving a re-circulating flame

resulting in a fireball
Note 1 to entry: Materials other than mild steel may be used when appropriate.
3.8
integrity

ability of a separating element, when exposed to fire on one side, to prevent the passage of flames and

hot gases or occurrence of flames on the unexposed side, for a stated period of time in a standard fire

resistance (3.5) test
3.9
intermediate-scale test
test performed on an item of medium dimensions

Note 1 to entry: A test performed on an item of which the maximum dimension is between 1 m and 3 m is usually

called an intermediate-scale test. This document describes an intermediate-scale jet fire test (3.6).

3.10
jet fire
ignited discharge of propane vapour under pressure
3.11
jet nozzle
assembly (3.1) from which the flammable material issues
3.12
outside specimen diameter

specimen diameter measured to the outer surface of the passive fire protection (3.13) system on a

tubular specimen
3.13
passive fire protection

coating or cladding arrangement or free-standing system that, in the event of fire, provides thermal

protection to restrict the rate at which heat is transmitted to the object or area being protected

Note 1 to entry: The term "passive" is used to distinguish the systems tested, including those systems that react

chemically, e.g. intumescents, from active systems such as water deluge.
3.14
passive fire protection material

coating or cladding that, in the event of a fire, provides thermal protection to restrict the rate at which

heat is transmitted to the object or area being protected
2 © ISO 2021 – All rights reserved
---------------------- Page: 8 ----------------------
ISO/FDIS 22899-1:2021(E)
3.15
passive fire protection system

removable jacket or inspection panel, cable transit system, pipe penetration seal (3.16) or other such

system that, in the event of a fire, provides thermal protection to restrict the rate at which heat is

transmitted to the object or area being protected
3.16
penetration seal

system used to maintain the fire resistance (3.5) of a separating element at the position where there is

provision for services to pass through the separating element
3.17
protective chamber

mild steel box, open at the front and back, which is designed to be attached to the rear of the flame

re-circulation chamber (3.7) to shield the rear of the flame re-circulation chamber from environmental

influences

Note 1 to entry: A protective chamber is not required for tubular section tests but may be used to provide

additional stability to the flame re-circulation chamber.
3.18
temperature rise

increase in measured temperature above the initial temperature at a given location

4 Principle

The method presented in this document provides an indication of how passive fire protection materials

perform in a jet fire that can occur, for example, in petrochemical installations. It aims at simulating

[4]

the thermal and mechanical loads imparted to passive fire protection material by large-scale jet fires

resulting from high-pressure releases of flammable gas, pressure liquefied gas or flashing liquid fuels.

Jet fires give rise to high convective and radiative heat fluxes as well as high erosive forces. To generate

both types of heat flux in sufficient quantity, a 0,3 kg s sonic release of gas is aimed into a shallow

chamber, producing a fireball with an extended tail. The flame thickness is thereby increased and hence

so is the heat radiated to the test specimen. Propane is used as the fuel since it has a greater propensity

to form soot than does natural gas and can therefore produce a flame of higher luminosity. High erosive

forces are generated by the release of the sonic velocity gas jet 1 m from specimen surface.

5 Test configurations
5.1 General
There are two basic configurations under which the test can be operated:

a) an internal configuration where one or more of the inner faces of the flame re-circulation chamber

incorporates the test construction;

b) an external configuration where the test construction is installed on supports in front of the flame

re-circulation chamber.
These two alternative configurations are shown in Figures 1 and 2.
© ISO 2021 – All rights reserved 3
---------------------- Page: 9 ----------------------
ISO/FDIS 22899-1:2021(E)
Dimensions in millimetres
Key
1 protective chamber
2 jet nozzle
3 supports

Flame re-circulation chamber either with coated inner surfaces or with the rear face replaced by a panel to form

the test construction.
Figure 1 — Layout for internal configuration
Dimensions in millimetres
Key
1 flame re-circulation chamber
2 flame re-circulation chamber support
3 test construction
4 test construction support
5 jet nozzle
Figure 2 — Layout for external configuration
5.2 Internal configuration

The internal test configuration is used for determining the jet fire resistance of:

a) protection systems for plane surfaces;
b) protection systems for edge features;
c) fire barriers;
4 © ISO 2021 – All rights reserved
---------------------- Page: 10 ----------------------
ISO/FDIS 22899-1:2021(E)
d) penetration systems used in conjunction with fire barriers.
5.3 External configuration

The external test configuration is used for determining the jet fire resistance of protected hollow

sections or assemblies mounted on hollow sections.
6 Construction of the test items and substrates
6.1 General

The key items required for the test are the jet release nozzle, the flame re-circulation chamber and a

protective chamber. These items are all required for the internal configurations of the test and the test

specimen forms all or part of the flame re-circulation chamber. In the external configurations of the

test, the flame re-circulation chamber is only used to help produce the fireball and it is not necessary to

use the protective chamber.
6.2 Material

The material normally used is 10 mm thick steel plate conforming to ISO 630-1:2011, Grade Fe 430. All-

welded construction shall be used and all welds shall be 5 mm fillet and continuous unless otherwise

stated. The use of substrates manufactured from other materials or thicknesses other than 10 mm shall

be documented in the report.

All dimensions are in millimetres and, unless otherwise stated, the following tolerances shall be used:

— whole number ±1,0 mm
— decimal to point ,0 ±0,4 mm
— decimal to point ,00 ±0,2 mm
— angles ±0’ 30”
— radii ±0,4 mm
6.3 Nozzle

The fuel is released towards the specimen from a nozzle. The tapered, converging nozzle shall be of

length 200 ± 1 mm, inlet diameter 52 ± 0,5 mm and outlet diameter 17,8 ± 0,2 mm. Figure 3 shows

the details of construction. The nozzle shall be constructed of heat resistant stainless steel. Provisions

shall be made for fitting a sighting device.

The side, top and bottom walls of the flame re-circulation chamber shall be constructed from mild

steel of 10 mm thickness. The rear wall of the chamber shall either be constructed of 10 mm thick steel

welded to the sides of the chamber or of a panel bolted on to form the rear wall. If the substrate material

is not steel or the substrate thickness is not 10 mm, the material and thickness used shall be stated in

the test report. The details of construction of the flame re-circulation chamber are given in Figure 5.

© ISO 2021 – All rights reserved 5
---------------------- Page: 11 ----------------------
ISO/FDIS 22899-1:2021(E)
Dimensions in millimetres
Figure 3 — Nozzle
6.4 Flame re-circulation chamber

The flame re-circulation chamber, having nominal internal dimensions 1 500 mm × 1 500 mm ×

500 mm, shall be used for each test. The chamber is flanged at the rear to allow bolting on of a panel

when required and attachment, by bolting or clamping, of the protective chamber when required. A

general view of the flame re-circulation chamber is shown in Figure 4 and details of construction are

shown in Figure 5.
Dimensions in millimetres
Key
1 flame re-circulation chamber
Jet position.
Figure 4 — General view of flame re-circulation chamber

Details of the flange construction, apart from the hole spacing, are not given as one of two methods may

be used:

a) The flanges may be constructed by welding L-section steel to the rear of each wall.

b) For structural steelwork specimens, the rear wall may be constructed by continuously welding a

1 620 mm × 1 620 mm plate on to the rear of the flame re-circulation chamber and drilling holes at

the appropriate locations in the plate extending beyond the sides of the chamber.

Inner walls that do not form part of the specimen, e.g. the sidewalls in a panel test, shall be protected

from distortion by an alkaline earth silicate board or ot
...
