ISO 10033-2:2011

Laminated Veneer Lumber (LVL) - Bonding quality - Part 2: Requirements

This part of ISO 10033 specifies requirements for determining the bonding quality class of Laminated Veneer Lumber (LVL) bonded with thermosetting resins, according to their intended end uses.

Lamibois — Qualité du collage — Partie 2: Exigences

General Information

• Status: Published
• Publication Date: 11-Apr-2011
• ICS: 79.060.99 - Other wood-based panels
• Technical Committee: ISO/TC 89/SC 3 - Plywood
• Drafting Committee: ISO/TC 89/SC 3 - Plywood
• Current Stage: 9093 - International Standard confirmed
• Start Date: 11-Oct-2022
• Completion Date: 13-Dec-2025

Overview

ISO 10033-2:2011 defines the bonding quality requirements for Laminated Veneer Lumber (LVL) bonded with thermosetting resins. It specifies how to classify LVL into bonding classes according to intended end use and moisture exposure, and it sets pass/fail criteria based on delamination after prescribed pre-treatments and tests (test procedures are given in ISO 10033-1). The standard helps manufacturers, testing laboratories and specifiers determine whether an LVL product meets the necessary bond durability for interior, tropical or exterior applications.

Key topics and requirements

• Bonding classes
  • Class 1 – Dry conditions: for interior climates (equilibrium moisture content ≤ 12%).
  • Class 2 – Tropical dry/humid conditions: for protected exterior use and higher interior service moisture (EMC ≤ 18%).
  • Class 3 – High humid/exterior conditions: for prolonged weather exposure or higher EMC than Class 2.
• Pre-treatments
  • One basic pre‑treatment must be selected; for Class 2 and 3 an additional severe pre‑treatment is also required.
  • Basic options: 24 h soak, vacuum‑pressure (VP) soak, hot water conditioning.
  • Additional options: 6 h boil, boil‑dry‑boil (BDB), 72 h boil, steam.
  • Note: full phenolic adhesives may need less frequent additional pre‑treatment when VP is used.
• Glueline performance criteria
  • Individual glueline delamination must not exceed 25%.
  • Total delamination across all gluelines must not exceed 5%.
  • Minimum of two test pieces per sample; for classes requiring two pre‑treatments each treatment is applied to separate test pieces.
• Accepted test routes (ISO 10033-1)
  • Shear test (Annex A) - gluelines must also satisfy ISO 12466-2 requirements.
  • Chisel/knife testing (Annex B) - average bond quality per glueline ≥ 2 and overall bond quality ≥ 5.

Applications and users

• Who uses ISO 10033-2: manufacturers of LVL, QA/QC and materials testing laboratories, product certification bodies, timber engineers, architects and spec writers.
• Practical uses:
  • Specify LVL bonding class in procurement and design (interior vs. protected exterior vs. exterior).
  • Validate adhesive systems and production processes (pre‑treatment and curing).
  • Support product certification and conformity assessment for structural and non‑structural LVL applications.
  • Guide failure analysis and corrective actions for delamination issues.

Related standards

• ISO 10033-1: Laminated Veneer Lumber (LVL) - Bonding quality - Part 1: Test methods (test procedures referenced by this part).
• ISO 18776: LVL - Specifications (relates bonding classes to product specifications).
• ISO 12466-2: Plywood - Bonding quality - Part 2: Requirements (used when shear test is applied).

Keywords: ISO 10033-2, Laminated Veneer Lumber, LVL bonding quality, glueline, delamination, thermosetting resins, pre‑treatment, bonding classes, ISO 10033-1.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 10033-2
First edition
2011-04-15
Laminated Veneer Lumber (LVL) —
Bonding quality —
Part 2:
Requirements
Lamibois — Qualité du collage —
Partie 2: Exigences
Reference number
©
ISO 2011

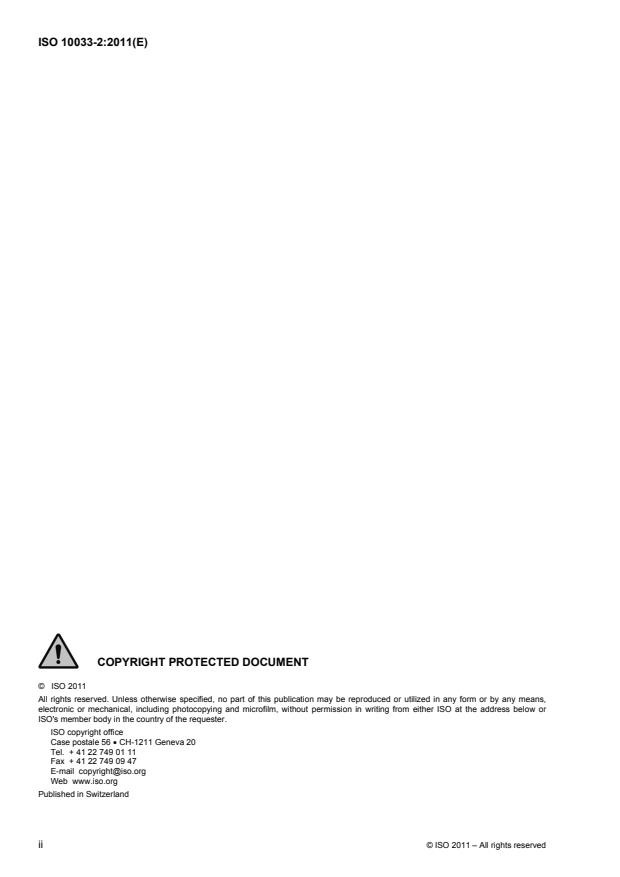

©  ISO 2011
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2011 – All rights reserved

Contents Page
Foreword .iv
1 Scope.1
2 Normative references.1
3 Bonding classes.1
3.1 Class 1 — Dry conditions .1
3.2 Class 2 — Tropical dry/humid conditions.1
3.3 Class 3 — High humid/exterior conditions.2
4 Requirements.2
4.1 General .2
4.2 Pre-treatment .2
4.3 Glueline requirements.2
5 Determination of bonding quality.3

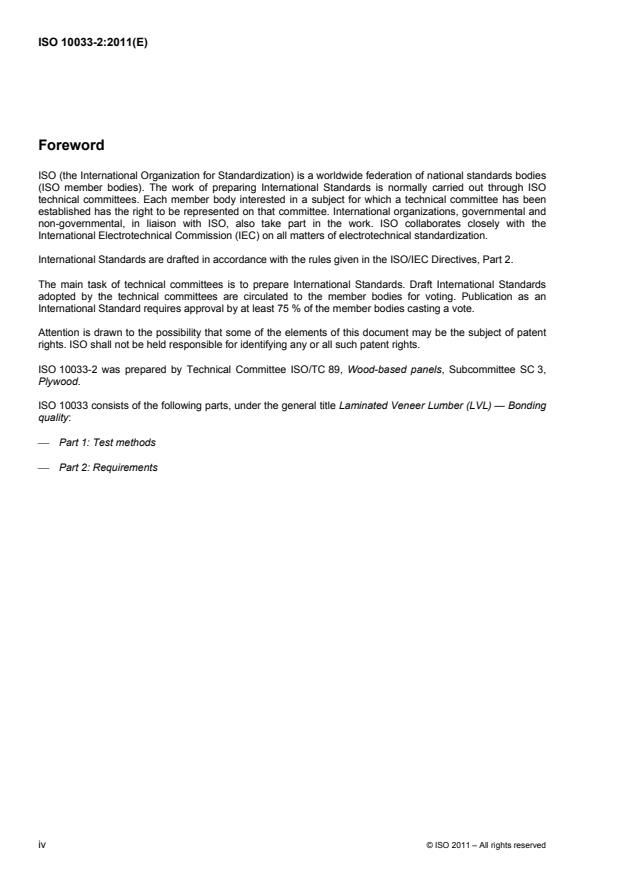

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 10033-2 was prepared by Technical Committee ISO/TC 89, Wood-based panels, Subcommittee SC 3,
Plywood.
ISO 10033 consists of the following parts, under the general title Laminated Veneer Lumber (LVL) — Bonding
quality:
⎯ Part 1: Test methods
⎯ Part 2: Requirements
iv © ISO 2011 – All rights reserved

INTERNATIONAL STANDARD ISO 10033-2:2011(E)

Laminated Veneer Lumber (LVL) — Bonding quality —
Part 2:
Requirements
1 Scope
This part of ISO 10033 specifies requ
...
