ISO 20029-1:2017
(Main)Plastics - Thermoplastic polyester/ester and polyether/ester elastomers for moulding and extrusion - Part 1: Designation system and basis for specification
Plastics - Thermoplastic polyester/ester and polyether/ester elastomers for moulding and extrusion - Part 1: Designation system and basis for specification
ISO 20029-1:2017 establishes a system of designation for thermoplastic polyester/ester and polyether/ester elastomers, which may be used as the basis for specifications. The types of thermoplastic polyester/ester and polyether/ester elastomer are differentiated from each other by a classification system based on appropriate levels of the designatory properties: a) hardness; b) melting temperature; c) tensile/flexural modulus of elasticity; and on information about the intended application and/or method of processing, important properties, additives, colour, fillers and reinforcing materials. ISO 20029-1:2017 is applicable to all thermoplastic polyester/ester and polyether/ester elastomers. It applies to materials ready for normal use in the form of powder, granules or pellets, unmodified or modified by colourants, fillers or other additives. It is not intended to imply that materials having the same designation give necessarily the same performance. This document does not provide engineering data, performance data or data on processing conditions which may be required to specify a material. If such additional properties are required, they are intended to be determined in accordance with the test methods specified in ISO 20029-2, if suitable. In order to designate a thermoplastic polyester/ester or polyether/ester elastomer to meet particular specifications, the requirements are given in data block 5 (see 4.1).
Plastiques — Élastomères thermoplastiques à base de polyester/ester et polyéther/ester pour moulage et extrusion — Partie 1: Système de désignation et base de spécifications
ISO 20029-1:2017 établit un système de désignation des élastomères thermoplastiques à base de polyester/ester et polyéther/ester qui peut être utilisé comme base pour les spécifications. Les types de thermoplastiques à base de polyester/ester et polyéther/ester sont différenciés les uns des autres par un système de classification fondé sur des niveaux appropriés des propriétés de désignation: a) la dureté; b) la température de fusion; c) le module d'élasticité en traction/en flexion; et des informations sur l'application prévue et/ou la méthode de mise en ?uvre, les propriétés importantes, les additifs, les colorants, les charges et les matériaux de renfort. ISO 20029-1:2017 est applicable à tous les élastomères thermoplastiques à base de polyester/ester et polyéther/ester. Il s'applique aux matériaux prêts à l'emploi normal sous forme de poudres, de grains ou de granulés, non modifiés ou modifiés par des colorants, des charges ou d'autres additifs. Le fait que des matériaux aient la même désignation n'implique pas qu'ils présentent nécessairement les mêmes performances. Le présent document ne comporte pas de données sur la conception, les performances ou les conditions de mise en ?uvre qui peuvent être exigées pour spécifier un matériau. Si de telles caractéristiques supplémentaires sont nécessaires, elles doivent être déterminées conformément aux méthodes d'essai spécifiées dans l'ISO 20029‑2, s'il y a lieu. Afin de spécifier un élastomère thermoplastique à base de polyester/ester ou polyéther/ester répondant à des spécifications particulières, les exigences sont codées dans le bloc de données 5 (voir 4.1).
General Information
- Status
- Published
- Publication Date
- 04-Dec-2017
- Technical Committee
- ISO/TC 61/SC 9 - Thermoplastic materials
- Drafting Committee
- ISO/TC 61/SC 9/WG 26 - Thermoplastic elastomers
- Current Stage
- 9060 - Close of review
- Completion Date
- 02-Sep-2027
Relations
- Effective Date
- 18-Jun-2016
- Effective Date
- 28-Jun-2014
Overview
ISO 20029-1:2017 defines a standardized designation system for thermoplastic polyester/ester and polyether/ester elastomers used for moulding and extrusion. It provides a structured way to identify polymer chemistry, formulation features (fillers, flame retardants, recyclate), intended application/processing and key designatory properties (hardness, melting temperature, tensile/flexural modulus). ISO 20029-1 is a basis for material specifications but does not supply engineering performance data or processing conditions - those are covered by ISO 20029-2 test methods where needed.
Keywords: ISO 20029-1, thermoplastic polyester/ester elastomers, polyether/ester elastomers, designation system, thermoplastic elastomers, moulding and extrusion, plastics standard.
Key Topics and Requirements
- Designation structure: An identity block composed of an international standard number and an individual-item block subdivided into five data blocks (Data blocks 1–5). Data blocks are separated by commas; unused blocks are left empty (,,).
- Data block 1 - Polymer ID: Uses ISO 18064 abbreviated terms (e.g., TPC) plus symbols indicating soft-segment chemistry (e.g., polyester, polyether).
- Data block 2 - Fillers/reinforcements & flame retardants: Uses code letters for material type and form, plus numeric codes for nominal content; includes notation for flame retardant types per ISO 1043-4 and optional recyclate content.
- Data block 3 - Application/processing & properties/additives: Position-based codes denote intended use (extrusion, moulding, cable coating, etc.) and secondary info (colour, stabilizers, impact modification).
- Data block 4 - Designatory properties: Encodes ranges for hardness (Shore D ranges represented by two-digit codes), melting temperature (two-digit codes), and tensile/flexural modulus (three-digit codes). Property values are determined according to ISO 20029-2.
- Data block 5 - Specification details: Optional block to record additional requirements for procurement/specification.
- Important limitations: Identical designations do not guarantee identical performance; additional testing and specification are required where performance data are necessary.
Applications and Practical Use
- Standardizes material labeling and part marking for manufacturers and compounders of thermoplastic polyester/ester and polyether/ester elastomers.
- Helps material suppliers, product designers, quality engineers and procurement teams communicate composition, key properties and intended processing routes concisely.
- Useful in regulatory documentation, material data sheets, traceability and supply-chain specifications for moulding and extrusion applications.
- Assists testing laboratories and specifiers to determine which properties need laboratory verification (via ISO 20029-2).
Who Should Use This Standard
- Polymer compounders and resin manufacturers
- Product designers and materials engineers
- Tooling and extrusion/moulding processors
- Quality assurance, purchasing and compliance teams
- Test laboratories preparing specimens and reporting designatory properties
Related Standards
- ISO 20029-2 - Test specimen preparation and property determination (complements Part 1)
- ISO 18064 - Thermoplastic elastomers nomenclature
- ISO 1043-4 - Symbols for flame retardants
- ISO 11469 - Generic marking of plastics
- Replaces/succeeds elements of ISO 14910-1:2013 (phasing out period applied)
Use ISO 20029-1 to create clear, consistent material designations that improve communication across design, manufacturing and procurement for thermoplastic elastomer products.
ISO 20029-1:2017 - Plastics -- Thermoplastic polyester/ester and polyether/ester elastomers for moulding and extrusion
ISO 20029-1:2017 - Plastiques -- Élastomeres thermoplastiques a base de polyester/ester et polyéther/ester pour moulage et extrusion
Frequently Asked Questions
ISO 20029-1:2017 is a standard published by the International Organization for Standardization (ISO). Its full title is "Plastics - Thermoplastic polyester/ester and polyether/ester elastomers for moulding and extrusion - Part 1: Designation system and basis for specification". This standard covers: ISO 20029-1:2017 establishes a system of designation for thermoplastic polyester/ester and polyether/ester elastomers, which may be used as the basis for specifications. The types of thermoplastic polyester/ester and polyether/ester elastomer are differentiated from each other by a classification system based on appropriate levels of the designatory properties: a) hardness; b) melting temperature; c) tensile/flexural modulus of elasticity; and on information about the intended application and/or method of processing, important properties, additives, colour, fillers and reinforcing materials. ISO 20029-1:2017 is applicable to all thermoplastic polyester/ester and polyether/ester elastomers. It applies to materials ready for normal use in the form of powder, granules or pellets, unmodified or modified by colourants, fillers or other additives. It is not intended to imply that materials having the same designation give necessarily the same performance. This document does not provide engineering data, performance data or data on processing conditions which may be required to specify a material. If such additional properties are required, they are intended to be determined in accordance with the test methods specified in ISO 20029-2, if suitable. In order to designate a thermoplastic polyester/ester or polyether/ester elastomer to meet particular specifications, the requirements are given in data block 5 (see 4.1).
ISO 20029-1:2017 establishes a system of designation for thermoplastic polyester/ester and polyether/ester elastomers, which may be used as the basis for specifications. The types of thermoplastic polyester/ester and polyether/ester elastomer are differentiated from each other by a classification system based on appropriate levels of the designatory properties: a) hardness; b) melting temperature; c) tensile/flexural modulus of elasticity; and on information about the intended application and/or method of processing, important properties, additives, colour, fillers and reinforcing materials. ISO 20029-1:2017 is applicable to all thermoplastic polyester/ester and polyether/ester elastomers. It applies to materials ready for normal use in the form of powder, granules or pellets, unmodified or modified by colourants, fillers or other additives. It is not intended to imply that materials having the same designation give necessarily the same performance. This document does not provide engineering data, performance data or data on processing conditions which may be required to specify a material. If such additional properties are required, they are intended to be determined in accordance with the test methods specified in ISO 20029-2, if suitable. In order to designate a thermoplastic polyester/ester or polyether/ester elastomer to meet particular specifications, the requirements are given in data block 5 (see 4.1).
ISO 20029-1:2017 is classified under the following ICS (International Classification for Standards) categories: 83.080.20 - Thermoplastic materials. The ICS classification helps identify the subject area and facilitates finding related standards.
ISO 20029-1:2017 has the following relationships with other standards: It is inter standard links to ISO 14910-1:2013, ISO 14910-2:2013. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase ISO 20029-1:2017 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of ISO standards.
Standards Content (Sample)
INTERNATIONAL ISO
STANDARD 20029-1
First edition
2017-11
Plastics — Thermoplastic polyester/
ester and polyether/ester elastomers
for moulding and extrusion —
Part 1:
Designation system and basis for
specification
Plastiques — Élastomères thermoplastiques à base de polyester/ester
et polyéther/ester pour moulage et extrusion —
Partie 1: Système de désignation et base de spécifications
Reference number
©
ISO 2017
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Designation system . 2
4.1 General . 2
4.2 Data block 1 . 2
4.3 Data block 2 . 3
4.4 Data block 3 . 4
4.5 Data block 4 . 4
4.5.1 General. 4
4.5.2 Hardness . 5
4.5.3 Melting temperature . . 5
4.5.4 Tensile/flexural modulus of elasticity . 6
4.6 Data block 5 . 6
5 Examples of designations . 6
Annex A (informative) Definition of thermoplastic polyester/ester and polyether/
estercopolymer elastomers . 9
Bibliography .11

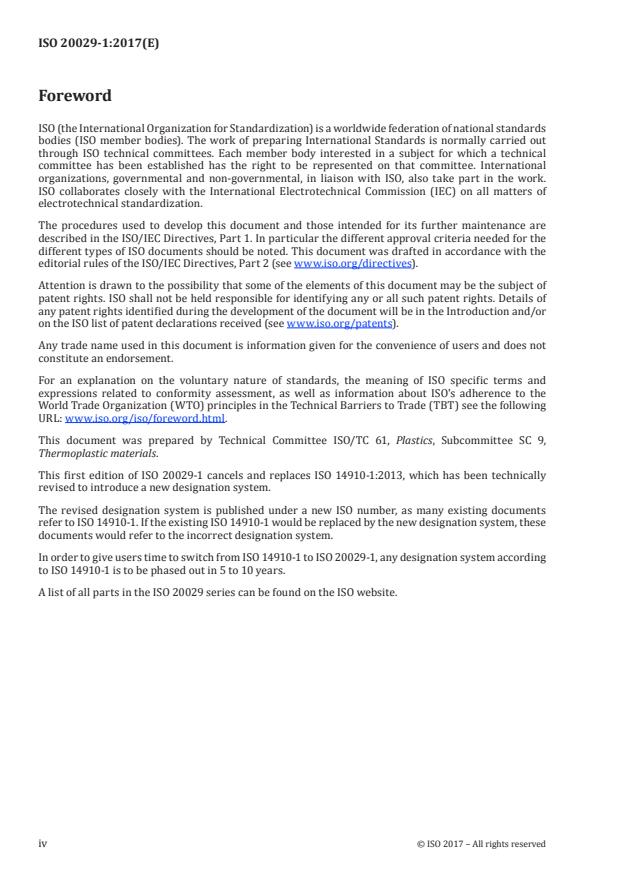

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 61, Plastics, Subcommittee SC 9,
Thermoplastic materials.
This first edition of ISO 20029-1 cancels and replaces ISO 14910-1:2013, which has been technically
revised to introduce a new designation system.
The revised designation system is published under a new ISO number, as many existing documents
refer to ISO 14910-1. If the existing ISO 14910-1 would be replaced by the new designation system, these
documents would refer to the incorrect designation system.
In order to give users time to switch from ISO 14910-1 to ISO 20029-1, any designation system according
to ISO 14910-1 is to be phased out in 5 to 10 years.
A list of all parts in the ISO 20029 series can be found on the ISO website.
iv © ISO 2017 – All rights reserved
Introduction
ISO 14910-1:2013 is complex and does not fit with daily practice anymore. In practice, ISO 18064 and
ISO 11469 are, in combination, “improperly” being used as a designation system for, e.g. marking.
The aim of this document is to simplify the data block system and to connect more to ISO 18064 and
ISO 11469, where the first two blocks are used for generic identification and marking of products.
INTERNATIONAL STANDARD ISO 20029-1:2017(E)
Plastics — Thermoplastic polyester/ester and polyether/
ester elastomers for moulding and extrusion —
Part 1:
Designation system and basis for specification
1 Scope
This document establishes a system of designation for thermoplastic polyester/ester and polyether/ester
elastomers, which may be used as the basis for specifications.
The types of thermoplastic polyester/ester and polyether/ester elastomer are differentiated from each
other by a classification system based on appropriate levels of the designatory properties:
a) hardness;
b) melting temperature;
c) tensile/flexural modulus of elasticity;
and on information about the intended application and/or method of processing, important properties,
additives, colour, fillers and reinforcing materials.
This document is applicable to all thermoplastic polyester/ester and polyether/ester elastomers. It
applies to materials ready for normal use in the form of powder, granules or pellets, unmodified or
modified by colourants, fillers or other additives.
It is not intended to imply that materials having the same designation give necessarily the same
performance. This document does not provide engineering data, performance data or data on processing
conditions which may be required to specify a material. If such additional properties are required, they
are intended to be determined in accordance with the test methods specified in ISO 20029-2, if suitable.
In order to designate a thermoplastic polyester/ester or polyether/ester elastomer to meet particular
specifications, the requirements are given in data block 5 (see 4.1).
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 1043-4, Plastics — Symbols and abbreviated terms — Part 4: Flame retardants
ISO 18064, Thermoplastic elastomers — Nomenclature and abbreviated terms
ISO 20029-2, Plastics — Thermoplastic polyester/ester and polyether/ester elastomers for moulding and
extrusion — Part 2: Preparation of test specimens and determination of properties
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
4 Designation system
4.1 General
The designation system for thermoplastics is based on the following standardized pattern.
Designation
Identity block
Description International Individual-item block
block Standard
Data block 1 Data block 2 Data block 3 Data block 4 Data block 5
(optional) number
block
The designation consists of an optional description block, reading “Thermoplastics”, and an identity
block comprising the International Standard number and an individual-item block. For unambiguous
designation, the individual-item block is subdivided into five data blocks comprising the following
information:
— Data block 1: Identification of the plastic by its abbreviated term (TPC), in accordance with
ISO 18064, and information about the composition of the polymer (see 4.2).
— Data block 2: — fillers or reinforcing materials and their nominal content;
— flame retardant;
— optionally recyclate and its content (see 4.3).
— Data block 3: Position 1: Intended application and/or method of processing (see 4.4).
Positions 2 to 8: Important properties, additives and supplementary information
(see 4.4).
— Data block 4: Designatory properties (see 4.5).
— Data block 5: For the purpose of specifications, a fifth data block contains appropriate informa-
tion (see 4.6).
The first character of the individual item block shall be a hyphen. The five data blocks shall be separated
from each other by a comma. If a data block is not used, this shall be indicated by doubling the separation
sign, i.e. by two commas (,,). Terminal commas may be omitted.
NOTE Data blocks 1 and 2 together form the part marking symbol.
4.2 Data block 1
In this data block, after the hyphen, the thermoplastic elastomer is identified by its abbreviated term
in accordance with ISO 18064 and, after a space, a symbol indicating the composition as specified in
Table 1.
2 © ISO 2017 –
...
NORME ISO
INTERNATIONALE 20029-1
Première édition
2017-11
Plastiques — Élastomères
thermoplastiques à base de polyester/
ester et polyéther/ester pour moulage
et extrusion —
Partie 1:
Système de désignation et base de
spécifications
Plastics — Thermoplastic polyester/ester and polyether/ester
elastomers for moulding and extrusion —
Part 1: Designation system and basis for specification
Numéro de référence
©
ISO 2017
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2017, Publié en Suisse
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni utilisée
sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie, l’affichage sur
l’internet ou sur un Intranet, sans autorisation écrite préalable. Les demandes d’autorisation peuvent être adressées à l’ISO à
l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – Tous droits réservés
Sommaire Page
Avant-propos .iv
Introduction .v
1 Domaine d’application . 1
2 Références normatives . 1
3 Termes et définitions . 2
4 Système de désignation . 2
4.1 Généralités . 2
4.2 Bloc de données 1 . 2
4.3 Bloc de données 2 . 3
4.4 Bloc de données 3 . 4
4.5 Bloc de données 4 . 4
4.5.1 Généralités . 4
4.5.2 Dureté . 5
4.5.3 Température de fusion. 5
4.5.4 Module d’élasticité en traction/en flexion . 6
4.6 Bloc de données 5 . 6
5 Exemples de désignations . 7
Annexe A (informative) Définition des élastomères thermoplastiques à base de
copolymères de polyester/ester et polyéther/ester .10
Bibliographie .12
Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes
nationaux de normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est
en général confiée aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude
a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec l'ISO participent également aux travaux.
L'ISO collabore étroitement avec la Commission électrotechnique internationale (IEC) en ce qui
concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier de prendre note des différents
critères d'approbation requis pour les différents types de documents ISO. Le présent document a été
rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir www.
iso.org/directives).
L'attention est attirée sur le fait que certains des éléments du présent document peuvent faire l'objet de
droits de propriété intellectuelle ou de droits analogues. L'ISO ne saurait être tenue pour responsable
de ne pas avoir identifié de tels droits de propriété et averti de leur existence. Les détails concernant
les références aux droits de propriété intellectuelle ou autres droits analogues identifiés lors de
l'élaboration du document sont indiqués dans l'Introduction et/ou dans la liste des déclarations de
brevets reçues par l'ISO (voir www.iso.org/brevets).
Les appellations commerciales éventuellement mentionnées dans le présent document sont données
pour information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un
engagement.
Pour une explication de la nature volontaire des normes, la signification des termes et expressions
spécifiques de l'ISO liés à l'évaluation de la conformité, ou pour toute information au sujet de l'adhésion
de l'ISO aux principes de l’Organisation mondiale du commerce (OMC) concernant les obstacles
techniques au commerce (OTC), voir le lien suivant: www.iso.org/avant-propos.
Le présent document a été élaboré par le comité technique ISO/TC 61, Plastiques, sous-comité SC 9,
Matériaux thermoplastiques.
Cette première édition de l’ISO 20029-1 annule et remplace l’ISO 14910-1:2013, qui a fait l’objet d’une
révision technique pour introduire un nouveau système de désignation.
Le système de désignation révisé est publié sous un nouveau numéro ISO car de nombreux documents
existants renvoient à l’ISO 14910-1. Si l’ISO 14910-1 actuelle était remplacée par ce nouveau système de
désignation, ces documents feraient référence à un système de désignation incorrect.
Afin de laisser aux utilisateurs le temps nécessaire pour passer de l’ISO 14910-1 à l’ISO 20029-1, les
systèmes de désignation conformes à l’ISO 14910-1 disparaîtront progressivement sur une période de
5 à 10 ans.
Une liste de toutes les parties de la série ISO 20029 est disponible sur le site web de l’ISO.
iv © ISO 2017 – Tous droits réservés
Introduction
L’ISO 14910-1:2013 est complexe et ne correspond plus aux pratiques actuelles. Dans la pratique,
l’ISO 18064 et l’ISO 11469 sont toutes deux «mal» utilisées comme système de désignation, par exemple
pour le marquage. Le but du présent document est de simplifier le système des blocs de données et de se
rapprocher davantage de l’ISO 18064 et l’ISO 11469, dans lesquelles les deux premiers blocs de données
sont utilisés pour l’identification générique et le marquage des produits.
NORME INTERNATIONALE ISO 20029-1:2017(F)
Plastiques — Élastomères thermoplastiques à base de
polyester/ester et polyéther/ester pour moulage et
extrusion —
Partie 1:
Système de désignation et base de spécifications
1 Domaine d’application
Le présent document établit un système de désignation des élastomères thermoplastiques à base de
polyester/ester et polyéther/ester qui peut être utilisé comme base pour les spécifications.
Les types de thermoplastiques à base de polyester/ester et polyéther/ester sont différenciés les uns des
autres par un système de classification fondé sur des niveaux appropriés des propriétés de désignation:
a) la dureté;
b) la température de fusion;
c) le module d’élasticité en traction/en flexion;
et des informations sur l’application prévue et/ou la méthode de mise en œuvre, les propriétés
importantes, les additifs, les colorants, les charges et les matériaux de renfort.
Le présent document est applicable à tous les élastomères thermoplastiques à base de polyester/ester
et polyéther/ester. Il s’applique aux matériaux prêts à l’emploi normal sous forme de poudres, de grains
ou de granulés, non modifiés ou modifiés par des colorants, des charges ou d’autres additifs.
Le fait que des matériaux aient la même désignation n’implique pas qu’ils présentent nécessairement
les mêmes performances. Le présent document ne comporte pas de données sur la conception, les
performances ou les conditions de mise en œuvre qui peuvent être exigées pour spécifier un matériau.
Si de telles caractéristiques supplémentaires sont nécessaires, elles doivent être déterminées
conformément aux méthodes d’essai spécifiées dans l’ISO 20029-2, s’il y a lieu.
Afin de spécifier un élastomère thermoplastique à base de polyester/ester ou polyéther/ester répondant
à des spécifications particulières, les exigences sont codées dans le bloc de données 5 (voir 4.1).
2 Références normatives
Les documents suivants cités dans le texte constituent, pour tout ou partie de leur contenu, des
exigences du présent document. Pour les références datées, seule l’édition citée s’applique. Pour les
références non datées, la dernière édition du document de référence s’applique (y compris les éventuels
amendements).
ISO 1043-4, Plastiques — Symboles et abréviations — Partie 4: Ignifuges
ISO 18064, Élastomères thermoplastiques — Nomenclature et termes abrégés
ISO 20029-2, Plastiques — Élastomères thermoplastiques à base de polyester/ester et polyéther/ester pour
moulage et extrusion — Partie 2: Préparation des éprouvettes et détermination des propriétés
3 Termes et définitions
Aucun terme n’est défini dans le présent document.
L’ISO et l’IEC tiennent à jour des bases de données terminologiques destinées à être utilisées en
normalisation, consultables aux adresses suivantes:
— IEC Electropedia: disponible à l’adresse http://www.electropedia.org/
— ISO Online browsing platform: disponible à l’adresse https://www.iso.org/obp
4 Système de désignation
4.1 Généralités
Le système de désignation des thermoplastiques est basé sur le modèle normalisé suivant.
Désignation
Bloc d’identité
Bloc Bloc « numéro Bloc «objet particulier»
descripteur de Norme
Bloc de Bloc de Bloc de Bloc de Bloc de
(facultatif) internatio-
données 1 données 2 données 3 données 4 données 5
nale »
La désignation consiste en un bloc descripteur facultatif, intitulé «Thermoplastique», un bloc d’identité
comprenant le numéro de la Norme internationale et un bloc «objet particulier». Pour une désignation
non ambiguë, le bloc «objet particulier» est subdivisé en cinq blocs de données comprenant les
informations suivantes:
— Bloc de données 1: Identification du plastique par son terme abrégé (TPC) conformément à
l’ISO 18064 et informations sur la composition du polymère (voir 4.2).
— Bloc de données 2: — charges ou matériaux de renfort et leur teneur nominale;
— retardateur de flamme;
— en option, recyclat et son contenu (voir 4.3).
— Bloc de données 3: Position 1: Application prévue et/ou méthode de mise en œuvre (voir 4.4).
Positions 2 à 8: Propriétés importantes, additifs et informations supplémen-
taires (voir 4.4).
— Bloc de données 4: Propriétés de désignation (voir 4.5).
— Bloc de données 5: Pour les besoins de la spécification, le cinquième bloc de données contient des
informations appropriées (voir 4.6).
Le premier caractère du bloc «objet particulier» doit être un tiret. Les cinq blocs de données doivent être
séparés les uns des autres par une virgule. Un bloc de données non utilisé doit être indiqué en doublant
le signe de séparation, c’est-à-dire par deux virgules (,,). Les virgules terminales peuvent être omises.
NOTE Les blocs de données 1 et 2 constituent ensemble la partie symbole du marquage.
4.2 Bloc de données 1
Dans ce bloc de données, après un tiret, l’élastomère thermoplastique est identifié par son terme abrégé
conformément à l’ISO 18064, et, après un espace, un symbole indique la composition comme spécifié
dans le Tableau 1.
2 © ISO 2017 – Tous droits réservés
Tableau 1 — Symboles indiquant la structure chimique des élastomères thermoplastiques à
base de polyester/ester ou polyéther/ester dans le bloc de données 1
Symbole Identification chimique
TPC-ES Segment souple de polyester
TPC-ET Segment souple de polyéther
TPC-E
...
ISO 20029-1:2017 is a standard that establishes a system for classifying thermoplastic polyester/ester and polyether/ester elastomers. The classification is based on properties such as hardness, melting temperature, and elasticity modulus. It also takes into account information about the intended application, processing method, additives, color, and reinforcing materials. This standard applies to all such elastomers in the form of powder, granules, or pellets, whether modified or unmodified. It does not guarantee that materials with the same designation will perform the same. The standard does not provide engineering or performance data, but specifies that these factors should be determined using test methods specified in ISO 20029-2, if required. The specific requirements for classifying a thermoplastic polyester/ester or polyether/ester elastomer are provided in data block 5.
ISO 20029-1:2017은 금형과 압출을 위한 열가소성 폴리에스터/에스테르 및 폴리에테르/에스테르 엘라스토머에 대한 지정 시스템과 명세의 기반이 될 수있는 시스템을 설정합니다. 열가소성 폴리에스터/에스테르 및 폴리에테르/에스테르 엘라스토머의 유형은 다음과 같은 표면 특성에 기반한 분류 시스템에 의해 구별됩니다: 가) 경도; 나) 용융 온도; 다) 인장/굴곡 탄성률; 그리고 응용 분야 및/또는 가공 방법, 중요한 특성, 첨가제, 색상, 충전재 및 보강재에 대한 정보에 따라 달라집니다. ISO 20029-1:2017은 모든 열가소성 폴리에스터/에스테르 및 폴리에테르/에스테르 엘라스토머에 적용됩니다. 그것은 분말, 곡류 또는 펠릿의 형태로 준비 된 재료에 적용되며 색소, 충전재 또는 기타 첨가제로 수정 또는 수정되지 않은 것입니다. 동일한 지정을 지닌 재료가 반드시 동일한 성능을 제공한다는 것을 의미하는 것은 아닙니다. 이 문서는 재료를 지정하기 위해 필요한 공학 데이터, 성능 데이터 또는 가공 조건에 대한 정보를 제공하지 않습니다. 해당 추가 특성이 필요한 경우, 적절한 경우 ISO 20029-2에서 지정된 시험 방법에 따라 결정되도록하고 있습니다. 특정 명세를 충족하는 열가소성 폴리에스터/에스테르 또는 폴리에테르/에스테르 엘라스토머를 지정하기 위해서는 데이터 블록 5에 제공된 요구 사항을 준수해야합니다.
ISO 20029-1:2017は、成形や押出しに使用される熱可塑性ポリエステル/エステルおよびポリエーテル/エステルエラストマーの指定システムと仕様の基礎を確立しています。熱可塑性ポリエステル/エステルおよびポリエーテル/エステルエラストマーの種類は、表記される特性の適切なレベルに基づいた分類システムによって区別されます。これには、硬さ、融点、引張/曲げ弾性率などが含まれます。また、使用目的や加工方法、重要な特性、添加剤、色、充填材、および補強材に関する情報も考慮されます。ISO 20029-1:2017は、すべての熱可塑性ポリエステル/エステルおよびポリエーテル/エステルエラストマーに適用されます。これは、粉末、顆粒、またはペレットの形で使用可能な材料に適用され、色素、充填剤、その他の添加剤で変性または変性している場合も含まれます。同じ指定を持つ材料が必ずしも同等の性能を提供することを保証するものではありません。この規格は、材料の指定に必要な工学データ、性能データ、および加工条件を提供しないものとされています。必要な場合は、これらの要素はISO 20029-2で指定された試験方法によって決定されることが意図されています。特定の仕様を満たす熱可塑性ポリエステル/エステルまたはポリエーテル/エステルエラストマーを指定するためには、データブロック5で提供される要件に従う必要があります。
ISO 20029-1:2017 is a standard that establishes a system of designation for thermoplastic polyester/ester and polyether/ester elastomers, providing a basis for specifications. It classifies these elastomers based on hardness, melting temperature, and tensile/flexural modulus of elasticity, as well as other factors like intended application, processing method, important properties, and additives used. The standard applies to all types of these elastomers in various forms, such as powder, granules, or pellets. However, it should be noted that materials with the same designation may not necessarily perform the same. The standard does not provide engineering, performance, or processing data, but recommends referring to ISO 20029-2 for such information. Data block 5 in the standard contains the requirements for designating a specific thermoplastic polyester/ester or polyether/ester elastomer to meet particular specifications.
記事タイトル:ISO 20029-1:2017 - プラスチック-成形および押出用熱可塑性ポリエステル/エステルとポリエーテル/エステル弾性体-パート1:指定システムおよび仕様の基礎 記事の内容:ISO 20029-1:2017は、成形および押出用熱可塑性ポリエステル/エステルとポリエーテル/エステル弾性体に対する指定システムを確立し、仕様の基礎として使用することができます。熱可塑性ポリエステル/エステルとポリエーテル/エステル弾性体の種類は、指定の特性値(硬さ、融点、引張り/曲げ弾性率など)に基づく分類システムと、用途や加工方法、重要な特性、添加剤、色、充填剤、および補強材料に関する情報によって区別されます。ISO 20029-1:2017は、すべての熱可塑性ポリエステル/エステルとポリエーテル/エステル弾性体に適用されます。これは粉末、粒子またはペレットなどの形態で利用できる材料を対象としています。同じ指定を持つ材料が必ずしも同じ性能を提供することを意味するものではありません。この文書には、材料の指定に必要な工学データ、性能データ、および加工条件のデータは提供されません。追加の特性が必要な場合は、適切な場合はISO 20029-2で指定された試験方法を使用して決定することが意図されています。特定の仕様を満たすために特定の熱可塑性ポリエステル/エステルまたはポリエーテル/エステル弾性体を指定するには、要件はデータブロック5に記載されています(4.1を参照)。
기사 제목: ISO 20029-1:2017 - 플라스틱 - 성형 및 압출용 열가소성 폴리에스터/에스테르 및 폴리에테르/에스테르 탄성체 - 파트 1: 지정 시스템 및 사양 기초 기사 내용: ISO 20029-1:2017은 성형 및 압출용 열가소성 폴리에스터/에스테르 및 폴리에테르/에스테르 탄성체에 대한 지정 시스템을 확립하며, 이를 기반으로 사양을 작성할 수 있다. 열가소성 폴리에스터/에스테르 및 폴리에테르/에스테르 탄성체의 종류는 다음과 같은 지정 속성 수준에 따라 구별된다: a) 경도; b) 용융 온도; c) 인장/굴곡 탄성률, 그리고 응용 분야와/또는 가공 방법, 중요한 속성, 첨가제, 색상, 충진제 및 강화재에 대한 정보에 기초한다. ISO 20029-1:2017은 모든 열가소성 폴리에스터/에스테르 및 폴리에테르/에스테르 탄성체에 적용된다. 이는 분말, 알갱이 또는 펠릿 형태로 구비된 재료, 무색소 또는 색소, 충진제 또는 다른 첨가제로 수정되지 않은 재료를 정상적으로 사용하기 위한 것이다. 이는 동일한 지정을 가진 재료가 반드시 동일한 성능을 제공한다는 것을 의미하는 것은 아니다. 이 문서는 재료를 지정하기 위해 필요한 공학적 데이터, 성능 데이터 또는 가공 조건 데이터를 제공하지 않는다. 이러한 추가 속성이 필요한 경우, 적합하다면 ISO 20029-2에서 명시된 시험 방법을 따를 것이다. 특정 사양을 충족하기 위해 특정한 열가소성 폴리에스터/에스테르 또는 폴리에테르/에스테르 탄성체를 지정하기 위해서는 요구 사항은 데이터 블록 5에 기재되어 있다(4.1 참조).
기사 제목: ISO 20029-1:2017 - 플라스틱 - 주입 및 압출용 열가소성 폴리에스터/에스터 및 폴리에테르/에스터 탄성체 - 파트 1: 지정 시스템 및 사양 기준 기사 내용: ISO 20029-1:2017은 주입 및 압출용 열가소성 폴리에스터/에스터 및 폴리에테르/에스터 탄성체에 대한 지정 시스템을 수립하며, 이를 기반으로 사양을 작성할 수 있습니다. 폴리에스터/에스터 및 폴리에테르/에스터 탄성체의 유형은 지정 속성인 a) 경도, b) 용융 온도, c) 인장/굴곡 탄성률 및 응용 분야 및/또는 가공 방법, 중요한 속성, 첨가제, 색상, 충전재 및 강화재에 대한 정보를 기반으로 분류 체계에 의해 각각 구분됩니다. ISO 20029-1:2017은 모든 폴리에스터/에스터 및 폴리에테르/에스터 탄성체에 적용됩니다. 이는 분말, 과립 또는 펠렛 형태로 존재하는 미개성 또는 성질을 변경시킨 색소, 충전제 또는 기타 첨가제를 가진 재료에 적용됩니다. 동일한 지정을 가진 재료가 항상 동일한 성능을 보장하는 것은 아닙니다. 이 문서는 재료를 지정하는 데 필요한 공학 데이터, 성능 데이터 또는 가공 조건 데이터를 제공하지 않습니다. 추가 특성이 필요한 경우, 이러한 특성은 적절한 경우 ISO 20029-2에서 지정된 시험 방법에 따라 결정되어야 합니다. 특정 사양을 충족하는 폴리에스터/에스터 또는 폴리에테르/에스터 탄성체를 지정하기 위해서는 요구 사항이 데이터 블록 5에 제시되어 있습니다(4.1 참조).
記事のタイトル:ISO 20029-1:2017 - プラスチック-射出成形および押出成形用の熱可塑性ポリエステル/エステルおよびポリエーテル/エステルエラストマー-パート1:指定システムおよび仕様の基盤 記事の内容:ISO 20029-1:2017は、熱可塑性ポリエステル/エステルおよびポリエーテル/エステルエラストマーの指定システムを確立し、これを基に仕様を作成することができます。これらのエラストマーは、a) 硬さ、b) 融点、c) 引張/曲げ弾性率といった指定属性の適切なレベルに基づいて区別され、また、予定される応用や/または加工方法、重要な特性、添加物、色、充填材および補強材料に関する情報にも基づいて区分されます。ISO 20029-1:2017は、すべての熱可塑性ポリエステル/エステルおよびポリエーテル/エステルエラストマーに適用されます。これは、粉末、粒子またはペレットの形態で使用され、着色剤、充填剤または他の添加剤によって修正されたものにも適用されます。同じ指定を持つ材料が必ずしも同じ性能を提供することを意味するものではありません。この文書は、材料を指定するために必要な工学データ、性能データ、および加工条件のデータを提供しません。必要な追加特性がある場合は、適切な場合はISO 20029-2で指定された試験方法によって決定することが意図されています。特定の仕様を満たすために熱可塑性ポリエステル/エステルまたはポリエーテル/エステルエラストマーを指定するには、要件はデータブロック5に記載されています(4.1参照)。
The article discusses ISO 20029-1:2017, which establishes a system of designation for thermoplastic polyester/ester and polyether/ester elastomers. It differentiates between these elastomers based on hardness, melting temperature, and modulus of elasticity, as well as other factors such as intended application and additives. The standard is applicable to all these elastomers in various forms, but it does not guarantee the same performance. It also does not provide engineering or performance data, which should be determined using specified test methods. The article highlights that specific requirements for elastomers can be found in data block 5.














Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
Loading comments...
