ISO/IEC 23000-9:2008

Information technology — Multimedia application format (MPEG-A) — Part 9: Digital Multimedia Broadcasting application format

ISO/IEC 23000-9:2008 specifies a file format that pertains to both terrestrial digital multimedia broadcasting (T-DMB) and satellite digital multimedia broadcasting (S-DMB) contents and services. It integrates the existing DMB contents with appropriate additional information to facilitate storage, interchange, management, editing, and presentation of the contents in protected, governed, and interoperable ways. ISO/IEC 23000-9:2008 is applicable both to storage and playback of DMB contents and to acquisition and consumption through communication networks and removable storages. Application examples of this specification include but are not limited to scheduled storage and time-shifted playback of DMB contents, file casting through DMB data channel, IP media service such as DMB content portal, rightful interchange of DMB contents between terminals, and user editing or creation from DMB contents.

Technologies de l'information — Format pour application multimédia (MPEG-A) — Partie 9: Format pour application de diffusion générale multimédia numérique

General Information

• Status: Published
• Publication Date: 10-Aug-2008
• ICS: 35.040 - Information coding
• ICS: 35.040.40 - Coding of audio, video, multimedia and hypermedia information
• Technical Committee: ISO/IEC JTC 1/SC 29 - Coding of audio, picture, multimedia and hypermedia information
• Drafting Committee: ISO/IEC JTC 1/SC 29 - Coding of audio, picture, multimedia and hypermedia information
• Current Stage: 9060 - Close of review
• Completion Date: 02-Sep-2029

Relations

• Amended By: ISO/IEC 23000-9:2008/Amd 1:2010 - Information technology — Multimedia application format (MPEG-A) — Part 9: Digital Multimedia Broadcasting application format — Amendment 1: Conformance and reference software
• Effective Date: 06-Jun-2022
• Amended By: ISO/IEC 23000-9:2008/Amd 2:2010 - Information technology — Multimedia application format (MPEG-A) — Part 9: Digital Multimedia Broadcasting application format — Amendment 2: Harmonization on MPEG-2 TS storage
• Effective Date: 14-Aug-2021
• Parent: ISO/IEC 23000-9:2008/Amd 1:2010 - Information technology — Multimedia application format (MPEG-A) — Part 9: Digital Multimedia Broadcasting application format — Amendment 1: Conformance and reference software
• Effective Date: 14-Aug-2008

Overview

ISO/IEC 23000-9:2008 - Digital Multimedia Broadcasting (DMB) application format - defines a standardized file format for terrestrial (T‑DMB) and satellite (S‑DMB) digital multimedia broadcasting contents and services. Part 9 of the ISO/IEC 23000 (MPEG‑A) family integrates existing DMB content with additional information to enable consistent storage, interchange, management, editing, and presentation of DMB assets in protected, governed and interoperable ways. The published package includes the PDF standard, XML examples and XML schemas to support implementation.

Key topics and requirements

• Standardized DMB file format tailored to both T‑DMB and S‑DMB content and services.
• Metadata and auxiliary information required to integrate broadcast content for storage, search, management and presentation.
• Interoperability and governance mechanisms to ensure rightful interchange between terminals and platforms.
• Content protection and rights considerations to support governed use and controlled distribution.
• Support for multiple delivery modes, covering both local storage/playback and acquisition/consumption via networks or removable media.
• Implementation resources provided in the standard: XML examples and XML schemas to guide developers in producing compliant DMB files.

Practical applications

ISO/IEC 23000-9:2008 is designed for real-world DMB workflows, including:

• Time‑shifted playback and scheduled recording of broadcast programs on receivers and set-top boxes.
• File casting via DMB data channels, allowing broadcasters to deliver files over broadcast data streams.
• IP media services and content portals that aggregate and serve DMB content over networks.
• Rights‑aware interchange of DMB files between handsets, receivers and archival systems.
• User editing and content creation workflows that derive new assets from broadcast material while preserving metadata and rights information.

Who should use this standard

• Broadcasters and DMB service providers planning storage, distribution or file‑casting services.
• Device manufacturers (mobile handsets, receivers, set‑top boxes) implementing compliant playback, recording and interchange.
• Software developers and OTT/IP media portals handling DMB content ingestion, management and presentation.
• Content aggregators, archivists and rights managers needing standardized, interoperable DMB file handling.

Related standards

• Part of the ISO/IEC 23000 (MPEG‑A) series (multimedia application formats).
• The standard package includes XML schemas and examples to accelerate compliant implementations.

Keywords: ISO/IEC 23000-9:2008, Digital Multimedia Broadcasting, DMB file format, T‑DMB, S‑DMB, MPEG‑A, DMB content management, time‑shifted playback, file casting, XML schemas, content protection.

Standards Content (Sample)

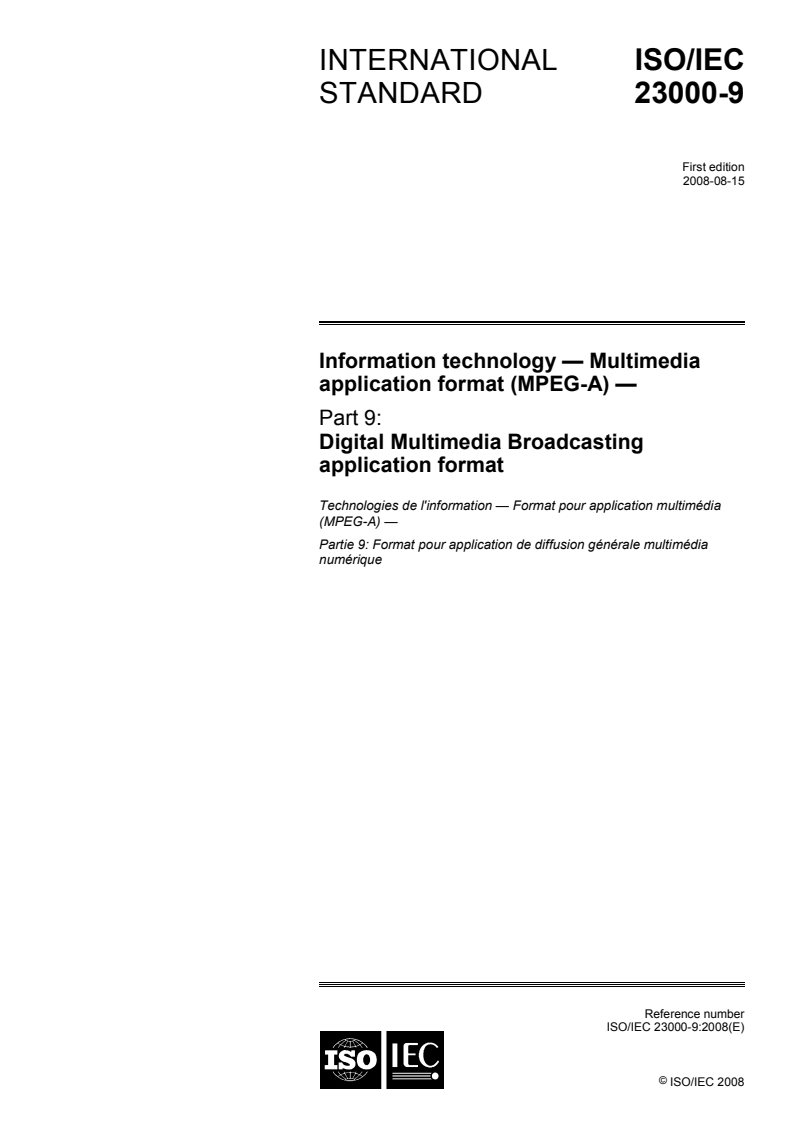

INTERNATIONAL ISO/IEC
STANDARD 23000-9
First edition
2008-08-15
Information technology — Multimedia
application format (MPEG-A) —
Part 9:
Digital Multimedia Broadcasting
application format
Technologies de l'information — Format pour application multimédia
(MPEG-A) —
Partie 9: Format pour application de diffusion générale multimédia
numérique
Reference number
©
ISO/IEC 2008

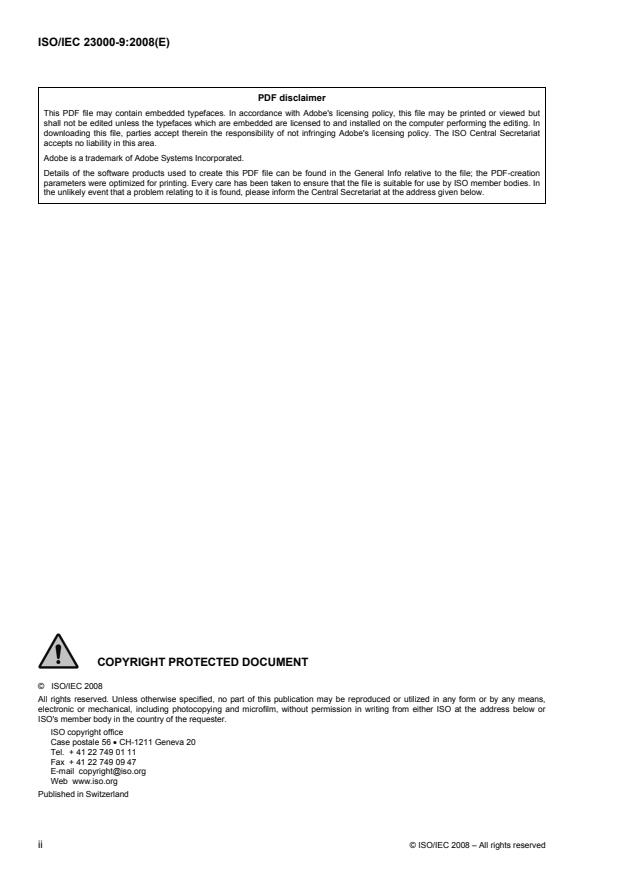

PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but
shall not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In
the unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO/IEC 2008
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or
ISO's member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO/IEC 2008 – All rights reserved

Contents Page
Foreword .iv
Introduction.v
1 Scope.1
2 Normative references.1
3 Terms, definitions and abbreviated terms.2
3.1 Terms and definitions .2
3.2 Abbreviated terms .2
4 Overview of technology.4
4.1 Components summary.4
4.2 File format - ISO base media file format.4
4.3 Organization of contents – MPEG-21 DID.5
4.4 Content creation and consumption description – TV Anytime Metadata.5
4.5 Protection and governance – MPEG-21 IPMP and REL.6
4.6 Timed text.6
5 Components of DMB-AF.6
5.1 Supported components and restrictions.6
5.2 Restrictions on MPEG-21 IPMP components .7
5.3 Restrictions on TV-Anytime metadata .12
6 File structures.17
6.1 Table for boxes .17
6.2 File structure for a single type file.19
6.3 File structure for a multiple type file .22
6.4 Protected file structure .23
6.5 Storage and playback of transport stream .25
6.6 Storage and playback of 3GPP time text .28
6.7 Relating content ID with item or track.30
7 Brands identification.32
7.1 Introduction.32
7.2 Audio applications .32
7.3 Video applications.33
7.4 All-in-one applications.33
Annex A (informative) MPEG-21 DID and TV-Anytime Usage Examples .34
Annex B (informative) User-Creative Data Usage Example.41
Annex C (informative) Specifying the Player’s Behavior.43
Bibliography.44

© ISO/IEC 2008 – All rights reserved iii

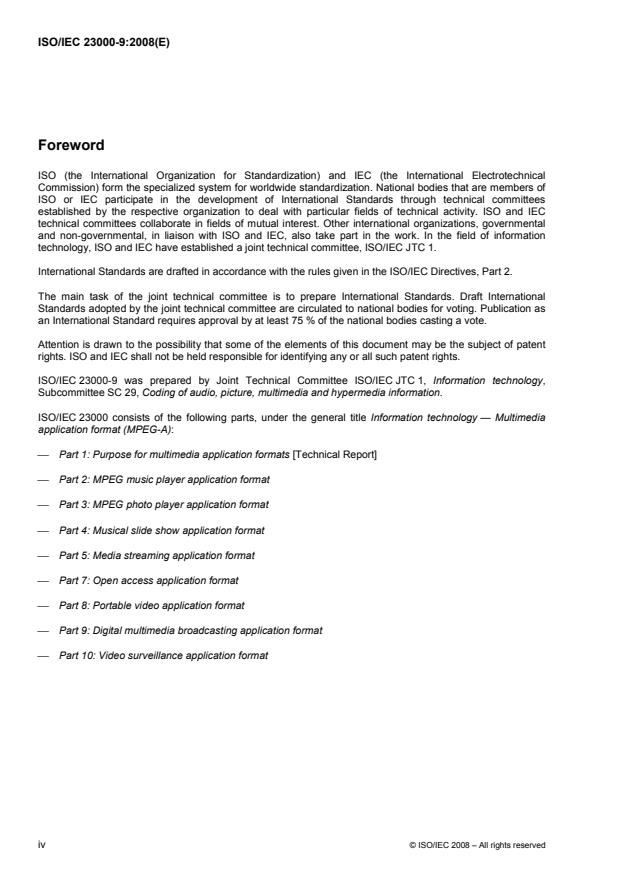

Foreword
ISO (the International Organization for Standardization) and IEC (the International Electrotechnical
Commission) form the specialized system for worldwide standardization. National bodies that are members of
ISO or IEC participate in the development of International Standards through technical committees
established by the respective organization to deal with particular fields of technical activity. ISO and IEC
technical committees collaborate in fields of mutual interest. Other international organizations, governmental
and non-governmental, in liaison with ISO and IEC, also take part in the work. In the field of information
technology, ISO and IEC have established a joint technical committee, ISO/IEC JTC 1.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of the joint technical committee is to prepare International Standards. Draft International
Standards adopted by the joint technical committee are circulated to national bodies for voting. Publication as
an International Standard requires approval by at least 75 % of the national bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO and IEC shall not be held responsible for identifying any or all such patent rights.
ISO/IEC 23000-9 was prepared by Joint Technical Committee ISO/IEC JTC 1, Information technology,
Subcommittee SC 29, Coding of audio, picture, multimedia and hypermedia information.
ISO/IEC 23000 consists of the following parts, under the general title Information technology — Multimedia
application format (MPEG-A):
⎯ Part 1: Purpose for multimedia application formats [Technical Report]
⎯ Part 2: MPEG music player application format
⎯ Part 3: MPEG photo player application format
⎯ Part 4: Musical slide show application format
⎯ Part 5: Media streaming application format
⎯ Part 7: Open access application format
⎯ Part 8: Portable video application format
⎯ Part 9: Digital multimedia broadcasting application format
⎯ Part 10: Video surveillance application format
iv © ISO/IEC 2008 – All rights reserved

Introduction
Digital Multimedia Broadcasting (DMB) is the first global mobile TV service based on a digital radio
transmission system. DMB provides people with crystal-clear video, theatre-quality audio, and other data
services on the move via in-vehicle terminals or hand-held gadgets like mobile phones so that it makes
possible the information acquisition and consumption anywhere. DMB contents on air include audio-visual
programs, interactive data, web pages, slideshows, TTI (traffic & travel information), etc.
Most users want to store their preferred DMB contents for consuming the contents at their preferred time and
on their preferred device. Many of them also want to share the contents with other people. Contents providers
also want to serve their DMB contents not only through broadcast but also through communication networks.
Thus a standardized format needs to be specified to guarantee the interoperability of the DMB contents
across various devices from different vendors.
DMB AF (Application Format) specification defines a file format that pertains to DMB (more specifically T-DMB
and S-DMB) contents and services. It specifies how to combine the variety of DMB contents with associated
information for a presentation in a well-defined format that facilitates storage, interchange, management,
editing, and presentation of the DMB contents in protected, governed, and interoperable ways.

© ISO/IEC 2008 – All rights reserved v

INTERNATIONAL STANDARD ISO/IEC 23000-9:2008(E)

Information technology — Multimedia application format
(MPEG-A) —
Part 9:
Digital Multimedia Broadcasting application format
1 Scope
This part of ISO/IEC 23000 specifies a file format that pertains to both terrestrial digital multimedia
broadcasting (T-DMB) and satellite digital multimedia broadcasting (S-DMB) contents and services. It
integrates the existing DMB contents with appropriate additional information to facilitate storage, interchange,
management, editing, and presentation of the contents in protected, governed, and interoperable ways.
This part of ISO/IEC 23000 is applicable both to storage and playback of DMB contents and to acquisition and
consumption through communication networks and removable storages. Application examples of this
specification include but are not limited to
⎯ scheduled storage and time-shifted playback of DMB contents,
⎯ file casting through DMB data channel,
⎯ IP media service such as DMB content portal,
⎯ rightful interchange of DMB contents between terminals, and
⎯ user editing or creation from DMB contents.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
ISO/IEC 14496-12, Information technology — Coding of audio-visual objects (MPEG-4) — Part 12: ISO base
1)
media file format
ISO/IEC 14496-14, Information technology — Coding of audio-visual objects (MPEG-4) — Part 14: MP4 file
format
ISO/IEC 14496-15, Information technology — Coding of audio-visual objects (MPEG-4) — Part 15: Advanced
Video Coding (AVC) file format
ISO/IEC 21000-2, Information technology — Multimedia framework (MPEG-21) — Part 2: Digital Item
Declaration
1) Technically identical to ISO/IEC 15444-2.
© ISO/IEC 2008 – All rights reserved 1

ISO/IEC 21000-4, Information technology — Multimedia framework (MPEG-21) — Part 4: Intellectual Property
Management and Protection Components
ISO/IEC 21000-5, Information technology — Multimedia framework (MPEG-21) — Part 5: Rights Expression
Language
ISO/IEC 21000-9, Information technology — Multimedia framework (MPEG-21) — Part 9: File Format
ETSI EN 300 401, Radio Broadcasting Systems; Digital Audio Broadcasting (DAB) to mobile, portable and
fixed receivers
ETSI TS 102 428, Digital Audio Broadcasting (DAB); DMB video service; User Application Specification
ETSI TS 102 822-3-1 V1.4.1:2007, Broadcast and On-line Services: Search, select, and rightful use of content
on personal storage systems (“TV-Anytime”); Part 3: Metadata; Sub-part 1: Phase 1 – Metadata schemas
ETSI TS 102 822-3-3 V1.2.1:2007, Broadcast and On-line Services: Search, select, and rightful use of content
on personal storage systems (“TV-Anytime”); Part 3: Metadata; Sub-part 3: Phase 2 – Extended Metadata
Schema
ETSI TS 102 822-4 V1.3.1:2007, Broadcast and On-line Services: Search, select, and rightful use of content
on personal storage systems (“TV-Anytime”); Part 4: Phase 1 – Content Referencing
TTAS.KO-07.0027, Standard for Satellite Digital Multimedia Broadcasting (S-DMB) Transmitter/Receiver
Interface
TTAS.KO-07.0032, Terrestrial Digital Multimedia Broadcasting; Specification of the MOT Slide show service
for Terrestrial Digital Multimedia Broadcasting (DMB) to mobile, portable and fixed receivers
TTAS.ET_TS101498-1, Radio Broadcasting Systems; Specification of the Broadcast Web Site Service for
VHF Digital Multimedia Broadcasting (DMB) to Mobile, Portable and Fixed Receivers
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1.1
DMB
digital multimedia broadcasting
collective term representing both terrestrial digital multimedia broadcasting (T-DMB) and satellite digital
multimedia broadcasting (S-DMB)
3.2 Abbreviated terms
AAC Advanced Audio Coding
AVC Advanced Video Coding
AVC-FF AVC File Format [ISO/IEC 14496-15]
BIFS Binary Format for Scenes
BWS Broadcast Web Site
CRID Content Reference Identifier
CS Classification Scheme
2 © ISO/IEC 2008 – All rights reserved

DAB Digital Audio Broadcasting [ETSI EN 300 401]
DLS Dynamic Label Segment
DI Digital Item
DID Digital Item Declaration
DMB-AF DMB Application Format [This part of ISO/IEC 23000]
DRM Digital Right Management
ES Elementary Stream
GOP Group of Pictures
GUI Graphic User Interface
HE-AAC v2 High Efficiency AAC version 2
IPMP Intellectual Property Management and Protection
ISO-FF ISO Base Media File Format [ISO/IEC 14496-12]
MATE Multimedia Application Terminal Environment
MIDP Mobile Information Device Profile
MOT Multimedia Object Transfer
MP4-FF MP4 File Format [ISO/IEC 14496-14]
MP21-FF MPEG-21 File Format [ISO/IEC 21000-9]
MPEG Moving Picture Experts Group (ISO/IEC JTC 1/SC 29/WG 11)
NPAD Non-PAD
PAD Program-Associated Data
PMT Program Map Table
RAI Random Access Indicator
REL Rights Expression Language
SBR Spectral Band Replication
S-DMB Satellite Digital Multimedia Broadcasting [TTAS.KO-07.0027]
SL Synchronization Layer
T-DMB Terrestrial Digital Multimedia Broadcasting [ETSI TS 102 428]
TPEG Transport Protocol Expert Group
TS Transport Stream
TTI Traffic and Travel Information
TVA TV-Anytime
© ISO/IEC 2008 – All rights reserved 3

4 Overview of technology
4.1 Components summary
Figure 1 shows a brief summary of the components of DMB-AF which consists of the MPEG Standards and
non-MPEG Standards. The components of DMB-AF include native DMB contents which can be broadcasted
on air and additional components added by this specification such as file format and metadata.
The native DMB contents include MPEG-4 AVC video, MPEG-1/2/4 audio, interactive video based on MPEG-
4 BIFS, and various kind of data such as MOT slide show, Dynamic Label (DLS), Broadcast web site (BWS),
Traffic and travel information (TTI) based on TPEG, and Java applications (midlet).
For this specification, ISO Base Media File Format and MP4 File Format are used for base file format
structure. MPEG-21 DID is used for organizing and listing content items. TV-Anytime Metadata is used for
contents and user description and is encapsulated by MPEG-21 DID. MPEG-21 REL and IPMP Components
are used for protection and governance of content resources and descriptive metadata. 3GPP Timed Text
Format is used when characters and glyphs rendering in timed manner is required, for example as in karaoke
application.
Components of DMB-AF
DMB Contents
Video MPEG-4 Part 10 AVC File Format MPEG-4 Part 12

Audio MPEG-1 Part 3 Audio
MPEG-2 Part 3 Audio
MPEG
MPEG-2 Part 7 AAC
Standards
MPEG-21 DID
MPEG-4 Part 3 Audio Metadata
System MPEG-21 IPMP
MPEG-2 Part 1 Systems
MPEG-21 REL
MPEG-4 Part 1 Systems
TV-Anytime Part 3
Auxiliary JPEG, PNG, MNG
data HTML, CSS, ECMAscript
Timed Text 3GPP TS 26.245
Java midlet
Non-MPEG
TPEG
Standards
Figure 1 — Components summary for DMB-AF
4.2 File format - ISO base media file format
The ISO base media file format is a flexible, extensible format which contains timed media information in order
to facilitate interchange, management, editing, and presentation of the media. The ISO base media file format
is a base format for the DMB-AF file structure.

ISO file
Movie data (moov) Media data (mdat)
… other boxes Interleaved, time-ordered,
video and audio frames
trak (video)
trak (audio)
Figure 2 — ISO base media file format example
4 © ISO/IEC 2008 – All rights reserved

Figure 3 shows the relations to other file formats; DMB-AF is basically derived from ISO file format and is
based on MP4 file format for storing MP4 contents, AVC file format for storing AVC video and parameter sets,
and MPEG-21 file format for content packaging, 3GPP timed text format for storing the 3GPP timed text.

ISO base media
file format
(ISO/IEC 14496-12)
MPEG-4 MPEG-4 MPEG-21 3GPP
MP4 file format AVC file format file format timed text format
(ISO/IEC 14496-14) (ISO/IEC 14496-15) (ISO/IEC 21000-9) (3GPP TS 26.245)

DMB-AF
(ISO/IEC 23000-9)
Figure 3 — Relation to other file formats
4.3 Organization of contents – MPEG-21 DID
MPEG-21 DID (ISO/IEC 21000-2) describes a set of abstract terms and concepts to form a useful model for
defining Digital Items. In the MPEG-21 multimedia framework, the digital item (DI) is a fundamental unit with a
standard representation, identification and metadata for the distribution, and transaction. For the declaration of
the digital item in flexible and general ways, MPEG-21 DID aims to standardize the description for the
definition of the digital item and provides the basic structure for content representation for the DMB content
storage and distribution scenario.
4.4 Content creation and consumption description – TV Anytime Metadata
TV-Anytime (ETSI TS 102 822-1 to 822-9) is a set of specifications for the controlled delivery of multimedia
content to a user's digital video recorder (DVR). It enables applications to exploit local and remote storage in
consumer electronics platforms.
The TV-Anytime metadata are sub-divided into two categories: phase 1 metadata (ETSI TS 102 822-3-1) and
phase 2 metadata (ETSI TS 102 822-3-3). The phase 1 metadata schema has the root element of
TVAMainType and defines mainly about program and user descriptions. The phase 2 metadata schema has
the root element of ExtendedTVAMainType and extends the phase 1 schema for including various content
types and consumption conditions.
For describing creation and consumption information of DMB contents, DMB-AF uses a restricted subset of
the TV-Anytime metadata specification. The restricted subset of TV-Anytime metadata for DMB-AF is defined
in subclause 5.3 of this specification.
DMB-AF also adopts CRID (content referencing Identifier) defined in TV-Anytime Part 4 (ETSI TS 102 822-4)
for identifying a specific content item independent of its location.
© ISO/IEC 2008 – All rights reserved 5

4.5 Protection and governance – MPEG-21 IPMP and REL
4.5.1 Right management and protection
MPEG-21 IPMP (Intellectual Property Management and Protection) Components standard is a DRM (Digital
Right Management) framework developed by MPEG for safe and easy distribution of contents between the
different user terminals and the different content providers. The MPEG-21 IPMP Components standard
provides the means to represent which parts of Digital Items are protected with what IPMP Tools.
For supporting governed and protected usage of DMB contents, DMB-AF adopts a restricted subset of
MPEG-21 IPMP Components. The lists of the functionalities are explained in subclause 5.2 of this
specification. Note that unless specifically mentioned in this specification, the requirements of MPEG-21 DID
and IPMP (ISO/IEC 21000-2 and ISO/IEC 21000-4) apply for digital item declaration and protection in
DMB-AF.
4.5.2 Right expression
ISO/IEC 21000-5 defines a right expression language (REL), which is designed to be domain-agnostic and
comprehensive, and also very flexible and adaptive to the specific scope and requirements of applications
within a particular domain. The language provides extension and profile mechanisms for these purposes.
In DMB-AF, licenses governing the use of content or parts thereof are expressed according to the
dissemination and capture DAC profile of the MPEG-21 REL. The REL DAC profile is designed for usage in
broadcasting applications, which can handle various use cases for DMB-AF applications. Note that the
requirements of the DAC profile of MPEG-21 REL (ISO/IEC 21000-5) apply for right expression in DMB-AF.
4.6 Timed text
3GPP Timed Text format describes the normative behavior of text data for rendering. Timed text supports the
characters and glyphs rendering, font support such as name, size and style, color support of text and
background, text rendering position and composition, etc. By using these functionalities, various applications
such as closed captioning, karaoke, dynamic highlighting and other visual annotation can be deployed in the
user’s terminal.
The synchronized usage of the timed text with other timed media is described in subclause 6.6.
5 Components of DMB-AF
5.1 Supported components and restrictions
In general, DMB Video Service components include audio and visual objects and associated auxiliary data,
which can be carried in MPEG-2 SPTS (Single Program Transport Stream). DMB Audio Service components
include audio stream and associated auxiliary data. DMB Data Service components include various kind of
NPAD (Non Program-Associated-Data).
In Table 1, all the supported components of DMB-AF, except the file format, are listed with the specification
reference of the respective component. Note that DMB-AF does not mandate all the syntax and semantics of
the ‘Specification’ column of Table 1. Instead, it does mandate the component specification with some
restrictions on profiles, levels, and usages, which are defined in the specification of ‘Restriction’ column of the
table. In other words, for each component listed in Table 1, the requirements of the corresponding
specification in the ‘Restriction’ column apply. For example, MPEG-4 AVC in T-DMB service is restricted such
that Baseline Profile Level 1.3 apply with “num_ref_frames = 3” and “pic_order_cnt_type = 2”
according to ETSI TS 102 428. Implementers of this specification shall carefully consult to the specifications in
the ‘Restriction’ column for the exact restrictions made on the supported components.
For the file format components, refer to Section 6 of this specification.
6 © ISO/IEC 2008 – All rights reserved

Table 1 — Supported Components of DMB-AF
Abbrevia
Type Component Name Specification Restriction
tion
ISO/IEC 11172-3 and
MPEG Audio Layer II MP2 ETSI EN 300 401
ISO/IEC 13818-3
MPEG-4 Audio ER-BSAC ER-BSAC ISO/IEC 14496-3 ETSI TS 102 428
Audio
MPEG-4 Audio HE-AAC v2 HE-AAC2 ISO/IEC 14496-3 ETSI TS 102 428
MPEG-2 AAC LC ISO/IEC 13818-7 and
AAC+SBR TTAS.KO-07.0027
MPEG-4 Audio SBR ISO/IEC 14496-3
T-DMB: ETSI TS 102 428
Visual MPEG-4 AVC Baseline AVC ISO/IEC 14496-10
S-DMB: TTAS.KO-07.0027
MPEG-2 Systems TS MP4on ISO/IEC 13818-1 and
Transport ETSI TS 102 428
MP2
MPEG-4 Systems SL ISO/IEC 14496-1
MOT-
MOT Slide Show TTAS.KO-07.0032 None
SLIDE
Dynamic Label Segment DLS ETSI EN 300 401 None
MPEG-4 BIFS BIFS ISO/IEC 14496-11 ETSI TS 102 428
TTAS.ET-TS101498-1
JPEG Image JPG ISO/IEC 10918-1
PNG Image PNG ISO/IEC 15948 PNG Version 1.2 TTAS.ET-TS101498-1
Data
MNG(Multiple-image Network
MNG Image MNG Graphics), Version 1.0, PNG TTAS.ET-TS101498-1
Development Group
3GPP Timed Text 3GPP-TT 3GPP TS 26.245 None
Broadcast Web Site BWS TTAS.ET-TS101498-1 Intermediate Profile
TTI (Traffic and Travel Information) TPEG ISO/TS 18234 Part 1~6 None
Java Application MIDlet Java ME MIDP None
MPEG-21 DID DID ISO/IEC 21000-2 None
This specification
MPEG-21 IPMP Components IPMP ISO/IEC 21000-4
(subclause 5.2)
Metadata
MPEG-21 REL REL ISO/IEC 21000-5 DAC Profile
ETSI TS 102 822-3 Subpart 1 and 3 This specification
TV-Anytime Metadata TVA
ETSI TS 102 822-4 (subclause 5.3)
NOTE 1 MOT-SLIDE and BWS components can contain JPG/PNG/MNG images and that BWS can contain HTML
(Hyper Text Markup Language) document, CSS (Cascading Style Sheet), and ECMA Script, etc. Unless specifically
mentioned in this specification, the requirements of TTAS.KO-07.0032 apply for the MOT-SLIDE component and the
requirements of TTAS.ET-TS101498-1 Intermediate Profile apply for the BWS component.
NOTE 2 JPG, PNG, and MNG images can be used in the contexts of BIFS, MOT-SLIDE, and BWS. In addition, the
images can also be used as media titles or thumbnails in TVA or can independently exist as additional resource items for
user. In any context, only the requirements of TTAS.ET-TS101498-1 apply for all the image components in DMB-AF.
5.2 Restrictions on MPEG-21 IPMP components
5.2.1 Introduction
The IPMP tool set for DMB-AF is a subset of MPEG-21 IPMP Components. The selection criterion on this tool
set is based on the specific application domain of DMB.
- Most of the target terminals are to be hand-held DMB receivers.
- The selected IPMP tools should be useful and applicable for DMB-AF services on such devices.
- For easy implementation, some ambiguous tool elements, e.g. the elements of “any” type should be
specifically defined.
The following subclauses specify the normative set of the required IPMP Components elements for DMB-AF.
© ISO/IEC 2008 – All rights reserved 7

5.2.2 IPMP DIDL
To maintain the full capability to express the protected Digital Item, the IPMP tool set for DMB-AF shall include
all the elements in the IPMP DIDL schema of MPEG-21 IPMP Components.
5.2.3 IPMP Information Descriptor
IPMP Information Descriptors in DMB-AF are composed of the subset of IPMP Information Descriptor schema
in MPEG-21 IPMP Components standard. The selected elements with restrictions are as follows.
Element/Child Element Restrictions on MPEG-21 IPMP Components
ipmpinfo:IPMPInfoDescriptor As defined in 7.3 of the standard
ipmpinfo:Tool Restricted to include only ToolRef
ipmpinfo:RightsDescriptor As defined in 7.5 of the standard.
Dsig:Signature As defined in 7.6 of the standard.
ipmpinfo:Tool Restricted to include only a ToolRef, an optional
initailzationSettings, an optional
RightDescipritor and an optional Signature
ipmpinfo:ToolRef As defined in 7.4.5 of the standard.
ipmpinfo:initializationSettings As defined in 7.5 of the standard.
ipmpinfo:RightsDescriptor As defined in 7.5 of the standard.
dsig:Signature As defined in 7.6 of the standard.
The ipmpinfo:RightsDescriptor element is used for containing rights information that governs the IPMP
information. The ipmpinfo:RightsDescriptor element under the ipmpinfo:Tool element is for each
IPMP Tool. The common rights information about all tools in ipmpinfo:IPMPInfoDescriptor can be
expressed by the ipmpinfo:RightsDescriptor under the ipmpinfo:IPMPInfoDescriptor.
Regarding encryption of resources, AES-128 CTR [32] is used as a default encryption tool in DMB-AF,
meaning that DMB-AF file players compliant to the protection supporting brands of this specification shall be
able to decrypt the resources encrypted by the default encryption tool. In addition, the initiation vector (IV) can
be used as a value of ipmpinfo:initializationSettingsData for AES-128 CTR method.
5.2.4 IPMP General Information Descriptor
IPMP General Information Descriptors in DMB-AF are composed of a subset of MPEG-21 IPMP Information
Descriptor schema in MPEG-21 IPMP Components and MPEG-A Media Streaming Player application
format [17]. The selected elements with restrictions are tabulated as follows.
8 © ISO/IEC 2008 – All rights reserved

Element/Child Element Restrictions on MPEG-21 IPMP Components
ipmpinfo:IPMPGeneralInfoDescriptor As defined in 8.3.1 of the standard.
Ipmpinfo:ToolList This element is restricted to include one or many
ipmpinfo:ToolDescription element(s).
ipmpinfo:LicenseCollection As defined in 8.5 of the standard.
Dsig:Signature As defined in 8.6 of the standard.
Ipmpinfo:ToolList Restricted to include only
ipmpinfo:ToolDescription
ipmpinfo:ToolDescription
ipmpinfo:ToolDescription This element is restricted to include the following child
elements only: ipmpinfo:IPMPToolID, an optional
ipmpinfo:Inline or ipmpinfo:Remote
ipmpinfo:IPMPToolID As defined in 8.4.4.3 of the standard.
Ipmpinfo:Inline As defined in 8.4.4.5 of the standard.
Ipmpinfo:Remote As defined in 8.4.4.6 of the standard.
Ipmpinfo:ConfigurationSettings As defined in 8.4.8.6 of the standard.
@localID As defined in 8.4.4.1 of the standard.
ipmpinfo:ConfigurationSettings
ipmpinfo:Configuration Restricted to include a ipmpinfo-msx:ToolBody
element [17] in order to indicate IPMP Tool
Configuration.
ipmpinfo:Update As defined in 7.4.4.7.4 of the standard.

5.2.5 IPMP Information schema

xmlns:ipmpinfo-msx="urn:mpeg:mpeg21:2006:10-IPMPINFO-MSX-NS" xmlns:dii="urn:mpeg:mpeg21:2002:01-DII-
NS" xmlns:r="urn:mpeg:mpeg21:2003:01-REL-R-NS" xmlns:dsig="http://www.w3.org/2000/09/xmldsig#"
targetNamespace="urn:mpeg:mpeg21:2004:01-IPMPINFO-NS" elementFormDefault="qualified"
attributeFormDefault="unqualified" version="0.01">
schemaLocation="http://www.w3.org/TR/2002/REC-xmldsig-core-20020212/xmldsig-core-schema.xsd"/>





The RightsDescriptor under this element is applied to the associated
asset























© ISO/IEC 2008 – All rights reserved 9













































































10 © ISO/IEC 2008 – All rights reserved








































































© ISO/IEC 2008 – All rights reserved 11

5.3 Restrictions on TV-Anytime metadata
5.3.1 Introduction
DMB-AF uses a restricted subset of TV-Anytime Metadata for the rich content description and consumption.
The followings are taken into considerations in order to customize the TVA metadata schema for DMB-AF
applications.
- There are many elements that can be used to describe the same information. To reduce usage
ambiguity of such elements, some redundant elements should be eliminated as much as possible.
- There are recursive elements such as ‘item’, which can contain ‘item’s recursively. For a simple
description and devices with limited system resources, the level of recursion should be restricted to a
certain level.
- Those elements which are not essential for DMB-AF applications should be optimized in regards to
the required system resources and possible future usages.
5.3.2 Restricted schema elements
Figure 4 shows a high-level view of the restricted TV-Anytime metadata schema for DMB-AF.

Figure 4 — Overview of the restricted set of TV-Anytime metadata
12 © ISO/IEC 2008 – All rights reserved

The top-level schema of the restricted set of TV-Anytime metadata is shown in Figure 5.

xmlns:dmb_tva="urn:mpeg:maf:schema:dmb:tva:2007" xmlns:dmb_tva2="urn:mpeg:maf:schema:dmb:tva2:2007"
xmlns:dmb_mpeg7="urn:mpeg:maf:schema:dmb:mpeg7:2007" xmlns="http://www.w3.org/2001/XMLSchema"
targetNamespace="urn:mpeg:maf:schema:dmb:metadata:2007" elementFormDefault="qualified"
attributeFormDefault="unqualified">

This schema consists of datatypes that are normatively defined in
Updated proposal on TV-Anytime Metadata in ISO/IEC 23000-9 MAF for DMB (2007-10)






ISO/IEC 23000-9 MAF for DMB





minOccurs="0"/>
maxOccurs="3"/>










Figure 5 — Top-level schema of the restricted set of TV-Anytime metadata
The restricted schema element types are tabulated in Table 2. In the ‘Restrictions’ column of this table, ‘TVA1’
and ‘TVA2’ mean TV-Anytime Phase 1 and Phase 2 Metadata specifications (i.e., ETSI TS 102 822-3-1
V1.4.1 and ETSI TS 102 822-3-3 V1.2.1), respectively.
© ISO/IEC 2008 – All rights reserved 13

Table 2 — The restricted schema elements of TV-Anytime metadata
Index Element/Child Element Restrictions
Restricted as only the elements in Index 2~5 of this table are used.
1 ExtendedTVAMain
In addition, xml:lang and version attributes are used as mandatory.
2 CopyrightNotice As defined in 6.7.2 of TVA1
3 ClassificationSchemeTable As defined in 6.7.2 of TVA1
4 UserDescription See Index 6~8
5 PackageTable
See Index 15~16
6 UserDescription
7 UserPreferences
See Index 9
8 UsageHistory
See Index 12~14
Restricted as only the elements in index 10~11 of this table are
9 UserPreferences
used.
10 UserIdentifier
As defined in 6.5.2 of TVA1
Restricted from 6.5.2 of TVA1; Restricted only to use
FilteringAndSearchPrefere
11 "CreationPreferences" element. Restricted as this element is used
nces
for describing preference for a program.
12 UsageHistory
13 UserIdentifier As defined in 6.5.2 of TVA1
14 UserActionHistory Restricted not to use "ObservationPeriod" element
Restricted from 10.1 of TVA2;
15 PackageTable
Restricted as xml:lang is mandatory, and copyrightNotice is optional
16 Package See Index 17~20
17 Package
18 Declarations Restricted from 8.2 of TVA2; Restricted not to use “Anchor”.
19 Descriptor See Index 38~44
20 Item
See Index
...
