General Information

• Status: Published
• Publication Date: 15-Aug-2016
• ICS: 01.080.20 - Graphical symbols for use on specific equipment
• ICS: 65.060.01 - Agricultural machines and equipment in general
• Technical Committee: ISO/TC 23/SC 14 - Operator controls, operator symbols and other displays, operator manuals
• Drafting Committee: ISO/TC 23/SC 14 - Operator controls, operator symbols and other displays, operator manuals
• Current Stage: 9060 - Close of review
• Completion Date: 04-Mar-2027

Relations

• Amended By: ISO 3767-2:2016/Amd 1:2020 - Tractors, machinery for agriculture and forestry, powered lawn and garden equipment - Symbols for operator controls and other displays - Part 2: Symbols for agricultural tractors and machinery - Amendment 1
• Effective Date: 09-May-2020
• Revises: ISO 3767-2:2008 - Tractors, machinery for agriculture and forestry, powered lawn and garden equipment - Symbols for operator controls and other displays - Part 2: Symbols for agricultural tractors and machinery
• Effective Date: 23-Jul-2011

Overview

ISO 3767-2:2016 standardizes graphical symbols for operator controls and other displays specifically for agricultural tractors and machinery. Part of the ISO 3767 series, this edition is an extensive technical revision that adds many new symbols. It defines how symbols should be presented, reproduced, grouped and adapted for electronic displays so symbols communicate clearly and consistently across international markets.

Key topics and requirements

• Scope and purpose: Symbols apply to agricultural tractors and machinery as classified in ISO 3339-0 and complement the common symbols in ISO 3767-1.
• Symbol usage rules: Symbols shall be used as shown in the standard; selected outline symbols may be filled for clarity. Minor graphical modifications (line width, rounded corners) are allowed as long as the symbol’s essential meaning remains unchanged.
• Orientation and scaling: Symbols must appear in the prescribed orientation unless specific rotation/mirroring is allowed. Sizing guidance references IEC 80416-1 to ensure legibility and correct visual relationships when symbols are grouped.
• Colour coding for illuminated displays:
  • Red - failure, serious malfunction, immediate attention required
  • Yellow/amber - condition outside normal limits
  • Green - normal operating condition
• Reproduction requirements: Symbols cast, moulded, embossed or stamped must be visually distinct without reliance on colour.
• Location and relation to controls: Symbols shall be placed on or adjacent to the control/display they identify and arranged so control movement toward a symbol corresponds to the function depicted.
• Digital adaptation: Symbols may be adapted into icons for GUIs and reconfigurable displays following ISO 80416-4, preserving the original symbol’s visual impression.
• Development of new symbols: New symbol proposals must follow ISO 3767-1 Annex A and consult ISO 7000/IEC 60417 databases to avoid duplication; proposed symbols require a short explanation of intended use.
• Registration references: Where applicable, ISO/IEC registration numbers (ISO 7000, IEC 60417) are shown for registered symbols.

Applications and users

ISO 3767-2 is essential for:

• Tractor and agricultural machinery manufacturers (control panels, dashboards)
• Human factors, UI/UX and product designers (physical and digital displays)
• Safety and compliance engineers implementing international marking requirements
• Service and training organizations ensuring consistent operator communication
• Regulators and standards bodies harmonizing machine labeling

Practical uses include control panel design, in-cab display iconography, operator manuals, safety labeling, and global product certification.

Related standards

• ISO 3767-1 - Common symbols
• ISO 3767-3/4/5 - Symbols for powered lawn & garden equipment and forestry machines
• ISO 7000 / IEC 60417 - Graphical symbol databases
• IEC/ISO 80416 series - Principles for creation, arrows, application and digital adaptation of graphical symbols

Keywords: ISO 3767-2:2016, symbols for operator controls, agricultural tractors, graphical symbols, operator displays, ISO 7000, IEC 60417, ISO 80416, control panel icons, tractor symbols.

Standards Content (Sample)

DRAFT INTERNATIONAL STANDARD
ISO/DIS 3767-2
ISO/TC 23/SC 14 Secretariat: ANSI
Voting begins on: Voting terminates on:
2015-05-11 2015-08-11
Tractors, machinery for agriculture and forestry, powered
lawn and garden equipment — Symbols for operator
controls and other displays —
Part 2:
Symbols for agricultural tractors and machinery
Tracteurs, matériels agricoles et forestiers, matériel à moteur pour jardins et pelouses — Symboles pour les
commandes de l’opérateur et autres indications —
Partie 2: Symboles pour tracteurs et machines agricoles
ICS: 01.080.20; 65.060.01
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 3767-2:2015(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
©
PROVIDE SUPPORTING DOCUMENTATION. ISO 2015

ISO/DIS 3767-2:2015(E)
© ISO 2015
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2015 – All rights reserved

ISO/DIS 3767-2:2015
Foreword
A boiler plate text will be inserted by ISO CS from DIS onwards.

ISO 3767 consists of the following parts, under the general title Tractors, machinery for agriculture and
forestry, powered lawn and garden equipment — Symbols for operator controls and other displays:
Part 1: Common symbols
Part 2: Symbols for agricultural tractors and machinery
Part 3: Symbols for powered lawn and garden equipment
Part 4: Symbols for forestry machinery
Part 5: Symbols for manual portable forestry machines

This edition of ISO 3767-2 constitutes an extensive technical revision with many new symbols added.

ISO/DIS 3767-2:2015

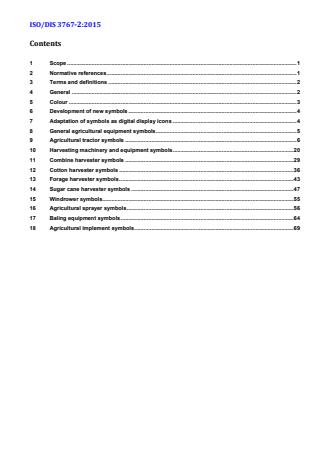

Contents
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 General . 2
5 Colour . 3
6 Development of new symbols . 4
7 Adaptation of symbols as digital display icons . 4
8 General agricultural equipment symbols . 5
9 Agricultural tractor symbols . 6
10 Harvesting machinery and equipment symbols . 20
11 Combine harvester symbols . 29
12 Cotton harvester symbols . 36
13 Forage harvester symbols . 43
14 Sugar cane harvester symbols . 47
15 Windrower symbols. 55
16 Agricultural sprayer symbols . 56
17 Baling equipment symbols . 64
18 Agricultural implement symbols . 69

ISO/DIS 3767-2:2015
Tractors, machinery for agriculture and forestry, powered lawn and garden
equipment — Symbols for operator controls and other displays — Part 2:
Symbols for agricultural tractors and machinery
1 Scope
1.1 ISO 3767-2 standardizes symbols for use on operator controls and other displays on agricultural
tractors and machinery as defined in ISO 3339-0.
1.2 ISO 3767-1 covers common symbols that apply to multiple types of agricultural tractors and
machinery, forestry machinery, and powered lawn and garden equipment. ISO 3767-3 covers symbols
for powered lawn and garden equipment. ISO 3767-4 covers symbols for forestry machinery.
ISO 3767-5 covers symbols for manual portable forestry machines.
1.3 ISO 7000 and IEC 60417 can be consulted for additional internationally standardized symbols of
potential relevance to agricultural tractors and machinery.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
ISO 3339-0, Tractors and machinery for agriculture and forestry — Classification and terminology —
Part 0: Classification system and classification
ISO 3767-1, Tractors, machinery for agriculture and forestry, powered lawn and garden equipment —
Symbols for operator controls and other displays—Part 1: Common symbols
ISO 7000, Graphical symbols for use on equipment
[available in database format at http://www.graphical-symbols.info/ and http://www.iso.org/obp/ui/]
IEC60417, Graphical symbols for use on equipment
[available in database format at http://www.graphical-symbols.info/]
IEC 80416-1, Basic principles for graphical symbols for use on equipment — Part 1: Creation of symbol
originals
ISO 80416-2, Basic principles for graphical symbols for use on equipment — Part 2: Form and use of
arrows
IEC 80416-3, Basic principles for graphical symbols for use on equipment — Part 3: Guidelines for the
application of graphical symbols
ISO 80416-4, Basic principles for graphical symbols for use on equipment — Part 4: Guidelines for the
adaptation of graphical symbols for use on screens and displays (icons)
ISO/DIS 3767-2:2015
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
symbol (graphical symbol)
a visually perceptible figure used to transmit information independent of language. It may be produced
by drawing, printing, or other means. Letters, numerals, and mathematical symbols may be used as
symbols or symbol elements. For some specific applications, groups of letters (for example, AUTO,
STOP) are used as symbols or symbol elements.
NOTE Letters and numerals are not registered by ISO/TC 145/SC 3 or published in ISO 7000 unless they are
symbol elements embedded in graphical symbols.
3.2
icon (digital display icon)
a digitized (pixelated) representation of a graphical symbol, usually used on a reconfigurable electronic
display screen or graphical user interface (GUI). A single symbol can be represented by multiple icons,
each of a different size, pixel count, or colourization.
4 General
4.1 Except as indicated in subsequent clauses, symbols shall be used as shown in ISO 3767-2.
4.2 Selected symbols, which are shown in outline form in ISO 3767-2, may be filled in actual use for
enhanced clarity of reproduction and improved visual perception by the operator, except as otherwise
specified for individual symbols. Refer to IEC 80416-3 for guidance.
4.3 Limitations inherent in some reproduction and display technologies can require increased line
width or other minor modifications of symbols. Such modifications are allowed, provided that the
symbol remains conceptually unchanged in its basic graphical elements and is easily discernible by the
operator.
4.4 To improve the appearance and perceptibility of a graphical symbol, or to coordinate with the
design of the equipment to which it is applied, it can be necessary to modify the symbol as indicated in
IEC 80416-3 (for example, to change the line width or to round the corners of the symbol). Such
modifications are allowed, provided that the essential perceptible characteristics of the symbol are
maintained.
4.5 For actual use, all symbols shall be reproduced large enough to be easily discernible by the
operator. See IEC 80416-1 for guidelines on the proper sizing of symbols. Symbols grouped together in
a display or on a set of controls should be scaled to the same degree relative to the corner marks of the
symbol original as shown in ISO 3767-2 in order to maintain the correct visual relationship among the
symbols. Symbols shall be used in the orientation shown in ISO 3767-2, unless rotation or mirror
imaging is specifically allowed for individual symbols.
4.6 Most symbols are constructed using a building block approach in which various symbols and
symbol elements are combined in a logical manner to produce a new symbol.
4.7 In some cases, symbols may be used in conjunction, without being combined into a composite
symbol, to convey the same meaning as the composite symbol.
2 © ISO 2015 – All rights reserved

ISO/DIS 3767-2:2015
4.8 Symbols are generally intended to replace a word or words with a graphical image that has the
same meaning for all operators, regardless of their native language. However, the use of a graphical
symbol to identify a control or display does not preclude the use of words in conjunction with that
control or display.
4.9 If a symbol shows a machine or parts of a machine from a side view, a machine moving from
right to left across the symbol area shall be assumed. If a symbol shows a machine or parts of a machine
from an overhead view, a machine moving from bottom to top across the symbol area shall be assumed.
4.10 Symbols on controls and displays shall have a good contrast to their background. A white or
light-coloured symbol on a black or dark-coloured background is preferred for most controls. Displays
may use either a white or light-coloured symbol on a black or dark-coloured background or a black or
dark-coloured symbol on a white or light-coloured background, depending upon which alternative
provides the best visual perception. When a symbol image is reversed (for example, from black-on-
white to white-on-black or vice versa) this reversal shall be done for the entire symbol.
4.11 If symbols are cast, moulded, embossed, or stamped into a surface, the symbols shall be visually
distinct from that surface without dependence on colour.
4.12 Symbols shall be located on or adjacent to the control or display that is being identified. Where
more than one symbol is required for a control, the symbols shall be located in relation to the control
such that movement of the control towards the symbols shall effect the function depicted by that
symbol.
4.13 Arrows used in symbols shall conform to the requirements of ISO 80416-2. IEC 80416-1 shall be
consulted for the general principles for creating symbol originals. IEC 80416-3 should be consulted for

guidelines for the application of symbols.
4.14 ISO/IEC registration numbers are shown for symbols which are registered in ISO 7000 or
IEC 60417.
NOTE Symbol originals are approved and registered either by ISO/TC 145/SC 3 and published in ISO 7000 or
by IEC/SC 3C and published in IEC 60417. In some cases, modified or application symbols, rather than the
registered symbol originals, are standardized in ISO 3767-2.
4.15 When letters or numerals are used in a symbol, the font shown shall not be considered
definitive. Other fonts may be used so long as the letters and numerals remain legible.
4.16 Symbols in ISO 3767-2 are shown within marks that delimit the corners of the 75 mm square
basic pattern from IEC 80416-1. Corner marks are not part of the symbol, but are provided to ensure
consistent presentation of all symbol graphics.
5 Colour
When used on illuminated displays, the following colours shall have the meanings indicated:
— Red denotes a failure, serious malfunction, or operating condition that requires immediate
attention;
— Yellow or amber denotes a condition outside normal operating limits;
— Green denotes a normal operating condition.
ISO/DIS 3767-2:2015
6 Development of new symbols
6.1 Prior to developing a new symbol, a search should be conducted for previously standardized
symbols with the same or similar meaning to what is needed. ISO 7000 and IEC 60417 (both available in
database form) are compilations of internationally standardized symbols which can be useful both for
finding appropriate symbols that do not appear in one of the parts of ISO 3767 and for generating
concepts that can be used in the development of new symbols.
6.2 New symbols shall be developed in accordance with the principles of ISO 3767-1, Annex A.
IEC 80416-1 should be consulted for general principles for the creation of symbols. Arrows shall be in
accordance with ISO 80416-2. Different arrow forms have different meanings according to ISO 80416-2.
Care should be taken to use the correct arrow form. Following the guidelines of ISO 3767-1, Annex A
makes possible the development of symbols appropriate in graphical form and content for international
standardization and ISO 7000 registration.
6.3 Symbols proposed for standardization in ISO 3767-2 shall include a short explanation of the
function or expected use of the symbol.
NOTE IEC 80416-1 uses the term "description" for this type of information and provides guidelines for
writing descriptions for symbols intended for standardization in ISO 7000 or IEC 60417. The descriptions for
symbols standardized in ISO 3767-2 can serve as examples.
7 Adaptation of symbols as digital display icons
Symbols can be adapted for use as digital display icons on visual display units, reconfigurable displays,
or other electronic displays. Such adaptations should follow the principles of ISO 80416-4. Special care
should be taken to ensure that digital display icons preserve the visual impression of the symbol from
which the icon is adapted. The same principles regarding use of colour with symbols apply to the use of
colour with digital display icons.
4 © ISO 2015 – All rights reserved

ISO/DIS 3767-2:2015
8 General agricultural equipment symbols
ISO/IEC
Graphical registration
symbol Symbol title and description number
Area worked ISO 7000-1657
8.1
To indicate the area that has been worked by a
machine.
To identify the control for specifying an area.

Area worked per hour ISO 7000-1658
8.2
To indicate the area that has been worked by a
machine per hour of operation.

Work distance travelled ISO 7000-2177
8.3
To indicate the distance that has been travelled
by a machine during work.
Application rate per area, general ISO 7000-3188
8.4
To indicate the application rate (for example, of
seeds or fertilizer) per area
Machine immobilizer ISO 7000-3037
8.5
To identify the control that immobilizes the
machine to prevent its unintended or
unauthorized movement.
To indicate that the machine is in the
immobilized condition.
Total area worked ISO 7000-3130
8.6
To indicate the total area that has been worked
by the machine in the given time period.

Area remaining to work ISO 7000-3244
8.7
To indicate the area that remains to be worked
by a machine. The total area to be worked is
specified and the actual area worked is
subtracted to determine the area remaining.

ISO/DIS 3767-2:2015
9 Agricultural tractor symbols
ISO/IEC
Graphical registration
symbol Symbol title and description number
Tractor (side view of machine) ISO 7000-2133
9.1
To identify the tractor from a side (profile)
view.
Use as a base symbol for developing tractor

symbols that use a side (profile) view.
Tractor (overhead view of machine) ISO 7000-2134
9.2
To identify the tractor from an overhead (plan)
view.
This symbol is viewed from the perspective of a

person looking at the tractor from above the
machine.
Use as a base symbol for developing tractor
symbols that use an overhead (plan) view.
Tractor, forward direction of movement ISO 7000-1666
9.3
(side view of machine)
To identify the control that moves the tractor in
the forward direction.
To indicate that the tractor is moving forward.
Tractor, rearward direction of movement ISO 7000-1667
9.4
(side view of machine)
To identify the control that moves the tractor in
the rearward direction.
To indicate that the tractor is moving rearward.
Tractor, forward direction of movement ISO 7000-2135
9.5
(overhead view of machine)
To identify the control that moves the tractor in
the forward direction.
To indicate that the tractor is moving forward.
This symbol is viewed from the perspective of a
person looking at the tractor from above the
machine.
Tractor, rearward direction of movement ISO 7000-2136
9.6
(overhead view of machine)
To identify the control that moves the tractor in
the rearward direction.
To indicate that the tractor is moving rearward.
This symbol is viewed from the perspective of a
person looking at the tractor from above the
machine.
6 © ISO 2015 – All rights reserved

ISO/DIS 3767-2:2015
ISO/IEC
Graphical registration
symbol Symbol title and description number
Tractor, ground speed ISO 7000-2179
9.7
To identify the display shat shows ground
speed of the tractor.
To indicate the ground speed of the tractor.

Tractor, ground speed, automatic control ISO 7000-3131
9.8
To identify the control that activates the
automatic mode for tractor ground speed.
To indicate that tractor ground speed is in the

automatic control mode.
9.9 Tractor, target ground speed ISO 7000-3132
To identify the control that sets the target
ground speed of the tractor.
To indicate the tractor target ground speed.

Tractor, front wheel drive ISO 7000-1663
9.10
To identify the control for the tractor front
wheel drive.
To indicate that the tractor front wheel drive is

in normal operation mode.
9.11 Tractor, front wheel drive, off or not Negation of
ISO 7000-1663
available
To identify the control that switches off the
tractor front wheel drive.
To indicate that the tractor front wheel drive is
switched off or is otherwise not available.
Tractor, front wheel drive, automatic ISO 7000-2420
9.12
operation
To identify the control for the automatic
operation of the tractor front wheel drive.

To indicate that the tractor front wheel drive is
in automatic operation mode.
Front wheel drive is engaged and disengaged
automatically based on operating conditions.
Tractor, front wheel drive, braking ISO 7000-2421
9.13
To identify the control for the tractor front
wheel drive brake.
To indicate the status of the tractor front wheel

drive brake system.
Front wheel drive engages when brakes are
applied at travel speeds above a specified limit.
ISO/DIS 3767-2:2015
ISO/IEC
Graphical registration
symbol Symbol title and description number
Tractor, wheel slip ISO 7000-1665
9.14
To indicate the degree of wheel slip, which is
the difference between the actual ground speed
of the tractor and the ground speed implied by
the rotational speed of the drive wheels.

To identify the control that sets or adjusts the
degree of wheel slip at which an indication is
provided or action is taken, either manually or
automatically.
Tractor, wheel slip. automatic operation ISO 7000-3133
9.15
To identify the control for the automatic
operation of the tractor wheel slip system.
To indicate that the tractor wheel slip system is

in automatic operation mode.
Tractor, headland turning ISO 7000-2800
9.16
To identify the control for a programmed
sequence of tractor operations taken at the end
of a field (headland).
To indicate the operational status of the tractor
headland turning system.
This symbol is viewed from the perspective of a
person looking at the tractor from above of the
machine.
Tractor, auxiliary headlights ISO 7000-2137
9.17
To identify the control for the auxiliary
headlights of the tractor.
Tractor, suspension system ISO 7000-3134
9.18
To identify the control for the tractor
suspension system.
To indicate the operational status of the tractor

suspension system.
Tractor, suspension system, front ISO 7000-3135
9.19
To identify the control for the tractor front
suspension system.
To indicate the operational status of the tractor

front suspension system.
8 © ISO 2015 – All rights reserved

ISO/DIS 3767-2:2015
ISO/IEC
Graphical registration
symbol Symbol title and description number
Tractor, suspension system, rear ISO 7000-3136
9.20
To identify the control for the tractor rear
suspension system.
To indicate the operational status of the tractor

rear suspension system.
Tractor, ride control system ISO 7000-3137
9.21
To identify the control for the tractor ride
control system, which dynamically adjusts the
suspension system to smooth the ride over
uneven ground.
To indicate the operational status of the tractor
ride control system.
Rockshaft ISO 7000-1566
9.22
To identify the control for the rockshaft of a
machine; the rockshaft raises or lowers the
implement or equipment attached to it.

To indicate the operational status of the
rockshaft.
ISO 7000-2133 (see 9.1) may be placed to the
left of this symbol.
The horizontal ground line may be deleted if in
context the symbol meaning remains clear.
For front hitch (rockshaft), use mirror image
(see 9.30).
Rockshaft , up; rockshaft, raise ISO 7000-1567
9.23
To identify the control that raises the rockshaft.
To indicate that the rockshaft is being raised or
is in the raised (up) position.

ISO 7000-2133 (see 9.1) may be placed to the
left of this symbol.
The horizontal ground line may be deleted if in
context the symbol meaning remains clear.
For front hitch (rockshaft), use mirror image
(see 9.31).
ISO/DIS 3767-2:2015
ISO/IEC
Graphical registration
symbol Symbol title and description number
Rockshaft, down; rockshaft, lower ISO 7000-1568
9.24
To identify the control that lowers the
rockshaft.
To indicate that the rockshaft is being lowered

or is in the lowered (up) position.
ISO 7000-2133 (see 9.1) may be placed to the
left of this symbol.
The horizontal ground line may be deleted if in
context the symbol meaning remains clear.
For front hitch, use mirror image (see 9.32).
Rockshaft, float ISO 7000-1660
9.25
To identify the control that allows the rockshaft
to move up and down with the contour of the
ground over which or through which the
implement or equipment attached to the

rockshaft moves.
To indicate that the rockshaft is in the float
condition.
ISO 7000-2133 (see 9.1) may be placed to the
left of this symbol.
For front hitch (rockshaft), use mirror image
(see 9.33).
Rockshaft, upper limit ISO 7000-2178
9.26
To identify the control that sets the maximum
height to which an implement can be raised by
the rockshaft.
To indicate that the rockshaft is raised to its
maximum height.
ISO 7000-2133 (see 9.1) may be placed to the
left of this symbol.
The horizontal ground line may be deleted if in
context the symbol meaning remains clear.
For front hitch (rockshaft), use mirror image
(see 9.34).
10 © ISO 2015 – All rights reserved

ISO/DIS 3767-2:2015
ISO/IEC
Graphical registration
symbol Symbol title and description number
Rockshaft, lower limit ISO 7000-3189
9.27
To identify the control that sets the minimum
height to which an implement can be lowered
by the rockshaft.
To indicate that the rockshaft is lowered to its
minimum height.
ISO 7000-2133 (see 9.1) may be placed to the
left of this symbol.
The horizontal ground line may be deleted if in
context the symbol meaning remains clear.
For front hitch (rockshaft), use mirror image
(see 9.35).
Rockshaft, depth control, maximum depth ISO 7000-3190
9.28
To identify the control that sets the maximum
depth to which the rockshaft is allowed to move
while the implement or equipment is in
operation.
To indicate the maximum depth setting of the
rockshaft depth control.
ISO 7000-2133 (see 9.1) may be placed to the
left of this symbol.
For front hitch (rockshaft), use mirror image
(see 9.36).
Rockshaft, depth control, minimum depth ISO 7000-3191
9.29
To identify the control that sets the minimum
depth to which the rockshaft is allowed to move
while the implement or equipment is in
operation.
To indicate the minimum depth setting of the
rockshaft depth control.
ISO 7000-2133 (see 9.1) may be placed to the
left of this symbol.
For front hitch (rockshaft), use mirror image
(see 9.37).
ISO/DIS 3767-2:2015
ISO/IEC
Graphical registration
symbol Symbol title and description number
Front hitch (rockshaft) Mirror image of
9.30
ISO 7000-1566
To identify the control for the rockshaft of a
machine; the rockshaft raises or lowers the
implement or equipment attached to it.

To indicate the operational status of the
rockshaft.
ISO 7000-2133 (see 9.1) may be placed to the
right of this symbol.
The horizontal ground line may be deleted if in
context the symbol meaning remains clear.
For rear hitch (rockshaft), use ISO 7000-1566
(see 9.22).
Front hitch (rockshaft), up (raise) Mirror image of
9.31
ISO 7000-1567
To identify the control that raises the front
hitch (rockshaft).
To indicate that the front hitch (rockshaft) is

being raised or is in the raised (up) position.
ISO 7000-2133 (see 9.1) may be placed to the
right of this symbol.
The horizontal ground line may be deleted if in
context the symbol meaning remains clear.
For rear hitch (rockshaft), use ISO 7000-1567
(see 9.23).
Front hitch (rockshaft), down (lower) Mirror image of
9.32
ISO 7000-1568
To identify the control that lowers the
rockshaft.
To indicate that the rockshaft is being lowered

or is in the lowered (down) position.
ISO 7000-2133 (see 9.1) may be placed to the
right of this symbol.
The horizontal ground line may be deleted if in
context the symbol meaning remains clear.
For rear hitch (rockshaft), use ISO 7000-1568
(see 9.24).
12 © ISO 2015 – All rights reserved

ISO/DIS 3767-2:2015
ISO/IEC
Graphical registration
symbol Symbol title and description number
Front hitch (rockshaft), float Mirror image of
9.33
ISO 7000-1660
To identify the control that allows the front
hitch (rockshaft) to move up and down with the
contour of the ground over which or through
which the implement or equipment attached to

the rockshaft moves.
To indicate that the front hitch (rockshaft) is in
the float condition.
ISO 7000-2133 (see 9.1) may be placed to the
right of this symbol.
For rear hitch (rockshaft), use ISO 7000-1660
(see 9.25).
Front hitch (rockshaft), upper limit Mirror image of
9.34
ISO 7000-2178
To identify the control that sets the maximum
height to which an implement can be raised by
the front hitch (rockshaft).
To indicate that the front hitch (rockshaft) is
raised to its maximum height.
ISO 7000-2133 (see 9.1) may be placed to the
right of this symbol.
The horizontal ground line may be deleted if in
context the symbol meaning remains clear.
For rear hitch (rockshaft), use ISO 7000-2178
(see 9.26).
Front hitch (rockshaft), lower limit Mirror image of
9.35
ISO 7000-3189
To identify the control that sets the minimum
height to which an implement can be lowered
by the front hitch (rockshaft).

To indicate that the front hitch (rockshaft) is
lowered to its minimum height.
ISO 7000-2133 (see 9.1) may be placed to the
right of this symbol.
The horizontal ground line may be deleted if in
context the symbol meaning remains clear.
For rear hitch (rockshaft), use ISO 7000-3189
(see 9.27).
ISO/DIS 3767-2:2015
ISO/IEC
Graphical registration
symbol Symbol title and description number
Front hitch (rockshaft), depth control, Mirror image of
9.36
maximum depth ISO 7000-3190
To identify the control that sets the maximum
depth to which the rockshaft is allowed to move
while the implement or equipment is in

operation.
To indicate the maximum depth setting of the
rockshaft depth control.
ISO 7000-2133 (see 9.1) may be placed to the
right of this symbol.
For rear hitch (rockshaft), use ISO 7000-3190
(see 9.28).
Front hitch (rockshaft), depth control, Mirror image of
9.37
minimum depth ISO 7000-3191
To identify the control that sets the minimum
depth to which the front hitch (rockshaft) is
allowed to move while the implement or
equipment is in operation.
To indicate the minimum depth setting of the
front hitch (rockshaft) depth control.
ISO 7000-2133 (see 9.1) may be placed to the
right of this symbol.
For rear hitch (rockshaft), use ISO 7000-3191
(see 9.29).
Differential lock ISO 7000-1662
9.38
To identify the control for the differential lock,
which forces both wheels on an axle to rotate at
the same speed regardless of the traction
available to either wheel individually while still

allowing the wheels to rotate at different
speeds when negotiating a turn.
To indicate the operational status of the
differential lock.
PTO (power take-off) ISO 7000-1572
9.39
To identify the control for the power take-off
(PTO) system.
To indicate the operational status of the PTO.

Symbol may be used with a numerical indicator
of rated PTO rotational speed. See 9.43, 9.44,
and 9.45.
14 © ISO 2015 – All rights reserved

ISO/DIS 3767-2:2015
ISO/IEC
Graphical registration
symbol Symbol title and description number
Power take-off (PTO), direction of rotation, ISO 7000-1664
9.40
clockwise
To indicate that the PTO shaft rotates
clockwise.
For anti-clockwise rotation, use the mirror
image (see 9.41).
9.41 Power take-off (PTO), direction of rotation, Mirror image of
ISO 7000-1664
anti-clockwise
To indicate that the PTO shaft rotates anti-
clockwise.
For clockwise rotation, use ISO 7000-1664 (see
9.40).
Power take-off (PTO), rotational speed ISO 7000-3194
9.42
To identify the control that sets or adjusts the
rotational speed of the PTO
To indicate the rotational speed of the PTO.

Symbol element "n/min" may be replaced by a
numerical indicator of PTO rated rotational
speed. See 9.43, 9.44, and 9.45.
Power take-off (PTO), rated rotational Application of
9.43
speed, 540 r/min ISO 7000-3194
To identify the control for the PTO rated at 540
revolutions per minute.
To indicate the operational status of the PTO
rated at 540 revolutions per minute.
Power take-off (PTO), rated rotational Application of
9.44
speed, 1000 r/min ISO 7000-3194
To identify the control for the PTO rated at
1000 revolutions per minute.
To indicate the operational status of the PTO
rated at 1000 revolutions per minute.
Power take-off (PTO), rated rotational Application of
9.45
speed, 2000 r/min ISO 7000-3194
To identify the control for the PTO rated at
2000 revolutions per minute.
To indicate the operational status of the PTO
rated at 1000 revolutions per minute.
ISO/DIS 3767-2:2015
ISO/IEC
Graphical registration
symbol Symbol title and description number
Power take-off (PTO), clockwise rotational ISO 7000-3432
9.46
speed
To identify the control that sets or adjusts the
clockwise rotational speed of the power take-
off (PTO).
To indicate the clockwise rotational speed of
the PTO.
Symbol element "n/min" may be replaced by a
numerical indicator of PTO rated rotational
speed in the clockwise direction. See 9.48, 9.50,
and 9.52.
Power take-off (PTO), anti-clockwise ISO 7000-3433
9.47
rotational speed
To identify the control that sets or adjusts the
anti-clockwise rotational speed of the power
take-off (PTO).
To indicate the anti-clockwise rotational speed
of the PTO.
Symbol element "n/min" may be replaced by a
numerical indicator of PTO rated rotational
speed in the anti-clockwise direction. See 9.49,
9.51, and 9.53.
Power take-off (PTO), rated clockwise Application of
9.48
rotational speed, 540 r/min ISO 7000-3432
To identify the control for the PTO rated at 540
revolutions per minute in the clockwise
direction.
To indicate that the PTO operates in the
clockwise direction of rotation at a rotational
speed of 540 revolutions per minute.
To indicate the operational status of the PTO
rated at 540 revolutions per minute in the
clockwise direction.
Power take-off (PTO), rated anti-clockwise Application of
9.49
rotational speed, 540 r/min ISO 7000-3433
To identify the control for the PTO rated at 540
revolutions per minute in the anti-clockwise
direction.
To indicate that the PTO operates in the anti-
clockwise direction of rotation at a rotational
speed of 540 revolutions per minute.
To indicate the operational status of the PTO
rated at 540 revolutions per minute in the anti-
clockwise direction.
16 © ISO 2015 – All rights reserved

ISO/DIS 3767-2:2015
ISO/IEC
Graphical registration
symbol Symbol title and description number
Power take-off (PTO), rated clockwise Application of
9.50
rotational speed, 1000 r/min ISO 7000-3432
To identify the control for the PTO rated at
1000 revolutions per minute in the clockwise
direction.
To indicate that the PTO operates in the
clockwise direction of rotation at a rotational
speed of 1000 revolutions per minute.
To indicate the operational status of the PTO
rated at 1000 revolutions per minute in the
clockwise direction.
Power take-off (PTO), rated anti-clockwise Application of
9.51
rotational speed, 1000 r/min ISO 7000-3433
To identify the control for the PTO rated at
1000 revolutions per minute in the anti-
clockwise direction.
To indicate that the PTO operates in the anti-
clockwise direction of rotation at a rotational
speed of 1000 revolutions per minute.
To indicate the operational status of the PTO
rated at 1000 revolutions per minute in the
anti-clockwise direction.
Power take-off (PTO), rated clockwise Application of
9.52
rotational speed, 2000 r/min ISO 7000-3432
To identify the control for the PTO rated at
2000 revolutions per minute in the clockwise
direction.
To indicate that the PTO operates in the
clockwise direction of rotation at a rotational
speed of 2000 revolutions per minute.
To indicate the operational status of the PTO
rated at 2000 revolutions per minute in the
clockwise direction.
Power take-off (PTO), rated anti-clockwise Application of
9.53
rotational speed, 2000 r/min ISO 7000-3433
To identify the control for the PTO rated at
2000 revolutions per minute in the anti-
clockwise direction.
To indicate that the PTO operates in the anti-
clockwise direction of rotation at a rotational
speed of 2000 revolutions per minute.
To indicate the operational status of the PTO
rated at 2000 revolutions per minute in the
anti-clockwise direction.
ISO/DIS 3767-2:2015
ISO/IEC
Graphical registration
symbol Symbol title and description number
Power take-off (PTO), failure ISO 7000-3434
9.54
To indicate a failure or malfunction of the
power take-off (PTO).
Power take-off (PTO), load ISO 7000-3195
9.55
To identify the control that sets the load
(torque) of the power take-off (PTO).
To indicate the load (torque) of the PTO.

Metric torque units (Nm) are shown; non-
metric torque units (lb-ft) may be substituted.
Tractor with front PTO (side view of ISO 7000-2180
9.56
machine)
To identify the control for the front PTO of the
tractor.
To indicate the operational status of the tractor
front PTO.
Symbol may be used with a numerical indicator
of rated PTO rotational speed.
Tractor with rear PTO (side view of ISO 7000-2181
9.57
machine)
To identify the control for the rear PTO of the
tractor.
To indicate the operational status of the tractor
rear PTO.
Symbol may be used with a numerical indicator
of rated PTO rotational speed.
Tractor with front PTO (overhead view of ISO 7000-2182
9.58
machine)
To identify the control for the front PTO of the
tractor.
To indicate the operational status of the tractor
front PTO.
Symbol may be used with a numerical indicator
of rated PTO rotational speed.
This symbol is viewed from the perspective of a
person looking at the tractor from above the
machine.
18 © ISO 2015 – All rights reserved

ISO/DIS 3767-2:2015
ISO/IEC
Graphical registration
symbol Symbol title and description number
Tractor with rear PTO (overhead view of ISO 7000-2183
9.59
machine)
To identify the control for the rear PTO of the
tractor.
To indicate the operational status of the tractor
rear PTO.
Symbol may be used with a numerical indicator
of rated PTO rotational speed.
This symbol is viewed from the perspective of a
person looking at the tractor from above the
machine.
ISO/DIS 3767-2:2015
10 Harvesting machinery and equipment symbols
ISO/IEC
Graphical registration
symbol Symbol title and description number
Header; header drive; crop divider ISO 7000-1579
10.1
To identify the control for the header, header
drive, or crop divider of the harvesting
machine.
To indicate the operational status of the header,
header drive, or crop divider.
ISO 7000-3199 (see 10.2) may be used for
headers that utilize a reel.
Header; header drive (with reel) ISO 7000-3199
10.2
To identify the control for the header or header
drive (with reel) of the harvesting machine.
To indicate the operational status of the header

or header drive (with wheel).
Header drive, reverse ISO 7000-1580
10.3
To identify the control for the reverser of the
header drive of the harvesting machine.
To indicate the operational status of the header

drive reverse function.
Header height ISO 7000-1581
10.4
To identify the control that raises or lowers the
header of the harvesting machine.

Header height, raise ISO 7000-2142
10.5
To identify the control that raises the header of
the harvesting machine.
Header height, lower ISO 7000-2143
10.6
To identify the control that lowers the header
of the harvesting machine.
10.7 Header position, float ISO 7000-1668
To identify the control that allows the header to
move up or down according to the contour of
the ground.
To indicate that the header is in the float
condition.
20 © ISO 2015 – All rights reserved

ISO/DIS 3767-2:2015
ISO/IEC
Graphical registration
symbol Symbol title and description number
Header, float pressure ISO 7000-3138
10.8
To identify the control that sets the pressure
exerted by the header when in the float
condition.
Header, tilt forward or rearward; crop ISO 7000-3196
10.9
divider, tilt forward or rearward
To identify the control that adjusts the header
or crop divider angle (degree of tilt).

Header, tilt forward; crop divider, tilt ISO 7000-3139
10.10
forward
To identify the control that lowers the front of
the header or drop divider (tilts the header or
crop divider forward)
Header, tilt rearward; crop divider, tilt ISO 7000-3140
10.11
rearward
To identify the control that raises the front of
the header or drop divider (tilts the header or
crop divider rearward)
10.12 Header width ISO 7000-3141
To identify the control that enters the width of
the header of the harvesting machine.
To indicate the header width.
May be used in conjunction with unit of width
measurement.
Header row number; number header of ISO 7000-2804
10.13
rows
To identify the control for selecting a particular
header row or for selecting the number of rows
on a header.
To indicate the number of rows on a header or
the operational status of a particular header
row.
This symbol is viewed from the perspective of a
person looking at the header from above the
machine.
ISO/DIS 3767-2:2015
ISO/IEC
Graphical registration
symbol Symbol title and description number
Row spacing ISO 7000-3435
10.14
To identify the control that sets or adjusts the
spacing between the rows of a header.
To indicate the spacing between rows.

This symbol is viewed from the perspective of a
person looking at the header from above the
machine.
Reel; reel drive ISO 7000-1582
10.15
To identify the control for the reel drive of the
harvesting machine.
To indicate the operational status of the reel.

Reel height ISO 7000-1583
10.16
To identify the control that raises or lowers the
reel relative to the cutting platform of the
harvesting machine.
Reel distance ISO 7000-1584
10.17
To identify the control that moves the reel
forward or rearward relative to the cutting
platform of the harvesting machine.

Reel, move forward ISO 7000-1669
10.18
To identify the control that moves the reel
forward relative to the cutting platform of the
harvesting machine.
To indicate that the reel is moving forward or is
in its maximum forward position.
Reel, move rearward ISO 7000-1670
10.19
To identify the control that moves the reel
rearward relative to the cutting platform of the
harvesting machine.
To indicate that the reel is moving rearward or
is in its maximum rearward position.
Reel, resume position ISO 7000-3245
10.20
To identify the control that returns the reel to
its preset position relative to the header.

22 © ISO 2015 – All rights reserved

ISO/DIS 3767-2:2015
ISO/IEC
Graphical registration
symbol Symbol title and description number
Reel speed ISO 7000-1671
10.21
To identify to control that sets o
...

INTERNATIONAL ISO
STANDARD 3767-2
Fourth edition
2016-09-01
Tractors, machinery for agriculture
and forestry, powered lawn and
garden equipment — Symbols
for operator controls and other
displays —
Part 2:
Symbols for agricultural tractors and
machinery
Tracteurs, matériels agricoles et forestiers, matériel à moteur pour
jardins et pelouses — Symboles pour les commandes de l’opérateur et
autres indications —
Partie 2: Symboles pour tracteurs et matériels agricoles
Reference number
©
ISO 2016
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2016 – All rights reserved

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 General . 2
5 Colour . 3
6 Development of new symbols . 3
7 Adaptation of symbols as digital display icons . 4
8 General agricultural equipment symbols . 4
9 Agricultural tractor symbols . 5
10 Harvesting machinery and equipment symbols .16
11 Combine harvester symbols .24
12 Cotton harvester symbols .30
13 Forage harvester symbols .36
14 Sugar cane harvester symbols .39
15 Windrower symbols .46
16 Agricultural sprayer symbols .47
17 Baling equipment symbols .53
18 Agricultural implement symbols .57
Bibliography .59

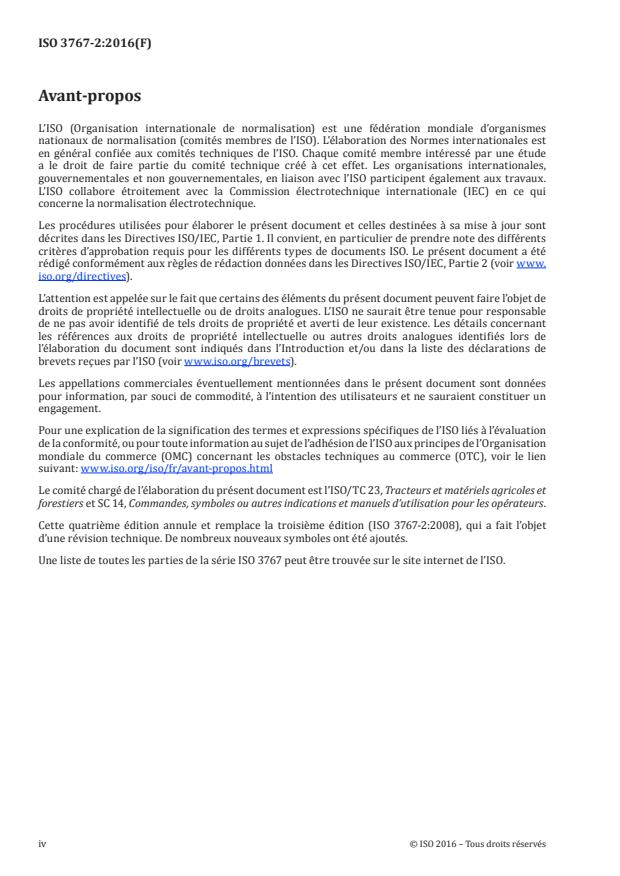

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical
Barriers to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 23, Tractors and machinery for agriculture and
forestry, SC 14, Operator controls, operator symbols and other displays, operator manuals.
This fourth edition cancels and replaces the third edition (ISO 3767-2:2008), which has been technically
revised. Many new symbols have been added.
A list of all the parts in the ISO 3767 series can be found on the ISO website.
iv © ISO 2016 – All rights reserved

INTERNATIONAL STANDARD ISO 3767-2:2016(E)
Tractors, machinery for agriculture and forestry, powered
lawn and garden equipment — Symbols for operator
controls and other displays —
Part 2:
Symbols for agricultural tractors and machinery
1 Scope
This document standardizes symbols for use on operator controls and other displays on agricultural
tractors and machinery.
NOTE 1 ISO 3767-1 covers common symbols that apply to multiple types of agricultural tractors and machinery,
forestry machinery, and powered lawn and garden equipment. ISO 3767-3 covers symbols for powered lawn and
garden equipment. ISO 3767-4 covers symbols for forestry machinery. ISO 3767-5 covers symbols for manual
portable forestry machines.
NOTE 2 ISO 7000 and IEC 60417 can be consulted for additional internationally standardized symbols of
potential relevance to agricultural tractors and machinery.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 3767-1:2016, Tractors, machinery for agriculture and forestry, powered lawn and garden equipment —
Symbols for operator controls and other displays—Part 1: Common symbols
IEC 80416-1, Basic principles for graphical symbols for use on equipment — Part 1: Creation of graphical
symbols for registration
ISO 80416-2, Basic principles for graphical symbols for use on equipment — Part 2: Form and use of arrows
IEC 80416-3, Basic principles for graphical symbols for use on equipment — Part 3: Guidelines for the
application of graphical symbols
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1
symbol
graphical symbol
visually perceptible figure used to transmit information independent of language
Note 1 to entry: It may be produced by drawing, printing or other means. Letters, numerals and mathematical
symbols may be used as symbols or symbol elements. For some specific applications, groups of letters (for
example, AUTO, STOP) are used as symbols or symbol elements.
Note 2 to entry: Letters and numerals are not registered by ISO/TC 145/SC 3 or published in ISO 7000 unless they
are symbol elements embedded in graphical symbols.
3.2
icon
digital display icon
digitized (pixelated) representation of a graphical symbol, usually used on a reconfigurable electronic
display screen or graphical user interface (GUI)
Note 1 to entry: A single symbol can be represented by multiple icons, each of a different size, pixel count or
colourization.
4 General
4.1 Except where indicated in subsequent clauses, symbols shall be used as shown in this document.
4.2 Selected symbols, which are shown in outline form in this document, may be filled in actual use for
enhanced clarity of reproduction and improved visual perception by the operator, except as otherwise
specified for individual symbols, and in accordance with IEC 80416-3.
4.3 Limitations inherent in some reproduction and display technologies can require increased line
width or other minor modifications of symbols. Such modifications are allowed, provided that the symbol
remains conceptually unchanged in its basic graphical elements and is easily discernible by the operator.
4.4 To improve the appearance and perceptibility of a graphical symbol, or to coordinate with the
design of the equipment to which it is applied, it can be necessary to modify the symbol as indicated
in IEC 80416-3 (for example, to change the line width or to round the corners of the symbol). Such
modifications are allowed, provided that the essential perceptible characteristics of the symbol are
maintained.
4.5 For actual use, all symbols shall be reproduced large enough to be easily discernible by the operator.
Follow IEC 80416-1 for the proper sizing of symbols. Symbols grouped together in a display or on a set
of controls should be scaled to the same degree relative to the corner marks of the symbol original as
shown in this document in order to maintain the correct visual relationship among the symbols. Symbols
shall be used in the orientation shown in this document, unless rotation or mirror imaging is specifically
allowed for individual symbols.
4.6 Most symbols are constructed using a building block approach in which various symbols and
symbol elements are combined in a logical manner to produce a new symbol.
4.7 In some cases, symbols may be used in conjunction, without being combined into a composite
symbol, to convey the same meaning as the composite symbol.
4.8 Symbols are generally intended to replace a word or words with a graphical image that has the
same meaning for all operators, regardless of their native language. However, the use of a graphical
symbol to identify a control or display does not preclude the use of words in conjunction with that
control or display.
2 © ISO 2016 – All rights reserved

4.9 If a symbol shows a machine or parts of a machine from a side view, a machine moving from right
to left across the symbol area shall be assumed. If a symbol shows a machine or parts of a machine from
an overhead view, a machine moving from bottom to top across the symbol area shall be assumed.
4.10 Symbols on controls and displays shall have a good contrast to their background. A white or light-
coloured symbol on a black or dark-coloured background is preferred for most controls. Displays may
use either a white or light-coloured symbol on a black or dark-coloured background or a black or dark-
coloured symbol on a white or light-coloured background, depending upon which alternative provides
the best visual perception. When a symbol image is reversed (for example, from black-on-white to white-
on-black or vice versa) this reversal shall be done for the entire symbol.
4.11 If symbols are cast, moulded, embossed or stamped into a surface, the symbols shall be visually
distinct from that surface without dependence on colour.
4.12 Symbols shall be located on or adjacent to the control or display that is being identified. Where
more than one symbol is required for a control, the symbols shall be located in relation to the control
such that movement of the control towards the symbols shall effect the function depicted by that symbol.
4.13 Arrows used in symbols shall conform to the requirements of ISO 80416-2. IEC 80416-1 shall be
consulted for the general principles for creating symbol originals. IEC 80416-3 should be consulted for
guidelines for the application of symbols.
4.14 ISO/IEC registration numbers are shown for symbols which are registered in ISO 7000 or
IEC 60417.
NOTE Symbol originals are approved and registered either by ISO/TC 145/SC 3 and published in ISO 7000
or by IEC/SC 3C and published in IEC 60417. In some cases, modified or application symbols, rather than the
registered symbol originals, are standardized in this document.
4.15 When letters or numerals are used in a symbol, the font shown shall not be considered definitive.
Other fonts may be used so long as the letters and numerals remain legible.
4.16 Symbols in this document are shown within marks that delimit the corners of the 75 mm square
basic pattern from IEC 80416-1. Corner marks are not part of the symbol, but are provided to ensure
consistent presentation of all symbol graphics.
5 Colour
When used on illuminated displays, the following colours shall have the meanings indicated:
— red denotes a failure, serious malfunction or operating condition that requires immediate attention;
— yellow or amber denotes a condition outside normal operating limits;
— green denotes a normal operating condition.
6 Development of new symbols
6.1 Prior to developing a new symbol, a search should be conducted for previously standardized
symbols with the same or similar meaning to what is needed. ISO 7000 and IEC 60417 (both available
in database form) are compilations of internationally standardized symbols which can be useful both for
finding appropriate symbols that do not appear in ISO 3767 and for generating concepts that can be used
in the development of new symbols.
6.2 New symbols shall be developed in accordance with the principles of ISO 3767-1:2016, Annex A.
IEC 80416-1 should be consulted for general principles for the creation of symbols. Arrows shall be in
accordance with ISO 80416-2. Different arrow forms have different meanings according to ISO 80416-
2. Care should be taken to use the correct arrow form. Following the guidelines of ISO 3767-1:2016,
Annex A makes possible the development of symbols appropriate in graphical form and content for
international standardization and ISO 7000 registration.
6.3 Symbols proposed for standardization in this document shall include a short explanation of the
function or expected use of the symbol.
NOTE IEC 80416-1 uses the term “description” for this type of information and provides guidelines for
writing descriptions for symbols intended for standardization in ISO 7000 or IEC 60417. The descriptions for
symbols standardized in this document can serve as examples.
7 Adaptation of symbols as digital display icons
Symbols can be adapted for use as digital display icons on visual display units, reconfigurable displays
or other electronic displays. Such adaptations should follow the principles of ISO 80416-4. Special care
should be taken to ensure that digital display icons preserve the visual impression of the symbol from
which the icon is adapted. The same principles regarding use of colour with symbols apply to the use of
colour with digital display icons.
8 General agricultural equipment symbols
ISO/IEC
No. Graphical symbol Symbol title and description
registration number
8.1 Area worked ISO 7000-1657
To indicate the area that has been worked by a
machine.
To identify the control for specifying an area.
8.2 Area worked per hour ISO 7000-1658
To indicate the area that has been worked by a
machine per hour of operation.
8.3 Work distance travelled ISO 7000-2177
To indicate the distance that has been travelled by a
machine during work.
8.4 Application rate per area, general ISO 7000-3188
To indicate the application rate (for example, of seeds
or fertilizer) per area.
4 © ISO 2016 – All rights reserved

ISO/IEC
No. Graphical symbol Symbol title and description
registration number
8.5 Machine immobilizer ISO 7000-3037
To identify the control that immobilizes the machine
to prevent its unintended or unauthorized movement.
To indicate that the machine is in the immobilized
condition.
8.6 Total area worked ISO 7000-3130
To indicate the total area that has been worked by the
machine in the given time period.
8.7 Area remaining to work ISO 7000-3244
To indicate the area that remains to be worked by a
machine. The total area to be worked is specified and
the actual area worked is subtracted to determine the
area remaining.
9 Agricultural tractor symbols
ISO/IEC
No. Graphical symbol Symbol title and description
registration number
9.1 Tractor (side view of machine) ISO 7000-2133
To identify the tractor from a side (profile) view.
Use as a base symbol for developing tractor symbols
that use a side (profile) view.
9.2 Tractor (overhead view of machine) ISO 7000-2134
To identify the tractor from an overhead (plan) view.
This symbol is viewed from the perspective of a
person looking at the tractor from above the machine.
Use as a base symbol for developing tractor symbols
that use an overhead (plan) view.
9.3 Tractor, forward direction of movement (side ISO 7000-1666
view of machine)
To identify the control that moves the tractor in the
forward direction.
To indicate that the tractor is moving forward.
9.4 Tractor, rearward direction of movement (side ISO 7000-1667
view of machine)
To identify the control that moves the tractor in the
rearward direction.
To indicate that the tractor is moving rearward.
ISO/IEC
No. Graphical symbol Symbol title and description
registration number
9.5 Tractor, forward direction of movement ISO 7000-2135
(overhead view of machine)
To identify the control that moves the tractor in the
forward direction.
To indicate that the tractor is moving forward.
This symbol is viewed from the perspective of a
person looking at the tractor from above the machine.
9.6 Tractor, rearward direction of movement ISO 7000-2136
(overhead view of machine)
To identify the control that moves the tractor in the
rearward direction.
To indicate that the tractor is moving rearward.
This symbol is viewed from the perspective of a
person looking at the tractor from above the machine.
9.7 Tractor, ground speed ISO 7000-2179
To identify the display that shows the ground speed
of the tractor.
To indicate the ground speed of the tractor.
9.8 Tractor, ground speed, automatic control ISO 7000-3131
To identify the control that activates the automatic
mode for tractor ground speed.
To indicate that tractor ground speed is in the
automatic control mode.
9.9 Tractor, target ground speed ISO 7000-3132
To identify the control that sets the target ground
speed of the tractor.
To indicate the tractor target ground speed.
9.10 Tractor, front wheel drive ISO 7000-1663
To identify the control for the tractor front wheel drive.
To indicate that the tractor front wheel drive is in
normal operation mode.
9.11 Tractor, front wheel drive, off or not available Negation of
ISO 7000-1663
To identify the control that switches off the tractor
front wheel drive.
To indicate that the tractor front wheel drive is
switched off or is otherwise not available.
9.12 Tractor, front wheel drive, automatic operation ISO 7000-2420
To identify the control for the automatic operation of
the tractor front wheel drive.
To indicate that the tractor front wheel drive is in
automatic operation mode.
Front wheel drive is engaged and disengaged
automatically based on operating conditions.
6 © ISO 2016 – All rights reserved

ISO/IEC
No. Graphical symbol Symbol title and description
registration number
9.13 Tractor, front wheel drive, braking ISO 7000-2421
To identify the control for the tractor front wheel
drive brake.
To indicate the status of the tractor front wheel drive
brake system.
Front wheel drive engages when brakes are applied at
travel speeds above a specified limit.
9.14 Tractor, wheel slip ISO 7000-1665
To indicate the degree of wheel slip, which is the
difference between the actual ground speed of the
tractor and the ground speed implied by the
rotational speed of the drive wheels.
To identify the control that sets or adjusts the degree
of wheel slip at which an indication is provided or
action is taken, either manually or automatically.
9.15 Tractor, wheel slip. automatic operation ISO 7000-3133
To identify the control for the automatic operation of
the tractor wheel slip system.
To indicate that the tractor wheel slip system is in
automatic operation mode.
9.16 Tractor, headland turning ISO 7000-2801
To identify the control for a programmed sequence
of tractor operations taken at the end of a field
(headland).
To indicate the operational status of the tractor
headland turning system.
This symbol is viewed from the perspective of a
person looking at the tractor from above the machine.
9.17 Tractor, auxiliary headlights ISO 7000-2137
To identify the control for the auxiliary headlights of
the tractor.
9.18 Tractor, suspension system ISO 7000-3134
To identify the control for the tractor suspension
system.
To indicate the operational status of the tractor
suspension system.
9.19 Tractor, suspension system, front ISO 7000-3135
To identify the control for the tractor front
suspension system.
To indicate the operational status of the tractor front
suspension system.
ISO/IEC
No. Graphical symbol Symbol title and description
registration number
9.20 Tractor, suspension system, rear ISO 7000-3136
To identify the control for the tractor rear
suspension system.
To indicate the operational status of the tractor rear
suspension system.
9.21 Tractor, ride control system ISO 7000-3137
To identify the control for the tractor ride control
system, which dynamically adjusts the suspension
system to smooth the ride over uneven ground.
To indicate the operational status of the tractor ride
control system.
9.22 Rockshaft ISO 7000-1566
To identify the control for the rockshaft of a
machine; the rockshaft raises or lowers the
implement or equipment attached to it.
To indicate the operational status of the rockshaft.
ISO 7000-2133 (see 9.1) may be placed to the left of
this symbol.
The horizontal ground line may be deleted if in
context the symbol meaning remains clear.
For front hitch (rockshaft) use the mirror image
(see 9.30).
9.23 Rockshaft, up; rockshaft, raise ISO 7000-1567
To identify the control that raises the rockshaft.
To indicate that the rockshaft is being raised or is in
the raised (up) position.
ISO 7000-2133 (see 9.1) may be placed to the left of
this symbol.
The horizontal ground line may be deleted if in
context the symbol meaning remains clear.
For front hitch (rockshaft) use the mirror image
(see 9.31).
9.24 Rockshaft, down; rockshaft, lower ISO 7000-1568
To identify the control that lowers the rockshaft.
To indicate that the rockshaft is being lowered or is in
the lowered (down) position.
ISO 7000-2133 (see 9.1) may be placed to the left of
this symbol.
The horizontal ground line may be deleted if in
context the symbol meaning remains clear.
For front hitch use the mirror image (see 9.32).
8 © ISO 2016 – All rights reserved

ISO/IEC
No. Graphical symbol Symbol title and description
registration number
9.25 Rockshaft, float ISO 7000-1660
To identify the control that allows the rockshaft to
move up and down with the contour of the ground
over which or through which the implement or
equipment attached to the rockshaft moves.
To indicate that the rockshaft is in the float condition.
ISO 7000-2133 (see 9.1) may be placed to the left of
this symbol.
For front hitch (rockshaft) use the mirror image
(see 9.33).
9.26 Rockshaft, upper limit ISO 7000-2178
To identify the control that sets the maximum height
to which an implement can be raised by the rockshaft.
To indicate that the rockshaft is raised to its
maximum height.
ISO 7000-2133 (see 9.1) may be placed to the left of
this symbol.
The horizontal ground line may be deleted if in
context the symbol meaning remains clear.
For front hitch (rockshaft) use the mirror image
(see 9.34).
9.27 Rockshaft, lower limit ISO 7000-3189
To identify the control that sets the minimum height to
which an implement can be lowered by the rockshaft.
To indicate that the rockshaft is lowered to its
minimum height.
ISO 7000-2133 (see 9.1) may be placed to the left of
this symbol.
The horizontal ground line may be deleted if in
context the symbol meaning remains clear.
For front hitch (rockshaft) use the mirror image
(see 9.35).
9.28 Rockshaft, depth control, maximum depth ISO 7000-3190
To identify the control that sets the maximum depth
to which the rockshaft is allowed to move while the
implement or equipment is in operation.
To indicate the maximum depth setting of the
rockshaft depth control.
ISO 7000-2133 (see 9.1) may be placed to the left of
this symbol.
For front hitch (rockshaft) use the mirror image
(see 9.36).
ISO/IEC
No. Graphical symbol Symbol title and description
registration number
9.29 Rockshaft, depth control, minimum depth ISO 7000-3191
To identify the control that sets the minimum depth
to which the rockshaft is allowed to move while the
implement or equipment is in operation.
To indicate the minimum depth setting of the
rockshaft depth control.
ISO 7000-2133 (see 9.1) may be placed to the left of
this symbol.
For front hitch (rockshaft) use the mirror image
(see 9.37).
9.30 Front hitch (rockshaft) Mirror image of
ISO 7000-1566
To identify the control for the rockshaft of a
machine; the rockshaft raises or lowers the
implement or equipment attached to it.
To indicate the operational status of the rockshaft.
ISO 7000-2133 (see 9.1) may be placed to the right of
this symbol.
The horizontal ground line may be deleted if in
context the symbol meaning remains clear.
For rear hitch (rockshaft) use ISO 7000-1566 (see 9.22).
9.31 Front hitch (rockshaft), up (raise) Mirror image of
ISO 7000-1567
To identify the control that raises the front hitch
(rockshaft).
To indicate that the front hitch (rockshaft) is being
raised or is in the raised (up) position.
ISO 7000-2133 (see 9.1) may be placed to the right of
this symbol.
The horizontal ground line may be deleted if in
context the symbol meaning remains clear.
For rear hitch (rockshaft) use ISO 7000-1567 (see 9.23).
9.32 Front hitch (rockshaft), down (lower) Mirror image of
ISO 7000-1568
To identify the control that lowers the rockshaft.
To indicate that the rockshaft is being lowered or is in
the lowered (down) position.
ISO 7000-2133 (see 9.1) may be placed to the right of
this symbol.
The horizontal ground line may be deleted if in
context the symbol meaning remains clear.
For rear hitch (rockshaft) use ISO 7000-1568 (see 9.24).
10 © ISO 2016 – All rights reserved

ISO/IEC
No. Graphical symbol Symbol title and description
registration number
9.33 Front hitch (rockshaft), float Mirror image of
ISO 7000-1660
To identify the control that allows the front hitch
(rockshaft) to move up and down with the contour
of the ground over which or through which the
implement or equipment attached to the rockshaft
moves.
To indicate that the front hitch (rockshaft) is in the
float condition.
ISO 7000-2133 (see 9.1) may be placed to the right of
this symbol.
For rear hitch (rockshaft) use ISO 7000-1660 (see 9.25).
9.34 Front hitch (rockshaft), upper limit Mirror image of
ISO 7000-2178
To identify the control that sets the maximum height
to which an implement can be raised by the front
hitch (rockshaft).
To indicate that the front hitch (rockshaft) is raised to
its maximum height.
ISO 7000-2133 (see 9.1) may be placed to the right of
this symbol.
The horizontal ground line may be deleted if in
context the symbol meaning remains clear.
For rear hitch (rockshaft) use ISO 7000-2178 (see 9.26).
9.35 Front hitch (rockshaft), lower limit Mirror image of
ISO 7000-3189
To identify the control that sets the minimum height
to which an implement can be lowered by the front
hitch (rockshaft).
To indicate that the front hitch (rockshaft) is lowered
to its minimum height.
ISO 7000-2133 (see 9.1) may be placed to the right of
this symbol.
The horizontal ground line may be deleted if in
context the symbol meaning remains clear.
For rear hitch (rockshaft) use ISO 7000-3189 (see 9.27).
9.36 Front hitch (rockshaft), depth control, maximum Mirror image of
depth ISO 7000-3190
To identify the control that sets the maximum depth
to which the rockshaft is allowed to move while the
implement or equipment is in operation.
To indicate the maximum depth setting of the
rockshaft depth control.
ISO 7000-2133 (see 9.1) may be placed to the right of
this symbol.
For rear hitch (rockshaft) use ISO 7000-3190 (see 9.28).
ISO/IEC
No. Graphical symbol Symbol title and description
registration number
9.37 Front hitch (rockshaft), depth control, minimum Mirror image of
depth ISO 7000-3191
To identify the control that sets the minimum depth to
which the front hitch (rockshaft) is allowed to
move while the implement or equipment is in
operation.
To indicate the minimum depth setting of the front
hitch (rockshaft) depth control.
ISO 7000-2133 (see 9.1) may be placed to the right of
this symbol.
For rear hitch (rockshaft) use ISO 7000-3191 (see 9.29).
9.38 Differential lock ISO 7000-1662
To identify the control for the differential lock, which
forces both wheels on an axle to rotate at the same
speed regardless of the traction available to either
wheel individually while still allowing the wheels to
rotate at different speeds when negotiating a turn.
To indicate the operational status of the differential
lock.
9.39 Power take-off (PTO) ISO 7000-1572
To identify the control for the power take-off (PTO)
system.
To indicate the operational status of the PTO.
Symbol may be used with a numerical indicator of
rated PTO rotational speed. See 9.43, 9.44 and 9.45.
9.40 Power take-off (PTO), direction of rotation, ISO 7000-1664
clockwise
To indicate that the PTO shaft rotates clockwise.
For anti-clockwise rotation use the mirror image
(see 9.41).
Direction of rotation is from the perspective of a
person looking at the end of the PTO shaft.
9.41 Power take-off (PTO), direction of rotation, Mirror image of
anti-clockwise ISO 7000-1664
To indicate that the PTO shaft rotates anti-clockwise.
For clockwise rotation use ISO 7000-1664 (see 9.40).
Direction of rotation is from the perspective of a
person looking at the end of the PTO shaft.
9.42 Power take-off (PTO), rotational speed ISO 7000-3194
To identify the control that sets or adjusts the
rotational speed of the PTO shaft.
To indicate the rotational speed of the PTO shaft.
Symbol element “n/min” may be replaced by a
numerical indicator of PTO rated rotational speed.
See 9.43, 9.44 and 9.45.
12 © ISO 2016 – All rights reserved

ISO/IEC
No. Graphical symbol Symbol title and description
registration number
9.43 Power take-off (PTO), rated rotational speed, Application of
540 r/min ISO 7000-3194
To identify the control for the PTO rated at 540 r/min.
To indicate the operational status of the PTO rated at
540 r/min.
9.44 Power take-off (PTO), rated rotational speed, Application of
1 000 r/min ISO 7000-3194
To identify the control for the PTO rated at 1 000 r/min.
To indicate the operational status of the PTO rated at
1 000 r/min.
9.45 Power take-off (PTO), rated rotational speed, Application of
2 000 r/min ISO 7000-3194
To identify the control for the PTO rated at 2 000 r/min.
To indicate the operational status of the PTO rated at
2 000 r/min.
9.46 Power take-off (PTO), clockwise rotational speed ISO 7000-3432
To identify the control that sets or adjusts the
clockwise rotational speed of the power take-off
(PTO) shaft.
To indicate the clockwise rotational speed of the
PTO shaft.
Symbol element “n/min” may be replaced by a
numerical indicator of PTO rated rotational speed in
the clockwise direction. See 9.48, 9.50 and 9.52.
Direction of rotation is from the perspective of a
person looking at the end of the PTO shaft.
9.47 Power take-off (PTO), anti-clockwise rotational ISO 7000-3433
speed
To identify the control that sets or adjusts the
anti-clockwise rotational speed of the power take-off
(PTO) shaft.
To indicate the anti-clockwise rotational speed of the
PTO shaft.
Symbol element “n/min” may be replaced by a
numerical indicator of PTO rated rotational speed in
the anti-clockwise direction. See 9.49, 9.51 and 9.53.
Direction of rotation is from the perspective of a
person looking at the end of the PTO shaft.
9.48 Power take-off (PTO), rated clockwise rotational Application of
speed, 540 r/min ISO 7000-3432
To identify the control for the PTO rated at 540 r/min
in the clockwise direction.
To indicate that the PTO operates in the clockwise
direction of rotation at a rotational speed of 540 r/min.
To indicate the operational status of the PTO rated at
540 r/min in the clockwise direction.
Direction of rotation is from the perspective of a
person looking at the end of the PTO shaft.
ISO/IEC
No. Graphical symbol Symbol title and description
registration number
9.49 Power take-off (PTO), rated anti-clockwise Application of
rotational speed, 540 r/min ISO 7000-3433
To identify the control for the PTO rated at 540 r/min
in the anti-clockwise direction.
To indicate that the PTO operates in the anti-clockwise
direction of rotation at a rotational speed of 540 r/min.
To indicate the operational status of the PTO rated at
540 r/min in the anti-clockwise direction.
Direction of rotation is from the perspective of a
person looking at the end of the PTO shaft.
9.50 Power take-off (PTO), rated clockwise rotational Application of
speed, 1 000 r/min ISO 7000-3432
To identify the control for the PTO rated at
1 000 r/min in the clockwise direction.
To indicate that the PTO operates in the clockwise
direction of rotation at a rotational speed of
1 000 r/min.
To indicate the operational status of the PTO rated at
1 000 r/min in the clockwise direction.
Direction of rotation is from the perspective of a
person looking at the end of the PTO shaft.
9.51 Power take-off (PTO), rated anti-clockwise Application of
rotational speed, 1 000 r/min ISO 7000-3433
To identify the control for the PTO rated at
1 000 r/min in the anti-clockwise direction.
To indicate that the PTO operates in the
anti-clockwise direction of rotation at a rotational
speed of 1 000 r/min.
To indicate the operational status of the PTO rated at
1 000 r/min in the anti-clockwise direction.
Direction of rotation is from the perspective of a
person looking at the end of the PTO shaft.
9.52 Power take-off (PTO), rated clockwise rotational Application of
speed, 2 000 r/min ISO 7000-3432
To identify the control for the PTO rated at
2 000 r/min in the clockwise direction.
To indicate that the PTO operates in the clockwise
direction of rotation at a rotational speed of
2 000 r/min.
To indicate the operational status of the PTO rated at
2 000 r/min in the clockwise direction.
Direction of rotation is from the perspective of a
person looking at the end of the PTO shaft.
14 © ISO 2016 – All rights reserved

ISO/IEC
No. Graphical symbol Symbol title and description
registration number
9.53 Power take-off (PTO), rated anti-clockwise Application of
rotational speed, 2 000 r/min ISO 7000-3433
To identify the control for the PTO rated at
2 000 r/min in the anti-clockwise direction.
To indicate that the PTO operates in the
anti-clockwise direction of rotation at a rotational
speed of 2 000 r/min.
To indicate the operational status of the PTO rated at
2 000 r/min in the anti-clockwise direction.
Direction of rotation is from the perspective of a
person looking at the end of the PTO shaft.
9.54 Power take-off (PTO), failure ISO 7000-3434
To indicate a failure or malfunction of the power
take-off (PTO).
ISO 7000-1572 (see 9.39) with the colour red is an
alternative to this symbol.
9.55 Power take-off (PTO), load ISO 7000-3195
To identify the control that sets the load (torque) of
the power take-off (PTO).
To indicate the load (torque) of the PTO.
Metric torque units (Nm) are shown; non-metric
torque units (lb-ft) may be substituted.
9.56 Tractor with front PTO (side view of machine) ISO 7000-2180
To identify the control for the front PTO of the tractor.
To indicate the operational status of the tractor
front PTO.
Symbol may be used with a numerical indicator of
rated PTO rotational speed.
9.57 Tractor with rear PTO (side view of machine) ISO 7000-2181
To identify the control for the rear PTO of the tractor.
To indicate the operational status of the tractor
rear PTO.
Symbol may be used with a numerical indicator of
rated PTO rotational speed.
ISO/IEC
No. Graphical symbol Symbol title and description
registration number
9.58 Tractor with front PTO (overhead view of machine) ISO 7000-2182
To identify the control for the front PTO of the tractor.
To indicate the operational status of the tractor
front PTO.
Symbol may be used with a numerical indicator of
rated PTO rotational speed.
This symbol is viewed from the perspective of a
person looking at the tractor from above the machine.
9.59 Tractor with rear PTO (overhead view of machine) ISO 7000-2183
To identify the control for the rear PTO of the tractor.
To indicate the operational status of the tractor
rear PTO.
Symbol may be used with a numerical indicator of
rated PTO rotational speed.
This symbol is viewed from the perspective of a
person looking at the tractor from above the machine.
10 Harvesting machinery and equipment symbols
ISO/IEC
No. Graphical symbol Symbol title and description
registration number
10.1 Header; header drive; crop divider ISO 7000-1579
To identify the control for the header, header drive or
crop divider of the harvesting machine.
To indicate the operational status of the header,
header drive or crop divider.
ISO 7000-3199 (see 10.2) may be used for headers
that utilize a reel.
10.2 Header; header drive (with reel) ISO 7000-3199
To identify the control for the header or header drive
(with reel) of the harvesting machine.
To indicate the operational status of the header or
header drive (with reel).
10.3 Header drive, reverse ISO 7000-1580
To identify the control for the reverser of the header
drive of the harvesting machine.
To indicate the operational status of the header drive
reverse function.
10.4 Header height Application of
ISO 7000-1581
To identify the control that raises or lowers the
header of the harvesting machine.
16 © ISO 2016 – All rights reserved

ISO/IEC
No. Graphical symbol Symbol title and description
registration number
10.5 Header height, raise ISO 7000-2142
To identify the control that raises the header of the
harvesting machine.
10.6 Header height, lower ISO 7000-2143
To identify the control that lowers the header of the
harvesting machine.
10.7 Header position, float ISO 7000-1668
To identify the control that allows the header to move
up or down according to the contour of the ground.
To indicate that the header is in the float condition.
10.8 Header, float pressure ISO 7000-3138
To identify the control that sets the pressure exerted
by the header when in the float condition.
10.9 Header, tilt forward or rearward; crop divider, ISO 7000-3196
tilt forward or rearward
To identify the control that adjusts the header or crop
divider angle (degree of tilt).
10.10 Header, tilt forward; crop divider, tilt forward ISO 7000-3139
To identify the control that lowers the front of the
header or drop divider (tilts the header or crop
divider forward).
10.11 Header, tilt rearward; crop divider, tilt rearward ISO 7000-3140
To identify the control that raises the front of the
header or drop divider (tilts the header or crop
divider rearward).
10.12 Header width ISO 7000-3141
To identify the control that enters the width of the
header of the harvesting machine.
To indicate the header width.
May be used in conjunction with unit of width
measurement.
ISO/IEC
No. Graphical symbol Symbol title and description
registration number
10.13 Header row number; number header of rows ISO 7000-2804
To identify the control for selecting a particular
header row or for selecting the number of rows on a
header.
To indicate the number of rows on a header or the
operational status of a particular header row.
This symbol is viewed from the perspective of a
person looking at the header from above the machine.
10.14 Row spacing ISO 7000-3435
To identify
...

NORME ISO
INTERNATIONALE 3767-2
Quatrième édition
2016-09-01
Tracteurs, matériels agricoles et
forestiers, matériel à moteur pour
jardins et pelouses — Symboles pour
les commandes de l’opérateur et
autres indications —
Partie 2:
Symboles pour tracteurs et matériels
agricoles
Tractors, machinery for agriculture and forestry, powered lawn
and garden equipment — Symbols for operator controls and other
displays —
Part 2: Symbols for agricultural tractors and machinery
Numéro de référence
©
ISO 2016
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2016, Publié en Suisse
Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni utilisée
sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie, l’affichage sur
l’internet ou sur un Intranet, sans autorisation écrite préalable. Les demandes d’autorisation peuvent être adressées à l’ISO à
l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2016 – Tous droits réservés

Sommaire Page
Avant-propos .iv
1 Domaine d’application . 1
2 Références normatives . 1
3 Termes et définitions . 1
4 Généralités . 2
5 Couleur . 4
6 Élaboration de nouveaux symboles . 4
7 Adaptation de symboles sous forme d’icônes d’affichage numérique .4
8 Symboles généraux du matériel agricole . 5
9 Symboles pour tracteurs agricoles . 6
10 Symboles pour équipements et matériels de récolte .19
11 Symboles pour moissonneuses-batteuses .27
12 Symboles pour récolteuses de coton .34
13 Symboles pour récolteuses-hacheuses-chargeuses de fourrage .41
14 Symboles pour récolteuses de canne à sucre .45
15 Symboles pour faucheuses-andaineuses .52
16 Symboles pour pulvérisateurs agricoles .53
17 Symboles pour presses à balles .60
18 Symboles pour instruments agricoles .64
Bibliographie .66
Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération mondiale d’organismes
nationaux de normalisation (comités membres de l’ISO). L’élaboration des Normes internationales est
en général confiée aux comités techniques de l’ISO. Chaque comité membre intéressé par une étude
a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec l’ISO participent également aux travaux.
L’ISO collabore étroitement avec la Commission électrotechnique internationale (IEC) en ce qui
concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier de prendre note des différents
critères d’approbation requis pour les différents types de documents ISO. Le présent document a été
rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir www.
iso.org/directives).
L’attention est appelée sur le fait que certains des éléments du présent document peuvent faire l’objet de
droits de propriété intellectuelle ou de droits analogues. L’ISO ne saurait être tenue pour responsable
de ne pas avoir identifié de tels droits de propriété et averti de leur existence. Les détails concernant
les références aux droits de propriété intellectuelle ou autres droits analogues identifiés lors de
l’élaboration du document sont indiqués dans l’Introduction et/ou dans la liste des déclarations de
brevets reçues par l’ISO (voir www.iso.org/brevets).
Les appellations commerciales éventuellement mentionnées dans le présent document sont données
pour information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un
engagement.
Pour une explication de la signification des termes et expressions spécifiques de l’ISO liés à l’évaluation
de la conformité, ou pour toute information au sujet de l’adhésion de l’ISO aux principes de l’Organisation
mondiale du commerce (OMC) concernant les obstacles techniques au commerce (OTC), voir le lien
suivant: www.iso.org/iso/fr/avant-propos.html
Le comité chargé de l’élaboration du présent document est l’ISO/TC 23, Tracteurs et matériels agricoles et
forestiers et SC 14, Commandes, symboles ou autres indications et manuels d’utilisation pour les opérateurs.
Cette quatrième édition annule et remplace la troisième édition (ISO 3767-2:2008), qui a fait l’objet
d’une révision technique. De nombreux nouveaux symboles ont été ajoutés.
Une liste de toutes les parties de la série ISO 3767 peut être trouvée sur le site internet de l’ISO.
iv © ISO 2016 – Tous droits réservés

NORME INTERNATIONALE ISO 3767-2:2016(F)
Tracteurs, matériels agricoles et forestiers, matériel
à moteur pour jardins et pelouses — Symboles pour
les commandes de l’opérateur et autres indications —
Partie 2:
Symboles pour tracteurs et matériels agricoles
1 Domaine d’application
Le présent document normalise les symboles à utiliser sur les commandes de l’opérateur et autres
indicateurs sur les tracteurs et les machines agricoles.
NOTE 1 L’ISO 3767-1 couvre les symboles courants applicables à divers types de tracteurs et machines
agricoles, de matériel forestier et de matériel à moteur pour jardins et pelouses. L’ISO 3767-3 définit les symboles
applicables au matériel à moteur pour jardins et pelouses. L’ISO 3767-4 définit les symboles applicables au
matériel forestier. L’ISO 3767-5 définit les symboles applicables au matériel forestier portatif à main.
NOTE 2 Il est possible de se référer à l’ISO 7000 et l’IEC 60417 pour obtenir d’autres symboles couverts par des
normes internationales pouvant potentiellement s’appliquer aux tracteurs et machines agricoles.
2 Références normatives
Les documents suivants cités dans le texte constituent, pour tout ou partie de leur contenu, des
exigences du présent document. Pour les références datées, seule l’édition citée s’applique. Pour les
références non datées, la dernière édition du document de référence s’applique (y compris les éventuels
amendements).
ISO 3767-1:2016, Tracteurs, matériels agricoles et forestiers, matériel à moteur pour jardins et pelouses —
Symboles pour les commandes de l’opérateur et autres indications — Partie 1: Symboles communs
IEC 80416-1, Principes de base pour les symboles graphiques utilisables sur le matériel — Partie 1: Création
des symboles graphiques pour enregistrement
ISO 80416-2, Principes de base pour les symboles graphiques utilisables sur le matériel — Partie 2: Forme
et utilisation des flèches
IEC 80416-3, Principes élémentaires pour les symboles graphiques utilisables sur le matériel — Partie 3:
Guide pour l’application des symboles graphiques
3 Termes et définitions
Pour les besoins du présent document, les termes et définitions suivants s’appliquent.
ISO et IEC maintiennent les bases de données pour l’utilisation en normalisation sur les adresses
suivantes:
— IEC Electropedia: disponible sur www.electropedia.org
— Plateforme de navigation en ligne ISO: disponible sur www.iso.org/obp
3.1
symbole
symbole graphique
figure visuellement perceptible utilisée pour transmettre des informations compréhensibles
indépendamment de la langue
Note 1 à l’article: Il peut être reproduit par un dessin, une impression ou tout autre moyen. Les lettres, les
caractères numériques et les symboles mathématiques peuvent être employés comme symboles ou éléments
de symbole. Pour certaines applications particulières, des groupes de lettres (par exemple, AUTO, STOP) sont
utilisés comme symboles ou éléments de symbole.
Note 2 à l’article: Les lettres et les caractères numériques ne sont ni couverts par l’ISO/TC 145/SC 3 ni publiés
dans l’ISO 7000 à moins d’être intégrés dans des symboles graphiques.
3.2
icône
icône d’affichage numérique
représentation numérisée (pixélisée) d’un symbole graphique, habituellement utilisée sur un écran
électronique reconfigurable ou sur une interface utilisateur graphique
Note 1 à l’article: Un même symbole peut être représenté par plusieurs icônes, chacune ayant une taille, un
nombre de pixels ou une colorisation différents.
4 Généralités
4.1 Sauf indication contraire dans les articles suivants, les symboles doivent être utilisés conformément
au présent document.
4.2 Les symboles sélectionnés, qui sont présentés sous forme de contour dans le présent document,
peuvent utiliser un remplissage dans l’utilisation réelle afin de renforcer la clarté de la reproduction et
d’améliorer la perception visuelle de l’opérateur, sauf indication contraire notifiée pour les symboles
individuels et en conformité avec l’IEC 80416-3.
4.3 Les restrictions propres aux technologies de reproduction et de représentation peuvent nécessiter
un épaississement du trait ou d’autres modifications mineures des symboles. De telles modifications
sont autorisées si le symbole reste conceptuellement inchangé dans ses éléments graphiques de base et
s’il demeure facilement perceptible par l’opérateur.
4.4 Pour améliorer l’apparence et la perceptibilité d’un symbole graphique ou pour le coordonner avec
la conception du matériel où il sera apposé, il peut être nécessaire de modifier le symbole tel que décrit
dans l’IEC 80416-3 (par exemple, changer l’épaisseur du trait ou arrondir les angles du symbole). Ces
modifications sont autorisées sous réserve que les caractéristiques perceptibles essentielles du symbole
soient conservées.
4.5 Pour l’utilisation réelle, tout symbole doit être reproduit aussi grand que possible afin d’être
facilement perceptible par l’opérateur. Suivre l’IEC 80416-1 pour la taille appropriée des symboles. Il
convient que les symboles regroupés dans un indicateur ou sur un ensemble de commandes soient à la
même échelle que les repères en coin du symbole d’origine, comme illustré dans le présent document,
afin de préserver une bonne relation visuelle entre les symboles. Les symboles doivent être utilisés dans
l’orientation représentée dans le présent document, à moins qu’une rotation ou un effet d’image inverse
ne soient précisément autorisés pour les symboles individuels.
4.6 La plupart des symboles sont créés en utilisant une approche de montage globale dans laquelle
différents symboles et éléments de symbole sont combinés d’une manière logique pour produire un
nouveau symbole.
2 © ISO 2016 – Tous droits réservés

4.7 Dans certains cas, les symboles peuvent être utilisés de façon conjointe, sans toutefois être
combinés dans un symbole composite, afin de véhiculer la même signification que le symbole composite.
4.8 Les symboles ont généralement pour but de remplacer un ou plusieurs termes par une image
graphique ayant la même signification pour tous les opérateurs, quelle que soit leur langue maternelle.
Pour autant, l’emploi d’un symbole graphique dans le but d’identifier une commande ou un indicateur
n’interdit pas d’utiliser des termes en parallèle.
4.9 Si le symbole représente une machine ou des parties d’une machine en vue de côté, la machine doit
être présumée comme se déplaçant de la droite vers la gauche dans la zone du symbole. Si le symbole
représente une machine ou des parties d’une machine en vue de dessus, la machine doit être présumée
comme se déplaçant de bas en haut dans la zone du symbole.
4.10 Les symboles sur les commandes et les indicateurs doivent présenter un bon contraste par
rapport au fond. Un symbole blanc ou clair sur un fond noir ou sombre est préférable pour la plupart des
commandes. Les indicateurs peuvent utiliser soit un symbole blanc ou clair sur un fond noir ou sombre,
soit un symbole noir ou sombre sur un fond blanc ou clair, en fonction de l’alternative offrant la meilleure
perception visuelle. Lorsqu’une image de symbole est inversée (par exemple, noir pour blanc et vice
versa), cette inversion doit être réalisée sur l’ensemble du symbole.
4.11 Dans le cas de symboles coulés, moulés, appliqués en relief ou gravés sur une surface, les symboles
doivent pouvoir être distingués visuellement de la surface quelle que soit la couleur utilisée.
4.12 Les symboles doivent être situés sur ou à côté des commandes ou des indicateurs qu’ils identifient.
Lorsque plusieurs symboles sont nécessaires pour une commande, les symboles doivent être situés, par
rapport à la commande, de sorte que le mouvement de la commande vers le symbole produise l’action
décrite par ce symbole.
4.13 Les flèches utilisées dans les symboles doivent être conformes aux exigences de
l’IEC 80416-2. L’IEC 80416-1 doit être consultée pour les principes généraux de création des dessins
originaux de symboles. Il convient de se référer à l’IEC 80416-3 pour obtenir les lignes directrices
relatives à l’application des symboles.
4.14 Les numéros d’enregistrement ISO/IEC sont indiqués pour les symboles qui sont enregistrés dans
l’ISO 7000 ou l’IEC 60417.
NOTE Les dessins originaux de symboles sont soit approuvés et enregistrés par l’ISO/TC 145/SC 3 et publiés
dans l’ISO 7000, soit approuvés et enregistrés par l’IEC/SC 3C et publiés dans l’IEC 60417. Dans certains cas,
des symboles modifiés ou adaptés à l’application sont normalisés dans le présent document en lieu et place des
dessins originaux enregistrés.
4.15 Lorsque des lettres ou des chiffres sont utilisés dans un symbole, la police utilisée ne doit pas être
considérée comme définitive. Il est possible d’appliquer des polices différentes dans la mesure où les
lettres et les chiffres demeurent lisibles.
4.16 Les symboles référencés dans le présent document comportent des repères qui marquent les
angles du modèle de base carré de 75 mm de côté de l’IEC 80416-1. Les repères d’angle ne font pas
partie du symbole, mais sont représentés pour assurer une présentation uniforme de tous les symboles
graphiques.
5 Couleur
Lorsqu’elles sont utilisées sur des indicateurs lumineux, les couleurs suivantes doivent avoir la
signification indiquée ci-après:
— Rouge: défaut, sérieux dysfonctionnement ou état de fonctionnement nécessitant une attention
immédiate;
— Jaune ou ambre: état en dehors des limites normales de fonctionnement;
— Vert: conditions normales de fonctionnement.
6 Élaboration de nouveaux symboles
6.1 Avant d’élaborer un nouveau symbole, il convient de rechercher les symboles déjà normalisés ayant
une signification identique ou similaire. L’ISO 7000 et l’IEC 60417 (tous deux disponibles sous forme de
base de données) regroupent les symboles internationalement normalisés et peuvent se révéler utiles
pour rechercher les symboles appropriés qui ne figurent pas dans l’une des parties de l’ISO 3767 et pour
générer des concepts exploitables dans l’élaboration de nouveaux symboles.
6.2 Les nouveaux symboles doivent être élaborés conformément aux principes de l’ISO 3767-1:2016,
Annexe A. Il convient également de consulter l’ISO 80416-1 pour connaître les principes généraux de
la création de symboles. Les flèches doivent être telles qu’indiquées dans l’ISO 80416-2. Chaque forme
de flèche possède une signification bien précise, conformément à l’ISO 80416-2. Il convient de veiller
à utiliser la forme de flèche appropriée. Conformément aux directives de l’ISO 3767-1:2016, Annexe A
permet d’élaborer des symboles à la forme graphique et au contenu compatibles avec une normalisation
internationale et un enregistrement ISO 7000.
6.3 Les symboles proposés en vue de leur normalisation dans le présent document doivent inclure une
brève explication de leur fonction ou utilisation prévue.
NOTE L’IEC 80416-1 utilise le terme « description » pour ce type d’information et fournit des lignes
directrices pour la rédaction de descriptions concernant les symboles en attente de normalisation ISO 7000 ou
IEC 60417. Les descriptions des symboles normalisés dans le présent document peuvent être utilisées comme
exemples.
7 Adaptation de symboles sous forme d’icônes d’affichage numérique
Il est possible d’adapter les symboles afin de les utiliser comme icônes d’affichage numérique sur des
unités d’affichage visuel, telles que des indicateurs reconfigurables ou autres indicateurs électroniques.
Il convient que ces adaptations respectent les principes de l’ISO 80416-4. Il convient en outre de veiller
tout particulièrement à ce que les icônes d’affichage numérique conservent l’impression visuelle
du symbole dont elles sont dérivées. Les principes relatifs à l’emploi des couleurs dans les symboles
s’appliquent également à l’emploi des couleurs dans les icônes d’affichage numérique.
4 © ISO 2016 – Tous droits réservés

8 Symboles généraux du matériel agricole
Numéro
Symbole
N° Description/application du symbole d’enregistrement
graphique
ISO/IEC
8.1 Surface travaillée ISO 7000-1657
Pour indiquer la zone couverte par une machine.
Pour identifier la commande pour la spécification
d’une zone.
8.2 Surface travaillée par heure ISO 7000-1658
Pour indiquer la zone couverte par une machine par
heure de fonctionnement.
8.3 Itinéraire de travail ISO 7000-2177
Pour indiquer la distance parcourue par une machine
pendant son fonctionnement.
8.4 Taux d’application par zone, général ISO 7000-3188
Pour indiquer le taux d’application (par exemple, de
graines ou d’engrais) par zone.
8.5 Dispositif d’immobilisation de la machine ISO 7000-3037
Pour identifier la commande permettant d’immobi-
liser la machine afin de prévenir tout déplacement
imprévu ou non autorisé.
Pour indiquer que la machine est à l’état immobilisé.
8.6 Surface totale travaillée ISO 7000-3130
Pour indiquer la zone totale couverte par la machine
pendant la période donnée.
8.7 Surface restante ISO 7000-3244
Pour indiquer la zone qu’une machine doit encore
couvrir. La surface restante est obtenue en
soustrayant la surface travaillée réelle de la
surface totale à couvrir.
9 Symboles pour tracteurs agricoles
Numéro
Symbole
N° Description/application du symbole d’enregistrement
graphique
ISO/IEC
9.1 Tracteur (vue de côté de la machine) ISO 7000-2133
Pour identifier le tracteur vu de côté (de profil).
À utiliser comme symbole de base pour l’élaboration
de symboles pour tracteurs utilisant une vue de côté
(de profil).
9.2 Tracteur (vue de dessus de la machine) ISO 7000-2134
Pour identifier le tracteur vu de dessus (en plan).
Ce symbole est représenté comme si l’observation du
tracteur se faisait par une personne regardant
au-dessus de la machine.
À utiliser comme symbole de base pour l’élaboration
de symboles pour tracteurs utilisant une vue de
dessus (en plan).
9.3 Tracteur – Sens de déplacement vers l’avant ISO 7000-1666
(vue de côté de la machine)
Pour identifier la commande permettant de déplacer
le tracteur en marche avant.
Pour indiquer que le tracteur se déplace en marche
avant.
9.4 Tracteur – Sens de déplacement vers l’arrière ISO 7000-1667
(vue de côté de la machine)
Pour identifier la commande permettant de déplacer
le tracteur en marche arrière.
Pour indiquer que le tracteur se déplace en marche
arrière.
9.5 Tracteur – Sens de déplacement vers l’avant (vue ISO 7000-2135
de dessus de la machine)
Pour identifier la commande permettant de déplacer
le tracteur en marche avant.
Pour indiquer que le tracteur se déplace en marche
avant.
Ce symbole est représenté comme si l’observation du
tracteur se faisait par une personne regardant
au-dessus de la machine.
9.6 Tracteur – Sens de déplacement vers l’arrière ISO 7000-2136
(vue de dessus de la machine)
Pour identifier la commande permettant de déplacer
le tracteur en marche arrière.
Pour indiquer que le tracteur se déplace en marche
arrière.
Ce symbole est représenté comme si l’observation du
tracteur se faisait par une personne regardant
au-dessus de la machine.
6 © ISO 2016 – Tous droits réservés

Numéro
Symbole
N° Description/application du symbole d’enregistrement
graphique
ISO/IEC
9.7 Tracteur – Vitesse au sol ISO 7000-2179
Pour identifier l’indicateur de vitesse au sol du
tracteur.
Pour indiquer la vitesse au sol du tracteur.
9.8 Tracteur – Vitesse au sol – Commande automatique ISO 7000-3131
Pour identifier la commande d’activation du mode
automatique pour la vitesse au sol du tracteur.
Pour indiquer que la vitesse au sol du tracteur est en
mode de régulation automatique.
9.9 Tracteur – Vitesse au sol cible ISO 7000-3132
Pour identifier la commande qui régule la vitesse au
sol cible du tracteur.
Pour indiquer la vitesse au sol cible du tracteur.
9.10 Tracteur – Roues avant motrices ISO 7000-1663
Pour identifier la commande des roues avant
motrices du tracteur.
Pour indiquer que les roues avant motrices du trac-
teur sont en mode de fonctionnement normal.
9.11 Tracteur – Roues avant motrices – Désactivation Négation de
ou indisponibilité l’ISO 7000-1663
Pour identifier la commande de désactivation des
roues avant motrices du tracteur.
Pour indiquer que les roues avant motrices du trac-
teur sont désactivées ou indisponibles.
9.12 Tracteur – Roues avant motrices – Conduite ISO 7000-2420
automatique
Pour identifier la commande de fonctionnement auto-
matique des roues avant motrices du tracteur.
Pour indiquer que les roues avant motrices du trac-
teur sont en mode de fonctionnement automatique.
L’embrayage et le débrayage se font automatiquement
en fonction des conditions de fonctionnement.
9.13 Tracteur – Roues avant motrices – Freinage ISO 7000-2421
Pour identifier la commande de freinage des roues
avant motrices du tracteur.
Pour identifier l’état du système de freinage des
roues avant motrices du tracteur.
La motricité de l’essieu avant est activée quand les
freins sont actionnés alors que la vitesse au sol est
supérieure à une limite spécifique.
Numéro
Symbole
N° Description/application du symbole d’enregistrement
graphique
ISO/IEC
9.14 Tracteur – Patinage des roues ISO 7000-1665
Pour indiquer le degré de patinage des roues,
c’est-à-dire la différence entre la vitesse au sol réelle
du tracteur et la vitesse au sol impliquée par la
vitesse de rotation des roues motrices.
Pour identifier la commande de réglage du degré de
patinage des roues auquel une indication est fournie
ou une action effectuée, que ce soit de façon manuelle
ou automatique.
9.15 Tracteur – Patinage des roues – Conduite automa- ISO 7000-3133
tique
Pour identifier la commande de fonctionnement
automatique du système de patinage des roues du
tracteur.
Pour indiquer que le système de patinage des roues
du tracteur est en mode de fonctionnement automa-
tique.
9.16 Tracteur – Virage en fourrière ISO 7000-2801
Pour identifier la commande d’activation d’une
séquence programmée d’opérations du tracteur en
bout de champ (en fourrière).
Pour indiquer l’état de fonctionnement du système de
virage en fourrière du tracteur.
Ce symbole est représenté comme si l’observation du
tracteur se faisait par une personne regardant
au-dessus de la machine.
9.17 Tracteur – Feux de route auxiliaires ISO 7000-2137
Pour identifier la commande d’activation des feux de
route auxiliaires du tracteur.
9.18 Tracteur – Système de suspension ISO 7000-3134
Pour identifier la commande du système de suspen-
sion du tracteur.
Pour indiquer l’état de fonctionnement du système de
suspension du tracteur.
9.19 Tracteur – Système de suspension – Avant ISO 7000-3135
Pour identifier la commande du système de suspen-
sion avant du tracteur.
Pour indiquer l’état de fonctionnement du système de
suspension avant du tracteur.
9.20 Tracteur – Système de suspension – Arrière ISO 7000-3136
Pour identifier la commande du système de suspen-
sion arrière du tracteur.
Pour indiquer l’état de fonctionnement du système de
suspension arrière du tracteur.
8 © ISO 2016 – Tous droits réservés

Numéro
Symbole
N° Description/application du symbole d’enregistrement
graphique
ISO/IEC
9.21 Tracteur – Système antitangage ISO 7000-3137
Pour identifier la commande d’activation du système
antitangage du tracteur, qui ajuste dynamiquement
le système de suspension pour améliorer la tenue de
route sur les terrains accidentés.
Pour indiquer l’état de fonctionnement du système
antitangage du tracteur.
9.22 Bras de relevage ISO 7000-1566
Pour identifier la commande du bras de relevage
d’une machine; le bras de relevage permet de relever
ou d’abaisser l’instrument ou l’équipement fixé sur le
tracteur.
Pour indiquer l’état de fonctionnement du bras de
relevage.
La mention ISO 7000-2133 (voir 9.1) peut être appo-
sée à gauche de ce symbole.
La ligne horizontale peut être supprimée si la signifi-
cation du symbole reste claire en contexte.
Pour l’attelage avant (bras de relevage), utiliser une
image inversée (voir 9.30).
9.23 Bras de relevage – Vers le haut – Bras de relevage ISO 7000-1567
– Position relevée
Pour identifier la commande de levage du bras de
relevage.
Pour indiquer que le bras de relevage est en cours de
relevage ou est en position relevée (vers le haut).
La mention ISO 7000-2133 (voir 9.1) peut être appo-
sée à gauche de ce symbole.
La ligne horizontale peut être supprimée si la signifi-
cation du symbole reste claire en contexte.
Pour l’attelage avant (bras de relevage), utiliser une
image inversée (voir 9.31).
9.24 Bras de relevage – Vers le bas – Bras de relevage – ISO 7000-1568
Position abaissée
Pour identifier la commande d’abaissement du bras
de relevage.
Pour indiquer que le bras de relevage est en cours
d’abaissement ou est en position abaissée (vers le bas).
La mention ISO 7000-2133 (voir 9.1) peut être appo-
sée à gauche de ce symbole.
La ligne horizontale peut être supprimée si la signifi-
cation du symbole reste claire en contexte.
Pour l’attelage avant, utiliser une image inversée
(voir 9.32).
Numéro
Symbole
N° Description/application du symbole d’enregistrement
graphique
ISO/IEC
9.25 Bras de relevage – Libre ISO 7000-1660
Pour identifier la commande permettant le relevage
ou l’abaissement du bras de relevage en fonction
du contour du sol sur lequel ou à travers lequel se
déplace l’instrument ou l’équipement fixé au bras de
relevage.
Pour indiquer que le bras de relevage est à l’état libre.
La mention ISO 7000-2133 (voir 9.1) peut être appo-
sée à gauche de ce symbole.
Pour l’attelage avant (bras de relevage), utiliser une
image inversée (voir 9.33).
9.26 Bras de relevage – Limite supérieure ISO 7000-2178
Pour identifier la commande qui permet de régler la
hauteur maximale à laquelle un instrument peut être
soulevé par le bras de relevage.
Pour indiquer que le bras de relevage est relevé à sa
hauteur maximum.
La mention ISO 7000-2133 (voir 9.1) peut être appo-
sée à gauche de ce symbole.
La ligne horizontale peut être supprimée si la signifi-
cation du symbole reste claire en contexte.
Pour l’attelage avant (bras de relevage), utiliser une
image inversée (voir 9.34).
9.27 Bras de relevage – Limite inférieure ISO 7000-3189
Pour identifier la commande qui permet de régler la
hauteur minimale à laquelle un instrument peut être
abaissé par le bras de relevage.
Pour indiquer que le bras de relevage est abaissé à sa
hauteur minimum.
La mention ISO 7000-2133 (voir 9.1) peut être appo-
sée à gauche de ce symbole.
La ligne horizontale peut être supprimée si la signifi-
cation du symbole reste claire en contexte.
Pour l’attelage avant (bras de relevage), utiliser une
image inversée (voir 9.35).
9.28 Bras de relevage – Contrôle de profondeur – Pro- ISO 7000-3190
fondeur maximale
Pour identifier la commande qui permet de régler
la profondeur maximale de déplacement du bras de
relevage lorsque l’instrument ou l’équipement est en
cours de fonctionnement.
Pour indiquer le réglage de profondeur maximale de
la commande de profondeur du bras de relevage.
La mention ISO 7000-2133 (voir 9.1) peut être appo-
sée à gauche de ce symbole.
Pour l’attelage avant (bras de relevage), utiliser une
image inversée (voir 9.36).
10 © ISO 2016 – Tous droits réservés

Numéro
Symbole
N° Description/application du symbole d’enregistrement
graphique
ISO/IEC
9.29 Bras de relevage – Contrôle de profondeur – Pro- ISO 7000-3191
fondeur minimale
Pour identifier la commande qui permet de régler
la profondeur minimale de déplacement du bras de
relevage lorsque l’instrument ou l’équipement est en
cours de fonctionnement.
Pour indiquer le réglage de profondeur minimale de
la commande de profondeur du bras de relevage.
La mention ISO 7000-2133 (voir 9.1) peut être appo-
sée à gauche de ce symbole.
Pour l’attelage avant (bras de relevage), utiliser une
image inversée (voir 9.37).
9.30 Attelage avant (bras de relevage) Image inversée de
l’ISO 7000-1566
Pour identifier la commande du bras de relevage
d’une machine; le bras de relevage permet de relever
ou d’abaisser l’instrument ou l’équipement fixé sur le
tracteur.
Pour indiquer l’état de fonctionnement du bras de
relevage.
La mention ISO 7000-2133 (voir 9.1) peut être appo-
sée à droite de ce symbole.
La ligne horizontale peut être supprimée si la signifi-
cation du symbole reste claire en contexte.
Pour l’attelage arrière (bras de relevage), utiliser
l’ISO 7000-1566 (voir 9.22).
9.31 Attelage avant (bras de relevage) – Relevage (vers Image inversée de
le haut) l’ISO 7000-1567
Pour identifier la commande de levage de l’attelage
avant (bras de relevage).
Pour indiquer que l’attelage avant (bras de relevage)
est en cours de relevage ou est en position relevée
(vers le haut).
La mention ISO 7000-2133 (voir 9.1) peut être appo-
sée à droite de ce symbole.
La ligne horizontale peut être supprimée si la signifi-
cation du symbole reste claire en contexte.
Pour l’attelage arrière (bras de relevage), utiliser
l’ISO 7000-1567 (voir 9.23).
Numéro
Symbole
N° Description/application du symbole d’enregistrement
graphique
ISO/IEC
9.32 Attelage avant (bras de relevage) – Abaissement Image inversée de
(vers le bas) l’ISO 7000-1568
Pour identifier la commande d’abaissement du bras
de relevage.
Pour indiquer que le bras de relevage est en cours
d’abaissement ou est en position abaissée (vers le bas).
La mention ISO 7000-2133 (voir 9.1) peut être appo-
sée à droite de ce symbole.
La ligne horizontale peut être supprimée si la signifi-
cation du symbole reste claire en contexte.
Pour l’attelage arrière (bras de relevage), utiliser
l’ISO 7000-1568 (voir 9.24).
9.33 Attelage avant (bras de relevage) – Libre Image inversée de
l’ISO 7000-1660
Pour identifier la commande permettant le rele-
vage ou l’abaissement de l’attelage avant (bras de
relevage) en fonction du contour du sol sur lequel ou
à travers lequel se déplace l’instrument ou l’équipe-
ment fixé au bras de relevage.
Pour indiquer que l’attelage avant (bras de relevage)
est à l’état libre.
La mention ISO 7000-2133 (voir 9.1) peut être appo-
sée à droite de ce symbole.
Pour l’attelage arrière (bras de relevage), utiliser
l’ISO 7000-1660 (voir 9.25).
9.34 Attelage avant (bras de relevage) – Limite supé- Image inversée de
rieure l’ISO 7000-2178
Pour identifier la commande qui permet de régler la
hauteur maximale à laquelle un instrument peut être
soulevé par l’attelage avant (bras de relevage).
Pour indiquer que l’attelage avant (bras de relevage)
est relevé à sa hauteur maximum.
La mention ISO 7000-2133 (voir 9.1) peut être appo-
sée à droite de ce symbole.
La ligne horizontale peut être supprimée si la signifi-
cation du symbole reste claire en contexte.
Pour l’attelage arrière (bras de relevage), utiliser
l’ISO 7000-2178 (voir 9.26).
12 © ISO 2016 – Tous droits réservés

Numéro
Symbole
N° Description/application du symbole d’enregistrement
graphique
ISO/IEC
9.35 Attelage avant (bras de relevage) – Limite infé- Image inversée de
rieure l’ISO 7000-3189
Pour identifier la commande qui permet de régler la
hauteur minimale à laquelle un instrument peut être
abaissé par l’attelage avant (bras de relevage).
Pour indiquer que l’attelage avant (bras de relevage)
est abaissé à sa hauteur minimum.
La mention ISO 7000-2133 (voir 9.1) peut être appo-
sée à droite de ce symbole.
La ligne horizontale peut être supprimée si la signifi-
cation du symbole reste claire en contexte.
Pour l’attelage arrière (bras de relevage), utiliser
l’ISO 7000-3189 (voir 9.27).
9.36 Attelage avant (bras de relevage) – Contrôle de Image inversée de
profondeur – Profondeur maximale l’ISO 7000-3190
Pour identifier la commande qui permet de régler
la profondeur maximale de déplacement du bras de
relevage lorsque l’instrument ou l’équipement est en
cours de fonctionnement.
Pour indiquer le réglage de profondeur maximale de
la commande de profondeur du bras de relevage.
La mention ISO 7000-2133 (voir 9.1) peut être appo-
sée à droite de ce symbole.
Pour l’attelage arrière (bras de relevage), utiliser
l’ISO 7000-3190 (voir 9.28).
9.37 Attelage avant (bras de relevage) – Contrôle de Image inversée de
profondeur – Profondeur minimale l’ISO 7000-3191
Pour identifier la commande qui permet de régler la
profondeur minimale de déplacement de l’attelage
avant (bras de relevage) lorsque l’instrument ou
l’équipement est en cours de fonctionnement.
Pour indiquer le réglage de profondeur minimale de
la commande de profondeur de l’attelage avant (bras
de relevage).
La mention ISO 7000-2133 (voir 9.1) peut être appo-
sée à droite de ce symbole.
Pour l’attelage arrière (bras de relevage), utiliser
l’ISO 7000-3191 (voir 9.29).
9.38 Blocage du différentiel ISO 7000-1662
Pour identifier la commande de blocage du différen-
tiel, qui amène les deux roues d’un même essieu à
tourner à une vitesse de rotation identique indé-
pendamment de la force de traction disponible
sur chaque roue, tout en permettant aux roues de
tourner à des vitesses différentes à l’approche d’un
virage.
Pour indiquer l’état de fonctionnement du blocage du
différentiel.
Numéro
Symbole
N° Description/application du symbole d’enregistrement
graphique
ISO/IEC
9.39 Prise de force (p.d.f.) ISO 7000-1572
Pour identifier la commande du système de prise de
force (p.d.f.).
Pour indiquer l’état de fonctionnement de la prise
de force.
Le symbole peut être utilisé avec un indicateur nu-
mérique représentant la vitesse de rotation nominale
de la prise de force. Voir 9.43, 9.44 et 9.45.
9.40 Prise de force (p.d.f.) – Sens de rotation – Horaire ISO 7000-1664
Pour indiquer que l’arbre de la p.d.f. tourne dans le
sens horaire.
Pour une rotation anti-horaire, utiliser une image
inversée (voir 9.41).
Le sens de rotation est en vue de face à l’extrémité de
l’arbre de la p.d.f.
9.41 Prise de force (p.d.f.) – Sens de rotation – Anti-ho- Image inversée de
raire l’ISO 7000-1664
Pour indiquer que l’arbre de la p.d.f. tourne dans le
sens anti-horaire.
Pour une rotation horaire, utiliser l’ISO 7000-1664
(voir 9.40).
Le sens de rotation est en vue de face à l’extrémité de
l’arbre de la p.d.f.
9.42 Prise de force (p.d.f.) – Vitesse de rotation ISO 7000-3194
Pour identifier la commande qui régule la vitesse de
rotation de l’arbre de la p.d.f.
Pour indiquer la vitesse de rotation de la prise de
force.
L’élément de symbole «n/min» peut être remplacé
par un indicateur numérique de la vitesse de rotation
nominale de l’arbre de la p.d.f. Voir 9.43, 9.44 et 9.45.
9.43 Prise de force (p.d.f.) – Vitesse de rotation nomi- Application de
nale – 540 r/min l’ISO 7000-3194
Pour identifier la commande de vitesse de rotation
nominale de la p.d.f. à 540 r/min.
Pour indiquer l’état de fonctionnement de la p.d.f. à
une vitesse de rotation nominale de 540 r/min.
9.44 Prise de force (p.d.f.) – Vitesse de rotation nomi- Application de
nale – 1 000 r/min l’ISO 7000-3194
Pour identifier la commande de vitesse de rotation
nominale de la p.d.f. à 1 000 r/min.
Pour indiquer l’état de fonctionnement de la p.d.f. à
une vitesse de rotation nominale de 1 000 r/min
14 © ISO 2016 – Tous droits réservés

Numéro
Symbole
N° Description/application du symbole d’enregistrement
graphique
ISO/IEC
9.45 Prise de force (p.d.f.) – Vitesse de rotation nomi- Application de
nale – 2 000 r/min l’ISO 7000-3194
Pour identifier la commande de vitesse de rotation
nominale de la p.d.f. à 2 000 r/min.
Pour indiquer l’état de fonctionnement de la p.d.f. à
une vitesse de rotation nominale de 2 000 r/min.
9.46 Prise de force (p.d.f.) – Vitesse de rotation sens ISO 7000-3432
horaire
Pour identifier la commande qui régule la vitesse de
rotation de l’arbre de la prise de force (p.d.f.) dans le
sens horaire.
Pour indiquer la vitesse de rotation de l’arbre de la
prise de force dans le sens horaire.
L’élément de symbole «n/min» peut être remplacé
par un indicateur numérique de la vitesse de rotation
nominale de la p.d.f. dans le sens horaire. Voir 9.48,
9.50 et 9.52.
Le sens de rotation est en vue de face à l’extrémité de
l’arbre de la p.d.f.
9.47 Prise de force (p.d.f.) – Vitesse de rotation sens ISO 7000-3433
anti-horaire
Pour identifier la commande qui régule la vitesse de
rotation de l’arbre de la prise de force (p.d.f.) dans le
sens anti-horaire.
Pour indiquer la vitesse de rotation de l’arbre de la
prise de force dans le sens anti-horaire.
L’élément de symbole «n/min» peut être remplacé
par un indicateur numérique de la vitesse de rotation
nominale de la p.d.f. dans le sens anti-horaire. Voir
9.49, 9.51 et 9.53.
Le sens de rotation est en vue de face à l’extrémité de
l’arbre de la p.d.f.
9.48 Prise de force (p.d.f.) – Vitesse de rotation nomi- Application de
nale sens horaire – 540 r/min l’ISO 7000-3432
Pour identifier la commande de vitesse de rotation
nominale de la p.d.f. dans le sens horaire à 540 r/min.
Pour indiquer que la p.d.f. fonctionne dans le sens
horaire à une vitesse de rotation de 540 r/min.
Pour identifier l’état de fonctionnement de la p.d.f. à
une vitesse de rotation nominale de 540 r/min dans
le sens horaire.
Le sens de rotation est en vue de face à l’extrémité de
l’arbre de la p.d.f.
Numéro
Symbole
N° Description/application du symbole d’enregistrement
graphique
ISO/IEC
9.49 Prise de force (p.d.f.) – Vitesse de rotation nomi- Application de
nale sens anti-horaire – 540 r/min l’ISO 7000-3433
Pour identifier la commande de vitesse de rotation
nominale de la p.d.f. dans le sens anti-horaire à
540 r/min.
Pour indiquer que la p.d.f. fonctionne dans le sens
anti-horaire à une vitesse de rotation de 540 r/min.
Pour identifier l’état de fonctionnement de la p.d.f. à
une vitesse de rotation nominale de 540 r/min dans
le sens anti-horaire.
Le sens de rotation est en vue de face à l’extrémité de
l’arbre de la p.d.f.
9.50 Prise de force (p.d.f.) – Vitesse de rotation nomi- Application de
nale sens horaire – 1 000 r/min l’ISO 7000-3432
Pour identifier la commande de vitesse de rotation
nominale de la p.d.f. dans le sens horaire à
1 000 r/min.
Pour indiquer que la p.d.f. fonctionne dans le sens
horaire à une vitesse de rotation de 1 000 r/min.
Pour identifier l’état de fonctionnement de la p.d.f. à
une vitesse de rotation nominale de 1 000 r/min dans
le sens horaire.
Le sens de rotation est en vue de face à l’extrémité de
l’arbre de la p.d.f.
9.51 Prise de force (p.d.f.) – Vitesse de rotation nomi- Application de
nale sens anti-horaire – 1 000 r/min l’ISO 7000-3433
Pour identifier la commande de vitesse de rotation
nominale de la p.d.f. dans le sens anti-horaire à
1 000 r/min.
Pour indiquer que la p.d.f. fonctionne dans le sens
anti-horaire à une vitesse de rotation de 1 000 r/min.
Pour identifier l’état de fonctionnement de la p.d.f. à
une vitesse de rotation nominale de 1 000 r/min dans
le sens anti-horaire.
Le sens de rotation est en vue de face à l’extrémité de
l’arbre de la p.d.f.
9.52 Prise de force (p.d.f.) – Vitesse de rotation nomi- Application de
nale sens horaire – 2 000 r/min l’ISO 7000-3432
Pour identifier la commande de vitesse de rotation
nominale de la p.d.f. dans le sens horaire à
2 000 r/min.
Pour indiquer que la p.d.f. fonctionne dans le sens
horaire à une vitesse de rotation de 2 000 r/min.
Pour identifier l’état de fonctionnement de la p.d.f. à
une vitesse de rotation nominale de 2 000 r/min dans
le sens horaire.
Le sens de rotation est en vue de fac
...
