ISO/FDIS 24817

Oil and gas industries including lower carbon energy — Composite repairs for piping — Qualification and design, installation, testing and integrity management

ISO 24817:2017 gives requirements and recommendations for the qualification and design, installation, testing and inspection for the external application of composite repair systems to corroded or damaged pipework, pipelines, tanks and vessels used in the petroleum, petrochemical and natural gas industries.

Industries du petrole et du gaz, y compris les énergies à faible teneur en carbone — Reparations en materiau composite pour tuyauterie — Conformite aux exigences de performance et conception, installation, essai et gestion de l’intégrité

L'ISO 24817:2017 spécifie les exigences et les recommandations relatives à la qualification, la conception, l'installation, les essais et le contrôle lors de l'application externe de systèmes de réparation composites à des tuyauteries, conduites de transport, réservoirs et appareils à pression corrodés ou endommagés utilisés dans les industries du pétrole, de la pétrochimie et du gaz naturel.

General Information

• Status: Not Published
• ICS: 75.180.20 - Processing equipment
• Technical Committee: ISO/TC 67/SC 6 - Processing equipment and systems
• Drafting Committee: ISO/TC 67/SC 6 - Processing equipment and systems
• Current Stage: 5020 - FDIS ballot initiated: 2 months. Proof sent to secretariat
• Start Date: 21-May-2026
• Completion Date: 21-May-2026

Relations

• Consolidates: FprEN ISO 24817 - Oil and gas industries including lower carbon energy - Composite repairs for piping - Qualification and design, installation, testing and integrity management (ISO/FDIS 24817:2026)
• Effective Date: 12-Feb-2026
• Revises: ISO 24817:2017 - Petroleum, petrochemical and natural gas industries — Composite repairs for pipework — Qualification and design, installation, testing and inspection
• Effective Date: 04-Mar-2023

Overview

ISO/FDIS 24817:2026 – Oil and gas industries including lower carbon energy - Composite repairs for piping - Qualification and design, installation, testing and integrity management – provides standardized requirements and recommendations for the external application of composite repair systems on corroded or damaged piping, pipelines, tanks, and vessels. Published by ISO, this standard is essential for the petroleum, petrochemical, natural gas, and emerging lower carbon energy sectors. It ensures long-term performance, safety, and reliability of composite repairs while facilitating consistency and quality management across global operations.

Key Topics

ISO/FDIS 24817 addresses the following crucial areas:

• Qualification and Design: Outlines methods for qualifying composite repair systems, assessing repair feasibility, and developing robust designs considering both performance and service life.
• Installation Procedures: Specifies best practices for installing composite repair systems, including installer training, handling live line repairs, and addressing environmental factors.
• Testing and Inspection: Details rigorous testing protocols and inspection regimes to verify integrity and safety post-installation.
• Ongoing Integrity Management: Provides comprehensive guidance for maintaining, inspecting, and managing the repaired system throughout its lifetime.
• Repair Documentation: Stresses the importance of record keeping, repair system maintenance, and adherence to safety requirements.
• Defect Classification and Assessment: Defines defect types (such as Type A and Type B) in piping and explains the appropriate repair strategies.

This standard is continually updated to keep pace with technological advances, life expectancy of repair systems (up to 50 years), and the need for environmental compatibility.

Applications

ISO/FDIS 24817:2026 is widely applicable in industries such as:

• Oil and Gas Production: Repairing pipelines and facility piping subjected to corrosion or mechanical damage.
• Petrochemical Plants: Ensuring the safe and cost-effective extension of asset life with qualified composite repairs.
• Natural Gas Transmission: Managing pipeline integrity, especially in remote or challenging locations where traditional replacement is costly.
• Lower Carbon Energy: Supporting transition efforts by enabling sustainable repair techniques for various process equipment.
• Storage Facilities: Managing tanks and pressure vessels by mitigating corrosion without expensive shutdowns.

Key users include plant and asset owners, design and maintenance contractors, repair system suppliers, certifying authorities, and installation specialists. The standard is vital for both new infrastructure and the refurbishment of existing assets aiming to maintain regulatory compliance and operational safety.

Related Standards

When implementing ISO/FDIS 24817:2026, reference to related standards enhances compatibility and effectiveness. Commonly referenced standards include:

• ISO 14692: For glass-reinforced plastics (GRP) piping in petroleum and natural gas industries.
• ISO 527 (Parts 1, 2, and 4): For determining tensile properties of plastics and composites.
• ISO 8501: Focused on steel substrate preparation prior to composite application.
• ISO 868 & EN 59: Covering durometer and Barcol hardness testing for composite materials.
• ASTM D3039 & D5379: Standard tests for tensile and shear properties of composite laminates.
• ASTM C581, D543, D638, D1598/D1599: Various test methods pertinent to chemical resistance and mechanical properties of plastics and composites.

Aligning with these standards ensures a harmonized approach to composite repair systems across global oil, gas, and energy projects.

---

By following ISO/FDIS 24817:2026, organizations assure high-quality, durable, and safe composite repairs for vital process equipment, supporting asset longevity and environmental responsibility in the evolving energy sector.

Standards Content (Sample)

FINAL DRAFT
International
Standard
ISO/TC 67/SC 6
Oil and gas industries including
Secretariat: AFNOR
lower carbon energy — Composite
Voting begins on:
repairs for piping — Qualification
2026-05-21
and design, installation, testing and
Voting terminates on:
integrity management
2026-07-16
Industries du petrole et du gaz, y compris les énergies à faible
teneur en carbone — Reparations en materiau composite pour
tuyauterie — Conformite aux exigences de performance et
conception, installation, essai et gestion de l’intégrité
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO­
ISO/CEN PARALLEL PROCESSING LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
Reference number
FINAL DRAFT
International
Standard
ISO/TC 67/SC 6
Oil and gas industries including
Secretariat: AFNOR
lower carbon energy — Composite
Voting begins on:
repairs for piping — Qualification
and design, installation, testing and
Voting terminates on:
integrity management
Industries du petrole et du gaz, y compris les énergies à faible
teneur en carbone — Reparations en materiau composite pour
tuyauterie — Conformite aux exigences de performance et
conception, installation, essai et gestion de l’intégrité
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
© ISO 2026
IN ADDITION TO THEIR EVALUATION AS
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO­
ISO/CEN PARALLEL PROCESSING
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
or ISO’s member body in the country of the requester.
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland Reference number
ii

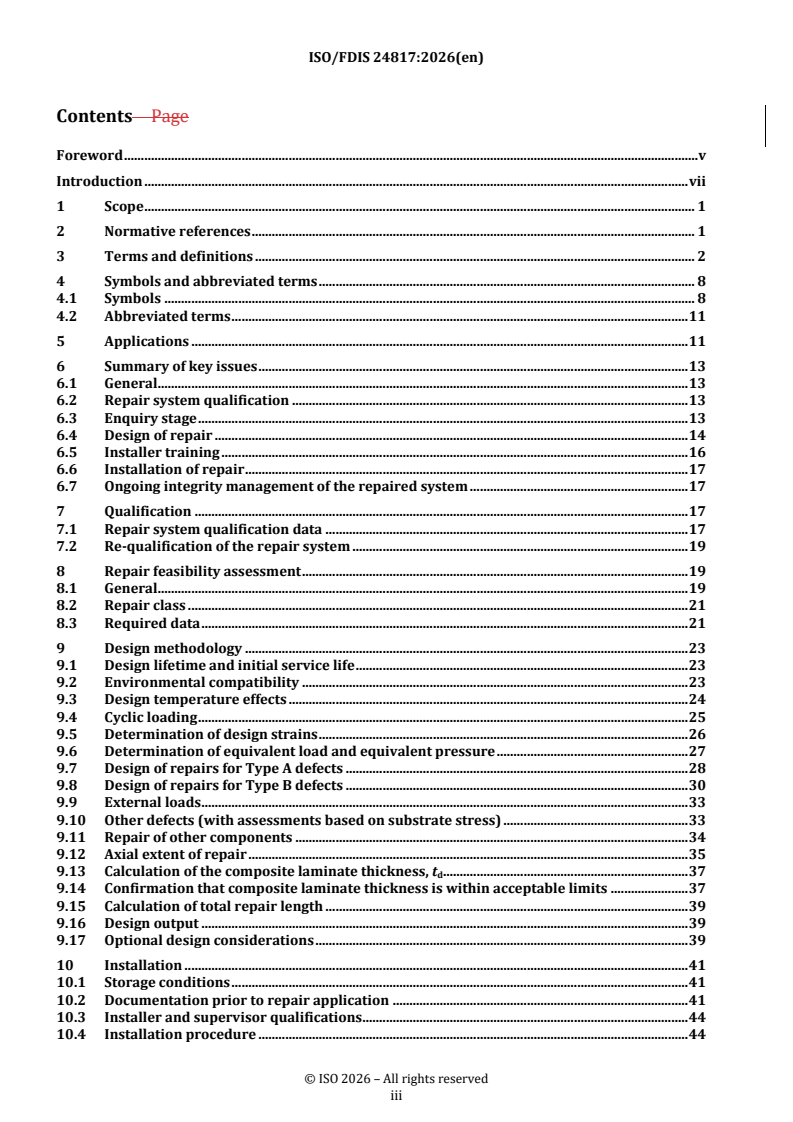

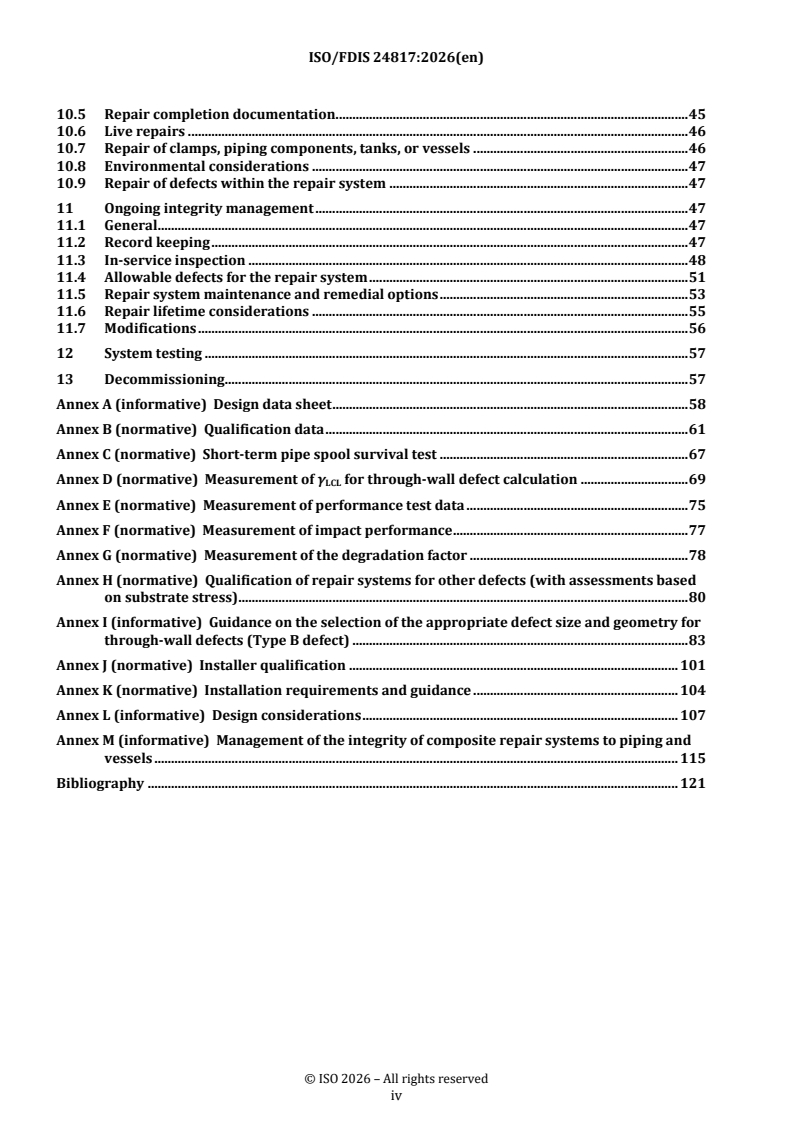

Contents Page
