International Standard ISO 19232-3:2025(en)
Non-destructive testing — Image quality of radiographs —
Part 3:
Minimum image quality values
1 Scope
This document specifies the minimum image quality values (using IQIs) to ensure a uniform radiographic
image quality. This document specifies the minimum IQI values for the two testing classes, A and B, of
radiographic techniques as specified in ISO 5579. This document is applicable to the two types of image
quality indicators as detailed in ISO 19232-1 for wire-type IQIs and ISO 19232-2 for step/hole-type IQIs, and
for the two testing, classes A and B, as specified in ISO 5579.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 5579, Non-destructive testing — Radiographic testing of metallic materials using film and X- or gamma rays
— Basic rules
ISO 5580, Non-destructive testing — Industrial radiographic illuminators — Minimum requirements
ISO 17636 (all parts), Non-destructive testing of welds — Radiographic testing
ISO 19232-1, Non-destructive testing — Image quality of radiographs — Part 1: Determination of the image
quality value using wire-type image quality indicators
ISO 19232-2, Non-destructive testing — Image quality of radiographs — Part 2: Determination of the image
quality value using step/hole-type image quality indicators
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 5579 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
image quality indicator
IQI
device comprising a series of elements of graded dimensions which enable a measure of the image quality to
be obtained
Note 1 to entry: The elements of IQI are commonly wires or steps with holes.
[SOURCE: ISO 19232-1:2013, 3.2]
3.2
image quality value
IQI value
measure of the image quality required or achieved
Note 1 to entry: IQI value is equal to the thinnest element which can be detected on the radiograph.
Note 2 to entry: See Tables 1 to 12 for the related values.
3.3
image quality table
IQI table
table of minimum required image quality values versus the penetrated thickness ranges for a given testing class
4 Image quality values
4.1 Single-wall radiography
The minimum image quality values given in Tables 1 to 4 shall be achieved if the following testing
requirements are met:
a) for testing class A, using basic radiographic techniques in accordance with ISO 5579;
b) for testing class B, using improved radiographic techniques in accordance with ISO 5579.
The minimum image quality values given in Tables 1 to 4 shall be achieved in cases where the IQI is placed
on the source side. If it is not possible to place the IQI on the source side, it may be placed on the detector
side. Tables 1 to 4 shall not be applied in this case.
NOTE The use of alternate techniques (for example, use of an iridium 192 source for thin plate sections) can result
in obtaining different image quality values from those specified (see Clause 7).
4.2 Double-wall radiography
The minimum image quality values given in Tables 5 to 12 shall be obtained if the following testing
requirements are met:
a) for the testing class A, using radiographic techniques (see ISO 5579);
b) for the testing class B, using radiographic techniques (see ISO 5579).
NOTE The use of alternate techniques can result in obtaining different image quality values from those specified
(see Clause 7).
When using a double-wall radiographic technique, the penetrated thickness, w, shall be the sum of penetrated
nominal wall thicknesses, t+t.
Tables 5 to 8 provide the minimum image quality values which shall be achieved corresponding to testing
classes A and B for a double-wall radiographic technique with interpretation of the two walls, the IQI being
placed on the source side of the object (IQI on the source side).
Tables 9 to 12 provide the minimum image quality values which shall be achieved corresponding to testing
classes A and B for a double-wall radiographic technique with interpretation of the single-image, the IQI
being placed on the detector side of the object (IQI on the detector side).
Tables 9 to 12 shall be used to indicate the image quality corresponding to the double-wall penetration/
double-image evaluation technique when the IQI is placed on the detector side; this is applicable for elliptical
radiographs used for pipe weld testing in accordance with the ISO 17636 series.
5 Arrangement of IQI
For radiographic imaging, the IQI shall be placed on the test object side of the section under test facing the
source of radiation.
If this is not possible, the IQI may be placed adjacent to the test object side of the section under test nearest
to the detector. To indicate that this arrangement has been used, the image of a letter “F” shall be visible on
the radiograph near the IQI marking.
NOTE If exceptionally using the IQI on detector side, the contribution of geometrical unsharpness is not
measurable.
The IQI shall be placed on the object in an area where the thickness is as uniform as possible.
Special arrangements may be specified by application standards.
6 Determination of image quality value
In determining the image quality value of a radiograph, the viewing conditions shall be observed for
radiographic films in accordance with ISO 5580 or for digital images on a monitor in accordance with
ISO 17636-2. All radiographs (film and digital images) shall be evaluated in a darkened room.
For digital image evaluation, the operator shall interpret only uncompressed images with a zoom factor
between 1:1 (meaning one pixel of the digital radiograph is presented by one monitor pixel) and 1:2 (meaning
one pixel of the digital radiograph is presented by four monitor pixels) for critical image analysis.
For wire-type IQIs, the number of the thinnest wire which is still clearly visible on the radiograph shall be
taken as the image quality value achieved. The image of a wire is accepted to be visible if a continuous length
of at least 10 mm is clearly visible without interruptions. The visible wire length may be shorter than 10 mm
for external pipe diameters smaller than 50 mm. In this case, the visible wire length shall be ≥ 20 % of the
external pipe diameter.
For step/hole-type IQIs, the number of the smallest hole which is clearly visible on the radiograph shall be
taken as the image quali
...
Norme
internationale
ISO 19232-3
Troisième édition
Essais non destructifs — Qualité
2025-07
d’image des radiogrammes —
Partie 3:
Indices de qualité d’image
minimaux
Non-destructive testing — Image quality of radiographs —
Part 3: Minimum image quality values
Numéro de référence
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2025
Tous droits réservés. Sauf prescription différente ou nécessité dans le contexte de sa mise en œuvre, aucune partie de cette
publication ne peut être reproduite ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique,
y compris la photocopie, ou la diffusion sur l’internet ou sur un intranet, sans autorisation écrite préalable. Une autorisation peut
être demandée à l’ISO à l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Genève
Tél.: +41 22 749 01 11
E-mail: copyright@iso.org
Web: www.iso.org
Publié en Suisse
ii
Sommaire Page
Avant-propos .iv
1 Domaine d’application . 1
2 Références normatives . 1
3 Termes et définitions . 1
4 Indices de qualité d’image . 2
4.1 Radiographie en simple paroi .2
4.2 Radiographie en double paroi .2
5 Disposition de l’IQI. 3
6 Détermination de l’indice de qualité d’image . 3
7 Réduction des indices de qualité d’image minimaux pour la radiographie gamma . 4
8 Exigences pour les indices IQI minimaux . 4
8.1 Généralités .4
8.2 Indices IQI minimaux pour les techniques radiographiques simple paroi; IQI côté source .5
8.3 Indices IQI minimaux pour les techniques radiographiques double paroi; évaluation
double image (DPDI); IQI côté source .7
8.4 Indices IQI minimaux pour les techniques radiographiques double paroi; évaluation
simple image (DPSI) ou double image (DPDI); IQI côté détecteur .8
iii
Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération mondiale d’organismes nationaux
de normalisation (comités membres de l’ISO). L’élaboration des Normes internationales est en général
confiée aux comités techniques de l’ISO. Chaque comité membre intéressé par une étude a le droit de faire
partie du comité technique créé à cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec l’ISO participent également aux travaux. L’ISO collabore étroitement avec
la Commission électrotechnique internationale (IEC) en ce qui concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier, de prendre note des différents
critères d’approbation requis pour les différents types de documents ISO. Le présent document a
été rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir
www.iso.org/directives).
L’ISO attire l’attention sur le fait que la mise en application du présent document peut entraîner l’utilisation
d’un ou de plusieurs brevets. L’ISO ne prend pas position quant à la preuve, à la validité et à l’applicabilité de
tout droit de brevet revendiqué à cet égard. À la date de publication du présent document, l’ISO n’avait pas
reçu notification qu’un ou plusieurs brevets pouvaient être nécessaires à sa mise en application. Toutefois,
il y a lieu d’avertir les responsables de la mise en application du présent document que des informations
plus récentes sont susceptibles de figurer dans la base de données de brevets, disponible à l’adresse
www.iso.org/brevets. L’ISO ne saurait être tenue pour responsable de ne pas avoir identifié tout ou partie de
tels droits de brevet.
Les appellations commerciales éventuellement mentionnées dans le présent document sont données pour
information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un engagement.
Pour une explication de la nature volontaire des normes, la signification des termes et expressions
spécifiques de l’ISO liés à l’évaluation de la conformité, ou pour toute information au sujet de l’adhésion de
l’ISO aux principes de l’Organisation mondiale du commerce (OMC) concernant les obstacles techniques au
commerce (OTC), voir www.iso.org/iso/fr/avant-propos.html.
Le présent document a été élaboré par le comité technique ISO/TC 135, Essais non destructifs, sous-comité
SC 5, Contrôle par radiographie, en collaboration avec le comité technique CEN/TC 138, Essais non destructifs,
du Comité européen de normalisation (CEN) conformément à l’Accord de coopération technique entre l’ISO
et le CEN (Accord de Vienne).
Cette troisième édition annule et remplace la deuxième édition (ISO 19232-3:2013), qui a fait l’objet d’une
révision technique.
Les principales modifications sont les suivantes:
— remplacement du titre «classes de qualité d’image» par «Indices de qualité d’image minimaux»;
— ajouts dans les définitions 3.2 et 3.3;
— changement d’intitulé de l’Article 4 en «Indices de qualité d’image»;
— révision de l’Article 7 «Réduction acceptable des indices de qualité d’image pour la radiographie gamma»;
— changement d’intitulé des Articles 8, 9, 10, 11, 12 et 13 pour une meilleure lisibilité et traçabilité;
— mise à jour des valeurs d’épaisseur nominale pour les indices IQI W2 à W5 dans le Tableau 1;
— mise à jour des titres de tous les tableaux pour une meilleure lisibilité et traçabilité;
— modifications rédactionnelles.
Une liste de toutes les parties de la série ISO 19232 se trouve sur le site web de l’ISO.
iv
Il convient que l’utilisateur adresse tout retour d’information ou toute question concernant le présent
document à l’organisme national de normalisation de son pays. Une liste exhaustive desdits organismes se
trouve à l’adresse www.iso.org/fr/members.html.
v

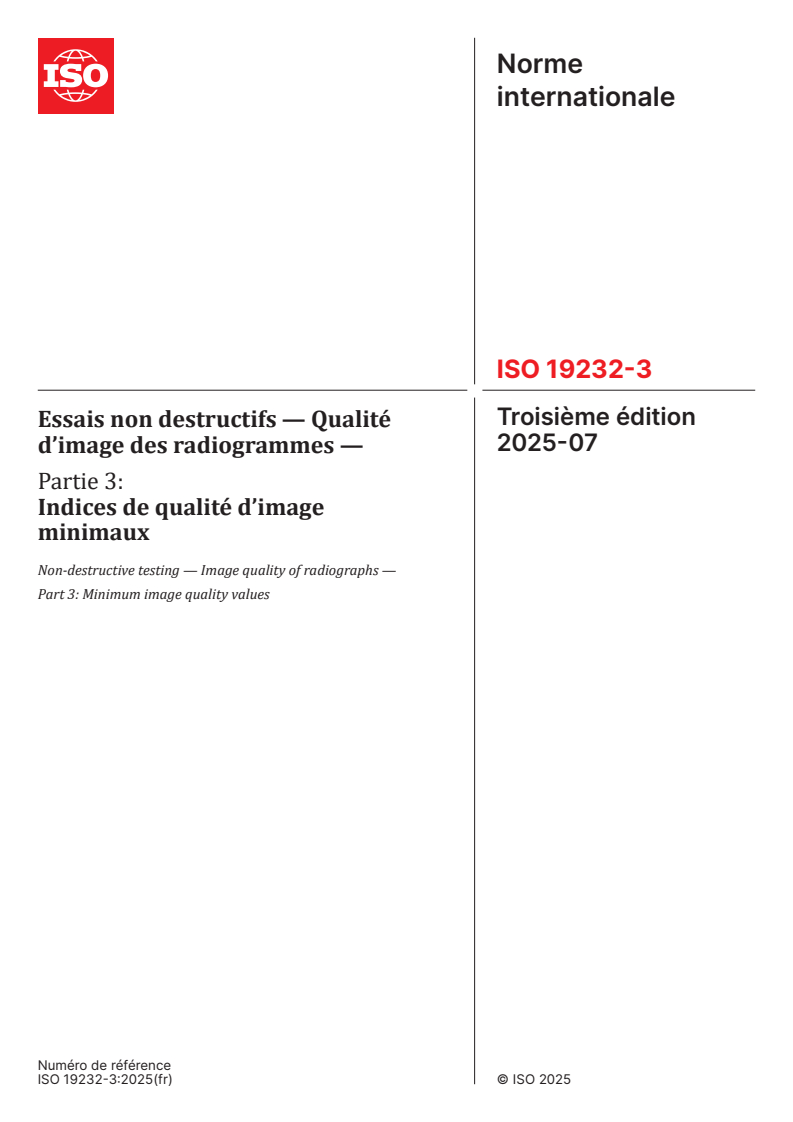

Norme internationale ISO 19232-3:2025(fr)
Essais non destructifs — Qualité d’image des
radiogrammes —
Partie 3:
Indices de qualité d’image minimaux
1 Domaine d’application
Le présent document spécifie les indices de qualité d’image (en utilisant les IQI) minimaux permettant
d’assurer une qualité d'image radiographique uniforme. Le présent document spécifie les indices IQI
minimaux pour les deux classes d’essai, A et B, de techniques radiographiques spécifiées dans l’ISO 5579. Le
présent document est applicable aux deux types d’indicateurs de qualité d’image décrits dans l’ISO 19232-1
pour les IQI à fils et dans l’ISO 19232-2 pour les IQI à trous et à gradins, ainsi qu’aux deux classes d’essai A et
B spécifiées dans l’ISO 5579.
2 Références normatives
Les documents suivants sont cités dans le texte de sorte qu’ils constituent, pour tout ou partie de leur
contenu, des exigences du présent document. Pour les références datées, seule l’édition citée s’applique. Pour
les références non datées, la dernière édition du document de référence s’applique (y compris les éventuels
amendements).
ISO 5579, Essais non destructifs — Contrôle radiographique des matériaux métalliques au moyen de film et de
rayons X et gamma — Règles de base
ISO 5580, Essais non-destructifs — Négatoscopes utilisés en radiographie industrielle — Exigences minimales
ISO 17636 (toutes les parties), Essais non destructifs des assemblages soudés — Contrôle par radiographie
ISO 19232-1, Essais non destructifs — Qualité d'image des radiogrammes — Partie 1: Détermination de l'indice
de qualité d'image à l'aide d'indicateurs à fils
ISO 19232-2, Essais non destructifs — Qualité d'image des radiogrammes — Partie 2: Détermination de l'indice
de qualité d'image à l'aide d'indicateurs à trous et à gradins
3 Termes et définitions
Pour les besoins du présent document, les termes et les définitions donnés dans l’ISO 5579 ainsi que les
suivants, s’appliquent.
L’ISO et l’IEC tiennent à jour des bases de données terminologiques destinées à être utilisées en normalisation,
consultables aux adresses suivantes:
— ISO Online browsing platform: disponible à l’adresse https:// www .iso .org/ obp
— IEC Electropedia: disponible à l’adresse https:// www .electropedia .org/
3.1
indicateur de qualité d’image
IQI
dispositif comprenant une série d’éléments de dimensions progressives et permettant une mesure de la
qualité d’image à obtenir
Note 1 à l'article: Les éléments de l’IQI sont généralement des fils ou des gradins à trous.
[SOURCE: ISO 19232-1:2013, 3.2]
3.2
indice de qualité d’image
indice IQI
mesure de la qualité d’image requise ou obtenue
Note 1 à l'article: L’indice IQI correspond au plus petit élément de l’IQI visible sur le radiogramme.
Note 2 à l'article: Voir les Tableaux 1 à 12 pour les valeurs correspondantes.
3.3
table de qualité d’image
table IQI
table des indices de qualité d’image minimaux requis en fonction des plages d’épaisseurs traversées pour
une classe d’essai donnée
4 Indices de qualité d’image
4.1 Radiographie en simple paroi
Les indices de qualité d’image minimaux donnés dans les Tableaux 1 à 4 doivent être obtenus si les exigences
d’essai suivantes sont satisfaites:
a) pour la classe d’essai A, utilisation de techniques radiographiques de base conformément à l’ISO 5579;
b) pour la classe d’essai B, utilisation de techniques radiographiques perfectionnées conformément à
l’ISO 5579.
Les indices de qualité d’image minimaux donnés dans les Tableaux 1 à 4 doivent être obtenus dans les cas
où l’IQI est placé côté source. Si cela n’est pas possible, l’IQI peut être placé côté détecteur. Dans ce cas, les
indices de qualité d’image des Tableaux 1 à 4 ne doivent pas s’appliquer.
NOTE La mise en œuvre de techniques alternatives (par exemple l’utilisation d’une source d’iridium 192 pour de
faibles épaisseurs) peut conduire à l’obtention d’indices de qualité d’image différents de ceux spécifiés (voir l’Article 7).
4.2 Radiographie en double paroi
Les indices de qualité d’image minimaux donnés dans les Tableaux 5 à 12 doivent être obtenus si les exigences
d’essai suivantes sont satisfaites:
a) pour la classe d’essai A, utilisation de techniques radiographiques (voir l’ISO 5579);
b) pour la classe d’essai B, utilisation de techniques radiographiques (voir l’ISO 5579).
NOTE La mise en œuvre de techniques alternatives peut conduire à l’obtention d’indices de qualité différents de
ceux spécifiés (voir l’Article 7).
Lorsqu’on utilise la technique radiographique double paroi, l’épaisseur traversée, w, doit être la somme des
deux épaisseurs de paroi nominales, t+t.
Les Tableaux 5 à 8 fournissent les indices de qualité d’image minimaux correspondant aux classes d’essai
A et B qui doivent être obtenus pour une technique radiographique en double paroi avec interprétation des
deux parois, l’IQI étant placé sur la face de l’objet côté source (IQI côté source).
Les Tableaux 9 à 12 fournissent les indices de qualité d’image minimaux correspondant aux classes d’essai
A et B qui doivent être obtenus pour une technique radiographique en double paroi avec interprétation en
simple image, l’IQI étant placé sur la face de l’objet côté détecteur (IQI côté détecteur).
Les Tableaux 9 à 12 doivent être utilisés pour indiquer la qualité d’image correspondant à la technique
double paroi traversée/évaluation double image lorsque l’IQI est placé côté détecteur; cela est applicable
pour les radiographies en ellipse utilisées pour le contrôle des soudures de tuyaux conformément à la série
ISO 17636.
5 Disposition de l’IQI
Pour l’imagerie radiographique, l’IQI doit être placé sur la face de l’objet contrôlé dans la zone inspectée
faisant face à la source de rayonnement.
Si cela n’est pas possible, l’IQI peut être placé près de la face de l’objet contrôlé dans la zone inspectée la plus
proche du détecteur. Pour indiquer que ce montage a été utilisé, l’image d’une lettre «F» doit être lisible sur
le radiogramme, à proximité du marquage de l’IQI.
NOTE Si exceptionnellement l’IQI côté détecteur est utilisé, la contribution du flou géométrique n’est pas
mesurable.
L’IQI doit être disposé sur l’objet à un endroit où l
...

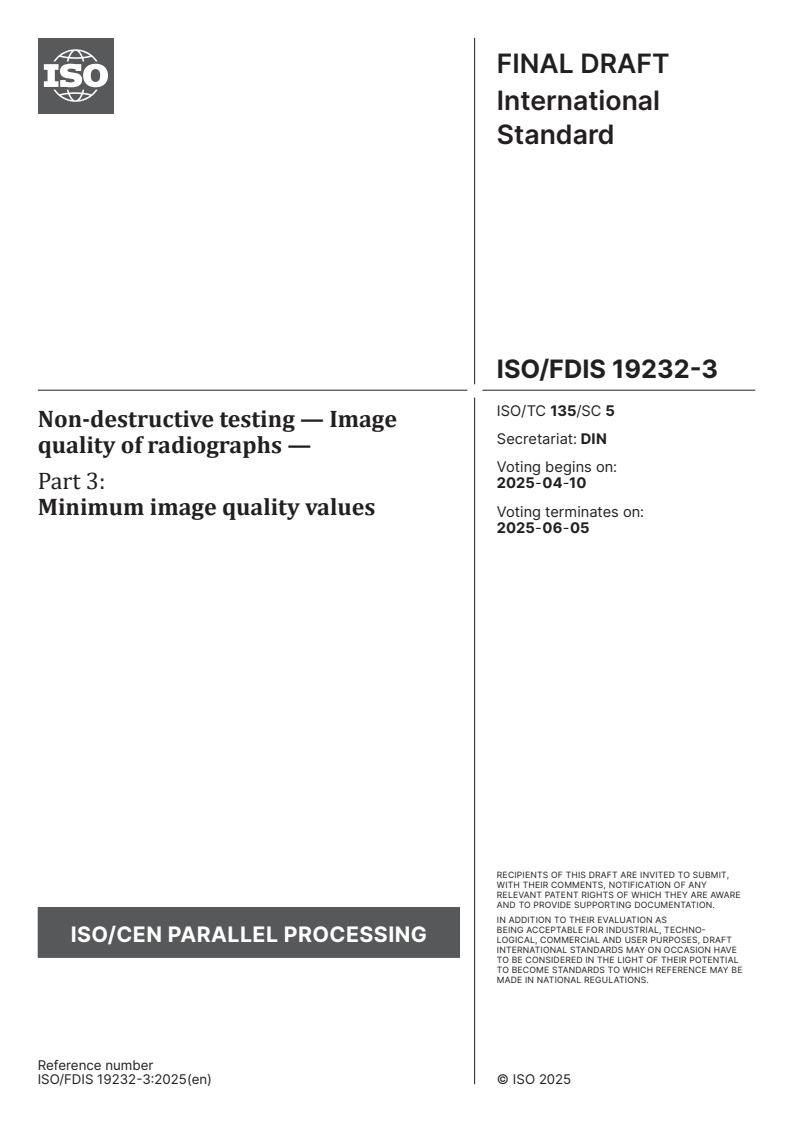

FINAL DRAFT
International
Standard
ISO/FDIS 19232-3
ISO/TC 135/SC 5
Non-destructive testing — Image
Secretariat: DIN
quality of radiographs —
Voting begins on:
2025-04-10
Part 3:
Minimum image quality values
Voting terminates on:
2025-06-05
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
ISO/CEN PARALLEL PROCESSING LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
Reference number
ISO/FDIS 19232-3:2025(en) © ISO 2025
FINAL DRAFT
ISO/FDIS 19232-3:2025(en)
International
Standard
ISO/FDIS 19232-3
ISO/TC 135/SC 5
Non-destructive testing — Image
Secretariat: DIN
quality of radiographs —
Voting begins on:
Part 3:
Minimum image quality values
Voting terminates on:
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
© ISO 2025
IN ADDITION TO THEIR EVALUATION AS
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO-
ISO/CEN PARALLEL PROCESSING
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
or ISO’s member body in the country of the requester.
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland Reference number
ISO/FDIS 19232-3:2025(en) © ISO 2025
ii
ISO/FDIS 19232-3:2025(en)

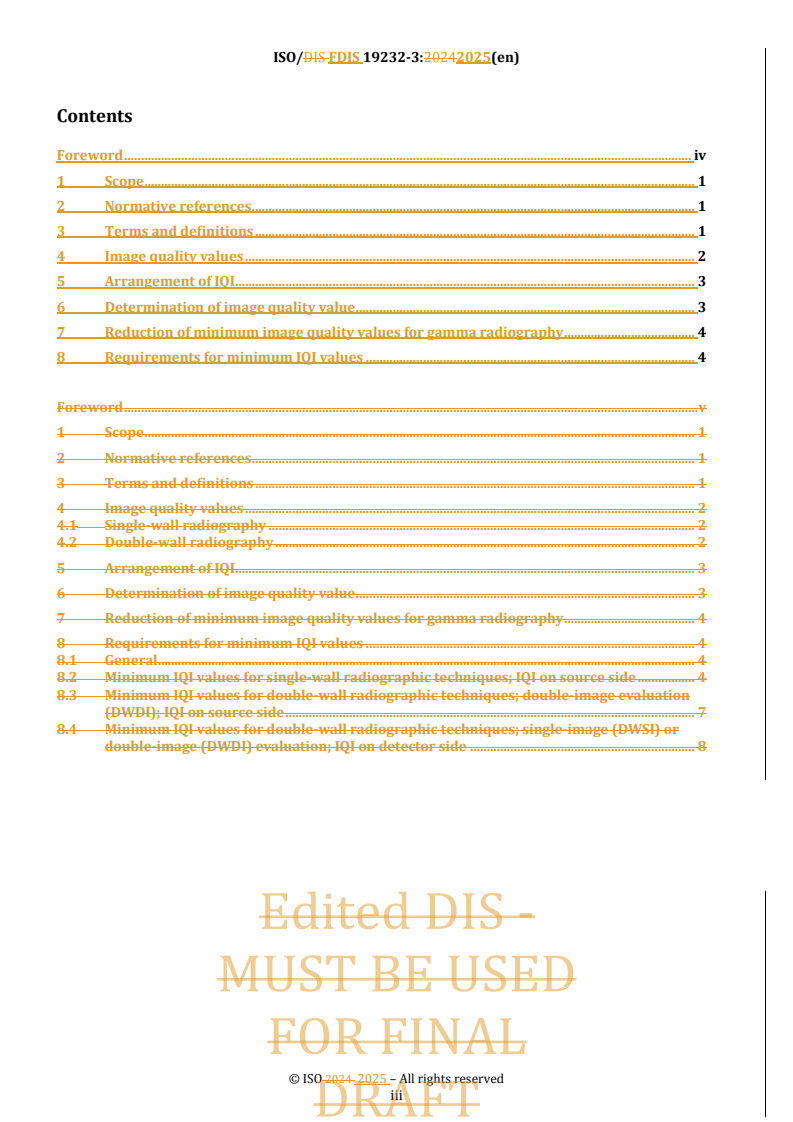

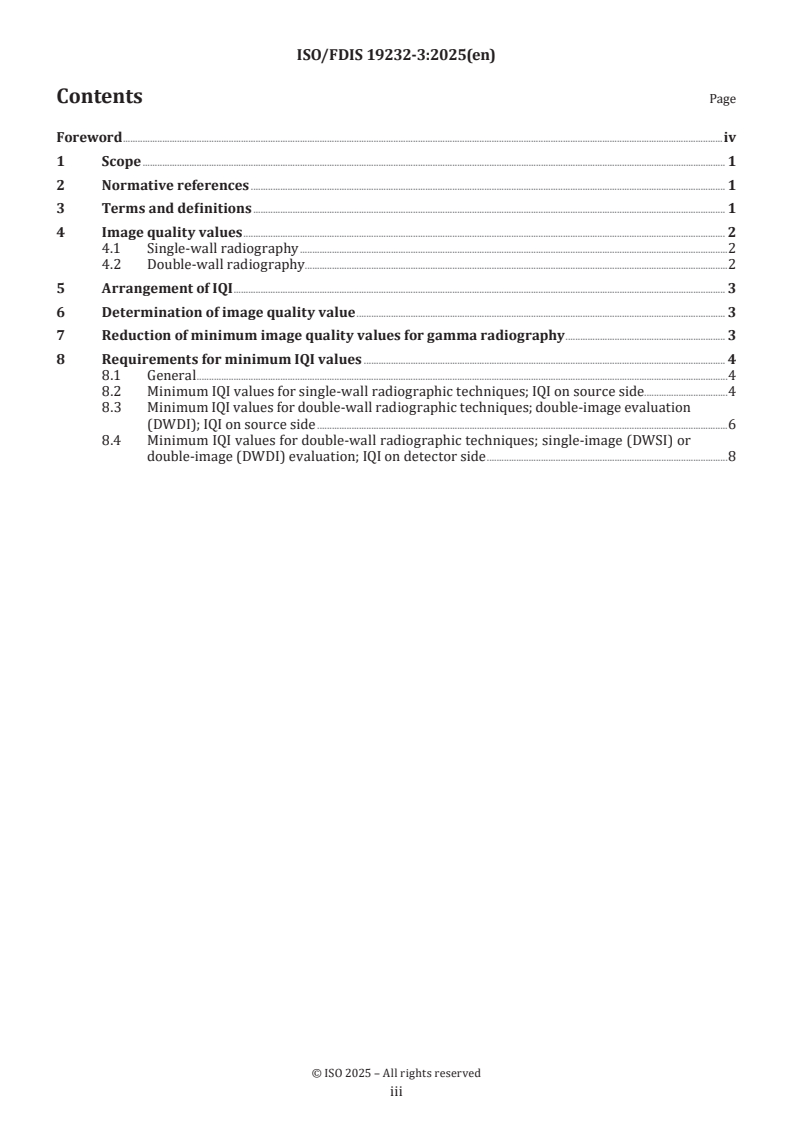

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Image quality values . 2
4.1 Single-wall radiography .2
4.2 Double-wall radiography .2
5 Arrangement of IQI . 3
6 Determination of image quality value . 3
7 Reduction of minimum image quality values for gamma radiography . 3
8 Requirements for minimum IQI values . 4
8.1 General .4
8.2 Minimum IQI values for single-wall radiographic techniques; IQI on source side.4
8.3 Minimum IQI values for double-wall radiographic techniques; double-image evaluation
(DWDI); IQI on source side .6
8.4 Minimum IQI values for double-wall radiographic techniques; single-image (DWSI) or
double-image (DWDI) evaluation; IQI on detector side .8
iii
ISO/FDIS 19232-3:2025(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 135, Non-destructive testing, Subcommittee
SC 5, Radiographic testing, in collaboration with the European Committee for Standardization (CEN)
Technical Committee CEN/TC 138, Non-destructive testing, in accordance with the Agreement on technical
cooperation between ISO and CEN (Vienna Agreement).
This third edition cancels and replaces the second edition (ISO 19232-3:2013), which has been technically
revised.
The main changes are as follows:
— title change from: “image quality classes” to “Minimum image quality values”;
— additions to definitions 3.2 and 3.3;
— renamed Clause 4 “Image quality values”;
— revision of Clause 7 “Acceptable reduction of image quality values for gamma radiography”;
— renamed Clauses 8, 9, 10, 11, 12 and 13 for better readability and traceability;
— updated nominal thickness values for IQI values W2 to W5 in table 1;
— updated titles of all tables for better readability and traceability;
— editorial changes.
A list of all parts in the ISO 19232 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
FINAL DRAFT International Standard ISO/FDIS 19232-3:2025(en)
Non-destructive testing — Image quality of radiographs —
Part 3:
Minimum image quality values
1 Scope
This document specifies the minimum image quality values (IQIs) to ensure a uniform radiographic quality.
This document specifies the minimum IQI values for the two testing classes, A and B, of radiographic
techniques as specified in ISO 5579. This document is applicable to the two types of image quality indicator
as detailed in ISO 19232-1 for wire-type IQIs and ISO 19232-2 for step/hole-type IQIs, and for the two testing,
classes A and B, as specified in ISO 5579.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 5579, Non-destructive testing — Radiographic testing of metallic materials using film and X- or gamma rays
— Basic rules
ISO 5580, Non-destructive testing — Industrial radiographic illuminators — Minimum requirements
ISO 17636 (all parts), Non-destructive testing of welds — Radiographic testing
ISO 19232-1, Non-destructive testing — Image quality of radiographs — Part 1: Determination of the image
quality value using wire-type image quality indicators
ISO 19232-2, Non-destructive testing — Image quality of radiographs — Part 2: Determination of the image
quality value using step/hole-type image quality indicators
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 5579 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
image quality indicator
IQI
device comprising a series of elements of graded dimensions which enable a measure of the image quality to
be obtained
Note 1 to entry: The elements of IQI are commonly wires or steps with holes.
[SOURCE: ISO 19232-1:2013, 3.2]
ISO/FDIS 19232-3:2025(en)
3.2
image quality value
IQI value
measure of the image quality required or achieved
Note 1 to entry: IQI value is equal to the thinnest element which can be detected on the radiograph.
Note 2 to entry: See Tables 1 to 12 for the related values.
3.3
image quality table
IQI table
table of minimum required image quality values versus the penetrated thickness ranges for a given testing class
4 Image quality values
4.1 Single-wall radiography
The minimum image quality values given in Tables 1 to 4 shall be achieved if the following testing
requirements are met:
a) for testing class A, using basic radiographic techniques in accordance with ISO 5579;
b) for testing class B, using improved radiographic techniques in accordance with ISO 5579.
The minimum image quality values given in Tables 1 to 4 shall be achieved in cases where the IQI is placed
on the source side. If it is not possible to place the IQI on the source side, it may be placed on the detector
side. Tables 1 to 4 shall not be applied in this case.
NOTE The use of alternate techniques (for example, use of an iridium 192 source for thin plate sections) can result
in obtaining different image quality values from those specified (see Clause 7).
4.2 Double-wall radiography
The minimum image quality values given in Tables 5 to 12 shall be obtained if the following testing
requirements are met:
a) for the testing class A, using radiographic techniques (see ISO 5579);
b) for the testing class B, using radiographic techniques (see ISO 5579).
NOTE The use of alternate techniques can result in obtaining different image quality values from those specified
(see Clause 7).
When using a double-wall radiographic technique, the penetrated thickness, w, shall be the sum of penetrated
nominal wall thicknesses, t+t.
Tables 5 to 8 provide the minimum image quality values which shall be achieved corresponding to testing
classes A and B for a double-wall radiographic technique with interpretation of the two walls, the IQI being
placed on the source side of the object (IQI on the source side).
Tables 9 to 12 provide the minimum image quality values which shall be achieved corresponding to testing
classes A and B for a double-wall radiographic technique with interpretation of the single-image, the IQI
being placed on the detector side of the object (IQI on the detector side).
Tables 9 to 12 shall be used to indicate the image quality corresponding to the double-wall penetration/
double-image evaluation technique when the IQI is placed on the detector side; this is applicable for elliptical
radiographs used for pipe weld testing in accordance with the ISO 17636 series.
ISO/FDIS 19232-3:2025(en)
5 Arrangement of IQI
For radiographic imaging, the IQI shall be placed on the test object side of the section under test facing the
source of radiation.
If this is not possible, the IQI may be placed adjacent to the test object side of the section under test nearest
to the detector. To indicate that this arrangement has been used, the image of a letter “F” shall be visible on
the radiograph near the IQI marking.
NOTE If exceptionally using the IQI on detector side, the contribution of geometrical unsharpness is not
measurable.
The IQI shall be placed on the object in an area where the thickness is as uniform as pos
...

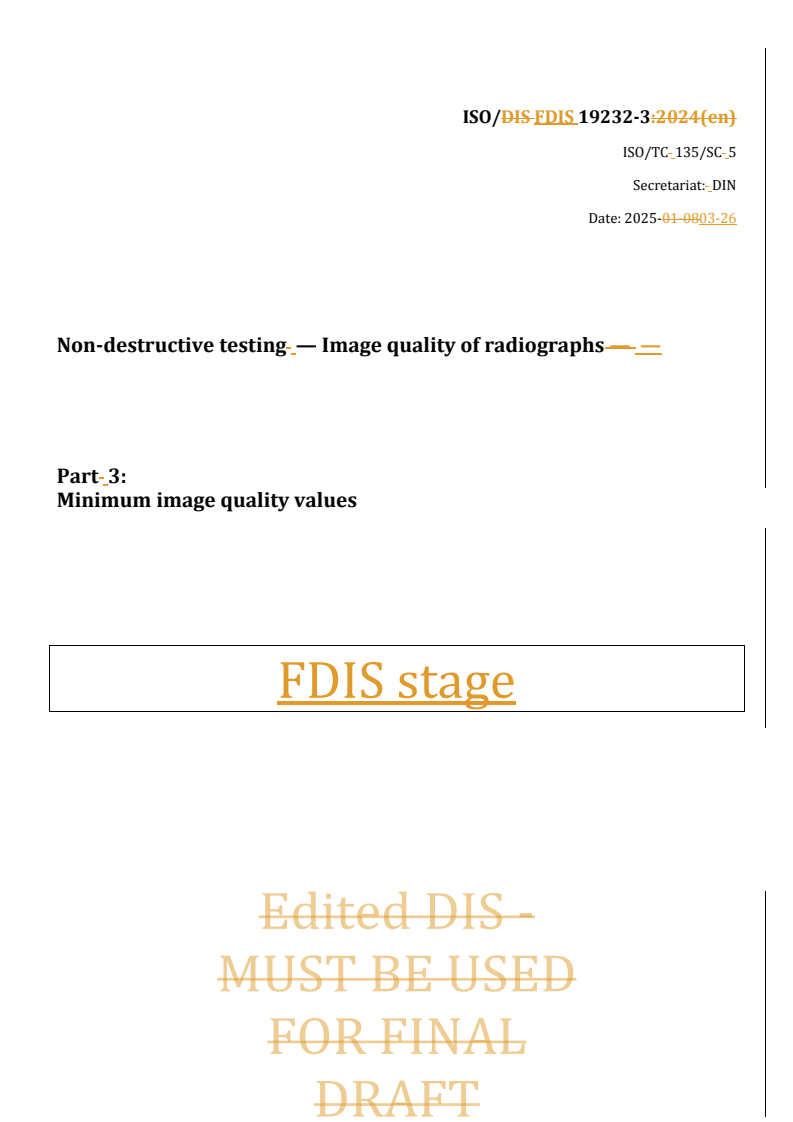

ISO/DIS FDIS 19232-3:2024(en)
ISO/TC 135/SC 5
Secretariat: DIN
Date: 2025-01-0803-26
Non-destructive testing — Image quality of radiographs — —
Part 3:
Minimum image quality values
FDIS stage
ISO #####-#:####(X/FDIS 19232-3:2025(en)
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication
may be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying,
or posting on the internet or an intranet, without prior written permission. Permission can be requested from either ISO
at the address below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: + 41 22 749 01 11
EmailE-mail: copyright@iso.org
Website: www.iso.orgwww.iso.org
Published in Switzerland
ii © ISO #### 2025 – All rights reserved
ii
ISO/DIS FDIS 19232-3:20242025(en)
Contents
Foreword . iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Image quality values . 2
5 Arrangement of IQI . 3
6 Determination of image quality value . 3
7 Reduction of minimum image quality values for gamma radiography . 4
8 Requirements for minimum IQI values . 4
Foreword . v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Image quality values . 2
4.1 Single-wall radiography . 2
4.2 Double-wall radiography . 2
5 Arrangement of IQI . 3
6 Determination of image quality value . 3
7 Reduction of minimum image quality values for gamma radiography . 4
8 Requirements for minimum IQI values . 4
8.1 General. 4
8.2 Minimum IQI values for single-wall radiographic techniques; IQI on source side . 4
8.3 Minimum IQI values for double-wall radiographic techniques; double-image evaluation
(DWDI); IQI on source side . 7
8.4 Minimum IQI values for double-wall radiographic techniques; single-image (DWSI) or
double-image (DWDI) evaluation; IQI on detector side . 8
iii
ISO #####-#:####(X/FDIS 19232-3:2025(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types of
ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent rights
in respect thereof. As of the date of publication of this document, ISO had not received notice of (a) patent(s)
which may be required to implement this document. However, implementers are cautioned that this may not
represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents.www.iso.org/patents. ISO shall not be held responsible for identifying any or all such
patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 135, Non-destructive testing, Subcommittee
SC 5, Radiographic testing, in collaboration with the European Committee for Standardization (CEN) Technical
Committee CEN/TC 138, Non-destructive testing, in accordance with the Agreement on technical cooperation
between ISO and CEN (Vienna Agreement).
This third edition cancels and replaces the second edition (ISO 19232-3:2013), which has been technically
revised.
The main changes are as follows:
— — title change from: “image quality classes” to “Minimum image quality values”;
— — additions to definitions 3.23.2 and 3.3;3.3;
— — renamed Clause 44 “Image quality values”;
— — revision of Clause 77 “Acceptable reduction of image quality values for gamma radiography”;
— — renamed Clauses 8,8, 9, 10, 11, 12 and 13 for better readability and traceability;
— — updated nominal thickness values for IQI values W2 to W5 in table 1;table 1;
— — updated titles of all tables for better readability and traceability;
— — editorial changes.
iv © ISO #### 2025 – All rights reserved
iv
ISO/DIS FDIS 19232-3:20242025(en)
A list of all parts in the ISO 19232 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
v
ISO/DIS 19232-3:2024(en)
DRAFT International Standard
Non-destructive testing — Image quality of radiographs — —
Part 3:
Minimum image quality values
1 Scope
This document specifies the minimum image quality values (IQIs) to ensure a uniform radiographic quality. It
appliesThis document specifies the minimum IQI values for the two testing classes, A and B, of radiographic
techniques as specified in ISO 5579. This document is applicable to the two types of image quality indicator as
detailed in ISO 19232-1 for wire-type IQIs and ISO 19232-2 for step/hole-type IQIs, and for the two testing,
classes A and B, as describedspecified in ISO 5579. Minimum IQI values are specified for these two testing
classes of radiographic techniques as specified in ISO 5579.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 5579, Non-destructive testing — Radiographic testing of metallic materials using film and X- or gamma rays
— Basic rules
ISO 5580, Non-destructive testing — Industrial radiographic illuminators — Minimum requirements
ISO 17636 (all parts), Non-destructive testing of welds — Radiographic testing
ISO 19232--1, Non-destructive testing — Image quality of radiographs — Part 1: Determination of the image
quality value using wire-type image quality indicators
ISO 19232--2, Non-destructive testing — Image quality of radiographs — Part 2: Determination of the image
quality value using step/hole-type image quality indicators
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 5579 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— — ISO Online browsing platform: available at https://www.iso.org/obphttps://www.iso.org/obp
— — IEC Electropedia: available at https://www.electropedia.org/https://www.electropedia.org/
3.1 3.1
image quality indicator
IQI
device comprising a series of elements of graded dimensions which enable a measure of the image quality to
be obtained
ISO/FDIS 19232-3:2025(en)
Note 1 to entry: The elements of IQI are commonly wires or steps with holes.
[SOURCE: ISO 19232-1:2013, 3.2]
3.2 3.2
image quality value
IQI value
measure of the image quality required or achieved
Note 1 to entry: IQI value is equal to the thinnest element which can be detected on the radiograph.
Note 2 to entry: See Tables 1Tables 1 to 1212 for the related values.
3.3 3.3
image quality table
IQI table
table of minimum required image quality values versus the penetrated thickness ranges for a given testing
class
4 Image quality values
4.1 Single-wall radiography
The minimum image quality values given in Tables 1Tables 1 to 44 shall be achieved if the following testing
requirements are met:
a) a) for testing class A, using basic radiographic basic techniques according to in accordance with ISO 5579;
b) b) for testing class B, using improved radiographic improved techniques according toin accordance with
ISO 5579.
The minimum image quality values given in Tables 1 to 4Tables 1 to 4 shall be achieved in cases where the IQI
is placed on the source side. If it is not possible to place the IQI on the source side, it may be placed on the
detector side. Tables 1 to 4Tables 1 to 4 shall not be applied in this case.
NOTE The use of exceptionalalternate techniques (for example, use of an iridium 192 source for thin plate sections)
can result in obtaining different image quality values from those specified (see Clause 7).7).
4.2 Double-wall radiography
The minimum image quality values given in Tables 5Tables 5 to 1212 shall be obtained if the following testing
requirements are met:
a) a) for the testing class A, using radiographic techniques (see ISO 5579);
b) b) for the testing class B, using radiographic techniques (see ISO 5579).
NOTE The use of exceptionalalternate techniques can result in obtaining different image quality values from those
specified (see Clause 7).7).
When using a double-wall radiographic technique, the penetrated thickness, w, shall be the sum of penetrated
nominal wall thicknesses, t+t.
Tables 5 to 8Tables 5 to 8 provide the minimum image quality values which shall be achieved corresponding
to testing classes A and B for a double-wall radiographic technique with interpretation of the two walls, the
IQI being placed on the source side of the object (IQI on the source side).
2 © ISO #### 2025 – All rights reserved
ISO/DIS FDIS 19232-3:20242025(en)
Tables 9 to 12Tables 9 to 12 provide the minimum image quality values which shall be achieved
corresponding to testing classes A and B for a double-wall radiographic technique with interpretation of the
single-image, the IQI being placed on the detector side of the object (IQI on the detector side).
Tables 9 to 12Tables 9 to 12 shall be used to indicate the image quality corresponding to the double-wall
penetration/ double-image evaluation technique when the IQI is placed on the detector side. This; this is the
case ofapplicable for elliptical radiographs as used infor pipe weld testing specified by in accordance with the
ISO 17636 (all parts).series.
5 Arrangement of IQI
For radiographic imaging, the IQI shall be placed on the test object side of the section under test facing the
source of radiation.
If this is not possible, the IQI may be placed adjacent to the test object side of the section under test nearest to
the detector. To indicate that this arrangement has been used, the image of a letter “F” shall be visible on the
radiograph near the IQI marking.
NOTE If exceptionally using the IQI exceptionally on detector side, the contribution of geometrical unsharpness is
not measurable.
The IQI shall be placed on the object
...
PROJET FINAL
Norme
internationale
ISO/FDIS 19232-3
ISO/TC 135/SC 5
Essais non destructifs — Qualité
Secrétariat: DIN
d’image des radiogrammes —
Début de vote:
2025-04-10
Partie 3:
Indices de qualité d’image
Vote clos le:
2025-06-05
minimaux
Non-destructive testing — Image quality of radiographs —
Part 3: Minimum image quality values
LES DESTINATAIRES DU PRÉSENT PROJET SONT
INVITÉS À PRÉSENTER, AVEC LEURS OBSERVATIONS,
NOTIFICATION DES DROITS DE PROPRIÉTÉ DONT ILS
AURAIENT ÉVENTUELLEMENT CONNAISSANCE ET À
FOURNIR UNE DOCUMENTATION EXPLICATIVE.
OUTRE LE FAIT D’ÊTRE EXAMINÉS POUR
ÉTABLIR S’ILS SONT ACCEPTABLES À DES FINS
INDUSTRIELLES, TECHNOLOGIQUES ET COM-MERCIALES,
AINSI QUE DU POINT DE VUE DES UTILISATEURS, LES
PROJETS DE NORMES
TRAITEMENT PARALLÈLE ISO/CEN
INTERNATIONALES DOIVENT PARFOIS ÊTRE CONSIDÉRÉS
DU POINT DE VUE DE LEUR POSSI BILITÉ DE DEVENIR DES
NORMES POUVANT
SERVIR DE RÉFÉRENCE DANS LA RÉGLEMENTATION
NATIONALE.
Numéro de référence
ISO/FDIS 19232-3:2025(fr) © ISO 2025
PROJET FINAL
ISO/FDIS 19232-3:2025(fr)
Norme
internationale
ISO/FDIS 19232-3
ISO/TC 135/SC 5
Essais non destructifs — Qualité
Secrétariat: DIN
d’image des radiogrammes —
Début de vote:
Partie 3: 2025-04-10
Indices de qualité d’image
Vote clos le:
2025-06-05
minimaux
Non-destructive testing — Image quality of radiographs —
Part 3: Minimum image quality values
LES DESTINATAIRES DU PRÉSENT PROJET SONT
INVITÉS À PRÉSENTER, AVEC LEURS OBSERVATIONS,
NOTIFICATION DES DROITS DE PROPRIÉTÉ DONT ILS
AURAIENT ÉVENTUELLEMENT CONNAISSANCE ET À
FOURNIR UNE DOCUMENTATION EXPLICATIVE.
DOCUMENT PROTÉGÉ PAR COPYRIGHT
OUTRE LE FAIT D’ÊTRE EXAMINÉS POUR
ÉTABLIR S’ILS SONT ACCEPTABLES À DES FINS
© ISO 2025 INDUSTRIELLES, TECHNOLOGIQUES ET COM-MERCIALES,
AINSI QUE DU POINT DE VUE DES UTILISATEURS, LES
Tous droits réservés. Sauf prescription différente ou nécessité dans le contexte de sa mise en œuvre, aucune partie de cette
PROJETS DE NORMES
TRAITEMENT PARALLÈLE ISO/CEN
INTERNATIONALES DOIVENT PARFOIS ÊTRE CONSIDÉRÉS
publication ne peut être reproduite ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique,
DU POINT DE VUE DE LEUR POSSI BILITÉ DE DEVENIR DES
y compris la photocopie, ou la diffusion sur l’internet ou sur un intranet, sans autorisation écrite préalable. Une autorisation peut
NORMES POUVANT
être demandée à l’ISO à l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
SERVIR DE RÉFÉRENCE DANS LA RÉGLEMENTATION
NATIONALE.
ISO copyright office
Case postale 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Genève
Tél.: +41 22 749 01 11
E-mail: copyright@iso.org
Web: www.iso.org
Publié en Suisse Numéro de référence
ISO/FDIS 19232-3:2025(fr) © ISO 2025
ii
ISO/FDIS 19232-3:2025(fr)
Sommaire Page
Avant-propos .iv
1 Domaine d’application . 1
2 Références normatives . 1
3 Termes et définitions . 1
4 Indices de qualité d’image . 2
4.1 Radiographie en simple paroi .2
4.2 Radiographie en double paroi .2
5 Disposition de l’IQI. 3
6 Détermination de l’indice de qualité d’image . 3
7 Réduction des indices de qualité d’image minimaux pour la radiographie gamma . 4
8 Exigences pour les indices IQI minimaux . 4
8.1 Généralités .4
8.2 Indices IQI minimaux pour les techniques radiographiques simple paroi; IQI côté source .5
8.3 Indices IQI minimaux pour les techniques radiographiques double paroi; évaluation
double image (DPDI); IQI côté source .7
8.4 Indices IQI minimaux pour les techniques radiographiques double paroi; évaluation
simple image (DPSI) ou double image (DPDI); IQI côté détecteur .8
iii
ISO/FDIS 19232-3:2025(fr)
Avant-propos
L’ISO (Organisation internationale de normalisation) est une fédération mondiale d’organismes nationaux
de normalisation (comités membres de l’ISO). L’élaboration des Normes internationales est en général
confiée aux comités techniques de l’ISO. Chaque comité membre intéressé par une étude a le droit de faire
partie du comité technique créé à cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec l’ISO participent également aux travaux. L’ISO collabore étroitement avec
la Commission électrotechnique internationale (IEC) en ce qui concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier, de prendre note des différents
critères d’approbation requis pour les différents types de documents ISO. Le présent document a
été rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir
www.iso.org/directives).
L’ISO attire l’attention sur le fait que la mise en application du présent document peut entraîner l’utilisation
d’un ou de plusieurs brevets. L’ISO ne prend pas position quant à la preuve, à la validité et à l’applicabilité de
tout droit de brevet revendiqué à cet égard. À la date de publication du présent document, l’ISO n’avait pas
reçu notification qu’un ou plusieurs brevets pouvaient être nécessaires à sa mise en application. Toutefois,
il y a lieu d’avertir les responsables de la mise en application du présent document que des informations
plus récentes sont susceptibles de figurer dans la base de données de brevets, disponible à l’adresse
www.iso.org/brevets. L’ISO ne saurait être tenue pour responsable de ne pas avoir identifié tout ou partie de
tels droits de brevet.
Les appellations commerciales éventuellement mentionnées dans le présent document sont données pour
information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un engagement.
Pour une explication de la nature volontaire des normes, la signification des termes et expressions
spécifiques de l’ISO liés à l’évaluation de la conformité, ou pour toute information au sujet de l’adhésion de
l’ISO aux principes de l’Organisation mondiale du commerce (OMC) concernant les obstacles techniques au
commerce (OTC), voir www.iso.org/iso/fr/avant-propos.html.
Le présent document a été élaboré par le comité technique ISO/TC 135, Essais non destructifs, sous-comité
SC 5, Contrôle par radiographie, en collaboration avec le comité technique CEN/TC 138, Essais non destructifs,
du Comité européen de normalisation (CEN) conformément à l’Accord de coopération technique entre l’ISO
et le CEN (Accord de Vienne).
Cette troisième édition annule et remplace la deuxième édition (ISO 19232-3:2013), qui a fait l’objet d’une
révision technique.
Les principales modifications sont les suivantes:
— remplacement du titre «classes de qualité d’image» par «Indices de qualité d’image minimaux»;
— ajouts dans les définitions 3.2 et 3.3;
— changement d’intitulé de l’Article 4 en «Indices de qualité d’image»;
— révision de l’Article 7 «Réduction acceptable des indices de qualité d’image pour la radiographie gamma»;
— changement d’intitulé des Articles 8, 9, 10, 11, 12 et 13 pour une meilleure lisibilité et traçabilité;
— mise à jour des valeurs d’épaisseur nominale pour les indices IQI W2 à W5 dans le Tableau 1;
— mise à jour des titres de tous les tableaux pour une meilleure lisibilité et traçabilité;
— modifications rédactionnelles.
Une liste de toutes les parties de la série ISO 19232 se trouve sur le site web de l’ISO.
iv
ISO/FDIS 19232-3:2025(fr)
Il convient que l’utilisateur adresse tout retour d’information ou toute question concernant le présent
document à l’organisme national de normalisation de son pays. Une liste exhaustive desdits organismes se
trouve à l’adresse www.iso.org/fr/members.html.
v
PROJET FINAL Norme internationale ISO/FDIS 19232-3:2025(fr)
Essais non destructifs — Qualité d’image des
radiogrammes —
Partie 3:
Indices de qualité d’image minimaux
1 Domaine d’application
Le présent document spécifie les indices de qualité d’image (IQI) minimaux permettant d’assurer une
qualité radiographique uniforme. Le présent document spécifie les indices IQI minimaux pour les deux
classes d’essai, A et B, de techniques radiographiques spécifiées dans l’ISO 5579. Le présent document est
applicable aux deux types d’indicateurs de qualité d’image décrits dans l’ISO 19232-1 pour les IQI à fils et
dans l’ISO 19232-2 pour les IQI à trous et à gradins, ainsi qu’aux deux classes d’essai A et B spécifiées dans
l’ISO 5579.
2 Références normatives
Les documents suivants sont cités dans le texte de sorte qu’ils constituent, pour tout ou partie de leur
contenu, des exigences du présent document. Pour les références datées, seule l’édition citée s’applique. Pour
les références non datées, la dernière édition du document de référence s’applique (y compris les éventuels
amendements).
ISO 5579, Essais non destructifs — Contrôle radiographique des matériaux métalliques au moyen de film et de
rayons X et gamma — Règles de base
ISO 5580, Essais non-destructifs — Négatoscopes utilisés en radiographie industrielle — Exigences minimales
ISO 17636 (toutes les parties), Essais non destructifs des assemblages soudés — Contrôle par radiographie
ISO 19232-1, Essais non destructifs — Qualité d'image des radiogrammes — Partie 1: Détermination de l'indice
de qualité d'image à l'aide d'indicateurs à fils
ISO 19232-2, Essais non destructifs — Qualité d'image des radiogrammes — Partie 2: Détermination de l'indice
de qualité d'image à l'aide d'indicateurs à trous et à gradins
3 Termes et définitions
Pour les besoins du présent document, les termes et les définitions donnés dans l’ISO 5579 ainsi que les
suivants, s’appliquent.
L’ISO et l’IEC tiennent à jour des bases de données terminologiques destinées à être utilisées en normalisation,
consultables aux adresses suivantes:
— ISO Online browsing platform: disponible à l’adresse https:// www .iso .org/ obp
— IEC Electropedia: disponible à l’adresse https:// www .electropedia .org/
ISO/FDIS 19232-3:2025(fr)
3.1
indicateur de qualité d’image
IQI
dispositif comprenant une série d’éléments de dimensions progressives et permettant une mesure de la
qualité d’image à obtenir
Note 1 à l'article: Les éléments de l’IQI sont généralement des fils ou des gradins à trous.
[SOURCE: ISO 19232-1:2013, 3.2]
3.2
indice de qualité d’image
indice IQI
mesure de la qualité d’image requise ou obtenue
Note 1 à l'article: L’indice IQI correspond au plus petit élément de l’IQI visible sur le radiogramme.
Note 2 à l'article: Voir les Tableaux 1 à 12 pour les valeurs correspondantes.
3.3
table de qualité d’image
table IQI
table des indices de qualité d’image minimaux requis en fonction des plages d’épaisseurs traversées pour
une classe d’essai donnée
4 Indices de qualité d’image
4.1 Radiographie en simple paroi
Les indices de qualité d’image minimaux donnés dans les Tableaux 1 à 4 doivent être obtenus si les exigences
d’essai suivantes sont satisfaites:
a) pour la classe d’essai A, utilisation de techniques radiographiques de base conformément à l’ISO 5579;
b) pour la classe d’essai B, utilisation de techniques radiographiques perfectionnées conformément à
l’ISO 5579.
Les indices de qualité d’image minimaux donnés dans les Tableaux 1 à 4 doivent être obtenus dans les cas
où l’IQI est placé côté source. Si cela n’est pas possible, l’IQI peut être placé côté détecteur. Dans ce cas, les
indices de qualité d’image des Tableaux 1 à 4 ne doivent pas s’appliquer.
NOTE La mise en œuvre de techniques alternatives (par exemple l’utilisation d’une source d’iridium 192 pour de
faibles épaisseurs) peut conduire à l’obtention d’indices de qualité d’image différents de ceux spécifiés (voir l’Article 7).
4.2 Radiographie en double paroi
Les indices de qualité d’image minimaux donnés dans les Tableaux 5 à 12 doivent être obtenus si les exigences
d’essai suivantes sont satisfaites:
a) pour la classe d’essai A, utilisation de techniques radiographiques (voir l’ISO 5579);
b) pour la classe d’essai B, utilisation de techniques radiographiques (voir l’ISO 5579).
NOTE La mise en œuvre de techniques alternatives peut conduire à l’obtention d’indices de qualité différents de
ceux spécifiés (voir l’Article 7).
Lorsqu’on utilise la technique radiographique double paroi, l’épaisseur traversée, w, doit
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
