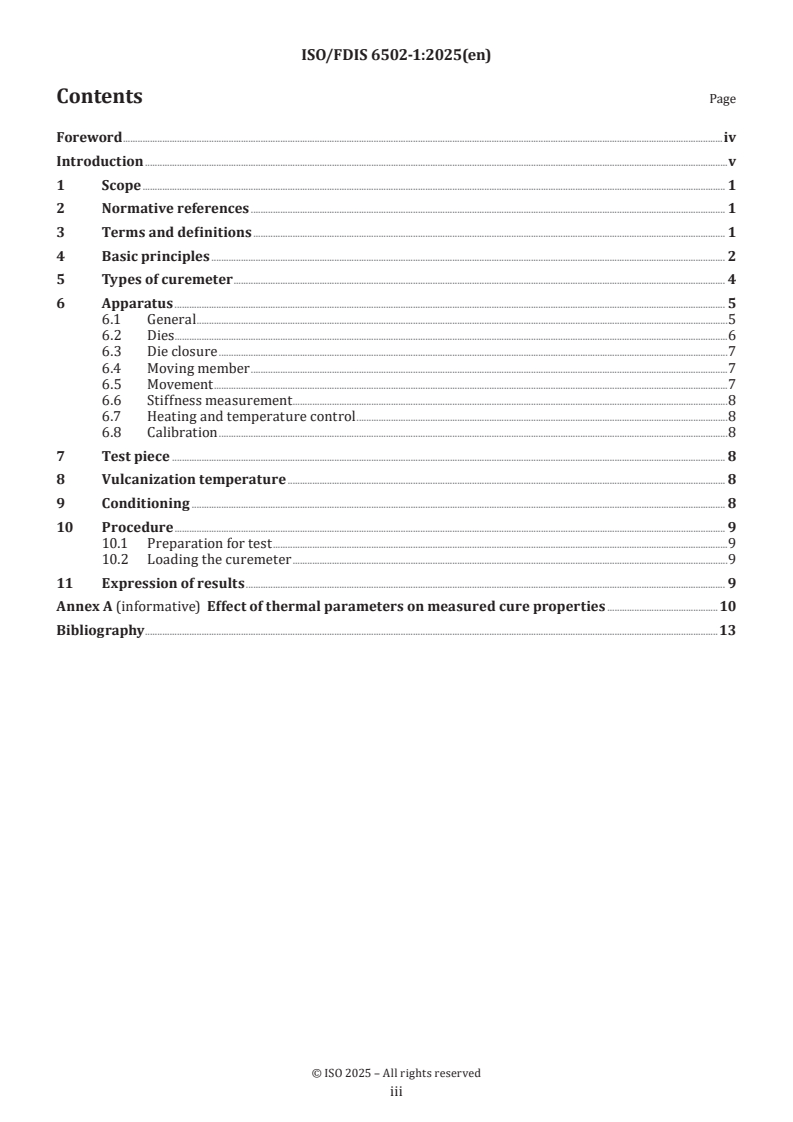

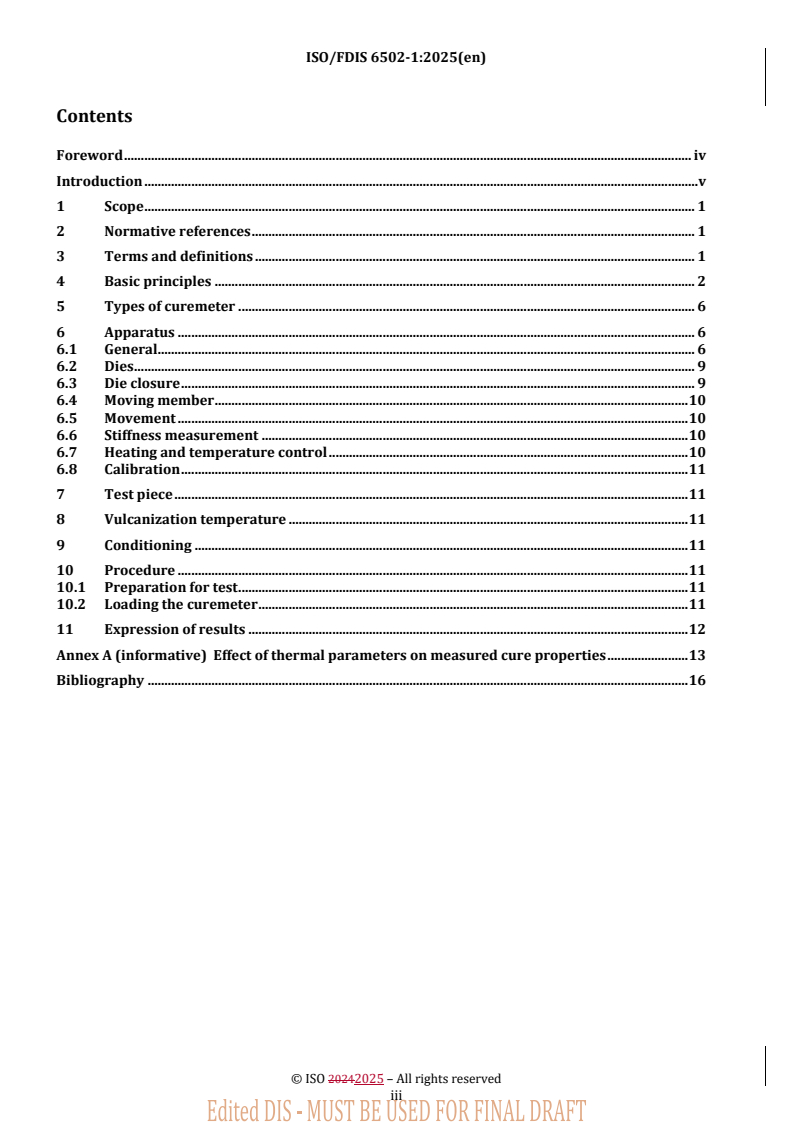

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Basic principles . 2
5 Types of curemeter . 4
6 Apparatus . 5
6.1 General .5
6.2 Dies .6
6.3 Die closure .7
6.4 Moving member .7
6.5 Movement .7
6.6 Stiffness measurement .8
6.7 Heating and temperature control .8
6.8 Calibration .8
7 Test piece . 8
8 Vulcanization temperature . 8
9 Conditioning . 8
10 Procedure . 9
10.1 Preparation for test .9
10.2 Loading the curemeter .9
11 Expression of results . 9
Annex A (informative) Effect of thermal parameters on measured cure properties .10
Bibliography .13
iii
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 45, Rubber and rubber products, Subcommittee
SC 2, Testing and analysis.
This second edition cancels and replaces the first edition (ISO 6502-1:2018), which has been technically
revised.
The main changes are as follows:
— description of t’ (50) was corrected in Clause 4;
c
— descriptions of reciprocating types and top hat type dies were deleted.
A list of all parts in the ISO 6502 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.
iv
Introduction
An International Standard specifying requirements for the use of oscillating disc curemeters was
1)
established in 1977 as ISO 3417. Later, when various rotorless curemeters were developed and became
2)
popular, an International Standard for these instruments was produced as ISO 6502 . However, owing
to the differences in geometry and construction of the various available instruments, ISO 6502 was not
able to specify such requirements in detail. In 1999, it became clear that a number of different rotorless
curemeters were available and that significant developments had taken place and were continuing to do
so. Hence, it was concluded that, rather than specify individual rotorless instruments, possibly restricting
future developments, a more general document was required. Accordingly, it was decided to provide general
guidance and assistance in the design and use of curemeters.
The previous edition of this document (ISO 6502-1:2018) replaced ISO 6502, which was split into subsequent
parts, covering oscillating disc curemeters (ISO 6502-2) and rotorless curemeters (ISO 6502-3). ISO 6502-1
covers the general principle required for the measurement of vulcanization characteristics using curemeters.
1) Withdrawn.
2) Withdrawn.
v
International Standard ISO 6502-1:2025(en)
Rubber — Measurement of vulcanization characteristics
using curemeters —
Part 1:
Introduction
WARNING — Persons using this document should be familiar with normal laboratory practice. This
document does not purport to address all of the safety problems, if any, associated with its use. It is
the responsibility of the user to establish appropriate safety and health practices and to determine
the applicability of any other restrictions.
Certain procedures specified in this document can involve the use or generation of substances, or the
generation of waste, that can constitute a local environmental hazard. Reference should be made to
appropriate documentation on safe handling and disposal after use.
1 Scope
This document provides an introduction to the determination of vulcanization characteristics of rubber
compounds by means of curemeters. It describes the basic principles and general requirements for
curemeters.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 1382, Rubber — Vocabulary
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 1382 and the following apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
marching-modulus cure
type of vulcanization during which the modulus does not reach a maximum value but, after a rapid rise,
continues to rise slowly at the vulcanization temperature
3.2
vulcanization characteristic
characteristic which can be taken from a vulcanization curve
3.3
stiffness
measure of the resistance offered by rubber to deformation
4 Basic principles
The properties of a rubber compound change during the course of vulcanization. The vulcanization
characteristics can be determined by measuring properties as a function of time and temperature.
Vulcanization characteristics are most commonly determined using instruments known as curemeters,
in which a cyclic stress or strain is applied to a test piece and the associated strain or force is measured.
Normally, the test is carried out at a predetermined constant temperature and the measure of stiffness is
recorded continuously as a function of time.
The stiffness of the rubber increases as vulcanization proceeds. Vulcanization is complete when the
recorded stiffness rises to a plateau value or to a maximum and then declines (see Figure 1). In the latter
case, the decrease in stiffness is caused by reversion. In cases where the recorded stiffness continues to rise
(marching-modulus cure), vulcanization is deemed to be complete after a specified time. The time required
to obtain a vulcanization curve is a function of the test temperature and the characteristics of the rubber
compound. Curves analogous to Figure 1 are obtained for a curemeter in which strain is measured.
Direct proportionality between torque and stiffness cannot be expected under all conditions and all
instruments because, particularly at in high torque ranges, elastic deformation of the disc shaft and driving
device shall be taken into account, Moreover, in cases of small amplitudes of deformation, the strain can be
expected to have a considerable elastic component. However, for routine control purposes, corrections are
not necessary.
The following vulcanization characteristics can b
...
Norme
internationale
ISO 6502-1
Deuxième édition
Caoutchouc — Mesure des
2025-07
caractéristiques de vulcanisation à
l'aide de rhéomètres —
Partie 1:
Introduction
Rubber — Measurement of vulcanization characteristics using
curemeters —
Part 1: Introduction
Numéro de référence
DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2025
Tous droits réservés. Sauf prescription différente ou nécessité dans le contexte de sa mise en œuvre, aucune partie de cette
publication ne peut être reproduite ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique,
y compris la photocopie, ou la diffusion sur l’internet ou sur un intranet, sans autorisation écrite préalable. Une autorisation peut
être demandée à l’ISO à l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Genève
Tél.: +41 22 749 01 11
E-mail: copyright@iso.org
Web: www.iso.org
Publié en Suisse
ii

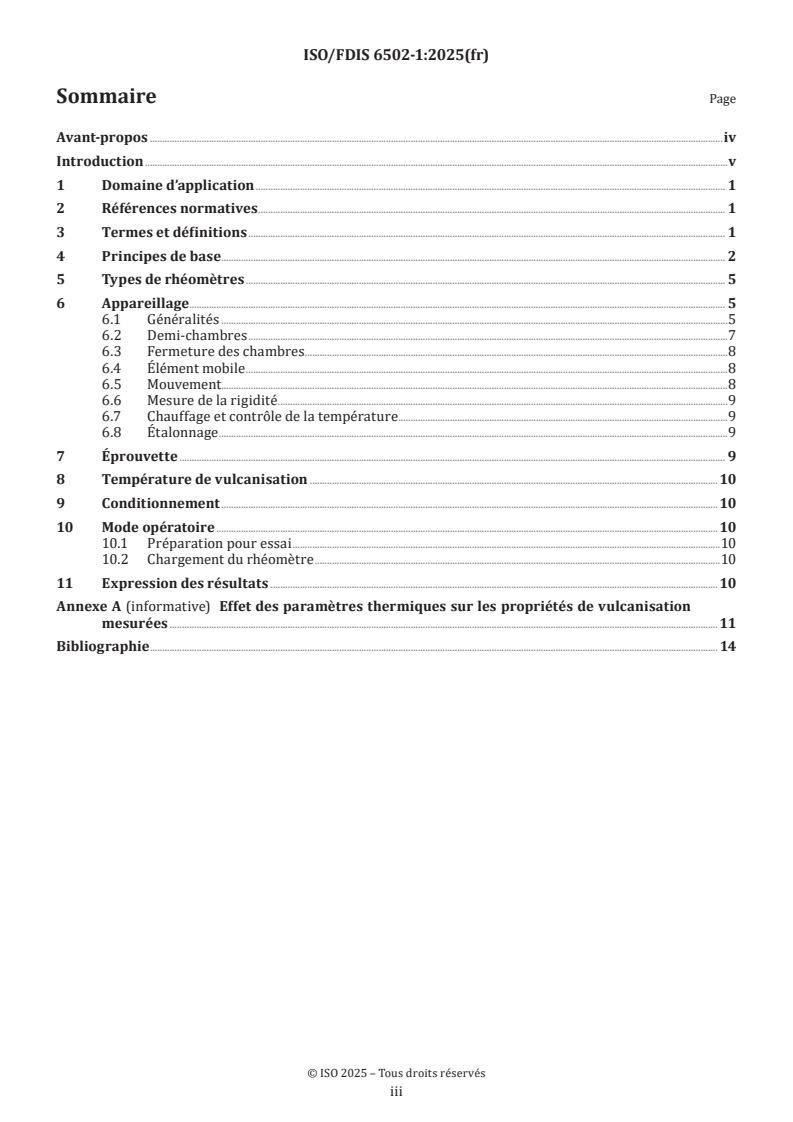

Sommaire Page

Avant-propos .iv
Introduction .v
1 Domaine d’application . 1
2 Références normatives . 1
3 Termes et définitions . 1
4 Principes de base . 2
5 Types de rhéomètres . 4
6 Appareillage . 5
6.1 Généralités .5
6.2 Demi-chambres .7
6.3 Fermeture des chambres . .8
6.4 Élément mobile .8
6.5 Mouvement.8
6.6 Mesure de la rigidité .9
6.7 Chauffage et contrôle de la température .9
6.8 Étalonnage .9
7 Éprouvette . 9
8 Température de vulcanisation . 10
9 Conditionnement .10
10 Mode opératoire . 10
10.1 Préparation pour essai .10
10.2 Chargement du rhéomètre .10
11 Expression des résultats . 10
Annexe A (informative) Effet des paramètres thermiques sur les propriétés de vulcanisation
mesurées .11
Bibliographie . 14
iii
Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes nationaux
de normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est en général
confiée aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude a le droit de faire
partie du comité technique créé à cet effet. Les organisations internationales, gouvernementales et non
gouvernementales, en liaison avec l'ISO participent également aux travaux. L'ISO collabore étroitement avec
la Commission électrotechnique internationale (IEC) en ce qui concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier, de prendre note des différents
critères d'approbation requis pour les différents types de document ISO. Le présent document a été
rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir
www.iso.org/directives).
L’ISO attire l’attention sur le fait que la mise en application du présent document peut entraîner l’utilisation
d’un ou de plusieurs brevets. L’ISO ne prend pas position quant à la preuve, à la validité et à l’applicabilité de
tout droit de brevet revendiqué à cet égard. À la date de publication du présent document, l’ISO n'avait pas
reçu notification qu’un ou plusieurs brevets pouvaient être nécessaires à sa mise en application. Toutefois,
il y a lieu d’avertir les responsables de la mise en application du présent document que des informations
plus récentes sont susceptibles de figurer dans la base de données de brevets, disponible à l'adresse
www.iso.org/brevets). L’ISO ne saurait être tenue pour responsable de ne pas avoir identifié tout ou partie
de tels droits de propriété.
Les appellations commerciales éventuellement mentionnées dans le présent document sont données pour
information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un engagement.
Pour une explication de la nature volontaire des normes, la signification des termes et expressions
spécifiques de l'ISO liés à l'évaluation de la conformité, ou pour toute information au sujet de l'adhésion de
l'ISO aux principes de l’Organisation mondiale du commerce (OMC) concernant les obstacles techniques au
commerce (OTC), voir www.iso.org/avant-propos.
Le présent document a été élaboré par le comité technique ISO/TC 45, Élastomères et produits à base
d'élastomère, sous-comité SC 2, Essais et analyses.
Cette deuxième édition annule et remplace la première édition (ISO 6502-1:2018), qui a fait l’objet d’une
révision technique.
Les principales modifications sont les suivantes:
— la description de t' (50) a été corrigée à l’Article 4;
c
— les descriptions des modèles alternatifs et à section en oméga ont été supprimées.
Une liste de toutes les parties de la série ISO 6502 se trouve sur le site web de l’ISO.
Il convient que l’utilisateur adresse tout retour d’information ou toute question concernant le présent
document à l’organisme national de normalisation de son pays. Une liste exhaustive desdits organismes se
trouve à l’adresse www.iso.org/fr/members.html.
iv
Introduction
Une Norme internationale spécifiant les exigences pour l'utilisation de rhéomètres à disque oscillant a été
1)
établie en 1977 sous la référence ISO 3417 .
Plus tard, lorsque différents rhéomètres sans rotor ont été développés et sont devenus populaires, une
2)
Norme internationale pour ces instruments a été produite sous la référence ISO 6502 .
Cependant, en raison des différences de géométrie et de construction des divers instruments disponibles,
l’ISO 6502 n'était pas en mesure de spécifier ces exigences en détail. En 1999, il est apparu qu'un certain
nombre de rhéomètres différents étaient disponibles sur le marché, et que des progrès significatifs avaient
été réalisés et se poursuivaient. Plutôt que de se concentrer sur des instruments sans rotor en particulier,
ce qui aurait pu limiter les évolutions futures, il a été convenu qu'un document plus général était nécessaire.
Par conséquent, il a été décidé de fournir des lignes directrices ainsi qu'une aide à la conception et à l'emploi
des rhéomètres de façon générale.
La précédente édition du présent document (ISO 6502-1:2018) a remplacé l'ISO 6502, qui a été scindée en
plusieurs parties, couvrant les rhéomètres à disque oscillant (ISO 6502-2) et les rhéomètres sans rotor
(ISO 6502-3). L'ISO 6502-1 porte sur le principe général exigé pour le mesurage des caractéristiques de
vulcanisation à l'aide de rhéomètres.
1) Supprimée.
2) Supprimée.
v
Norme internationale ISO 6502-1:2025(fr)
Caoutchouc — Mesure des caractéristiques de vulcanisation à
l'aide de rhéomètres —
Partie 1:
Introduction
AVERTISSEMENT — Il convient que l'utilisateur du présent document connaisse bien les pratiques
courantes de laboratoire. Le présent document n'a pas pour but de traiter tous les problèmes de
sécurité qui sont, le cas échéant, liés à son utilisation. Il incombe à l'utilisateur d'établir des pratiques
appropriées en matière d'hygiène et de sécurité, et de déterminer l'applicabilité de toute autre
restriction.
Certains modes opératoires spécifiés dans le présent document peuvent impliquer l'utilisation ou la
génération de substances, ou la génération de déchets, susceptibles de constituer un danger environnemental
localisé. Il convient de se référer à la documentation appropriée relative à la manipulation et à l'élimination
de ces substances en toute sécurité après utilisation.
1 Domaine d’application
Le présent document fournit une introduction pour le mesurage des caractéristiques de vulcanisation des
mélanges de caoutchoucs à l'aide de rhéomètres. Il décrit les principes de base et les exigences générales
pour les rhéomètres.
2 Références normatives
Les documents suivants sont cités dans le texte de sorte qu’ils constituent, pour tout ou partie de leur
contenu, des exigences du présent document. Pour les références datées, seule l’édition citée s’applique. Pour
les références non datées, la dernière édition du document de référence s'applique (y compris les éventuels
amendements).
ISO 1382, Caoutchouc — Vocabulaire
3 Termes et définitions
Pour les besoins du présent document, les termes et définitions de l’ISO 1382 ainsi que les suivants
s’appliquent.
L’ISO et l’IEC tiennent à jour des bases de données terminologiques destinées à être utilisées en normalisation,
consultables aux adresses suivantes:
— ISO Online browsing platform: disponible à l’adresse https:// www .iso .org/ obp
— IEC Electropedia: disponible à l’adresse https:// www .electropedia .org/
3.1
vulcanisation avec module ascendant
type de vulcanisation au cours de laquelle le module n'atteint pas une valeur maximale mais, après une
montée rapide, continue à croître lentement à la température de vulcanisation
3.2
caractéristiques de vulcanisation
caractéristiques qui peuvent être extraites d'une courbe de vulcanisation
3.3
rigidité
mesure de la résistance offerte par le caoutchouc à la déformation
4 Principes de base
Les propriétés d'un mélange de caoutchoucs changent durant la vulcanisation. Les caractéristiques
de vulcanisation peuvent être déterminées en mesurant des propriétés en fonction du temps et de la
température. Les caractéristiques de vulcanisation sont le plus souvent établies au moyen d'instruments
appelés rhéomètres, dans lesquels une déformation ou une contrainte cyclique est appliquée à une
éprouvette, et la déformation ou la force correspondante est mesurée. En général, l’essai est réalisé à
...
