ISO 22436:2018

Aerospace series - Pipe coupling 8°30' - Thread end - Geometric configuration

ISO 22436:2018 specifies the characteristics of the thread end for 8°30′ pipe couplings, nominal pressure up to 28 000 kPa, for aerospace applications.

Série aérospatiale - Système de raccordement 8°30' - Extrémité du raccord - Configuration géométrique

General Information

• Status: Published
• Publication Date: 13-Mar-2018
• ICS: 49.080 - Aerospace fluid systems and components
• Technical Committee: ISO/TC 20/SC 10 - Aerospace fluid systems and components
• Drafting Committee: ISO/TC 20/SC 10/WG 6 - Couplings for rigid pipe
• Current Stage: 9093 - International Standard confirmed
• Start Date: 13-Nov-2023
• Completion Date: 13-Dec-2025

Relations

• Parent: ISO 4309:2004 - Cranes - Wire ropes - Care, maintenance, installation, examination and discard
• Effective Date: 06-Jun-2022

Overview

ISO 22436:2018 - titled Aerospace series - Pipe coupling 8°30′ - Thread end - Geometric configuration - defines the geometric characteristics of the thread end for 8°30′ pipe couplings used in aerospace fluid systems. The standard applies to couplings rated for nominal pressure up to 28 000 kPa and establishes dimensional, form and surface requirements to ensure interchangeability, sealing performance and manufacturing consistency.

Key topics

• Scope & units: All dimensions are specified in millimetres and apply to aerospace pipe couplings with 8°30′ mating geometry.
• Forms and configuration: Detailed geometric definitions are provided for Form B and Forms C to L. Figures 1–10 and Tables 1–2 in the standard supply the dimensioning and tolerance data for each form.
• Dimensions & tolerances: Dimensional requirements and tolerances are given for thread interfaces and sealing faces; these tolerances apply before lubrication.
• Surface roughness: Surface finish requirements for threads and sealing faces are specified (see Figures 1–10). The O‑ring sealing groove shall not contain any radial tool marks, ensuring reliable seal seating.
• Lubrication: Threads and sealing faces are to be lubricated in accordance with EN 2491 (molybdenum disulphide dry lubricants) as referenced.
• Thread series: References to MJ threads (per ISO 5855‑3) and nut tolerance guidance (ISO 8788) are included where applicable.
• Designation: The standard includes rules for designation of the thread-end configuration to support procurement and documentation.

Applications

• Aerospace component designers specifying pipe fittings and couplings for hydraulic and pneumatic systems.
• Manufacturers and CNC programmers producing couplings and fittings to consistent geometric and surface standards.
• Quality engineers and inspectors verifying acceptance criteria, dimensions and surface finishes.
• Maintenance and procurement teams ensuring replacement parts and suppliers conform to the correct ISO 22436:2018 configuration and pressure rating.
• Optimal for use where high-pressure aerospace fluid integrity and interchangeability are required.

Related standards

• EN 2491 - Molybdenum disulphide dry lubricants - coating methods (lubrication requirement).
• ISO 5855‑3 - Aerospace MJ threads - limit dimensions for fittings for fluid systems (thread limits).
• ISO 8788 - Aerospace nuts, metric - tolerances of form and position (nut tolerances).

ISO 22436:2018 is essential for anyone involved in the design, manufacture, inspection or procurement of 8°30′ aerospace pipe couplings, providing the geometric configuration and surface requirements needed for reliable, high‑pressure fluid system performance.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 22436
First edition
2018-03
Aerospace series — Pipe coupling
8°30′ — Thread end — Geometric
configuration
Série aérospatiale - Système de raccordement 8°30' - Extrémité du
raccord - Configuration géométrique
Reference number
©
ISO 2018
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

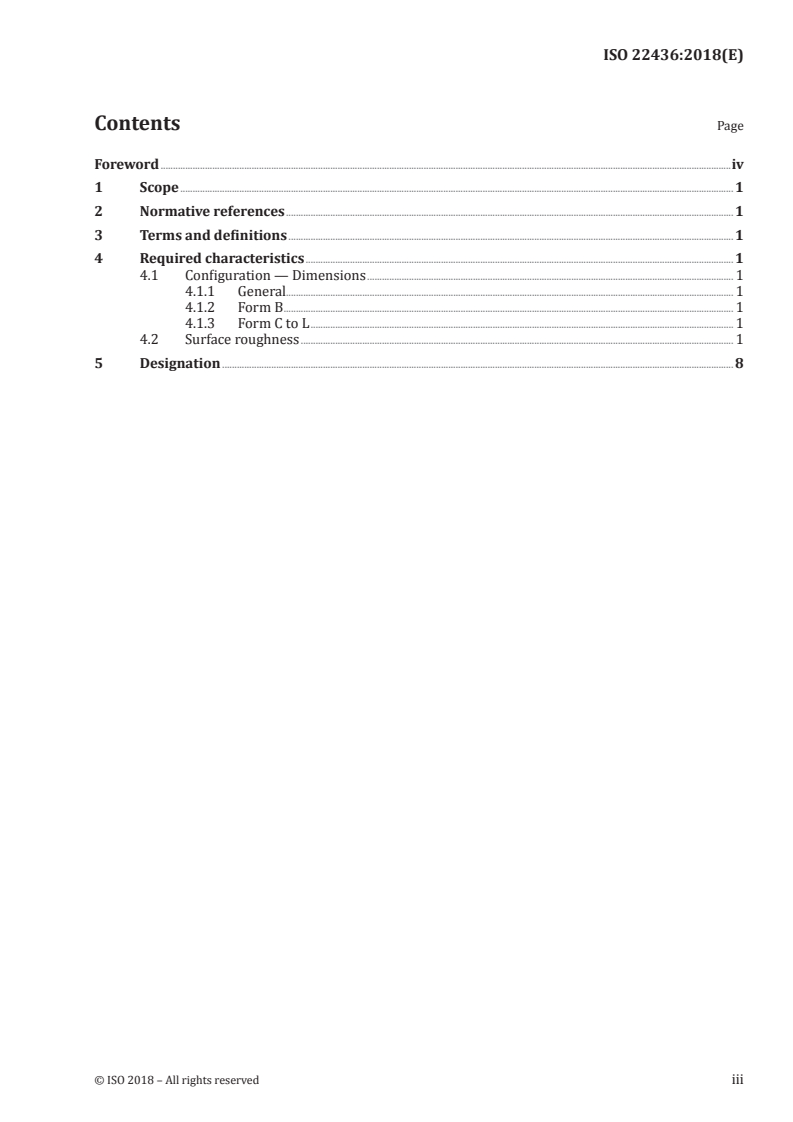

Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Required characteristics . 1
4.1 Configuration — Dimensions . 1
4.1.1 General. 1
4.1.2 Form B . 1
4.1.3 Form C to L . 1
4.2 Surface roughness . 1
5 Designation . 8
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the
...
