ISO 603-12:1999

Bonded abrasive products - Dimensions - Part 12: Grinding wheels for deburring and fettling on a straight grinder

Produits abrasifs agglomérés — Dimensions — Partie 12: Meules pour ébarbage et ébavurage sur meuleuses portatives droites

La présente partie de l'ISO 603 spécifie les dimensions nominales, en millimètres, des meules de:- Type 1: Meule plate- Type 4: Meule biconique- Type 16: Meule à bout conique sur écrou- Type 18: Meule cylindrique sur écrou- Type 18R: Meule à bout sphérique sur écrou- Type 19: Meule ogive sur écrouCes produits abrasifs agglomérés sont utilisés pour l'ébarbage et l'ébavurage de surfaces quelconques de pièces avec des machines à meuler portatives droites. La pièce travaillée est fixe, la meuleuse est guidée manuellement.

General Information

• Status: Published
• Publication Date: 14-Jul-1999
• ICS: 25.100.70 - Abrasives
• Technical Committee: ISO/TC 29/SC 5 - Grinding wheels and abrasives
• Drafting Committee: ISO/TC 29/SC 5/WG 5 - Bonded abrasives
• Current Stage: 9093 - International Standard confirmed
• Start Date: 05-Nov-2025
• Completion Date: 13-Dec-2025

Relations

• Corrected By: ISO 603-12:1999/Cor 1:1999 - Bonded abrasive products - Dimensions - Part 12: Grinding wheels for deburring and fettling on a straight grinder - Technical Corrigendum 1
• Effective Date: 06-Jun-2022
• Revises: ISO 603-2:1981 - Bonded abrasive products - Grinding wheel dimensions - Part 2: Cutting-off wheels, type 1
• Effective Date: 15-Apr-2008
• Revises: ISO 3920:1976 - Honing stones of square section - Designation and dimensions
• Effective Date: 15-Apr-2008
• Revises: ISO/R 603:1967 - Bonded abrasive products - Grinding-wheel dimensions (Part I)
• Effective Date: 15-Apr-2008
• Revises: ISO 2220:1972 - Hand finishing sticks and oil stones - Dimensions
• Effective Date: 15-Apr-2008
• Revises: ISO 1117:1975 - Bonded abrasive products - Grinding-wheel dimensions (Part 2)
• Effective Date: 15-Apr-2008
• Revises: ISO 3921:1976 - Honing stones of rectangular section - Designation and dimensions
• Effective Date: 15-Apr-2008
• Revises: ISO 2933:1974 - Bonded abrasive products - Grinding wheel dimensions (Part 3)
• Effective Date: 15-Apr-2008
• Parent: ISO 603-12:1999/Cor 1:1999 - Bonded abrasive products - Dimensions - Part 12: Grinding wheels for deburring and fettling on a straight grinder - Technical Corrigendum 1
• Effective Date: 15-Apr-2008

Overview

ISO 603-12:1999 is an international standard developed by the International Organization for Standardization (ISO) that specifies the nominal dimensions of bonded abrasive grinding wheels designed for deburring and fettling on straight portable grinders. This standard forms part 12 of the ISO 603 series, which covers dimensions for various types of bonded abrasive products. Intended for use by manufacturers, suppliers, and end-users, ISO 603-12:1999 ensures uniformity, compatibility, and safety of grinding wheels used in manual grinding operations where the workpiece is stationary, and the grinder is hand-guided.

Key Topics

• Grinding Wheel Types and Dimensions
  The standard defines six specific types of grinding wheels with detailed dimensional parameters in millimeters:

  • Type 1: Flat grinding wheels (Meule plate)
  • Type 4: Biconical grinding wheels (Meule biconique)
  • Type 16: Conical end wheels with nut mounting
  • Type 18: Cylindrical wheels with nut mounting
  • Type 18R: Spherical end wheels with nut mounting
  • Type 19: Ogive-shaped wheels with nut mounting

• Dimensional Specifications
  Each type is accompanied by precise measurements including diameter (DT), thickness (H), and other geometric parameters essential for fitting and performance on straight grinders.

• Designation and Marking
  The standard outlines a clear system for designating a bonded abrasive product. This includes the product type, dimensions, abrasive nature, grain size, grade, structure, bonding agent, and maximum operating speed, enabling precise identification and traceability.

• Tolerances and Balancing
  ISO 603-12 references other standards for tolerances of run-out and dimensions (ISO 13942) and static balancing (ISO 6103) to ensure safety, performance, and longevity of the grinding wheels.

Applications

ISO 603-12:1999 is essential for industries requiring precision deburring and fettling of metal, plastic, and composite parts using portable straight grinders. Typical applications include:

• Metal Fabrication and Finishing
  Used to remove burrs and smooth rough edges on machined or cast components.

• Maintenance and Repair Operations
  Portable grinders fitted with ISO 603-12 compliant wheels ensure consistent performance in onsite repair tasks.

• Automotive and Aerospace Manufacturing
  Enables high-quality surface preparation with standardized grinding wheels for critical deburring operations.

• Tool and Die Making
  Provides uniform grinding tool dimensions crucial for detailed fettling.

Using grinding wheels compliant with ISO 603-12 ensures compatibility with standard portable grinders, improves operator safety, and enhances production efficiency.

Related Standards

ISO 603-12:1999 is part of the broader ISO 603 series focused on bonded abrasive product dimensions. Key related standards include:

• ISO 603-1 to ISO 603-16 – Cover various grinding wheel types such as cylindrical, internal, and cutoff wheels.
• ISO 525:1999 – General requirements for bonded abrasive products including quality and safety criteria.
• ISO 6103:1999 – Static balancing and control methods for grinding wheels.
• ISO 13942 – Limits and tolerances for wheel run-out and deviation.
• ISO 8486-1 and ISO 8486-2 – Determination and designation of abrasive grain size distributions.

These standards work collectively to ensure consistent dimensions, performance, safety, and quality across the range of bonded abrasives used worldwide.

---

Keywords: ISO 603-12, bonded abrasive products, grinding wheels dimensions, deburring wheels, fettling wheels, straight grinder accessories, abrasive wheel standards, portable grinder wheels, grinding wheel tolerances, abrasive product designation, ISO abrasive standards.

Standards Content (Sample)

ISO
INTERNATIONAL
603-12
STANDARD
First edition
1999-07-15
Bonded abrasive products —
Dimensions —
Part 12:
Grinding wheels for deburring and fettling
on a straight grinder
Produits abrasifs agglomérés — Dimensions —
Partie 12: Meules pour ébarbage et ébavurage sur meuleuses portatives
droites
A
Reference number
Contents Page
1 Scope .1
2 Normative references .1
3 Dimensions.2
3.1 Type 1: Straight grinding wheel .2
3.2 Type 4: Wheel tapered on both sides .3
3.3 Type 16: Cylindrical plug, tapered cone.4
3.4 Type 18: Cylindrical plug, flat end .4
3.5 Type 18R: Cylindrical plug, round end.4
3.6 Type 19: Cylindrical plug, taper-roll shaped.4
4 Designation .5
5 Specifications.5
5.1 Tolerances.5
5.2 Balancing.5
5.3 Marking .5
Bibliography.6
©  ISO 1999
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from the publisher.
International Organization for Standardization
Case postale 56 • CH-1211 Genève 20 • Switzerland
Internet [e-mail]
Printed in Switzerland
ii
© ISO
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.
Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.
International Standard ISO 603-12 was prepared by Technical Committee ISO/TC 29, Small tools, subcommittee
SC 5, Grinding wheels and abrasives.
This first edition, together with ISO 603-1:1999 to ISO 603-11:1999 and ISO 603-13:1999 to ISO 603-16:1999,
cancels and replaces ISO/R 603:1967, ISO 603-2:1981, ISO 1117:1975, ISO 2220:1972, ISO 2933:1974,
ISO 3290:1976 and ISO 3921:1976 as a technical revision of these standards.
ISO 603 consists of the following parts, under the general title Bonded abrasive products — Dimensions:
 Part 1: Grinding wheels for external cylindrical grinding between centres
 Part 2: Grinding wheels for centreless external cylindrical grinding
 Part 3: Grinding wheels for internal cylindrical grinding
 Part 4: Grinding wheels for surface grinding/peripheral grinding
 Part 5: Grinding wheels for surface grinding/face grinding
 Part 6: Grinding wheels for tool and tool room grinding
 Part 7: Grinding wheels for manually guided grinding
 Part 8: Grinding wheels for deburring and fettling/snagging
 Part 9: Grinding wheels for high-p
...

NORME ISO
INTERNATIONALE 603-12
Première édition
1999-07-15
Produits abrasifs agglomérés —
Dimensions —
Partie 12:
Meules pour ébarbage et ébavurage sur
meuleuses portatives droites
Bonded abrasive products — Dimensions —
Part 12: Grinding wheels for deburring and fettling on a straight grinder
A
Numéro de référence

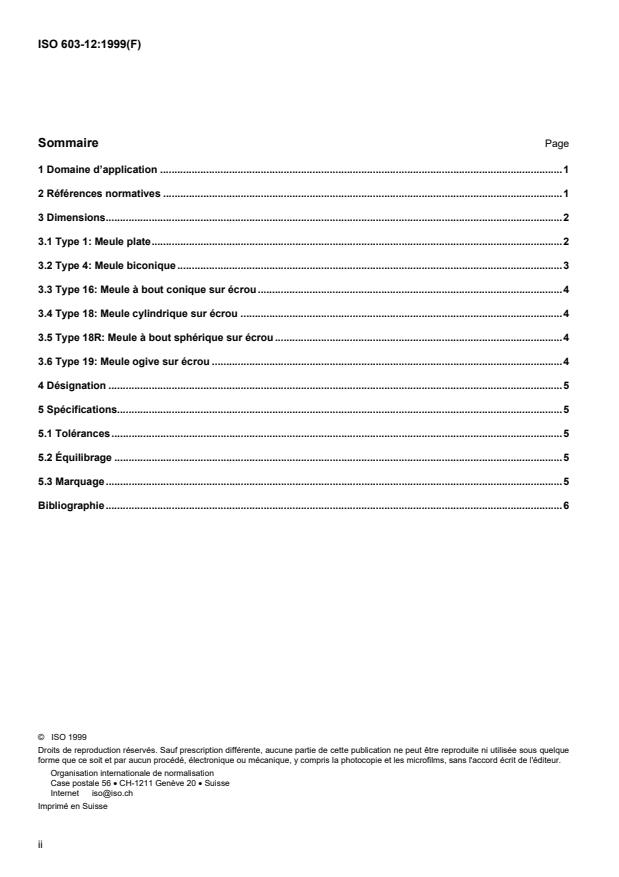

Sommaire Page
