ISO 7718-1:2016

Aircraft - Passenger doors interface requirements for connection of passenger boarding bridge or passenger transfer vehicle - Part 1: Main deck doors

ISO 7718-1:2016 specifies minimum requirements for dimensions and unobstructed space around main deck passenger doors of future types of civil-passenger transport aircraft when they are intended to be compatible with the thousands of passenger boarding bridges and passenger transfer vehicles existing, or being planned, in airports worldwide. ISO 7718-1:2016 is not applicable to existing models of civil transport aircraft, or derivative models with entry into service up to year 2000 with the same fuselage, for which the aircraft-mating section of passenger boarding bridges or passenger transfer vehicles is expected to be compatible with ISO 16004. It is not the intent of this document to restrict in any way the basic design of any future types of civil-passenger transport aircraft. However, it aims at clarifying, for aircraft-design engineers, the design characteristics which would make it difficult or impossible for a new type of aircraft to adequately connect with existing airport passenger boarding bridges or passenger transfer vehicles. If basic aircraft-design requirements impose on a future model certain dimensional characteristics not complying with this document, note that: - either alternative methods of embarking/disembarking passengers will need to be implemented, such as integral aircraft stairs, etc.; - or existing passenger boarding bridges and/or passenger transfer vehicles in the airports where such a new type of aircraft is to operate will require some degree of modification/reworking; - or additional interface devices/equipment will be required in order to connect such a new type of aircraft with existing passenger boarding bridges and passenger transfer vehicles. Each case results in increased aircraft-handling constraints and operating cost.

Aéronefs — Exigences d'interface des portes passagers pour accouplement d'une passerelle passagers ou de véhicules de transfert de passagers — Partie 1: Portes de pont principal

General Information

• Status: Published
• Publication Date: 11-Dec-2016
• ICS: 49.100 - Ground service and maintenance equipment
• Technical Committee: ISO/TC 20/SC 9 - Air cargo and ground equipment
• Drafting Committee: ISO/TC 20/SC 9 - Air cargo and ground equipment
• Current Stage: 9599 - Withdrawal of International Standard
• Start Date: 07-Mar-2025
• Completion Date: 13-Dec-2025

Relations

• Consolidated By: ISO/ASTM 52926-2:2023 - Additive manufacturing of metals - Qualification principles - Part 2: Qualification of operators for PBF-LB
• Effective Date: 06-Jun-2022
• Revised: ISO 7718-1:2025 - Aircraft - Passenger doors interface requirements for connection of passenger boarding bridge or passenger transfer vehicle - Part 1: Main deck doors
• Effective Date: 10-Jun-2023
• Revises: ISO 7718-1:2009 - Aircraft - Passenger doors interface requirements for connection of passenger boarding bridge - Part 1: Main deck doors
• Effective Date: 28-May-2016

Overview

ISO 7718-1:2016 is an international standard developed by ISO that specifies the interface requirements for main deck passenger doors on civil transport aircraft. This standard focuses on ensuring compatibility between aircraft doors and passenger boarding bridges (PBBs) or passenger transfer vehicles used at airports worldwide. It defines minimum dimensional and unobstructed space requirements for new aircraft types to facilitate safe and efficient passenger boarding and disembarking.

The standard applies primarily to future civil-passenger transport aircraft models and is not intended for existing aircraft or derivatives with entry into service before the year 2000, which are generally compatible with ISO 16004. The goal is to avoid costly modifications to aircraft or airport infrastructure by guiding aircraft designers on critical dimensions and door characteristics.

Key Topics

• Minimum Unobstructed Space
  The standard mandates a clear area surrounding the main deck passenger doors to allow hassle-free connection with boarding bridges and transfer vehicles. The space must be free of external obstructions such as antennas, sensors, and aerodynamic features that could interfere with the docking process. Integral aircraft stairs are permissible if they do not impede the boarding bridge connection.

• Fuselage Radius
  The cross-sectional radius of the aircraft fuselage at the door area should be no less than 1.6 meters (63 inches). This dimension ensures sufficient clearance for the interface with boarding equipment.

• Door Sill Height
  The height of the door sill above the ground must be between 1.8 meters (71 inches) and 5.4 meters (213 inches) during normal servicing operations, accommodating a wide range of boarding bridge designs and airport layouts.

• Compatibility with Existing Infrastructure
  The standard emphasizes avoiding design features that would hinder compatibility with existing passenger boarding bridges and transfer vehicles. When deviations occur, alternative boarding methods, costly airport equipment modifications, or additional interface devices may be necessary, leading to increased operating costs.

Applications

ISO 7718-1:2016 is essential for:

• Aircraft Manufacturers and Design Engineers
  Provides clear dimensional guidelines that help avoid interface issues during aircraft development, ensuring future aircraft can easily connect with the global network of airport boarding equipment.

• Airport Planners and Operators
  Helps anticipate and manage the compatibility of new aircraft types with existing passenger boarding bridges and transfer vehicles, enabling smoother ground operations and minimizing retrofitting expenses.

• Ground Handling Equipment Designers
  Serves as a reference to design passenger boarding bridges and transfer vehicles that meet interface requirements for current and future aircraft models.

• Regulatory Bodies and Certification Authorities
  Supports the establishment of uniform requirements for safe and efficient passenger boarding procedures in civil aviation.

Related Standards

• ISO 16004 - Specifies interface requirements between passenger boarding bridges or transfer vehicles and aircraft doors for legacy aircraft models, particularly those in service before 2000.

• ISO/IEC Directives - Outline the procedures for developing and maintaining international standards which ensure quality and consistency in documentation.

By aligning with ISO 7718-1:2016, stakeholders in civil aviation can achieve better interoperability between aircraft and airport ground equipment, reducing operating constraints and enhancing passenger experience. The standard is a critical resource for fostering innovation while maintaining practical compatibility across the aviation industry.

---

Keywords: ISO 7718-1:2016, passenger doors interface, aircraft main deck doors, passenger boarding bridge compatibility, civil transport aircraft, airport passenger transfer vehicle, aircraft design standards, unobstructed door space, door sill height, fuselage radius, aviation ground equipment standards.

Standards Content (Sample)

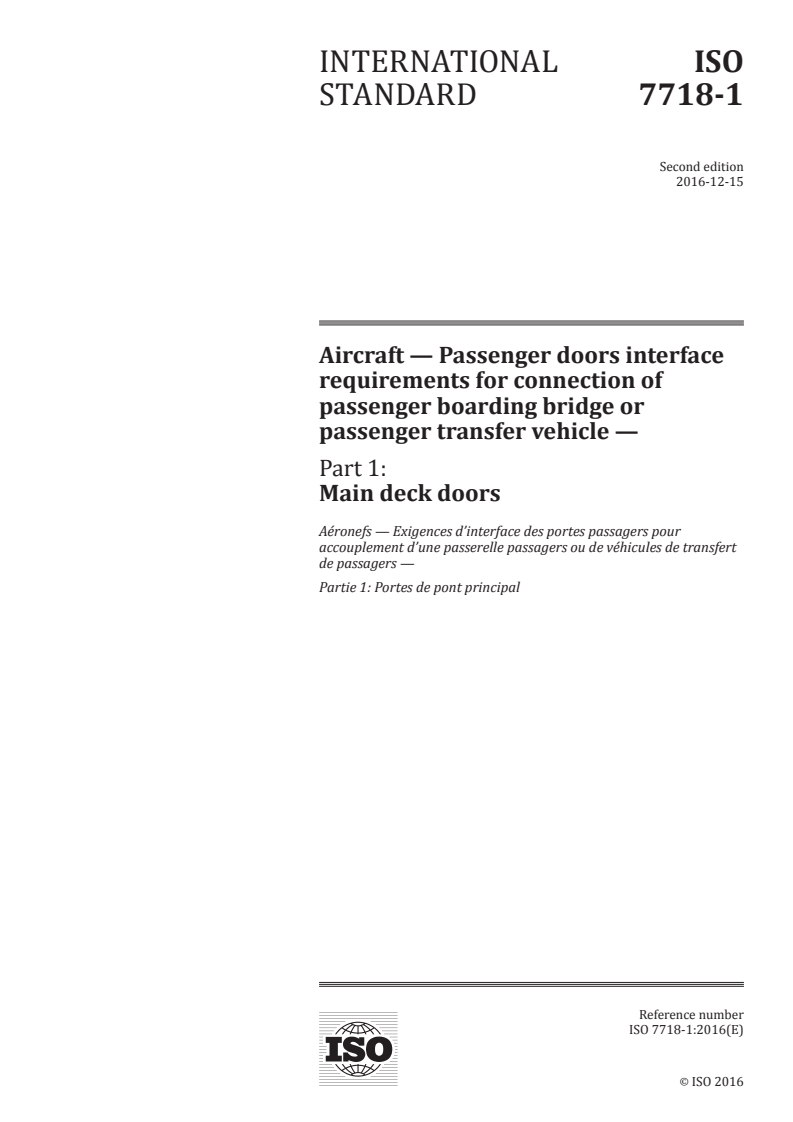

INTERNATIONAL ISO
STANDARD 7718-1
Second edition
2016-12-15
Aircraft — Passenger doors interface
requirements for connection of
passenger boarding bridge or
passenger transfer vehicle —
Part 1:
Main deck doors
Aéronefs — Exigences d’interface des portes passagers pour
accouplement d’une passerelle passagers ou de véhicules de transfert
de passagers —
Partie 1: Portes de pont principal
Reference number
©
ISO 2016
© ISO 2016, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. [phone]
Fax [phone]
[e-mail]
www.iso.org
ii © ISO 2016 – All rights reserved

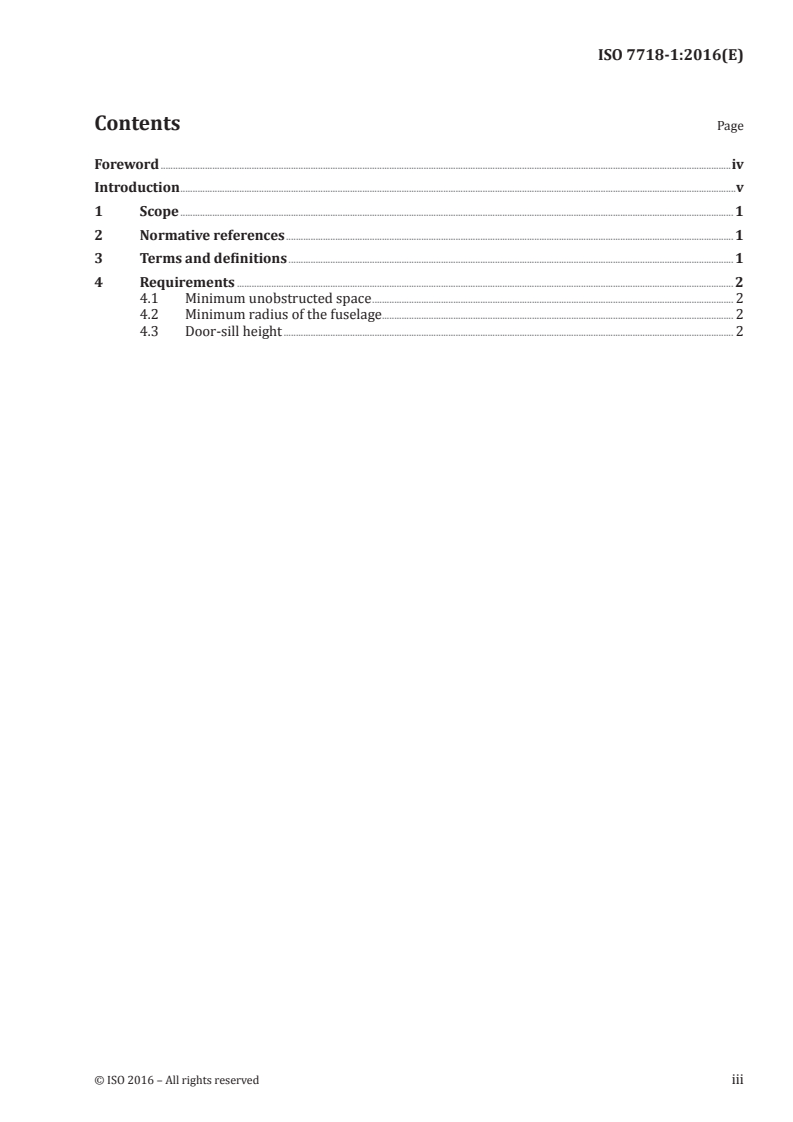

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Requirements . 2
4.1 Minimum unobstructed space . 2
4.2 Minimum radius of the fuselage. 2
4.3 Door-sill height . 2

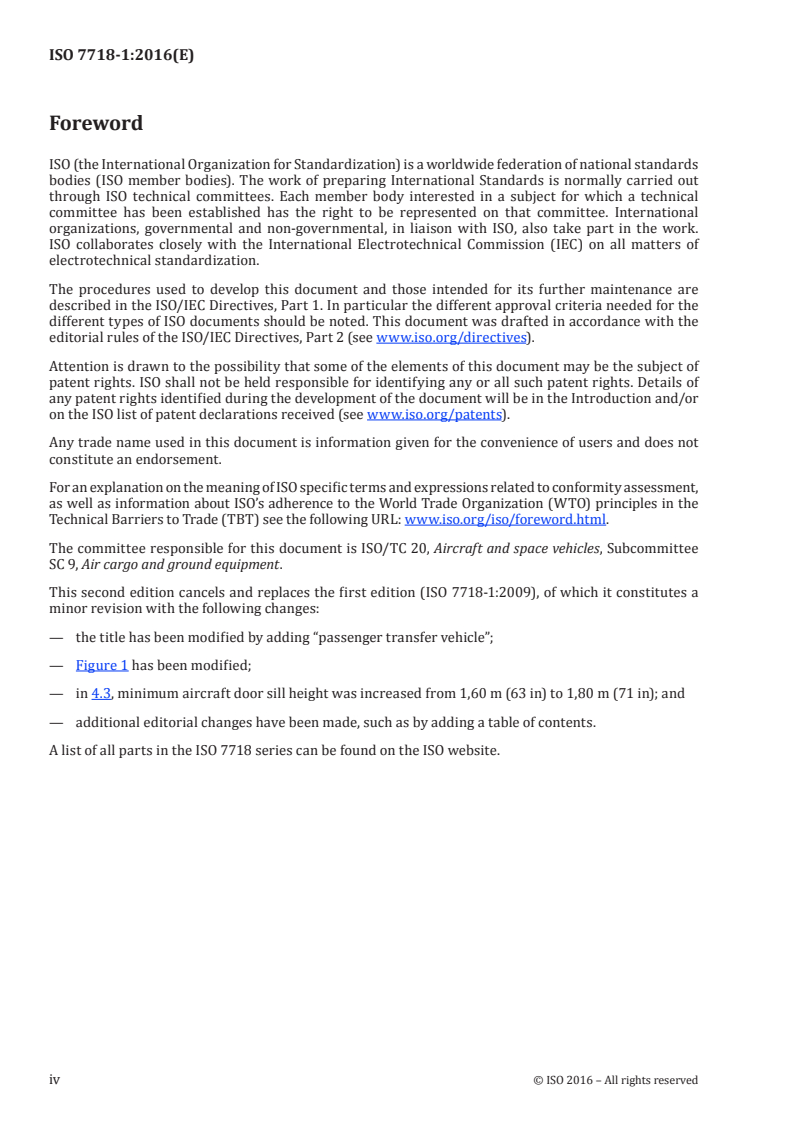

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity assessment,
as well as information about ISO’s adherence to the World Trade Organization (WTO) principles in the
Technical Barriers to Trade (TBT) see the following URL: www.iso.org/iso/foreword.html.
The committee responsible for this document is ISO/TC 20, Aircraft and space vehicles, Subcommittee
SC 9, Air cargo and ground equipment.
This second edition cancels and replaces the first edition (ISO 7718-1:2009), of which it constitutes a
minor revision with the following changes:
— the title has been modified by adding “passenger transfer vehicle”;
— Figure 1 has been modified;
— in 4.3, minimum aircraft door sill height was increased from 1,60 m (63 in) to 1,80 m (71 in); and
— additional editorial changes have been made, such as by adding a table of contents.
A list of all parts in the ISO 7718 series can be found on the ISO website.
iv © ISO 2016 – All rights reserved

Introduction
This document specifies minimum requirements for dimensions and unobstructed space around main
deck passenger doors on the outer skin of civil transport aircraft, applicable when these doors ar
...
