Standards Content (Sample)

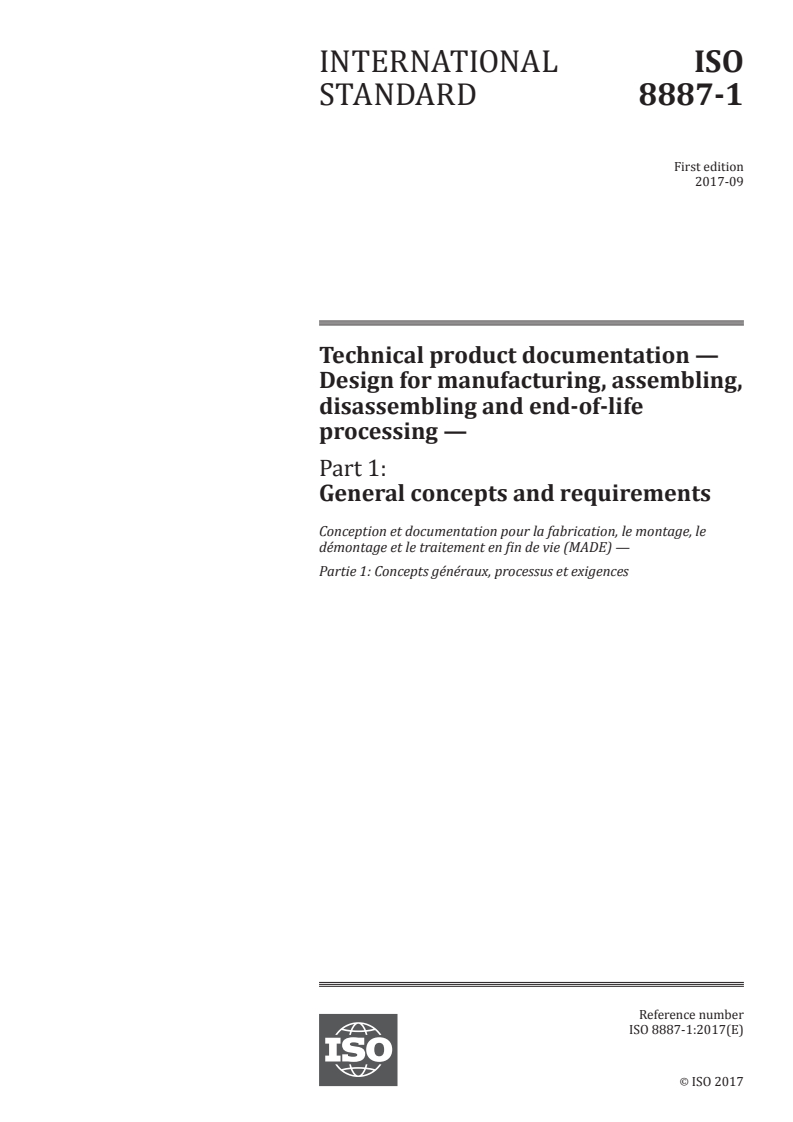

INTERNATIONAL ISO
STANDARD 8887-1
First edition
2017-09
Technical product documentation —
Design for manufacturing, assembling,
disassembling and end-of-life
processing —
Part 1:
General concepts and requirements
Conception et documentation pour la fabrication, le montage, le
démontage et le traitement en fin de vie (MADE) —
Partie 1: Concepts généraux, processus et exigences
Reference number
ISO 8887-1:2017(E)
©
ISO 2017

---------------------- Page: 1 ----------------------
ISO 8887-1:2017(E)

COPYRIGHT PROTECTED DOCUMENT
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved

---------------------- Page: 2 ----------------------
ISO 8887-1:2017(E)

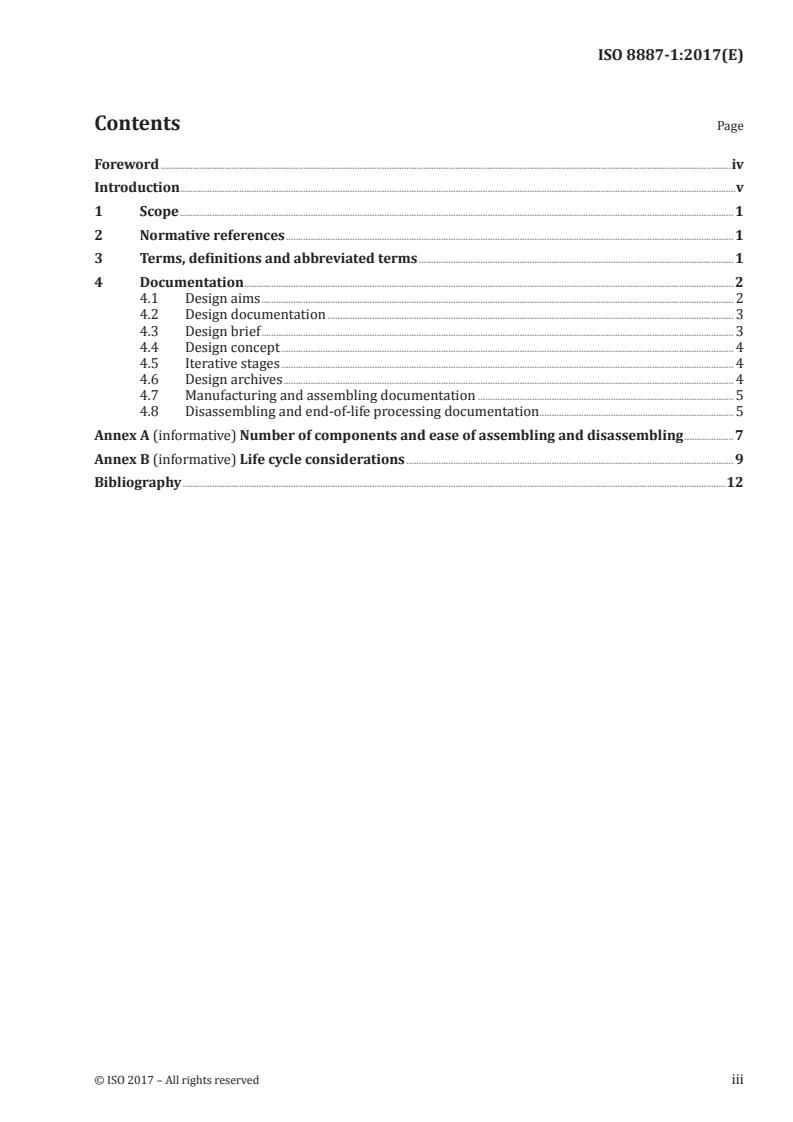

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms, definitions and abbreviated terms . 1
4 Documentation . 2
4.1 Design aims . 2
4.2 Design documentation . 3
4.3 Design brief . 3
4.4 Design concept . 4
4.5 Iterative stages . 4
4.6 Design archives . 4
4.7 Manufacturing and assembling documentation . 5
4.8 Disassembling and end-of-life processing documentation. 5
Annex A (informative) Number of components and ease of assembling and disassembling .7
Annex B (informative) Life cycle considerations . 9
Bibliography .12
© ISO 2017 – All rights reserved iii

---------------------- Page: 3 ----------------------
ISO 8887-1:2017(E)

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 10, Technical product documentation.
A list of all parts in the ISO 8887 series can be found on the ISO website.
iv © ISO 2017 – All rights reserved

---------------------- Page: 4 ----------------------
ISO 8887-1:2017(E)

Introduction
In recent years, policy makers throughout the world have focused their attention on ways to reduce
environmental impact. In many countries, this has led to, or will soon lead to, new incentives with the
result that end-of-life processes now need to be considered at the design stage. Consequently, there is
an increasing focus on not only the production of a product but also what is to be done when the user
has finished with it. Thus, this document includes consideration of disassembling the product and the
treatment of the components through processes such as reworking, recycling, reusing or disposing.
This document aims to specify the documentation requirements for integrating these environmental
aspects into the design and development of products. It relates to the following four stages:
With regard to production:
— the manufacturing of the components;
— the assembling of the components to produce a product.
With regard to end of use:
— the disassembling into component parts;
— the end-of-life processing of those components.
It addresses the design task, irrespective of whether the designer works for a manufacturer, a design
company, or is freelance. It is applicable to all types of manufactured products.
This document expands the life cycle model in ISO 15226 to cover multiple life cycles.
© ISO 2017 – All rights reserved v

---------------------- Page: 5 ----------------------
INTERNATIONAL STANDARD ISO 8887-1:2017(E)
Technical product documentation — Design for
manufacturing, assembling, disassembling and end-of-life
processing —
Part 1:
General concepts and requirements
1 Scope
This document specifies the requirements for the preparation, content and structure of technical
product documentation (TPD) of design output for the cycles of manufacturing, assembling,
disassembling and end-of-life processing of products. It describes the TPD needed at the critical stages
of a design process.
It identifies and describes methods and conventions appropriate to the preparation of documentation, in
whatever form, necessary to realize a design including the application to multiple life cycles. It extends
beyond specification for the manufacturing and assembling of products to incorporate guidance on the
ultimate reusing, recovering, recycling and disposing of the components and materials used.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 10209, Technical product documentation — Vocabulary — Terms relating to technical drawings,
product definition and related documentation
ISO 11442, Technical product documentation — Document management
3 Terms, definitions and abbreviated terms
3.1 Terms and definitions
For the purposes of this document, the terms, definitions and abbreviated terms given in ISO 10209 and
the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at http://www.iso.org/obp
— IEC Electropedia: available at http://www.electropedia.org/
3.1.1
assembling
bringing together of components in a functional relationship
© ISO 2017 – All rights reserved 1

---------------------- Page: 6 ----------------------
ISO 8887-1:2017(E)

3.1.2
brief
working document which specifies at any point in time the relevant needs and aims, the resources of
the client and user, the context of the project and any appropriate design requirements within which all
subsequent briefing (when needed) and designing can take place
Note 1 to entry: The term “design brief” is used interchangeably with “brief” in this document.
[SOURCE: ISO 10209:2012, 11.18, modified — Note 1 to entry has been added.]
3.1.3
disassembling
taking apart of an assembled product into constituent materials and/or components
3.1.4
end-of-life
point at which a product or component is taken out of use
3.1.5
manufacturing
production of components
3.1.6
recycling
action of reprocessing a material or component which has previously been processed for inclusion in
a product
3.1.7
renewable
replenishable naturally at source at a rate at least the same as consumption
Note 1 to entry: This can apply to materials and energy.
3.1.8
recovery
process in which waste material is either treated to release materials in a form where they can be used
again, or used as fuel in energy recovery
3.2 Abbreviated terms
TPD technical product documentation
TPS technical product specification
4 Documentation
4.1 Design aims
This document is intended to describe the considerations to be applied during the design and
manufacturing processes in order to document and record the utilization of the materials and
components of a product to optimize their efficient use through multiple life cycles. This holistic
approach (see the schematic diagram in Figure 1) has the potential to lower long-term costs and to
minimize the environmental impact, for example, by reducing the need for obtaining and processing
new materials.
NOTE For more information on the design stages within the product development process, see, for example,
ISO 11442:2006, Figure 1.
2 © ISO 2017 – All rights reserved

---------------------- Page: 7 ----------------------
ISO 8887-1:2017(E)

Figure 1 — Basic stages in the life cycle of a product
4.2 Design documentation
Design documentation for manufacturing, assembling, disassembling and end-of-life processing shall
be prepared, maintained, and archived so that the information is available for reference, maintenance
and further development (see ISO 11442).
Design documentation should include a record of the reasoning behind all basic design decisions (see
4.3 to 4.8), as well as the resulting TPS, to provide the information which may be required for further
decisions.
Design is an iterative process. Each stage of the process should be recorded in the documentation.
Initial options for design solutions which will meet the requirements of the design brief are assessed to
find that solution with the best potential for meeting the brief.
4.3 Design brief
The design brief is a documentation collating the set of requirements which identify and define a
perceived market need. The design brief includes the following, which are expanded in Table 1:
— establishment of market/customer need;
— determination of technical feasibility;
— assessment of serviceability;
— consideration of end-of-life implications.
Table 1 is presented in the form of a checklist of subjects to be considered as potential elements of
a design brief that may be included, as appropriate. This list is not necessarily exhaustive for any
particular project and the format is provided by way of example only although it might be of assistance
to users.
© ISO 2017 – All rights reserved 3

---------------------- Page: 8 ----------------------
ISO 8887-1:2017(E)

Table 1 — Typical parameters for consideration in the preparation of a design brief
Market/customer need Technical feasibility Serviceability End-of-life
—  Market sensitivity —  Material (suitability —  Ease and practicality —  Materials
and performance) of access to relevant levels
—  Sales potential —  Manufacturing
(e.g. module/component)
—  Available processes, processes
—  Competition
including quality and —  Required tools (cost
—  Product operation
—  Opportunities conformance and availability)
—  Life cycle assessment
—  Aesthetics —  Health and safety —  Health and safety
—  Legal constraints
—  Prototyping —  Skills requirement
—  Price
—  Whole life costs
—  Potential for on-going —  Function verification —  Repair
development —  Health and safety
—  Risk assessment —  Upgradability
—  Impact on company —  Recovery of materials
—  Milestones —  Spare stock
implications
—  Recycling
—  Performance
—  Recovery of energy
—  Potential benefits of
...

Questions, Comments and Discussion
