ISO 9374-4:2024

Cranes - Information to be provided - Part 4: Jib cranes

This document specifies information to be provided by: a) a purchaser in enquiring about or ordering a jib crane; b) a manufacturer in tendering for or supplying a jib crane.

Appareils de levage à charge suspendue — Informations à fournir — Partie 4: Grues à flèche

General Information

• Status: Published
• Publication Date: 21-Aug-2024
• ICS: 53.020.20 - Cranes
• Technical Committee: ISO/TC 96/SC 8 - Jib cranes
• Drafting Committee: ISO/TC 96/SC 8 - Jib cranes
• Current Stage: 6060 - International Standard published
• Start Date: 22-Aug-2024
• Due Date: 21-Mar-2025
• Completion Date: 22-Aug-2024

Relations

• Revises: ISO 9374-4:1989 - Cranes - Information to be provided - Part 4: Jib cranes
• Effective Date: 06-Jun-2022

Overview

ISO 9374-4:2024 - "Cranes - Information to be provided - Part 4: Jib cranes" specifies the information that purchasers must provide when enquiring or ordering a jib crane and the information manufacturers must supply when tendering for or delivering a jib crane. This second edition updates the original 1989 edition and provides a structured checklist and sample enquiry format to ensure correct specification, safe installation and proper selection of jib-crane equipment.

Key topics and technical requirements

The standard defines the minimum information exchange and documentation needed for jib crane procurement and supply. Main topics include:

• Scope and definitions: Uses terms from ISO 4306‑1 and ISO 4306‑4 to ensure consistent crane vocabulary.
• Purchaser information (Annex A / Tables A.1–A.6): recommended fields for enquiries/orders such as:
  • required rated capacities (main and auxiliary hoists), radii and lift heights
  • load‑lifting attachments (hook, grab, magnet, spreader)
  • operating speeds (nominal, slow/creep, maximum) for hoisting, slewing, traverse and travel
  • duty classification (per ISO 4301‑1 / ISO 4301‑4) or operational descriptions
  • environmental and special service conditions (wind, temperature, humidity, seismic)
  • controls, power supply details and limiting devices
  • rail, foundation and clearance dimensions for specific crane types (portal, cantilever, derrick, high mast, fixed base)
• Manufacturer information:
  • technical data consistent with ISO 9374‑1 and erection information when requested
  • loads applied by the crane must be supplied in accordance with ISO 8686‑4
  • necessary installation and operational dimensions (Figures 1–3 illustrate minimum dimension examples)
• Drawings and dimensions: Examples include span, boom length, tailswing radius, working radius ranges and hook heights to support installation and site planning.

Practical applications and users

ISO 9374‑4:2024 is intended for:

• Purchasers and specifiers preparing enquiries and tender documents for jib cranes
• Manufacturers and suppliers producing compliant offers, technical documents and installation instructions
• Engineering and procurement teams who coordinate foundations, railwork, power supply and site clearances
• Inspection, maintenance and safety personnel who rely on accurate duty and load information for safe use and testing

Using this standard reduces ambiguity in tenders, speeds procurement, ensures compatible site interfaces (foundations, rails, power, controls) and helps designers apply correct load and dimension data per ISO design principles.

Related standards (normative references)

• ISO 4306‑1 - Cranes - Vocabulary - Part 1: General
• ISO 4306‑4 - Cranes - Vocabulary - Part 4: Jib cranes
• ISO 9374‑1 - Cranes - Information to be provided - Part 1: General
• ISO 8686‑4 - Cranes - Design principles for loads and load combinations - Part 4: Jib cranes

Keywords: ISO 9374‑4:2024, jib crane specification, crane enquiry form, crane procurement, crane dimensions, crane duty classification, crane manufacturer information.

Standards Content (Sample)

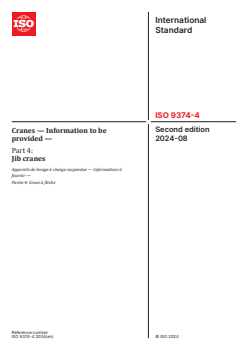

International
Standard
ISO 9374-4
Second edition
Cranes — Information to be
2024-08
provided —
Part 4:
Jib cranes
Appareils de levage à charge suspendue — Informations à
fournir —
Partie 4: Grues à flèche
Reference number
© ISO 2024
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Information to be provided by the purchaser with the enquiry or order . 1
5 Information to be provided by the manufacturer . 1
5.1 Technical information .1
5.2 Dimensions .2
Annex A (informative) Sample format and information to be provided by the purchaser with
the enquiry or order. 5
Bibliography . 17

iii

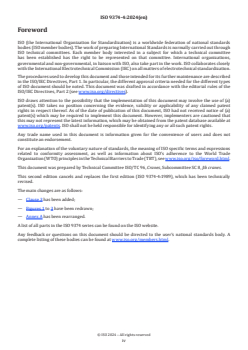

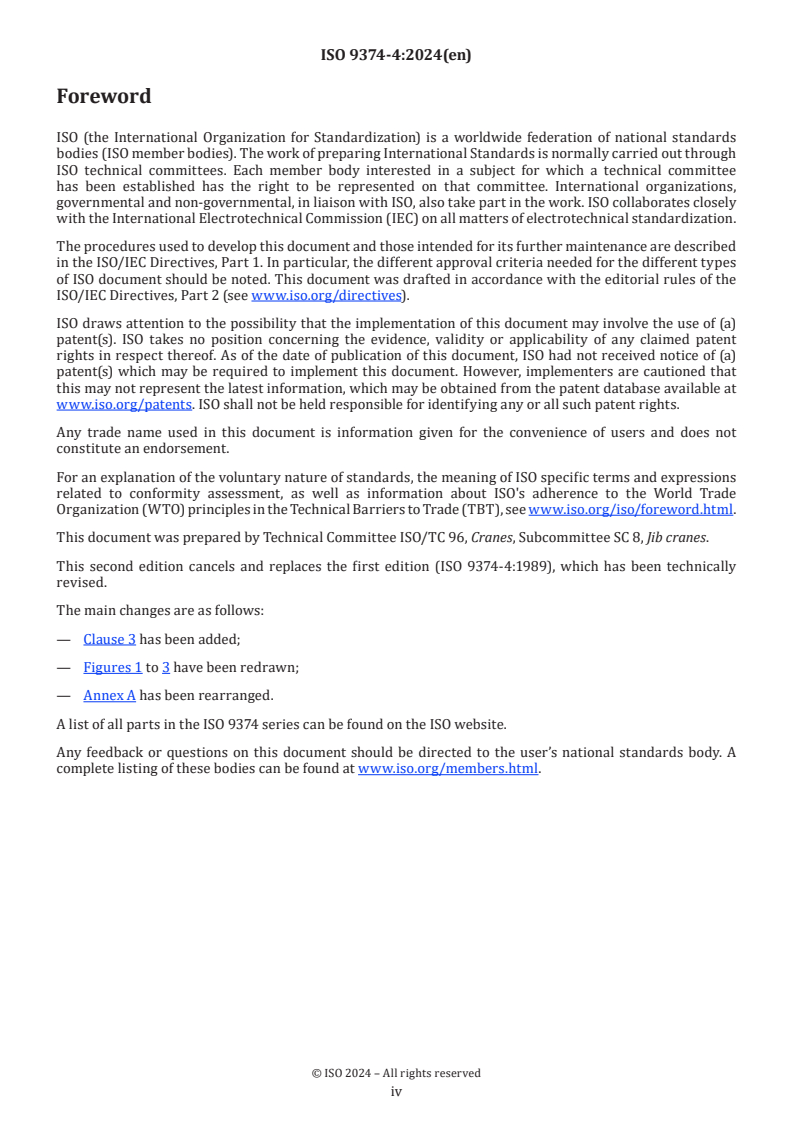

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 96, Cranes, Subcommittee SC 8, Jib cranes.
This second edition cancels and replaces the first edition (ISO 9374-4:1989), which has been technically
revised.
The main changes are as follows:
— Clause 3 has been added;
— Figures 1 to 3 have been redrawn;
— Annex A has been rearranged.
A list of all parts in the ISO 9374 series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
International Standard ISO 9374-4:2024(en)
Cranes — Information to be provided —
Part 4:
Jib cranes
1 Scope
This document specifies information to be provided by:
a) a purchaser in enquiring about or ordering a jib crane;
b) a manufacturer in tendering for or supplying a jib crane.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 4306-1, Cranes — Vocabulary — Part 1: General
ISO 4306-4, Cranes — Vocabulary — Part 4: Jib cranes
ISO 9374-1, Cranes — Information to be provided — Part 1: General
ISO 8686-4, Cranes — Design principles for loads and load combinations — Part 4: Jib cranes
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 4306-1 and ISO 4306-4 apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/
— IEC Electropedia: available at https:// www .electropedia .org/
4 Information to be provided by the purchaser with the enquiry or order
The purchaser should provide the information given in Annex A to enable the crane manufacturer to offer or
to supply the most suitable jib crane and equipment to satisfy the duty requirements and service conditions.
5 Information to be provided by the manufacturer
5.1 Technical information
The information provided by the manufacturer shall include:
a) the information provided by the manufacturer in accordance with ISO 9374-1;
b) erection information, when requested.

The manufacturer shall supply all loads applied by the crane in accordance with ISO 8686-4.
5.2 Dimensions
The manufacturer shall provide the necessary dimensions to install and use the crane. Figures 1 to 3 show
examples of drawings with minimum dimensions.
Key
1 span 8 clearance height of boom
2 boom length 9 clearance under portal
3 crane wheel base 10 clearance under rotating platform
4 buffer height 11 working radius range for main hook
5 buffer to buffer (buffer uncompressed) 12 working radius range for auxiliary hook
6 tailswing radius 13 hook height range for main hook
7 boom hinge elevation above rail 14 hook height range for auxiliary hook
Figure 1 — Examples of dimensions for portal or semi-portal slewing crane with single boom

Key
1 distance from boom hinge to mast leg 5 working radius range for auxiliary hook
2 boom length 6 hook height range for main hook
3 clearance height of boom 7 hook height range for auxiliary hook
4 working radius range for main hook
Figure 2 — Examples of dimensions for derrick crane

Key
1 cantilever length 4 working radius range
2 clearance height of crane 5 hook height range
3 clearance under cantilever
Figure 3 — Examples of dimensions for ca
...
