SIST EN 300 220-2 V2.3.1:2010

• Abstract:

  The present document applies to the following Short Range Device major equipment types:; 1) Non-specific Short Range Devices.; 2) Alarms, identification systems, radio-determination, telecommand, telemetry, etc.; 3) Radio Frequency Identification (RFID).; 4) Detection, movement and alert applications.; These radio equipment types are capable of operating in the frequency bands within the 25 MHz to 1 000 MHz range as specified in table 1:; - either with a Radio Frequency (RF) output connection and dedicated antenna or with an integral antenna;; - for all types of modulation;; - with or without speech.; Table 1 shows a list of the frequency bands as designated to Short Range Devices by some European Commission Decisions [i.3] and [i.4] and the CEPT/ERC/REC 70-03 [i.6] as known at the date of publication of the present document.; NOTE 1: It should be noted that table 1 represents the most widely implemented position within the European Union and the CEPT countries, but it should not be assumed that all designated bands are available in all countries.; NOTE 2: In addition, it should be noted that other frequency bands may be available in a country within the frequency range 25 MHz to 1 000 MHz for SRD covered by the present document. See European Commission Decisions on Short Range Devices [i.3] and [i.4] and CEPT/ERC/REC 70-03 [i.6] as implemented through National Radio Interfaces (NRI) or additional NRI as relevant. NOTE 3: On non-harmonized parameters, national administrations may impose certain conditions such as the type of modulation, frequency, channel/frequency separations, maximum transmitter radiated power, duty cycle, and the inclusion of an automatic transmitter shut-off facility, as a condition for the issue of Individual Rights for use of spectrum or General Authorization, or as a condition for use under "licence exemption" as it is in most cases for Short Range Devices. The present document covers fixed stations, mobile stations and portable stations. The present document is intended to cover the provisions of article 3.2 of Directive 1999/5/EC [i.1] (R&TTE Directive). The present document does not apply to radio equipment for which a specific Harmonized EN applies as such Harmonized EN may specify additional EN requirements relevant to the presumption of conformity under article 3.2 of the R&TTE Directive [i.1].

• Status: Published
• Public Enquiry End Date: 30-Jun-2009
• Publication Date: 08-Mar-2010
• ICS: 33.060.20 - Receiving and transmitting equipment
• ICS: 33.100.01 - Electromagnetic compatibility in general
• Technical Committee: MOC - Mobile Communications
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 24-Feb-2010
• Due Date: 01-May-2010
• Completion Date: 09-Mar-2010
• Directive: 1999/5/EC - Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity
• Mandate: M/284
• Ref Project: ETSI EN 300 220-2 V2.3.1 (2009-04) - Electromagnetic compatibility and Radio spectrum Matters (ERM); Short Range Devices (SRD); Radio equipment to be used in the 25 MHz to 1 000 MHz frequency range with power levels ranging up to 500 mW; Part 2: Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive

Overview

SIST EN 300 220-2 V2.3.1:2010 (EN 300 220-2 V2.3.1) is a key European standard that addresses the essential requirements for the electromagnetic compatibility (EMC) and radio spectrum usage of Short Range Devices (SRD). It specifically targets radio equipment operating between 25 MHz and 1 000 MHz with power levels up to 500 mW. The standard provides a harmonized framework under Article 3.2 of the R&TTE Directive, establishing requirements for fixed, mobile, and portable stations used in various short-range radio applications.

This document ensures that SRDs meet necessary performance, compatibility, and spectral efficiency levels mandated within the European Union and relevant CEPT countries. It supports both manufacturers and regulators in achieving legal conformance for SRDs, promoting effective spectrum management and coexistence.

Key Topics

• Scope of Application:
  • Applicable to non-specific SRDs, alarms, identification systems, radio-determination, telecommand, telemetry, and RFID.
  • Covers detection, movement, and alert systems within the designated frequency bands.
• Frequency Bands:
  • Specifies several commonly implemented frequency bands, such as 26.995–27.195 MHz, 433.050–434.790 MHz, and 863–870 MHz, as typically allotted for SRDs in the EU.
  • Acknowledges that frequency allocation may vary by national regulations.
• Types of Equipment:
  • Equipment may use a dedicated RF output connection and antenna, or an integral antenna.
  • Supports all modulation types and systems with or without speech transmission.
• Technical Requirements:
  • Environmental profile compliance for equipment operation.
  • Transmitter and receiver requirements for parameters such as frequency accuracy, output power, channel spacing, spurious emissions, duty cycle, and Listen Before Talk (LBT) mechanisms.
  • Specific performance criteria for receiver sensitivity, adjacent channel selectivity, blocking, and spurious response rejection, based on receiver category.
• Conformance Testing:
  • Outlines procedures for compliance testing under normal and extreme environmental conditions.
  • Declares methods for verifying technical requirements through laboratory testing, referencing EN 300 220-1.

Applications

SIST EN 300 220-2 V2.3.1:2010 is widely applicable across sectors utilizing short-range wireless communication within the specified frequencies. Common applications include:

• Industrial and Home Automation:
  • Wireless control for manufacturing, building automation, and smart home systems.
• Alarm and Security Systems:
  • Burglar alarms, fire alarms, and social alarm devices for health and safety.
• Telemetry and Telecommand:
  • Remote monitoring and control in utilities (meter reading, tracking, data gathering).
• Radio Frequency Identification (RFID):
  • Logistics, inventory management, and tracking assets in retail and supply chain workflows.
• Consumer Electronics:
  • Wireless peripherals, toys, and model control devices.
• Detection and Alert:
  • Applications for movement detection and various alerting systems.

The standard’s adoption ensures device interoperability, minimal interference, and spectrum efficiency, which is essential for robust SRD deployment in densely populated radio environments.

Related Standards

• EN 300 220-1: Technical characteristics and test methods for SRDs in the same frequency range.
• Directive 1999/5/EC (R&TTE Directive): European regulation on radio and telecommunications terminal equipment.
• Commission Decisions 2006/771/EC & 2005/928/EC: EU policies on the harmonization of spectrum usage for SRDs.
• CEPT/ERC/REC 70-03: Recommendations for the use of SRDs in CEPT member countries.
• ETSI EG 201 399: Guidance on the production of harmonized standards under the R&TTE Directive.

By aligning with these and other referenced standards, SIST EN 300 220-2 V2.3.1:2010 establishes a comprehensive regulatory framework fostering safe, efficient, and compliant deployment of short range radio equipment across Europe.

Draft ETSI EN 300 220-2 V2.2.1 (2008-04)
Harmonized European Standard (Telecommunications series)

Electromagnetic compatibility
and Radio spectrum Matters (ERM);
Short Range Devices (SRD);
Radio equipment to be used in the 25 MHz to 1 000 MHz
frequency range with power levels ranging up to 500 mW;
Part 2: Harmonized EN covering essential requirements
under article 3.2 of the R&TTE Directive

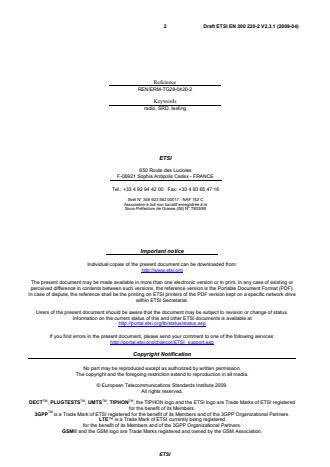

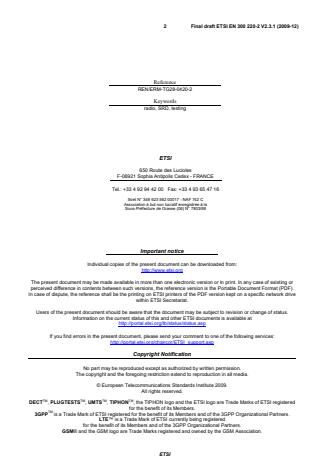

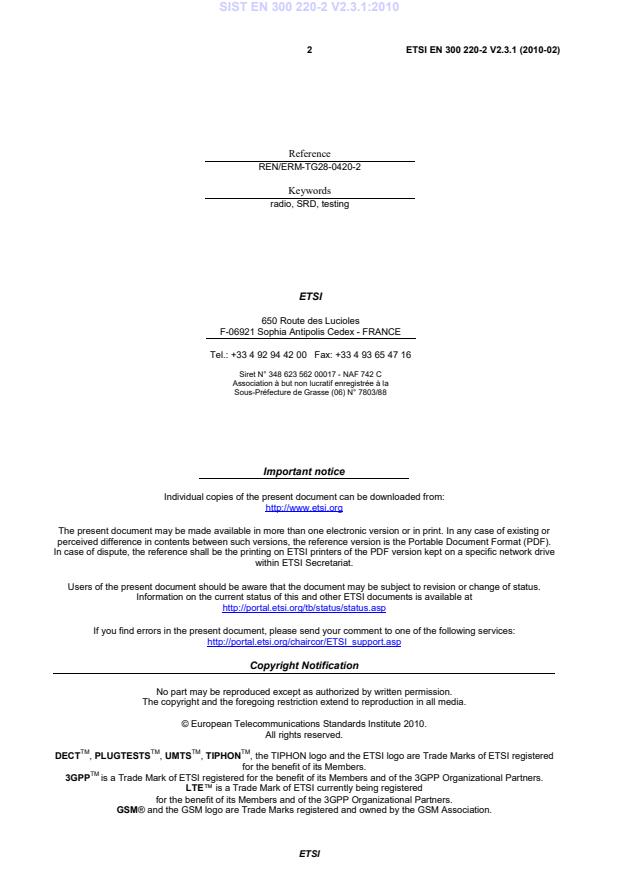

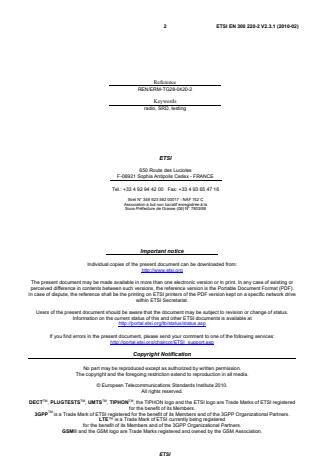

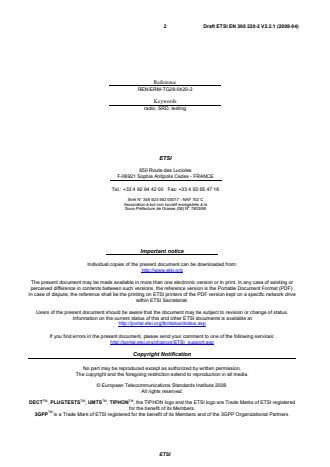

2 Draft ETSI EN 300 220-2 V2.2.1 (2008-04)

Reference
REN/ERM-TG28-0420-2
Keywords
radio, SRD, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2008.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
ETSI
3 Draft ETSI EN 300 220-2 V2.2.1 (2008-04)
Contents
Intellectual Property Rights.5
Foreword.5
Introduction .5
1 Scope.6
2 References.7
2.1 Normative references.7
2.2 Informative references.7
3 Definitions, symbols and abbreviations .8
3.1 Definitions.8
3.2 Symbols.8
3.3 Abbreviations.8
4 Technical requirements specifications .8
4.1 Environmental profile.8
4.2 Conformance requirements.8
4.2.1 Transmitter requirements.8
4.2.1.1 Frequency error and frequency drift.8
4.2.1.2 Carrier power (conducted) .8
4.2.1.3 Effective radiated power .9
4.2.1.4 Types of spread spectrum modulation.9
4.2.1.4.1 Frequency Hopping Spread Spectrum devices (FHSS).9
4.2.1.4.2 Direct sequence or other spread spectrum than FHSS.9
4.2.1.5 Void.9
4.2.1.6 Adjacent channel power for channelized equipment.9
4.2.1.7 Bandwidth for non-channelized equipment .9
4.2.1.8 Unwanted emissions in the spurious domain .9
4.2.1.9 Frequency stability under low-voltage conditions .9
4.2.1.10 Duty cycle.10
4.2.1.11 Listen Before Talk (LBT) .10
4.2.1.11.1 Minimum transmitter off-time.10
4.2.1.11.2 Minimum listening time .10
4.2.1.11.3 Maximum transmitter on-time.10
4.3 Receiver requirements.10
4.3.1 Maximum usable sensitivity (conducted) .10
4.3.2 Receiver LBT threshold and transmitter max on-time.10
4.3.3 Adjacent channel selectivity .11
4.3.4 Blocking or desensitization.11
4.3.5 Spurious radiations.11
5 Testing for compliance with technical requirements.11
5.1 Description testing for compliance with technical requirements.11
5.1.1 Environmental conditions for testing.11
5.1.1.1 Normal and extreme test-conditions.11
5.1.1.2 Test power source .11
5.1.2 Choice of samples for test suites.11
5.1.3 Transmitter test suites .11
5.1.3.1 Frequency error and drift .11
5.1.3.2 Carrier power (conducted) .12
5.1.3.3 Effective radiated power .12
5.1.3.4 Adjacent channel power for channelized equipment.12
5.1.3.5 Bandwidth for non-channelized equipment .12
5.1.3.6 Unwanted emissions in the spurious domain .12
5.1.3.7 Frequency stability under low-voltage conditions .12
5.1.4 Receiver test suites.12
5.1.4.1 Maximum usable sensitivity (conducted).12
ETSI

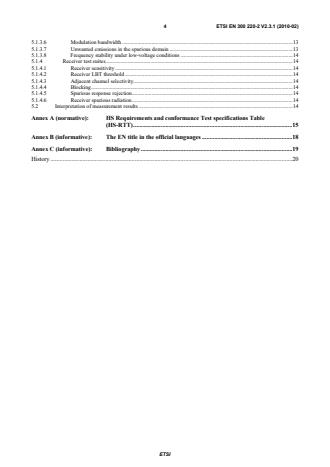

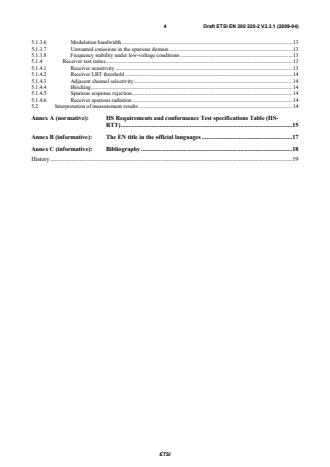

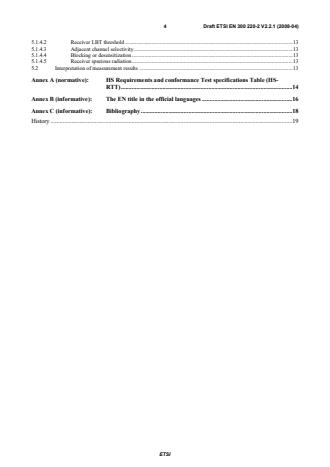

4 Draft ETSI EN 300 220-2 V2.2.1 (2008-04)
5.1.4.2 Receiver LBT threshold.13
5.1.4.3 Adjacent channel selectivity.13
5.1.4.4 Blocking or desensitization .13
5.1.4.5 Receiver spurious radiation.13
5.2 Interpretation of measurement results .13
Annex A (normative): HS Requirements and conformance Test specifications Table (HS-
RTT).14
Annex B (informative): The EN title in the official languages .16
Annex C (informative): Bibliography.18
History .19

ETSI
5 Draft ETSI EN 300 220-2 V2.2.1 (2008-04)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Electromagnetic compatibility and Radio spectrum Matters (ERM), and is now submitted for the Public Enquiry phase
of the ETSI standards Two-step Approval Procedure.
The present document includes improvements to the previous version of the standard that take advantage of technical
developments within the SRD industry.
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Council Directive 98/34/EC [3] (as amended) laying down a procedure for the provision of information in the
field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Communities referencing the Directive 1999/5/EC of the European Parliament and of
the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity ("the R&TTE Directive") [1].
Technical specifications relevant to Directive 1999/5/EC [1] are given in annex A.
The present document is part 2 of a multi-part deliverable covering the Short Range Devices (SRD); Radio equipment
to be used in the 25 MHz to 1 000 MHz frequency range with power levels ranging up to 500 mW, as identified below:
Part 1: "Technical characteristics and test methods";
Part 2: "Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive".
NOTE: Version 2 of this multi-part deliverable consists of two parts. In contrast with earlier versions which
consisted of three parts.
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 18 months after doa

Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [1]. The modular
structure is shown in EG 201 399 [4].
ETSI
6 Draft ETSI EN 300 220-2 V2.2.1 (2008-04)
1 Scope
The present document applies to the following Short Range Device major equipment types:
1) Generic Short Range Devices, including alarms, identification systems, radio-determination, telecommand,
telemetry etc.;
2) Radio Frequency IDentification (RFID);
3) Detection, movement and alert applications.
These radio equipment types are capable of operating in the permitted frequency bands within the 1 GHz to 40 GHz
range as specified in table 1:
- either with a Radio Frequency (RF) output connection and dedicated antenna or with an integral antenna;
- for all types of modulation;
- with or without speech.
Table 1 shows a list of the frequency bands as designated by the European Commission Decision on Short Range
Devices and the CEPT/ERC/REC 70-03 [5] as known at the date of publication of the present document.
Table 1: Short Range Devices within the 25 MHz to 1 000 MHz permitted frequency bands
Frequency Bands/Frequencies Applications
Transmit and Receive 26,995 MHz, 27,045 MHz, 27,095 Model control
MHz, 27,145 MHz, 27,195 MHz,
34,995 MHz to 35,225 MHz,
40,665 MHz, 40,675 MHz, 40,685
MHz, 40,695 MHz
Transmit and Receive 26,957 MHz to 27,283 MHz Generic use
Transmit and Receive 40,660 MHz to 40,700 MHz Generic use
Transmit and Receive 138,200 MHz to 138,450 MHz Generic use
Transmit and Receive 169,400 MHz to 169,475 MHz Tracking, tracing and data
acquisition and meter
reading
Transmit and Receive 169,475 MHz to 169,4875 MHz Social alarms
Transmit and Receive 169,5875 MHz to 169,6000 MHz Social alarms
Transmit and Receive 433,050 MHz to 434,790 MHz Generic use
Transmit and Receive 863,000 MHz to 870,000 MHz Generic use
Transmit and Receive 864,800 MHz to 865,000 MHz Wireless audio applications
Transmit and Receive 868,000 MHz to 868,600 MHz Generic use
Transmit and Receive 868,600 MHz to 868,700 MHz Alarms
Transmit and Receive 868,700 MHz to 869,200 MHz Generic use
Transmit and Receive 869,200 MHz to 869,250 MHz Social alarms
Transmit and Receive 869,250 MHz to 869,300 MHz Alarms (0,1 % duty cycle)
Transmit and Receive 869,300 MHz to 869,400 MHz Alarms (1 % duty cycle)
Transmit and Receive 869,400 MHz to 869,650 MHz Generic use
Transmit and Receive 869,650 MHz to 869,700 MHz Alarms

NOTE 1: It should be noted that table 1 represents the most widely implemented position within the European
Union and the CEPT countries, but it should not be assumed that all designated bands are available in all
countries.
NOTE 2: In addition, it should be noted that other frequency bands may be available in a country within the
frequency range 25 MHz to 1 000 MHz covered by the present document.
NOTE 3: On non-harmonized parameters, national administrations may impose certain conditions such as the type
of modulation, frequency, channel/frequency separations, maximum transmitter radiated power, duty
cycle, and the inclusion of an automatic transmitter shut-off facility, as a condition for the issue of an
Individual Rights for use of spectrum or General Authorization, or as a condition for use under "licence
exemption" as it is in most cases for Short Range Devices.
ETSI
7 Draft ETSI EN 300 220-2 V2.2.1 (2008-04)
The present document covers fixed stations, mobile stations and portable stations.
Applications using Ultra Wide Band (UWB) technology are not covered by the present document.
The present document does not require measurements for radiated emissions below 25 MHz.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific.
• For a specific reference, subsequent revisions do not apply.
• Non-specific reference may be made only to a complete document or a part thereof and only in the following
cases:
- if it is accepted that it will be possible to use all future changes of the referenced document for the
purposes of the referring document;
- for informative references.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
For online referenced documents, information sufficient to identify and locate the source shall be provided. Preferably,
the primary source of the referenced document should be cited, in order to ensure traceability. Furthermore, the
reference should, as far as possible, remain valid for the expected life of the document. The reference shall include the
method of access to the referenced document and the full network address, with the same punctuation and use of upper
case and lower case letters.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are indispensable for the application of the present document. For dated
references, only the edition cited applies. For non-specific references, the latest edition of the referenced document
(including any amendments) applies.
[1] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[2] ETSI EN 300 220-1 (V2.2.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Short Range Devices (SRD); Radio equipment to be used in the 25 MHz to 1 000 MHz frequency
range with power levels ranging up to 500 mW; Part 1: Technical characteristics and test
methods".
[3] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
2.2 Informative references
The following referenced documents are not essential to the use of the present document but they assist the user with
regard to a particular subject area. For non-specific references, the latest version of the referenced document (including
any amendments) applies.
[4] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to
the production of candidate Harmonized Standards for application under the R&TTE Directive".
[5] CEPT/ERC/REC 70-03: "Relating to the use of Short Range Devices (SRD)".
ETSI
8 Draft ETSI EN 300 220-2 V2.2.1 (2008-04)
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the terms and definitions given in the R&TTE Directive [1] and
EN 300 220-1 [2] apply.
3.2 Symbols
For the purposes of the present document, the symbols given in EN 300 220-1 [2] apply.
3.3 Abbreviations
For the purposes of the present document, the abbreviations given in EN 300 220-1 [2] apply.
4 Technical requirements specifications
4.1 Environmental profile
The technical requirements of the present document apply under the environmental profile for operation of the
equipment, which shall be declared by the supplier. The equipment shall comply with all the technical requirements of
the present document at all times when operating within the boundary limits of the declared operational environmental
profile.
4.2 Conformance requirements
4.2.1 Transmitter requirements
4.2.1.1 Frequency error and frequency drift
One of the following shall be met:
1) if the equipment can produce an unmodulated carrier then the frequency error or frequency drift, as defined in
EN 300 220-1 [2], clause 7.1.1, shall not exceed the limits in EN 300 220-1 [2], clause 7.1.3, table 4a for
bandwidth less or equal to 25 kHz or table 4b for bandwidth above 25 kHz; or
2) if the equipment is not able to produce an unmodulated carrier then either:
a) where channel spacing is given by EN 300 220-1 [2], clause 7.2.3, table 5 then the power at the
sub-band edge frequency, as defined in EN 300 220-1 [2], clause 7.6.1, shall not exceed the limits in
EN 300 220-1 [2], clause 7.6.3 under extreme conditions; or
b) where no channel spacing is given by EN 300 220-1 [2], clause 7.2.3, table 5 then the adjacent channel
power, as defined in EN 300 220-1 [2], clause 7.7.1, shall not exceed the limits in EN 300 220-1 [2],
clause 7.7.3 under extreme conditions.
This requirement applies to all transmitters.
4.2.1.2 Carrier power (conducted)
The carrier power, as defined in EN 300 220-1 [2], clause 7.2.1, shall not exceed the limits in
EN 300 220-1 [2], clause 7.2.3, table 5.
ETSI
9 Draft ETSI EN 300 220-2 V2.2.1 (2008-04)
4.2.1.3 Effective radiated power
The effective radiated power, as defined in EN 300 220-1 [2], clause 7.3.1, shall not exceed the limits in
EN 300 220-1 [2], clause 7.2.3, table 5.
This requirement applies to transmitters with an integral or dedicated antenna.
4.2.1.4 Types of spread spectrum modulation
4.2.1.4.1 Frequency Hopping Spread Spectrum devices (FHSS)
Frequency hopping spread spectrum devices, as defined in EN 300 220-1 [2], clause 7.4.1.1, shall not exceed the limits
in EN 300 220-1 [2], clause 7.4.1.3 indent a) to g) and table 6.
The frequency hopping performance specified in EN 300 220-1 [2], clause 7.4.1.2 shall be declared by the provider.
This applies to all transmitters which employ FHSS.
4.2.1.4.2 Direct sequence or other spread spectrum than
...

Draft ETSI EN 300 220-2 V2.3.1 (2009-04)
Harmonized European Standard (Telecommunications series)

Electromagnetic compatibility
and Radio spectrum Matters (ERM);
Short Range Devices (SRD);
Radio equipment to be used in the 25 MHz to 1 000 MHz
frequency range with power levels ranging up to 500 mW;
Part 2: Harmonized EN covering essential requirements
under article 3.2 of the R&TTE Directive

2 Draft ETSI EN 300 220-2 V2.3.1 (2009-04)

Reference
REN/ERM-TG28-0420-2
Keywords
radio, SRD, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2009.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Draft ETSI EN 300 220-2 V2.3.1 (2009-04)
Contents
Intellectual Property Rights . 5
Foreword . 5
Introduction . 5
1 Scope . 6
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 7
3 Definitions, symbols and abbreviations . 8
3.1 Definitions . 8
3.2 Symbols . 8
3.3 Abbreviations . 8
4 Technical requirements specifications . 8
4.1 Environmental profile . 8
4.2 Conformance requirements . 8
4.2.1 Transmitter requirements . 8
4.2.1.1 Frequency error and frequency drift . 8
4.2.1.2 Average power (conducted) . 9
4.2.1.3 Effective radiated power . 9
4.2.1.4 Types of spread spectrum modulation. 9
4.2.1.4.1 Frequency Hopping Spread Spectrum devices (FHSS) . 9
4.2.1.4.2 Direct sequence or other spread spectrum than FHSS . 9
4.2.1.5 Transient Power . 9
4.2.1.6 Adjacent channel power . 9
4.2.1.7 Modulation bandwidth . 9
4.2.1.8 Unwanted emissions in the spurious domain . 10
4.2.1.9 Frequency stability under low-voltage conditions . 10
4.2.1.10 Duty cycle . 10
4.2.1.11 Listen Before Talk (LBT) . 10
4.2.1.11.1 Minimum transmitter off-time . 10
4.2.1.11.2 Minimum listening time . 10
4.2.1.11.3 Maximum dead time . 10
4.2.1.11.4 Maximum transmitter on-time . 10
4.2.1.11.5 Time-out-timer . 11
4.3 Receiver requirements . 11
4.3.1 Receiver categories . 11
4.3.2 Receiver sensitivity . 11
4.3.3 Receiver LBT threshold . 11
4.3.4 Adjacent channel selectivity . 11
4.3.5 Blocking . 11
4.3.6 Spurious response rejection . 12
4.3.7 Spurious radiations . 12
5 Testing for compliance with technical requirements . 12
5.1 Description testing for compliance with technical requirements . 12
5.1.1 Environmental conditions for testing . 12
5.1.1.1 Normal and extreme test-conditions. 12
5.1.1.2 Test power source . 12
5.1.2 Choice of samples for test suites . 12
5.1.3 Transmitter test suites . 12
5.1.3.1 Frequency error and drift . 12
5.1.3.2 Average power (conducted) . 13
5.1.3.3 Effective radiated power . 13
5.1.3.4 Transient power . 13
5.1.3.5 Adjacent channel power . 13
ETSI

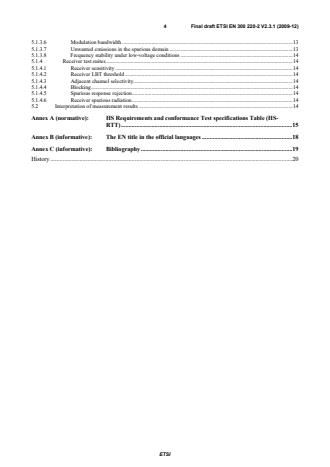

4 Draft ETSI EN 300 220-2 V2.3.1 (2009-04)
5.1.3.6 Modulation bandwidth . 13
5.1.3.7 Unwanted emissions in the spurious domain . 13
5.1.3.8 Frequency stability under low-voltage conditions . 13
5.1.4 Receiver test suites. 13
5.1.4.1 Receiver sensitivity . 13
5.1.4.2 Receiver LBT threshold . 14
5.1.4.3 Adjacent channel selectivity. 14
5.1.4.4 Blocking . 14
5.1.4.5 Spurious response rejection . 14
5.1.4.6 Receiver spurious radiation . 14
5.2 Interpretation of measurement results . 14
Annex A (normative): HS Requirements and conformance Test specifications Table (HS-
RTT) . 15
Annex B (informative): The EN title in the official languages . 17
Annex C (informative): Bibliography . 18
History . 19

ETSI
5 Draft ETSI EN 300 220-2 V2.3.1 (2009-04)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Electromagnetic compatibility and Radio spectrum Matters (ERM), and is now submitted for the Public Enquiry phase
of the ETSI standards Two-step Approval Procedure.
The present document includes improvements to the previous version of the standard that take advantage of technical
developments within the SRD industry.
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Council Directive 98/34/EC [i.2] (as amended) laying down a procedure for the provision of information in the
field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Communities referencing the Directive 1999/5/EC of the European Parliament and of
the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity ("the R&TTE Directive") [i.1].
Technical specifications relevant to Directive 1999/5/EC [i.1] are given in annex A.
The present document is part 2 of a multi-part deliverable covering the Short Range Devices (SRD); Radio equipment
to be used in the 25 MHz to 1 000 MHz frequency range with power levels ranging up to 500 mW, as identified below:
Part 1: "Technical characteristics and test methods";
Part 2: "Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive".

Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 36 months after doa

Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.1]. The
modular structure is shown in EG 201 399 [i.5].
ETSI
6 Draft ETSI EN 300 220-2 V2.3.1 (2009-04)
1 Scope
The present document applies to the following Short Range Device major equipment types:
1) Non-specific Short Range Devices.
2) Alarms, identification systems, radio-determination, telecommand, telemetry, etc.
3) Radio Frequency Identification (RFID).
4) Detection, movement and alert applications.
These radio equipment types are capable of operating in the frequency bands within the 25 MHz to 1 000 MHz range as
specified in table 1:
- either with a Radio Frequency (RF) output connection and dedicated antenna or with an integral antenna;
- for all types of modulation;
- with or without speech.
Table 1 shows a list of the frequency bands as designated to Short Range Devices by some European Commission
Decisions [i.3] and [i.4] and the CEPT/ERC/REC 70-03 [i.6] as known at the date of publication of the present
document.
Table 1: Frequency bands designated to Short Range Devices within 25 MHz to 1 000 MHz
Frequency Bands/Frequencies Applications
Transmit and Receive 26,995 MHz, 27,045 MHz, 27,095 MHz, Model control
27,145 MHz, 27,195 MHz,
34,995 MHz to 35,225 MHz,
40,665 MHz, 40,675 MHz, 40,685 MHz,
40,695 MHz
Transmit and Receive 26,957 MHz to 27,283 MHz Non-specific use
Transmit and Receive 40,660 MHz to 40,700 MHz Non-specific use
Transmit and Receive 138,200 MHz to 138,450 MHz Non-specific use
Transmit and Receive 169,400 MHz to 169,475 MHz Tracking, tracing and data
acquisition and meter reading
Transmit and Receive 169,475 MHz to 169,4875 MHz Social alarms
Transmit and Receive 169,5875 MHz to 169,6000 MHz Social alarms
Transmit and Receive 433,050 MHz to 434,790 MHz Non-specific use
Transmit and Receive 863,000 MHz to 870,000 MHz Non-specific use
Transmit and Receive 864,800 MHz to 865,000 MHz Wireless audio applications
Transmit and Receive 868,000 MHz to 868,600 MHz Non-specific use
Transmit and Receive 868,600 MHz to 868,700 MHz Alarms
Transmit and Receive 868,700 MHz to 869,200 MHz Non-specific use
Transmit and Receive 869,200 MHz to 869,250 MHz Social alarms
Transmit and Receive 869,250 MHz to 869,300 MHz Alarms (0,1 % duty cycle)
Transmit and Receive 869,300 MHz to 869,400 MHz Alarms (1 % duty cycle)
Transmit and Receive 869,400 MHz to 869,650 MHz Non-specific use
Transmit and Receive 869,650 MHz to 869,700 MHz Alarms

NOTE 1: It should be noted that table 1 represents the most widely implemented position within the European
Union and the CEPT countries, but it should not be assumed that all designated bands are available in all
countries.
NOTE 2: In addition, it should be noted that other frequency bands may be available in a country within the
frequency range 25 MHz to 1 000 MHz covered by the present document. See European Commission
Decisions on Short Range Devices [i.3] and [i.4] and CEPT/ERC/REC 70-03 [i.6] as implemented through
National Radio Interfaces (NRI) or additional NRI as relevant.
ETSI
7 Draft ETSI EN 300 220-2 V2.3.1 (2009-04)
NOTE 3: On non-harmonized parameters, national administrations may impose certain conditions such as the type
of modulation, frequency, channel/frequency separations, maximum transmitter radiated power, duty
cycle, and the inclusion of an automatic transmitter shut-off facility, as a condition for the issue of
Individual Rights for use of spectrum or General Authorization, or as a condition for use under "licence
exemption" as it is in most cases for Short Range Devices.
The present document covers fixed stations, mobile stations and portable stations.
The present document is intended to cover the provisions of article 3.2 of Directive 1999/5/EC [i.1] (R&TTE
Directive). The present document does not apply to radio equipment for which a specific Harmonized EN applies as
such Harmonized EN may specify additional EN requirements relevant to the presumption of conformity under
article 3.2 of the R&TTE Directive [i.1].
NOTE 4: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific.
• For a specific reference, subsequent revisions do not apply.
• Non-specific reference may be made only to a complete document or a part thereof and only in the following
cases:
- if it is accepted that it will be possible to use all future changes of the referenced document for the
purposes of the referring document;
- for informative references.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are indispensable for the application of the present document. For dated
references, only the edition cited applies. For non-specific references, the latest edition of the referenced document
(including any amendments) applies.
[1] ETSI EN 300 220-1 (V2.3.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Short Range Devices (SRD); Radio equipment to be used in the 25 MHz to 1 000 MHz frequency
range with power levels ranging up to 500 mW; Part 1: Technical characteristics and test
methods".
2.2 Informative references
The following referenced documents are not essential to the use of the present document but they assist the user with
regard to a particular subject area. For non-specific references, the latest version of the referenced document (including
any amendments) applies.
[i.1] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.2] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
ETSI
8 Draft ETSI EN 300 220-2 V2.3.1 (2009-04)
[i.3] Commission Decision 2006/771/EC on harmonization
...

Final draft ETSI EN 300 220-2 V2.3.1 (2009-12)
Harmonized European Standard (Telecommunications series)

Electromagnetic compatibility
and Radio spectrum Matters (ERM);
Short Range Devices (SRD);
Radio equipment to be used in the 25 MHz to 1 000 MHz
frequency range with power levels ranging up to 500 mW;
Part 2: Harmonized EN covering essential requirements
under article 3.2 of the R&TTE Directive

2 Final draft ETSI EN 300 220-2 V2.3.1 (2009-12)

Reference
REN/ERM-TG28-0420-2
Keywords
radio, SRD, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2009.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 Final draft ETSI EN 300 220-2 V2.3.1 (2009-12)
Contents
Intellectual Property Rights . 5
Foreword . 5
Introduction . 5
1 Scope . 6
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 7
3 Definitions, symbols and abbreviations . 8
3.1 Definitions . 8
3.2 Symbols . 8
3.3 Abbreviations . 8
4 Technical requirements specifications . 8
4.1 Environmental profile . 8
4.2 Conformance requirements . 9
4.2.1 Transmitter requirements . 9
4.2.1.1 Frequency error and frequency drift . 9
4.2.1.2 Average power (conducted) . 9
4.2.1.3 Effective radiated power . 9
4.2.1.4 Types of spread spectrum modulation. 9
4.2.1.4.1 Frequency Hopping Spread Spectrum devices (FHSS) . 9
4.2.1.4.2 Direct sequence or other spread spectrum than FHSS . 9
4.2.1.5 Transient Power . 9
4.2.1.6 Adjacent channel power . 10
4.2.1.7 Modulation bandwidth . 10
4.2.1.8 Unwanted emissions in the spurious domain . 10
4.2.1.9 Frequency stability under low-voltage conditions . 10
4.2.1.10 Duty cycle . 10
4.2.1.11 Listen Before Talk (LBT) . 10
4.2.1.11.1 Minimum transmitter off-time . 10
4.2.1.11.2 Minimum listening time . 10
4.2.1.11.3 Maximum dead time . 10
4.2.1.11.4 Maximum transmitter on-time . 11
4.2.1.11.5 Time-out-timer . 11
4.3 Receiver requirements . 11
4.3.1 Receiver categories . 11
4.3.2 Receiver sensitivity . 11
4.3.3 Receiver LBT threshold . 11
4.3.4 Adjacent channel selectivity . 12
4.3.5 Blocking . 12
4.3.6 Spurious response rejection . 12
4.3.7 Spurious radiations . 12
5 Testing for compliance with technical requirements . 12
5.1 Description testing for compliance with technical requirements . 12
5.1.1 Environmental conditions for testing . 12
5.1.1.1 Normal and extreme test-conditions. 12
5.1.1.2 Test power source . 12
5.1.2 Choice of samples for test suites . 12
5.1.3 Transmitter test suites . 13
5.1.3.1 Frequency error and drift . 13
5.1.3.2 Average power (conducted) . 13
5.1.3.3 Effective radiated power . 13
5.1.3.4 Transient power . 13
5.1.3.5 Adjacent channel power . 13
ETSI
4 Final draft ETSI EN 300 220-2 V2.3.1 (2009-12)
5.1.3.6 Modulation bandwidth . 13
5.1.3.7 Unwanted emissions in the spurious domain . 13
5.1.3.8 Frequency stability under low-voltage conditions . 14
5.1.4 Receiver test suites. 14
5.1.4.1 Receiver sensitivity . 14
5.1.4.2 Receiver LBT threshold . 14
5.1.4.3 Adjacent channel selectivity. 14
5.1.4.4 Blocking . 14
5.1.4.5 Spurious response rejection . 14
5.1.4.6 Receiver spurious radiation . 14
5.2 Interpretation of measurement results . 14
Annex A (normative): HS Requirements and conformance Test specifications Table (HS-
RTT) . 15
Annex B (informative): The EN title in the official languages . 18
Annex C (informative): Bibliography . 19
History . 20

ETSI
5 Final draft ETSI EN 300 220-2 V2.3.1 (2009-12)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Electromagnetic compatibility and Radio spectrum Matters (ERM), and is now submitted for the Vote phase of the
ETSI standards Two-step Approval Procedure.
The present document includes improvements to the previous version of the standard that take advantage of technical
developments within the SRD industry. It also serves the purpose of providing the requirements and associated
measurement methods to improve the intra- SRD co-existence and promote efficient spectrum use.
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Council Directive 98/34/EC [i.2] (as amended) laying down a procedure for the provision of information in the
field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Communities referencing the Directive 1999/5/EC of the European Parliament and of
the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity ("the R&TTE Directive") [i.1].
Technical specifications relevant to Directive 1999/5/EC [i.1] are given in annex A.
The present document is part 2 of a multi-part deliverable covering the Short Range Devices (SRD); Radio equipment
to be used in the 25 MHz to 1 000 MHz frequency range with power levels ranging up to 500 mW, as identified below:
Part 1: "Technical characteristics and test methods";
Part 2: "Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive".

Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 36 months after doa

Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.1]. The
modular structure is shown in EG 201 399 [i.5].
ETSI
6 Final draft ETSI EN 300 220-2 V2.3.1 (2009-12)
1 Scope
The present document applies to the following Short Range Device major equipment types:
1) Non-specific Short Range Devices.
2) Alarms, identification systems, radio-determination, telecommand, telemetry, etc.
3) Radio Frequency Identification (RFID).
4) Detection, movement and alert applications.
These radio equipment types are capable of operating in the frequency bands within the 25 MHz to 1 000 MHz range as
specified in table 1:
- either with a Radio Frequency (RF) output connection and dedicated antenna or with an integral antenna;
- for all types of modulation;
- with or without speech.
Table 1 shows a list of the frequency bands as designated to Short Range Devices by some European Commission
Decisions [i.3] and [i.4] and the CEPT/ERC/REC 70-03 [i.6] as known at the date of publication of the present
document.
NOTE 1: It should be noted that table 1 represents the most widely implemented position within the European
Union and the CEPT countries, but it should not be assumed that all designated bands are available in all
countries.
Table 1: Frequency bands commonly designated to Short Range Devices within 25 MHz to 1 000 MHz
Frequency Bands/Frequencies Applications
Transmit and Receive 26,995 MHz, 27,045 MHz, 27,095 MHz, Model control
27,145 MHz, 27,195 MHz,
34,995 MHz to 35,225 MHz,
40,665 MHz, 40,675 MHz, 40,685 MHz,
40,695 MHz
Transmit and Receive 26,957 MHz to 27,283 MHz Non-specific use
Transmit and Receive 40,660 MHz to 40,700 MHz Non-specific use
Transmit and Receive 138,200 MHz to 138,450 MHz Non-specific use
Transmit and Receive 169,400 MHz to 169,475 MHz Tracking, tracing and data
acquisition and meter reading
Transmit and Receive 169,475 MHz to 169,4875 MHz Social alarms
Transmit and Receive 169,5875 MHz to 169,6000 MHz Social alarms
Transmit and Receive 433,050 MHz to 434,790 MHz Non-specific use
Transmit and Receive 863,000 MHz to 870,000 MHz Non-specific use
Transmit and Receive 864,800 MHz to 865,000 MHz Wireless audio applications
Transmit and Receive 868,000 MHz to 868,600 MHz Non-specific use
Transmit and Receive 868,600 MHz to 868,700 MHz Alarms
Transmit and Receive 868,700 MHz to 869,200 MHz Non-specific use
Transmit and Receive 869,200 MHz to 869,250 MHz Social alarms
Transmit and Receive 869,250 MHz to 869,300 MHz Alarms (0,1 % duty cycle)
Transmit and Receive 869,300 MHz to 869,400 MHz Alarms (1 % duty cycle)
Transmit and Receive 869,400 MHz to 869,650 MHz Non-specific use
Transmit and Receive 869,650 MHz to 869,700 MHz Alarms

NOTE 2: In addition, it should be noted that other frequency bands may be available in a country within the
frequency range 25 MHz to 1 000 MHz for SRD covered by the present document. See European
Commission Decisions on Short Range Devices [i.3] and [i.4] and CEPT/ERC/REC 70-03 [i.6] as
implemented through National Radio Interfaces (NRI) or additional NRI as relevant.
ETSI
7 Final draft ETSI EN 300 220-2 V2.3.1 (2009-12)
NOTE 3: On non-harmonized parameters, national administrations may impose certain conditions such as the type
of modulation, frequency, channel/frequency separations, maximum transmitter radiated power, duty
cycle, and the inclusion of an automatic transmitter shut-off facility, as a condition for the issue of
Individual Rights for use of spectrum or General Authorization, or as a condition for use under "licence
exemption" as it is in most cases for Short Range Devices.
The present document covers fixed stations, mobile stations and portable stations.
The present document is intended to cover the provisions of article 3.2 of Directive 1999/5/EC [i.1]
(R&TTE Directive). The present document does not apply to radio equipment for which a specific Harmonized EN
applies as such Harmonized EN may specify additional EN requirements relevant to the presumption of conformity
under article 3.2 of the R&TTE Directive [i.1].
NOTE 4: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific.
• For a specific reference, subsequent revisions do not apply.
• Non-specific reference may be made only to a complete document or a part thereof and only in the following
cases:
- if it is accepted that it will be possible to use all future changes of the referenced document for the
purposes of the referring document;
- for informative references.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are indispensable for the application of the present document. For dated
references, only the edition cited applies. For non-specific references, the latest edition of the referenced document
(including any amendments) applies.
[1] ETSI EN 300 220-1 (V2.3.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Short Range Devices (SRD); Radio equipment to be used in the 25 MHz to 1 000 MHz frequency
range with power levels ranging up to 500 mW; Part 1: Technical characteristics and test
methods".
2.2 Informative references
The following referenced documents are not essential to the use of the present document but they assist the user with
regard to a particular subject area. For non-specific references, the latest version of the referenced document (including
any amendments) applies.
[i.1] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.2] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
ETSI
8 Final draft ETSI EN 300 220-2 V2.3.1 (2009-12)
[i.3] Commission Decision 2006/771/EC on harmonization of the radio spectrum for use by short-range
devices as amended by subsequent Commission Decisions.
[i.4] Commiss
...

ETSI EN 300 220-2 V2.3.1 (2010-02)
Harmonized European Standard (Telecommunications series)

Electromagnetic compatibility
and Radio spectrum Matters (ERM);
Short Range Devices (SRD);
Radio equipment to be used in the 25 MHz to 1 000 MHz
frequency range with power levels ranging up to 500 mW;
Part 2: Harmonized EN covering essential requirements
under article 3.2 of the R&TTE Directive

2 ETSI EN 300 220-2 V2.3.1 (2010-02)

Reference
REN/ERM-TG28-0420-2
Keywords
radio, SRD, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2010.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI EN 300 220-2 V2.3.1 (2010-02)
Contents
Intellectual Property Rights . 5
Foreword . 5
Introduction . 5
1 Scope . 6
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 7
3 Definitions, symbols and abbreviations . 8
3.1 Definitions . 8
3.2 Symbols . 8
3.3 Abbreviations . 8
4 Technical requirements specifications . 8
4.1 Environmental profile . 8
4.2 Conformance requirements . 9
4.2.1 Transmitter requirements . 9
4.2.1.1 Frequency error and frequency drift . 9
4.2.1.2 Average power (conducted) . 9
4.2.1.3 Effective radiated power . 9
4.2.1.4 Types of spread spectrum modulation. 9
4.2.1.4.1 Frequency Hopping Spread Spectrum devices (FHSS) . 9
4.2.1.4.2 Direct sequence or other spread spectrum than FHSS . 9
4.2.1.5 Transient Power . 9
4.2.1.6 Adjacent channel power . 10
4.2.1.7 Modulation bandwidth . 10
4.2.1.8 Unwanted emissions in the spurious domain . 10
4.2.1.9 Frequency stability under low-voltage conditions . 10
4.2.1.10 Duty cycle . 10
4.2.1.11 Listen Before Talk (LBT) . 10
4.2.1.11.1 Minimum transmitter off-time . 10
4.2.1.11.2 Minimum listening time . 10
4.2.1.11.3 Maximum dead time . 10
4.2.1.11.4 Maximum transmitter on-time . 11
4.2.1.11.5 Time-out-timer . 11
4.3 Receiver requirements . 11
4.3.1 Receiver categories . 11
4.3.2 Receiver sensitivity . 11
4.3.3 Receiver LBT threshold . 11
4.3.4 Adjacent channel selectivity . 12
4.3.5 Blocking . 12
4.3.6 Spurious response rejection . 12
4.3.7 Spurious radiations . 12
5 Testing for compliance with technical requirements . 12
5.1 Description testing for compliance with technical requirements . 12
5.1.1 Environmental conditions for testing . 12
5.1.1.1 Normal and extreme test-conditions. 12
5.1.1.2 Test power source . 12
5.1.2 Choice of samples for test suites . 12
5.1.3 Transmitter test suites . 13
5.1.3.1 Frequency error and drift . 13
5.1.3.2 Average power (conducted) . 13
5.1.3.3 Effective radiated power . 13
5.1.3.4 Transient power . 13
5.1.3.5 Adjacent channel power . 13
ETSI
4 ETSI EN 300 220-2 V2.3.1 (2010-02)
5.1.3.6 Modulation bandwidth . 13
5.1.3.7 Unwanted emissions in the spurious domain . 13
5.1.3.8 Frequency stability under low-voltage conditions . 14
5.1.4 Receiver test suites. 14
5.1.4.1 Receiver sensitivity . 14
5.1.4.2 Receiver LBT threshold . 14
5.1.4.3 Adjacent channel selectivity. 14
5.1.4.4 Blocking . 14
5.1.4.5 Spurious response rejection . 14
5.1.4.6 Receiver spurious radiation . 14
5.2 Interpretation of measurement results . 14
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 15
Annex B (informative): The EN title in the official languages . 18
Annex C (informative): Bibliography . 19
History . 20

ETSI
5 ETSI EN 300 220-2 V2.3.1 (2010-02)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Electromagnetic compatibility and Radio spectrum Matters (ERM).
The present document includes improvements to the previous version of the standard that take advantage of technical
developments within the SRD industry. It also serves the purpose of providing the requirements and associated
measurement methods to improve the intra- SRD co-existence and promote efficient spectrum use.
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Council Directive 98/34/EC [i.2] (as amended) laying down a procedure for the provision of information in the
field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Communities referencing the Directive 1999/5/EC of the European Parliament and of
the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity ("the R&TTE Directive") [i.1].
Technical specifications relevant to Directive 1999/5/EC [i.1] are given in annex A.
The present document is part 2 of a multi-part deliverable covering the Short Range Devices (SRD); Radio equipment
to be used in the 25 MHz to 1 000 MHz frequency range with power levels ranging up to 500 mW, as identified below:
Part 1: "Technical characteristics and test methods";
Part 2: "Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive".

National transposition dates
Date of adoption of this EN: 15 February 2010
Date of latest announcement of this EN (doa): 31 May 2010
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 30 November 2010
Date of withdrawal of any conflicting National Standard (dow): 31 May 2013

Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.1]. The
modular structure is shown in EG 201 399 [i.5].
ETSI
6 ETSI EN 300 220-2 V2.3.1 (2010-02)
1 Scope
The present document applies to the following Short Range Device major equipment types:
1) Non-specific Short Range Devices.
2) Alarms, identification systems, radio-determination, telecommand, telemetry, etc.
3) Radio Frequency Identification (RFID).
4) Detection, movement and alert applications.
These radio equipment types are capable of operating in the frequency bands within the 25 MHz to 1 000 MHz range as
specified in table 1:
• either with a Radio Frequency (RF) output connection and dedicated antenna or with an integral antenna;
• for all types of modulation;
• with or without speech.
Table 1 shows a list of the frequency bands as designated to Short Range Devices by some European Commission
Decisions [i.3] and [i.4] and the CEPT/ERC/REC 70-03 [i.6] as known at the date of publication of the present
document.
NOTE 1: It should be noted that table 1 represents the most widely implemented position within the European
Union and the CEPT countries, but it should not be assumed that all designated bands are available in all
countries.
Table 1: Frequency bands commonly designated to Short Range Devices within 25 MHz to 1 000 MHz
Frequency Bands/Frequencies Applications
Transmit and Receive 26,995 MHz, 27,045 MHz, 27,095 MHz, Model control
27,145 MHz, 27,195 MHz,
34,995 MHz to 35,225 MHz,
40,665 MHz, 40,675 MHz, 40,685 MHz,
40,695 MHz
Transmit and Receive 26,957 MHz to 27,283 MHz Non-specific use
Transmit and Receive 40,660 MHz to 40,700 MHz Non-specific use
Transmit and Receive 138,200 MHz to 138,450 MHz Non-specific use
Transmit and Receive 169,400 MHz to 169,475 MHz Tracking, tracing and data
acquisition and meter reading
Transmit and Receive 169,475 MHz to 169,4875 MHz Social alarms
Transmit and Receive 169,5875 MHz to 169,6000 MHz Social alarms
Transmit and Receive 433,050 MHz to 434,790 MHz Non-specific use
Transmit and Receive 863,000 MHz to 870,000 MHz Non-specific use
Transmit and Receive 864,800 MHz to 865,000 MHz Wireless audio applications
Transmit and Receive 868,000 MHz to 868,600 MHz Non-specific use
Transmit and Receive 868,600 MHz to 868,700 MHz Alarms
Transmit and Receive 868,700 MHz to 869,200 MHz Non-specific use
Transmit and Receive 869,200 MHz to 869,250 MHz Social alarms
Transmit and Receive 869,250 MHz to 869,300 MHz Alarms (0,1 % duty cycle)
Transmit and Receive 869,300 MHz to 869,400 MHz Alarms (1 % duty cycle)
Transmit and Receive 869,400 MHz to 869,650 MHz Non-specific use
Transmit and Receive 869,650 MHz to 869,700 MHz Alarms

NOTE 2: In addition, it should be noted that other frequency bands may be available in a country within the
frequency range 25 MHz to 1 000 MHz for SRD covered by the present document. See European
Commission Decisions on Short Range Devices [i.3] and [i.4] and CEPT/ERC/REC 70-03 [i.6] as
implemented through National Radio Interfaces (NRI) or additional NRI as relevant.
ETSI
7 ETSI EN 300 220-2 V2.3.1 (2010-02)
NOTE 3: On non-harmonized parameters, national administrations may impose certain conditions such as the type
of modulation, frequency, channel/frequency separations, maximum transmitter radiated power, duty
cycle, and the inclusion of an automatic transmitter shut-off facility, as a condition for the issue of
Individual Rights for use of spectrum or General Authorization, or as a condition for use under "licence
exemption" as it is in most cases for Short Range Devices.
The present document covers fixed stations, mobile stations and portable stations.
The present document is intended to cover the provisions of article 3.2 of Directive 1999/5/EC [i.1]
(R&TTE Directive). The present document does not apply to radio equipment for which a specific Harmonized EN
applies as such Harmonized EN may specify additional EN requirements relevant to the presumption of conformity
under article 3.2 of the R&TTE Directive [i.1].
NOTE 4: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific.
• For a specific reference, subsequent revisions do not apply.
• Non-specific reference may be made only to a complete document or a part thereof and only in the following
cases:
- if it is accepted that it will be possible to use all future changes of the referenced document for the
purposes of the referring document;
- for informative references.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are indispensable for the application of the present document. For dated
references, only the edition cited applies. For non-specific references, the latest edition of the referenced document
(including any amendments) applies.
[1] ETSI EN 300 220-1 (V2.3.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Short Range Devices (SRD); Radio equipment to be used in the 25 MHz to 1 000 MHz frequency
range with power levels ranging up to 500 mW; Part 1: Technical characteristics and test
methods".
2.2 Informative references
The following referenced documents are not essential to the use of the present document but they assist the user with
regard to a particular subject area. For non-specific references, the latest version of the referenced document (including
any amendments) applies.
[i.1] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.2] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a
procedure for the provision of information in the field of technical standards and regulations.
ETSI
8 ETSI EN 300 220-2 V2.3.1 (2010-02)
[i.3] Commission Decision 2006/771/EC on harmonization of the radio spectrum for use by short-range
devices as amended by subsequent Commission Decisions.
[i.4] Commission Decision 2005/928/EC on the harmon
...

SLOVENSKI STANDARD
01-april-2010
(OHNWURPDJQHWQD]GUXåOMLYRVWLQ]DGHYHY]YH]L]UDGLMVNLPVSHNWURP(50
1DSUDYHNUDWNHJDGRVHJD65'5DGLMVNDRSUHPDNLVHXSRUDEOMDYIUHNYHQþQHP
REPRþMXRG0+]GR0+]]PRþQRVWQLPLQLYRMLGRQDMYHþP:GHO
+DUPRQL]LUDQL(1NL]DMHPDELVWYHQH]DKWHYHþOHQDGLUHNWLYH5 77(
Electromagnetic compatibility and Radio spectrum Matters (ERM) - Short Range Devices
(SRD) - Radio equipment to be used in the 25 MHz to 1 000 MHz frequency range with
power levels ranging up to 500 mW - Part 2: Harmonized EN covering essential
requirements under article 3.2 of the R&TTE Directive
Ta slovenski standard je istoveten z: EN 300 220-2 Version 2.3.1
ICS:
33.060.20 Sprejemna in oddajna Receiving and transmitting
oprema equipment
33.100.01 Elektromagnetna združljivost Electromagnetic compatibility
na splošno in general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

ETSI EN 300 220-2 V2.3.1 (2010-02)
Harmonized European Standard (Telecommunications series)

Electromagnetic compatibility
and Radio spectrum Matters (ERM);
Short Range Devices (SRD);
Radio equipment to be used in the 25 MHz to 1 000 MHz
frequency range with power levels ranging up to 500 mW;
Part 2: Harmonized EN covering essential requirements
under article 3.2 of the R&TTE Directive

2 ETSI EN 300 220-2 V2.3.1 (2010-02)

Reference
REN/ERM-TG28-0420-2
Keywords
radio, SRD, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2010.
All rights reserved.
TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI
3 ETSI EN 300 220-2 V2.3.1 (2010-02)
Contents
Intellectual Property Rights . 5
Foreword . 5
Introduction . 5
1 Scope . 6
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 7
3 Definitions, symbols and abbreviations . 8
3.1 Definitions . 8
3.2 Symbols . 8
3.3 Abbreviations . 8
4 Technical requirements specifications . 8
4.1 Environmental profile . 8
4.2 Conformance requirements . 9
4.2.1 Transmitter requirements . 9
4.2.1.1 Frequency error and frequency drift . 9
4.2.1.2 Average power (conducted) . 9
4.2.1.3 Effective radiated power . 9
4.2.1.4 Types of spread spectrum modulation. 9
4.2.1.4.1 Frequency Hopping Spread Spectrum devices (FHSS) . 9
4.2.1.4.2 Direct sequence or other spread spectrum than FHSS . 9
4.2.1.5 Transient Power . 9
4.2.1.6 Adjacent channel power . 10
4.2.1.7 Modulation bandwidth . 10
4.2.1.8 Unwanted emissions in the spurious domain . 10
4.2.1.9 Frequency stability under low-voltage conditions . 10
4.2.1.10 Duty cycle . 10
4.2.1.11 Listen Before Talk (LBT) . 10
4.2.1.11.1 Minimum transmitter off-time . 10
4.2.1.11.2 Minimum listening time . 10
4.2.1.11.3 Maximum dead time . 10
4.2.1.11.4 Maximum transmitter on-time . 11
4.2.1.11.5 Time-out-timer . 11
4.3 Receiver requirements . 11
4.3.1 Receiver categories . 11
4.3.2 Receiver sensitivity . 11
4.3.3 Receiver LBT threshold . 11
4.3.4 Adjacent channel selectivity . 12
4.3.5 Blocking . 12
4.3.6 Spurious response rejection . 12
4.3.7 Spurious radiations . 12
5 Testing for compliance with technical requirements . 12
5.1 Description testing for compliance with technical requirements . 12
5.1.1 Environmental conditions for testing . 12
5.1.1.1 Normal and extreme test-conditions. 12
5.1.1.2 Test power source . 12
5.1.2 Choice of samples for test suites . 12
5.1.3 Transmitter test suites . 13
5.1.3.1 Frequency error and drift . 13
5.1.3.2 Average power (conducted) . 13
5.1.3.3 Effective radiated power . 13
5.1.3.4 Transient power . 13
5.1.3.5 Adjacent channel power . 13
ETSI
4 ETSI EN 300 220-2 V2.3.1 (2010-02)
5.1.3.6 Modulation bandwidth . 13
5.1.3.7 Unwanted emissions in the spurious domain . 13
5.1.3.8 Frequency stability under low-voltage conditions . 14
5.1.4 Receiver test suites. 14
5.1.4.1 Receiver sensitivity . 14
5.1.4.2 Receiver LBT threshold . 14
5.1.4.3 Adjacent channel selectivity. 14
5.1.4.4 Blocking . 14
5.1.4.5 Spurious response rejection . 14
5.1.4.6 Receiver spurious radiation . 14
5.2 Interpretation of measurement results . 14
Annex A (normative): HS Requirements and conformance Test specifications Table
(HS-RTT) . 15
Annex B (informative): The EN title in the official languages . 18
Annex C (informative): Bibliography . 19
History . 20

ETSI
5 ETSI EN 300 220-2 V2.3.1 (2010-02)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee
Electromagnetic compatibility and Radio spectrum Matters (ERM).
The present document includes improvements to the previous version of the standard that take advantage of technical
developments within the SRD industry. It also serves the purpose of providing the requirements and associated
measurement methods to improve the intra- SRD co-existence and promote efficient spectrum use.
The present document has been produced by ETSI in response to a mandate from the European Commission issued
under Council Directive 98/34/EC [i.2] (as amended) laying down a procedure for the provision of information in the
field of technical standards and regulations.
The present document is intended to become a Harmonized Standard, the reference of which will be published in the
Official Journal of the European Communities referencing the Directive 1999/5/EC of the European Parliament and of
the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual
recognition of their conformity ("the R&TTE Directive") [i.1].
Technical specifications relevant to Directive 1999/5/EC [i.1] are given in annex A.
The present document is part 2 of a multi-part deliverable covering the Short Range Devices (SRD); Radio equipment
to be used in the 25 MHz to 1 000 MHz frequency range with power levels ranging up to 500 mW, as identified below:
Part 1: "Technical characteristics and test methods";
Part 2: "Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive".

National transposition dates
Date of adoption of this EN: 15 February 2010
Date of latest announcement of this EN (doa): 31 May 2010
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 30 November 2010
Date of withdrawal of any conflicting National Standard (dow): 31 May 2013

Introduction
The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to
cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [i.1]. The
modular structure is shown in EG 201 399 [i.5].
ETSI
6 ETSI EN 300 220-2 V2.3.1 (2010-02)
1 Scope
The present document applies to the following Short Range Device major equipment types:
1) Non-specific Short Range Devices.
2) Alarms, identification systems, radio-determination, telecommand, telemetry, etc.
3) Radio Frequency Identification (RFID).
4) Detection, movement and alert applications.
These radio equipment types are capable of operating in the frequency bands within the 25 MHz to 1 000 MHz range as
specified in table 1:
• either with a Radio Frequency (RF) output connection and dedicated antenna or with an integral antenna;
• for all types of modulation;
• with or without speech.
Table 1 shows a list of the frequency bands as designated to Short Range Devices by some European Commission
Decisions [i.3] and [i.4] and the CEPT/ERC/REC 70-03 [i.6] as known at the date of publication of the present
document.
NOTE 1: It should be noted that table 1 represents the most widely implemented position within the European
Union and the CEPT countries, but it should not be assumed that all designated bands are available in all
countries.
Table 1: Frequency bands commonly designated to Short Range Devices within 25 MHz to 1 000 MHz
Frequency Bands/Frequencies Applications
Transmit and Receive 26,995 MHz, 27,045 MHz, 27,095 MHz, Model control
27,145 MHz, 27,195 MHz,
34,995 MHz to 35,225 MHz,
40,665 MHz, 40,675 MHz, 40,685 MHz,
40,695 MHz
Transmit and Receive 26,957 MHz to 27,283 MHz Non-specific use
Transmit and Receive 40,660 MHz to 40,700 MHz Non-specific use
Transmit and Receive 138,200 MHz to 138,450 MHz Non-specific use
Transmit and Receive 169,400 MHz to 169,475 MHz Tracking, tracing and data
acquisition and meter reading
Transmit and Receive 169,475 MHz to 169,4875 MHz Social alarms
Transmit and Receive 169,5875 MHz to 169,6000 MHz Social alarms
Transmit and Receive 433,050 MHz to 434,790 MHz Non-specific use
Transmit and Receive 863,000 MHz to 870,000 MHz Non-specific use
Transmit and Receive 864,800 MHz to 865,000 MHz Wireless audio applications
Transmit and Receive 868,000 MHz to 868,600 MHz Non-specific use
Transmit and Receive 868,600 MHz to 868,700 MHz Alarms
Transmit and Receive 868,700 MHz to 869,200 MHz Non-specific use
Transmit and Receive 869,200 MHz to 869,250 MHz Social alarms
Transmit and Receive 869,250 MHz to 869,300 MHz Alarms (0,1 % duty cycle)
Transmit and Receive 869,300 MHz to 869,400 MHz Alarms (1 % duty cycle)
Transmit and Receive 869,400 MHz to 869,650 MHz Non-specific use
Transmit and Receive 869,650 MHz to 869,700 MHz Alarms

NOTE 2: In addition, it should be noted that other frequency bands may be available in a country within the
frequency range 25 MHz to 1 000 MHz for SRD covered by the present document. See European
Commission Decisions on Short Range Devices [i.3] and [i.4] and CEPT/ERC/REC 70-03 [i.6] as
implemented through National Radio Interfaces (NRI) or additional NRI as relevant.
ETSI
7 ETSI EN 300 220-2 V2.3.1 (2010-02)
NOTE 3: On non-harmonized parameters, national administrations may impose certain conditions such as the type
of modulation, frequency, channel/frequency separations, maximum transmitter radiated power, duty
cycle, and the inclusion of an automatic transmitter shut-off facility, as a condition for the issue of
Individual Rights for use of spectrum or General Authorization, or as a condition for use under "licence
exemption" as it is in most cases for Short Range Devices.
The present document covers fixed stations, mobile stations and portable stations.
The present document is intended to cover the provisions of article 3.2 of Directive 1999/5/EC [i.1]
(R&TTE Directive). The present document does not apply to radio equipment for which a specific Harmonized EN
applies as such Harmonized EN may specify additional EN requirements relevant to the presumption of conformity
under article 3.2 of the R&TTE Directive [i.1].
NOTE 4: A list of such ENs is included on the web site http://www.newapproach.org.
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific.
• For a specific reference, subsequent revisions do not apply.
• Non-specific reference may be made only to a complete document or a part thereof and only in the following
cases:
- if it is accepted that it will be possible to use all future changes of the referenced document for the
purposes of the referring document;
- for informative references.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are indispensable for the application of the present document. For dated
references, only the edition cited applies. For non-specific references, the latest edition of the referenced document
(including any amendments) applies.
[1] ETSI EN 300 220-1 (V2.3.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Short Range Devices (SRD); Radio equipment to be used in the 25 MHz to 1 000 MHz frequency
range with power levels ranging up to 500 mW; Part 1: Technical characteristics and test
methods".
2.2 Informative references
The following referenced documents are not essential to the use of the present document but they assist the user with
regard to a particular subject area. For non-specific references, the latest version of the referenced document (including
any amendments) applies.
[i.1] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio
equipment and telecommunications terminal equipment and the mutual recognition of their
conformity (R&TTE Directive).
[i.2] Directiv
...
