SIST ETS 300 926 E1:2003

Digital cellular telecommunications system (Phase 2+) (GSM); Voice Broadcast Service (VBS); Stage 1 (GSM 02.69 version 5.1.1)

This European Telecommunication Standard (ETS) specifies the stage one  description of the Voice Broadcast Service (VBS) which allows the dist ribution of speech (or other signals which can be transmitted via the speech co dec), generated by a service subscriber, into a predefined geographical area to all or a group of service subscribers located in this area. [Remark: A similar service might be provided for the distribution of d ata messages. This service is not treated in the present stage 1 descripti on. However, the principle requirements and realizations should be co-ordi nated and synergies with the respective work item on General Packet Radio Servic e (GPRS) regarded.] The Voice Broadcast Service (VBS) is applicable to all mobile stations in a certain network and area which have the technical capability and the r espective subscription to receive a VBS call. NOTE:   It is not considered as requirement that normal GSM phase 2 mobi le stations will be able to be used for this service. The service is described from the service subscriber s and user s poin t of view; in particular: -   the procedure for normal operation with successful outcome; -   the action to be taken in exceptional circumstances; -   the interaction with other GSM services and features. This ETS does not deal with the Man-Machine Interface (MMI) requiremen ts, but makes reference to the appropriate Global System for Mobile communicat ions (GSM) specifications. This ETS defines a teleservice of the digital cellular telecommunicati on system GSM. Any interaction with other services and/or networks not dealt wit hin clauses 8 or 9 are outside the scope of this ETS.

Digitalni celični telekomunikacijski sistem (faza 2+); – Storitev govorne radiodifuzije (VBS) - – 1. stopnja (GSM 02.69, različica 5.1.1)

General Information

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 33.070.50 - Global System for Mobile Communication (GSM)
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Mandate: UIC
• Ref Project: ETSI ETS 300 926 ed.1 (1997-05) - Digital cellular telecommunications system (Phase 2+) (GSM); Voice Broadcast Service (VBS); Stage 1 (GSM 02.69 version 5.1.1)

Standards Content (Sample)

SLOVENSKI STANDARD
SIST ETS 300 926 E1:2003
01-december-2003
'LJLWDOQLFHOLþQLWHOHNRPXQLNDFLMVNLVLVWHPID]D±6WRULWHYJRYRUQH
UDGLRGLIX]LMH9%6±VWRSQMD*60UD]OLþLFD
Digital cellular telecommunications system (Phase 2+) (GSM); Voice Broadcast Service
(VBS); Stage 1 (GSM 02.69 version 5.1.1)
Ta slovenski standard je istoveten z: ETS 300 926 Edition 1
ICS:
33.070.50 Globalni sistem za mobilno Global System for Mobile
telekomunikacijo (GSM) Communication (GSM)
SIST ETS 300 926 E1:2003 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST ETS 300 926 E1:2003

---------------------- Page: 2 ----------------------

SIST ETS 300 926 E1:2003
EUROPEAN ETS 300 926
TELECOMMUNICATION May 1997
STANDARD
Source: ETSI TC-SMG Reference: DE/SMG-010269QR
ICS: 33.020
Key words: Digital cellular telecommunications system, Global System for Mobile communications (GSM)
R
GLOBAL SYSTEM FOR
MOBILE COMMUNICATIONS
Digital cellular telecommunications system (Phase 2+);
Voice Broadcast Service (VBS) - Stage 1
(GSM 02.69 version 5.1.1)
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
Postal address: F-06921 Sophia Antipolis CEDEX - FRANCE
Office address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
X.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: [e-mail]
Tel.: [phone] - Fax: [phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright
and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1997. All rights reserved.

---------------------- Page: 3 ----------------------

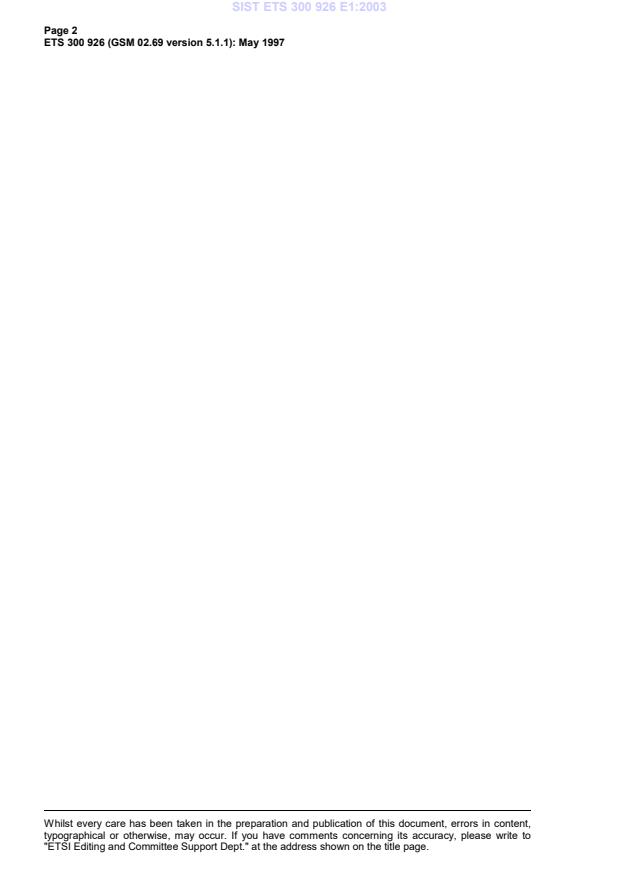

SIST ETS 300 926 E1:2003
Page 2
ETS 300 926 (GSM 02.69 version 5.1.1): May 1997
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

---------------------- Page: 4 ----------------------

SIST ETS 300 926 E1:2003
Page 3
ETS 300 926 (GSM 02.69 version 5.1.1): May 1997
Contents
Foreword .5
1 Scope .7
2 Normative references.7
3 Definitions and abbreviations .8
3.1 Definitions .8
3.2 Abbreviations .8
4 Description .9
5 Normal operation with successful outcome.12
5.1 Provision .12
5.2 Withdrawal .12
5.3 Network related service configuration.12
5.4 Normal operation for voice broadcast call establishment .12
5.5 Charging requirements .13
6 Exceptional procedures or unsuccessful outcome.13
7 Interaction with GSM services and features.13
7.1 Calling Line Identification Presentation (CLIP) .13
7.2 Calling Line Identification Restriction (CLIR) .13
7.3 Connected Line Identification Presentation (COLP) .13
7.4 Connected Line Identification Restriction (COLR) .13
7.5 Call Forwarding Unconditional (CFU) .13
7.6 Call Forwarding on mobile subscriber Busy (CFB).14
7.7 Call Forwarding on No Reply (CFNRy).14
7.8 Call Forwarding on mobile subscriber Not Reachable (CFNRc) .14
7.9 Call Waiting (CW).14
7.10 Call Hold (HOLD).14
7.11 Multi-party Service (MPTY).14
7.12 Closed User Group (CUG).14
7.13 Advice of Charge (AoC).14
7.14 Barring of All Outgoing Calls (BAOC) .14
7.15 Barring of Outgoing International Calls (BOIC).15
7.16 Barring of Outgoing International Calls except those directed to the Home PLMN
country (BOIC-exHC).15
7.17 Barring of All Incoming Calls (BAIC).15
7.18 Barring of Incoming Calls when Roaming outside the home PLMN country (BIC-Roam).15
7.19 Call Transfer (ECT).15
7.20 Completion of Calls to Busy Subscriber (CCBS) .15
[7.21 enhanced Multi-Level Precedence and Pre-emption service (eMLPP) .15
7.22 Short Message Service (SMS).15
8 Interworking considerations.15
Annex A (informative): Status of Technical Specification GSM 02.69 .16
History.17

---------------------- Page: 5 ----------------------

SIST ETS 300 926 E1:2003
Page 4
ETS 300 926 (GSM 02.69 version 5.1.1): May 1997
Blank page

---------------------- Page: 6 ----------------------

SIST ETS 300 926 E1:2003
Page 5
ETS 300 926 (GSM 02.69 version 5.1.1): May 1997
Foreword
This European Telecommunication Standard (ETS) has been produced by the Special Mobile Group
(SMG) Technical Committee (TC) of the European Telecommunications Standards Institute (ETSI).
This ETS specifies the stage one description of the Voice Broadcast Service (VBS) within the digital
cellular telecommunications system.
The contents of this ETS is subject to continuing work within TC-SMG and may change following formal
TC-SMG approval. Should TC-SMG modify the contents of this ETS, it will be resubmitted for OAP by
ETSI with an identifying change of release date and an increase in version number as follows:
Version 5.x.y
where:
y the third digit is incremented when editorial only changes have been incorporated in the
specification;
x the second digit is incremented for all other types of changes, i.e. technical enhancements,
corrections, updates, etc.
Transposition dates
Date of adoption: 18 April 1997
Date of latest announcement of this ETS (doa): 31 August 1997
Date of latest publication of new National Standard
or endorsement of this ETS (dop/e): 28 February 1998
Date of withdrawal of any conflicting National Standard (dow): 28 February 1998

---------------------- Page: 7 ----------------------

SIST ETS 300 926 E1:2003
Page 6
ETS 300 926 (GSM 02.69 version 5.1.1): May 1997
Blank page

---------------------- Page: 8 ----------------------

SIST ETS 300 926 E1:2003
Page 7
ETS 300 926 (GSM 02.69 version 5.1.1): May 1997
1 Scope
This European Telecommunication Standard (ETS) specifies the stage one description of the Voice
Broadcast Service (VBS) which allows the distribution of speech (or other signals which can be
transmitted via the speech codec), generated by a service subscriber, into a predefined geographical area
to all or a group of service subscribers located in this area.
[Remark: A similar service might be provided for the distribution of data messages. This service is not
treated in the present stage 1 description. However, the principle requirements and realizations should be
co-ordinated and synergies with the respective work item on General Packet Radio Service (GPRS)
regarded.]
The Voice Broadcast Service (VBS) is applicable to all mobile stations in a certain network and area which
have the technical capability and the respective subscription to receive a VBS call.
NOTE: It is not considered as requirement that normal GSM phase 2 mobile stations will be
able to be used for this service.
The service is described from the service subscriber's and user's point of view; in particular:
- the procedure for normal operation with successful outcome;
- the action to be taken in exceptional circumstances;
- the interaction with other GSM services and features.
This ETS does not deal with the Man-Machine Interface (MMI) requirements, but makes reference to the
appropriate Global System for Mobile communications (GSM) specifications.
This ETS defines a teleservice of the digital cellular telecommunication system GSM. Any interaction with
other services and/or networks not dealt within clauses 8 or 9 are outside the scope of this ETS.
2 Normative references
This ETS incorporates by dated and undated reference, provisions from other publications. These
normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated references, subsequent amendments to or revisions of any of these publications
apply to this ETS only when incorporated in it by the amendment or revision. For undated references, the
latest edition of the publication referred to applies.
[1] GSM 01.04 (ETR 350): "Digital cellular telecommunications system (Phase 2+);
Abbreviations and acronyms".
[2] GSM 02.40: "Digital cellular telecommunications system; Procedures for call
progress indications".
[3] GSM 02.67 (ETS 300 924): "Digital cellular telecommunications system
(Phase 2+); enhanced Multi-Level Precedence and Pre-emption service
(eMLPP) - Stage 1".
[4] GSM 12.05: (ETS 300 616) "Digital cellular telecommunications system
(Phase 2); Subscriber related event and call data".

---------------------- Page: 9 ----------------------

SIST ETS 300 926 E1:2003
Page 8
ETS 300 926 (GSM 02.69 version 5.1.1): May 1997
3 Definitions and abbreviations
3.1 Definitions
For the purposes of this ETS, the following definitions apply:
network operator: Entity which provides the network operating elements and resources for the execution
of the VBS.
service provider: Entity which offers the VBS for subscription. The network operator may be the service
provider.
service subscriber: Mobile subscriber which subscribes to the VBS.
voice broadcast call: An instance of the VBS initiated by a VBS subscriber. This term is used
synonymously with the term "VBS call".
group identification (group ID): A numerical classification. The maximum number of group IDs which
can be defined in one PLMN depends on the maximum number of group call areas defined in this PLMN.
8
The maximum number of group IDs and group call areas shall be 10 -1, Service subscriber shall be
provided with one or up to 50 group IDs.
dispatcher: Particular fixed line or mobile users are identified within the network as dispatchers.
Dispatchers shall receive all voice broadcast calls to a certain group ID in a group call area (this shall be
done automatically by the network). In addition they can initiate voice broadcast calls to a group ID in a
group call area.
Dispatchers shall be connected to a voice broadcast call by means of standard links via radio or via
an ISDN. They shall be called by their ISDN or MSISDN number, respectively. When dispatchers
initiate voice broadcast calls, they shall call a particular MSISDN number which is related to a group
ID and group call area. Dispatchers using the GSM network can be located outside of this group
call area.
The identities of the dispatchers are exclusively predefined in the network by the service provider.
There will be none or up to five dispatchers involved in a particular voice broadcast call.
destination subscriber: Service subscriber or dispatcher to which the VBS call is directed.
calling subscriber: Service subscriber or dispatcher which invokes the VBS call.
group call area: Predefined area composed of one or a cluster of cells, to which a particular VBS call is
distributed. The maximum number of group call area IDs which can be defined in one PLMN depends on
the maximum number of group IDs defined in this PLMN. The maximum number of group IDs and group
8
call areas shall be 10 -1, The composition of a group call area is predefined in the network by the service
provider. Changing of cell allocations in the network due to operational reasons will need an adaptation of
the group call area definition. The group call area may include cells of more then one MSC area and cells
of more than one PLMN.
3.2 Abbreviations
Abbreviations used in this ETS are listed in GSM 01.04.

---------------------- Page: 10 ----------------------

SIST ETS 300 926 E1:2003
Page 9
ETS 300 926 (GSM 02.69 version 5.1.1): May 1997
4 Description
The VBS is defined in the following. Figure 1 gives an explanation of the logical concept of the VBS.
a) The VBS enables a calling subscriber to send speech unidirectional and simultaneously to all
entitled dispatchers and to destination subscribers belonging to a predefined group call area who
have a subscription to the applicable group ID.
[Remark: calls with the possibilities of semi-duplex conversation between the service subscribers
involved are not subject to the VBS but are treated in an additional stage 1 description on Voice
Group Call Service (VGCS).]
b) The calling subscriber may be any service subscriber which has subscribed to the related group ID
and is entitled to establish a voice broadcast call by his subscription or any dispatcher who is
entitled for it by his identity which shall be registered in the network.
The destination subscriber may be any service subscriber which has subscribed to the related
group ID or any dispatcher who is entitled for it by his identity which is registered in the network.
c) The broadcast call shall be established in a group call area which is comprised of one or a cluster of
ce
...
