Fixed Radio Systems; Point-to-point equipment; Parameters for digital radio systems for the transmission of digital signals and analogue video signals operating at around 58 GHz, which do not require co-ordinated frequency planning

Modification of the 50 MHz spectrum mask, antenna requirements and editorial changes to improve clearance of the text.

Fiksni radijski sistemi – Oprema tipa točka-točka – Parametri radiorelejnih sistemov za prenos digitalnih signalov in analognih video signalov, ki delujejo na frekvenci okrog 58 GHz in ne zahtevajo koordiniranega frekvenčnega planiranja

General Information

Status
Published
Publication Date
30-Nov-2003
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Dec-2003
Due Date
01-Dec-2003
Completion Date
01-Dec-2003

Buy Standard

Standard
SIST EN 300 408 V1.3.1:2003
English language
23 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.LRUHOHMQLKFixed Radio Systems; Point-to-point equipment; Parameters for digital radio systems for the transmission of digital signals and analogue video signals operating at around 58 GHz, which do not require co-ordinated frequency planning33.060.30Radiorelejni in fiksni satelitski komunikacijski sistemiRadio relay and fixed satellite communications systems33.040.20Prenosni sistemTransmission systemsICS:Ta slovenski standard je istoveten z:EN 300 408 Version 1.3.1SIST EN 300 408 V1.3.1:2003en01-december-2003SIST EN 300 408 V1.3.1:2003SLOVENSKI

STANDARD
SIST EN 300 408 V1.3.1:2003

ETSI EN 300 408 V1.3.1 (2002-11)European Standard (Telecommunications series) Fixed Radio Systems;Point-to-point equipment;Parameters for digital radio systems for the transmissionof digital signals and analogue video signalsoperating at around 58 GHz, which do not requireco-ordinated frequency planning

SIST EN 300 408 V1.3.1:2003

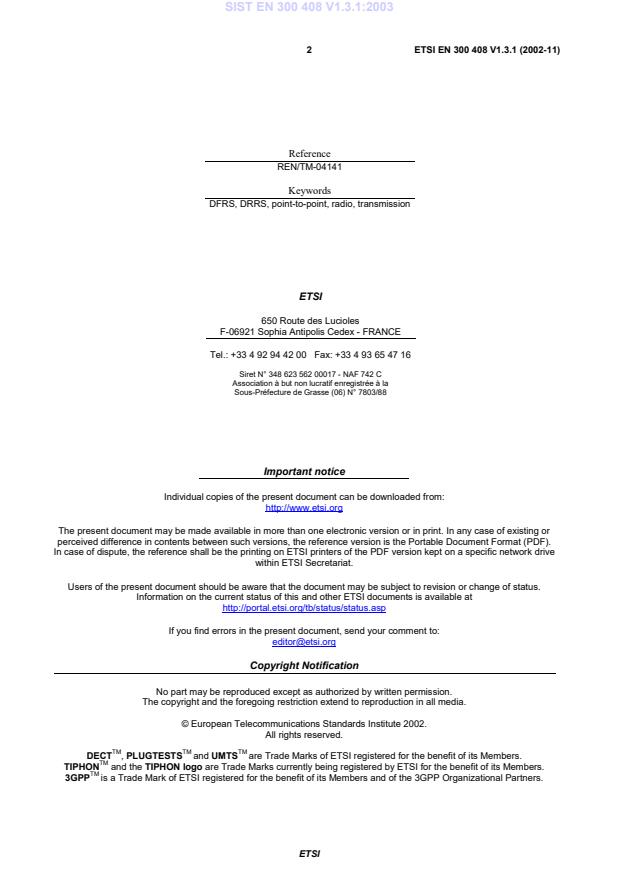

ETSI ETSI EN 300 408 V1.3.1 (2002-11)2

Reference REN/TM-04141 Keywords DFRS, DRRS, point-to-point, radio, transmission ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88

Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, send your comment to: editor@etsi.org Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2002. All rights reserved.

DECTTM, PLUGTESTSTM and UMTSTM are Trade Marks of ETSI registered for the benefit of its Members. TIPHONTM and the TIPHON logo are Trade Marks currently being registered by ETSI for the benefit of its Members. 3GPPTM is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. SIST EN 300 408 V1.3.1:2003

ETSI ETSI EN 300 408 V1.3.1 (2002-11)3

Contents Intellectual Property Rights................................................................................................................................5 Foreword.............................................................................................................................................................5 1 Scope........................................................................................................................................................6 2 References................................................................................................................................................6 3 Symbols and abbreviations.......................................................................................................................8 3.1 Symbols..............................................................................................................................................................8 3.2 Abbreviations.....................................................................................................................................................8 4 General characteristics.............................................................................................................................8 4.1 Frequency bands and channel arrangements......................................................................................................8 4.1.1 Frequency band.............................................................................................................................................8 4.1.2 Radio channel arrangements.........................................................................................................................8 4.1.3 RF-channel selection.....................................................................................................................................9 4.1.3.1 RF-channel selection procedure..............................................................................................................9 4.1.3.2 Interference avoidance requirements.......................................................................................................9 4.1.3.2.1 Interference avoidance limit..............................................................................................................9 4.1.3.2.2 Interference avoidance limit calibration............................................................................................9 4.1.3.3 Frequency agility.....................................................................................................................................9 4.1.4 Transmit/receive frequency separation.........................................................................................................9 4.2 Environmental conditions.................................................................................................................................10 4.2.1 Equipment within weather protected locations (indoor locations)..............................................................10 4.2.2 Equipment for non-weather protected locations (outdoor locations)..........................................................10 4.3 ElectroMagnetic Compatibility........................................................................................................................10 4.4 Baseband interface...........................................................................................................................................10 4.5 System block diagram......................................................................................................................................10 4.6 Antennas and RF-interface...............................................................................................................................11 4.6.1 Antenna requirements.................................................................................................................................11 4.6.2 RF interface................................................................................................................................................11 4.7 Power supply....................................................................................................................................................11 5 Parameters for digital systems................................................................................................................11 5.1 Transmission capacity......................................................................................................................................11 5.2 Error-performance and availability requirements for Class A equipment........................................................11 5.3 Transmitter characteristics................................................................................................................................12 5.3.1 Transmitter power.......................................................................................................................................12 5.3.1.1 Transmitter power range.......................................................................................................................12 5.3.1.2 Equivalent Isotropically Radiated Power (EIRP)..................................................................................12 5.3.2 Radiated spectrum......................................................................................................................................12 5.3.2.1 RF spectrum mask.................................................................................................................................12 5.3.2.2 Spurious emissions................................................................................................................................12 5.3.3 Radio frequency tolerance..........................................................................................................................12 5.4 Receiver characteristics....................................................................................................................................13 5.4.1 Spurious emissions.....................................................................................................................................13 6 Parameters for wideband analogue systems...........................................................................................13 6.1 Transmitter characteristics................................................................................................................................13 6.1.1 Power..........................................................................................................................................................13 6.1.1.1 Transmitter power range.......................................................................................................................13 6.1.1.2 EIRP......................................................................................................................................................13 6.1.2 Radiated spectrum......................................................................................................................................13 6.1.2.1 Spectrum mask......................................................................................................................................13 6.1.2.2 Spurious emissions................................................................................................................................13 6.1.3 RF frequency tolerance...............................................................................................................................13 6.2 Receiver characteristics, spurious emissions....................................................................................................14 Annex A (informative): Additional information..................................................................................15 SIST EN 300 408 V1.3.1:2003

ETSI ETSI EN 300 408 V1.3.1 (2002-11)4

A.1 Additional information on Class A and Class B....................................................................................15 A.2 Radio frequency channel arrangement...................................................................................................15 A.3 Antenna alignment procedures...............................................................................................................16 Annex B: Void........................................................................................................................................17 Annex C (normative): System type codes for regulatory procedures.............................................18 Annex D (informative): Rationale for the interference limit formula...............................................19 D.1 Analysis of the quality value for the channel selection procedure.........................................................19 D.1.1 Theoretical background....................................................................................................................................19 D.1.2 Typical co-channel interference situation when channel rejection threshold is used.......................................19 D.2 Protection capability of the RF-channel selection procedure.................................................................20 D.3 Frequency agility criteria........................................................................................................................21 Annex E (informative): Bibliography...................................................................................................22 History..............................................................................................................................................................23

SIST EN 300 408 V1.3.1:2003
ETSI ETSI EN 300 408 V1.3.1 (2002-11)5

Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://webapp.etsi.org/IPR/home.asp). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This European Standard (Telecommunications series) has been produced by ETSI Technical Committee Transmission and Multiplexing (TM). The present document, mainly introduces a different spectrum mask for systems designed for 50 MHz channel separation.

National transposition dates Date of adoption of this EN: 25 October 2002 Date of latest announcement of this EN (doa): 31 January 2003 Date of latest publication of new National Standard or endorsement of this EN (dop/e):

31 July 2003 Date of withdrawal of any conflicting National Standard (dow): 31 July 2003

SIST EN 300 408 V1.3.1:2003
ETSI ETSI EN 300 408 V1.3.1 (2002-11)6

1 Scope The present document specifies the minimum performance requirements for terrestrial fixed service radiocommunications equipment operating in the 58 GHz frequency band which do not require co-ordinated frequency planning. The frequency band is proposed to be used by various technologies for uncoordinated use of the band. It also benefits from the high and stable atmospheric attenuation which suppresses efficiently distant interferers (about 10 dB/km to 15 dB/km at sea level, refer to ITU-R Recommendation P.676 [17]). For the purposes of the present document two equipment classes are specified depending on the network requirements: - Class A: Digital equipment for High Density Fixed Service (HDFS) applications typically connected to public networks, which apply the RF-channel selection procedure (see clause 4.1.3), error performance and availability requirements (see clause 5.2). - Class B: Equipment without requirements for quality of service, typically private network connections. Typical applications for Class A equipment are e.g. interconnection between cellular networks where there, in some cases, is a need for short length connections (up to about 500 meters). The RF channel selection procedure shall be used to protect existing systems from a new system being commissioned. However, the channel selection procedure may not guarantee interference free installation or operation in all cases due to limitations in the procedure with respect to the variety of systems. Typical applications for Class B equipment are in private networks, such as video surveillance systems. This new version of this EN, introduces a different spectrum mask for systems designed for 50 MHz channel separation. While considered more convenient from the point of view of easy and cost effective design, the new mask is considered equivalent to the previous one from the point of view of spectrum efficient usage. Therefore, from the technical point of view, for compliance to article 3.2 of R&TTE Directive [19], systems that have already been assessed against the previous version of the present document should not be necessarily reassessed against this new version. The present document does not contain aspects related to test procedures and test conditions, however they are to be found in EN 301 126-1 [7]. Safety aspects are outside the mandate of ETSI and they will not be considered in the present document. However compliance to EN 60950 [18] will be required to comply with Directive 1999/5/EC [19]. Technical background for the parameters and requirements referred in the present document may be found in TR 101 036-1 [16]. 2 References The following documents contain provisions which, through reference in this text, constitute provisions of the present document. • References are either specific (identified by date of publication and/or edition number or version number) or non-specific. • For a specific reference, subsequent revisions do not apply. • For a non-specific reference, the latest version applies. [1] ETSI ETS 300 132-1: "Equipment Engineering (EE); Power supply interface at the input to telecommunications equipment; Part 1: Operated by alternating current (ac) derived from direct current (dc) sources". [2] ETSI ETS 300 132-2: "Equipment Engineering (EE); Power supply interface at the input to telecommunications equipment; Part 2: Operated by direct current (dc)". SIST EN 300 408 V1.3.1:2003

ETSI ETSI EN 300 408 V1.3.1 (2002-11)7

[3] ETSI EN 300 019 (all parts): "Equipment Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment". [4] ETSI EN 301 489-1: "Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements". [5] ETSI EN 301 489-4: "Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 4: Specific conditions for fixed radio links and ancillary equipment and services". [6] CEPT/ERC Recommendation 12-09: "Radio frequency channel arrangement for fixed service systems operating in the band 57,0 GHz to 59,0 GHz which do not require frequency planning". [7] ETSI EN 301 126-1: "Fixed Radio Systems; Conformance testing; Part 1: Point-to-Point equipment - Definitions, general requirements and test procedures". [8] ITU-R Recommendation F.1493: "Availability objectives for real digital radio-relay links forming part of the national portion constant bit rate digital path at or above the primary rate". [9] ITU-T Recommendation G.703: "Physical/electrical characteristics of hierarchical digital interfaces". [10] CEPT/ERC Recommendation 74-01: "Spurious emissions". [11] ITU-R Recommendation F.1191: "Bandwidths and unwanted emissions of digital fixed services systems". [12] ITU-T Recommendation G.826: "Error performance parameters and objectives for international, constant bit rate digital paths at or above the primary rate". [13] ITU-T Recommendation G.821: "Error performance of an international digital connection operating at a bit rate below the primary rate and forming part of an integrated services digital network". [14] ETSI EN 300 833: "Fixed Radio Systems; Point-to-point Antennas; Antennas for point-to-point fixed radio systems operating in the frequency band 3 GHz to 60 GHz". [15] ITU-R Recommendation F.697: "Error performance and availability objectives for the local-grade portion at each end of an ISDN connection at a bit rate below the primary rate utilizing digital radio-relay systems". [16] ETSI TR 101 036-1: "Fixed Radio Systems; Generic wordings for standards on DFRS (Digital Fixed Radio Systems) characteristics; Part 1: General aspects and point-to-point equipment parameters". [17] ITU-R Recommendation P.676: "Attenuation by atmospheric gases". [18] EN 60950: "Safety of information technology equipment". [19] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. [20] ITU-T Recommendation O.151: "Error performance measuring equipment operating at the primary rate and above". [21] Void. [22] ETSI EN 300 385: "ElectroMagnetic Compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for fixed radio links and ancillary equipment". SIST EN 300 408 V1.3.1:2003

ETSI ETSI EN 300 408 V1.3.1 (2002-11)8

3 Symbols and abbreviations 3.1 Symbols For the purposes of the present document, the following symbols apply: dB deciBel dBm deciBel relative to 1 milliWatt dBW deciBel relative to 1 Watt GHz GigaHertz kHz kiloHertz km kilometre MHz MegaHertz ppm parts per million V Volts 3.2 Abbreviations For the purposes of the present document, the following abbreviations apply: AC Alternating Current BER Bit Error Ratio BW equivalent noise BandWidth CW Continuous Wave DC Direct Current DRRS Digital Radio Relay Systems EIRP Equivalent Isotropically Radiated Power EMC ElectroMagnetic Compatibility FDD Frequency Division Duplex HDFS High Density Fixed Service NF Noise Figure PDH Plesiochronous Digital Hierarchy Pi interference Power RF Radio Frequency Rx Receiver TDD Time Division Duplex Tx Transmitter 4 General characteristics 4.1 Frequency bands and channel arrangements 4.1.1 Frequency band The frequency band is from 57 GHz to 59 GHz. NOTE: The successful co-existence of Class A and Class B equipment may require the regulator to define exclusive spectrum for each equipment class (see annex A). 4.1.2 Radio channel arrangements The channel arrangements are specified in CEPT/ERC Recommendation 12-09 [6] with 50 MHz or 100 MHz channel rasters. For reader convenience, the basic parameters of the CEPT Recommendation are shown in annex A. SIST EN 300 408 V1.3.

...
