SIST EN 300 631-1 V1.1.1:2003

• Abstract:

  Standardisation of antennas to be used in point-to-point radio links operating in bands from 1 to 3 GHz

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 33.040.20 - Transmission systems
• ICS: 33.060.30 - Radio relay and fixed satellite communications systems
• ICS: 33.120.40 - Aerials
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Ref Project: ETSI EN 300 631-1 V1.1.1 (1997-11) - Transmission and Multiplexing (TM); Digital Radio Relay Systems (DRRS); Part 1: Antennas for Point-to-Point (P-P) radio links in the 1 GHz to 3 GHz band

SIST EN 300 631-1 V1.1.1:2003 is the SIST version of the ETSI European Standard EN 300 631-1 V1.1.1. It specifies antenna performance requirements for directional fixed-beam antennas used on point-to-point radio links in the 1 GHz to 3 GHz band, so manufacturers, operators, purchasers and test labs can choose and verify antennas for digital radio relay systems.

What does SIST EN 300 631-1 V1.1.1:2003 specify?

SIST EN 300 631-1 V1.1.1:2003 specifies standardised antennas for point-to-point digital radio relay systems in the 1 GHz to 3 GHz range. The document focuses on antenna performance for frequency coordination and practical system use.

Part	Content
Clause 1	Scope
Clause 2	Normative references
Clause 3	Definitions, symbols and abbreviations
Clause 4	Frequency bands
Clause 5	Classification of antennas
Clause 6	Electrical characteristics
Clause 7	Conformance tests
Annex A	Informative antenna characteristics
Annex B	Bibliography

The scope covers new P-P systems and excludes electronically steerable antennas and circularly polarized antennas. Annex A gives guidance on mechanical and environmental characteristics, while Annex B lists related background references.

What are the key requirements of SIST EN 300 631-1 V1.1.1:2003?

SIST EN 300 631-1 V1.1.1:2003 sets the main antenna limits through radiation pattern envelopes, XPD, gain and polarization. In practice, these are the parameters that determine whether an antenna is suitable for a given radio link and interference environment.

• Clause 4 ties the document to the fixed-service frequency plans in the named CEPT and ITU-R references. For users, that means the antenna has to fit the band plan used for the link.
• Clause 5 defines three antenna classes based on the interference environment: unlikely, low, and high interference potential. This helps planners match antenna sidelobe performance to the site.
• Clause 6.1 gives the Radiation Pattern Envelopes (RPEs) for classes 1 to 3. These envelopes are the masks the co-polar and cross-polar radiation patterns must fit, so they are central to lab checks and coordination studies.
• Clause 6.2 sets minimum Cross-Polar Discrimination (XPD) values by class and figure. For users, this supports better isolation between orthogonal polarisations and helps with spectrum reuse.
• Clause 6.3 sets minimum antenna gain by class. That matters in link budgets, because the gain determines how much directional performance can be assumed.
• Clause 6.4 requires antennas with radomes to meet the same RPE and XPD limits with the radome fitted. This means the finished antenna, not just the bare radiator, has to pass the performance check.
• Clause 6.5 requires a linearly polarized wave, single or dual. This is important for compatibility with the radio system design.
• Clause 6.6 adds an elevation RPE for class 1 antennas. That controls vertical radiation, which affects coordination where other paths or services may be nearby.

What terms does SIST EN 300 631-1 V1.1.1:2003 define?

SIST EN 300 631-1 V1.1.1:2003 defines the terms that describe antenna patterns and performance. These definitions make the measurement requirements readable and keep manufacturers and test labs aligned.

• Antenna - the part of the transmitting or receiving system that radiates or receives electromagnetic waves.
• Co-polar pattern - the radiation pattern measured with the reference antenna similarly polarized.
• Cross-polar pattern - the radiation pattern measured with the reference antenna orthogonally polarized.
• Cross-Polar Discrimination (XPD) - the difference between the co-polar main-beam peak and the maximum cross-polar signal over the stated angular range.
• Gain - the ratio of radiation intensity in a given direction to the intensity of an isotropic radiator.
• Radiation Pattern Envelope (RPE) - the envelope below which the radiation pattern shall fit.
• Radome - a dielectric cover that protects the antenna from the physical environment.
• Voltage Standing Wave Ratio (VSWR) - used in the annex to describe input-port matching at the antenna connection.

Who uses SIST EN 300 631-1 V1.1.1:2003?

SIST EN 300 631-1 V1.1.1:2003 is used by antenna manufacturers, radio relay system designers, network operators, equipment purchasers and test laboratories. It also matters to regulatory authorities and spectrum planners who need antennas suitable for frequency coordination.

The foreword and scope show typical applications in local, regional and national networks, mobile base station connections, customer access links, telemetering and telecontrol, including transportable and offshore use. In practice, users rely on it to select antennas, compare class performance and check whether a design fits the intended interference environment.

What changed in SIST EN 300 631-1 V1.1.1:2003 from the previous edition?

SIST EN 300 631-1 V1.1.1:2003 comes from ETS 300 631, which was split into two parts. Part 1 covers point-to-point antennas, while part 2 covers point-to-multipoint antennas.

The foreword also states that the 3 GHz upper limit was introduced with reference to WRC-95 Final Acts and CEPT Recommendation T/R 13-01.

Which standards are used with SIST EN 300 631-1 V1.1.1:2003?

SIST EN 300 631-1 V1.1.1:2003 uses these references for its band plans and channel arrangements:

• CEPT Recommendation T/R 13-01 - preferred channel arrangement for fixed services in the 1-3 GHz range.
• ITU-R Recommendation F.746 - radio-frequency channel arrangements for radio-relay systems.
• WRC-95 Final Acts - background for the upper band limit mentioned in the foreword.

These references tell the reader which frequency framework the antenna requirements are built around.

What does the SIST EN 300 631-1 V1.1.1:2003 document contain?

SIST EN 300 631-1 V1.1.1:2003 contains the class-based radiation pattern figures for the three antenna classes, plus a separate elevation pattern for class 1. It also includes tables for minimum XPD and minimum gain, which are the key numeric checkpoints for design and type testing.

Annex A adds informative guidance on environmental exposure, wind survival, antenna stability, connectors, VSWR, inter-port isolation and labelling. That annex is useful when specifying hardware, writing purchase requirements or preparing installation and acceptance tests.

Annex B provides a bibliography for related connector and antenna references.

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Transmission and Multiplexing (TM); Digital Radio Relay Systems (DRRS); Part 1: Antennas for Point-to-Point (P-P) radio links in the 1 GHz to 3 GHz band33.120.40AnteneAerials33.060.30Radiorelejni in fiksni satelitski komunikacijski sistemiRadio relay and fixed satellite communications systems33.040.20Prenosni sistemTransmission systemsICS:Ta slovenski standard je istoveten z:EN 300 631-1 Version 1.1.1SIST EN 300 631-1 V1.1.1:2003en01-december-2003SIST EN 300 631-1 V1.1.1:2003SLOVENSKI
STANDARD
European Telecommunications Standards Institute EN 300 631-1 V1.1.1 (1997-11)European Standard (Telecommunications series)Transmission and Multiplexing (TM);Digital Radio Relay Systems (DRRS);Part 1: Antennas for Point-to-Point (P-P) radio linksin the 1 GHz to 3 GHz bandSIST EN 300 631-1 V1.1.1:2003

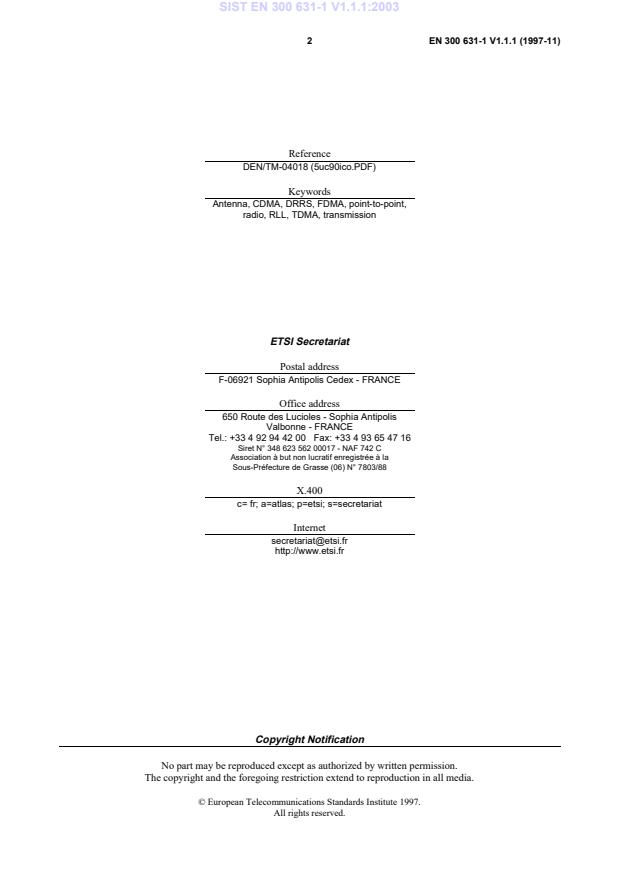

EN 300 631-1 V1.1.1 (1997-11)2ReferenceDEN/TM-04018 (5uc90ico.PDF)KeywordsAntenna, CDMA, DRRS, FDMA, point-to-point,radio, RLL, TDMA, transmissionETSI SecretariatPostal addressF-06921 Sophia Antipolis Cedex - FRANCEOffice address650 Route des Lucioles - Sophia AntipolisValbonne - FRANCETel.: [phone]
Fax: [phone]Siret N° 348 623 562 00017 - NAF 742 CAssociation à but non lucratif enregistrée à laSous-Préfecture de Grasse (06) N° 7803/88X.400c= fr; a=atlas; p=etsi; s=[e-mail]://www.etsi.frCopyright NotificationNo part may be reproduced except as authorized by written permission.The copyright and the foregoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1997.All rights reserved.SIST EN 300 631-1 V1.1.1:2003

EN 300 631-1 V1.1.1 (1997-11)3ContentsIntellectual Property Rights.4Foreword.41Scope.52Normative references.53Definitions, symbols and abbreviations.53.1Definitions.53.2Abbreviations.63.3Symbols.64Frequency bands.65Classification of antennas.66Electrical characteristics.76.1RPE.76.2Cross-Polar Discrimination (XPD).126.3Antenna gain.126.4Radomes.126.5Antenna polarization.126.6Elevation RPE for class 1 antennas.137Conformance tests.13Annex A (informative):Antenna characteristics.14A.1Mechanical characteristics.14A.1.1Environmental characteristics.14A.1.2Antenna stability.14A.2Antenna input connectors.14A.3Voltage Standing Wave Ratio (VSWR) at the input ports.15A.4Inter-port isolation.15A.5Antenna labelling.15Annex B (informative):Bibliography.16History.17SIST EN 300 631-1 V1.1.1:2003

EN 300 631-1 V1.1.1 (1997-11)4Intellectual Property RightsETSI has not been informed of the existence of any Intellectual Property Right (IPR) which could be, or could becomeessential to the present document. However, pursuant to the ETSI Interim IPR Policy, no investigation, including IPRsearches, has been carried out. No guarantee can be given as to the existence of any IPRs which are, or may be, or maybecome, essential to the present document.ForewordThis European Standard (Telecommunications series) has been produced by ETSI Technical Committee Transmissionand Multiplexing (TM).It was decided by TM to split the original document (ETS 300 631, processed through Public Enquiry 88) into twoparts. This part 1 deals with Point-to-Point (P-P) antennas while part 2 deals with Point-to-Multipoint (P-M) antennas.The purpose of the present document is to define the antenna performance standards necessary to ensure optimumfrequency co-ordination between services in the re-planned 1 GHz to 3 GHz band. The 3 GHz upper limit has beenintroduced making reference to the WRC-95 Final Acts [3] and the frequency plans as given in CEPT RecommendationT/R 13-01 [1].Additional parameters appropriate to system implementation may be subject to agreement between the equipmentpurchaser and supplier. Further guidance is provided in annex A.National transposition datesDate of adoption of this EN:24 October 1997Date of latest announcement of this EN (doa):28 February 1998Date of latest publication of new National Standardor endorsement of this EN (dop/e):31 August 1998Date of withdrawal of any conflicting National Standard (dow):31 August 1998SIST EN 300 631-1 V1.1.1:2003

EN 300 631-1 V1.1.1 (1997-11)51ScopeThe present document addresses the requirements for directional fixed beam antennas to be utilized with new Point-to-Point (P-P) systems operating in the frequency band 1 GHz to 3 GHz. Electronically steerable antennas, and circularlypolarized antennas will not be considered under the present document.The application of these Digital Radio Relay Systems (DRRS) is anticipated to be for P-P links in local, regional andnational networks, mobile base station connections, customer access links, telemetering and telecontrol (includingtransportable and offshore use).Only in exceptional circumstances, after a consultation period with operators and manufactures, a Regulatory Authoritymay impose tighter requirements than the minimum values given in the present document, in order to maximize the useof the scarce spectrum resources.2Normative referencesReferences may be made to:a)specific versions of publications (identified by date of publication, edition number, version number, etc.), inwhich case, subsequent revisions to the referenced document do not apply; orb)all versions up to and including the identified version (identified by "up to and including" before the versionidentity); orc)all versions subsequent to and including the identified version (identified by "onwards" following the versionidentity); ord)publications without mention of a specific version, in which case the latest version applies.A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the samenumber.[1]CEPT Recommendation T/R 13-01: "Preferred Channel Arrangement for Fixed Services in therange 1-3 GHz".[2]ITU-R Recommendation F.746: "Radio-Frequency channel arrangements for radio-relay systems",v
...
