SIST EN 301 489-14 V1.2.1:2004

• Abstract:

  Revision to EN 301 489-XX( All parts), in order to remove editorial inconsistencies between specific parts of the multi-part EMC standard and between the specific parts and the general part 1

• Status: Published
• Publication Date: 31-Jan-2004
• ICS: 33.060.20 - Receiving and transmitting equipment
• ICS: 33.100.01 - Electromagnetic compatibility in general
• ICS: 33.170 - Television and radio broadcasting
• Technical Committee: RES - Radio equipment and systems
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Feb-2004
• Due Date: 01-Feb-2004
• Completion Date: 01-Feb-2004
• Directive: 1999/5/EC - Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity
  Conflicting Date: 31-Jul-2006
• Mandate: M/284
• Mandate: T-353
• Ref Project: ETSI EN 301 489-14 V1.2.1 (2003-05) - Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 14: Specific conditions for analogue and digital terrestrial TV broadcasting service transmitters

• Official Journal Project Relation: SIST EN 301 489-14 V1.1.1:2003 - Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 14: Specific conditions for analogue and digital terrestrial TV broadcasting service transmitters
• Effective Date: 01-Dec-2009

Overview

SIST EN 301 489-14 V1.2.1:2004 establishes the electromagnetic compatibility (EMC) requirements specific to analogue and digital terrestrial TV broadcasting service transmitters. As part of a multi-part series aimed at harmonizing EMC standards for radio equipment and services, this standard outlines necessary test conditions, performance criteria, and applicability for transmitters, exciters, and associated ancillary equipment used in terrestrial television broadcasting. Its primary purpose is to ensure that such broadcasting equipment operates without causing or being susceptible to electromagnetic interference, thereby safeguarding the reliability and quality of TV broadcast services.

Key Topics

• EMC Requirements: The standard defines the minimum levels of electromagnetic emissions and immunity for analogue and digital terrestrial TV transmitters, including arrangements for testing with both integrated and external encoding equipment.
• Test Conditions: It specifies detailed test setups for both analogue and digital transmitters, including procedures for signal injection, monitoring, and the handling of unique broadcasting components such as transposers and active deflectors.
• Performance Assessment: The standard lays out requirements for assessing equipment performance during exposure to continuous and transient electromagnetic phenomena, ensuring consistent broadcast quality.
• Special Conditions: Specific EMC emission and immunity criteria are tailored to the broadcast environment, including considerations for high-power equipment, AC and DC power inputs, and RF port emissions.
• Compliance Procedures: Equipment under test must establish and maintain a broadcasting transmission link during EMC tests, with various measured parameters required to remain within permitted ranges, and procedures for the assessment of control functions and data integrity after testing.

Applications

SIST EN 301 489-14 V1.2.1:2004 is crucial for:

• Manufacturers of TV broadcasting transmitters and ancillary equipment to ensure their products meet European EMC regulations.
• Testing Laboratories performing conformity assessments on radio transmission equipment for terrestrial TV.
• Broadcasters and System Integrators establishing or upgrading terrestrial TV transmission networks, ensuring interference-free operation alongside other radio services.
• Regulatory Compliance: Satisfying legal requirements for CE marking under the EMC Directive and Radio Equipment Directive.
• Product Development: Guiding the design and documentation processes for new broadcasting equipment to minimize expenses related to post-production compliance modifications.

The standard applies to a range of broadcasting service equipment, including:

• Analogue TV transmitters and associated devices (active deflectors, transposers)
• Digital TV (T-DVB) transmitters and related RF amplification and modulation systems
• Broadcasting devices operating in the frequency ranges of 174 MHz to 230 MHz and 470 MHz to 860 MHz

By adhering to this standard, stakeholders can ensure high-quality, interference-free TV broadcast delivery, essential for public service broadcasting and commercial TV operators.

Related Standards

Organizations and professionals involved in EMC compliance for broadcasting equipment should also reference the following related standards and documents:

• EN 301 489-1: General requirements for electromagnetic compatibility and radio spectrum matters for radio equipment and services
• EN 55011: Limits and methods of measurement of radio disturbance characteristics for ISM (Industrial, Scientific and Medical) equipment
• EN 300 744: Digital Video Broadcasting (DVB) – Framing structure, channel coding, and modulation for digital terrestrial TV
• EN 61000-4-3: EMC immunity testing for radiated, radio-frequency, electromagnetic fields
• ITU-R BT.500: Methodology for subjective assessment of the quality of television pictures

These standards provide a comprehensive framework for EMC testing, emissions control, and product conformity for manufacturers and technical service providers in the broadcasting industry.

Keywords: electromagnetic compatibility, EMC, radio spectrum, TV broadcasting transmitters, analogue television, digital terrestrial TV, T-DVB, EMC test conditions, emission limits, immunity requirements, broadcasting equipment compliance.

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Elektromagnetna združljivost (EMC) in zadeve v zvezi z radijskim spektrom (ERM) - Standard elektromagnetne združljivosti (EMC) za radijsko opremo in storitve - 14. del: Posebni pogoji za službene oddajnike za analogno in digitalno prizemno televizijsko radiodifuzijoElectromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 14: Specific conditions for analogue and digital terrestrial TV broadcasting service transmitters33.170Televizijska in radijska difuzijaTelevision and radio broadcasting33.100.01Elektromagnetna združljivost na splošnoElectromagnetic compatibility in general33.060.20Sprejemna in oddajna opremaReceiving and transmitting equipmentICS:Ta slovenski standard je istoveten z:EN 301 489-14 Version 1.2.1SIST EN 301 489-14 V1.2.1:2004en01-februar-2004SIST EN 301 489-14 V1.2.1:2004SLOVENSKI
STANDARD

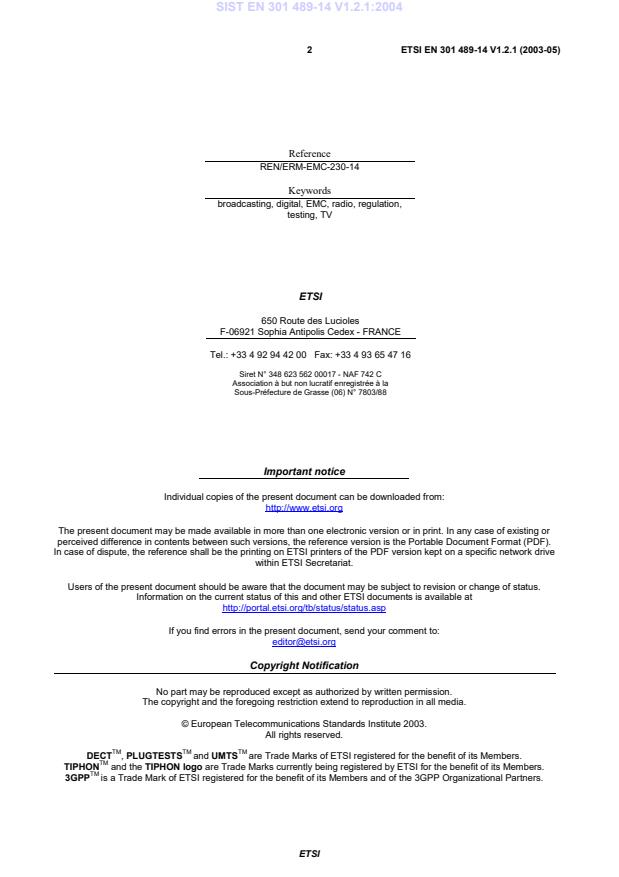

ETSI ETSI EN 301 489-14 V1.2.1 (2003-05) 2
Reference REN/ERM-EMC-230-14 Keywords broadcasting, digital, EMC, radio, regulation, testing, TV ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: [phone]
Fax: [phone]
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, send your comment to: [e-mail] Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2003. All rights reserved.
DECTTM, PLUGTESTSTM and UMTSTM are Trade Marks of ETSI registered for the benefit of its Members. TIPHONTM and the TIPHON logo are Trade Marks currently being registered by ETSI for the benefit of its Members. 3GPPTM is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. SIST EN 301 489-14 V1.2.1:2004

ETSI ETSI EN 301 489-14 V1.2.1 (2003-05) 3
Contents Intellectual Property Rights.4 Foreword.4 1 Scope.5 2 References.5 3 Definitions and abbreviations.6 3.1 Definitions.6 3.2 Abbreviations.6 4 Test conditions.7 4.1 General.7 4.2 Arrangements for test signals.7 4.2.1 Arrangements for test signals at the input of transmitters.7 4.2.2 Arrangements for test signals at the input of transposers, active deflectors, or RF power amplifiers.7 4.2.3 Arrangements for test signals at the output of transmitters, transposers, active deflectors or RF power amplifiers.8 4.3 RF exclusion bands.9 4.3.1 Transmitter and RF power amplifier exclusion band.9 4.3.2 Active deflector exclusion band.9 4.3.3 Transposer exclusion band.9 4.4 Narrow band responses of receivers.10 4.5 Normal test modulation.10 4.5.1 Analogue Modulation.10 4.5.2 Digital Modulation (T-DVB).10 5 Performance assessment.10 5.1 General.10 5.2 Equipment which can provide a continuous communication link as a broadcasting transmission.10 5.3 Equipment which does not provide a continuous communication link as a broadcasting transmission.10 5.4 Ancillary equipment.11 5.5 Equipment classification.11 6 Performance criteria.11 6.1 Performance criteria for Continuous phenomena applied to Transmitters (CT).11 6.2 Performance criteria for Transient phenomena applied to Transmitters (TT).12 7 Applicability overview.12 7.1 Emission.12 7.1.1 General.12 7.1.2 Special conditions.12 7.2 Immunity.13 7.2.1 General.13 7.2.2 Special conditions.13 Annex A (informative): Types of broadcasting service equipment covered by the present document.15 A.1 Analogue television.15 A.2 Digital television.15 Annex B (informative): Bibliography.16 Annex C (informative): The EN title in the official languages.17 History.18
ETSI ETSI EN 301 489-14 V1.2.1 (2003-05) 4
Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://webapp.etsi.org/IPR/home.asp). All published ETSI deliverables shall include information which directs the reader to the above source of information. Foreword This Candidate Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee Electromagnetic compatibility and Radio spectrum Matters (ERM). The present document has been produced by ETSI in response to a mandate from the European Commission issued under Council Directive 98/34/EC (as amended) laying down a procedure for the provision of information in the field of technical standards and regulations. The present document, together with EN 301 489-1 [1], is intended to become a Harmonized Standard, the reference of which will be published in the Official Journal of the European Communities referencing the Council Directive on the approximation of the laws of the Member States relating to electromagnetic compatibility ("the EMC Directive") (89/336/EEC [2] as amended) and Directive 1999/5/EC [3] of the European Parliament and of the Council of
9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity ("the R&TTE Directive"). The present document is part 14 of a multi-part deliverable. Full details of the entire series can be found in part 1 [1].
National transposition dates Date of adoption of this EN: 25 April 2003 Date of latest announcement of this EN (doa): 31 July 2003 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 January 2004 Date of withdrawal of any conflicting National Standard (dow): 31 July 2006
ETSI ETSI EN 301 489-14 V1.2.1 (2003-05) 5
1 Scope The present document, together with EN 301 489-1 [1], covers the assessment of analogue and digital transmitters, exciters, and any associated ancillary equipment dedicated for television broadcasting services, in respect of ElectroMagnetic Compatibility (EMC). Technical specifications related to the antenna port emissions and cabinet radiation are not included in the present document. Such technical specifications are found in the relevant product standards of ETSI for the effective use of the radio spectrum.
The present document specifies the applicable test conditions, performance assessment and performance criteria for analogue and digital terrestrial television broadcasting transmitters and their associated ancillary equipment. Definitions of the type of broadcast transmitters and exciters covered by the present document are given in annex A. In case of differences (for instance concerning special conditions, definitions, abbreviations) between the present document and EN 301 489-1 [1], the provisions of the present document take precedence. The environmental classification and the emission and immunity requirements used in the present document are as stated in EN 301 489-1 [1], except for any specific conditions included in the present document, under which broadcast service transmitters are typically used.
The present document may not cover those cases where a potential source of interference which is producing individually repeated transient phenomena or a continuous phenomena is permanently present, e.g. a radar site in the near vicinity. In such a case it may be necessary to use special protection applied to either the source of interference or the interfered part or both. 2 References The following documents contain provisions which, through reference in this text, constitute provisions of the present document. • References are either specific (identified by date of publication and/or edition number or version number) or non-specific. • For a specific reference, subsequent revisions do not apply. • For a non-specific reference, the latest version applies. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. [1] ETSI EN 301 489-1 "Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements". [2] Council Directive 89/336/EEC of 3 May 1989 on the approximation of the laws of the Member States relating to electromagnetic compatibility (EMC Directive). [3] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity (R&TTE Directive). [4] ITU-R Recommendation BT.500-9: "Methodology for the subjective assessment of the quality of television pictures". [5] EN 55011 (1998): "Industrial, scientific and medical (ISM) radio-frequency equipment; Radio disturbance characteristics - Limits and methods of measurement". [6] ETSI EN 300 744 (V1.4.1): "Digital Video Broadcasting (DVB); Framing structure, channel coding and modulation for digital terrestrial television". SIST EN 301 489-14 V1.2.1:2004

ETSI ETSI EN 301 489-14 V1.2.1 (2003-05) 6
[7] EN 61000-4-3 1996/A1 (1998): "Electromagnetic compatibility (EMC) - Part 4-3: Testing and measurement techniques - Radiated, radio-frequency, electromagnetic field immunity test". 3 Definitions and abbreviations 3.1 Definitions For the purposes of the present document, the terms and definitions given in EN 301 489-1 [1] and the following apply: active deflector: Tx/Rx (transceiver, repeater, gap filler), which receives an input signal off-air, and re-broadcasts the same signal on the same frequency broadcasting service: radiocommunication service in which the transmissions are intended for direct reception by the general public NOTE: This service may include sound transmission, television transmission, or other types of transmission. exciter: low level RF power driver stage of a broadcasting transmitter RF power amplifier: Tx, which comprises an amplifier, declared by the manufacturer to be capable of being connected to a terrestrial broadcasting antenna system transposer: Tx/Rx (transceiver), which receives an input signal off-air, and re-broadcasts the same signal on a different frequency 3.2 Abbreviations For the purposes of the present document, the following abbreviations apply: AC Alternating Current BER Bit Error Ratio CISPR International Special Committee on Radio Interference (in IEC) CT Continuous phenomena applied to Transmitters DC Direct Current DQPSK Differential Quaternary Phase-Shift Keying DVB Digital Video Broadcasting
EMC ElectroMagnetic Compatibility EUT Equipment Under Test IF Intermediate Frequency IRT Institut für RundfunkTechnik MER Modulation Error Ratio MPEG Moving Picture Experts Group NICAM Near-Instantaneous Companded Audio Multiplex QAM Quadrature Amplitude Modulation RF Radio Frequency rms root mean square Rx Receiver SNR Signal to Noise Ratio T-DVB Terrestrial Digital Video Broadcasting TS Transport Stream TT Transient phenomena applied to Transmitters
TV TeleVision Tx Transmitter UHF Ultra High Frequency VHF Very High Frequency SIST EN 301 489-14 V1.2.1:2004

ETSI ETSI EN 301 489-14 V1.2.1 (2003-05) 7
4 Test conditions For the purposes of the present document, the test conditions of EN 301 489-1 [1], clause 4 shall apply as appropriate. Further provisions related to test conditions for broadcasting service transmitters are specified in the present document. 4.1 General For emission and immunity tests the test modulation, test arrangements, etc. as specified in the present document, clauses 4.1 to 4.5 shall apply. For immunity tests, the output of the Tx shall be monitored as specified in the present document, clause 4.2.3. 4.2 Arrangements for test signals The provisions of EN 301 489-1 [1], clause 4.2 shall apply. 4.2.1 Arrangements for test signals at the input of transmitters The provisions of EN 301 489-1 [1], clause 4.2.1 shall apply, with the following modifications: • If the transmitter under test incorporates base-band processing and/or coding equipment (e.g. a NICAM encoder for an analogue modulated TV transmitter, or an MPEG2 encoder for a digital television transmitter), then this equipment shall be active as in normal operation. The manufacturer shall provide reference encoders and the tests shall be carried out with these in operational mode. • If the transmitter under test does not include integrated base-band processing and/or coding equipment, the manufacturer shall declare whether the transmitter is designed for operation with or without encoder(s). The manufacturer shall clearly state this in the product documentation. • If the transmitter under test is designed for operation with externally fitted encoder(s), then it is left to the decision of the manufacturer whether the transmitter under test shall be tested with such encoder(s). Depending on the manufacturer's decision, the manufacturer may have to provide reference encoders and the tests shall be carried out with these in operational mode. Any unused input port of the transmitter under test shall be terminated according to the manufacturer's instructions. 4.2.2 Arrangements for test signals at the input of transposers, active deflectors, or RF power amplifiers The provisions of EN 301 489-1 [1], clause 4.2.1 shall apply, with the following modifications: • In case of transposers and active deflectors, the wanted RF input signal, at a frequency determined from the manufacturer's specification, shall be set to a level equal to the mid point of the range declared by the manufacturer. • In case of RF amplifiers, the wanted RF input signal of a suitable level shall be delivered from an adequate external modulator provided by the manufacturer. The modulator may be placed outside the test environment. • A broadcasting transmission shall be established at the start of the test and maintained during the test. SIST EN 301 489-14 V1.2.1:2004

ETSI ETSI EN 301 489-14 V1.2.1 (2003-05) 8
4.2.3 Arrangements
...
