Fibre optic active components and devices - Performance standards - Part 3: Modulator-integrated laser diode transmitters for 40-Gbit/s fibre optic transmission systems (IEC 62149-3:2020)

IEC 62149-3:2014 covers the performance specification for optical modulators monolithically integrated with laser diodes for 2,5 Gbit/s to 40 Gbit/s multi-channel fibre optic transmission systems. This performance standard contains a definition of the product performance requirements together with a series of sets of tests and measurements with clearly defined conditions, severities and pass/fail criteria. The tests are intended to be run as an initial design verification to prove any product's ability to satisfy the performance standard's requirements. This standard is only applicable for on-off keying format. This second edition cancels and replaces the first edition published in 2004 and constitutes a technical revision. The significant technical change with respect to the previous edition is as follows: The performance standards covered by this standard are now extended to a 40 Gb/s-class system from their original 2,5 Gb/s.
Keywords: optical modulators monolithically integrated, laser diodes, 2,5 Gbit/s to 40 Gbit/s multi-channel fibre optic transmission systems

Aktive Lichtwellenleiterbauelemente und -geräte - Betriebsverhalten - Teil 3: Sender mit modulatorintegrierten Laserdioden für 40 Gbit/s-Lichtwellenleiter-Übertragungssysteme (IEC 62149-3:2020)

Composants et dispositifs actifs fibroniques - Normes de performances - Partie 3: Émetteurs à diodes laser à modulateur intégré pour systèmes de transmission fibroniques 40 Gbit/s (IEC 62149-3:2020)

L'IEC 62149-3:2014 couvre les spécifications de performance concernant les modulateurs optiques avec diodes laser intégrées de façon monolithique, destinés à des systèmes de transmission à fibres optiques à canaux multiples de 2,5 Gbit/s à 40 Gbit/s. La présente norme de performance donne une définition des exigences de performances de produits, ainsi qu'une série d'ensembles d'essais et de mesures, avec des conditions, des sévérités et des critères d'acceptation/de rejet clairement définis. Les essais sont prévus pour être réalisés à titre de vérification initiale de conception, pour prouver la capacité des produits à satisfaire aux exigences des normes de performance. La présente norme n'est applicable qu'au format de codage binaire. Cette deuxième édition annule et remplace la première édition parue en 2004, dont elle constitue une révision technique. La modification technique significative par rapport à l'édition précédente concerne les standards de performance couverts par la présente norme qui sont maintenant élargies pour inclure les systèmes de classe 40 Gb/s à partir des valeurs originales des systèmes 2,5 Gb/s.
Mots clés: modulateurs optiques avec diodes laser intégrées de façon monolithique, diodes laser, systèmes de transmission à fibres optiques à canaux multiples de 2,5 Gbit/s à 40 Gbit/s

Aktivne komponente in naprave optičnih vlaken - Izvedbeni standardi - 3. del: Laserski diodni oddajniki z integriranim modulatorjem za optične prenosne sisteme 40-Gbit/s (IEC 62149-3:2020)

General Information

Status
Published
Publication Date
08-Oct-2020
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
07-Oct-2020
Due Date
12-Dec-2020
Completion Date
09-Oct-2020

Relations

Buy Standard

Standard
EN IEC 62149-3:2020
English language
19 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN IEC 62149-3:2020
01-december-2020
Nadomešča:
SIST EN 62149-3:2015
Aktivne komponente in naprave optičnih vlaken - Izvedbeni standardi - 3. del:
Laserski diodni oddajniki z integriranim modulatorjem za optične prenosne
sisteme 40-Gbit/s (IEC 62149-3:2020)
Fibre optic active components and devices - Performance standards - Part 3: Modulator-
integrated laser diode transmitters for 40-Gbit/s fibre optic transmission systems (IEC
62149-3:2020)
Aktive Lichtwellenleiterbauelemente und -geräte - Betriebsverhalten - Teil 3: Sender mit
modulatorintegrierten Laserdioden für 40 Gbit/s-Lichtwellenleiter-Übertragungssysteme
(IEC 62149-3:2020)
Composants et dispositifs actifs fibroniques - Normes de performances - Partie 3:
Émetteurs à diodes laser à modulateur intégré pour systèmes de transmission
fibroniques 40 Gbit/s (IEC 62149-3:2020)
Ta slovenski standard je istoveten z: EN IEC 62149-3:2020
ICS:
33.180.20 Povezovalne naprave za Fibre optic interconnecting
optična vlakna devices
SIST EN IEC 62149-3:2020 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 62149-3:2020

---------------------- Page: 2 ----------------------
SIST EN IEC 62149-3:2020


EUROPEAN STANDARD EN IEC 62149-3

NORME EUROPÉENNE

EUROPÄISCHE NORM
September 2020
ICS 33.180.20 Supersedes EN 62149-3:2014 and all of its amendments
and corrigenda (if any)
English Version
Fibre optic active components and devices - Performance
standards - Part 3: Modulator-integrated laser diode transmitters
for 40-Gbit/s fibre optic transmission systems
(IEC 62149-3:2020)
Composants et dispositifs actifs fibroniques - Normes de Aktive Lichtwellenleiterbauelemente und -geräte -
performances - Partie 3: Émetteurs à diodes laser à Betriebsverhalten - Teil 3: Sender mit modulatorintegrierten
modulateur intégré pour systèmes de transmission Laserdioden für 40 Gbit/s-Lichtwellenleiter-
fibroniques 40 Gbit/s Übertragungssysteme
(IEC 62149-3:2020) (IEC 62149-3:2020)
This European Standard was approved by CENELEC on 2020-08-11. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN IEC 62149-3:2020 E

---------------------- Page: 3 ----------------------
SIST EN IEC 62149-3:2020
EN IEC 62149-3:2020 (E)

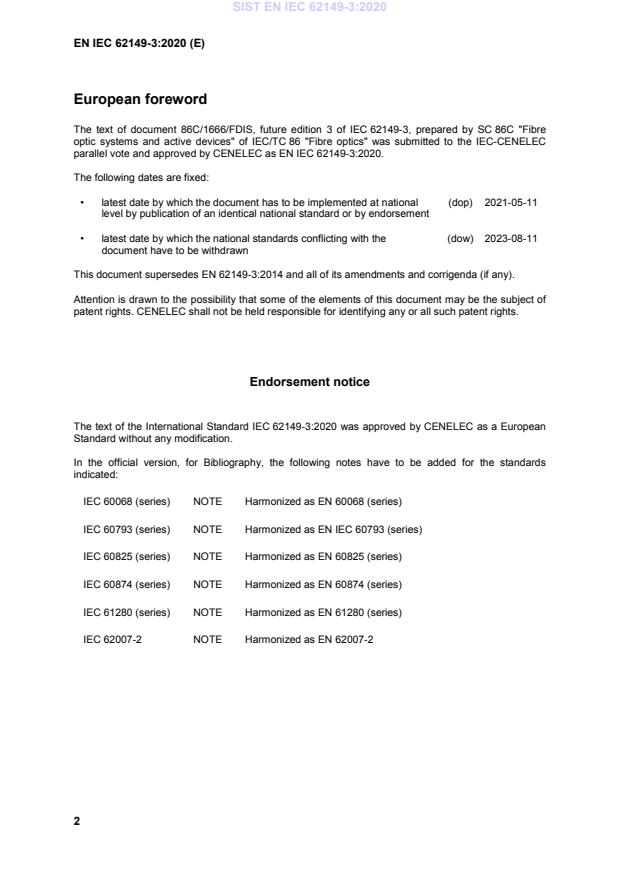

European foreword
The text of document 86C/1666/FDIS, future edition 3 of IEC 62149-3, prepared by SC 86C "Fibre
optic systems and active devices" of IEC/TC 86 "Fibre optics" was submitted to the IEC-CENELEC
parallel vote and approved by CENELEC as EN IEC 62149-3:2020.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2021-05-11
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2023-08-11
document have to be withdrawn
This document supersedes EN 62149-3:2014 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

Endorsement notice
The text of the International Standard IEC 62149-3:2020 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards
indicated:
IEC 60068 (series) NOTE Harmonized as EN 60068 (series)
IEC 60793 (series) NOTE Harmonized as EN IEC 60793 (series)
IEC 60825 (series) NOTE Harmonized as EN 60825 (series)
IEC 60874 (series) NOTE Harmonized as EN 60874 (series)
IEC 61280 (series) NOTE Harmonized as EN 61280 (series)
IEC 62007-2 NOTE Harmonized as EN 62007-2


2

---------------------- Page: 4 ----------------------
SIST EN IEC 62149-3:2020
EN IEC 62149-3:2020 (E)
Annex ZA
(normative)

Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60068-2-1 - Environmental testing - Part 2-1: Tests - Test EN 60068-2-1 -
A: Cold
IEC 60068-2-2 - Environmental testing - Part 2-2: Tests - Test EN 60068-2-2 -
B: Dry heat
IEC 60068-2-6 - Environmental testing - Part 2-6: Tests - Test EN 60068-2-6 -
Fc: Vibration (sinusoidal)
IEC 60068-2-14 - Environmental testing - Part 2-14: Tests - EN 60068-2-14 -
Test N: Change of temperature
IEC 60068-2-27 - Environmental testing - Part 2-27: Tests - EN 60068-2-27 -
Test Ea and guidance: Shock
IEC 60068-2-78 - Environmental testing - Part 2-78: Tests - EN 60068-2-78 -
Test Cab: Damp heat, steady state
IEC 60749-7 - Semiconductor devices - Mechanical and EN 60749-7 -
climatic test methods - Part 7: Internal
moisture content measurement and the
analysis of other residual gases
IEC 60749-26 - Semiconductor devices - Mechanical and EN IEC 60749-26 -
climatic test methods - Part 26: Electrostatic
discharge (ESD) sensitivity testing - Human
body model (HBM)
IEC 60825-1 - Safety of laser products - Part 1: Equipment EN 60825-1 -
classification and requirements
IEC 60950-1 - Information technology equipment - Safety - EN 60950-1 -
Part 1: General requirements
3

---------------------- Page: 5 ----------------------
SIST EN IEC 62149-3:2020
EN IEC 62149-3:2020 (E)
IEC 62007-1 - Semiconductor optoelectronic devices for EN 62007-1 -
fibre optic system applications - Part 1:
Specification template for essential ratings
and characteristics
IEC 62572-3 - Fibre optic active components and devices - EN 62572-3 -
Reliability standards - Part 3: Laser modules
used for telecommunication
ITU-T G.694-1 - Spectral grids for WDM applications: DWDM - -
frequency grid
ITU-T G.957 - Optical interfaces for equipments and - -
systems relating to the synchronous digital
hierarchy
MIL-STD-883-1 - U.S. Department of Defense - Test method - -
standard - Environmental test methods for
microcircuits, Part 1: Test methods 1000-
1999

4

---------------------- Page: 6 ----------------------
SIST EN IEC 62149-3:2020



IEC 62149-3

®


Edition 3.0 2020-07




INTERNATIONAL



STANDARD




NORME


INTERNATIONALE











Fibre optic active components and devices – Performance standards –

Part 3: Modulator-integrated laser diode transmitters for 40-Gbit/s fibre optic

transmission systems



Composants et dispositifs actifs fibroniques – Normes de performances –

Partie 3: Émetteurs à diodes laser à modulateur intégré pour systèmes de


transmission fibroniques 40 Gbit/s













INTERNATIONAL

ELECTROTECHNICAL

COMMISSION


COMMISSION

ELECTROTECHNIQUE


INTERNATIONALE




ICS 33.180.20 ISBN 978-2-8322-8591-6




Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 7 ----------------------
SIST EN IEC 62149-3:2020
– 2 – IEC 62149-3:2020 © IEC 2020
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope . 6
2 Normative references . 6
3 Terms, definitions and abbreviated terms . 7
3.1 Terms and definitions . 7
3.2 Abbreviated terms . 7
4 Product parameters . 7
4.1 Absolute limiting ratings . 7
4.2 Operating environment . 8
4.3 Functional specification. 8
4.4 Diagrams . 10
5 Testing . 10
5.1 General . 10
5.2 Characterization testing . 10
5.3 Performance testing . 12
6 Environmental specifications . 13
6.1 General safety . 13
6.2 Laser safety . 14
Bibliography . 15

Figure 1 – Schematic diagram . 10

Table 1 – Absolute limiting ratings . 8
Table 2 – Operating environment . 8
Table 3 – Operating conditions for functional specification . 9
Table 4 – Functional specification . 9
Table 5 – Characterization tests . 11
Table 6 – Performance test plan . 12
Table 7 – Recommended performance test failure criteria . 13

---------------------- Page: 8 ----------------------
SIST EN IEC 62149-3:2020
IEC 62149-3:2020 © IEC 2020 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

FIBRE OPTIC ACTIVE COMPONENTS AND DEVICES –
PERFORMANCE STANDARDS –

Part 3: Modulator-integrated laser diode transmitters
for 40-Gbit/s fibre optic transmission systems

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 62149-3 has been prepared by subcommittee 86C: Fibre optic
systems and active devices, of IEC technical committee 86: Fibre optics.
This third edition cancels and replaces the second edition published in 2014 and constitutes a
technical revision.
This edition includes the following significant technical changes with respect to the previous
edition: updates of the title, scope, normative references and performance test tables.
The text of this International Standard is based on the following documents:
FDIS Report on voting
86C/1666/FDIS 86C/1676/RVD

Full information on the voting for the approval of this International Standard can be found in the
report on voting indicated in the above table.

---------------------- Page: 9 ----------------------
SIST EN IEC 62149-3:2020
– 4 – IEC 62149-3:2020 © IEC 2020
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts in the IEC 62149 series, published under the general title Fibre optic active
components and devices – Performance standards, can be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC web
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
