Semiconductor optoelectronic devices for fibre optic system applications - Part 1: Specification template for essential ratings and characteristics (IEC 62007-1:2015)

This part of IEC 62007 is a specification template for essential ratings and characteristics of
the following categories of semiconductor optoelectronic devices to be used in the field of
fibre optic systems and subsystems:
– semiconductor photoemitters;
– semiconductor photoelectric detectors;
– monolithic or hybrid integrated optoelectronic devices and their modules.
This part of IEC 62007 provides a frame for the preparation of detail specifications for the
essential ratings and characteristics.
In using this part of IEC 62007, detail specification writers add but do not delete specification
parameters and/or groups of specification parameters for particular applications.

Optoelektronische Halbleiterbauelemente für Anwendungen in Lichtwellenleitersystemen - Teil 1: Vorlage für Leistungsspezifikationen für wesentliche Grenz- und Kennwerte (IEC 62007-1:2015)

Dispositifs optoélectroniques à semiconducteurs pour application dans les systèmes à fibres optiques - Partie 1: Modèle de spécification relatif aux valeurs et caractéristiques essentielles (IEC 62007-1:2015)

L'IEC 62007-1:2015 est un modèle de spécification des valeurs et caractéristiques essentielles applicables aux catégories suivantes de dispositifs optoélectroniques à semiconducteurs destinés à être utilisés dans le domaine des systèmes et sous-systèmes à fibres optiques: - photoémetteurs à semiconducteurs; - détecteurs photoélectriques à semiconducteurs; - dispositifs optoélectroniques intégrés, monolithiques ou hybrides, et leurs modules. La présente partie de l'IEC 62007 fournit une trame pour la préparation des spécifications détaillées des valeurs et caractéristiques essentielles. En utilisant la présente partie de l'IEC 62007, les rédacteurs de spécifications particulières ajoutent, mais ne suppriment pas de paramètres et/ou des groupes de paramètres pour des applications particulières. Cette troisième édition annule et remplace la deuxième édition parue en 2008. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente. Les définitions de certains symboles et termes ont été revues afin de les harmoniser avec celles des autres documents du SC 86C; Un article traitant des APD-TIA a été ajouté. Mots clés: dispositifs optoélectroniques à semiconducteurs, photoémetteurs à semiconducteurs; détecteurs photoélectriques à semiconducteurs; dispositifs optoélectroniques intégrés, monolithiques ou hybrides

Polprevodniške optoelektronske naprave za uporabo v sistemih z optičnimi vlakni - 1. del: Specifikacijska predloga za pomembne naznačene vrednosti in karakteristike (IEC 62007-1:2015)

Ta del standarda IEC 62007 je specifikacijska predloga za pomembne naznačene vrednosti in karakteristike naslednjih kategorij polprevodniških optoelektronskih naprav, ki se uporabljajo na področju sistemov ter podsistemov z optičnimi vlakni:
– polprevodniških fotooddajnikov;
– polprevodniških fotoelektričnih detektorjev;
– monolitskih ali hibridnih integriranih optoelektronskih naprav in njihovih modulov.
Ta del standarda IEC 62007 določa okvir za pripravo podrobnih specifikacij za pomembne naznačene vrednosti in karakteristike.
Pri uporabi tega dela standarda IEC 62007 avtorji podrobnih specifikacij dodajajo specifikacijske parametre in/ali skupine specifikacijskih parametrov za posebne uporabe, vendar jih ne brišejo.

General Information

Status
Published
Publication Date
09-Sep-2015
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
27-Jul-2015
Due Date
01-Oct-2015
Completion Date
10-Sep-2015

RELATIONS

Buy Standard

Standard
SIST EN 62007-1:2015
English language
36 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 62007-1:2015
01-oktober-2015
1DGRPHãþD
SIST EN 62007-1:2009
3ROSUHYRGQLãNHRSWRHOHNWURQVNHQDSUDYH]DXSRUDERYVLVWHPLK]RSWLþQLPLYODNQL
GHO6SHFLILNDFLMVNDSUHGORJD]DSRPHPEQHQD]QDþHQHYUHGQRVWLLQ
NDUDNWHULVWLNH ,(&

Semiconductor optoelectronic devices for fibre optic system applications - Part 1:

Specification template for essential ratings and characteristics (IEC 62007-1:2015)

Optoelektronische Halbleiterbauelemente für Anwendungen in Lichtwellenleitersystemen

- Teil 1: Vorlage für Leistungsspezifikationen für wesentliche Grenz- und Kennwerte (IEC

62007-1:2015)

Dispositifs optoélectroniques à semiconducteurs pour application dans les systèmes à

fibres optiques - Partie 1: Modèle de spécification relatif aux valeurs et caractéristiques

essentielles (IEC 62007-1:2015)
Ta slovenski standard je istoveten z: EN 62007-1:2015
ICS:
31.080.01 Polprevodniški elementi Semiconductor devices in
(naprave) na splošno general
31.260 Optoelektronika, laserska Optoelectronics. Laser
oprema equipment
33.180.01 6LVWHPL]RSWLþQLPLYODNQLQD Fibre optic systems in
VSORãQR general
SIST EN 62007-1:2015 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 62007-1:2015
---------------------- Page: 2 ----------------------
SIST EN 62007-1:2015
EUROPEAN STANDARD EN 62007-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2015
ICS 31.080.01; 31.260; 33.180.01 Supersedes EN 62007-1:2009
English Version
Semiconductor optoelectronic devices for fibre optic system
applications - Part 1: Specification template for essential ratings
and characteristics
(IEC 62007-1:2015)

Dispositifs optoélectroniques à semiconducteurs pour Optoelektronische Halbleiterbauelemente für Anwendungen

application dans les systèmes à fibres optiques - Partie 1: in Lichtwellenleitersystemen - Teil 1: Vorlage für

Modèle de spécification relatif aux valeurs et Leistungsspezifikationen für wesentliche Grenz- und

caractéristiques essentielles Kennwerte
(IEC 62007-1:2015) (IEC 62007-1:2015)

This European Standard was approved by CENELEC on 2015-05-04. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels

© 2015 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN 62007-1:2015 E
---------------------- Page: 3 ----------------------
SIST EN 62007-1:2015
EN 62007-1:2015

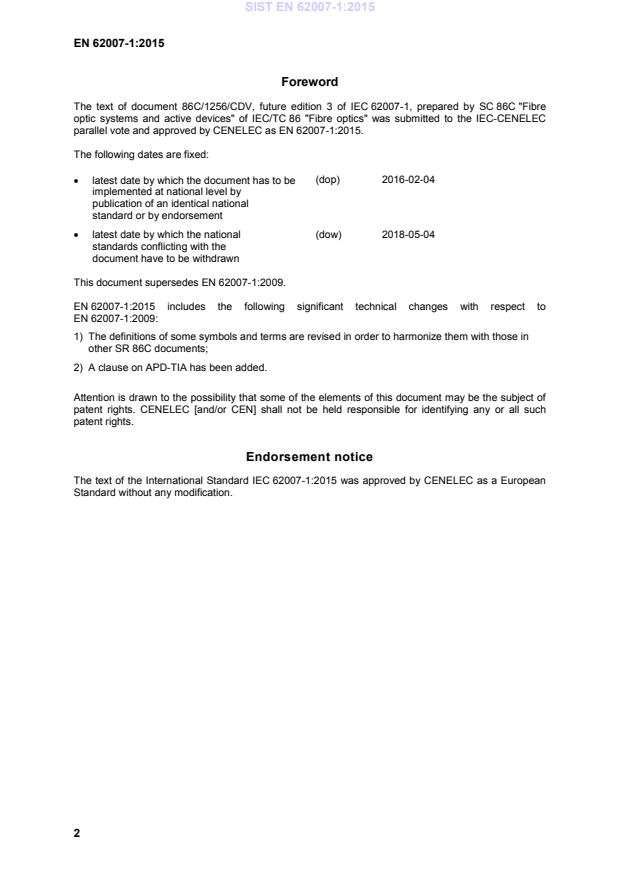

Foreword
