SIST ETS 300 926 E3:2003
(Main)Digital cellular telecommunications system (Phase 2+) (GSM); Voice Broadcast Service (VBS) - Stage 1 (GSM 02.69 version 5.2.1 Release 1996)
Digital cellular telecommunications system (Phase 2+) (GSM); Voice Broadcast Service (VBS) - Stage 1 (GSM 02.69 version 5.2.1 Release 1996)
SUBJECT In VBS it is optional to perform authentication immediately at call establishment to speed-up the call establishment. Authentication may be delayed, but always has to be performed. The specification does not clearly describe what action to take if the MS active in an VBS is leaving the VBS area.
Digitalni celični telekomunikacijski sistem (faza 2+); – Številčenje, naslavljanje in identifikacija (GSM 03.03, različica 5.2.1, izdaja 1996)
General Information
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Digital cellular telecommunications system (Phase 2+) (GSM); Voice Broadcast Service (VBS) - Stage 1 (GSM 02.69 version 5.2.1 Release 1996)33.070.50Globalni sistem za mobilno telekomunikacijo (GSM)Global System for Mobile Communication (GSM)ICS:Ta slovenski standard je istoveten z:ETS 300 926 Edition 3SIST ETS 300 926 E3:2003en01-december-2003SIST ETS 300 926 E3:2003SLOVENSKI
STANDARD
SIST ETS 300 926 E3:2003
GLOBAL SYSTEM
FOR MOBILE COMMUNICATIONSREUROPEANETS 300 926TELECOMMUNICATIONNovember 1998STANDARDThird EditionSource: SMGReference: RE/SMG-010269QR2ICS:33.020Key words:Digital cellular telecommunications system, Global System for Mobile communications (GSM)Digital cellular telecommunications system (Phase 2+);Voice Broadcast Service (VBS) - Stage 1(GSM 02.69 version 5.2.1 Release 1996)ETSIEuropean Telecommunications Standards InstituteETSI SecretariatPostal address: F-06921 Sophia Antipolis CEDEX - FRANCEOffice address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCEInternet: secretariat@etsi.fr - http://www.etsi.orgTel.: +33 4 92 94 42 00 - Fax: +33 4 93 65 47 16Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and theforegoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1998. All rights reserved.SIST ETS 300 926 E3:2003

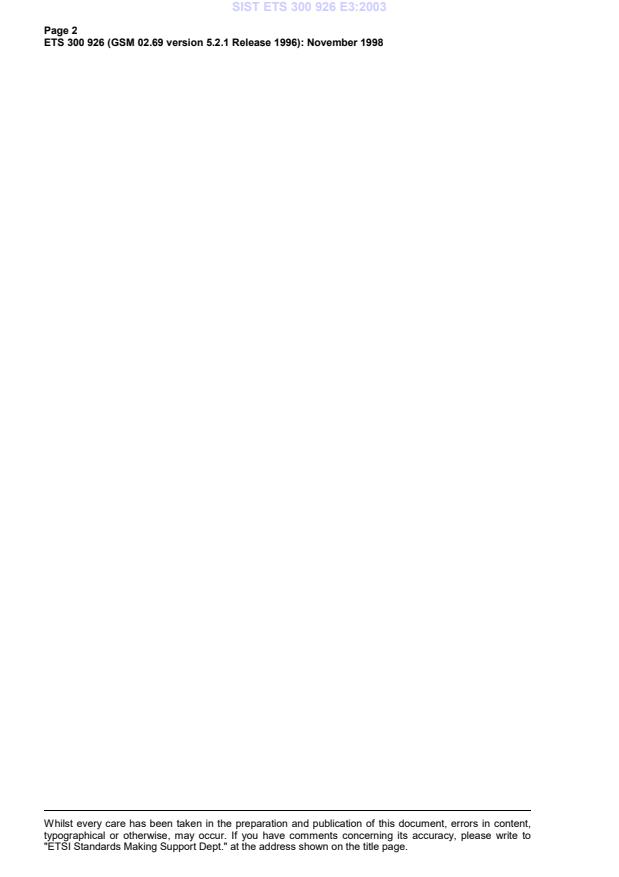

Page 2ETS 300 926 (GSM 02.69 version 5.2.1 Release 1996): November 1998Whilst every care has been taken in the preparation and publication of this document, errors in content,typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to"ETSI Standards Making Support Dept." at the address shown on the title page.SIST ETS 300 926 E3:2003
Page 3ETS 300 926 (GSM 02.69 version 5.2.1 Release 1996): November 1998ContentsForeword.51Scope.72Normative references.73Definitions and abbreviations.83.1Definitions.83.2Abbreviations.84Description.95Normal operation with successful outcome.125.1Provision.125.2Withdrawal.125.3Network related service configuration.125.4Normal operation for voice broadcast call establishment.125.5Charging requirements.136Exceptional procedures or unsuccessful outcome.137Interaction with GSM services and features.137.1Calling Line Identification Presentation (CLIP).137.2Calling Line Identification Restriction (CLIR).137.3Connected Line Identification Presentation (COLP).137.4Connected Line Identification Restriction (COLR).137.5Call Forwarding Unconditional (CFU).137.6Call Forwarding on mobile subscriber Busy (CFB).147.7Call Forwarding on No Reply (CFNRy).147.8Call Forwarding on mobile subscriber Not Reachable (CFNRc).147.9Call Waiting (CW).147.10Call Hold (HOLD).147.11Multi-party Service (MPTY).147.12Closed User Group (CUG).147.13Advice of Charge (AoC).147.14Barring of All Outgoing Calls (BAOC).147.15Barring of Outgoing International Calls (BOIC).157.16Barring of Outgoing International Calls except those directed to the Home PLMNcountry (BOIC-exHC).157.17Barring of All Incoming Calls (BAIC).157.18Barring of Incoming Calls when Roaming outside the home PLMN country (BIC-Roam).157.19Explicit Call Transfer (ECT).157.20enhanced Multi-Level Precedence and Pre-emption service (eMLPP).157.21Short Message Service (SMS).157.22Operator Determined Barring (ODB).158Interworking considerations.15Annex A (informative):Status of Technical Specification GSM 02.69.16History.17SIST ETS 300 926 E3:2003
Page 4ETS 300 926 (GSM 02.69 version 5.2.1 Release 1996): November 1998Blank pageSIST ETS 300 926 E3:2003
Page 5ETS 300 926 (GSM 02.69 version 5.2.1 Release 1996): November 1998ForewordThis European Telecommunication Standard (ETS) has been produced by the Special Mobile Group(SMG) of the European Telecommunications Standards Institute (ETSI).This ETS specifies the stage one description of the Voice Broadcast Service (VBS) within the digitalcellular telecommunications system.The contents of this ETS is subject to continuing work within SMG and may change following formal SMGapproval. Should SMG modify the contents of this ETS, it will be resubmitted for OAP by ETSI with anidentifying change of release date and an increase in version number as follows:Version 5.x.ywhere:x the second digit is incremented for all other types of changes, i.e. technical enhancements,corrections, updates, etc.y the third digit is incremented when editorial only changes have been incorporated in thespecification;Transposition datesDate of adoption of this ETS: 27 November 1998Date of latest announcement of this ETS (doa): 28 February 1999Date of latest publication of new National Standardor endorsement of this ETS (dop/e): 31 August 1999Date of withdrawal of any conflicting National Standard (dow): 31 August 1999SIST ETS 300 926 E3:2003
Page 6ETS 300 926 (GSM 02.69 version 5.2.1 Release 1996): November 1998Blank pageSIST ETS 300 926 E3:2003
Page 7ETS 300 926 (GSM 02.69 version 5.2.1 Release 1996): November 19981ScopeThis European Telecommunication Standard (ETS) specifies the stage one description of the VoiceBroadcast Service (VBS) which allows the distribution of speech (or other signals which can betransmitted via the speech codec), generated by a service subscriber, into a predefined geographical areato all or a group of service subscribers located in this area.The Voice Broadcast Service (VBS) is applicable to all mobile stations in a certain network and area whichhave the technical capability and the respective subscription to receive a VBS call.NOTE:It is not considered as requirement that normal GSM Phase 2 mobile stations will beable to be used for this service.The service is described from the service subscriber's and user's point of view; in particular:-the procedure for normal operation with successful outcome;-the action to be taken in exceptional circumstances;-the interaction with other GSM services and features.This ETS does not deal with the Man-Machine Interface (MMI) requirements, but makes reference to theappropriate Global System for Mobile communications (GSM) specifications.This ETS defines a teleservice of the digital cellular telecommunication system GSM. Any interaction withother services and/or networks not dealt within clauses 8 or 9 are outside the scope of this ETS.2Normative referencesThis ETS incorporates by dated and undated reference, provisions from other publications. Thesenormative references are cited at the appropriate places in the text and the publications are listedhereafter. For dated references, subsequent amendments to or revisions of any of these publicationsapply to this ETS only when incorporated in it by the amendment or revision. For undated references, thelatest edition of the publication referred to applies.[1]GSM 01.04 (ETR 350): "Digital cellular telecommunications system (Phase 2+);Abbreviations and acronyms".[2]GSM 02.67 (ETS 300 924): "Digital cellular telecommunications system(Phase 2+); enhanced Multi-Level Precedence and Pre-emption service(eMLPP) - Stage 1".[3]GSM 12.05 (ETS 300 616): "Digital cellular telecommunications system(Phase 2); Subscriber related event and call data".SIST ETS 300 926 E3:2003
Page 8ETS 300 926 (GSM 02.69 version 5.2.1 Release 1996): November 19983Definitions and abbreviations3.1DefinitionsFor the purposes of this ETS, the following definitions apply:network operator: Entity which provides the network operating elements and resources for the executionof the VBS.service provider: Entity which offers the VBS for subscription. The network operator may be the serviceprovider.service subscriber: Mobile subscriber which subscribes to the VBS.voice broadcast call: An instance of the VBS initiated by a VBS subscriber. This term is usedsynonymously with the term "VBS call".group identification (group ID): A numerical classification. The maximum number of group IDs whichcan be defined in one PLMN depends on the maximum number of group call areas defined in this PLMN.The maximum number of group IDs and group call areas shall be 108, Service subscriber shall beprovided with one or up to 50 group IDs.dispatcher: Particular fixed line or mobile users are identified within the network as dispatchers.Dispatchers shall receive all voice broadcast calls to a certain group ID in a group call area (this shall bedone automatically by the network). In addition they can initiate voice broadcast calls to a group ID in agroup call area.Dispatchers shall be connected to a voice broadcast call by means of standard links via radio or viaan ISDN. They shall be called by their ISDN or MSISDN number, respectively. When dispatchersinitiate voice broadcast calls, they shall call a particular MSISDN number which is related to a groupID and group call area. Dispatchers using the GSM network can be located outside of this groupcall area.The identities of the dispatchers are exclusively predefined in the network by the service provider.There will be none or up to five dispatchers involved in a particular voice broadcast call.destination subscriber: Service subscriber or dispatcher to which the VBS call is directed.calling subscriber: Service subscriber or dispatcher which invokes the VBS call.group call area: Predefined area composed of one or a cluster of cells, to which a particular VBS call isdistributed. The maximum number of group call area IDs which can be defined in one PLMN depends onthe maximum number of group IDs defined in this PLMN. The maximum number of group IDs and groupcall areas combined shall be 108, The composition of a group call area is predefined in the network by theservice provider. Changing of cell allocations in the network due to operational reasons will need anadaptation of the group call area definition. The group call area may include cells of more then one MSCarea and cells of more than one PLMN.3.2AbbreviationsAbbreviations used in this ETS are listed in GSM 01.04.SIST ETS 300 926 E3:2003
Page 9ETS 300 926 (GSM 02.69 version 5.2.1 Release 1996): November 19984DescriptionThe VBS is defined in the following. Figure 1 gives an explanation of the logical concept of the VBS.a)The VBS enables a calling subscriber to send speech unidirectional and simultaneously to allentitled dispatchers and to destination subscribers belonging to a predefined group call area whohave a subscription to the applicable group ID.b)The calling subscriber may be any service subscriber which has subscribed to the related group IDand is entitled to establish a voice broadcast call by his subscription or any dispatcher who isentitled for it by his identity which shall be registered in the network.The destination subscriber may be any service subscriber which has subscribed to the relatedgroup ID or any dispatcher who is entitled for it by his identity which is registered in the network.c)The broadcast call shall be established in a group call area which is comprised of one or a cluster ofcells. Group call areas shall be predefined in the network by the service provider, co-ordinated bythe network operator.In case of a service subscriber initiating a VBS call, the group call area is uniquely identified by theactual cell in which the service subscriber resides at the moment of VBS call initialization and by thecalled group ID.A dispatcher initiating a VBS call will be connected to a related predefined group call area. Theentitlement of the dispatcher is checked by the network element responsible for the voice broadcastcall management by verification of the calling identity. Since a dispatcher may be registered to morethan one group call area and group ID an indication of the wanted group call area
and group ID hasto be given in form of a dedicated address called by the dispatcher.
...
